  1. What’s new in ProjectWise Publishing? Jo Terri Wright – Product Manager, Publishing

  2. Agenda • Product Updates • ProjectWise InterPlot • ProjectWise Dynamic Plot • MicroStation Printing • What’s Next…

  3. Bentley Publishing Solutions • ProjectWise InterPlot • Single publishing solution that addresses the needs of distributed project teams to produce standard product deliverables through all phases of the project lifecycle • ProjectWise Dynamic Plot • Review/Markup solution that uses plain paper and a digital pen to dramatically streamline the process for updating original design files from office or field worker comments • ProjectWise Dynamic Composition Server • Provides both interactive and automated services for creating PDF and raster renditions plus i-models from managed content based on project standards • MicroStation Printing • Single sheet and set printing for basic desktop project publishing

  4. Product Update ProjectWise InterPlot V8i (SELECT Series 2)

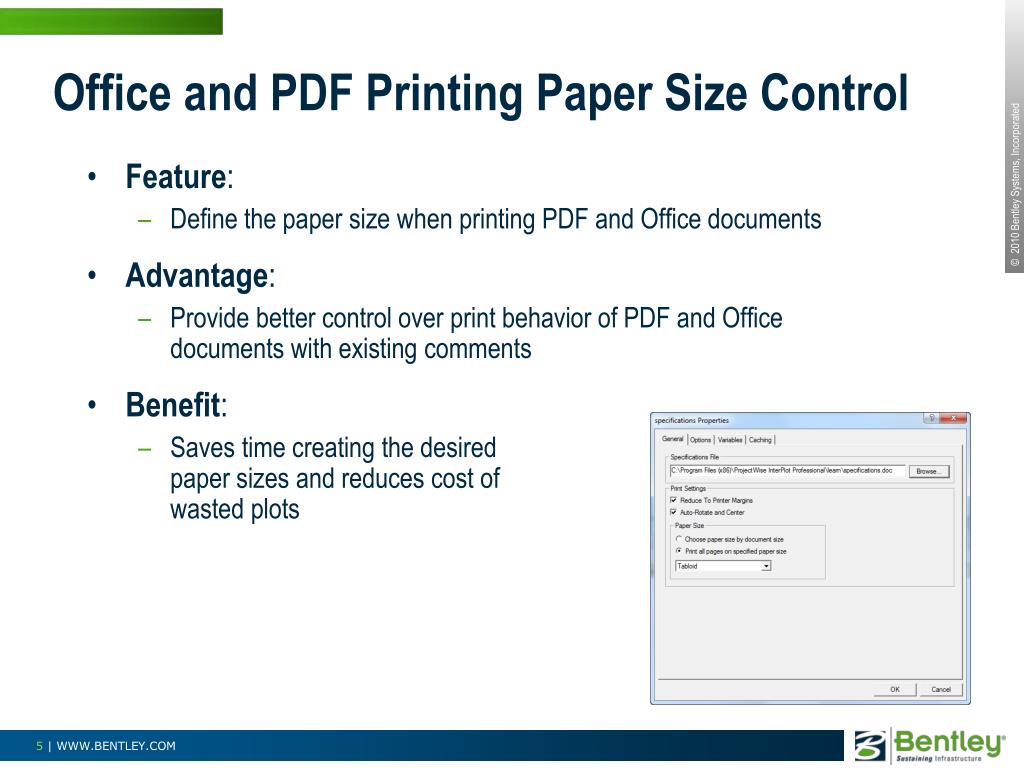

  5. Office and PDF Printing Paper Size Control • Feature: • Define the paper size when printing PDF and Office documents • Advantage: • Provide better control over print behavior of PDF and Office documents with existing comments • Benefit: • Saves time creating the desiredpaper sizes and reduces cost ofwasted plots

  6. PDF Comment Printing • Feature: • Control whether PDF comments are to be printed • Advantage: • Print existing comments so that others can viewthem during project reviews • Benefit: • Improve the quality of reviewsof PDF documents with existingcomments

  7. Printer / Plotter Support • ProjectWise InterPlot Driver Pack • HP T1200 • HP T770 • ProjectWise InterPlot Mid-VolumeDriver Pack • Océ ColorWave 600

  8. ProjectWise InterPlot V8i (SELECTseries 4) • Publish 3D PDF properties • Publish design properties directly into 2D & 3D PDF models • View, search, & navigate using just Adobe Reader • Print to PDF • PDF Portfolio Printing • Portfolios: • Contains multiple files (PDF and Source) • Users can open, read, edit, and format each component file independently of the other component files in the PDF Portfolio. • Printed w/ProjectWise InterPlot Organizer

  9. ProjectWise InterPlot Driver Pack V8i(SELECTseries 4) • New Plotter Support • HP DesignJet T1300 • OcePlotWave 300 • OceColorWave 300

  10. Product Update ProjectWise Dynamic Plot V8i (SELECT Series 2)

  11. ProjectWise Dynamic Plot V8i View markups with original source model Printed drawings with “dynamic” layer Capture drawing markupsin real-time ProjectWise Dynamic Plot Download and synchronize markups Print using everydayprinters and plotters Prepare drawings and PDFs for plotting Start Finish

  12. Typical use cases: • Design review • Quality assurance • Bridge inspection • As-built markups • A/E field notes • P&ID walk-downs Usage doubledin past six months

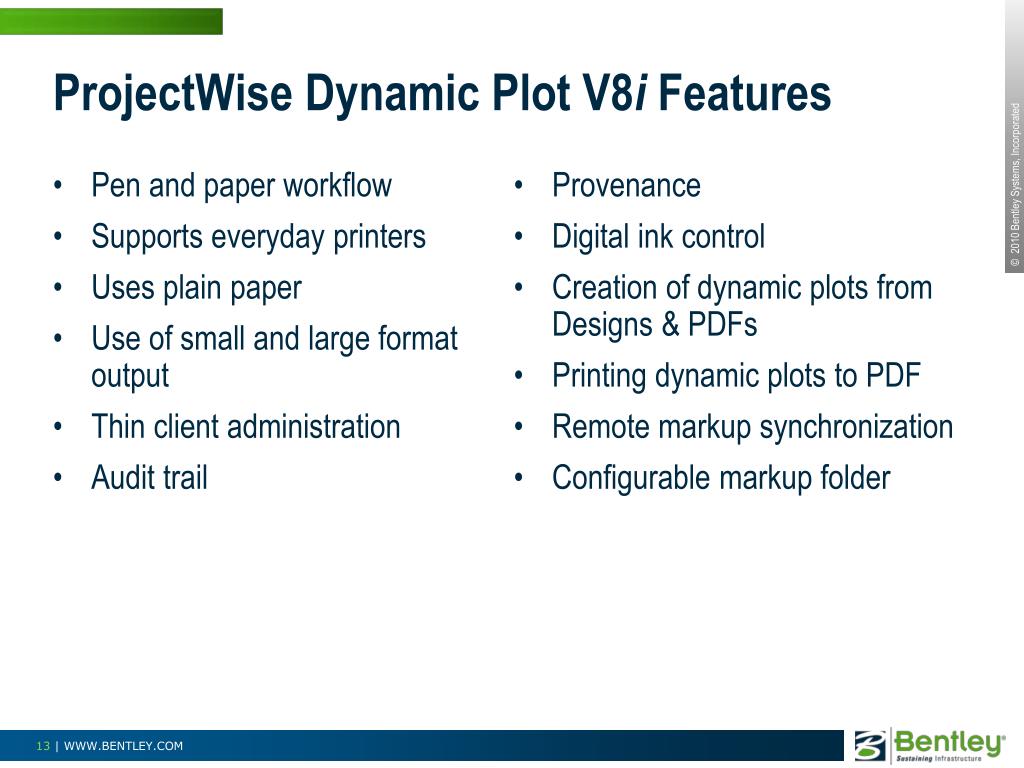

  13. ProjectWise Dynamic Plot V8i Features • Pen and paper workflow • Supports everyday printers • Uses plain paper • Use of small and large format output • Thin client administration • Audit trail • Provenance • Digital ink control • Creation of dynamic plots from Designs & PDFs • Printing dynamic plots to PDF • Remote markup synchronization • Configurable markup folder

  14. ProjectWise Dynamic Plot V8i Features • Pen and paper workflow • Supports everyday printers • Uses plain paper • Use of small and large format output • Thin client administration • Audit trail • Provenance • Digital ink control • Creation of dynamic plots from Designs & PDFs • Printing dynamic plots to PDF • Remote markup synchronization • Configurable markup folder

  15. ProjectWise Dynamic Plot V8i (SELECTseries 4) • Markup gestures w/Digital pen • Uses simple gesture to identify selected comments • Can be viewed and scheduled individually • Heads-up display of markups • Comments can be seen/addressed individually/collectively in design • Allows operators to apply markups & note progress in single session of MicroStation • Sync Dynamic Plot markups with Project specific folders • Place markups in specified folders associated with ProjectWise Projects • Track markups per project

  16. Product Update MicroStation Printing V8i (SELECT Series 2)

  17. Unification of Bentley Print clients Batch Print Print dialog Organizer IPLOT dialog Print dialog Print Organizer

  18. PDF Links • Engineering Links and links defined in Project Explorer transfer into the output PDF • Utilize existing links created in MicroStation to make more intelligent PDFs

  19. Geospatial PDF • Multiple areas per sheet & set • View coordinates in appropriate projection • Measure in real world units • Comment and place markers for follow-up

  20. PDF Measuring • Allows measuring in model space within a PDF document • Retain the model units for measuring distance and area for the Master as well as Reference files

  21. MicroStation V8i – Printing (SELECT Series 3) • Variable Print Definitions • Print faster, and addresses current drawings/project • Defers discovery of drawings to print time • Convert to traditional print definitions on demand • Design Script Support • Reduce errors and improve readability of the printed output • Consistently control the display elements in printed output w/scripted logic • Level and Reference Overrides • Reduce errors by ensuring specific display rules each time you print • Override levels and references at print time

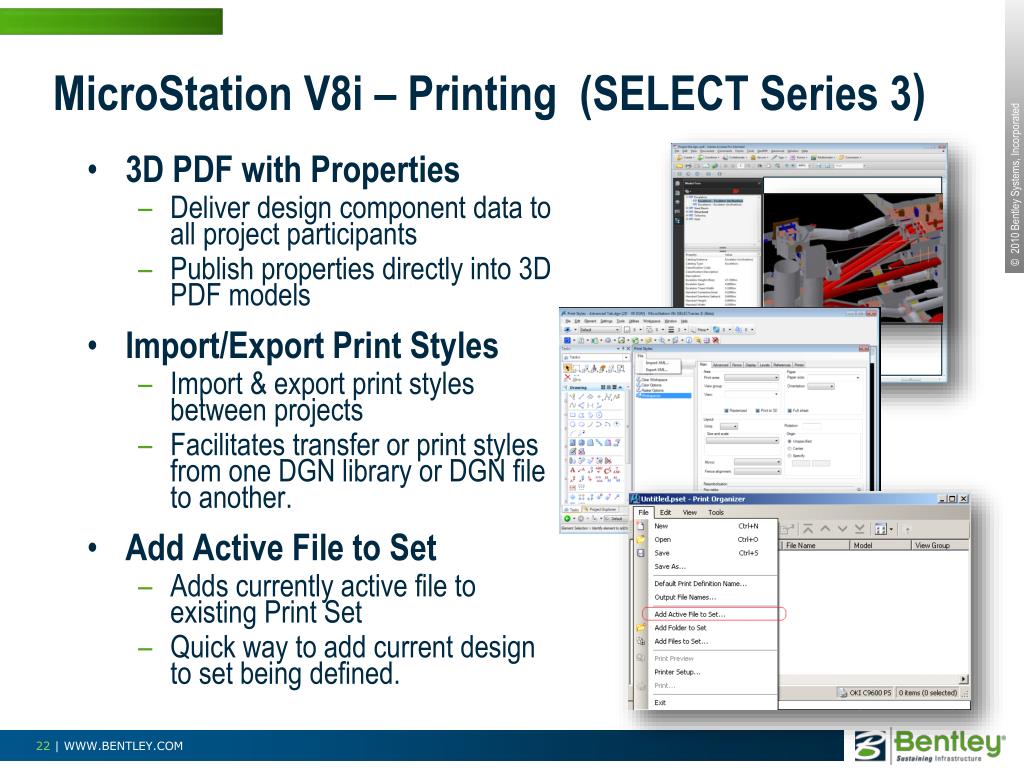

  22. MicroStation V8i – Printing (SELECT Series 3) • 3D PDF with Properties • Deliver design component data to all project participants • Publish properties directly into 3D PDF models • Import/Export Print Styles • Import & export print styles between projects • Facilitates transfer or print styles from one DGN library or DGN file to another. • Add Active File to Set • Adds currently active file to existing Print Set • Quick way to add current design to set being defined.

  23. What’s Next …

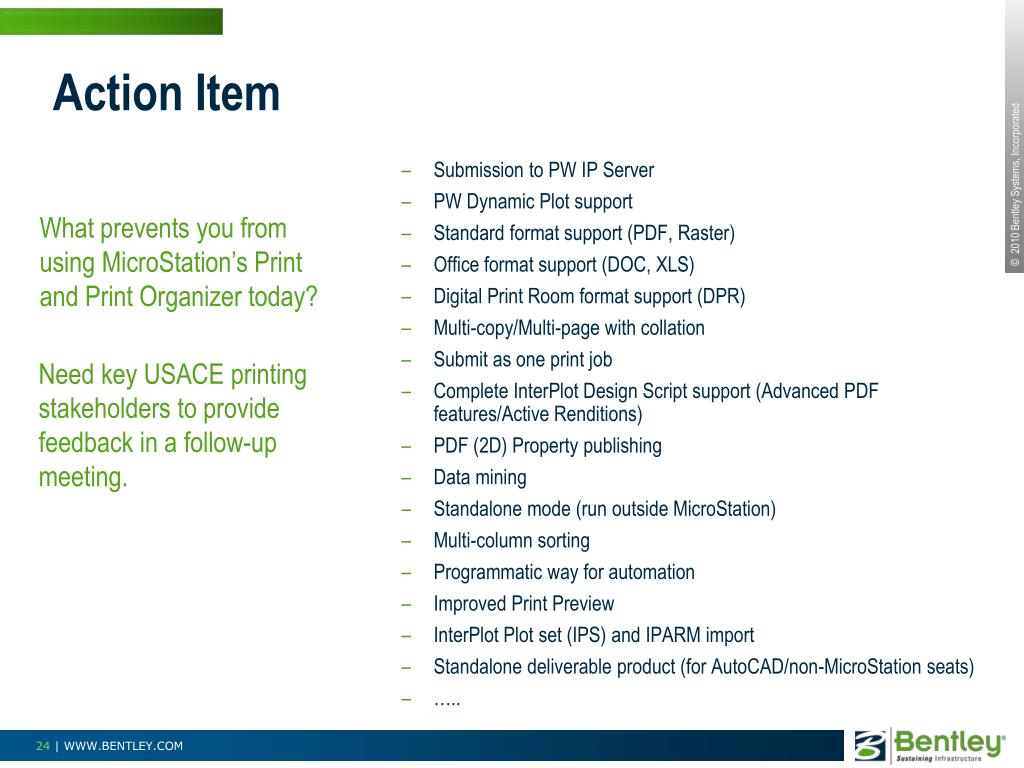

  24. Action Item • Submission to PW IP Server • PW Dynamic Plot support • Standard format support (PDF, Raster) • Office format support (DOC, XLS) • Digital Print Room format support (DPR) • Multi-copy/Multi-page with collation • Submit as one print job • Complete InterPlot Design Script support (Advanced PDF features/Active Renditions) • PDF (2D) Property publishing • Data mining • Standalone mode (run outside MicroStation) • Multi-column sorting • Programmatic way for automation • Improved Print Preview • InterPlot Plot set (IPS) and IPARM import • Standalone deliverable product (for AutoCAD/non-MicroStation seats) • ….. What prevents you from using MicroStation’s Print and Print Organizer today? Need key USACE printing stakeholders to provide feedback in a follow-up meeting.

  25. Create Sheets Apply Print Styles to Sheet Model • Consistent with Style System • Drop down selection for Print Style • Populates Printing Dialogs when the model is printed

  26. Create Sheets Identify Print Styles at Print Time • Also add to Print Organizer print definitions • Keep consistent with Styles Guideline

  27. Publish Sheets Printing User Experience • Address inconsistent with naming and grouping on • Print • Print definition • Print Style • Print Definition Creation Option dialogs

  28. ProjectWise Dynamic Composition Server V8i • Extends Dynamic Composition Server to produce intelligent PDF, i-models & raster • Interactive and automated services for creating project standard deliverables from ProjectWise • Input includes DGN, DWG, Raster, PDF, Office, and IPS files • Available in ProjectWise V8i (SELECTSeries 4) (Q1’12)

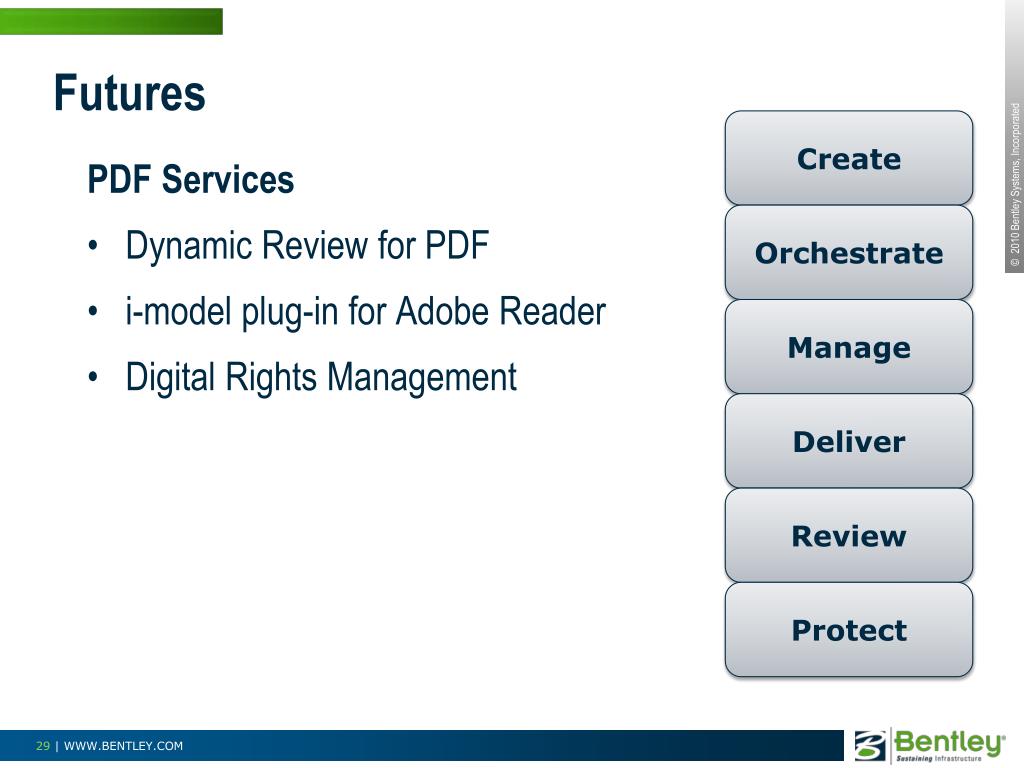

  29. Futures Create PDF Services • Dynamic Review for PDF • i-model plug-in for Adobe Reader • Digital Rights Management Orchestrate Manage Deliver Review Protect

  30. Dynamic Review for PDF • Bentley and Bluebeam announce Dynamic Review for PDF solution • Markup Engineering data using Bluebeam PDF Revu and Studio Server • Synchronize markups through ProjectWise to original engineering data

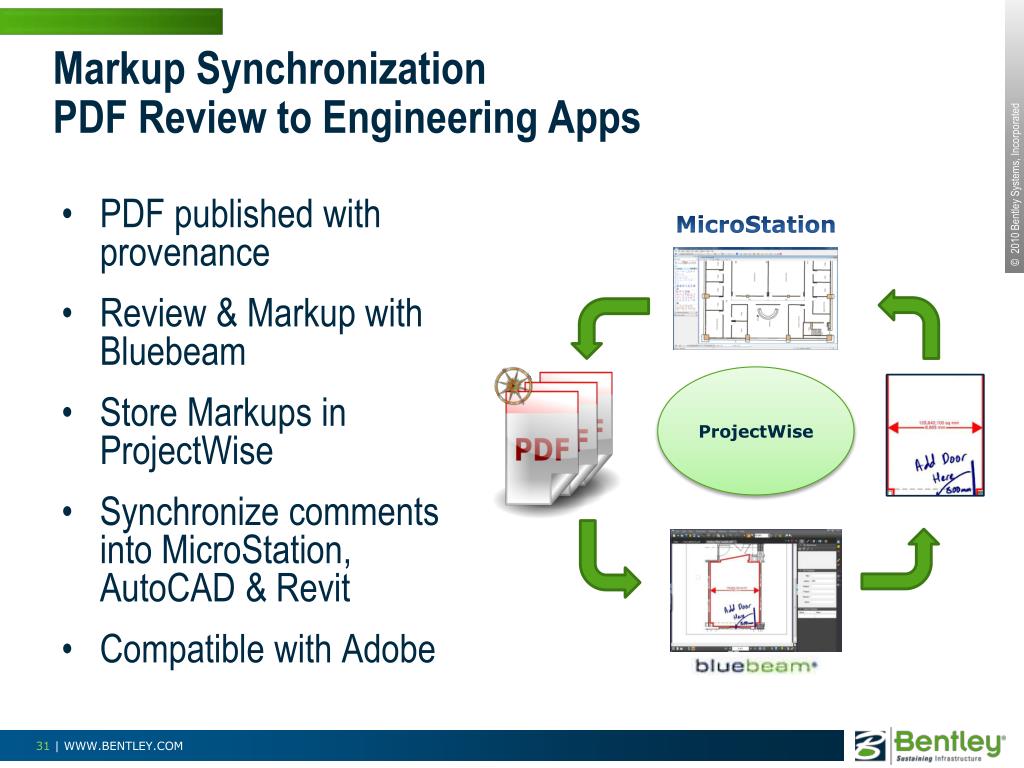

  31. Markup SynchronizationPDF Review to Engineering Apps • PDF published with provenance • Review & Markup with Bluebeam • Store Markups in ProjectWise • Synchronize comments into MicroStation, AutoCAD & Revit • Compatible with Adobe MicroStation ProjectWise

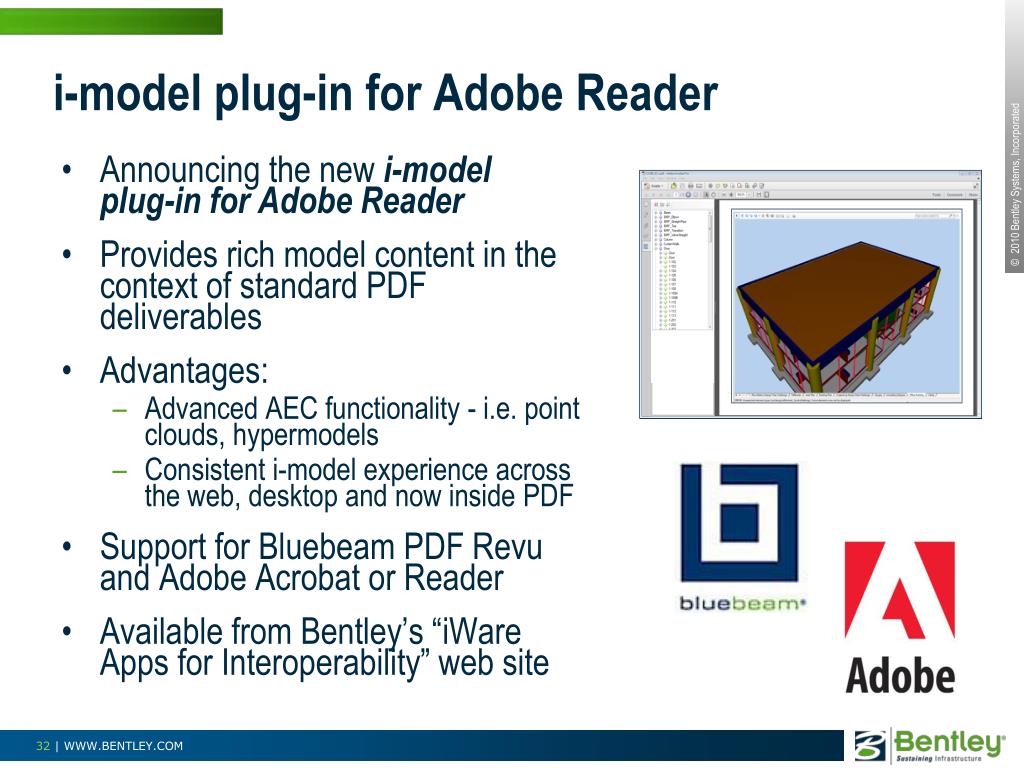

  32. i-model plug-in for Adobe Reader • Announcing the new i-model plug-in for Adobe Reader • Provides rich model content in the context of standard PDF deliverables • Advantages: • Advanced AEC functionality - i.e. point clouds, hypermodels • Consistent i-model experience across the web, desktop and now inside PDF • Support for Bluebeam PDF Revu and Adobe Acrobat or Reader • Available from Bentley’s “iWare Apps for Interoperability” web site

  33. Leverages DgnNavigator Control What is the solution?Plug-in Property Search Navigation Controls Acrobat & Reader Property Viewing Multiple Models

  34. Digital Rights Management • Description • Service that manages and applies data centric security via user access and control policies to various types of data including PDF and Office formats. • Applies centrally managed policies to documents to retain continuous control of content • Based on Adobe Livecycle Server – (private)Cloud based • Key Benefits • Proactively protect confidential data or other sensitive information from being leaked outside the organization. • Restrict confidential information internally to only certain individuals. • Enable more secure collaboration to improve supply chain communication • Improve compliance with industry regulations or standards • Key Features • Dynamic revocation • Audit trail reporting • Online or offline use • Watermarking • Expiration Rules • View, Print, Modify, Copy Control

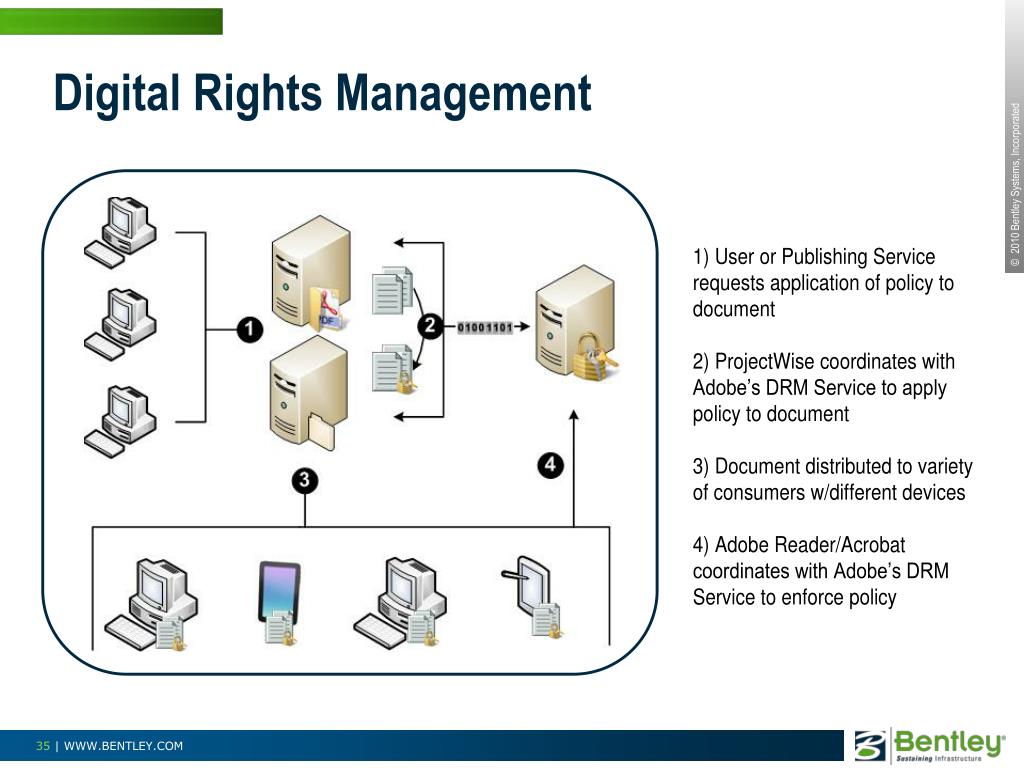

  35. Digital Rights Management

  36. Agenda • Product Updates • ProjectWise InterPlot • ProjectWise Dynamic Plot • MicroStation Printing • What’s Next…

  37. Questions

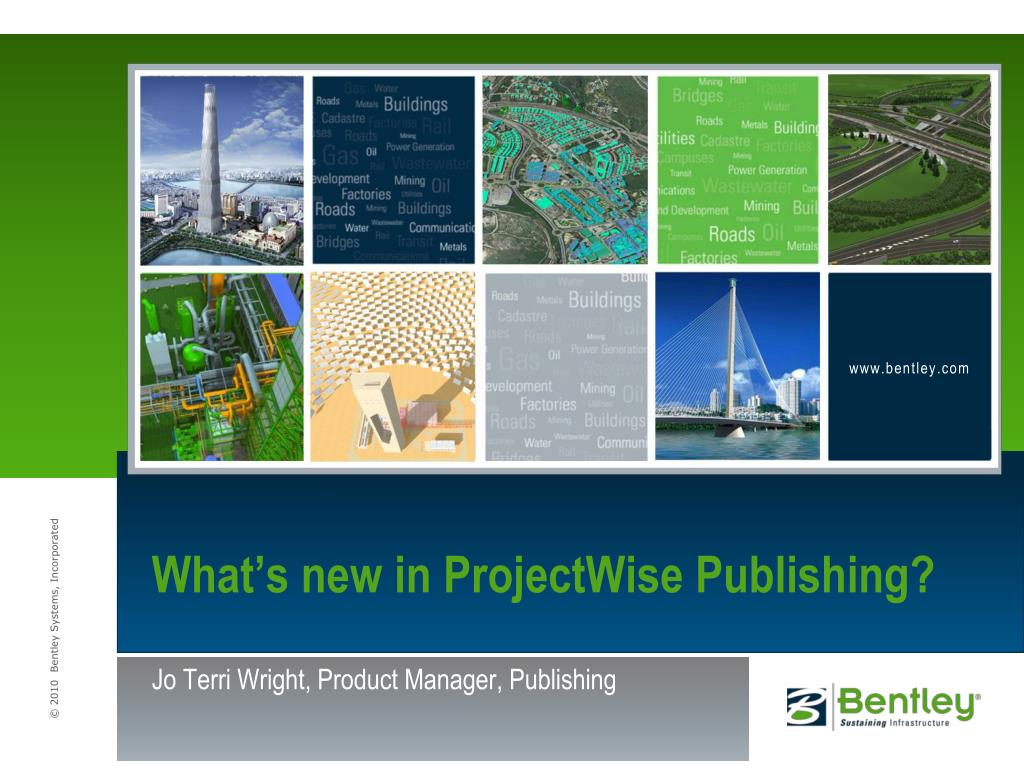

  38. What’s new in ProjectWise Publishing? Jo Terri Wright, Product Manager, Publishing

  39. TR/CR Current Status for 2011 • Total of 13 opened for MicroStation Printing • 11 Fixed for Ss3 – see the MicroStation Beta 2 • 1 Open Scheduled for Post Ss3 • 1 Open Filed • Total of 6 opened for InterPlot • 2 Fixed for Ss4 • 2 Open Scheduled for Ss4 • 2 Open Filed

  40. Printer / Plotter Support • ProjectWise InterPlot Driver Pack • HP DesignJet T1120 • HP DesignJet 4X20 (4020/4520) • HP T1200 (SS2) • HP T770 (SS2) • Océ TCS 300 • Océ TDS 320 • ProjectWise InterPlot Mid-VolumeDriver Pack • Xerox 6030/6050 • Océ ColorWave 600 (SS2)

  41. ProjectWise Dynamic Plot Review/Markup solution that uses plain paper and a digital pen to dramatically streamline the process for updating original design files from office or field worker comments Print Mark-up Share
