Case 1: hand calc comparison model

Case 1: hand calc comparison model. 18.1 cm. Uniform heating of block using equiv volume heat generation (36.3W) Same surface area (982 cm^2) Radiation to “space” node at 298K (view factor=1) Smaller mass than hand calc Emissivity = 0.1. 18.1 cm. 4.55 cm. Case 1: comparison results.

guy
Télécharger la présentation

Case 1: hand calc comparison model

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

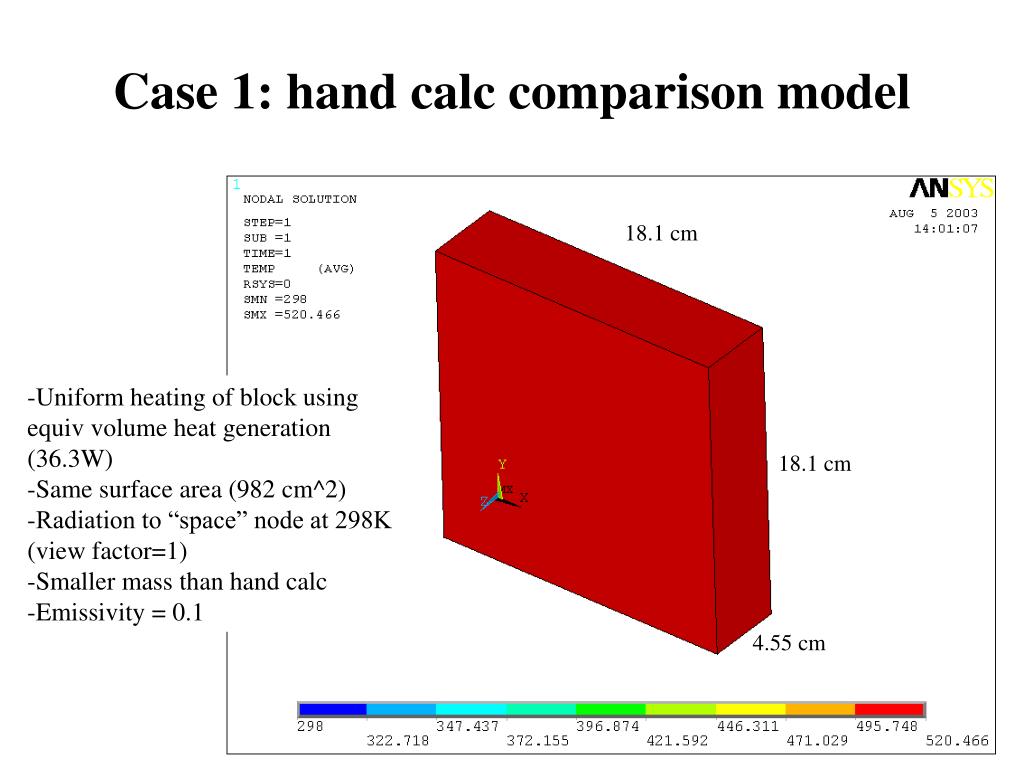

  1. Case 1: hand calc comparison model 18.1 cm • Uniform heating of block using equiv volume heat generation (36.3W) • Same surface area (982 cm^2) • Radiation to “space” node at 298K (view factor=1) • Smaller mass than hand calc • Emissivity = 0.1 18.1 cm 4.55 cm

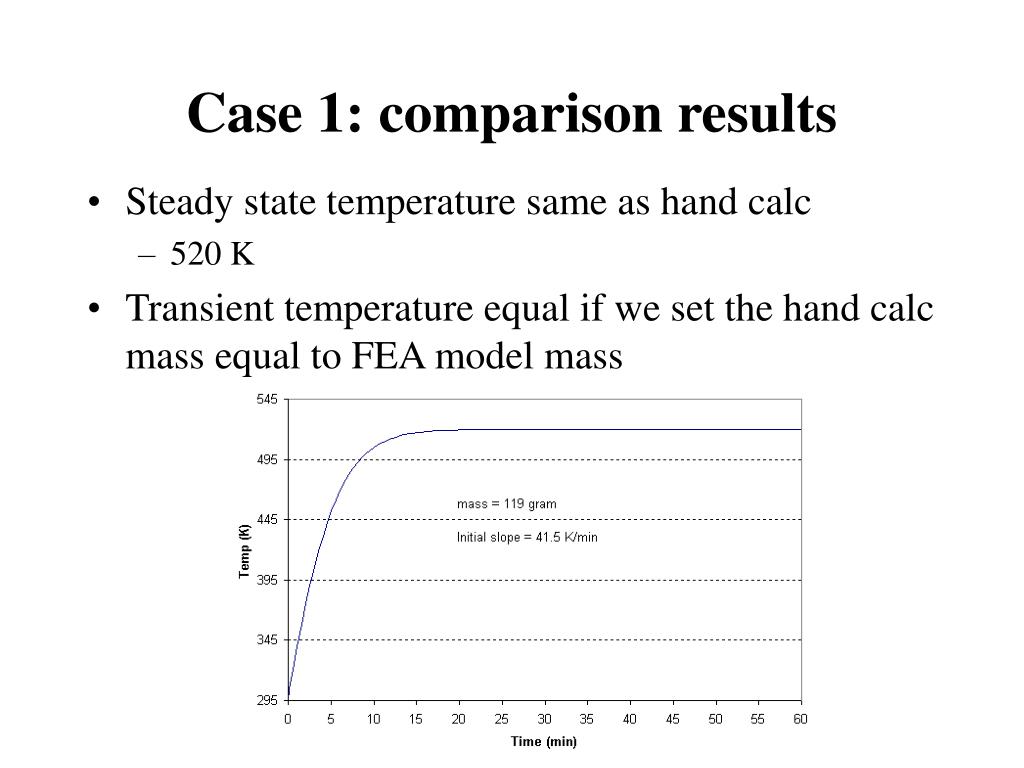

  2. Case 1: comparison results • Steady state temperature same as hand calc • 520 K • Transient temperature equal if we set the hand calc mass equal to FEA model mass

  3. Case 2: SS block with circular heating Steady state results

  4. Case 2: SS block with circular heating • Transient results
