Database Systems I Relational Algebra

1. Database Systems I Relational Algebra

2. Relational Query Languages • Query languages (QL): Allow manipulation and retrieval of data from a database. • Relational model supports simple, powerful query languages: • Strong formal foundation based on logic. • High level, abstract formulation of queries. • Easy to program. • Allows the DBS to do much optimization. • DBS can choose, e.g., most efficient sorting algorithm or the order of basic operations.

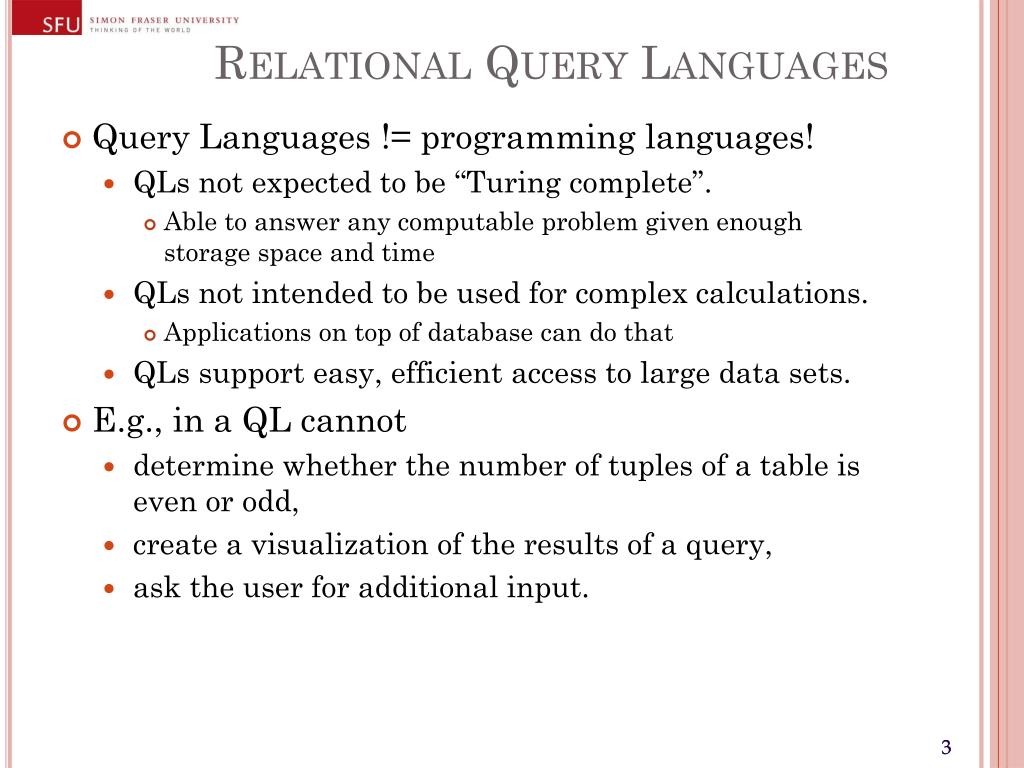

3. Relational Query Languages • Query Languages != programming languages! • QLs not expected to be “Turing complete”. • Able to answer any computable problem given enough storage space and time • QLs not intended to be used for complex calculations. • Applications on top of database can do that • QLs support easy, efficient access to large data sets. • E.g., in a QL cannot • determine whether the number of tuples of a table is even or odd, • create a visualization of the results of a query, • ask the user for additional input.

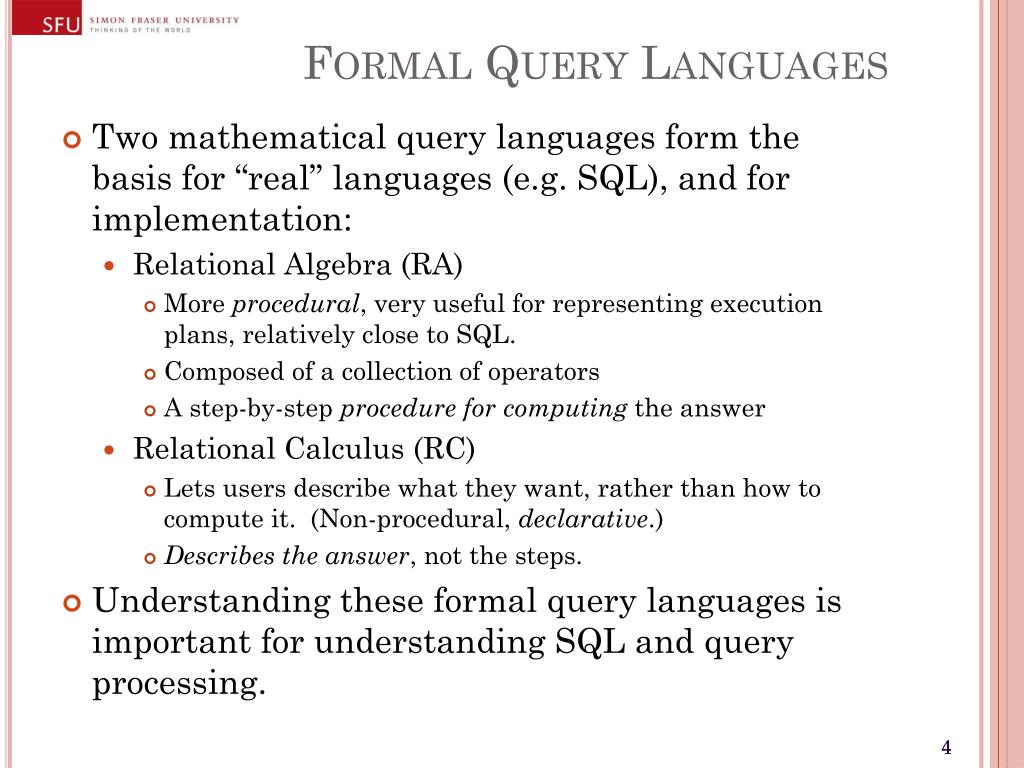

4. Formal Query Languages • Two mathematical query languages form the basis for “real” languages (e.g. SQL), and for implementation: • Relational Algebra (RA) • More procedural, very useful for representing execution plans, relatively close to SQL. • Composed of a collection of operators • A step-by-step procedure for computing the answer • Relational Calculus (RC) • Lets users describe what they want, rather than how to compute it. (Non-procedural, declarative.) • Describes the answer, not the steps. • Understanding these formal query languages is important for understanding SQL and query processing.

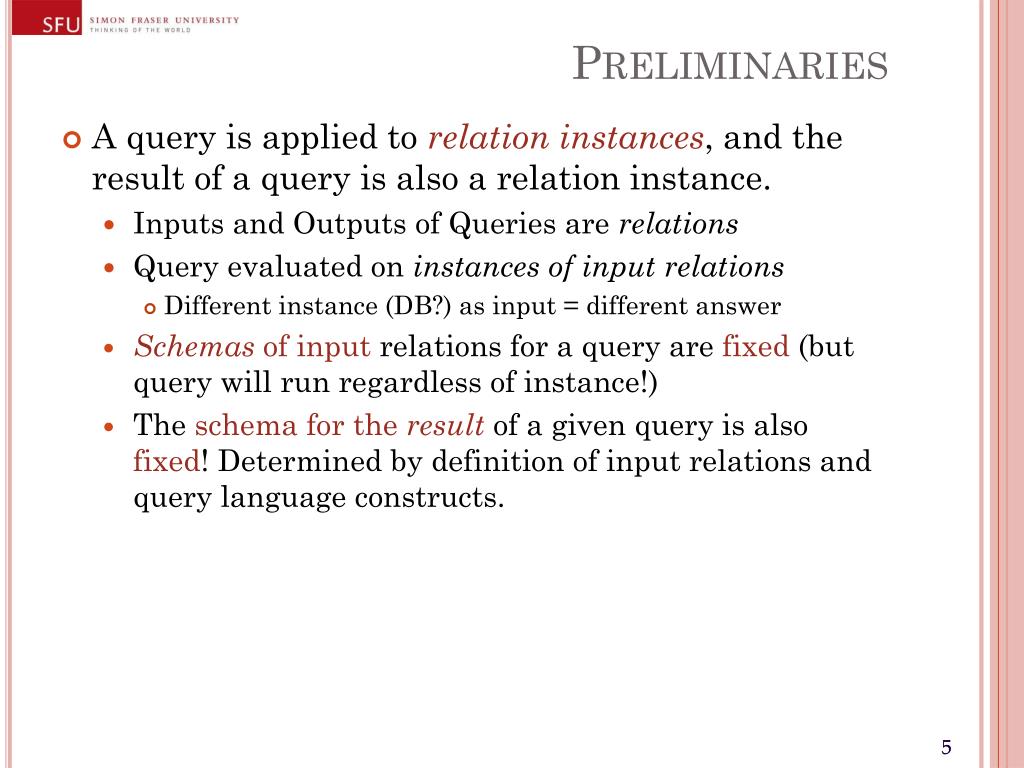

5. Preliminaries • A query is applied to relation instances, and the result of a query is also a relation instance. • Inputs and Outputs of Queries are relations • Query evaluated on instances of input relations • Different instance (DB?) as input = different answer • Schemasof input relations for a query are fixed (but query will run regardless of instance!) • The schema for the resultof a given query is also fixed! Determined by definition of input relations and query language constructs.

6. Preliminaries • Positional vs. named-attribute notation: • Positional notation • Ex: function(1,2,3) • easier for formal definitions • Named-attribute notation • Ex: function(var1=1, var2=2, var3=3) • more readable • Advantages/disadvantages of one over the other?

7. R1 S1 S2 Example Instances • “Sailors” and “Reserves” relations for our examples. • 2 instances of “Sailors” S1 & S2 • We’ll use positional or named attribute notation • Assume that names of attributes in query results are `inherited’ from names of attributes in query input relations

8. Relational Algebra

9. Relational Algebra • An algebra consists of operators and operands. Operands can be either variables or constants. • In the algebra of arithmetic: • atomic operands are variables such as x or y and constants such as 15. • Operators are the usual arithmetic operators such as +, -, *. • Expressions are formed by applying operators to atomic operands or other expressions. • For example, 15 x + 15 (x + 15) * y

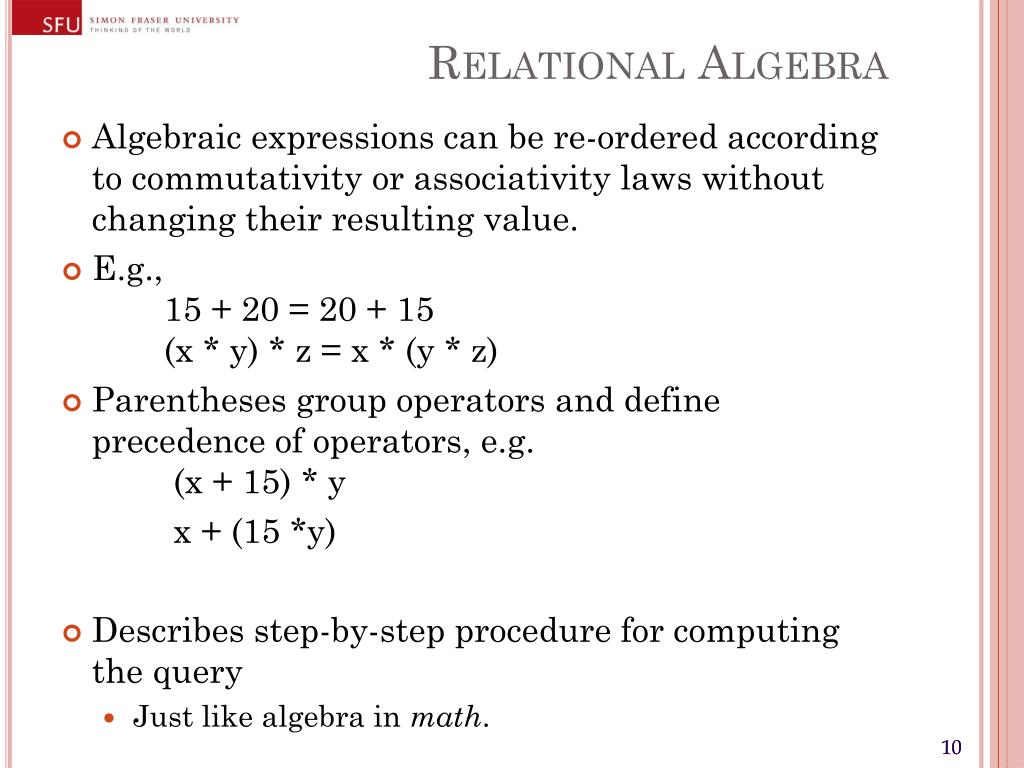

10. Relational Algebra • Algebraic expressions can be re-ordered according to commutativity or associativity laws without changing their resulting value. • E.g., 15 + 20 = 20 + 15 (x * y) * z = x * (y * z) • Parentheses group operators and define precedence of operators, e.g.(x + 15) * y x + (15 *y) • Describes step-by-step procedure for computing the query • Just like algebra in math.

11. Relational Algebra • In relational algebra, operands are relations / tables, and an expression evaluates to a relation / set of tuples. • The relational algebra operators are • set operations, • operations removing rows (selection) or columns (projection) from a relation, • operations combining two relations into a new one (Cartesian product, join), • a renaming operation, which changes the name of the relation or of its attributes.

12. Relational Algebra • Every operator takes one or two relation instances • A relational algebra expression is recursively defined to be a relation • A combination of relations is a relation • Result is also a relation • Can apply operator to • Relation from database • Relation as a result of another operator

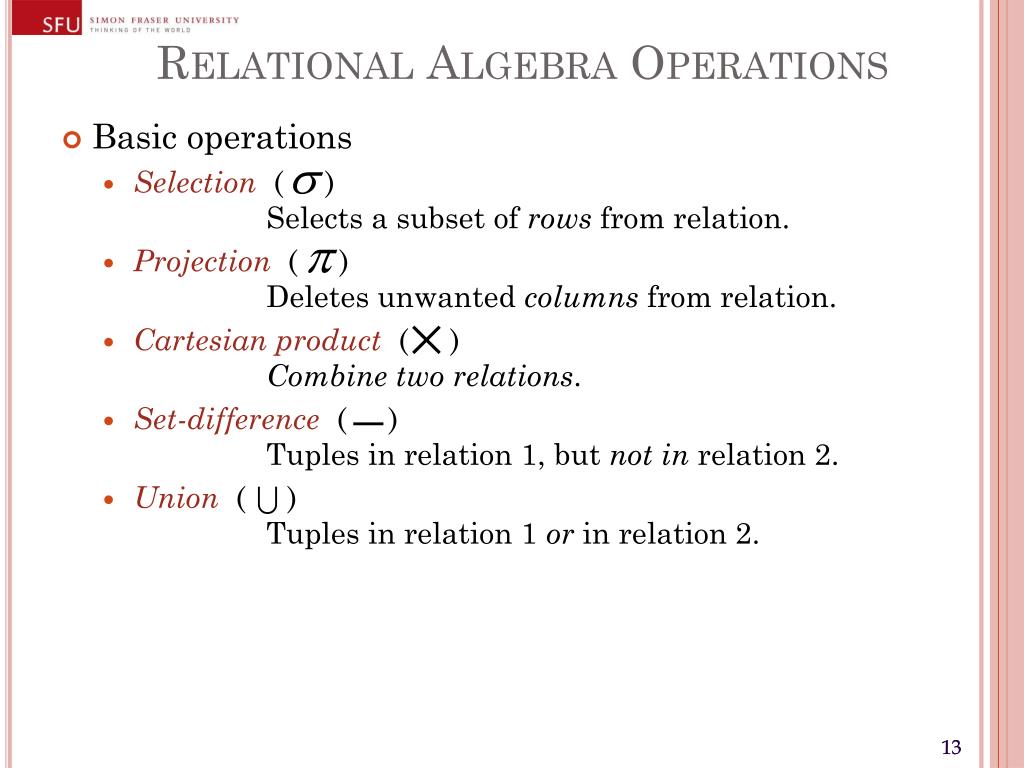

13. Relational Algebra Operations • Basic operations • Selection ( ) Selects a subset of rows from relation. • Projection ( ) Deletes unwanted columns from relation. • Cartesian product( ) Combinetwo relations. • Set-difference ( ) Tuples in relation 1, but not in relation 2. • Union( ) Tuples in relation 1 or in relation 2.

14. Relational Algebra Operations • Additional operations: • Intersection, join, division. • Renaming of relations / attributes. • Not essential, can be implemented using the five basic operations. • But (very!) useful. • Since each operation returns a relation, operationscan be composed, i.e. output of one operation can be input of the next operation.

15. Renames relations / attributes, without changing the relation instance. relation R is renamed to S, attributes are renamed A1, . . ., An Rename only some attributes using the positional notation to reference attributes No renaming of attributes, just the relation Renaming

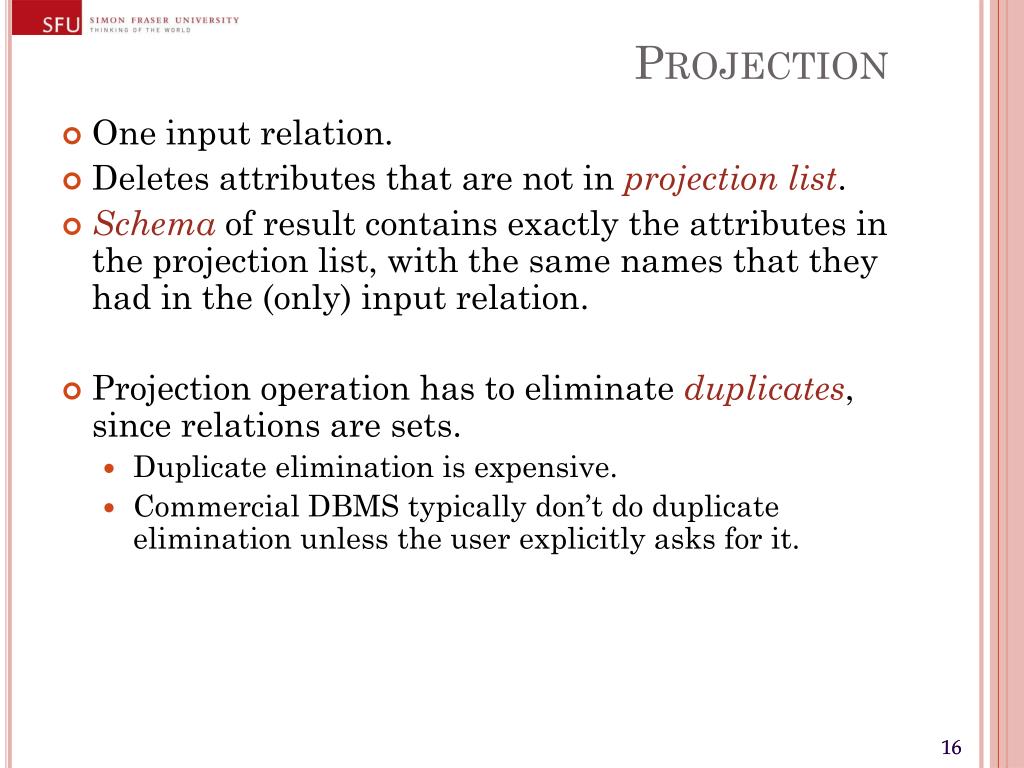

16. Projection • One input relation. • Deletes attributes that are not in projection list. • Schema of result contains exactly the attributes in the projection list, with the same names that they had in the (only) input relation. • Projection operation has to eliminate duplicates, since relations are sets. • Duplicate elimination is expensive. • Commercial DBMS typically don’t do duplicate elimination unless the user explicitly asks for it.

17. S2 Projection • Similar in concept to VIEWs • Other fields are projected out

18. Selection • One input relation. • Selects all tuples that satisfy selection condition. • No duplicates in result! • Schema of result identical to schema of (only) input relation. • Selection conditions: • simple conditions comparing attribute values (variables) and / or constants or • complex conditions that combine simple conditions using logical connectives AND and OR.

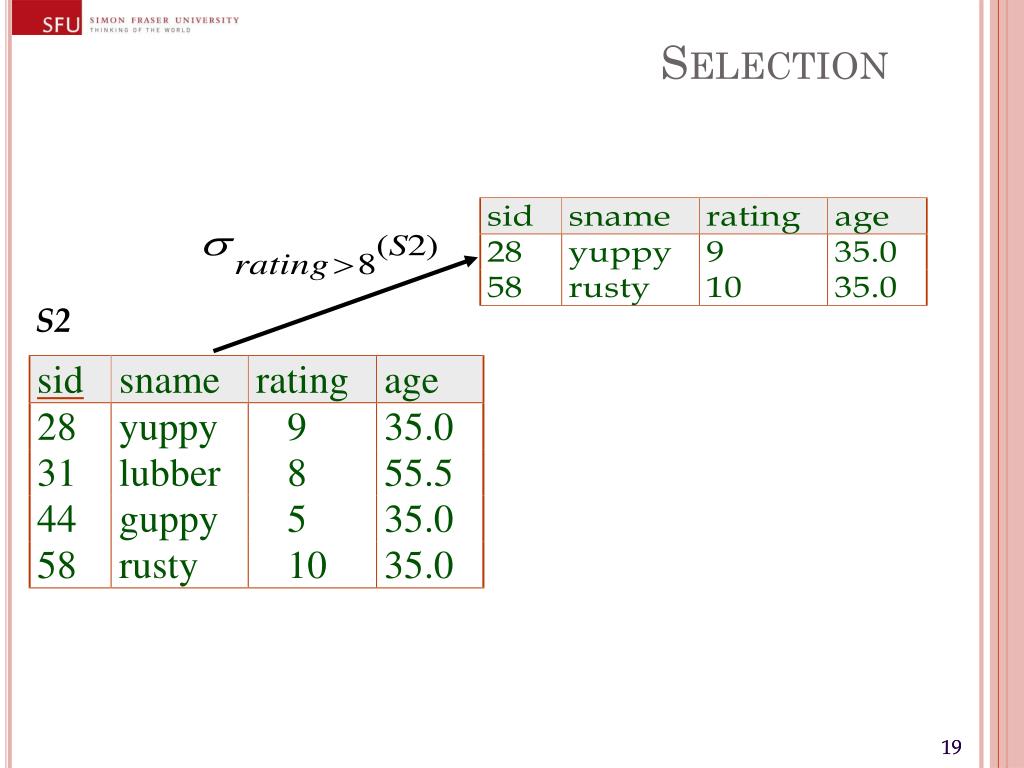

19. S2 Selection

20. S2 Selection • But the result of an expression is another relation, we can substitute an expression wherever a relation is expected

21. Union, Intersection, Set-Difference • All of these set operations take two input relations, which must be union-compatible: • Same sets of attributes. • Corresponding attributes have same type. • What is the schema of result?

22. Union S2 S1 • Concatenates S1 and S2 • Result contains ALL tuples that occur in either S1 or S2 • Schemas must be identical • If they have the same number of fields • Fields have same domains SELECT * FROM S1 UNION SELECT * FROM S2

23. Intersection S2 S1 • Result contains ALL tuples that occur in both S1 or S2 • Schemas must be identical SELECT * FROM S1 INTERSECT SELECT * FROM S2

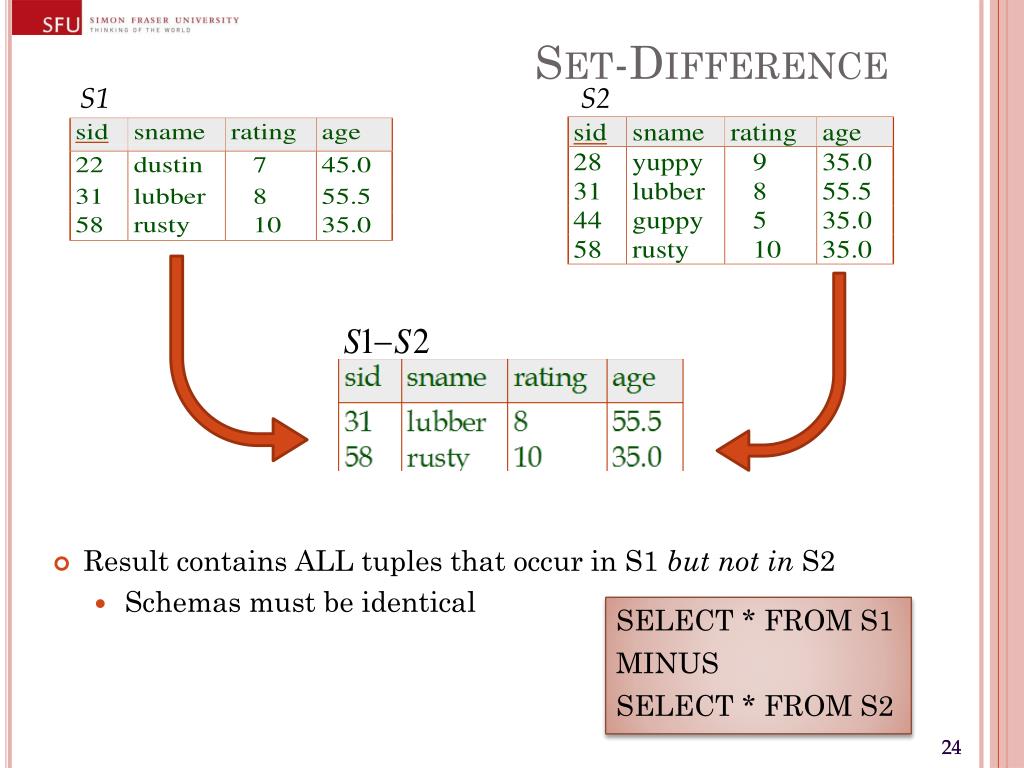

24. Set-Difference S2 S1 • Result contains ALL tuples that occur in S1 but not in S2 • Schemas must be identical SELECT * FROM S1 MINUS SELECT * FROM S2

25. Cartesian Product • Also referred to as cross-product or product. • Two input relations. • Each tuple of the one relation is paired with each tuple of the other relation. • Result schema has one attribute per attribute of both input relations, with attribute names `inherited’ if possible. • In the result, there may be two attributes with the same name, e.g. both S1 and R1 have an attribute called sid. • What to do??

26. Cartesian Product S2 S1 • Result contains all fields of S1 followed by fields of S2 • Contains one tuple <s1,s2> for each pair of tuples in S1 and S2. • Schemas can be different • If S1 and S2 contains fields of the same name, there is a naming conflict. Rename one or both fields. SELECT * FROM S1, S2

27. Cartesian Product • Field names in conflict become unnamed R1 S1

28. Renaming • In the result, there may be two attributes with the same name, e.g. both S1 and R1 have an attribute called sid. • Then, apply the renaming operation, e.g. • The field names in the output relation are the same fields, but some are renamed • Field 1 is renamed to sid1, field 5 is renamed to sid5 • For an expression to be well defined, no 2+ fields must have same name

29. Join • Similar to Cartesian product with same result schema. • Cartesian Product has no conditions • Join has conditions • Join can be defined as a Cartesian Product, followed by selections and projections • Join however is much more efficient • Why? S1 R1

30. Join • Condition Join • Each tuple of the one relation is paired with each tuple of the other relation if the two tuples satisfy the join condition. • Condition c refers to attributes of both R and S.

31. Equi-Join: A special case of Conditional Join where the condition c contains only equalities. Result schema similar to Cartesian product, but only one copy of attributes for which equality is specified. R1.sid is redundant R1.sid is dropped by a applying a projection Natural Join: Equi-join on all common attributes. Join

32. Division • Not supported as a primitive operation, but useful for expressing queries like: Find sailors who have reserved all boats. • Let A have 2 attributes, x and y; B have only attribute y: • A/B = • i.e., A/B contains all x tuples (sailors) such that for every y tuple (boat) in B, there is an xy tuple (reservation) in A. • In general, x and y can be any lists of attributes; y is the list of attributes in B, and x y is the list of attributes of A.

33. Division B1 B2 B3 A/B1 A/B2 A/B3 A

34. all disqualified x values Division • Division is not an essential operation; can be implemented using the five basic operations. • Also true of joins, but joins are so common that systems implement joins specially. • Idea:For A/B, compute all x values in A that are not ‘disqualified’ by some y value in B. • x value in A is disqualified if by attaching y value from B, we obtain an xy tuple that is not in A. • Disqualified x values: A/B:

35. Division • Division is not an essential operation; can be implemented using the five basic operations. SELECT name FROM Student WHERE NOT EXISTS ( SELECT CID FROM Course WHERE CID NOT IN ( SELECT CID FROM Register WHERE Student.SID = Register.SID)) If such courses don’t exist (NOT EXISTS), then student must’ve taken all courses returns those courses this student didn’t take

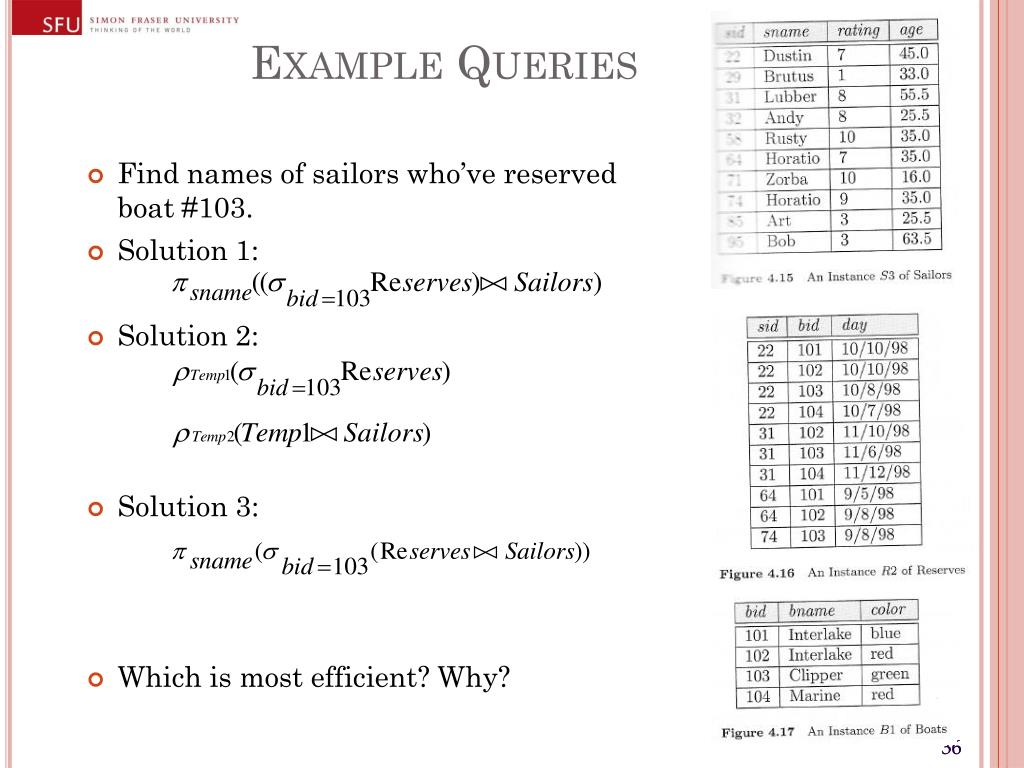

36. Example Queries • Find names of sailors who’ve reservedboat #103. • Solution 1: • Solution 2: • Solution 3: • Which is most efficient? Why?

37. Example Queries • Find names of sailors who’ve reserved a red boat. • Information about boat color only available in Boats; so need an extra join: • A more efficient solution: • A query optimizer can find the second solution given the first one.

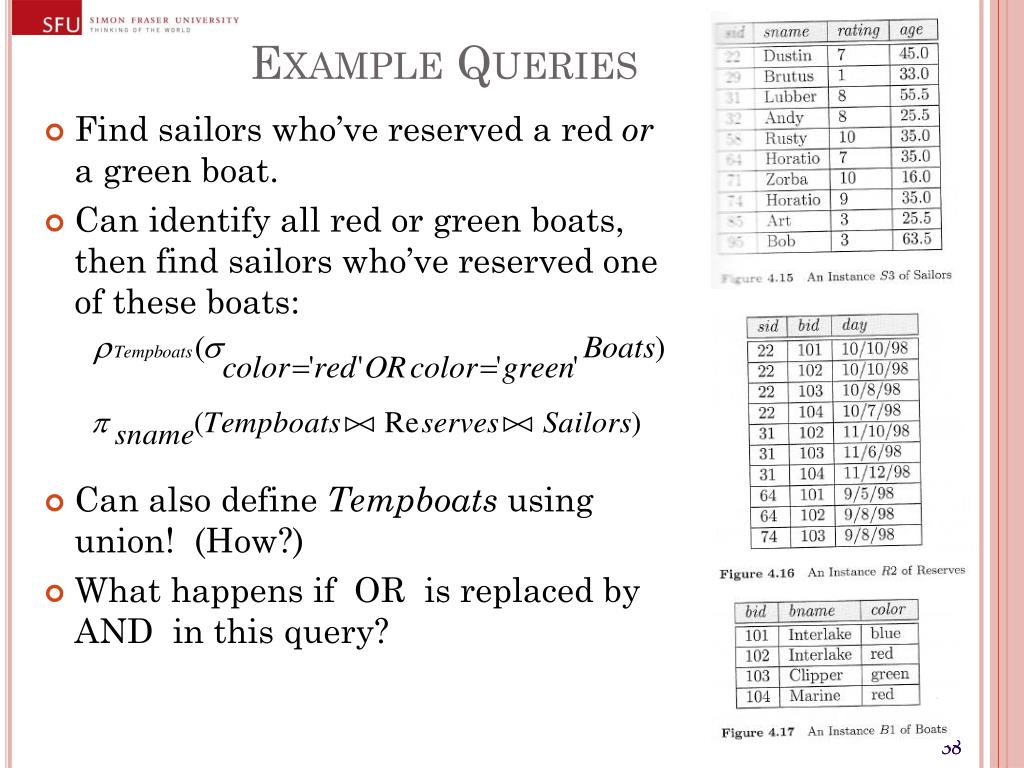

38. Example Queries • Find sailors who’ve reserved a red or a green boat. • Can identify all red or green boats, then find sailors who’ve reserved one of these boats: • Can also define Tempboats using union! (How?) • What happens if OR is replaced by AND in this query?

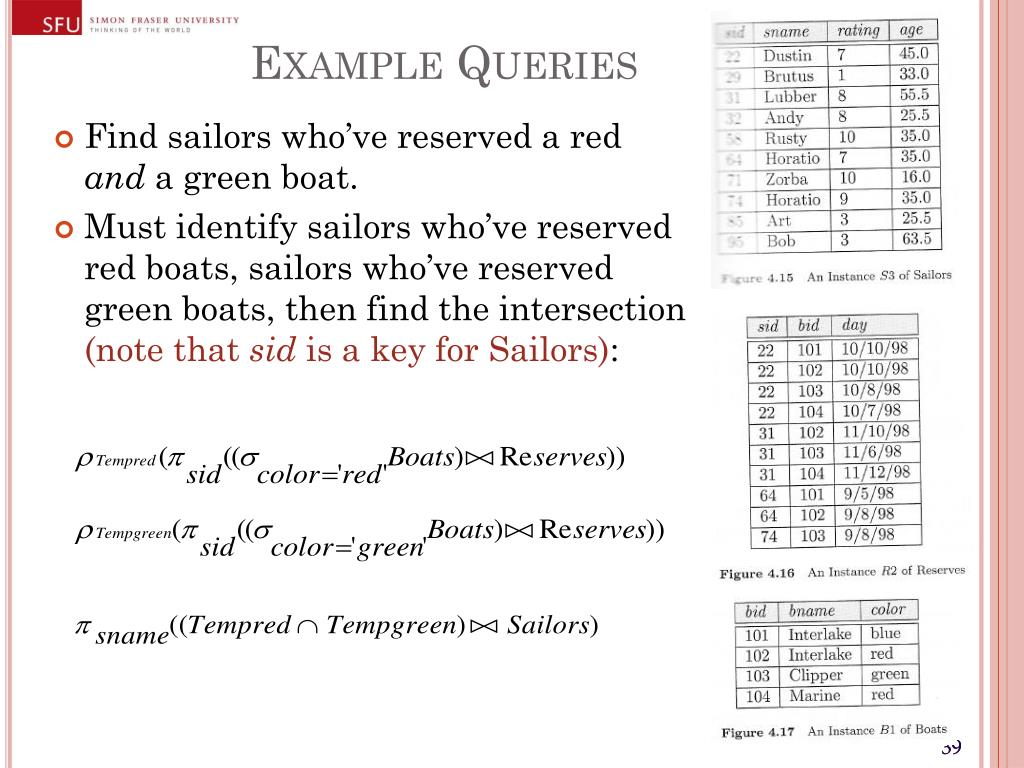

39. Example Queries • Find sailors who’ve reserved a red and a green boat. • Must identify sailors who’ve reserved red boats, sailors who’ve reserved green boats, then find the intersection (note that sid is a key for Sailors):

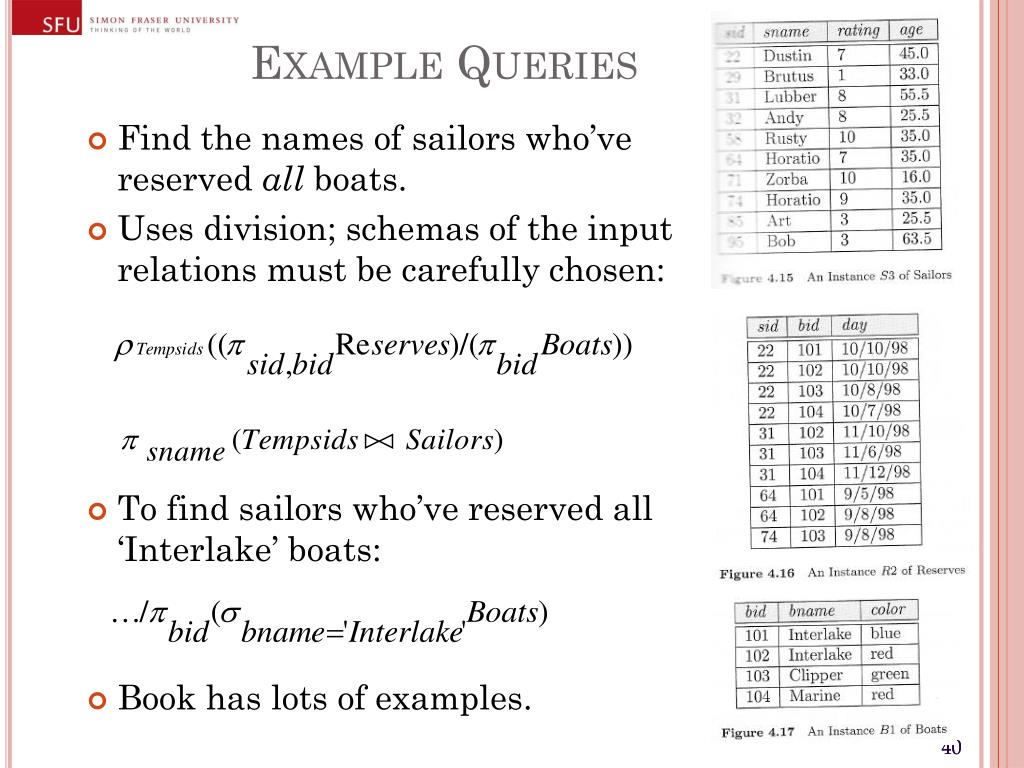

40. Example Queries • Find the names of sailors who’ve reserved all boats. • Uses division; schemas of the input relations must be carefully chosen: • To find sailors who’ve reserved all ‘Interlake’ boats: • Book has lots of examples.

41. Summary • The relational model has formal query languages that are easy to use and allow efficient optimization by the DBS. • Relational algebra (RA) is more procedural; used as internal representation for SQL query evaluation plans. • Five basic RA operations: selection, projection, Cartesian product, union, set-difference. • Additional operations as shorthand for important cases: intersection, join, division. • These operations can be implemented using the basic operations.
