  1. Scientific Computingon Graphics Hardware GPGPU Applications Examples Showcase

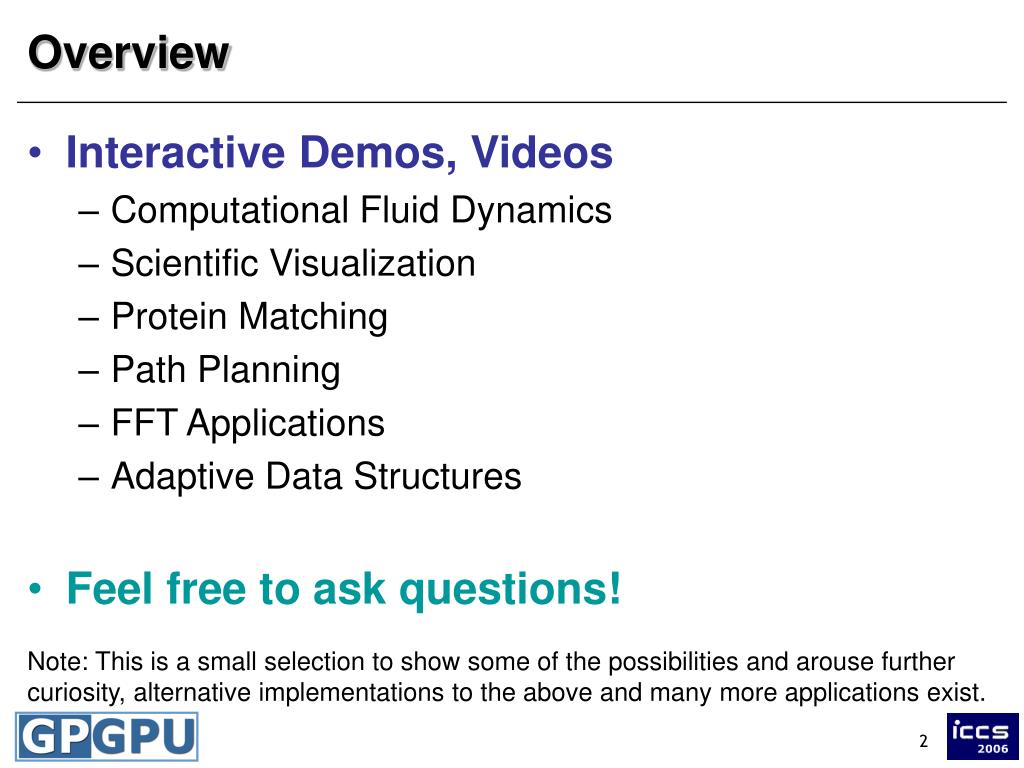

  2. Overview • Interactive Demos, Videos • Computational Fluid Dynamics • Scientific Visualization • Protein Matching • Path Planning • FFT Applications • Adaptive Data Structures • Feel free to ask questions! Note: This is a small selection to show some of the possibilities and arouse further curiosity, alternative implementations to the above and many more applications exist.

  3. Computational Fluid Dynamics Real-time simulation of fluid flow governed by the Navier-Stokes equations Youquan Liu et al., Pacific Graphics 2004 3D fluid with complex obstacles Live Demo: NVIDIA “GPGPU FLUID”

  4. Scientific Visualization Jens Krüger et al., TU München A Particle System for Interactive Visualization of 3D Flows Winner of the IEEE Visualization Contest 05 Live Demo...

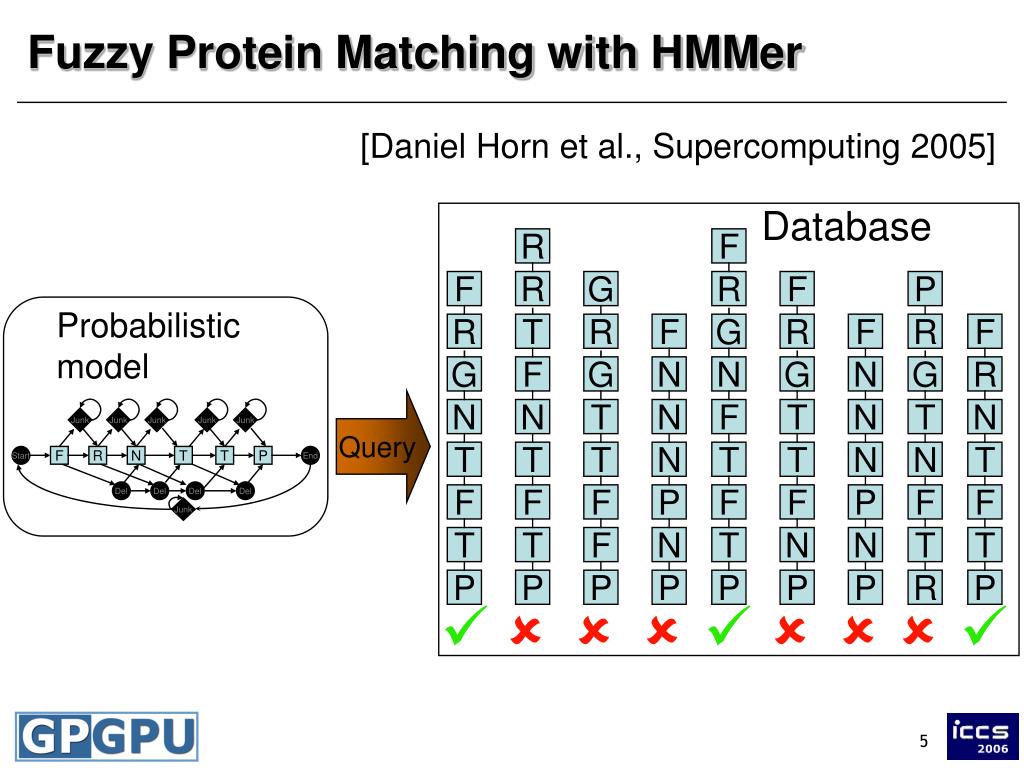

  5. Fuzzy Protein Matching with HMMer R F F G P F R R R R R R F F F Junk Junk Junk Junk Junk T G G G G G N N R F N          T N T T N N N N F T T T N N T N T T Start F F F F F R P P F N T T P End F F T F N T N T N Del Del Del Del T T Junk P R P P P P P P P [Daniel Horn et al., Supercomputing 2005] Database Probabilistic model Query 

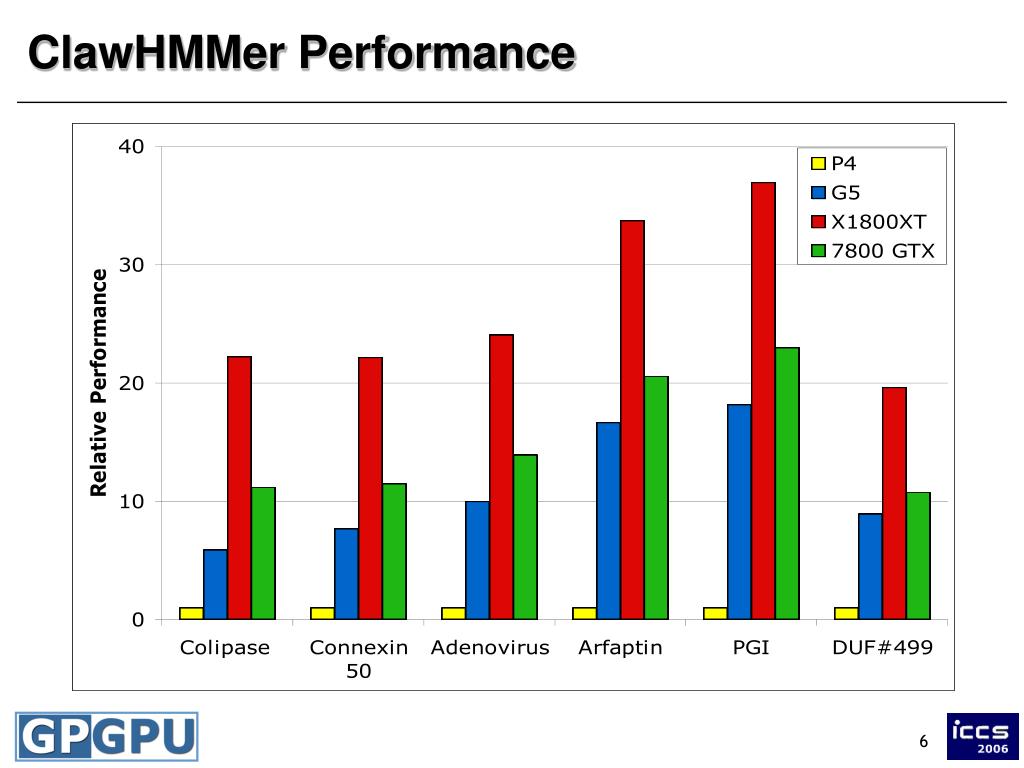

  6. ClawHMMer Performance

  7. FlexiPlan - Path Planning for Deformable Robots in Complex Environments [Russell Gayle et al.,Systems and Science, 2005] Application: Liver Chemoembolization A long thin catheter is navigated from the femoral to the hepatic arteries near a tumor in the liver for direct drug injection. Movie ...

  8. FFT Applications [Thomas Jansen et al., VMV 2004] Filtered Back-Projection • Create volume from projections • Blending of “FFT-filtered” projections • Visualization of intermediate results! • Faster by an order of magnitude! • 4.5 min (CPU) vs. 24 sec (GPU) Fourier Volume Rendering • Inverse Filtered Back-Projection • Slice in frequency = Projection • Needs high-quality interpolation • 512³ rendered in >25 frames/sec • But needs slightly more space! Movie ...

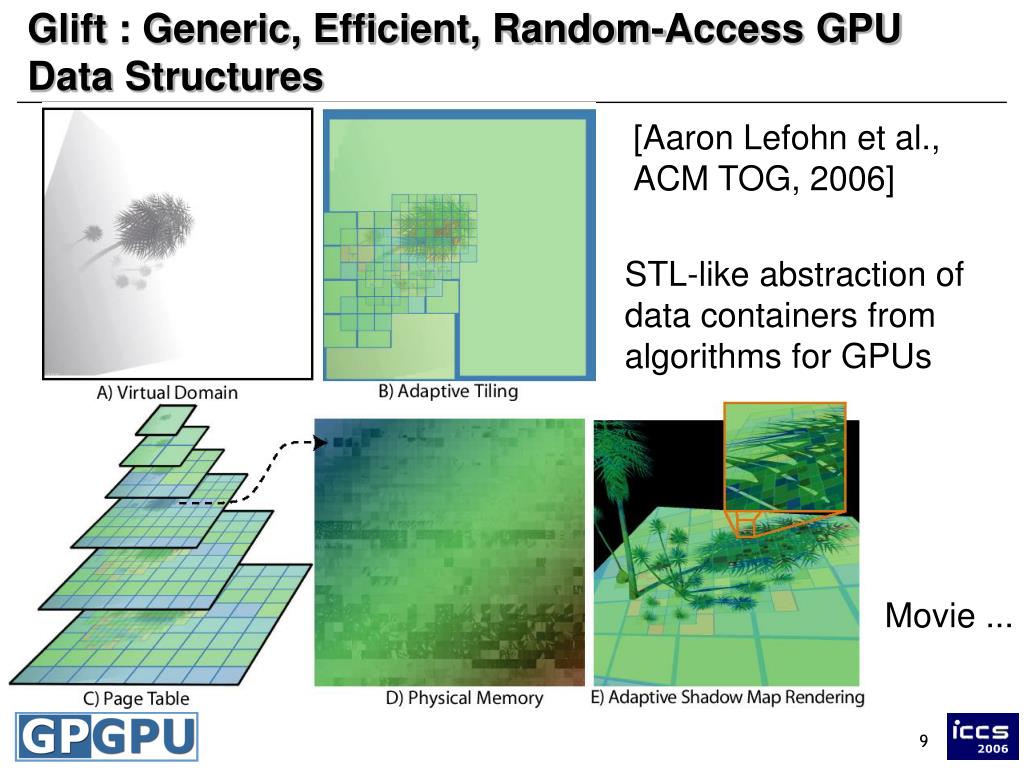

  9. Glift : Generic, Efficient, Random-Access GPU Data Structures [Aaron Lefohn et al., ACM TOG, 2006] STL-like abstraction of data containers from algorithms for GPUs Movie ...

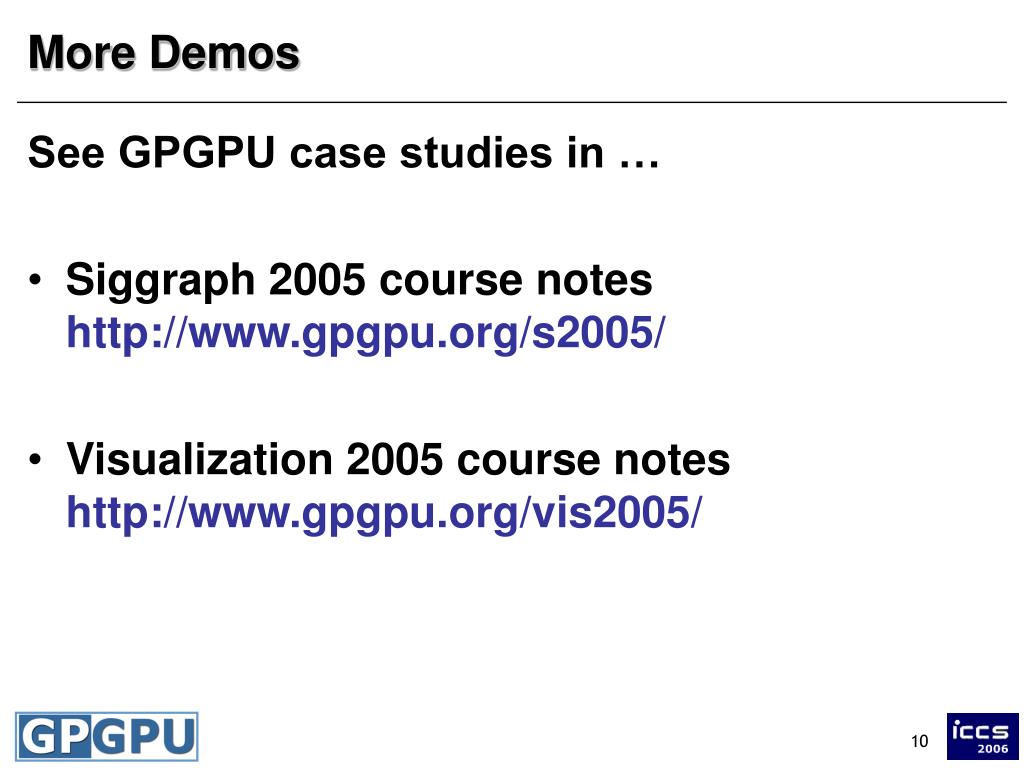

  10. More Demos See GPGPU case studies in … • Siggraph 2005 course noteshttp://www.gpgpu.org/s2005/ • Visualization 2005 course noteshttp://www.gpgpu.org/vis2005/
