  1. How to Make Battery 860 South 19th Street Richmond, CA94804 Tel: 510-525-3070 Fax: 510-525-4705 Web: www.mtixtl.com Email: info@mtixtl.com Leading Manufacturer from Advanced Materials to Precision Machines, Services Material Research Society Since 1994

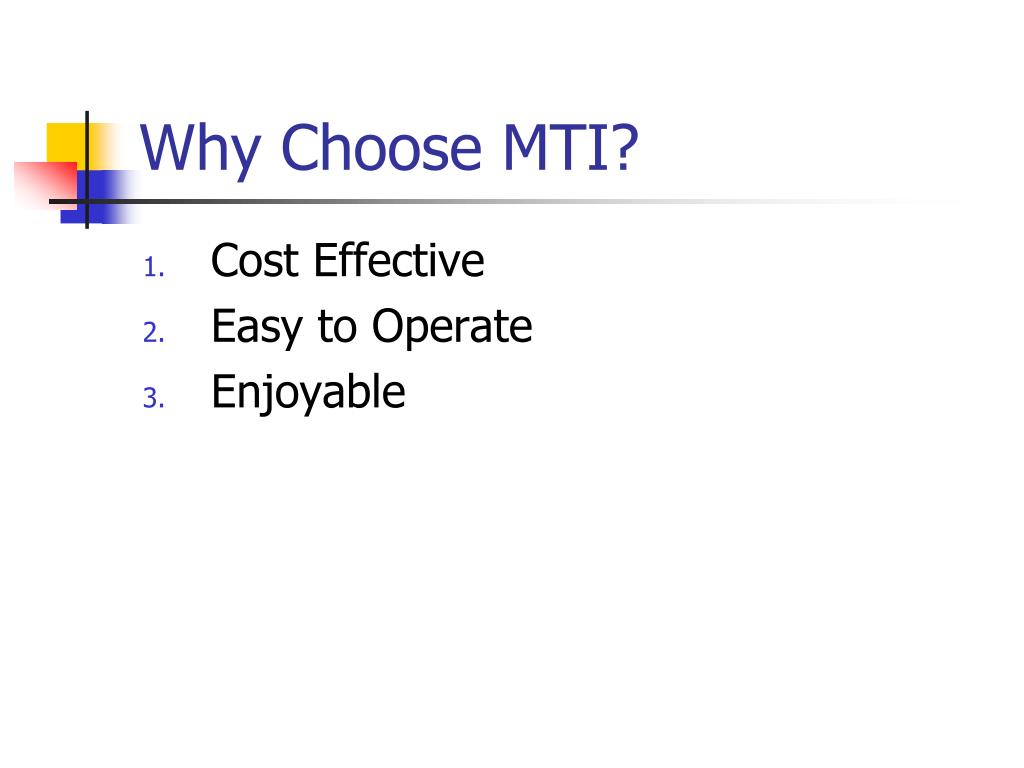

  2. Why Choose MTI? • Cost Effective • Easy to Operate • Enjoyable

  3. Making battery is making sandwich • Electrode Raw Powder + Conduction Powder + Binder=Electrode Paste • Paste + Substrate (Current Collector) = Battery Electrode Sheet • Battery Electrode Sheet+ Separator + Electrolyte= Battery Cathode Separator Anode Electrolyte Battery Case

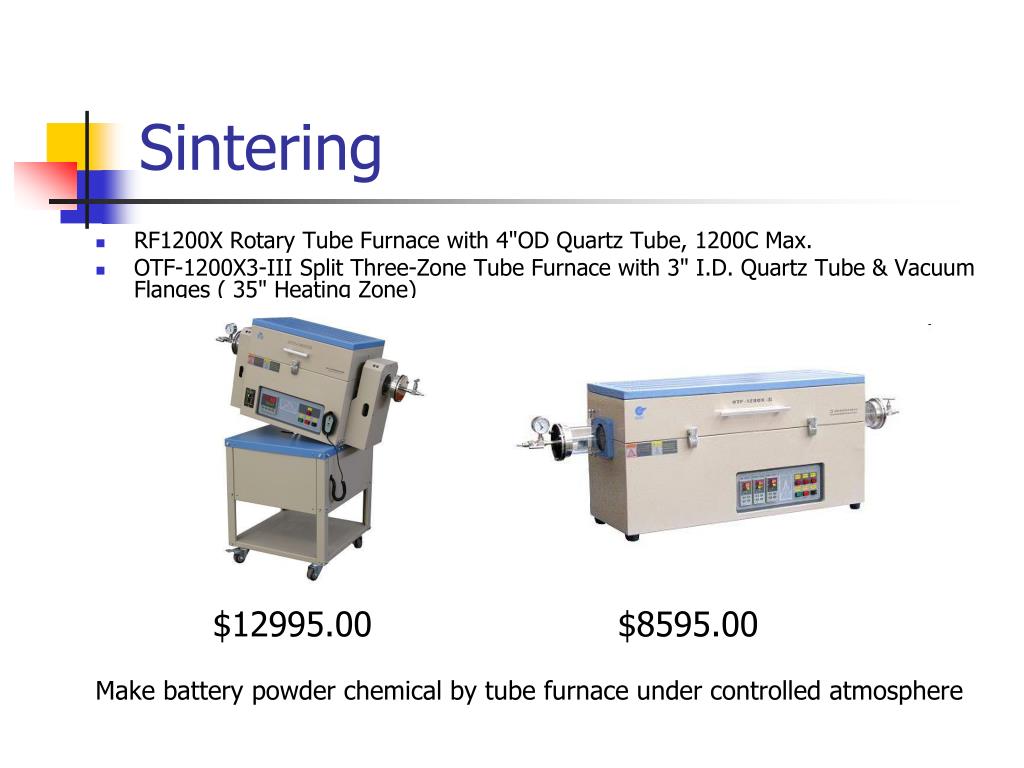

  4. Sintering • RF1200X Rotary Tube Furnace with 4"OD Quartz Tube, 1200C Max. • OTF-1200X3-III Split Three-Zone Tube Furnace with 3" I.D. Quartz Tube & Vacuum Flanges ( 35" Heating Zone) $12995.00 $8595.00 Make battery powder chemical by tube furnace under controlled atmosphere

  5. Powder Milling/Mixing • SFM-3 Desk-Top High Speed Vibrating Ball Mill with 80ml Stainless Steel Jar • SFM-4 Desk-Top Vacuum Mixer (500-1000ml) with Variable Speed $2995.00 $1995.00 Mixing powder with binders

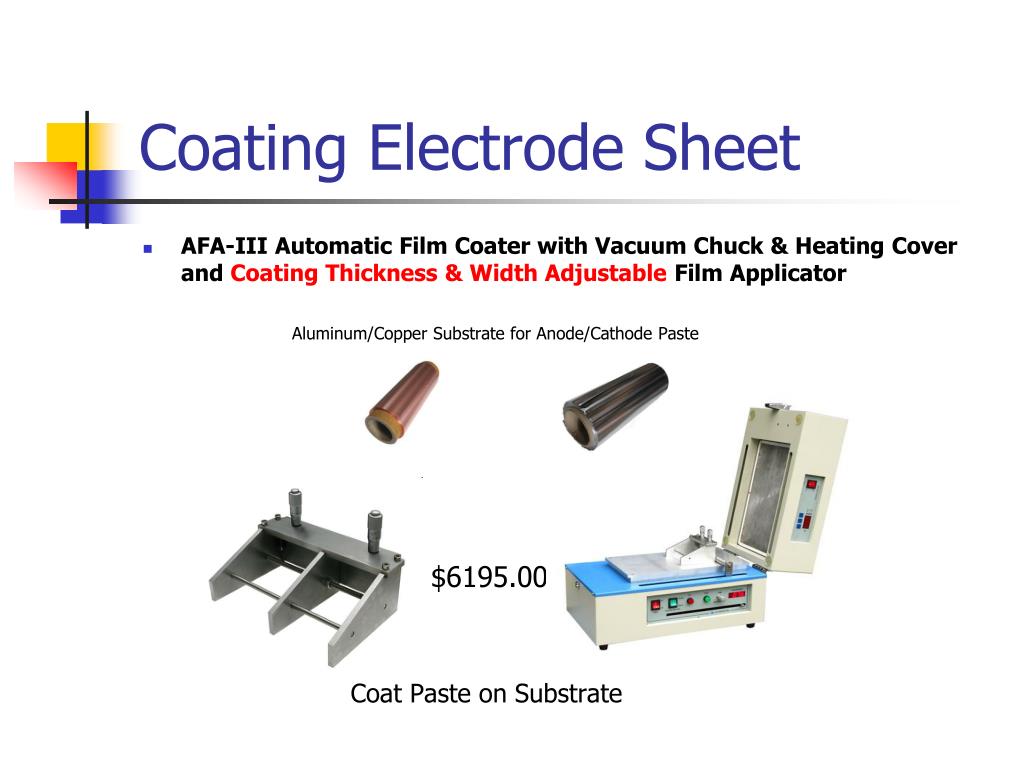

  6. Coating Electrode Sheet • AFA-III Automatic Film Coater with Vacuum Chuck & Heating Cover and Coating Thickness & Width Adjustable Film Applicator Aluminum/Copper Substrate for Anode/Cathode Paste $6195.00 Coat Paste on Substrate

  7. Drying under Vacuum • Bench-Top Vacuum Oven (12x12x11", 25 L, 250C) $1498.00 Drying the Electrode Sheet after Coating/Taking from Storage

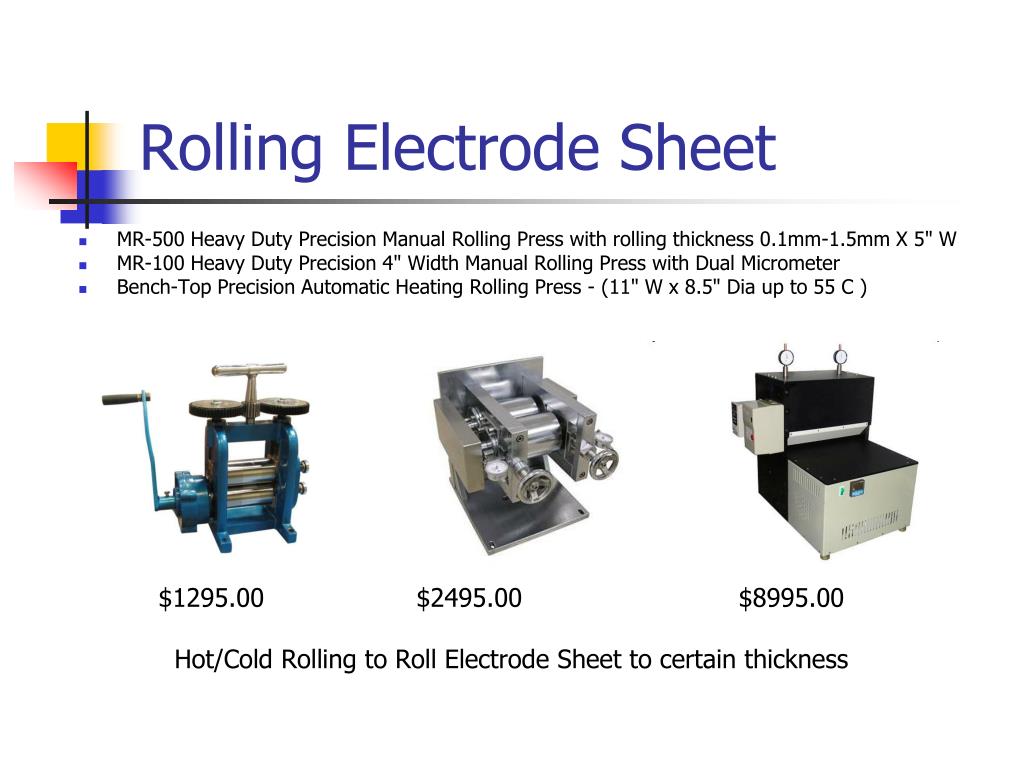

  8. Rolling Electrode Sheet • MR-500 Heavy Duty Precision Manual Rolling Press with rolling thickness 0.1mm-1.5mm X 5" W • MR-100 Heavy Duty Precision 4" Width Manual Rolling Press with Dual Micrometer • Bench-Top Precision Automatic Heating Rolling Press - (11" W x 8.5" Dia up to 55 C ) $1295.00 $2495.00 $8995.00 Hot/Cold Rolling to Roll Electrode Sheet to certain thickness

  9. Cutting • T-06 Precision Disc Cutter with optional 15, 19, 20 or 24 mm Diameter $1495.00 Cut Disc-shape Electrode/Separator for Coin Cell

  10. Crimping • MT-160-20 Compact Hydraulic Crimping Machine with Dies for CR2032 or CR2016 • Bench Top Transparent Glove Box with Air Locker / Side Door Crimping coin cell in Glove Box with Inert Gas $2885.00 $2495.00

  11. Testing Computerized 8 Channels Battery Analyzer (0.002-30000 mA / 5V )for R&D Battery electrodes Test battery by charging/discharging and viewing curve From $2995.00

  12. Video Time Please go to our web www.mtixtl.com at category “Battery / Capacitor Equipment” to have the demo video “Coating Electrode-Making Coin Cell- Battery Analyzer Testing”

  13. Thanks for your time Please call us at 1-510-525-3070 or email us at info@mtixtl.com Remember www.mtixtl.com is the easiest way!
