  1. Chapter 17 The Cell Cycle

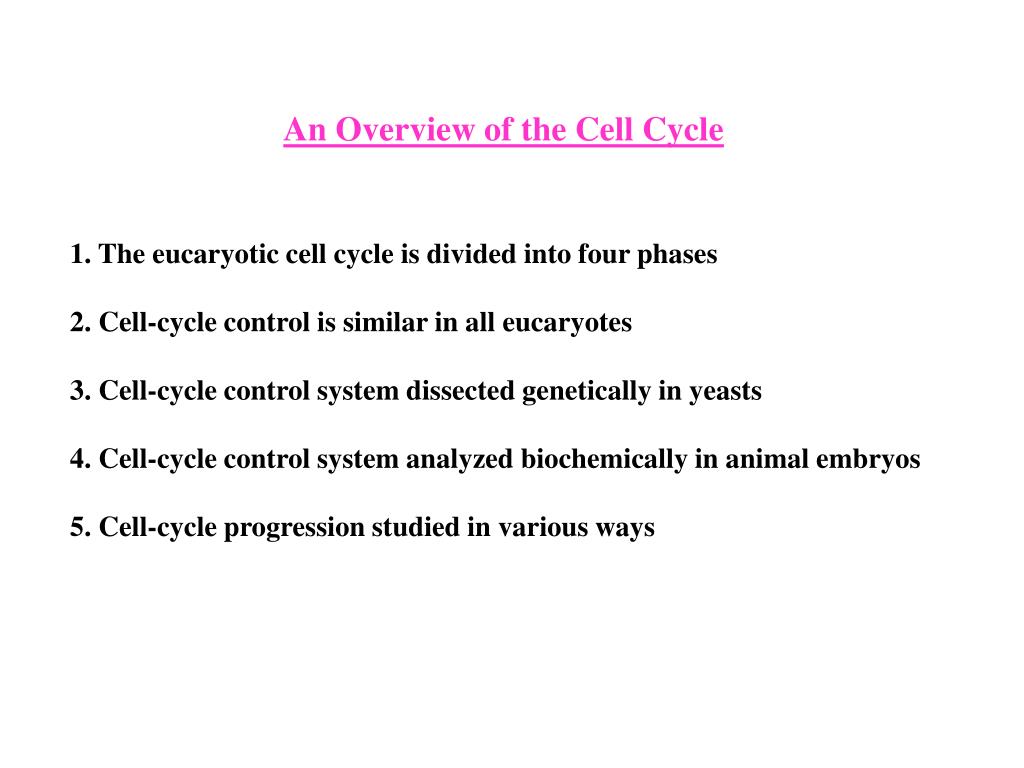

  2. An Overview of the Cell Cycle 1. The eucaryotic cell cycle is divided into four phases 2. Cell-cycle control is similar in all eucaryotes 3. Cell-cycle control system dissected genetically in yeasts 4. Cell-cycle control system analyzed biochemically in animal embryos 5. Cell-cycle progression studied in various ways

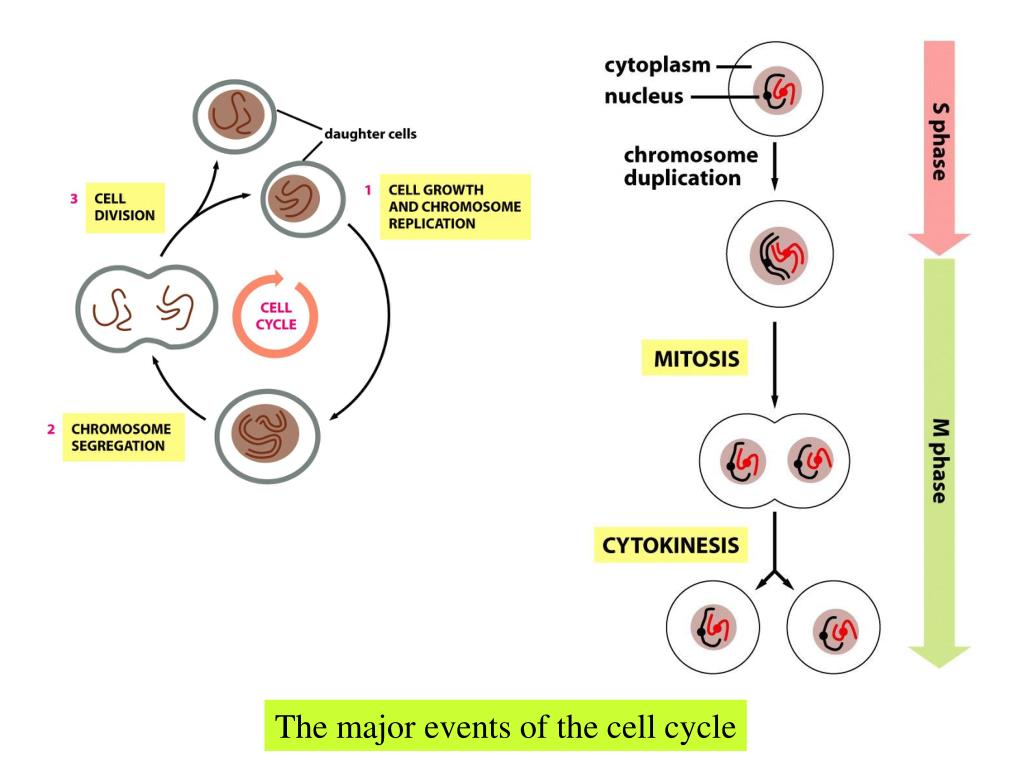

  3. The major events of the cell cycle

  4. Events of eucaryotic cell division as seen under a microscope

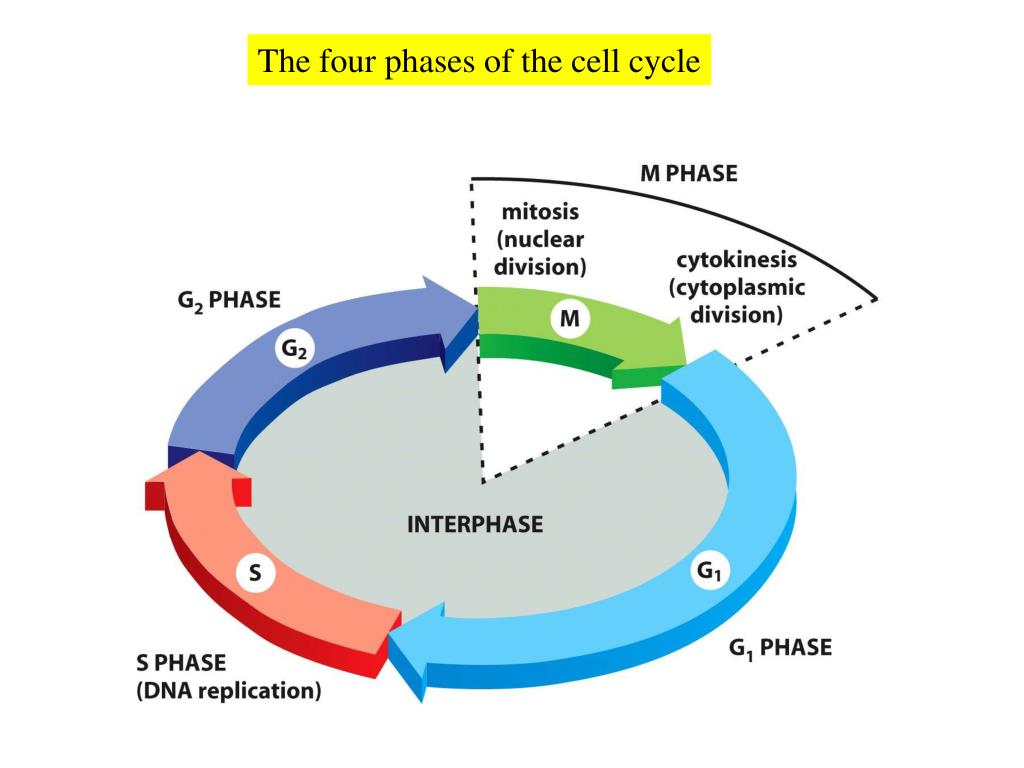

  5. The four phases of the cell cycle

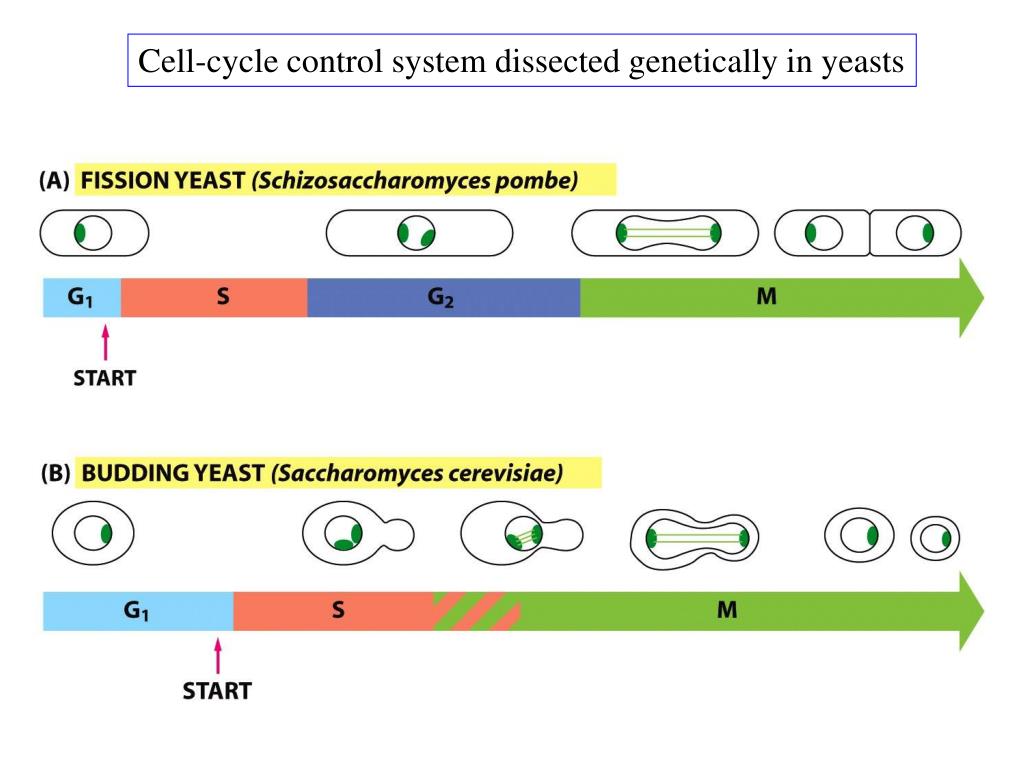

  6. Cell-cycle control system dissected genetically in yeasts

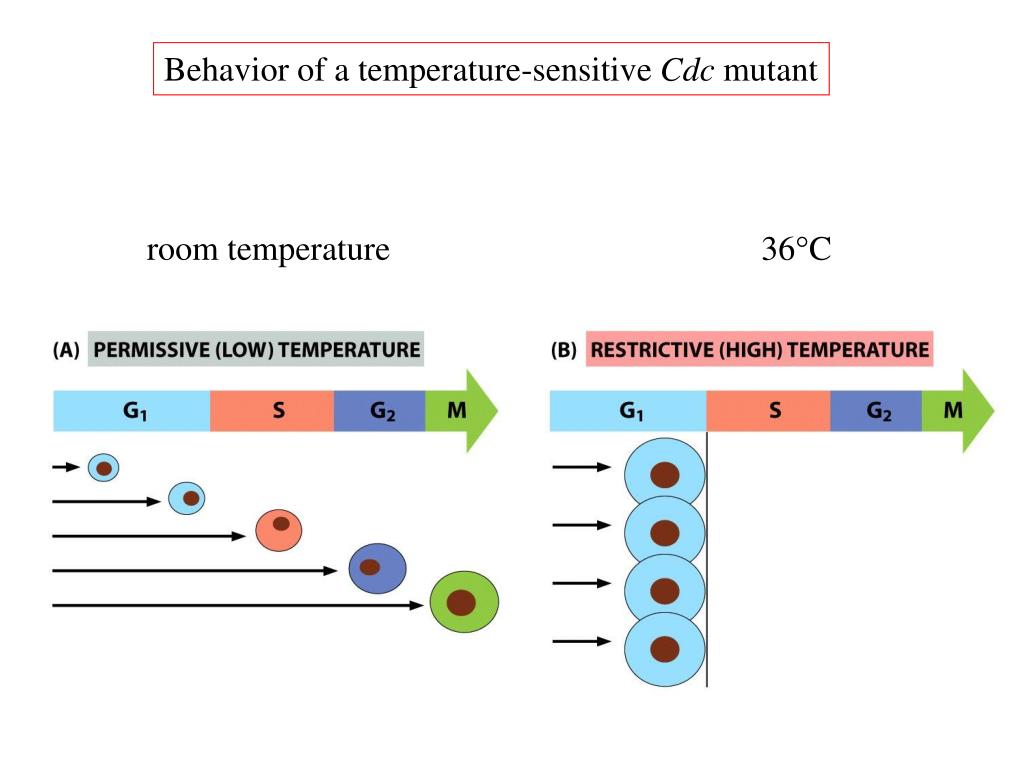

  7. Behavior of a temperature-sensitive Cdc mutant room temperature 36°C

  8. Morphology of budding yeast cells arrested by a Cdc mutation Normal yeast cells – buds vary in size according to the cell-cycle stage In a Cdc15 mutant, grown at the restrictive temperature, cells complete anaphase but cannot complete the exit from mitosis and cytokinesis. They arrest uniformly with the large buds, which are characteristic of late M phase

  9. Cell-cycle control system analyzed biochemically in animal embryos A mature Xenopus egg, ready for fertilization

  10. Oocyte growth and egg cleavage in Xenopus

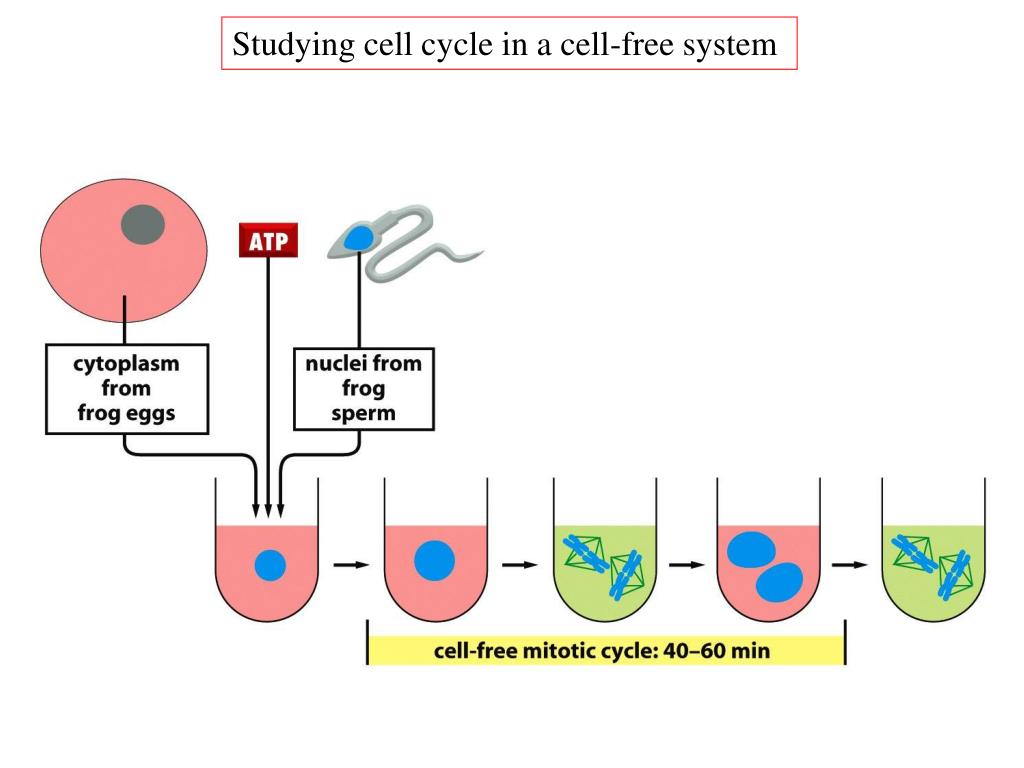

  11. Studying cell cycle in a cell-free system

  12. Cell-cycle progression studied in various ways Labeling S-phase cells

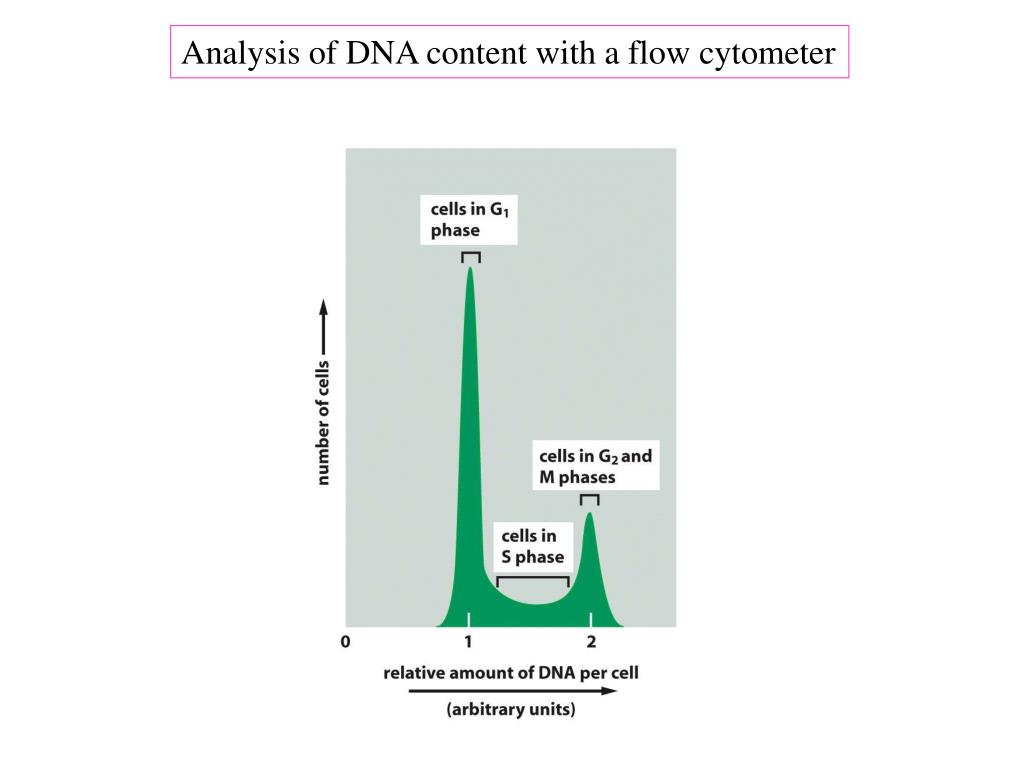

  13. Analysis of DNA content with a flow cytometer

  14. The cell-cycle control system 1. Cell-cycle control system triggers the major events of the cell cycle 2. The cell-cycle control system depends on cyclically activated cyclin- dependent protein kinases (Cdks) 3. Inhibitory phosphorylation and Cdk inhibitory proteins (CKIs) can suppress Cdk activity 4. The cell-cycle control system depends on cyclical proteolysis 5. Cell-cycle control also depends on transcriptional regulation 6. The cell-cycle control system functions as a network of biochemical switches

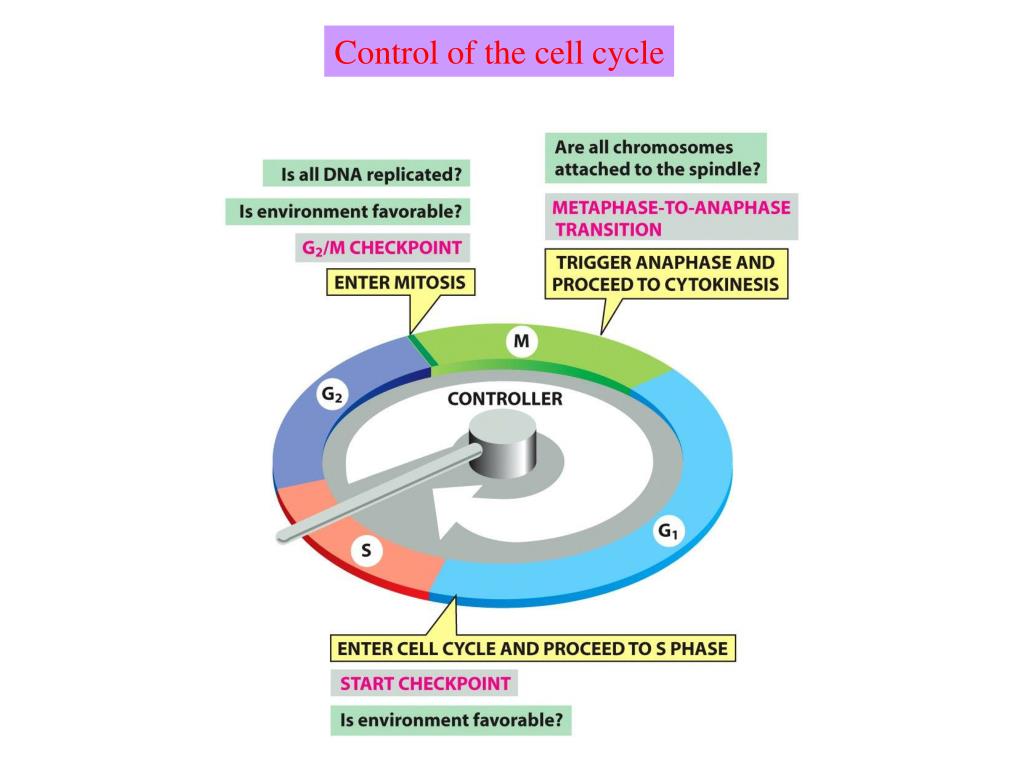

  15. Control of the cell cycle

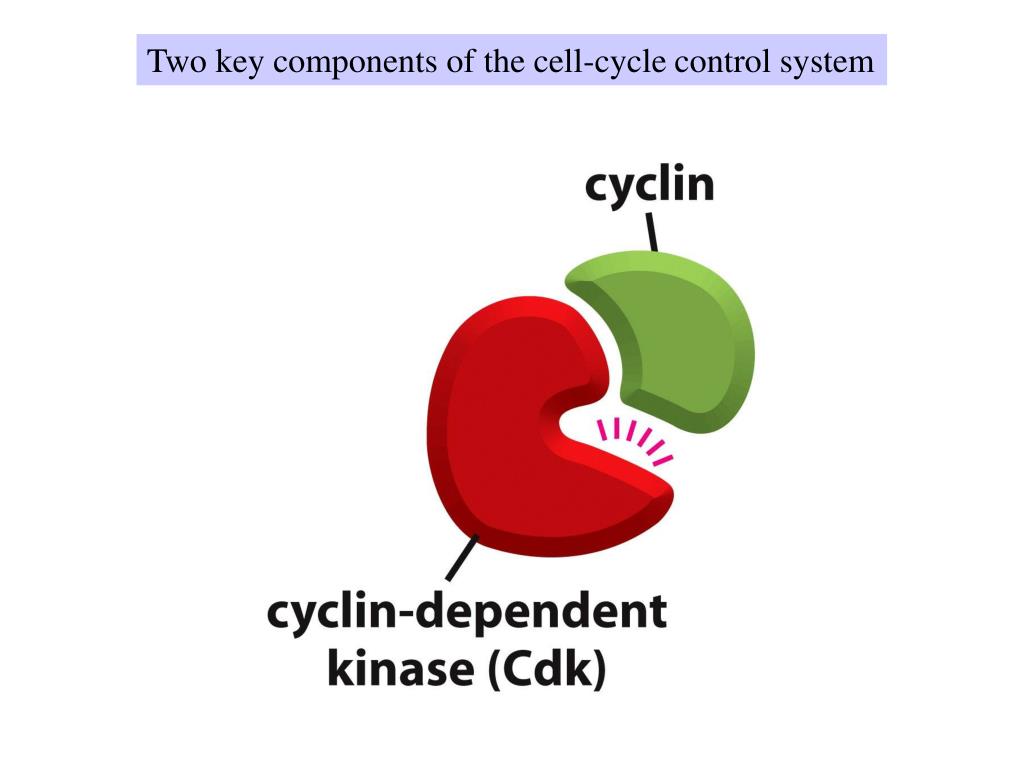

  16. Two key components of the cell-cycle control system

  17. Cyclin-Cdk complexes of the cell-cycle control system

  18. Inhibitory phosphorylation and Cdk inhibitory proteins (CKIs) can suppress Cdk activity The structural basis of Cdk activation

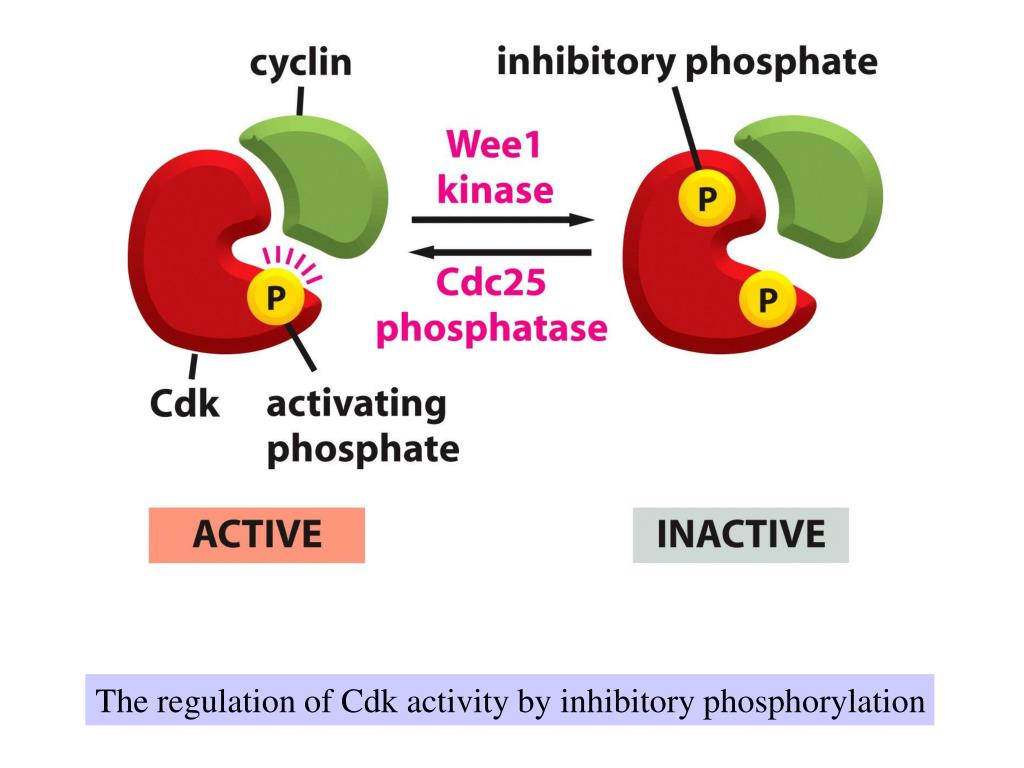

  19. The regulation of Cdk activity by inhibitory phosphorylation

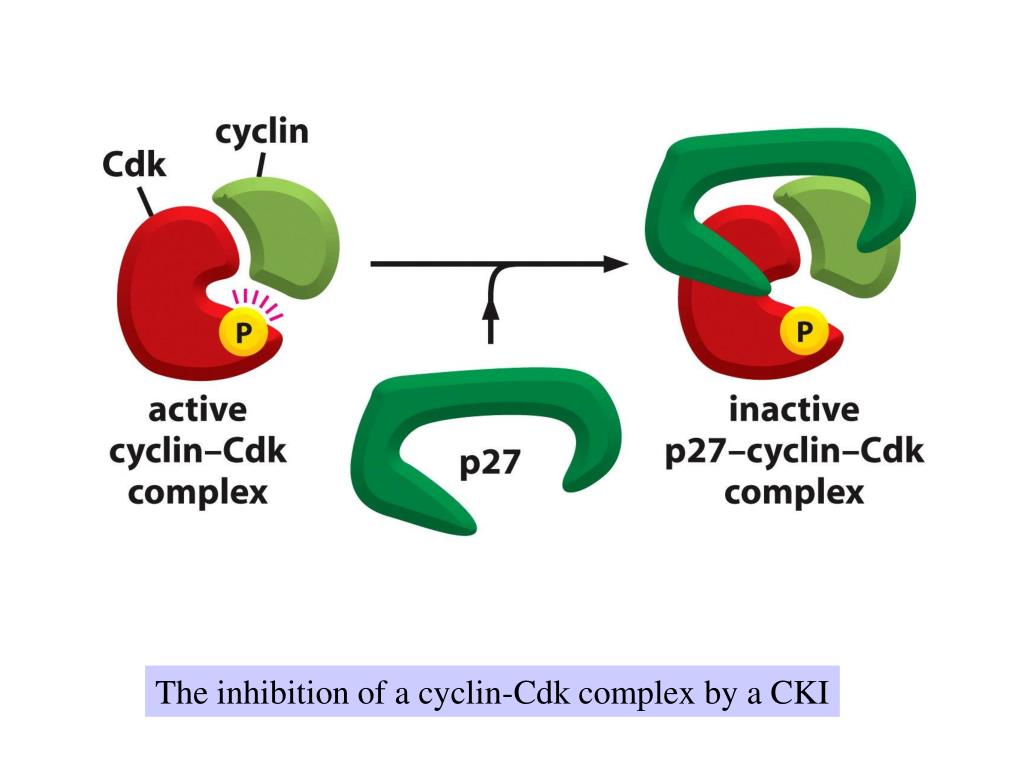

  20. The inhibition of a cyclin-Cdk complex by a CKI

  21. The cell-cycle control system depends on cyclical proteolysis

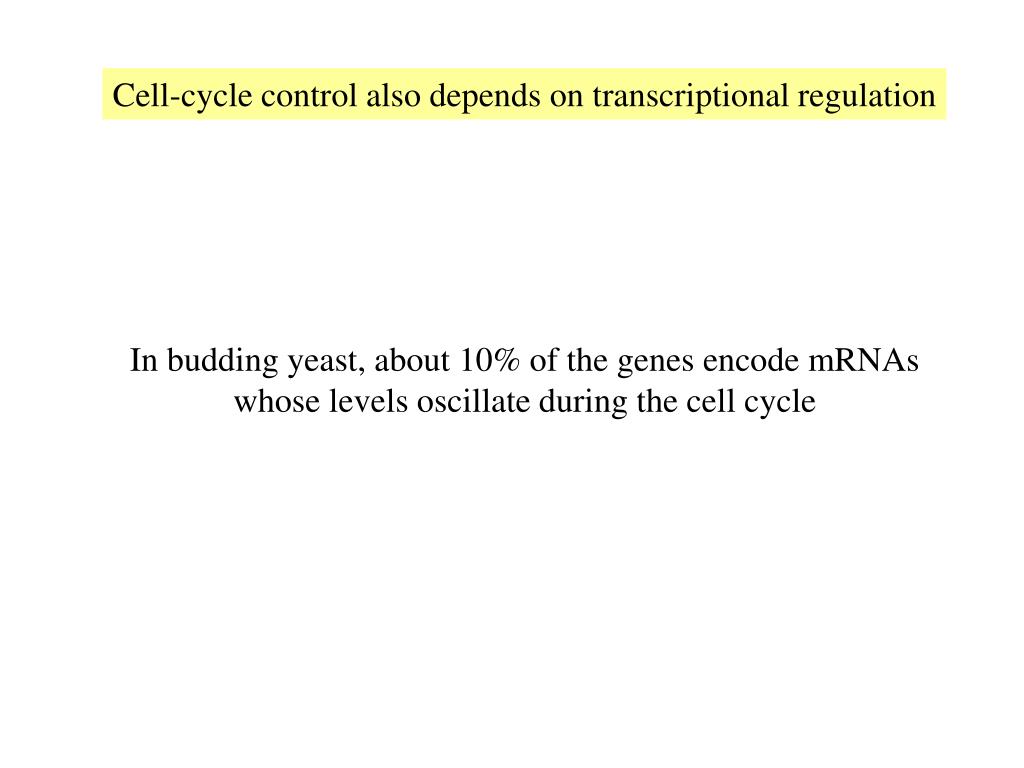

  22. Cell-cycle control also depends on transcriptional regulation In budding yeast, about 10% of the genes encode mRNAs whose levels oscillate during the cell cycle

  23. The cell-cycle control system functions as a network of biochemical switches

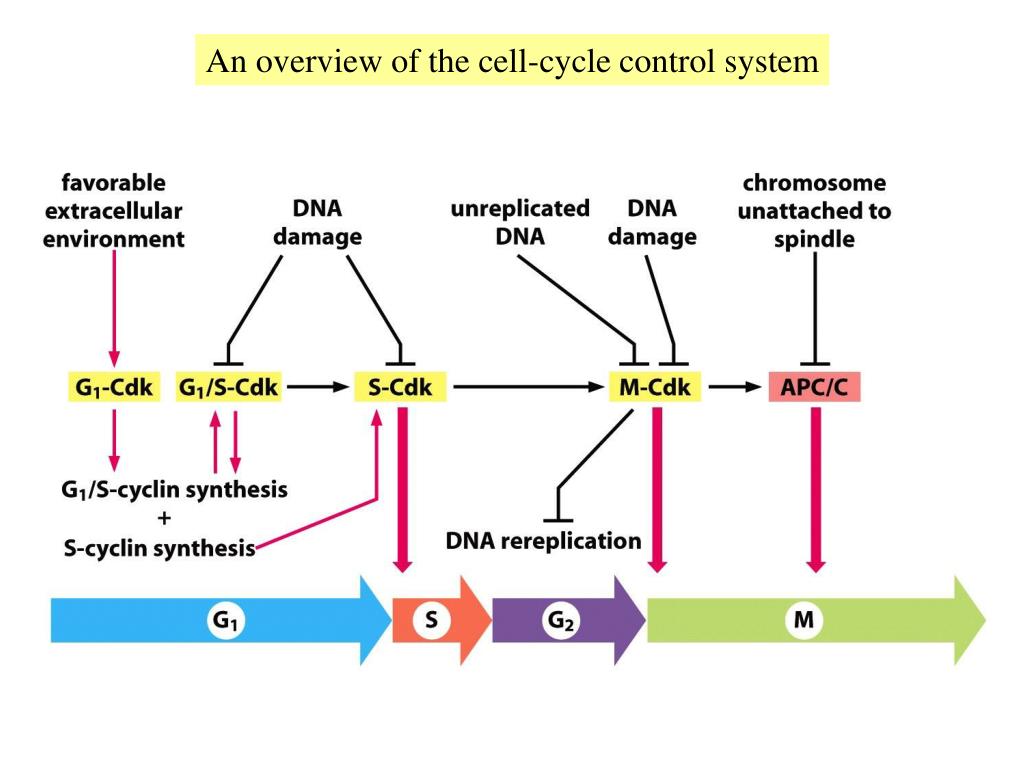

  24. An overview of the cell-cycle control system

  25. The two central events of the cell cycle are: - replication of DNA during the S phase - chromosome segregation and cell division during the M phase Both these events are controlled by the cyclin-Cdk complexes

  26. S phase 1. S-Cdk initiates DNA replication once per cycle 2. Chromosome duplication requires duplication of chromatin structure 3. Cohesins help hold sister chromatids together

  27. Control of chromosome duplication

  28. Control of the initiation of DNA replication The ORC remains associated with the ori site throughout the cell cycle. In early G1, Cdc6 and Cdt1 (helicase loading proteins) associate with the ORC and the resulting complex allows the assembly of the Mcm ring and the formation of the prereplicative complex. In the S phase, S-Cdk stimulates the assembly of several additional proteins to form the preinitiation complex. Other proteins are recruited to the origin and replication begins. S-Cdk blocks rereplication by triggering the destruction of Cdc6 and the inactivation of the ORC. The cell is able to assemble the pre-RC only after M-Cdk is inactivated and APC/C is activated at the end of the M-phase

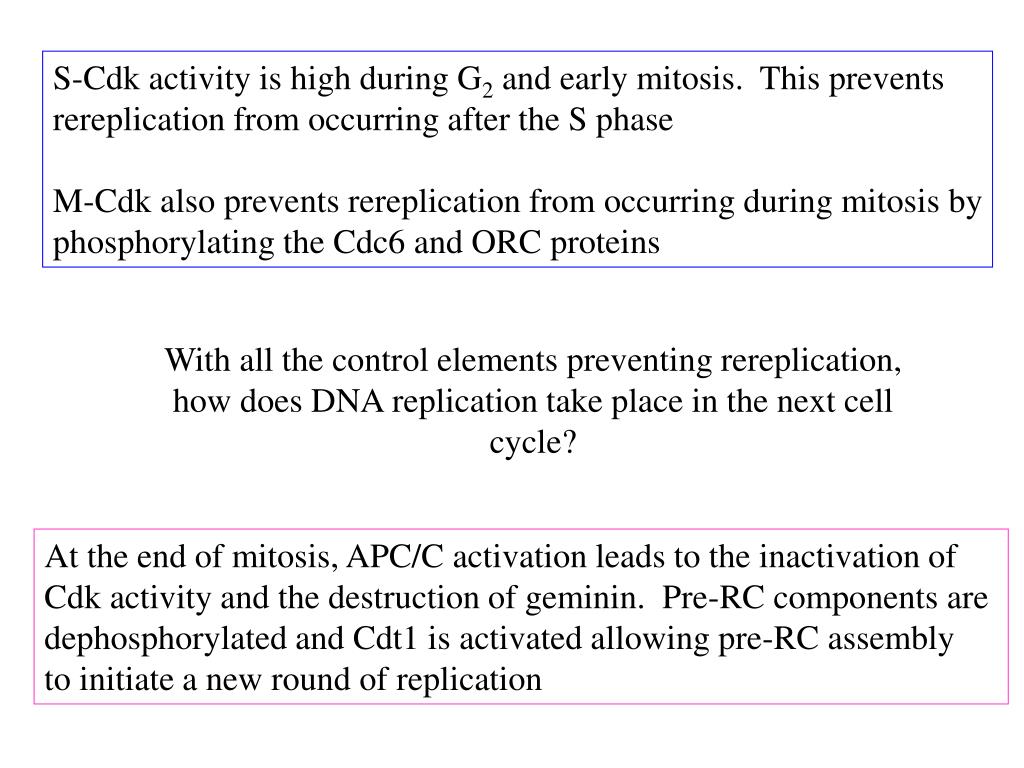

  29. S-Cdk activity is high during G2 and early mitosis. This prevents rereplication from occurring after the S phase M-Cdk also prevents rereplication from occurring during mitosis by phosphorylating the Cdc6 and ORC proteins With all the control elements preventing rereplication, how does DNA replication take place in the next cell cycle? At the end of mitosis, APC/C activation leads to the inactivation of Cdk activity and the destruction of geminin. Pre-RC components are dephosphorylated and Cdt1 is activated allowing pre-RC assembly to initiate a new round of replication

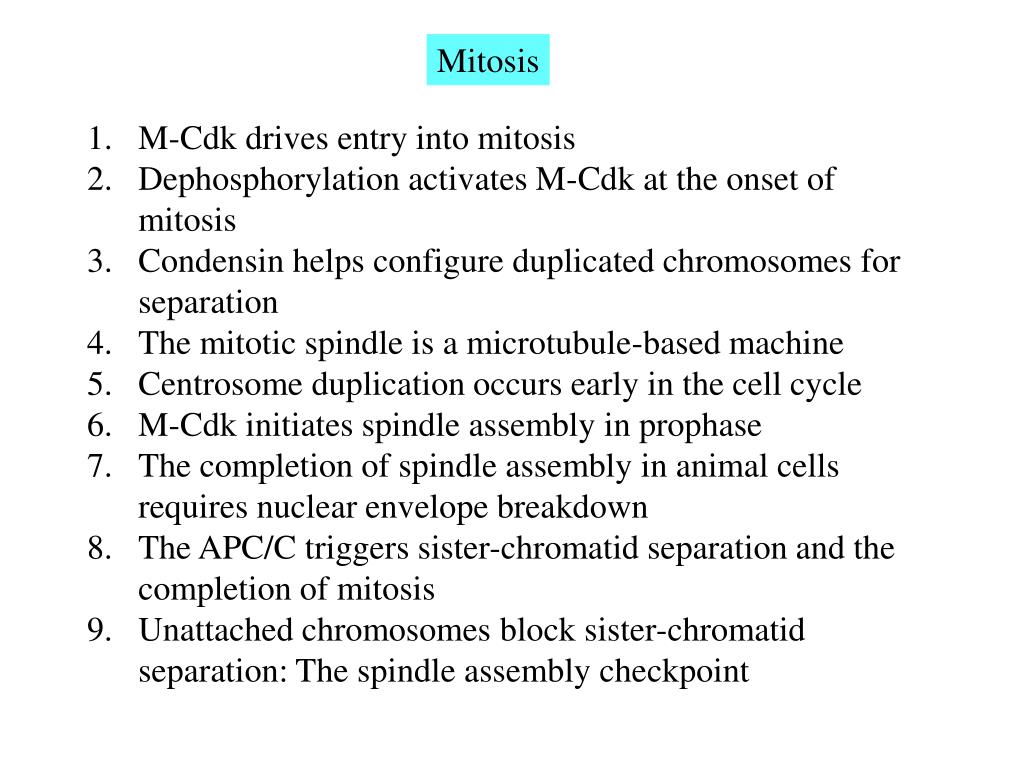

  30. Mitosis • 1. M-Cdk drives entry into mitosis • 2. Dephosphorylation activates M-Cdk at the onset of mitosis • 3. Condensin helps configure duplicated chromosomes for separation • 4. The mitotic spindle is a microtubule-based machine • Centrosome duplication occurs early in the cell cycle • 6. M-Cdk initiates spindle assembly in prophase • 7. The completion of spindle assembly in animal cells requires nuclear envelope breakdown • 8. The APC/C triggers sister-chromatid separation and the completion of mitosis • 9. Unattached chromosomes block sister-chromatid separation: The spindle assembly checkpoint

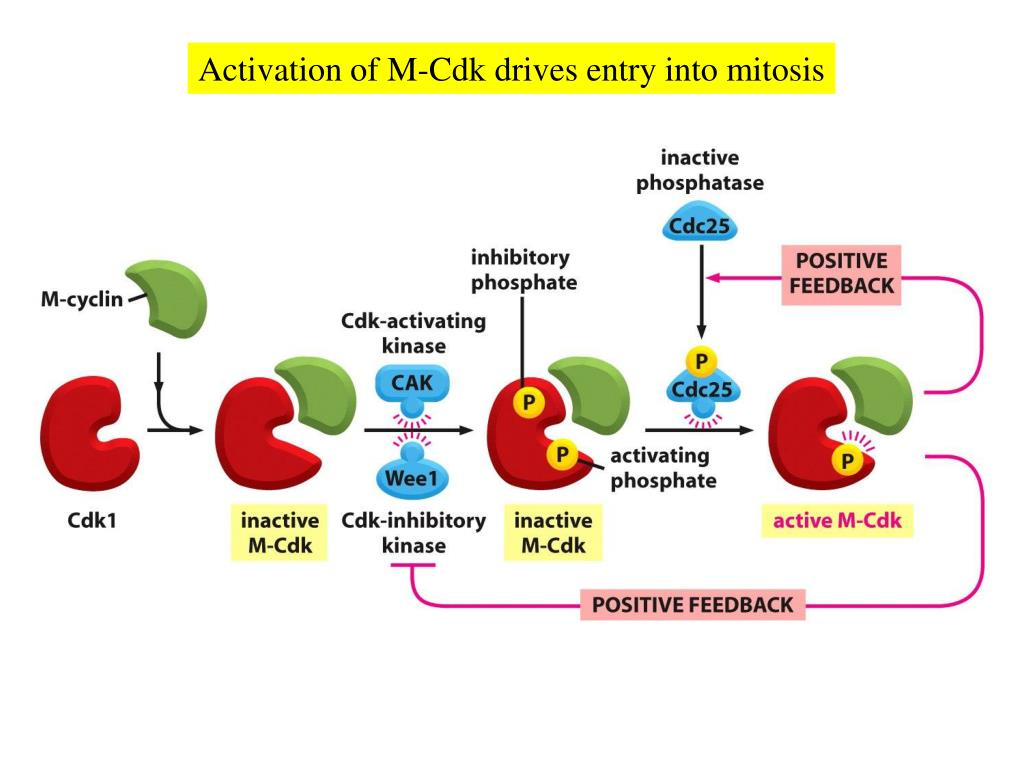

  31. Activation of M-Cdk drives entry into mitosis

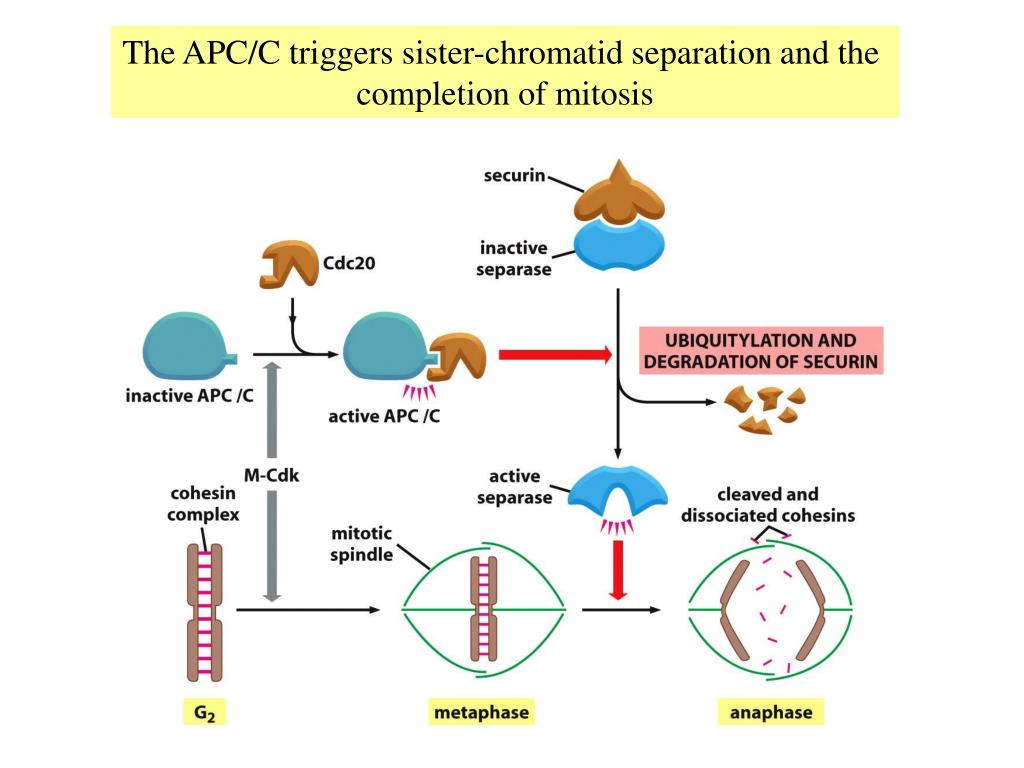

  32. The APC/C triggers sister-chromatid separation and the completion of mitosis

  33. Control of cell division and cell growth

  34. Mechanism controlling cell-cycle entry and S-phase initiation in animal cells

  35. How DNA damage arrests the cell cycle in G1
