  1. Digital Signal Processing Electrical Engineering Department Iran University of Science & Tech. DSP Course-IUST-Spring Semester

  2. Digital Signal ProcessingTopic 4: The Z TRansform 1.The Z Transform 2.Inverse Z Transform DSP Course-IUST-Spring Semester

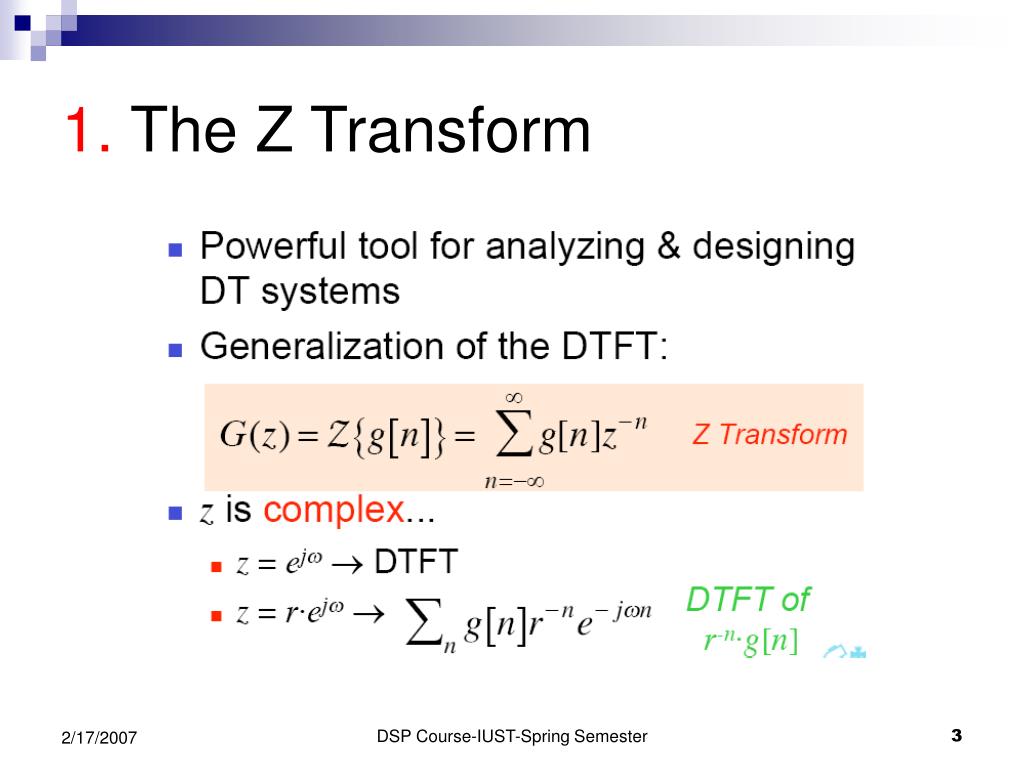

  3. 1. The Z Transform DSP Course-IUST-Spring Semester

  4. Region of Convergence (ROC) DSP Course-IUST-Spring Semester

  5. ROC Example DSP Course-IUST-Spring Semester

  6. About ROCs DSP Course-IUST-Spring Semester

  7. Another ROC example DSP Course-IUST-Spring Semester

  8. ROC is necessary! DSP Course-IUST-Spring Semester

  9. Rational Z-transforms DSP Course-IUST-Spring Semester

  10. Factored rational ZTs DSP Course-IUST-Spring Semester

  11. Pole-zero diagram DSP Course-IUST-Spring Semester

  12. Z-plane surface DSP Course-IUST-Spring Semester

  13. Z-plane and DTFT DSP Course-IUST-Spring Semester

  14. ZT is Linear DSP Course-IUST-Spring Semester

  15. ZT of LCCDEs DSP Course-IUST-Spring Semester

  16. ROCs and sidedness DSP Course-IUST-Spring Semester

  17. ROC intersections DSP Course-IUST-Spring Semester

  18. ROC intersections: Case 1 DSP Course-IUST-Spring Semester

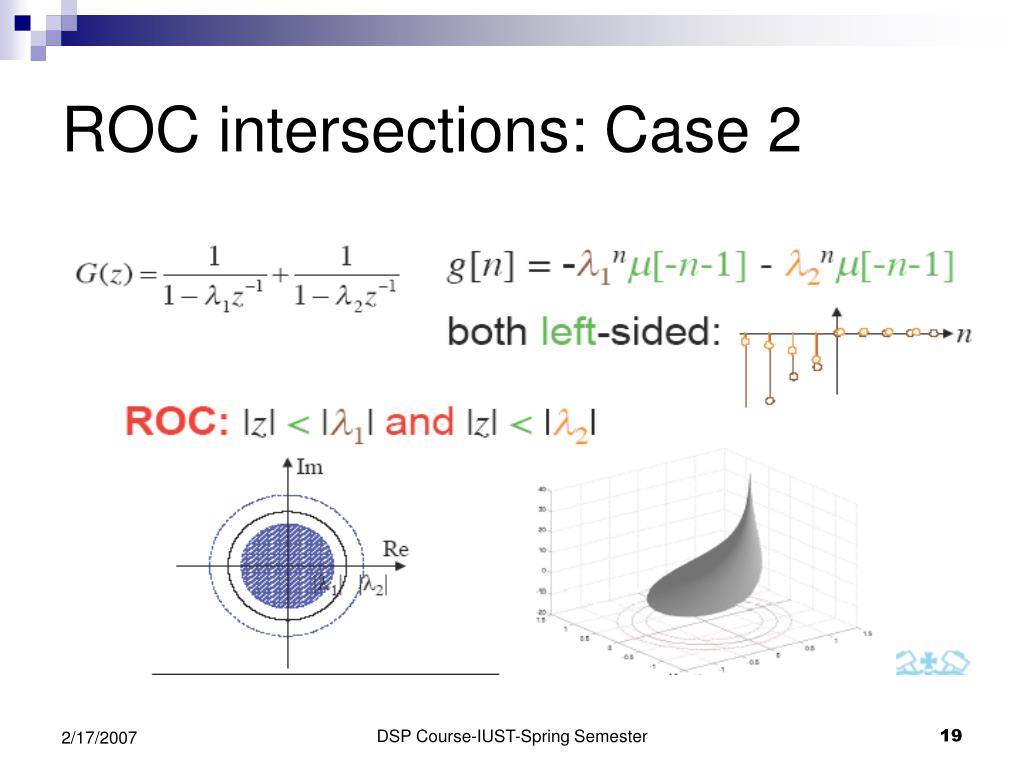

  19. ROC intersections: Case 2 DSP Course-IUST-Spring Semester

  20. ROC intersections: Case 3 DSP Course-IUST-Spring Semester

  21. ROC intersections: Case 4 DSP Course-IUST-Spring Semester

  22. ROC intersections DSP Course-IUST-Spring Semester

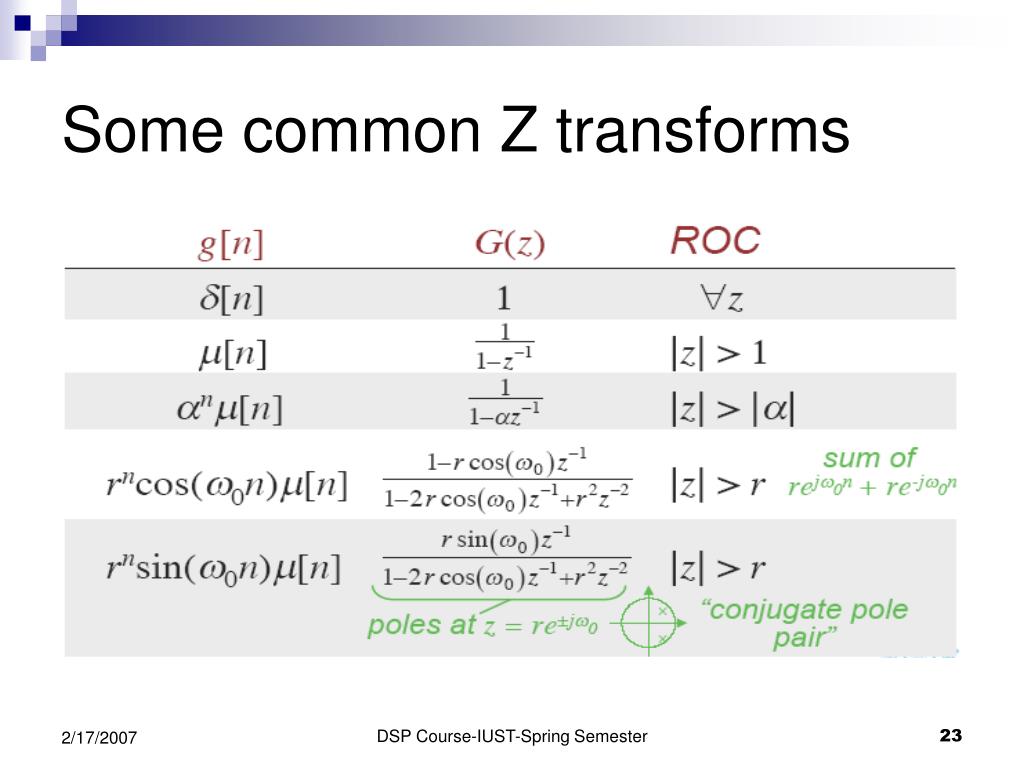

  23. Some common Z transforms DSP Course-IUST-Spring Semester

  24. Z Transform properties DSP Course-IUST-Spring Semester

  25. Z Transform properties DSP Course-IUST-Spring Semester

  26. ZT Example DSP Course-IUST-Spring Semester

  27. Another ZT example DSP Course-IUST-Spring Semester

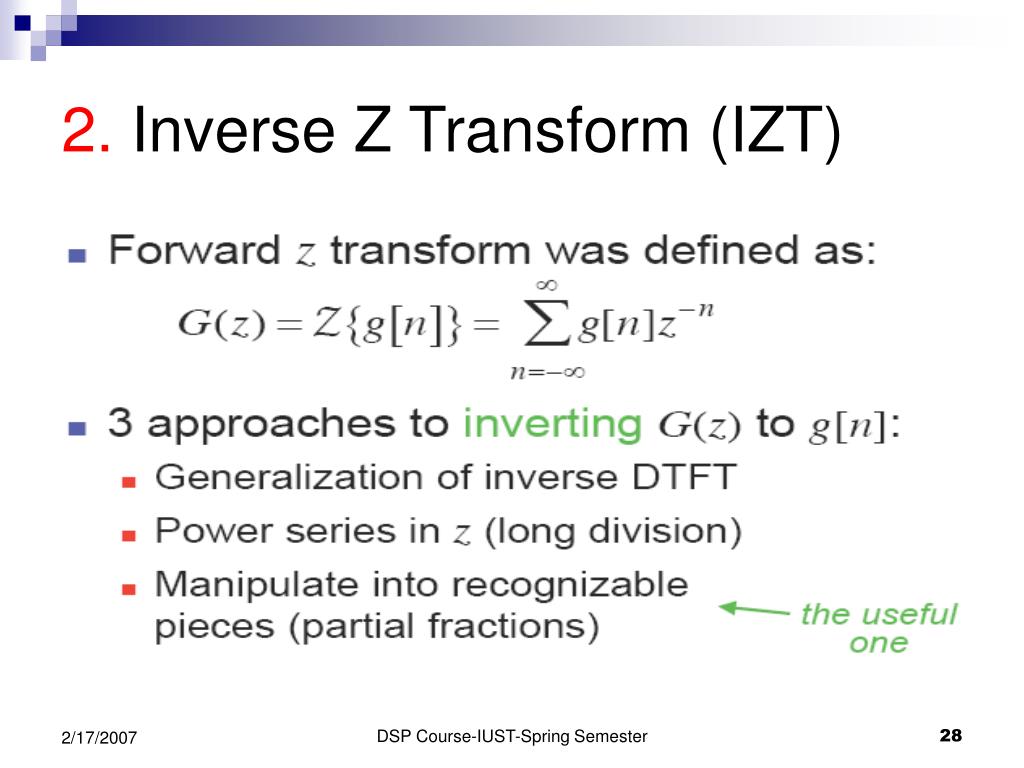

  28. 2. Inverse Z Transform (IZT) DSP Course-IUST-Spring Semester

  29. IZT #1: Generalize IDTFT DSP Course-IUST-Spring Semester

  30. IZT #2: Long division DSP Course-IUST-Spring Semester

  31. IZT #2: Long division DSP Course-IUST-Spring Semester

  32. IZT #2: Long division DSP Course-IUST-Spring Semester

  33. IZT#3: Partial Fractions DSP Course-IUST-Spring Semester

  34. Partial Fractions DSP Course-IUST-Spring Semester

  35. Partial Fractions DSP Course-IUST-Spring Semester

  36. Partial Fractions Example DSP Course-IUST-Spring Semester

  37. Partial Fractions Example DSP Course-IUST-Spring Semester
