1. Diophantine Approximation and Basis Reduction By Shu Wang CAS 746 Presentation 6th, Feb, 2006

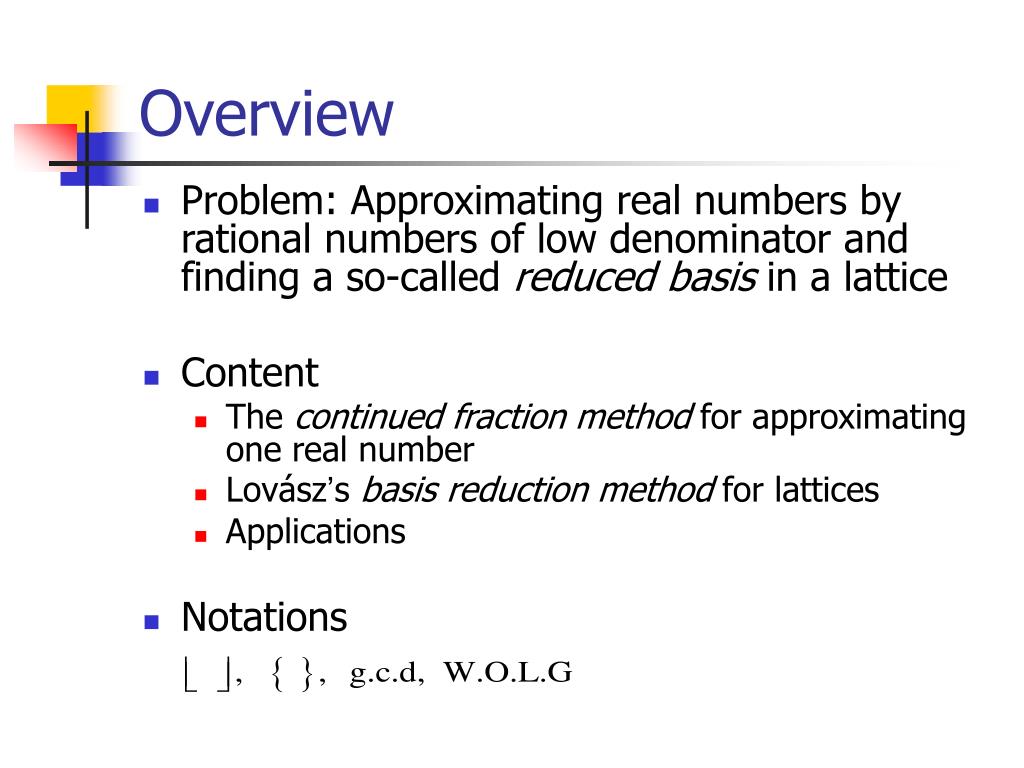

2. Overview • Problem: Approximating real numbers by rational numbers of low denominator and finding a so-called reduced basis in a lattice • Content • The continued fraction method for approximating one real number • Lovász’s basis reduction method for lattices • Applications • Notations

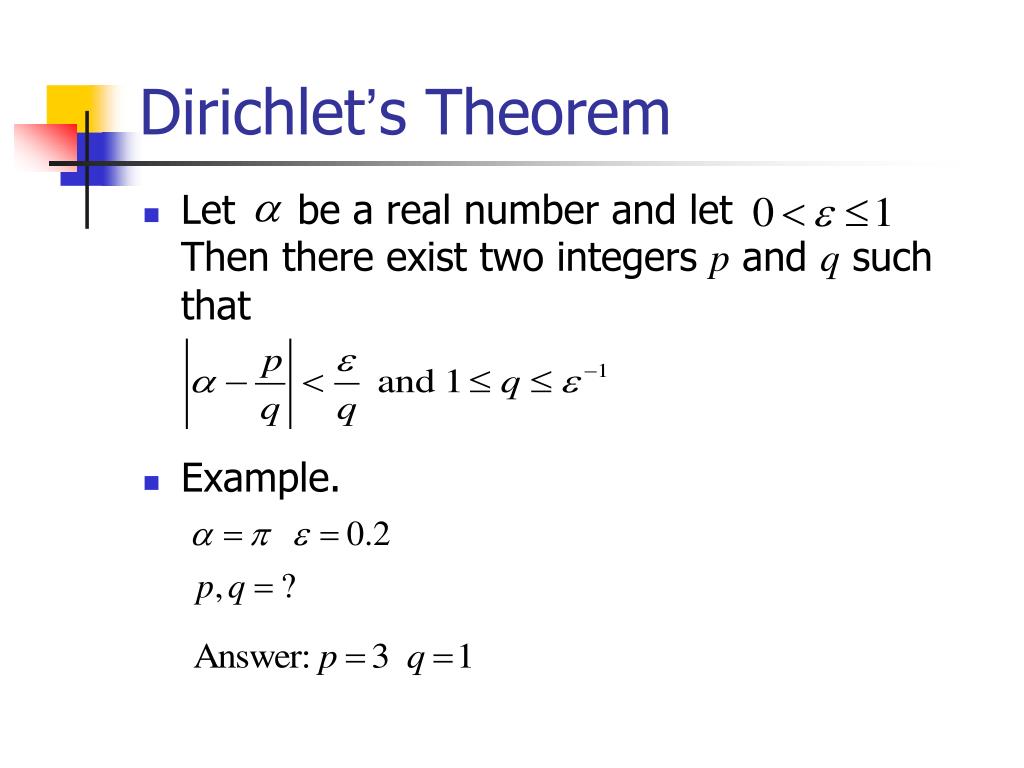

3. Dirichlet’s Theorem • Let be a real number and let Then there exist two integers p and q such that • Example.

4. Proof of Dirichlet’s Theorem • Let we find two different integers i and j where • Consider the following series • Otherwise, according to pigeon-hole principle, … 0 1

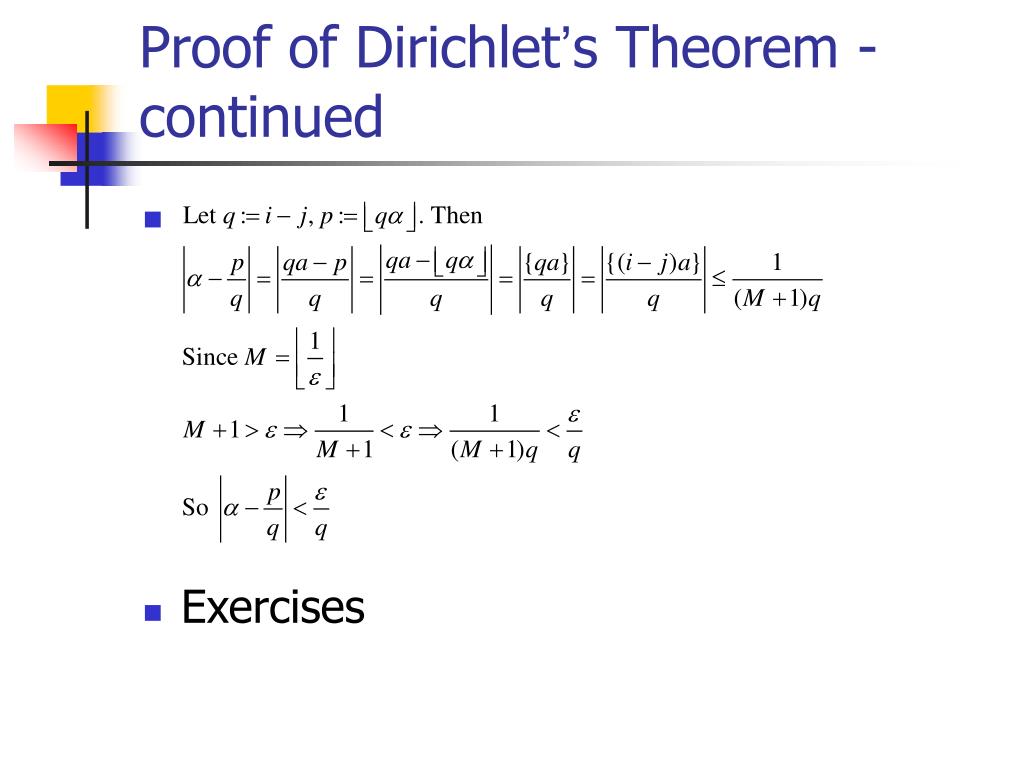

5. Proof of Dirichlet’s Theorem - continued • Exercises

6. The Continued Fraction Method • Given a real number , we compute its rational approximation by following a series of steps as follows: • First we define • This sequence stops if becomes an integer • We define an sequences called convergents that approximate to the above • If becomes an integer then the last term of convergents equals to . We use to denote the term of the convergents of

7. The Continued Fraction Method (2) • We can determine a sequence where so that it corresponds to the convergent series • Suppose the first two terms are as follows: What can we deduce from it? • If then . Contradiction exist.

8. Proof

9. The Continued Fraction Method (3) • Suppose we have found nonnegative integers such that • This implies why?

10. The Continued Fraction Method (4) • We find the largest integer such that • We define • If then the sequence stop, otherwise we find the largest such that • We define and so on…… • We can repeat the iteration and find the sequence It turns out that this sequence is the same as the sequence of convergents of real number !

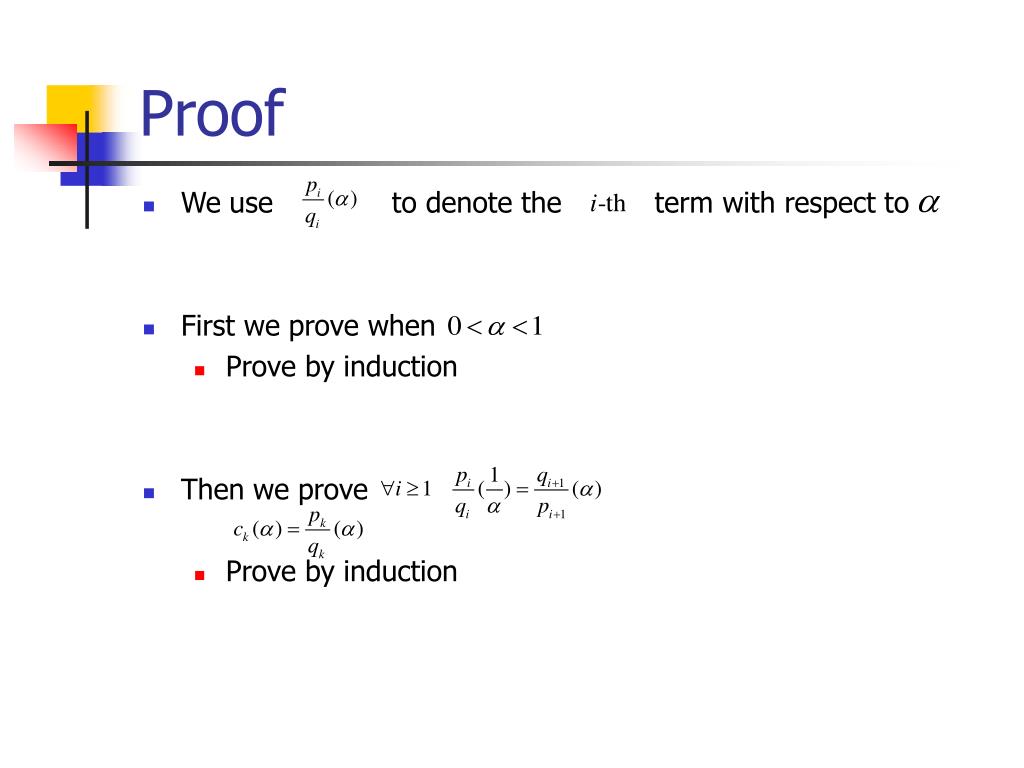

11. Proof • We use to denote the term with respect to • First we prove when • Prove by induction • Then we prove • Prove by induction

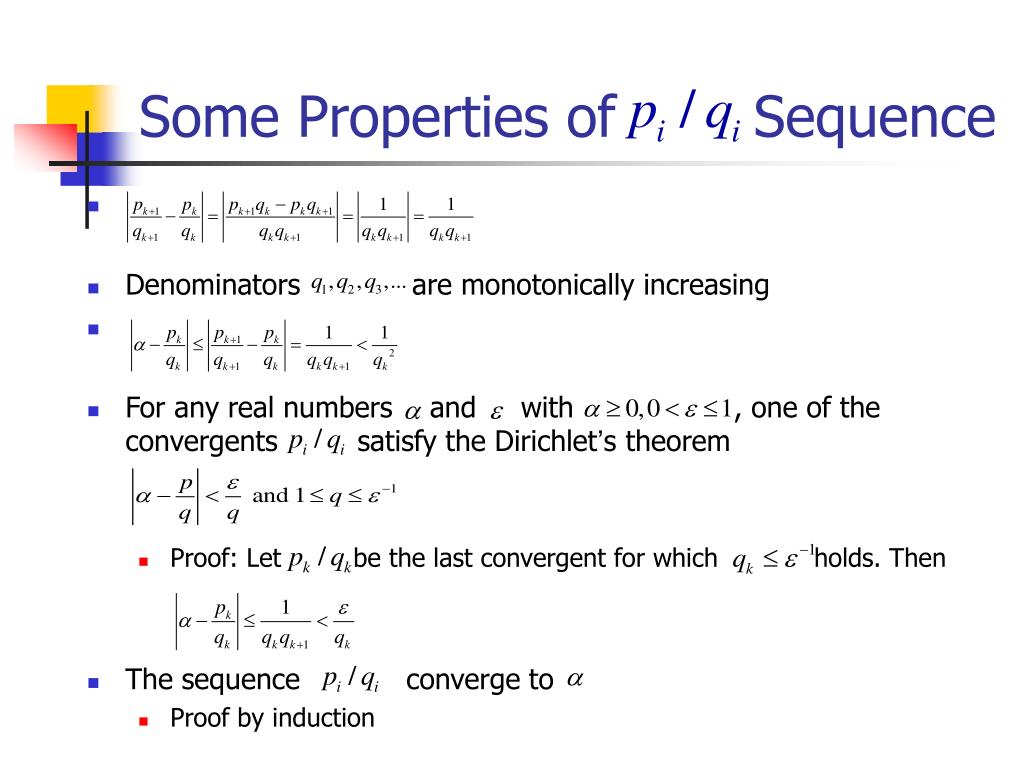

12. Some Properties of Sequence • Denominators are monotonically increasing • For any real numbers and with , one of the convergents satisfy the Dirichlet’s theorem • Proof: Let be the last convergent for which holds. Then • The sequence converge to • Proof by induction

13. Algorithm of Continued Fraction Method • Initially . Suppose then we compute by using the following rule: • If k is even and , subtract times the second column of from the first column; • If k is odd and , subtract times the first column of from the second column; • The matrices is in the following form: • The found in this way are the same as in the convergents • Proved by induction

14. Time complexity of Continued Fraction Method • Corollary. Given rational number , the continued fraction method finds integers and as described in Dirichelet’s theorem in time polynomially bounded by the size of • Proved similar to Euclidean algorithm • Theorem. Let be a real number, and let and be natural numbers with . Then occurs as convergent for • Corollary. There exist a polynomial algorithm which, for given rational number and natural number M, tests if there exists a rational number with . If so, finds this rational number.

15. Summary • Given a real number , there exist a rational number with small that is close enough to • Continued fraction method compute a rational number that equals to if is a rational number. Otherwise converge to • The algorithm for continued fraction method is a polynomial Euclidean-like algorithm

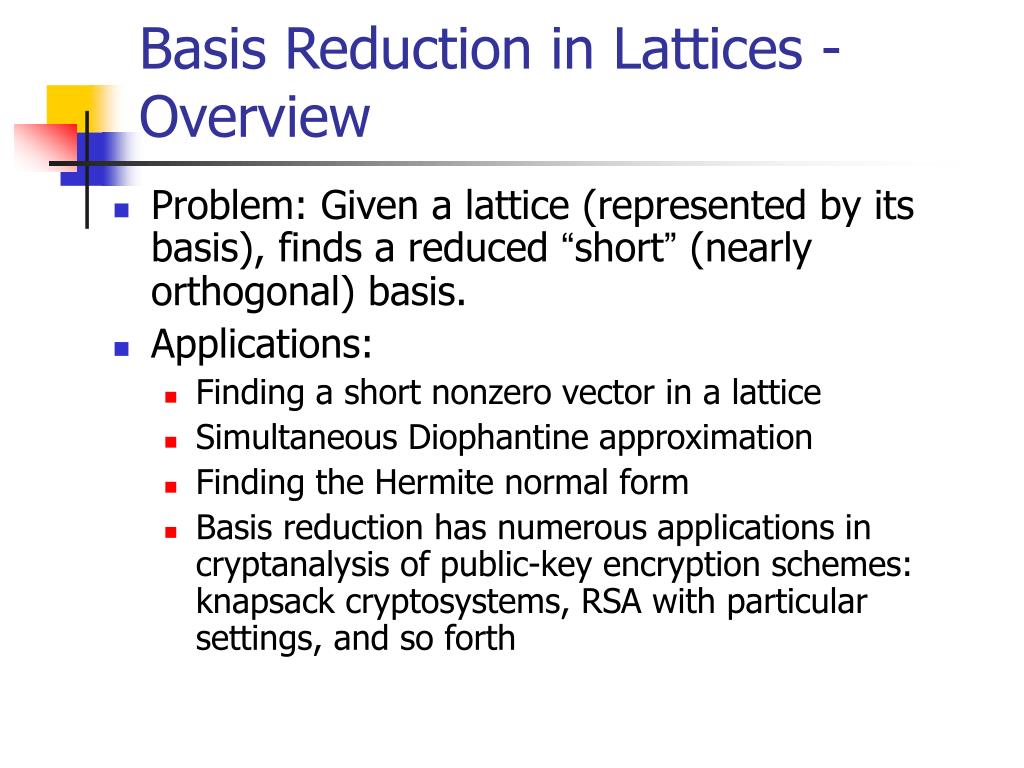

16. Basis Reduction in Lattices - Overview • Problem: Given a lattice (represented by its basis), finds a reduced “short” (nearly orthogonal) basis. • Applications: • Finding a short nonzero vector in a lattice • Simultaneous Diophantine approximation • Finding the Hermite normal form • Basis reduction has numerous applications in cryptanalysis of public-key encryption schemes: knapsack cryptosystems, RSA with particular settings, and so forth

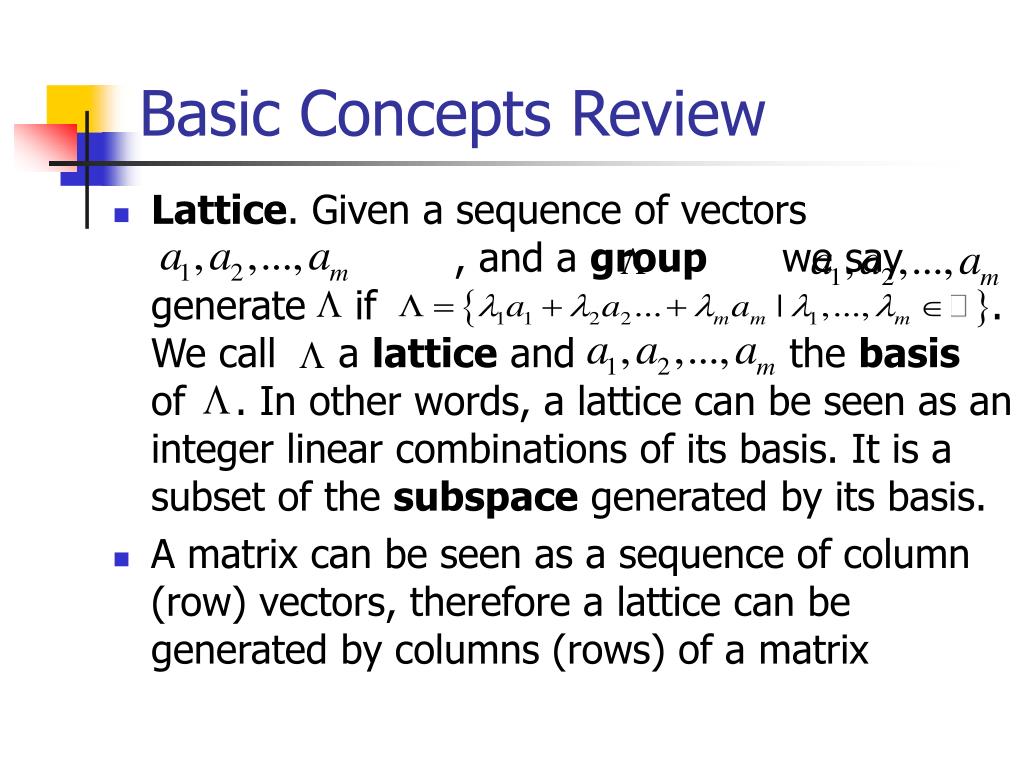

17. Basic Concepts Review • Lattice. Given a sequence of vectors , and a group we say generate if . We call a lattice and the basis of . In other words, a lattice can be seen as an integer linear combinations of its basis. It is a subset of the subspace generated by its basis. • A matrix can be seen as a sequence of column (row) vectors, therefore a lattice can be generated by columns (rows) of a matrix

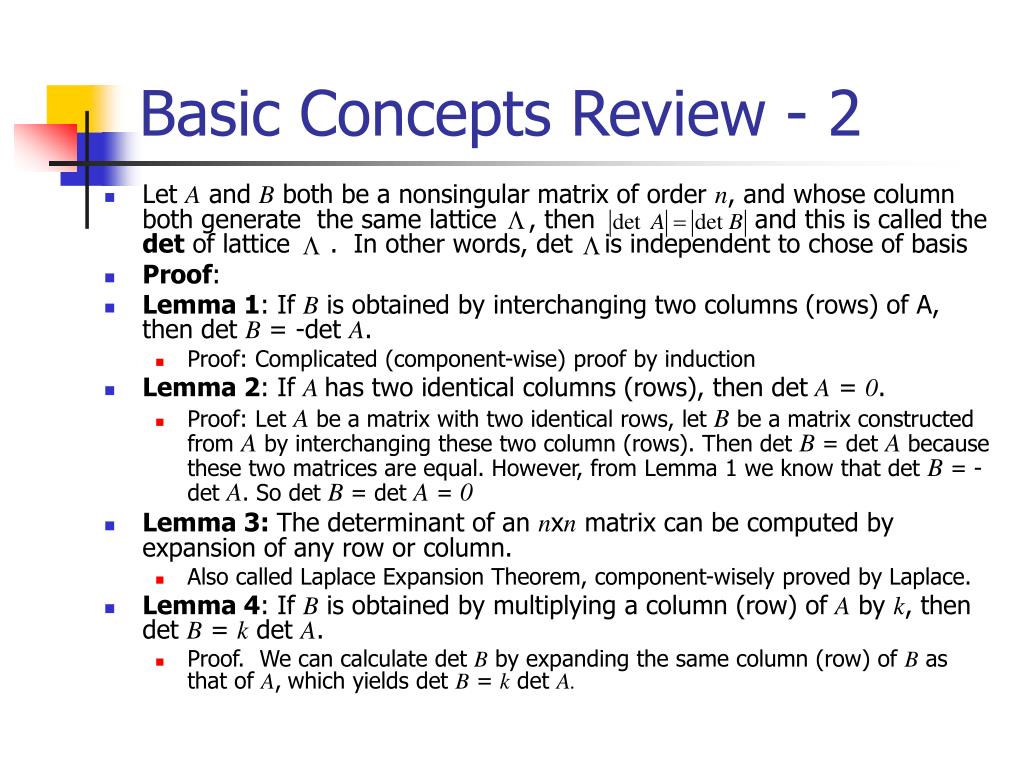

18. Basic Concepts Review - 2 • Let A and B both be a nonsingular matrix of order n, and whose column both generate the same lattice , then and this is called the det of lattice . In other words, det is independent to chose of basis • Proof: • Lemma 1: If B is obtained by interchanging two columns (rows) of A, then det B = -det A. • Proof: Complicated (component-wise) proof by induction • Lemma 2: If A has two identical columns (rows), then det A = 0. • Proof: Let A be a matrix with two identical rows, let B be a matrix constructed from A by interchanging these two column (rows). Then det B = det A because these two matrices are equal. However, from Lemma 1 we know that det B = -det A. So det B = det A = 0 • Lemma 3: The determinant of an nxn matrix can be computed by expansion of any row or column. • Also called Laplace Expansion Theorem, component-wisely proved by Laplace. • Lemma 4: If B is obtained by multiplying a column (row) of A by k, then det B = k det A. • Proof. We can calculate det B by expanding the same column (row) of B as that of A,which yields det B = k det A.

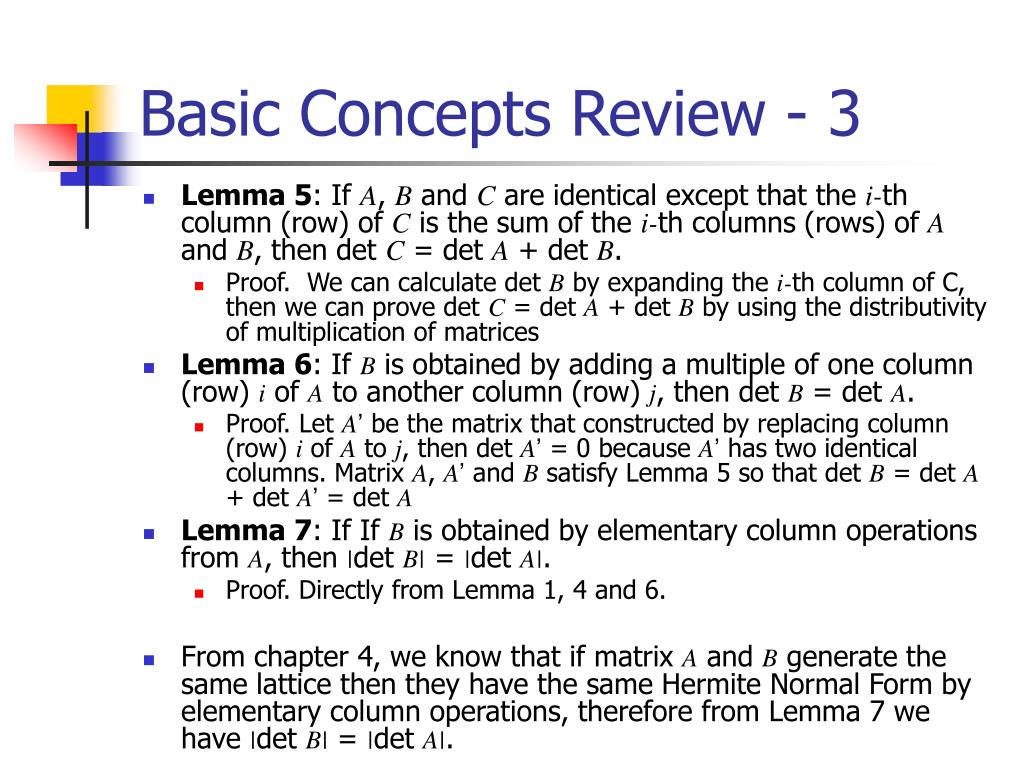

19. Basic Concepts Review - 3 • Lemma 5: If A, B and C are identical except that the i-th column (row) of C is the sum of the i-th columns (rows) of A and B, then det C = det A + det B. • Proof. We can calculate det B by expanding the i-th column of C, then we can prove det C = det A + det B by using the distributivity of multiplication of matrices • Lemma 6: If B is obtained by adding a multiple of one column (row) i of A to another column (row) j, then det B = det A. • Proof. Let A’ be the matrix that constructed by replacing column (row) i of A to j, then det A’ = 0 because A’ has two identical columns. Matrix A, A’ and B satisfy Lemma 5 so that det B = det A + det A’ = det A • Lemma 7: If If B is obtained by elementary column operations from A, then |det B| = |det A|. • Proof. Directly from Lemma 1, 4 and 6. • From chapter 4, we know that if matrix A and B generate the same lattice then they have the same Hermite Normal Form by elementary column operations, therefore from Lemma 7 we have |det B| = |det A|.

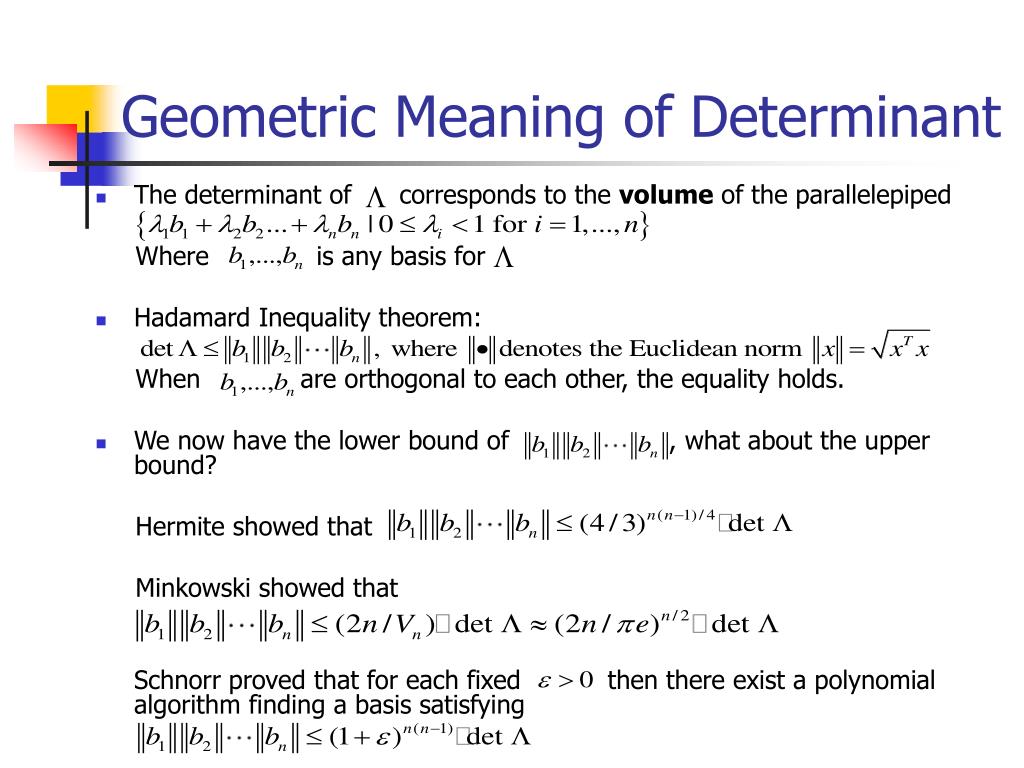

20. Geometric Meaning of Determinant • The determinant of corresponds to the volume of the parallelepiped Where is any basis for • Hadamard Inequality theorem: When are orthogonal to each other, the equality holds. • We now have the lower bound of , what about the upper bound? Hermite showed that Minkowski showed that Schnorr proved that for each fixed then there exist a polynomial algorithm finding a basis satisfying

21. Basis Reduction Theorem • A matrix is called positive definite if • There exist a polynomial algorithm which, for given positive definite rational matrix D, finds a basis for the lattice satisfying ‖b1‖ ‖b2‖…‖bn‖≤ where ‖x‖ • We prove this theorem by showing the LLL algorithm

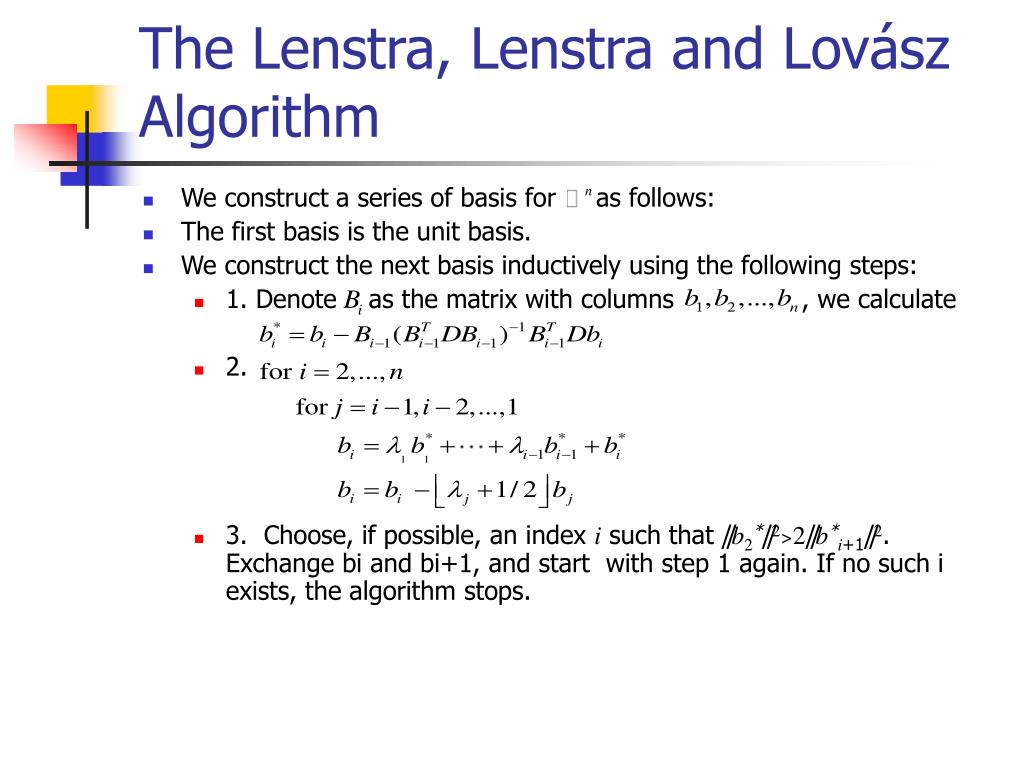

22. The Lenstra, Lenstra and Lovász Algorithm • We construct a series of basis for as follows: • The first basis is the unit basis. • We construct the next basis inductively using the following steps: • 1. Denote as the matrix with columns , we calculate • 2. • 3. Choose, if possible, an index i such that ‖b2*‖2>2‖b*i+1‖2. Exchange bi and bi+1, and start with step 1 again. If no such i exists, the algorithm stops.

23. The Lenstra, Lenstra and Lovász Algorithm - Continued • The LLL algorithm is an approximation of the Gram-Schmidt orthogonalization process which finds a orthogonal basis in a subspace of • The LLL algorithm terminates in polynomial time, with intermediate numbers polynomially bounded by the size of D • Complicated proof see p.68 – p.71

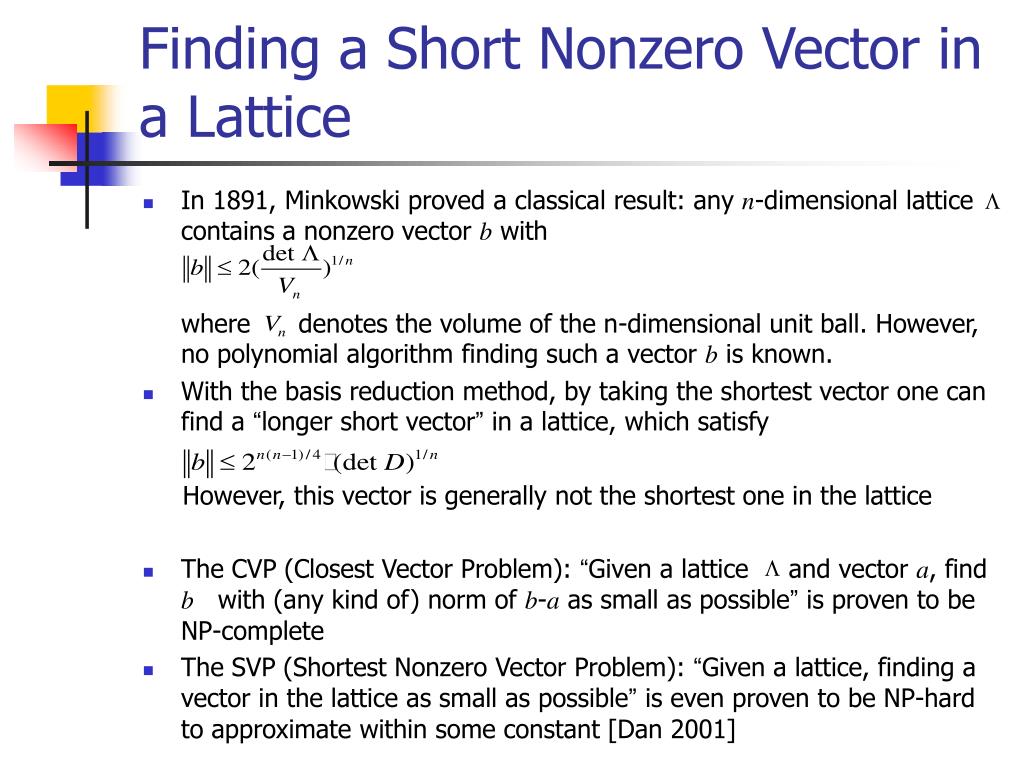

24. Finding a Short Nonzero Vector in a Lattice • In 1891, Minkowski proved a classical result: any n-dimensional lattice contains a nonzero vector b with where denotes the volume of the n-dimensional unit ball. However, no polynomial algorithm finding such a vector b is known. • With the basis reduction method, by taking the shortest vector one can find a “longer short vector” in a lattice, which satisfy However, this vector is generally not the shortest one in the lattice • The CVP (Closest Vector Problem): “Given a lattice and vector a, find b with (any kind of) norm of b-a as small as possible” is proven to be NP-complete • The SVP (Shortest Nonzero Vector Problem): “Given a lattice, finding a vector in the lattice as small as possible” is even proven to be NP-hard to approximate within some constant [Dan 2001]

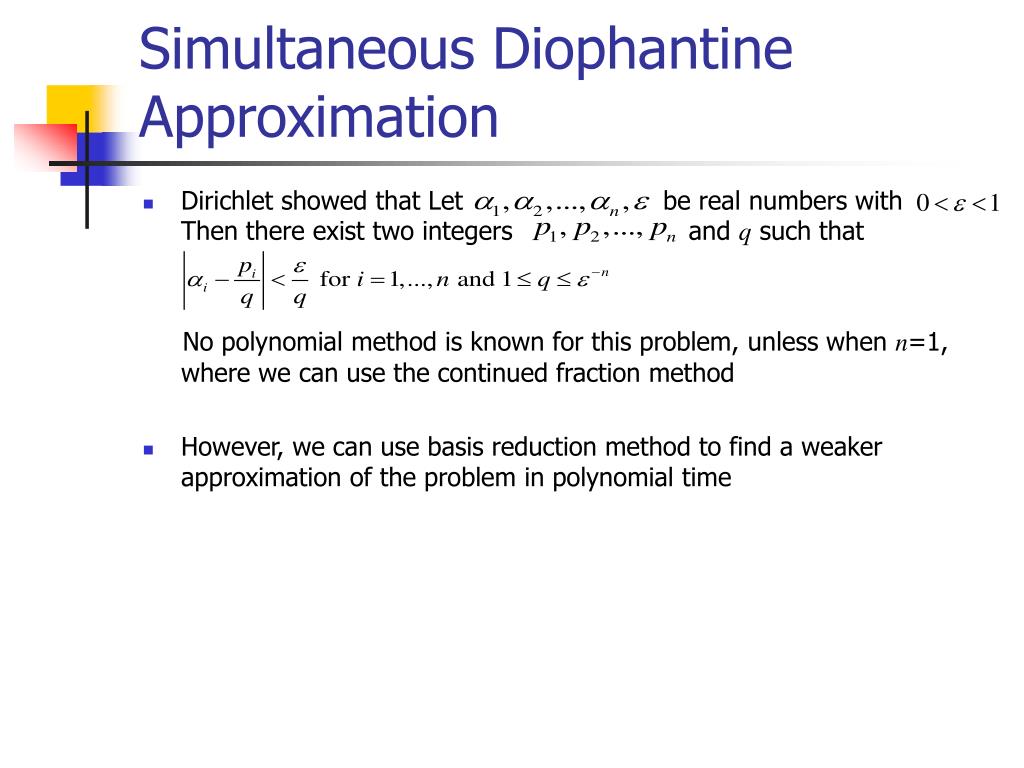

25. Simultaneous Diophantine Approximation • Dirichlet showed that Let be real numbers with Then there exist two integers and q such that No polynomial method is known for this problem, unless when n=1, where we can use the continued fraction method • However, we can use basis reduction method to find a weaker approximation of the problem in polynomial time

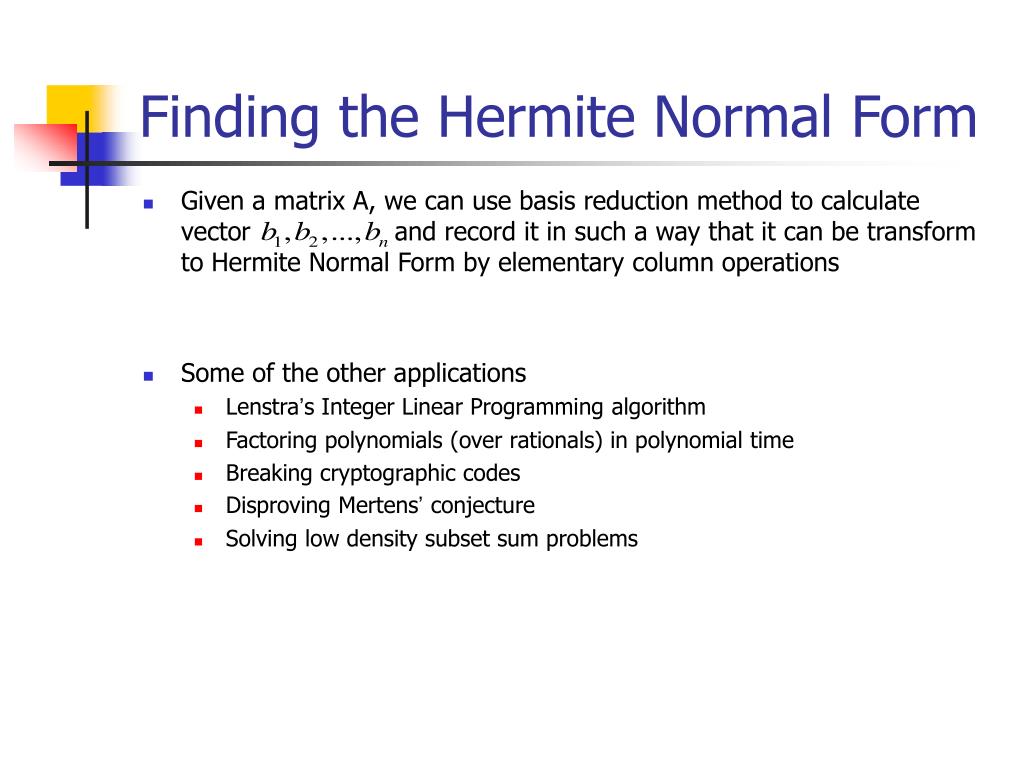

26. Finding the Hermite Normal Form • Given a matrix A, we can use basis reduction method to calculate vector and record it in such a way that it can be transform to Hermite Normal Form by elementary column operations • Some of the other applications • Lenstra’s Integer Linear Programming algorithm • Factoring polynomials (over rationals) in polynomial time • Breaking cryptographic codes • Disproving Mertens’ conjecture • Solving low density subset sum problems

27. Summary • The continued fraction method for approximating one real number by rational numbers • Lovász’s basis reduction method for finding a short basis in a lattice • Applications

28. Thank you 
