  1. Measurement of tensor analyzing powers in deuteron photodisintegration Dmitri Toporkov Budker Institute of Nuclear Physics Novosibirsk, Russia SPIN2004, Trieste, Italy October 15, 2004

  2. Introduction • Physical motivation • Experimental arrangement • Polarized target • Detector • Results • Conclusions Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

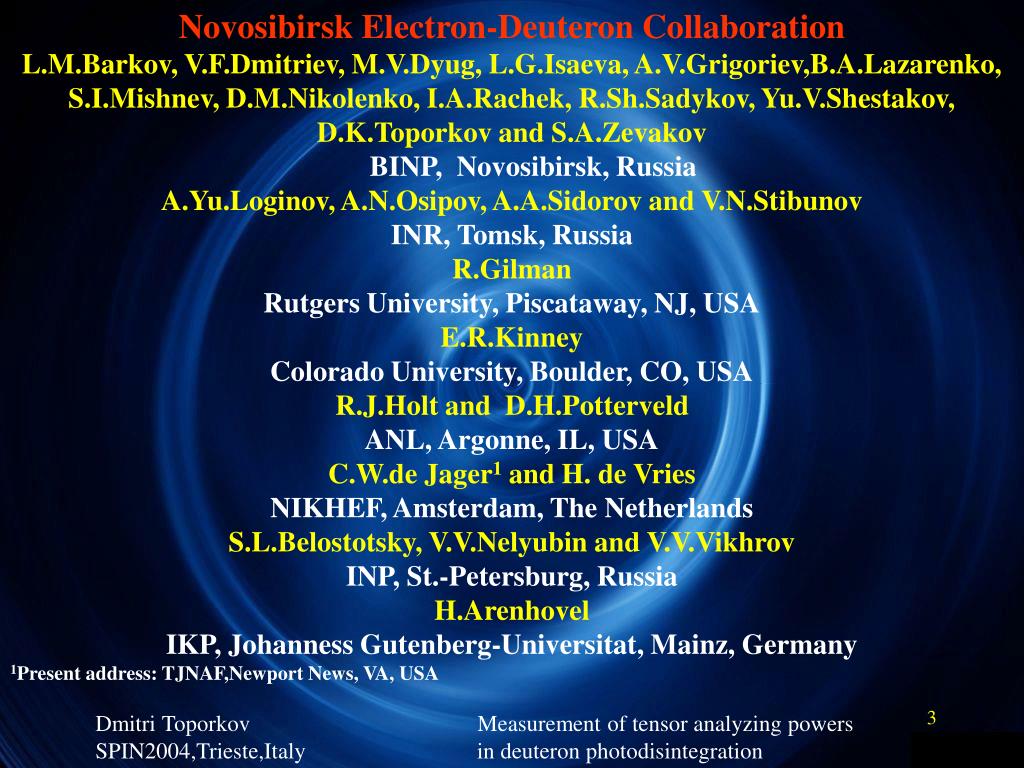

  3. Novosibirsk Electron-Deuteron Collaboration L.M.Barkov, V.F.Dmitriev, M.V.Dyug, L.G.Isaeva, A.V.Grigoriev,B.A.Lazarenko, S.I.Mishnev, D.M.Nikolenko, I.A.Rachek, R.Sh.Sadykov, Yu.V.Shestakov, D.K.Toporkov and S.A.Zevakov BINP, Novosibirsk, Russia A.Yu.Loginov, A.N.Osipov, A.A.Sidorov and V.N.Stibunov INR, Tomsk, Russia R.Gilman Rutgers University, Piscataway, NJ, USA E.R.Kinney Colorado University, Boulder, CO, USA R.J.Holt and D.H.Potterveld ANL, Argonne, IL, USA C.W.de Jager1 and H. de Vries NIKHEF, Amsterdam, The Netherlands S.L.Belostotsky, V.V.Nelyubin and V.V.Vikhrov INP, St.-Petersburg, Russia H.Arenhovel IKP, Johanness Gutenberg-Universitat, Mainz, Germany 1Present address: TJNAF,Newport News, VA, USA Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

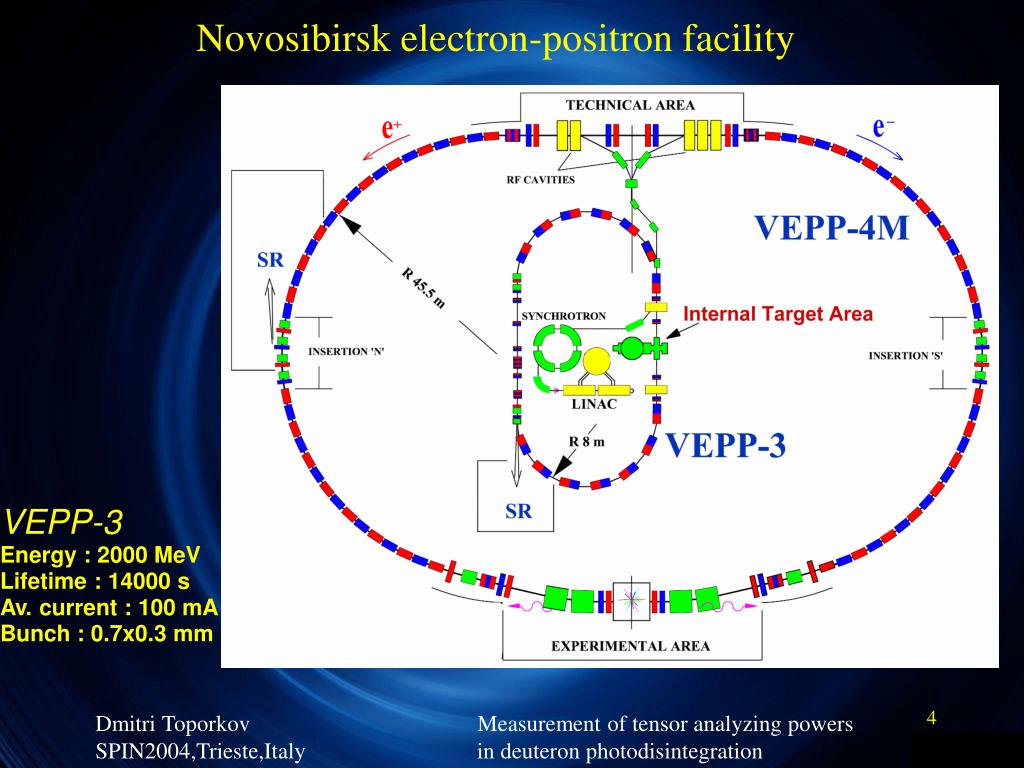

  4. Novosibirsk electron-positron facility VEPP-3 Energy : 2000 MeV Lifetime : 14000 s Av. current : 100 mA Bunch : 0.7x0.3 mm Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

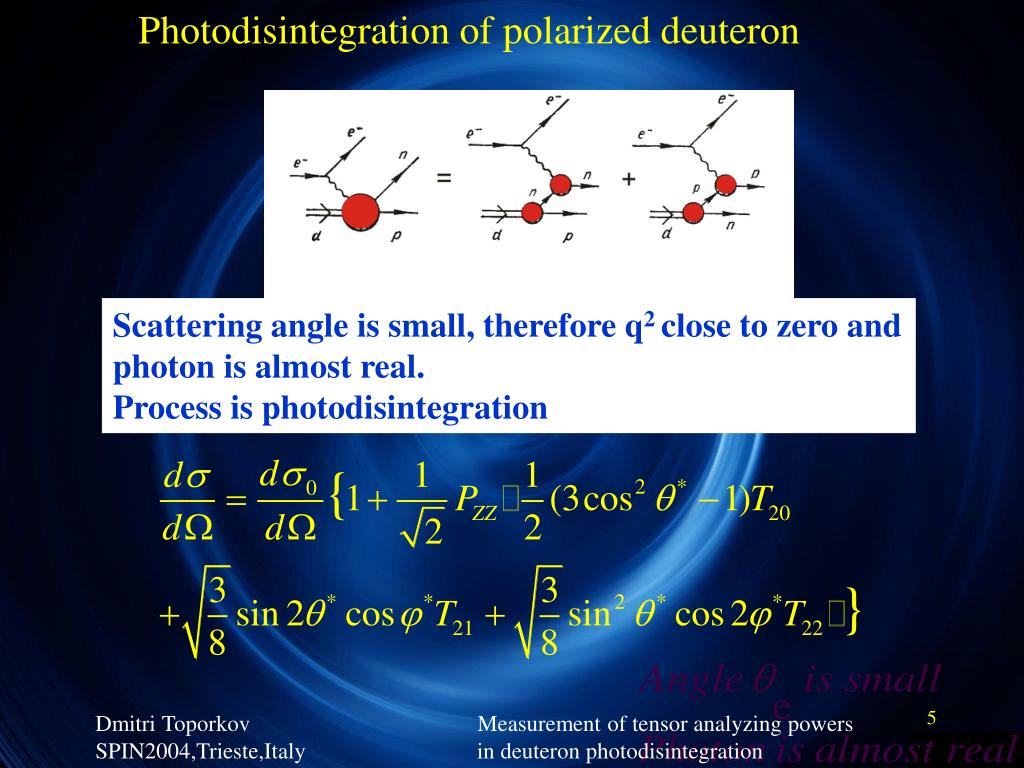

  5. Photodisintegration of polarized deuteron Scattering angle is small, therefore q2 close to zero and photon is almost real. Process is photodisintegration Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

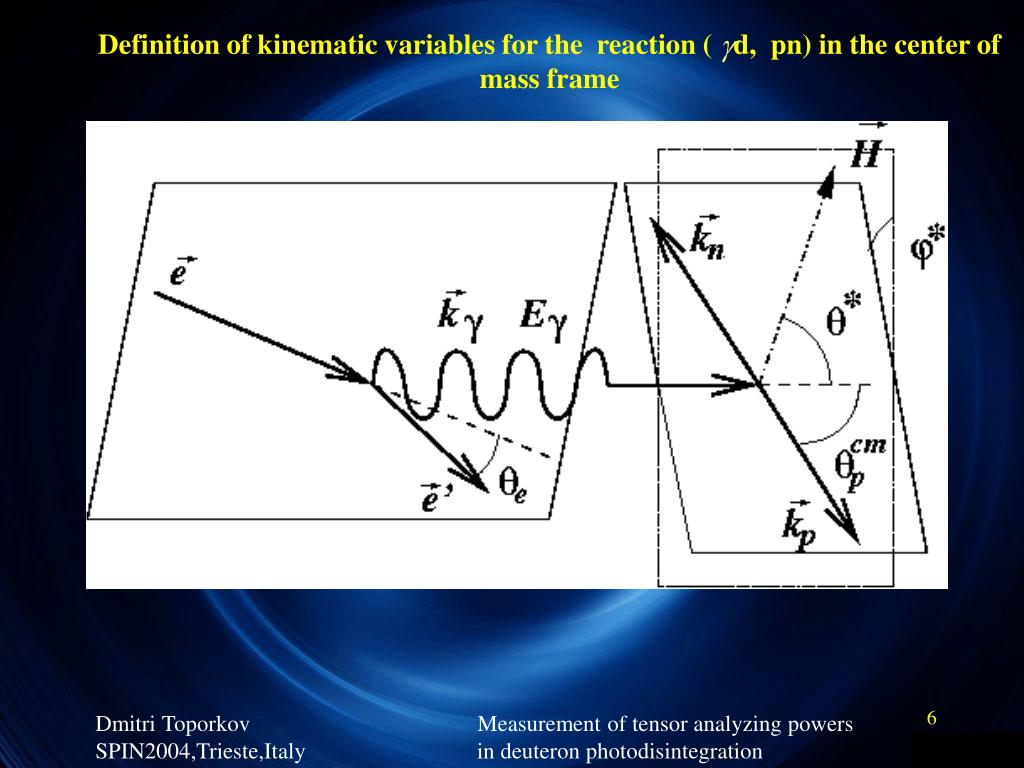

  6. Definition of kinematic variables for the reaction ( d, pn) in the center of mass frame Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

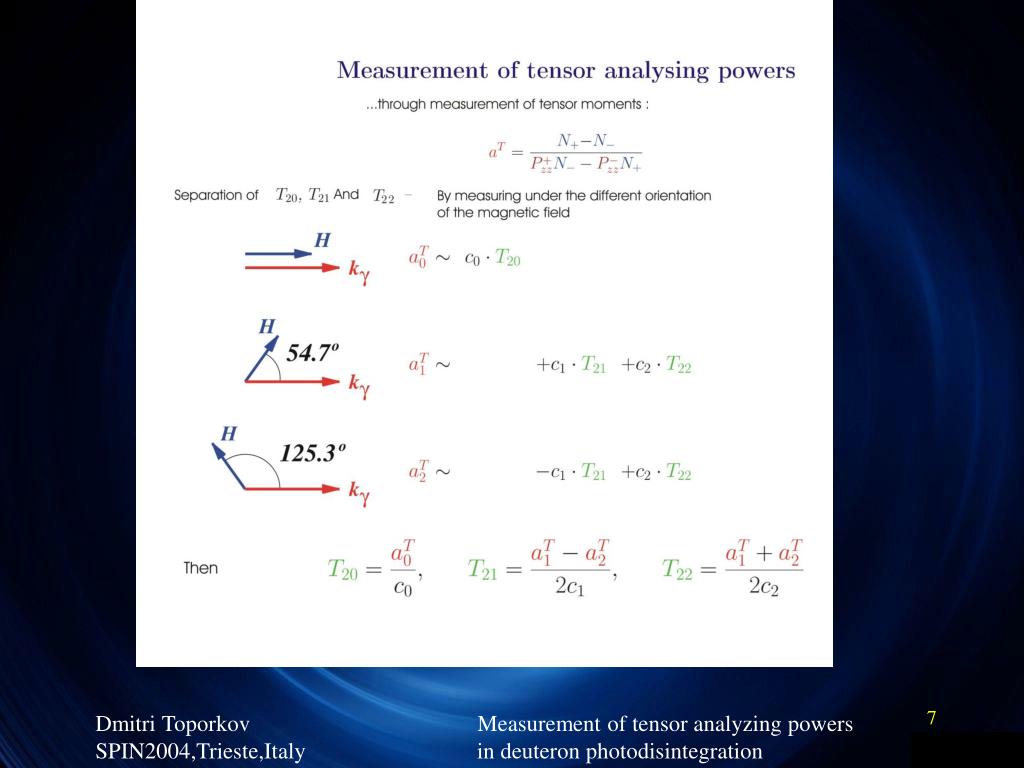

  7. Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

  8. Top view of the internal target at VEPP-3 electron ring Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

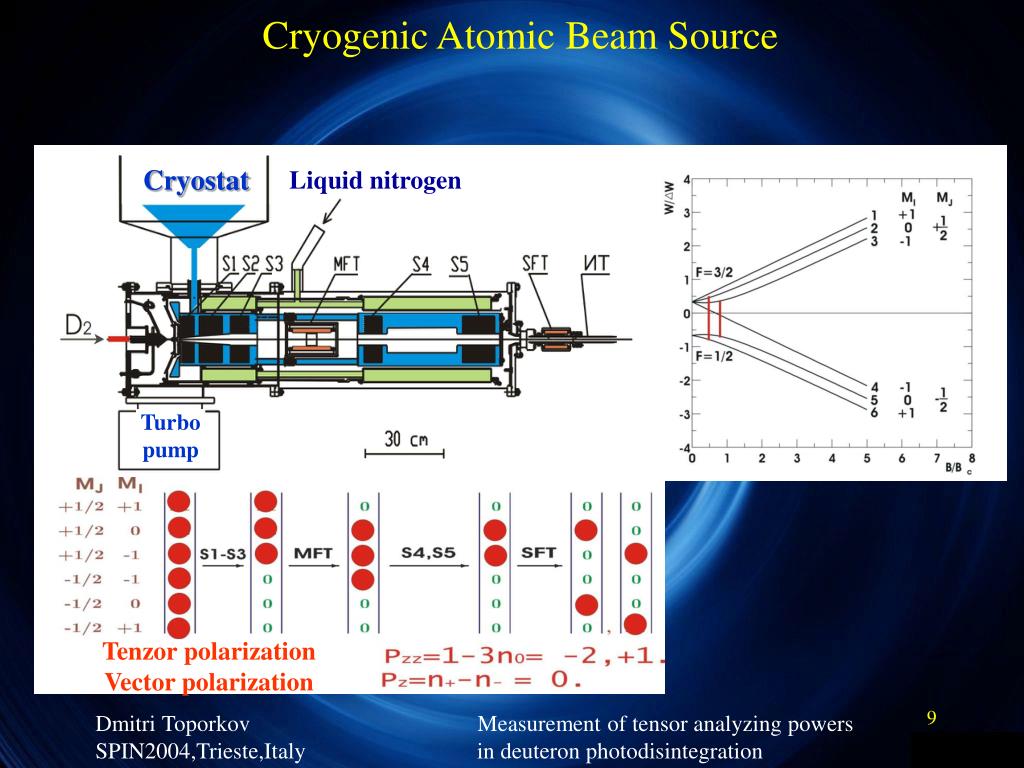

  9. Cryogenic Atomic Beam Source Cryostat Liquid nitrogen Turbo pump Tenzor polarization Vector polarization Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

  10. ABS just before the installation at the straight section Magnetic pole tip field of superconducting magnet up to 4.8 T Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

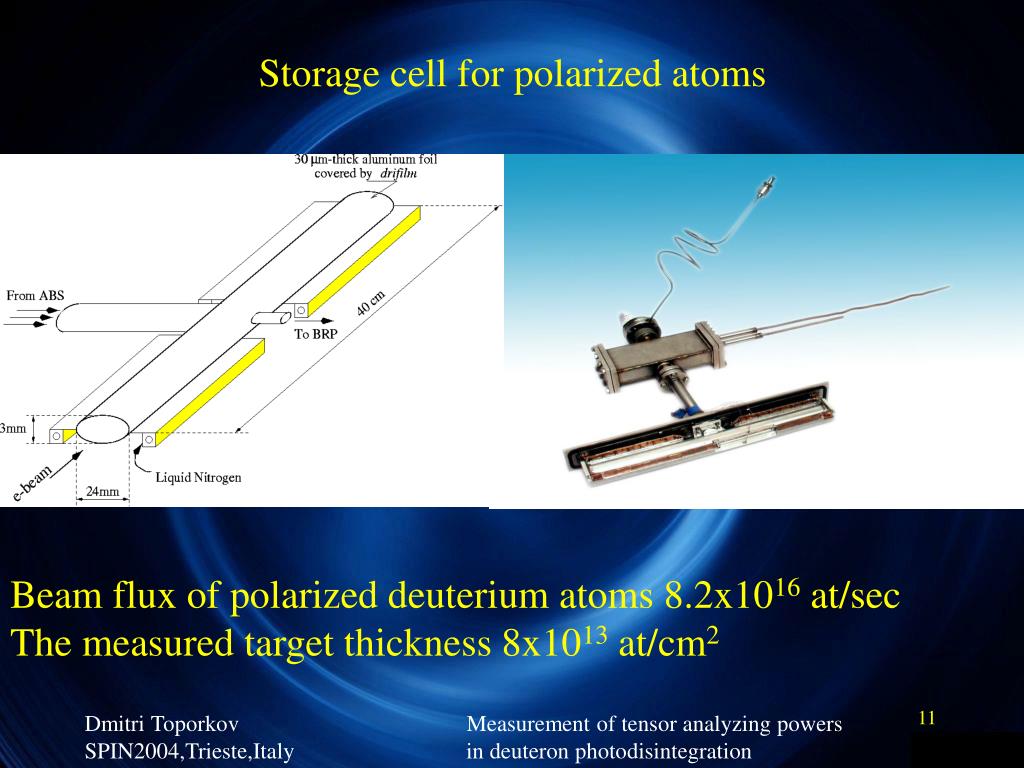

  11. Storage cell for polarized atoms Beam flux of polarized deuterium atoms 8.2x1016 at/sec The measured target thickness 8x1013 at/cm2 Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

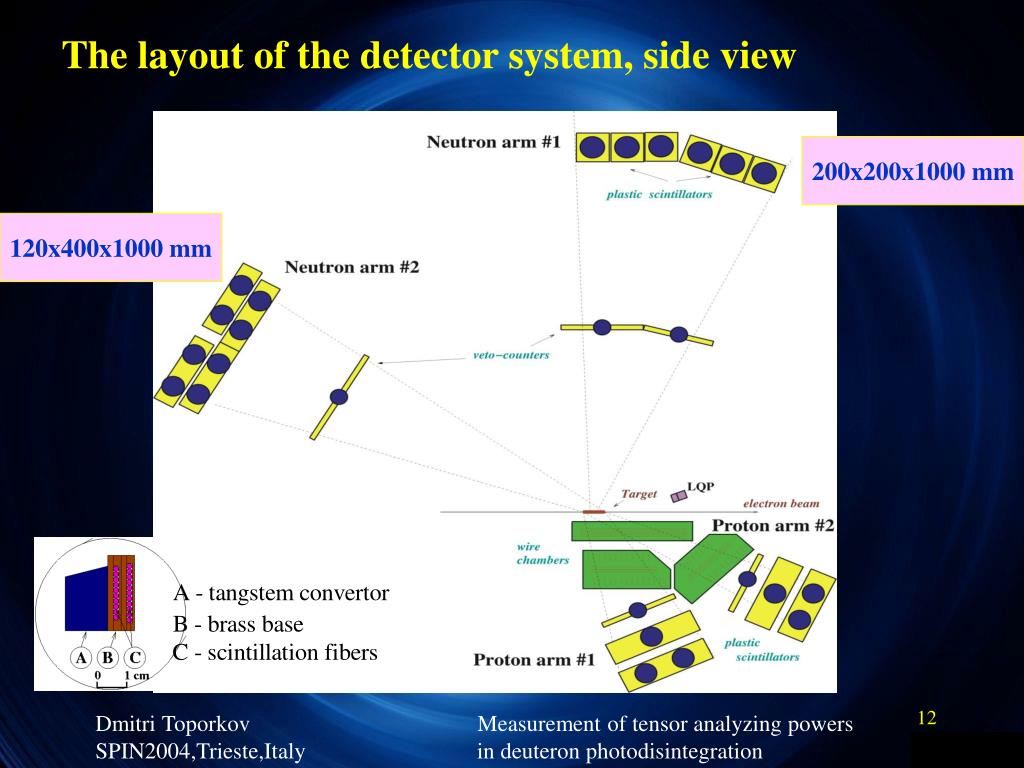

  12. The layout of the detector system, side view 200x200x1000 mm 120x400x1000 mm Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

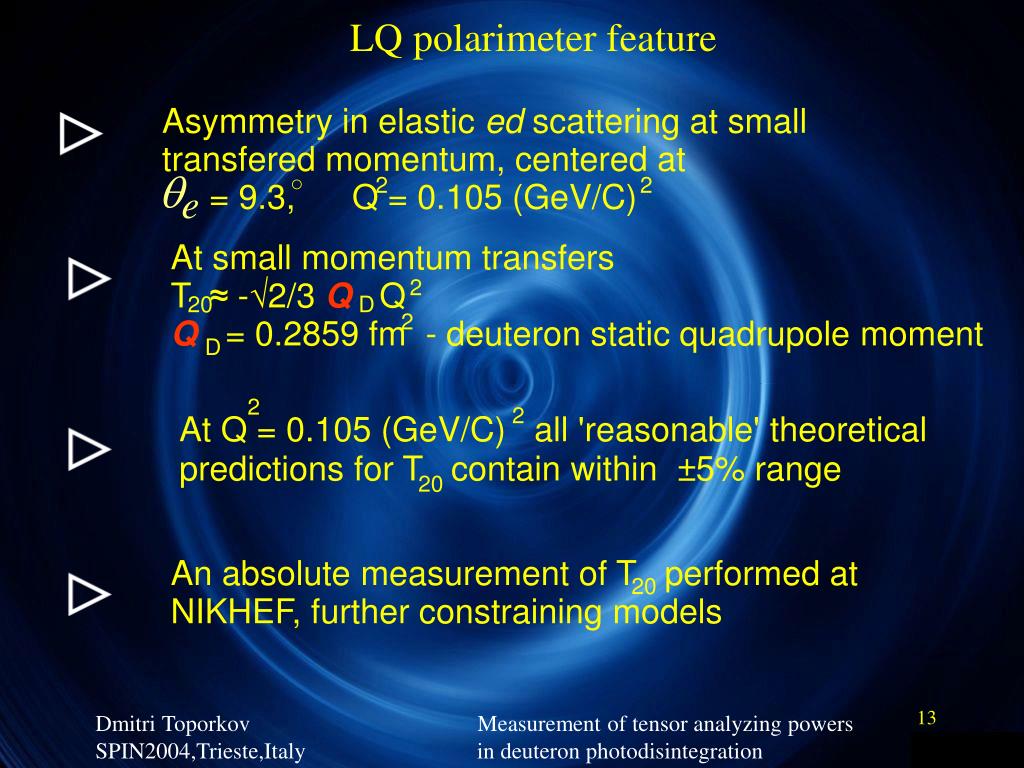

  13. LQ polarimeter feature Asymmetry in elastic ed scattering at small transfered momentum, centered at = 9.3, Q = 0.105 (GeV/C) ○ 2 2 At small momentum transfers T ≈ -√2/3 Q Q Q = 0.2859 fm - deuteron static quadrupole moment 2 20 D 2 D 2 2 At Q = 0.105 (GeV/C) all 'reasonable' theoretical predictions for T contain within ±5% range 20 An absolute measurement of T performed at NIKHEF, further constraining models 20 Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

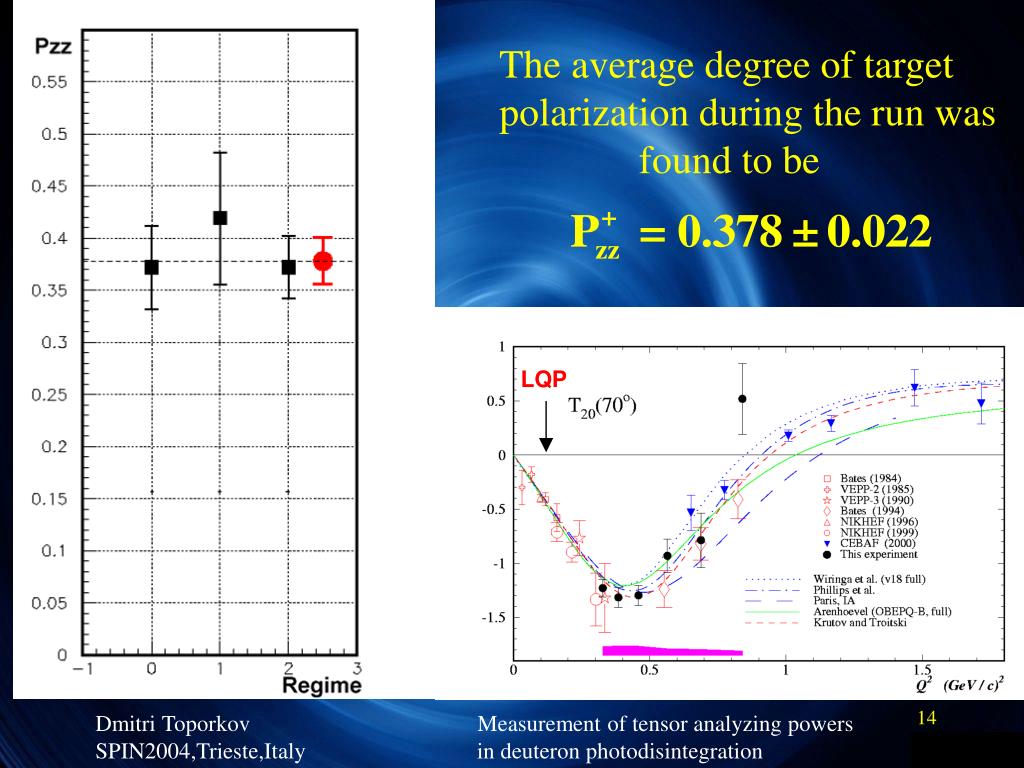

  14. The average degree of target polarization during the run was found to be LQP Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

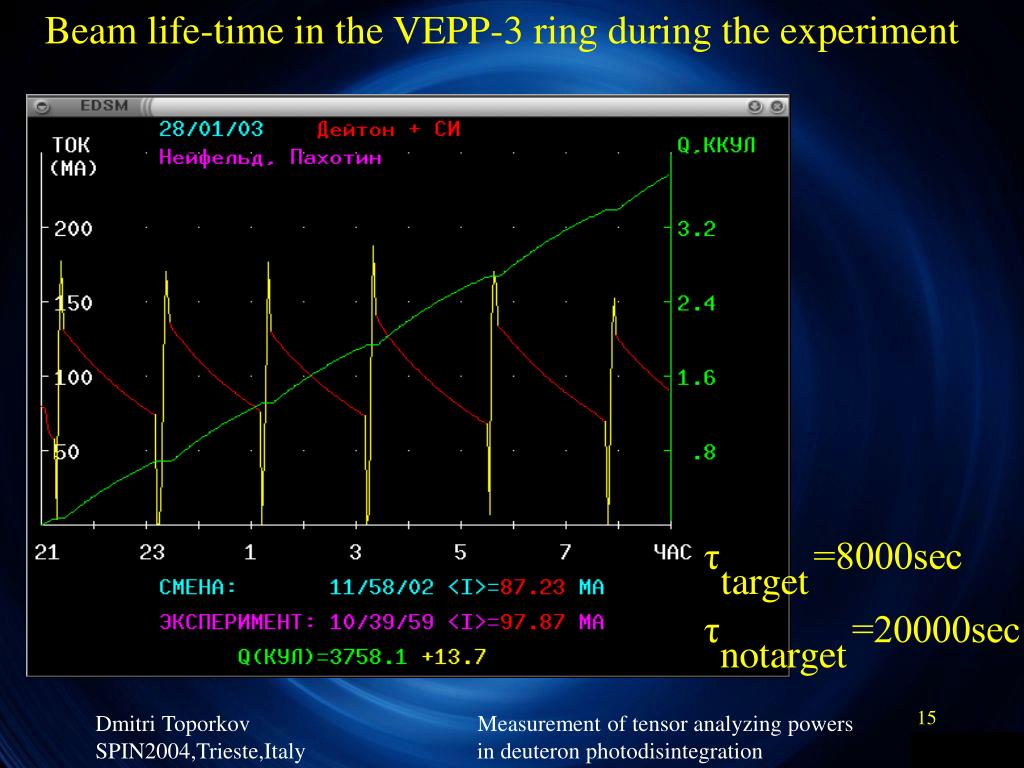

  15. Beam life-time in the VEPP-3 ring during the experiment Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

  16. Charge accumulation during the experiment Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

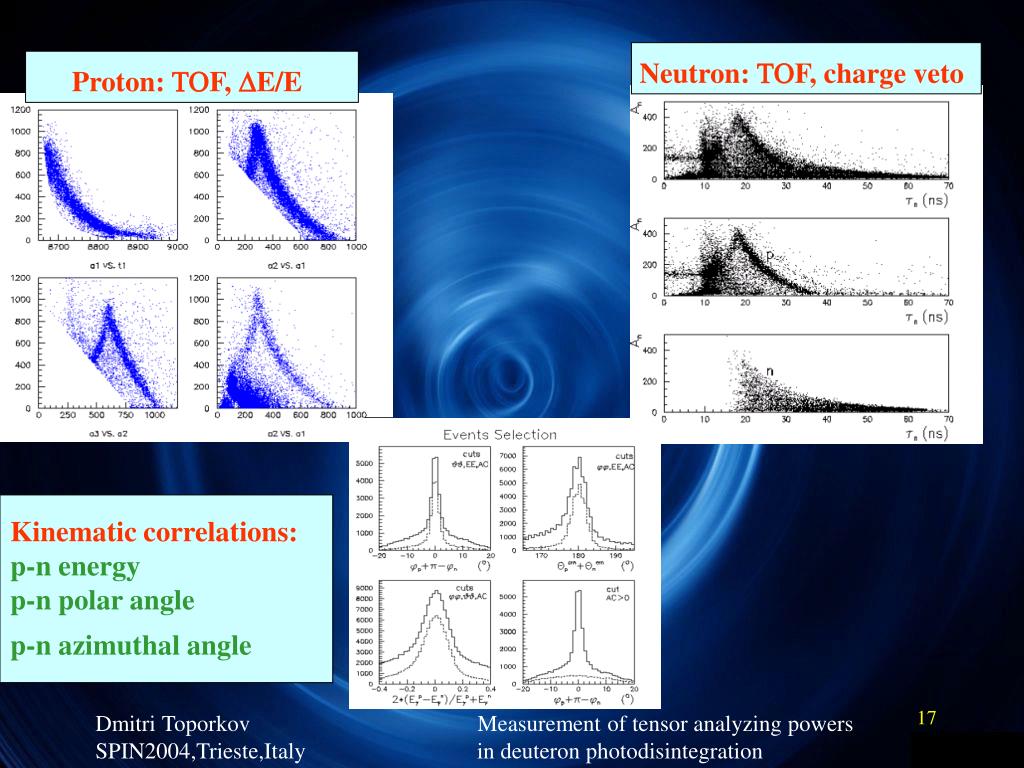

  17. Neutron: TOF, charge veto Proton: TOF, DE/E Kinematic correlations: p-n energy p-n polar angle p-n azimuthal angle Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

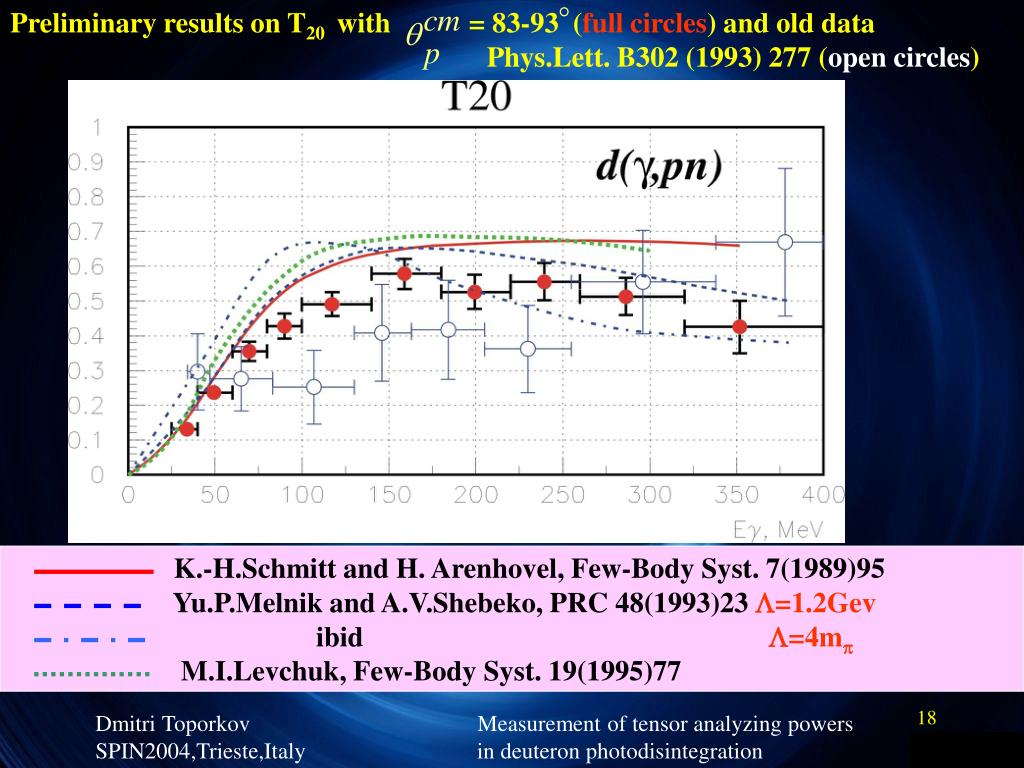

  18. Preliminary results on T20 with =83-93(full circles)and old data Phys.Lett. B302 (1993) 277 (open circles) K.-H.Schmitt and H. Arenhovel, Few-Body Syst. 7(1989)95 Yu.P.Melnik and A.V.Shebeko, PRC 48(1993)23 L=1.2Gev ibid L=4mp M.I.Levchuk, Few-Body Syst. 19(1995)77 Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

  19. Preliminary results on T21 and T22 with =83-93(full circles)and old data Phys.Lett. B302 (1993) 277 (open circles) K.-H.Schmitt and H. Arenhovel, Few-Body Syst. 7(1989)95 Yu.P.Melnik and A.V.Shebeko, PRC 48(1993)23 L=1.2Gev ibid L=4mp M.I.Levchuk, Few-Body Syst. 19(1995)77 Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

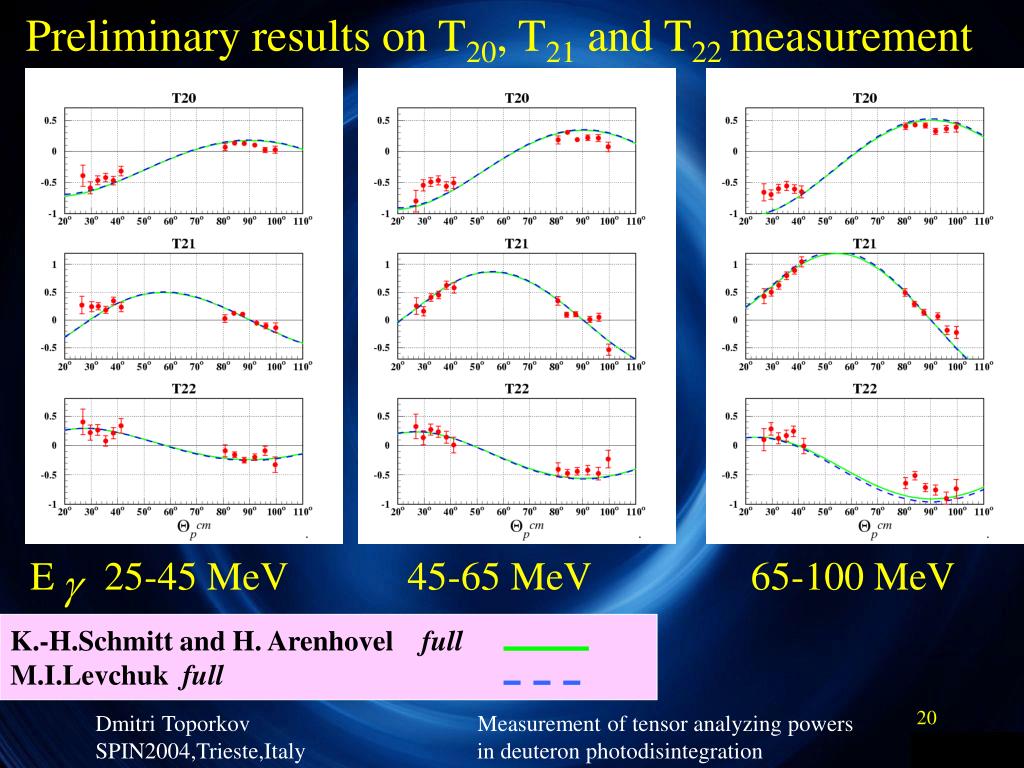

  20. Preliminary results on T20, T21 and T22 measurement E 25-45 MeV 45-65 MeV 65-100 MeV K.-H.Schmitt and H. Arenhovel full M.I.Levchuk full Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

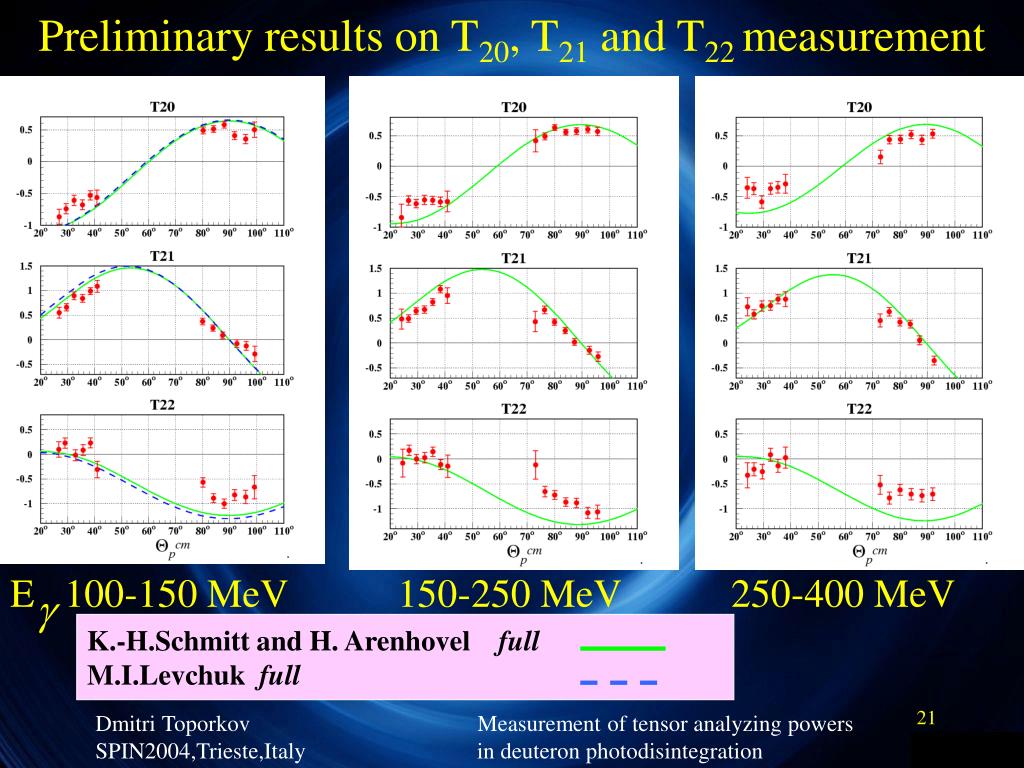

  21. Preliminary results on T20, T21 and T22 measurement E 100-150 MeV 150-250 MeV 250-400 MeV K.-H.Schmitt and H. Arenhovel full M.I.Levchuk full Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

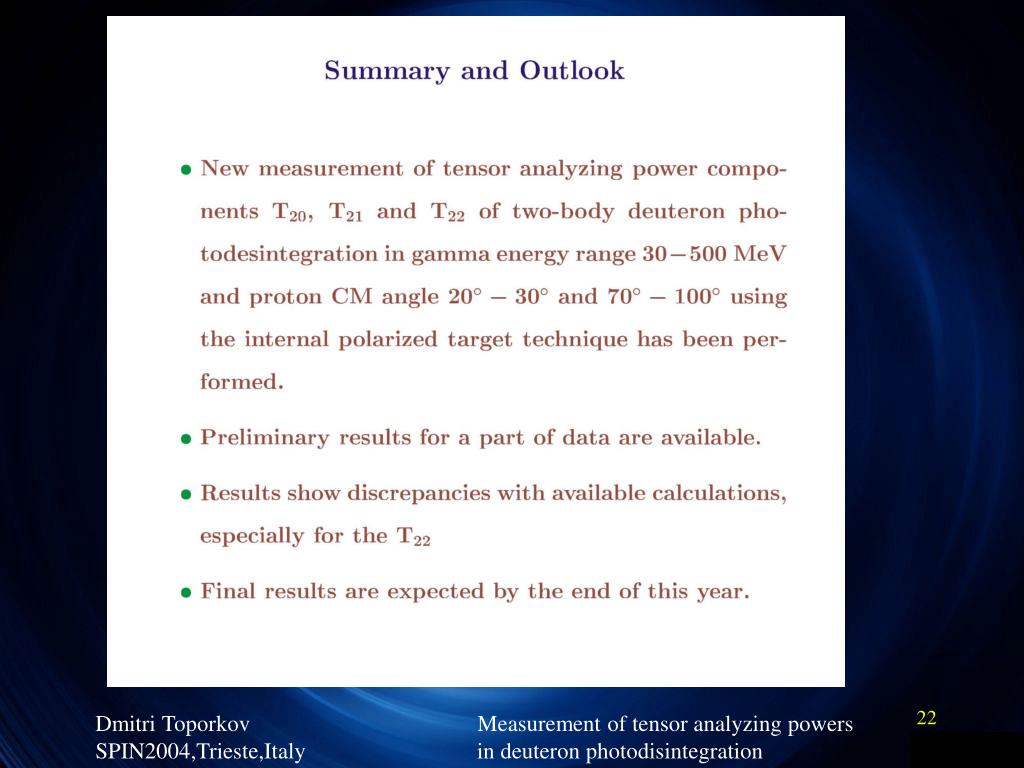

  22. Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration

  23. Part of people, who did the experiment Dmitri Toporkov Measurement of tensor analyzing powers SPIN2004,Trieste,Italy in deuteron photodisintegration
