  1. Billing Primer TMC IT Expo – Oct 2006 Bala Janakiraman Sonus Networks

  2. What is the problem? • How to fit next generation networking equipment into the existing OSS environment? • How to bill for next generation services? • How to run a profitable next generation network?

  3. How to approach the problem • Marketing Input • Target customers • Offer definitions • Charging structures • Define usage data needs • Use cases • Call flows • Specify requirements

  4. Who is the customer? • Target customers • Residential, Small Office Home Office (SOHO), Small and Medium Sized Business (SMB), Enterprise

  5. What will you offer them? • Offer definitions • Unlimited calling, bucket of minutes, long distance, international • Charge for enhanced services, such as voicemail, conferencing, voice portal • Converged services – e.g. Mobile calls through Wi-Fi Access point

  6. How will you charge them? • Charging structures • Subscription • Dial-up/Broadband access • Time period • Wi-fi access • Bucket of minutes • Mobile phone service • Metered • Traditional telco • Pre-paid • Calling cards, content downloads from partners

  7. How will customers use the service? • Use Cases • Residential VoIP sub calls • VoIP sub on the same VoIP network • VoIP sub on other VoIP network • Local TDM number • Long distance TDM number • International TDM number

  8. How will customers use the service? • More advanced use cases • Call forwarding • Call transfer • Conferencing • Voicemail • Find me / follow me • Presence server • Video conferencing • Mobile to Wi-Fi transfer

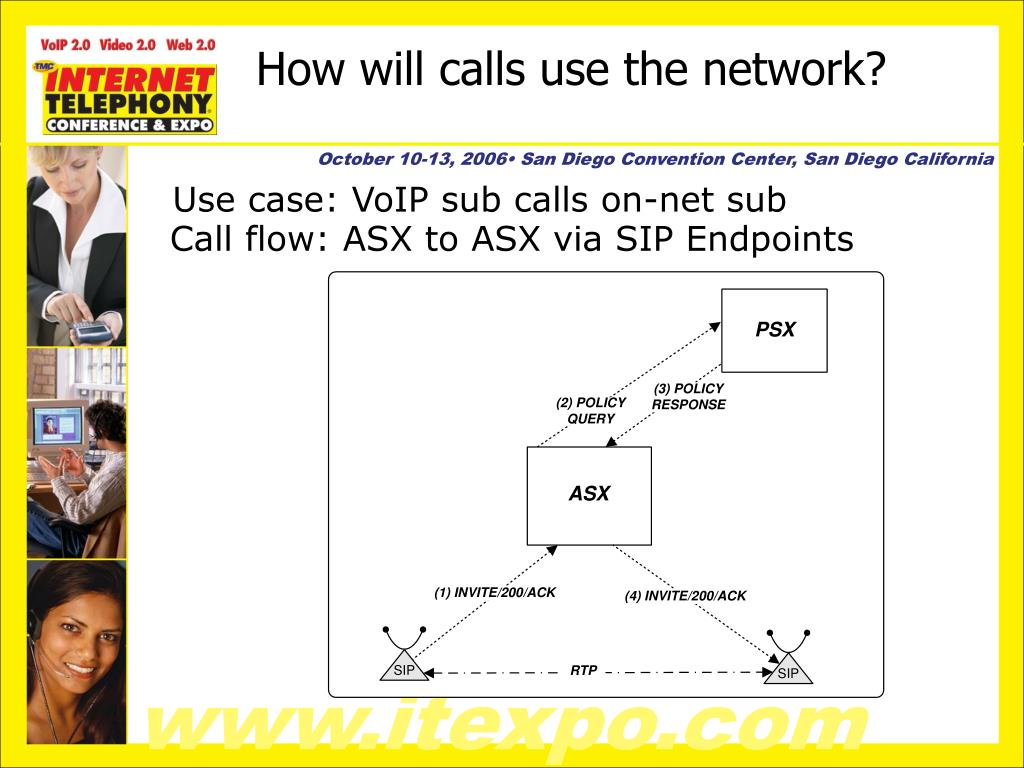

  9. How will calls use the network? Use case: VoIP sub calls on-net sub Call flow: ASX to ASX via SIP Endpoints

  10. How will calls use the network? Use case: VoIP sub calls PSTN user Call flow: ASX to GSX to PSTN

  11. How will calls use the network? Use case: PSTN user calls VoIP sub Call flow: GSX to ASX to MGCP Endpoint

  12. How will calls use the network? Use case: VoIP sub B forwards all calls to C Call flow: A calls B; B forwards to C A C

  13. HLR How will calls use the network? Call flow: Mobile -> TA -> NBS -> GSX (make before break) √ Use case: Mobile switches to Wi-Fi GSX (MGCF) √ PSTN Mobile RAN Subsystem MSC/ VLR GSX (BGCF) √ SRX (S-CSCF) √ HSX IMX (CCCF/NeDS) Sonus IMS Core √ PSX (gsmSCF) Generic IP Network TA NBS, (P-CSCF, THIG)

  14. Typical back office data needs • Billing/Fraud • Calling/called numbers, ingress/egress trunk groups, call start/stop time, resources used (codec, app servers, media servers) • Performance Management • Latency, packet loss, jitter • Capacity Management • Minutes, average resource utilization, peak resource utilization • Web Portal • Customer data, service/feature data, call history logs

  15. The Role of Billing Mediation • Collect Network Usage (NU) data from network elements • Correlate and translate as required by OSS applications • Distribute to back office applications To help carriers run profitable and efficient networks

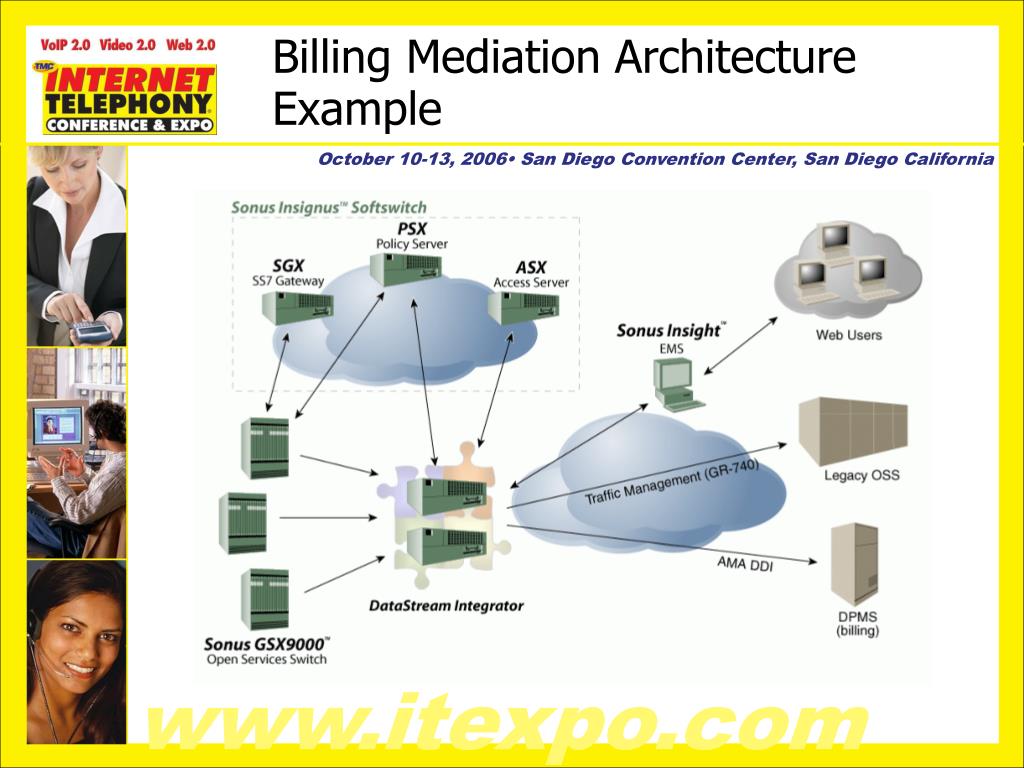

  16. Billing Mediation Architecture Example

  17. Specify requirements • Traffic level • Latency • Where to record usage data • Filtering rules • Data formats (AMA, IPDR, etc) • Data interfaces (FTP, AMA DNS, Stream, etc) • To correlate or not • Storage/archive

  18. Thank You Bala Janakiraman bjanakiraman@sonusnet.com
