TH 206 . Vapor Liquid Equilibrium. Faculty Instructor Prof. J.Ballare Lab TA’s M.V. Ramesh (M.Tech) D.Sateesh (PhD ) . Experiment. Generate the vapor-liquid equilibrium data for the given binary system of Acetone- benzene. 1.) Check the thermodynamic consistency of the data

hans
Télécharger la présentation

TH 206

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

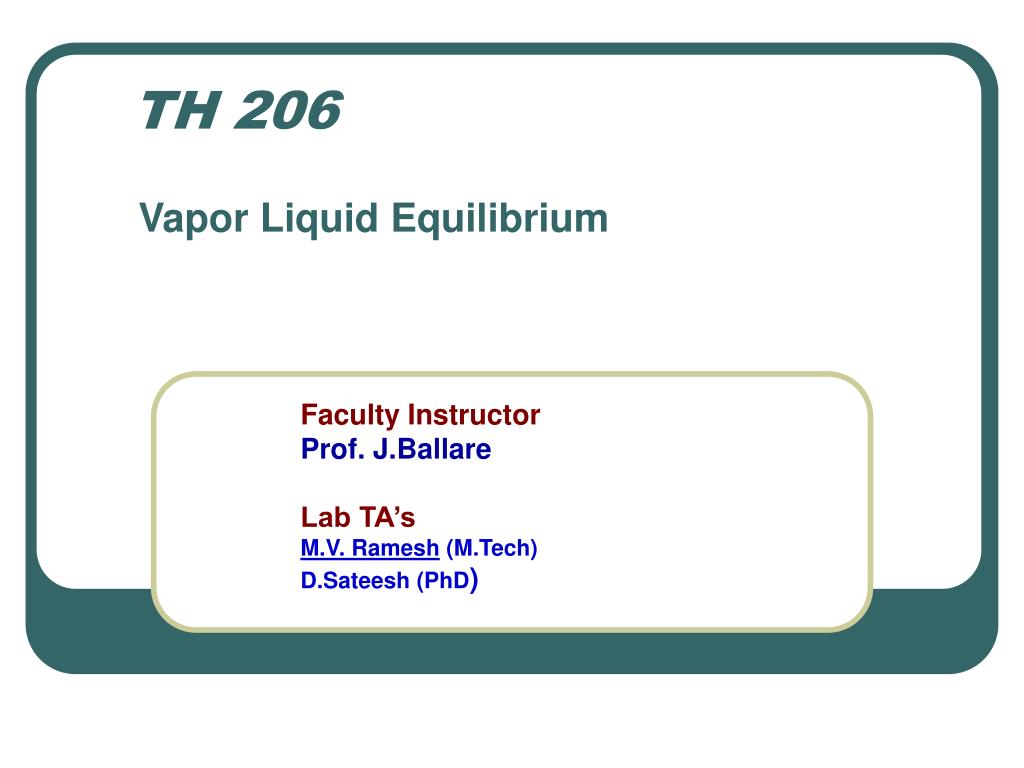

  1. TH 206 Vapor Liquid Equilibrium Faculty Instructor Prof. J.Ballare Lab TA’s M.V. Ramesh (M.Tech) D.Sateesh (PhD)

  2. Experiment Generate the vapor-liquid equilibrium data for the given binary system of Acetone- benzene • 1.) Check the thermodynamic consistency of the data • 2.) Present the thermodynamic characteristics and calculate • constants of van Laar equation for the given system

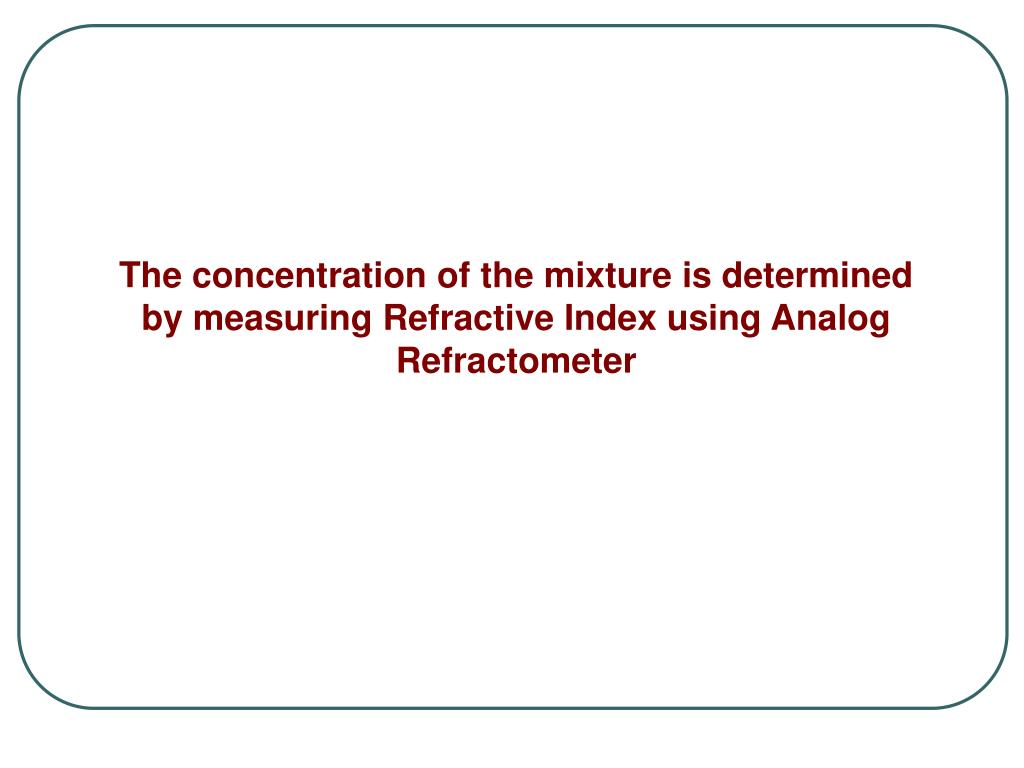

  3. The concentration of the mixture is determined by measuring Refractive Index using Analog Refractometer

  4. RTD for temp measurement Vapor sample collector Liquid sample collector Experimental Setup • Get calibration curve for RI Vs Concentration • Initially mixture - 400ml Acetone + 100ml Benzene. Measure its RI. • Run expt till the equilibrium reaches • Take liquid and vapor samples for RI calculation • Take some amount of mixture out and add same amount of Benzene to the mixture • Repeat this

  5. Calculations • Modified Rault’s law • Calculation of Van Laar equations • Plot ln γA, ln γB (on the same graph) and ln(γA / γB) vs XA (as another graph) and check for thermodynamic consistency. • Calculate back the van Laar coefficients using

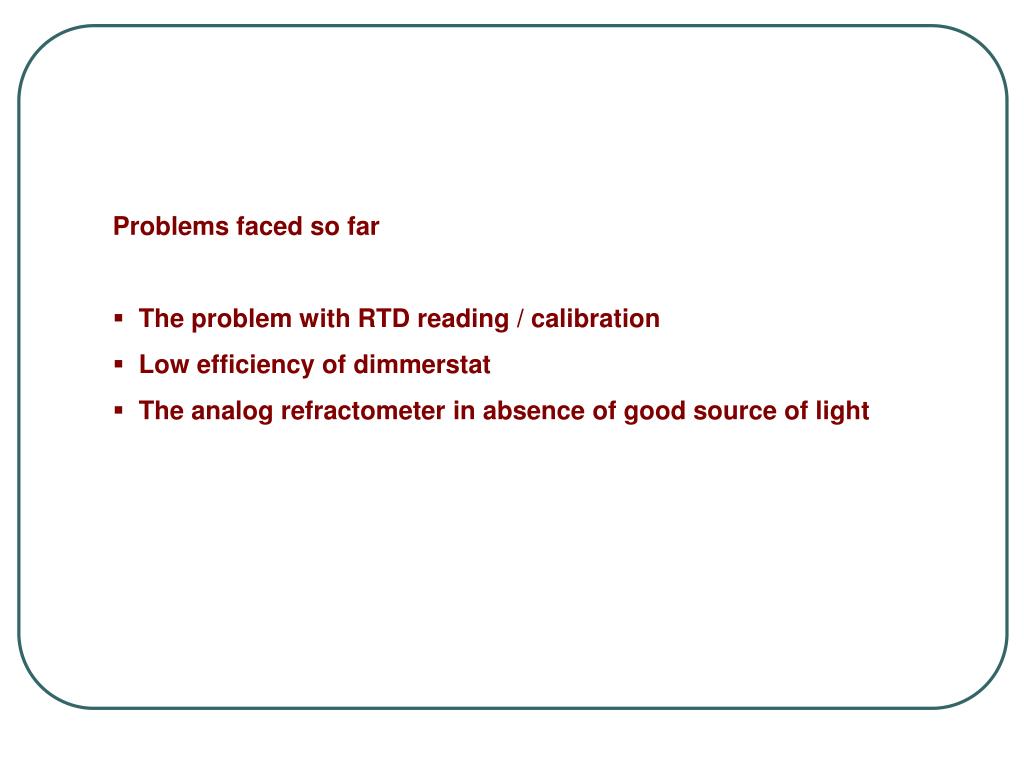

  6. Problems faced so far • The problem with RTD reading / calibration • Low efficiency of dimmerstat • The analog refractometerin absence of good source of light
