Cache Coherence Protocols in Shared Memory Multiprocessors

1. Cache Coherence Protocols in Shared Memory Multiprocessors Mehmet Şenvar Cache Coherence Protocols

2. Outline • Introduction • Background Information • The cache coherence problem • Cahce Enforcement Strategies • Consistency models • Simple Solutions • Hardware Protocols • Snooping protocols • Directory-based protocols • Compiler and Software protocols • Future work and conclusions Cache Coherence Protocols

3. The Cache Coherence Problem • Caches allow greater performance by storing frequently used data in faster memory • Since all processors share the same address space, it is possible for more than one processor to cache an address (or data item) at a time • If one processor updates the data item without informing the other processor, inconsistencies may result and cause incorrect executions Cache Coherence Protocols

4. Cache Coherence Problem Cache Coherence Protocols

5. Cache Coherence (cont.) • For correct execution, coherence must be enforced between the caches • Two major factors are: • performance • implementation cost • Four primary design issues are: • coherence detection strategy • coherence enforcement strategy • precision of block-sharing information • cache block size Cache Coherence Protocols

6. Cache Enforcement Strategies • A cache enforcement strategy is the mechanism which makes caches consistent • write-update (WU) • write-invalidate (WI) • hybrid protocols, competitive-update (CU) • Performance of WU and WI vary depending on the application and the number of writes • Hybrid protocols switch between WU and WI based on the # of writes to a block Cache Coherence Protocols

7. Consistency Models • A consistency model defines how the consistency of data values is maintained • Some consistency models are: • sequential consistency • weak consistency • release consistency • Weak consistency models are more efficient to implement and require fewer coherence messages Cache Coherence Protocols

8. Shared Caches (1) Processors share a single cache, essentially punting the problem. • Useful for very small machines. • E.g., DPC in the Encore, Alliant FX/8. • Problems are limited cache bandwidth and cache interference • Benefits are fine-grain sharing and prefetch effects Cache Coherence Protocols

9. Non-cacheable Items (2) • Make shared data non-cacheable • One of the simplest software solution • Also at hardware, make cache locations unreachable Cache Coherence Protocols

10. Broadcast Writes (3) • Every cache write request is sent to all other caches • Firstly need to discover whether each cache hold this data • Other copies are either updated or invalidated • Significant additional memory transactions occur Cache Coherence Protocols

11. Hardware Protocols • Snoop Bus Mechanism • Directory Based Methods • Full Directory • Limited Directory • Chained Directory Cache Coherence Protocols

12. Snoop Bus Protocol • Snooping protocols rely on a shared bus between the processors for coherence • On a processor write, the write is passed through the cache to main memory on the bus • Any processor caching the address may update or invalidate its cache entry as appropriate • Snooping protocols do not scale well beyond 32 processors because of the shared bus • The choice between WU, WI, and CU is especially important to reduce communication Cache Coherence Protocols

13. MESI (4-state) Invalidation Protocol • Each line in the cache can be in one of 4 states • Modifed (exclusive) : only in 1 cache, modified • Exclusive (unmodified) : only in 1 cache, unmodified • Shared (unmodified) • Invalid Cache Coherence Protocols

14. MESI State Transition Diagram Cache Coherence Protocols

15. MESI Example Cache Coherence Protocols

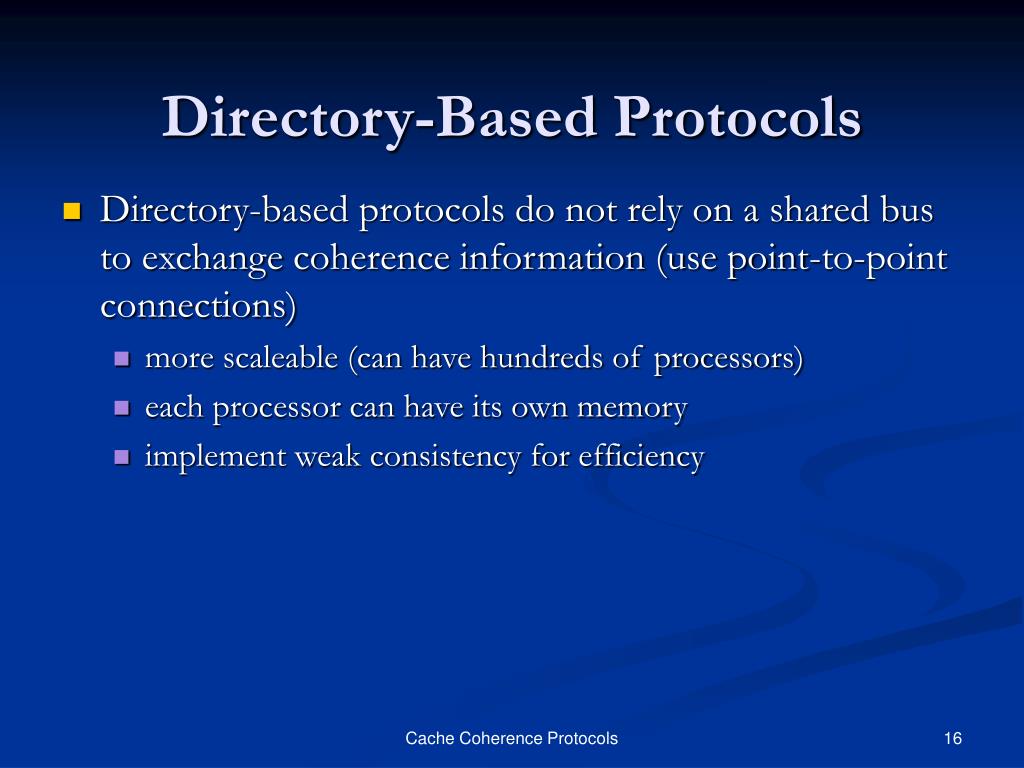

16. Directory-Based Protocols • Directory-based protocols do not rely on a shared bus to exchange coherence information (use point-to-point connections) • more scaleable (can have hundreds of processors) • each processor can have its own memory • implement weak consistency for efficiency Cache Coherence Protocols

17. Directory-Based Protocols (cont.) • Each node maintains a directory storing cache information and memory information • A processor communicates with the directory to access memory • if a processor requests a non-local memory page, the directory uses its information to find the page • Then, it uses messages to retrieve the page and insure all other processors have consistent info. • Since the directory maintains which processors are caching the page, it only needs to send messages to those processors Cache Coherence Protocols

18. Directory-Based Protocols (cont.) • Designing a directory requires defining: • cache block granularity • cache controller design • directory structure • Cache block granularity is the size of the cache and the size of a cache line • CC-NUMA machines have a separate, smaller cache from main memory • COMA machines use node’s entire memory as cache for remote pages • Block size affects performance (false sharing) Cache Coherence Protocols

19. Directory-Based Protocols (cont.) • Cache controller is hardware that maintains the directory and processes memory requests • custom hardware • programmable protocol processor • The directory structure is how the cache and memory information is organized • p+1-bit full directory • linked-list directories • tagged directories Cache Coherence Protocols

20. Directory Models • Full Directory • Link to all caches for all shared locations • Limited Directory • To some caches having shared data, n < N • Chained (linked)Directory • To one chache, form ths cache to others, single/double link Cache Coherence Protocols

21. Directory Sample (full) Cache Coherence Protocols

22. Lock-Based Protocols • New work that promises to be more scaleable than directory protocols • Implements scope consistency which is similar to lazy release consistency • Coherence information exchanged by reading and writing notices from the lock which protects the shared memory • Currently, implemented in software similar to DSM, but may move to hardware if performance gains can be realized Cache Coherence Protocols

23. Software Protocols • Software protocols enforce consistency with limited hardware support by relying either on the compiler or specialized software handlers • Similar to distributed shared memory (DSM) systems but at a lower level • sharing usually in blocks not pages • needs to be more efficient for better performance • architecture support for sharing Cache Coherence Protocols

24. Classification of Software Protocols • Several criteria distinguish software protocols: • dynamism - compile-time or run-time analysis • selectivity - level of coherence actions • restrictiveness - conservative or as-needed consistency enforcement • adaptivity - can protocol adapt to access patterns • granularity - size and structure of coherence data • blocking - program block on which coherence is enforced • positioning - position of coherence instructions • updating - how memory is updated after a write • checking - how incoherence is detected Cache Coherence Protocols

25. Software Coherence with Limited Hardware Support • Compiler must generate consistent code as no hardware coherence provided • Hardware maintains time tags which are updated on every write • On a read, compiler generates coherence reads which check time tags to insure data is consistent • Relies on the compiler to detect read which may be inconsistent, and the hardware must maintain these time tags • Using tags, it is also possible to perform dynamic self-invalidation of blocks • Many techniques based on using these time tags Cache Coherence Protocols

26. Software Coherence with Limited Hardware Support (cont.) • If hardware has no time tags, Petersen and Li developed an algorithm which uses only page translation hardware and page status tables • Sharing information is maintained by a software handler at the page-level • On a page access or fault, the software handler checks the sharing information, updates page tables, and performs coherence actions • Slower than hardware as software handlers involve the OS and are on the critical memory access path Cache Coherence Protocols

27. Enforcing Coherence by Restricting Parallelism • Compilers can also guarantee coherence by structuring the language to limit parallelism • easier to enforce coherence • limits the programmer and potential parallelism • simplifies compiler design • good performance can be achieved with no hardware support • Parallel language restrictions include: • doall parallel loops • master/slave processes Cache Coherence Protocols

28. Optimizing Compilers • Optimizing compilers are designed to maintain coherence with limited hardware support without overly restricting the programmer • rely on detecting data dependencies • may use synchronization variables (locks, barriers) • can provide the hardware with hints • can detect when coherence is not needed • may have problems with dynamic sharing • offer good performance, but are hard to design Cache Coherence Protocols

29. Future Work • Hardware protocols are well defined, and the directory structure is near optimal • Cost improvements can be obtained by mass producing cache controller chips • Software protocols are a good area for future research because they are also applicable at higher-levels of sharing (DSM, databases, ...) • Optimizing compilers need to be improved to detect data dependencies and optimize code for the parallel environment Cache Coherence Protocols

30. Conclusions • Hardware protocols offer the best performance but require high hardware costs • Software protocols can be used when there is no hardware support with a slight performance penalty • Optimizing compilers can enforce coherence or provide hints to the hardware • A combination of hardware and compiler optimizations is the best Cache Coherence Protocols
