The Pythagorean Theorem

c. a. b. The Pythagorean Theorem. a 2 + b 2 = c 2. OR. a 2 = c 2 – b 2. Which side is the hypotenuse?. The right angle points to the hypotenuse. It’s the side labelled “c”. c. 6. 8. When calculating the hypotenuse, we add the area of the squares of the other two sides.

happy
Télécharger la présentation

The Pythagorean Theorem

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

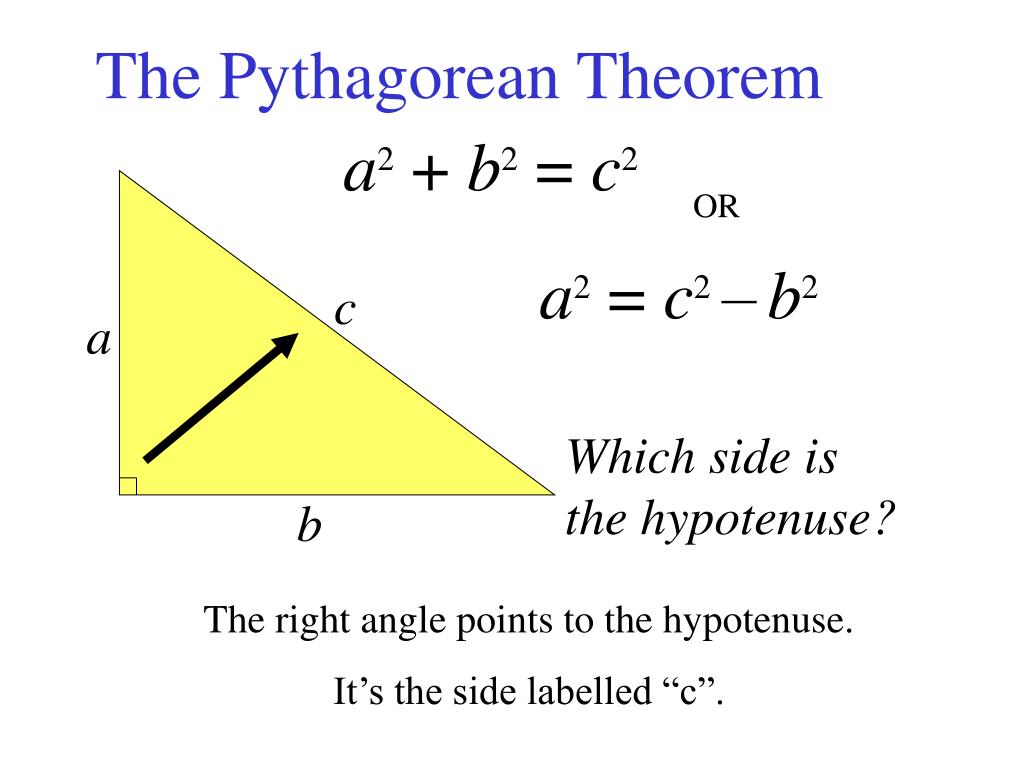

  1. c a b The Pythagorean Theorem a2 + b2 = c2 OR a2 = c2–b2 Which side is the hypotenuse? The right angle points to the hypotenuse. It’s the side labelled “c”.

  2. c 6 8 When calculating the hypotenuse, we add the area of the squares of the other two sides. Calculate side c. c2 = a2 + b2 c2 = 82+ 62 c2 = 64+ 36 c2 = 100 c = 10

  3. x 7 12 Calculate the length of side x. b2 = c2– a2 x2 = 122– 72 a b x2 = 144– 49 x2= 95 c When calculating a side, we determine the difference of the area of the square of the hypotenuse and the area of the square of the known side. x= 9.7

  4. 12 cm 15 cm The length and width of a rectangle are 12 cm and 15 cm. Calculate the length of the diagonal. c2 = a2+ b2 d 2 = 152+ 122 d d 2 = 225+ 144 d 2 = 369 d = 19.2 cm

  5. 13 cm h 5 cm Tanya is making a party hat using a cone made out of paper. Determine the height of the cone. b2 = c2– a2 h2 = 132– 52 h2 = 169– 25 h2 = 144 h = 12 cm
