  1. Semi-automatic 3D building extraction in dense urban areas using digital surface models IMAGE Dr. Philippe Simard PresidentSimActive Inc.

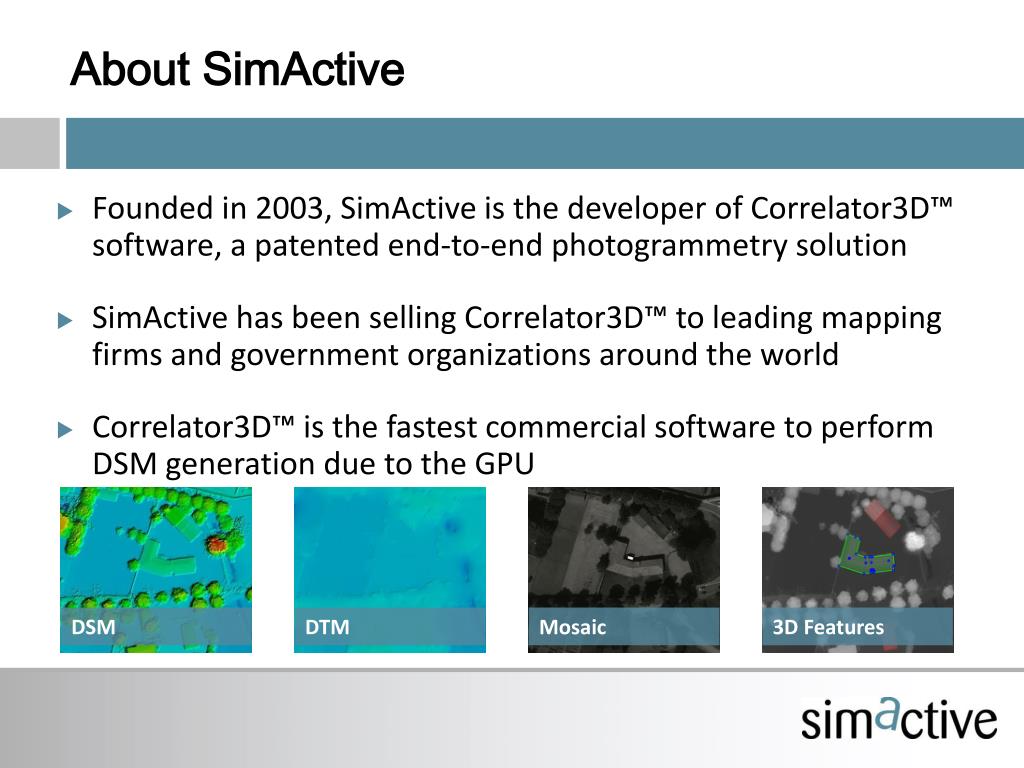

  2. About SimActive • Founded in 2003, SimActive is the developer of Correlator3D™ software, a patented end-to-end photogrammetry solution • SimActive has been selling Correlator3D™ to leading mapping firms and government organizations around the world • Correlator3D™ is the fastest commercial software to perform DSM generation due to the GPU DSM DTM Mosaic 3D Features

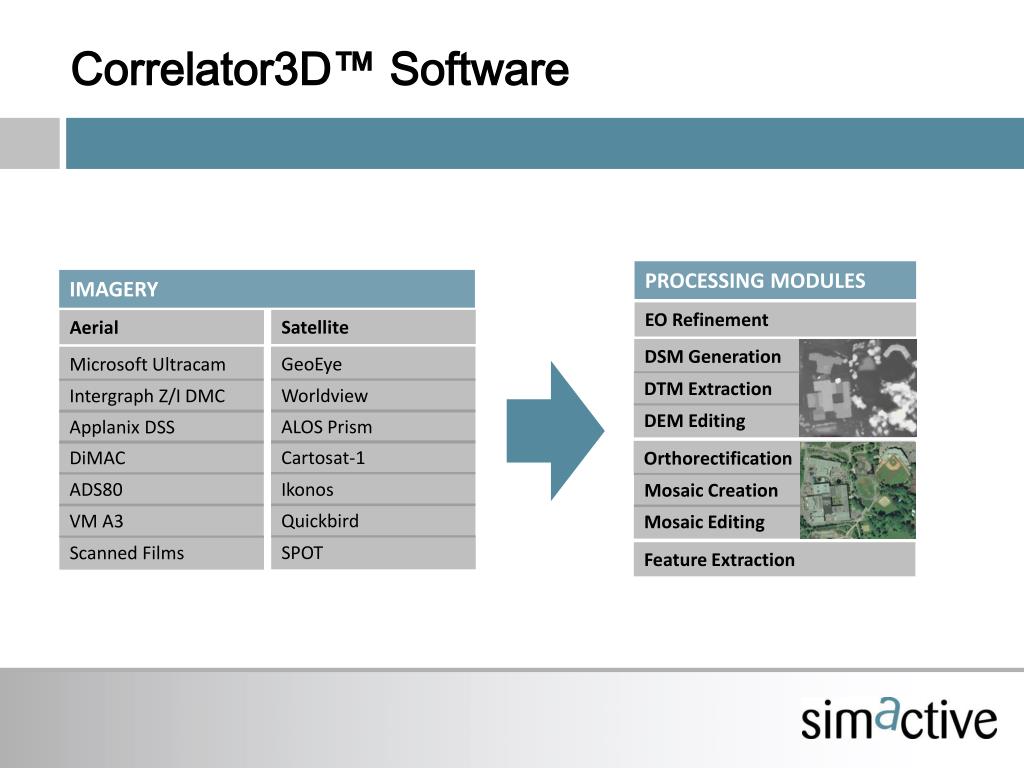

  3. Correlator3D™ Software PROCESSING MODULES IMAGERY EO Refinement Satellite Aerial DSM Generation GeoEye Microsoft Ultracam DTM Extraction Worldview Intergraph Z/I DMC DEM Editing ALOS Prism Applanix DSS Cartosat-1 DiMAC Orthorectification Ikonos ADS80 Mosaic Creation Quickbird VM A3 Mosaic Editing SPOT Scanned Films Feature Extraction

  4. Problem Definition Given Elevation models Need 3D Polygons describing 3D features Problem 3D buildings How to extract 3D features accurately and efficiently?

  5. Existing Solutions Manual Fully Automatic Very slow collection process Fast High accuracy Error prone Require highly-trained personnel Significant editing required Automatically generated results do not meet user requirements Significant user interpretation required

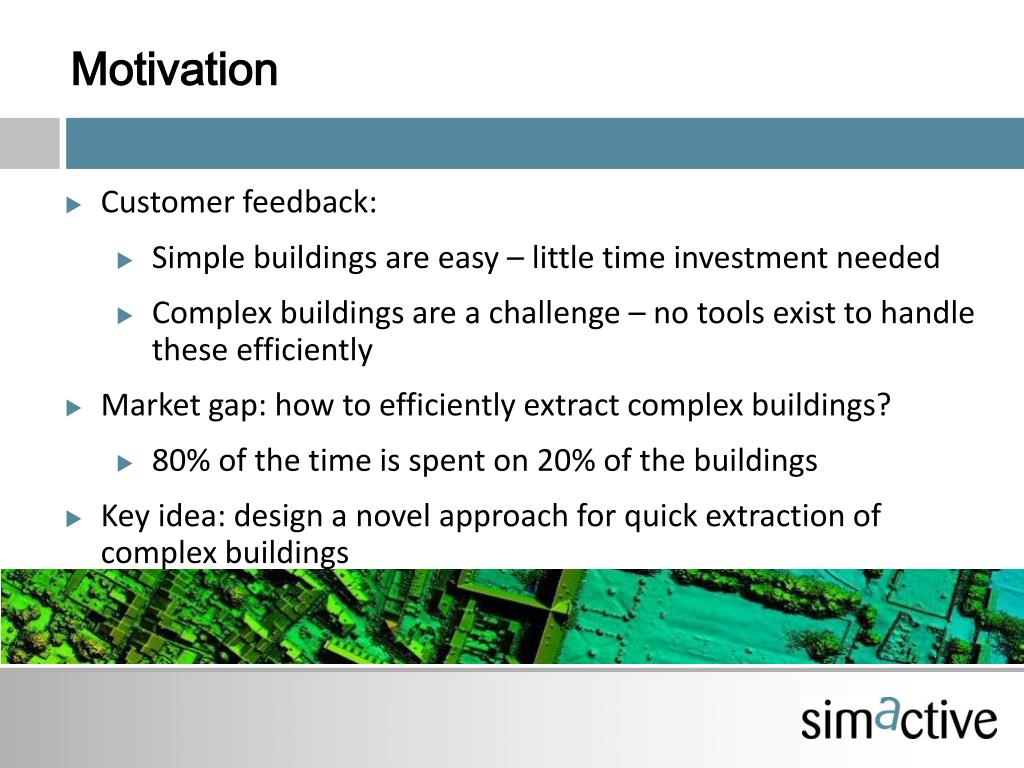

  6. Motivation • Customer feedback: • Simple buildings are easy – little time investment needed • Complex buildings are a challenge – no tools exist to handle these efficiently • Market gap: how to efficiently extract complex buildings? • 80% of the time is spent on 20% of the buildings • Key idea: design a novel approach for quick extraction of complex buildings

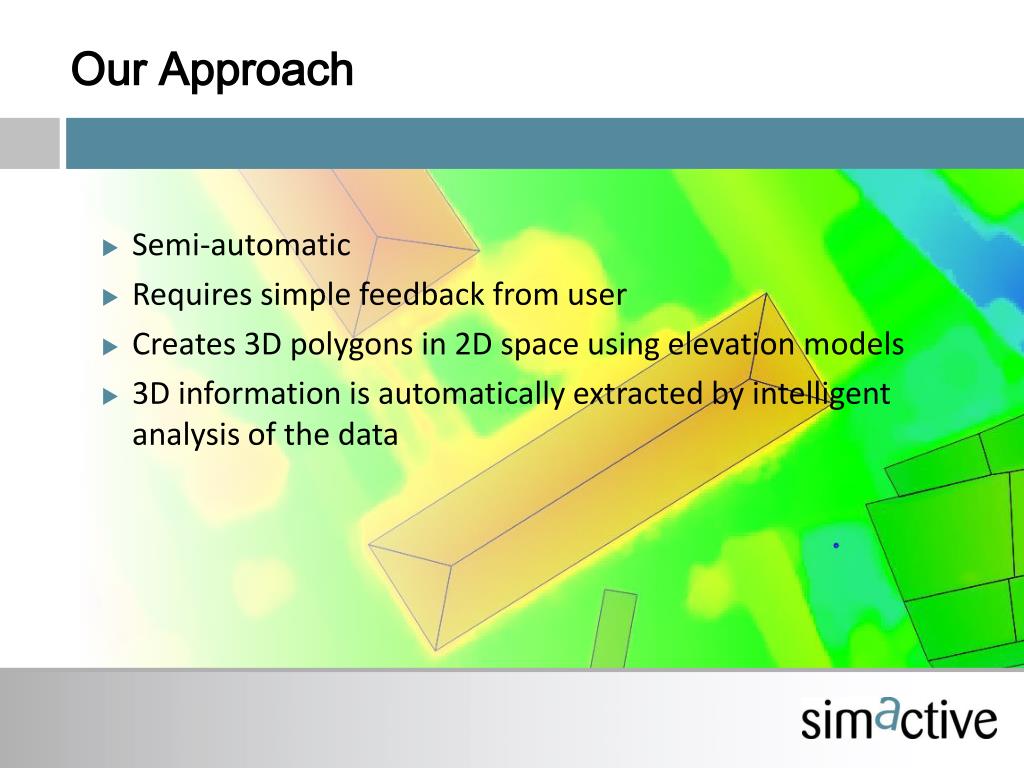

  7. Our Approach • Semi-automatic • Requires simple feedback from user • Creates 3D polygons in 2D space using elevation models • 3D information is automatically extracted by intelligent analysis of the data

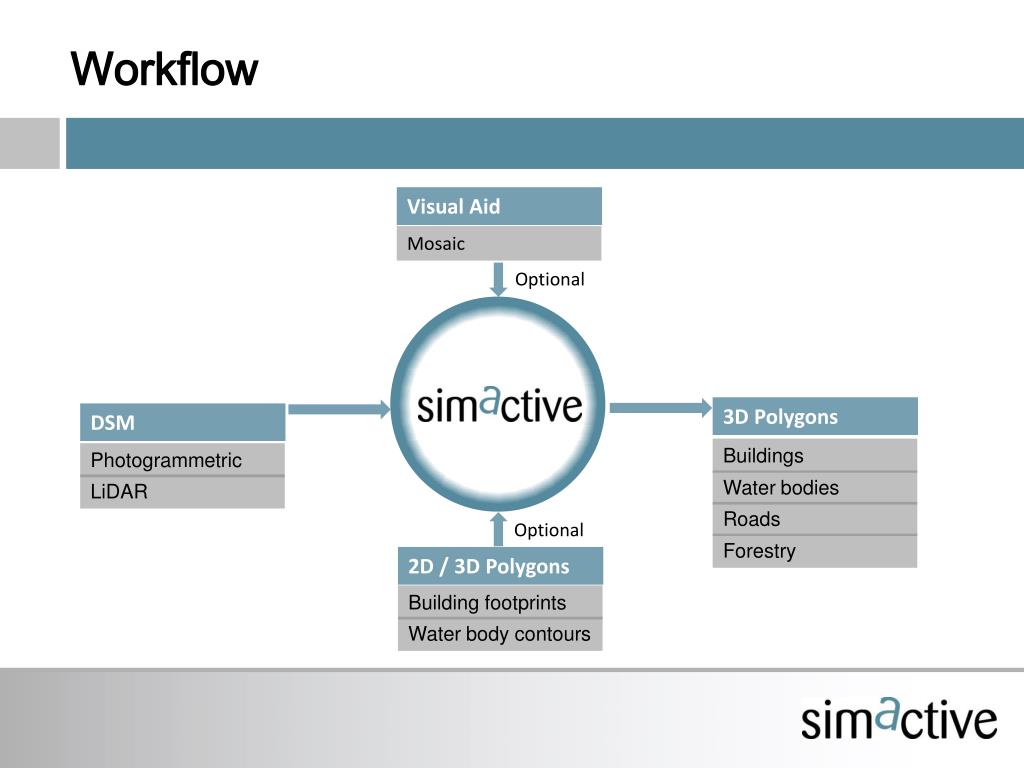

  8. Workflow DSM Photogrammetric Optional LiDAR Visual Aid Mosaic 3D Polygons Buildings Water bodies Optional 2D / 3D Polygons Roads Building footprints Forestry Water body contours

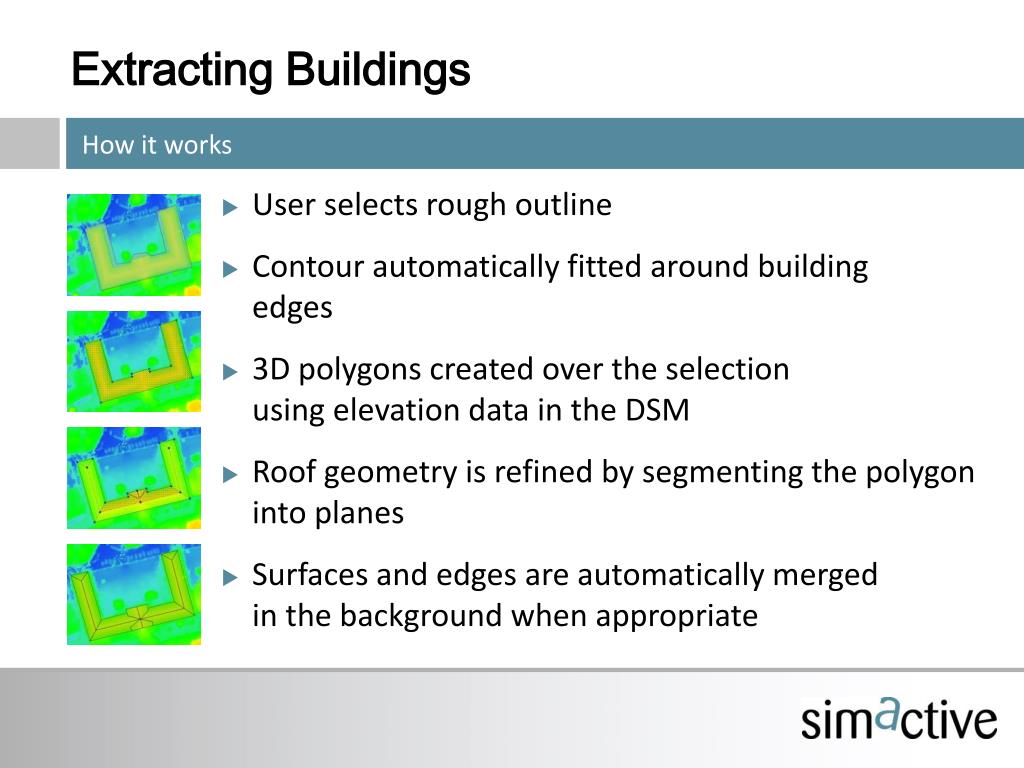

  9. Extracting Buildings How it works • User selects rough outline • Contour automatically fitted around building edges • 3D polygons created over the selectionusing elevation data in the DSM • Roof geometry is refined by segmenting the polygon into planes • Surfaces and edges are automatically merged in the background when appropriate

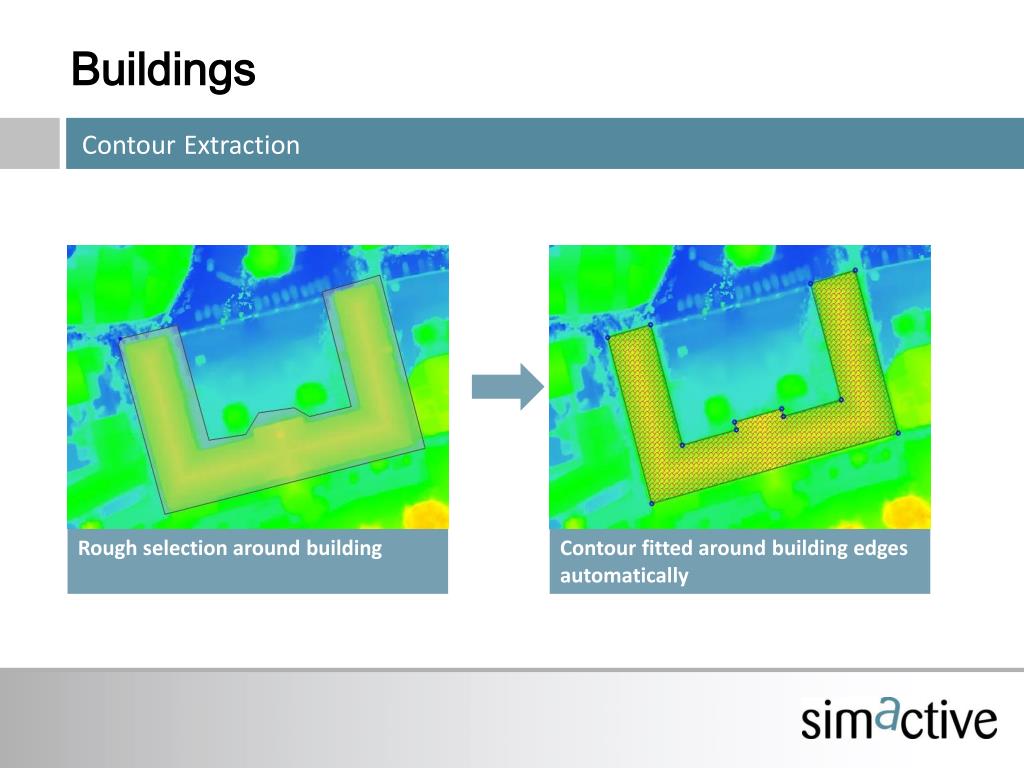

  10. Buildings ContourExtraction Rough selection around building Contour fitted around building edges automatically

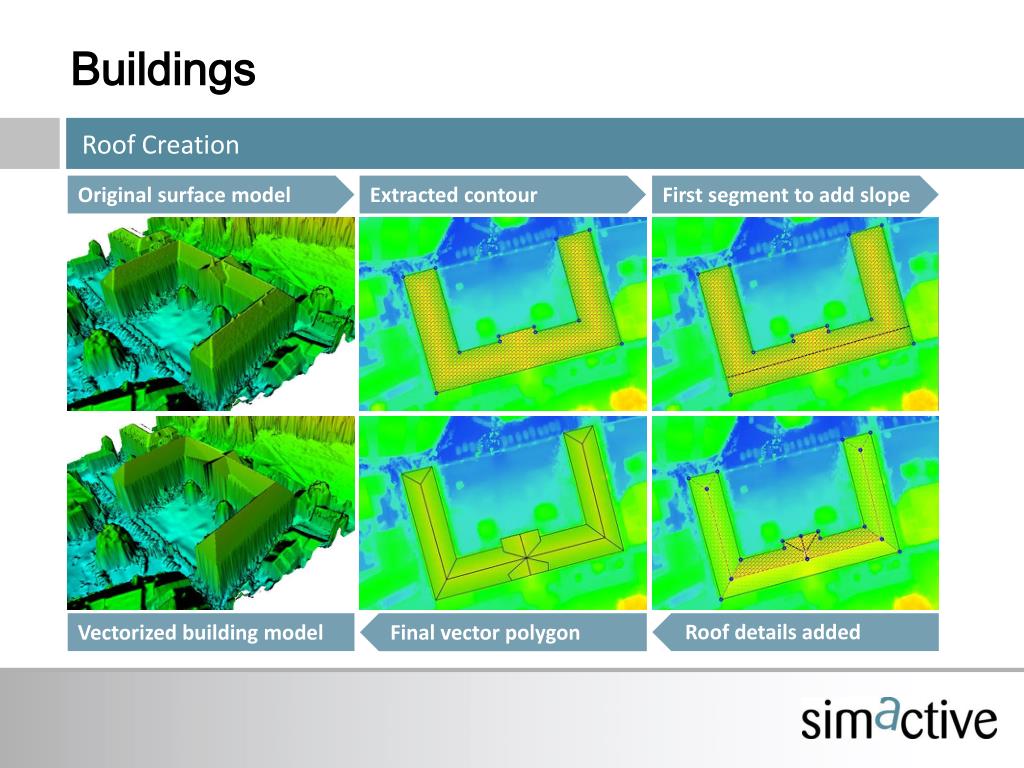

  11. Buildings Roof Creation Original surface model Extracted contour First segment to add slope Vectorized building model Roof details added Final vector polygon

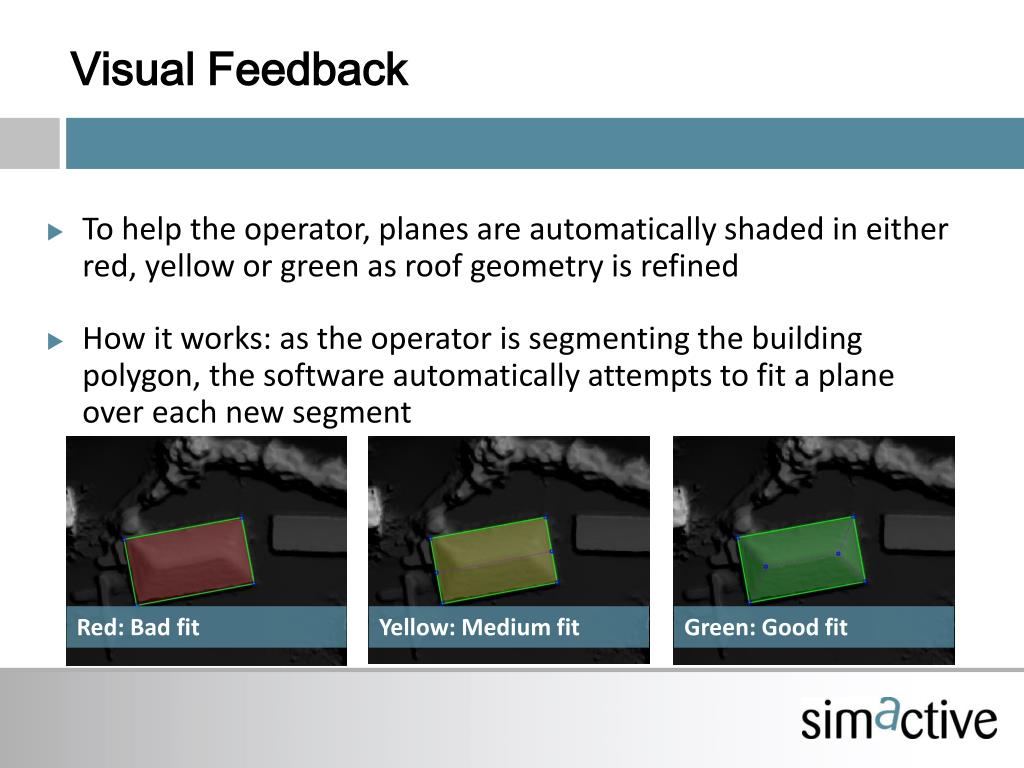

  12. Visual Feedback • To help the operator, planes are automatically shaded in either red, yellow or green as roof geometry is refined • How it works: as the operator is segmenting the building polygon, the software automatically attempts to fit a plane over each new segment Red: Bad fit Yellow: Medium fit Green: Good fit

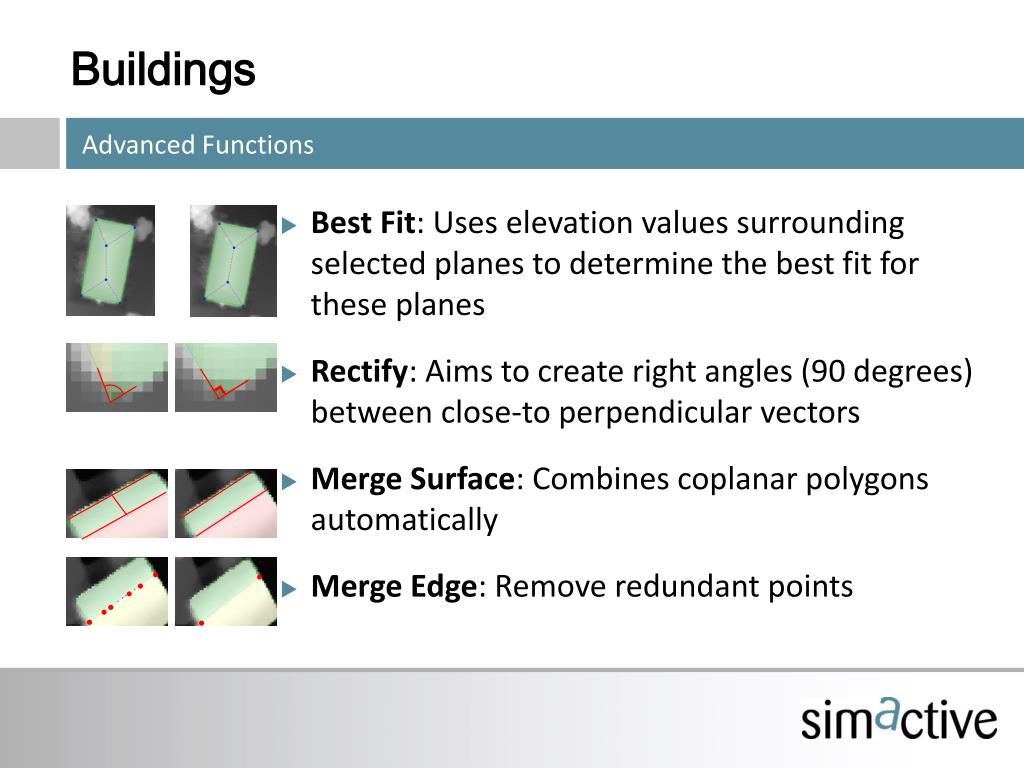

  13. Buildings Advanced Functions • Best Fit: Uses elevation values surrounding selected planes to determine the best fit for these planes • Rectify: Aims to create right angles (90 degrees) between close-to perpendicular vectors • Merge Surface: Combines coplanar polygons automatically • Merge Edge: Remove redundant points

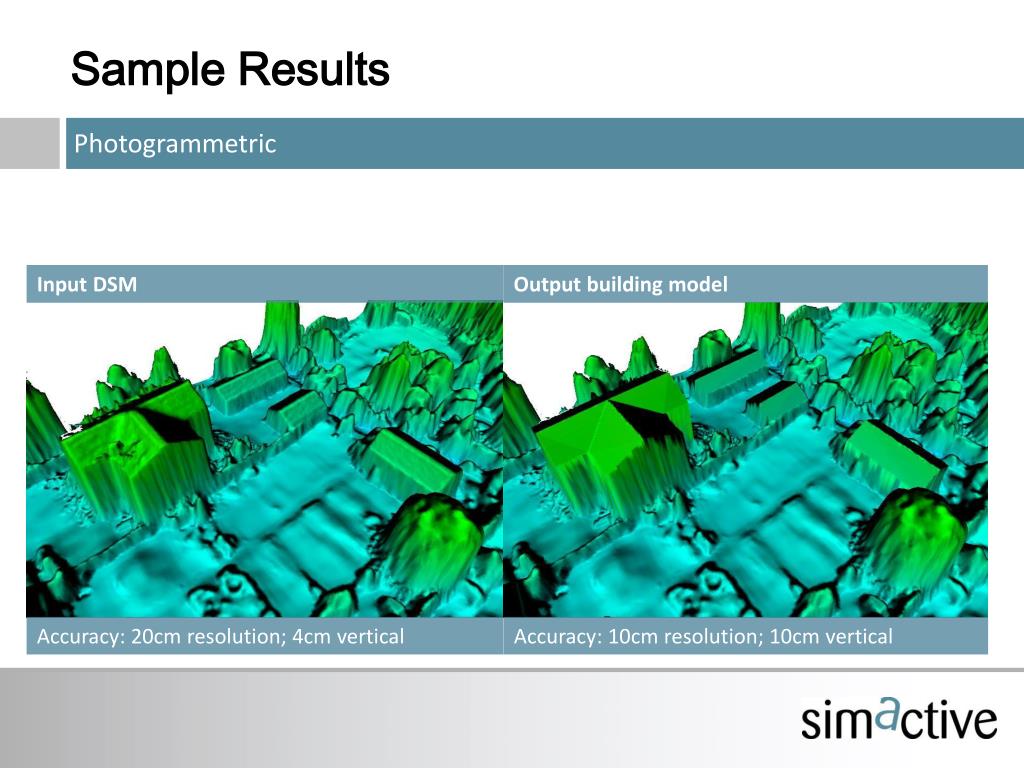

  14. Sample Results Photogrammetric Input DSM Output building model Accuracy: 20cm resolution; 4cm vertical Accuracy: 10cm resolution; 10cm vertical

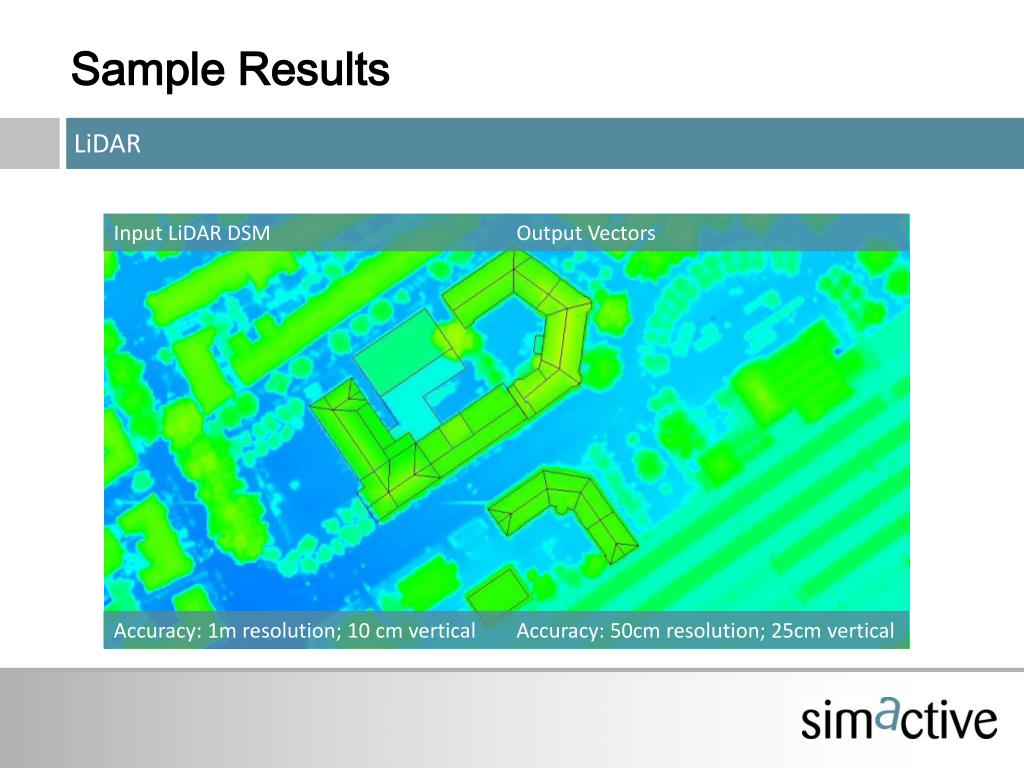

  15. Sample Results LiDAR Input LiDAR DSM Output Vectors Accuracy: 1m resolution; 10 cm vertical Accuracy: 50cm resolution; 25cm vertical

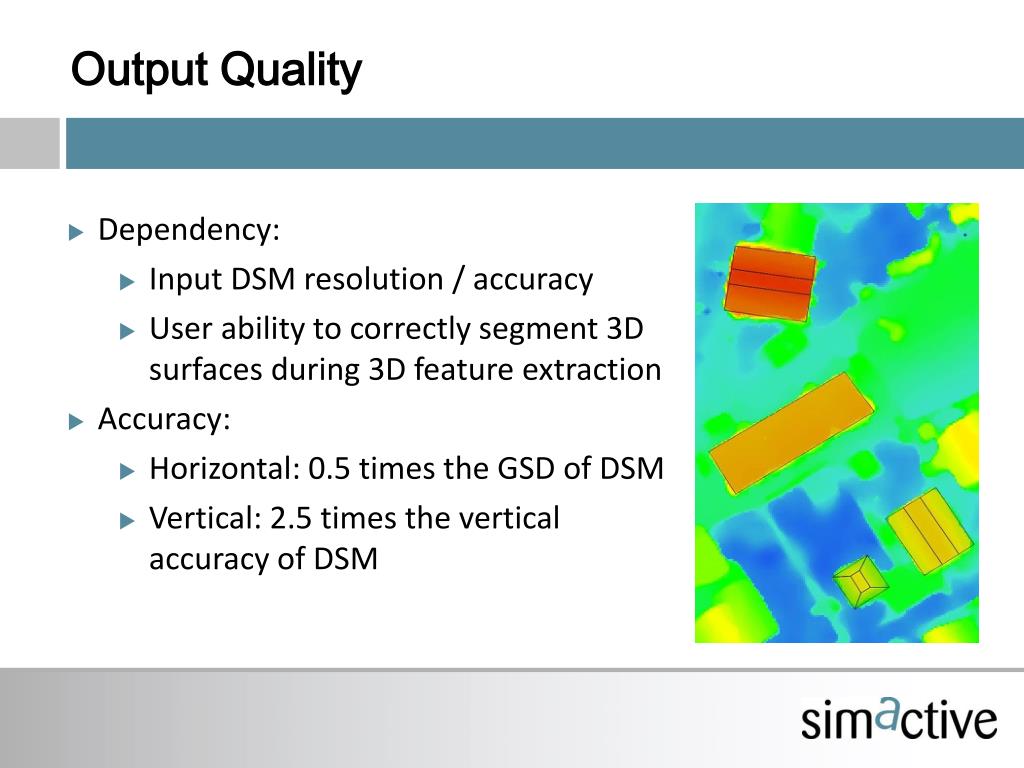

  16. Output Quality • Dependency: • Input DSM resolution / accuracy • User ability to correctly segment 3D surfaces during 3D feature extraction • Accuracy: • Horizontal: 0.5 times the GSD of DSM • Vertical: 2.5 times the vertical accuracy of DSM

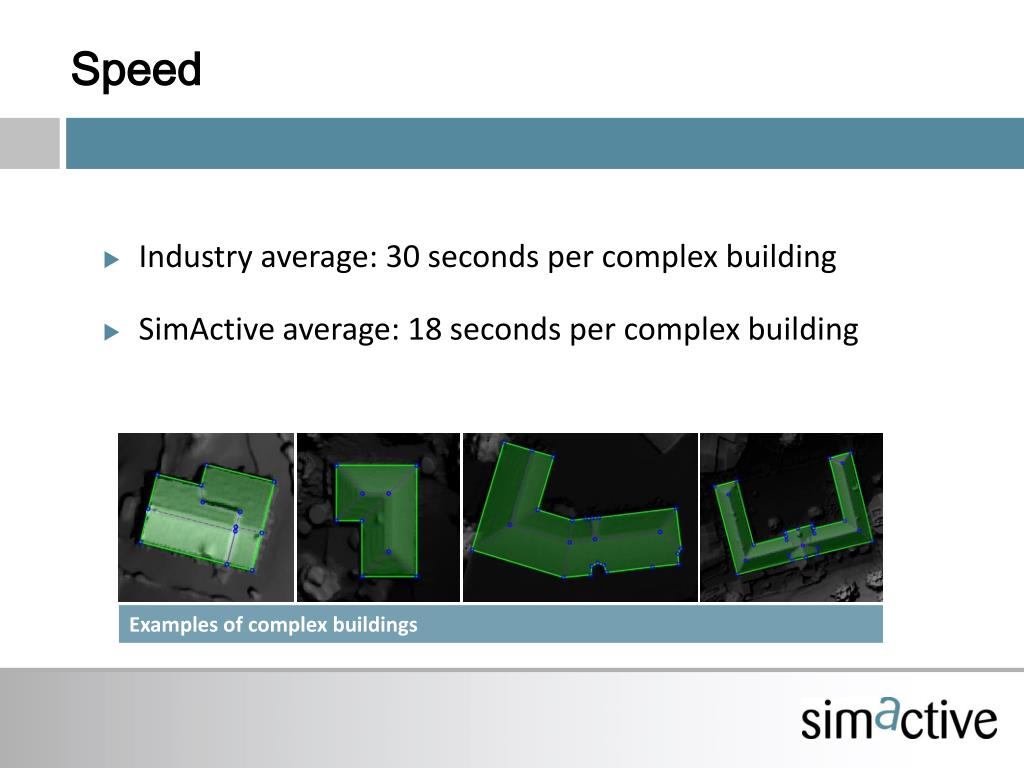

  17. Speed • Industry average: 30 seconds per complex building • SimActive average: 18 seconds per complex building Examples of complex buildings

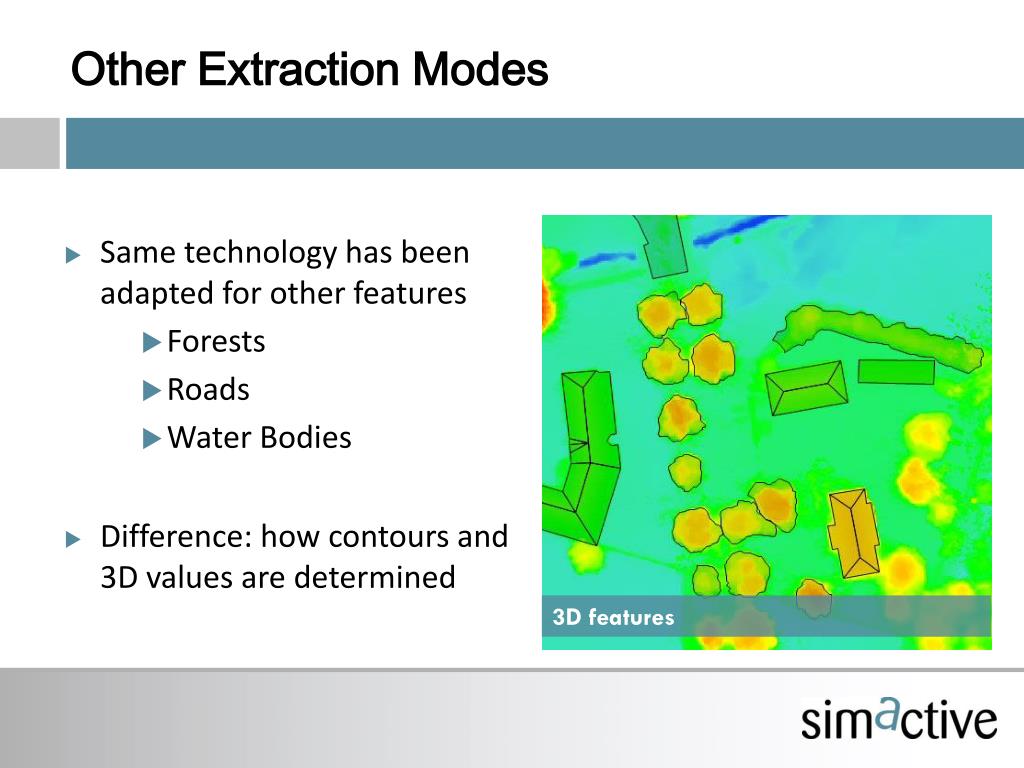

  18. Other Extraction Modes 3D features • Same technology has been adapted for other features • Forests • Roads • Water Bodies • Difference: how contours and 3D values are determined

  19. Benefits • Fast collection process • High accuracy • Short learning curve • Best of both worlds solution

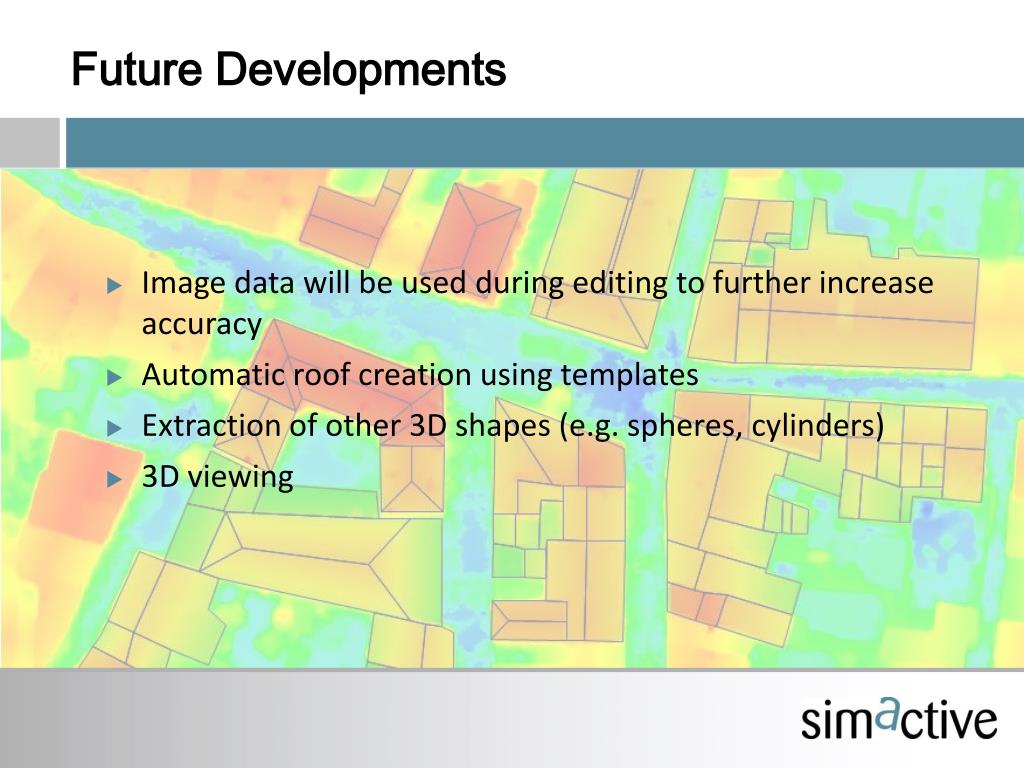

  20. Future Developments • Image data will be used during editing to further increase accuracy • Automatic roof creation using templates • Extraction of other 3D shapes (e.g. spheres, cylinders) • 3D viewing

  21. Thank You Dr Philippe Simard President SimActive Inc. Tel.: 514.288.2666 ext. 21 Fax: 514.288.6665 psimard@simactive.com www.simactive.com
