  1. Classifying Instantaneous Cognitive States from fMRI Data Tom Mitchell, Rebecca Hutchinson, Marcel Just, Stefan Niculescu, Francisco Pereira, Xuerui Wang Carnegie Mellon University November, 2003

  2. …

  3. Does fMRI contain enough information? • Can we devise learning algorithms to construct such “virtual sensors”? Cognitive state sequence COGNITIVE TASK “Virtual sensors” of cognitive state

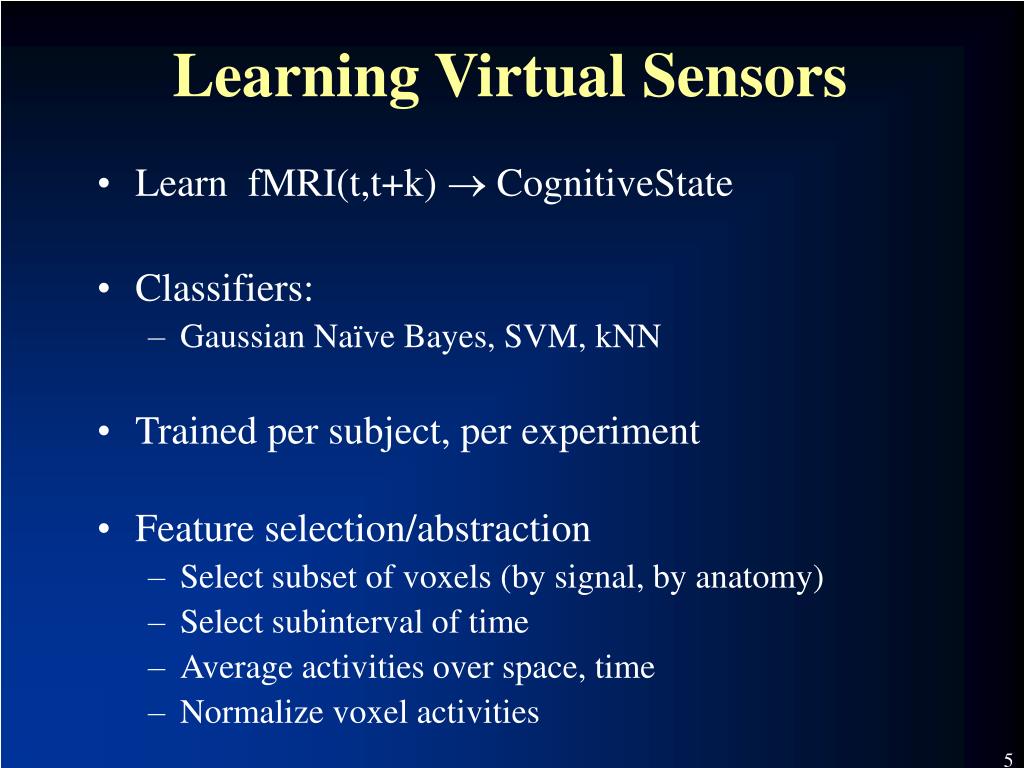

  4. Learning Virtual Sensors • Learn fMRI(t,t+k)  CognitiveState • Classifiers: • Gaussian Naïve Bayes, SVM, kNN • Trained per subject, per experiment • Feature selection/abstraction • Select subset of voxels (by signal, by anatomy) • Select subinterval of time • Average activities over space, time • Normalize voxel activities

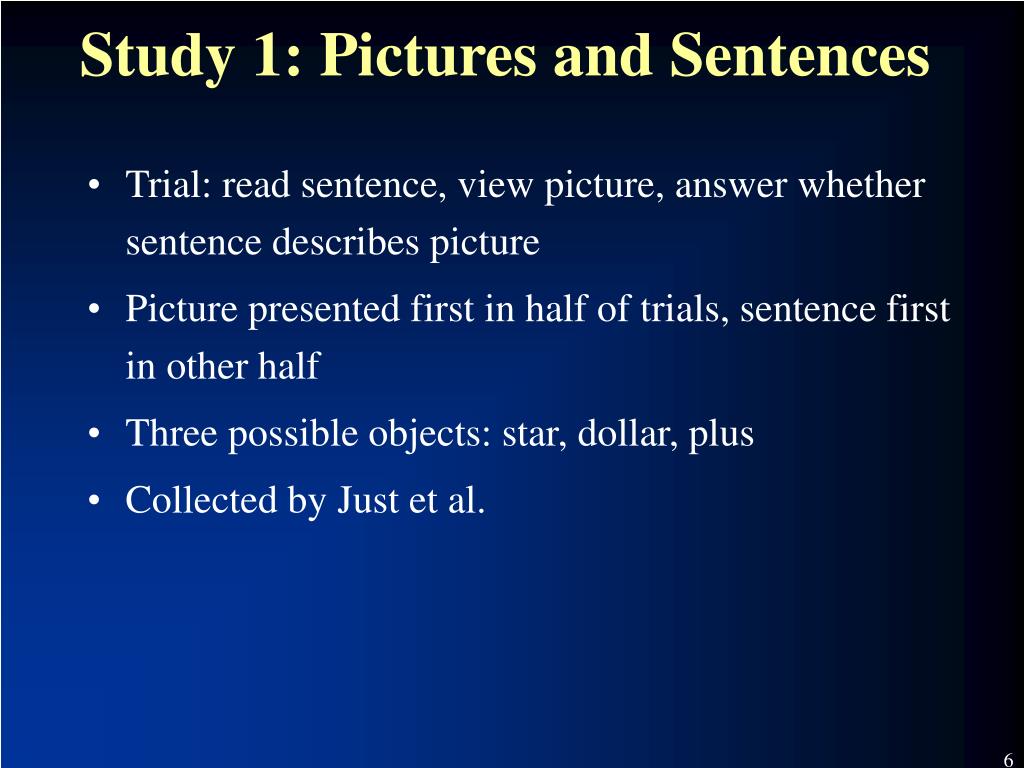

  5. Trial: read sentence, view picture, answer whether sentence describes picture Picture presented first in half of trials, sentence first in other half Three possible objects: star, dollar, plus Collected by Just et al. Study 1: Pictures and Sentences

  6. It is true that the star is above the plus?

  7. + --- *

  8. Is Subject Viewing Picture or Sentence? • Learn fMRI(t,t+8)  {Picture, Sentence} • Leave two out cross-validation was used to assess the performance of the classifiers • SVMs and GNB worked better than kNN • Some Details: • 12 subjects, 40 pictures, 40 sentences • 1397 - 2864 voxels per subject, 7 ROIs • fMRI snapshot taken every half second

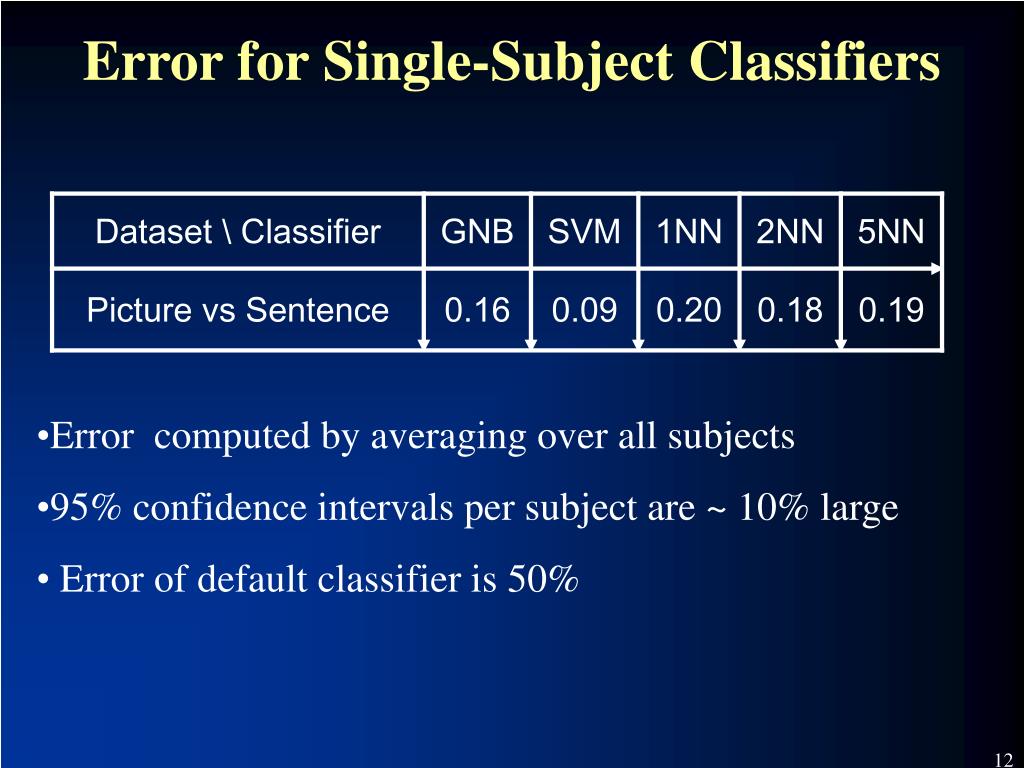

  9. Error for Single-Subject Classifiers • Error computed by averaging over all subjects • 95% confidence intervals per subject are ~ 10% large • Error of default classifier is 50%

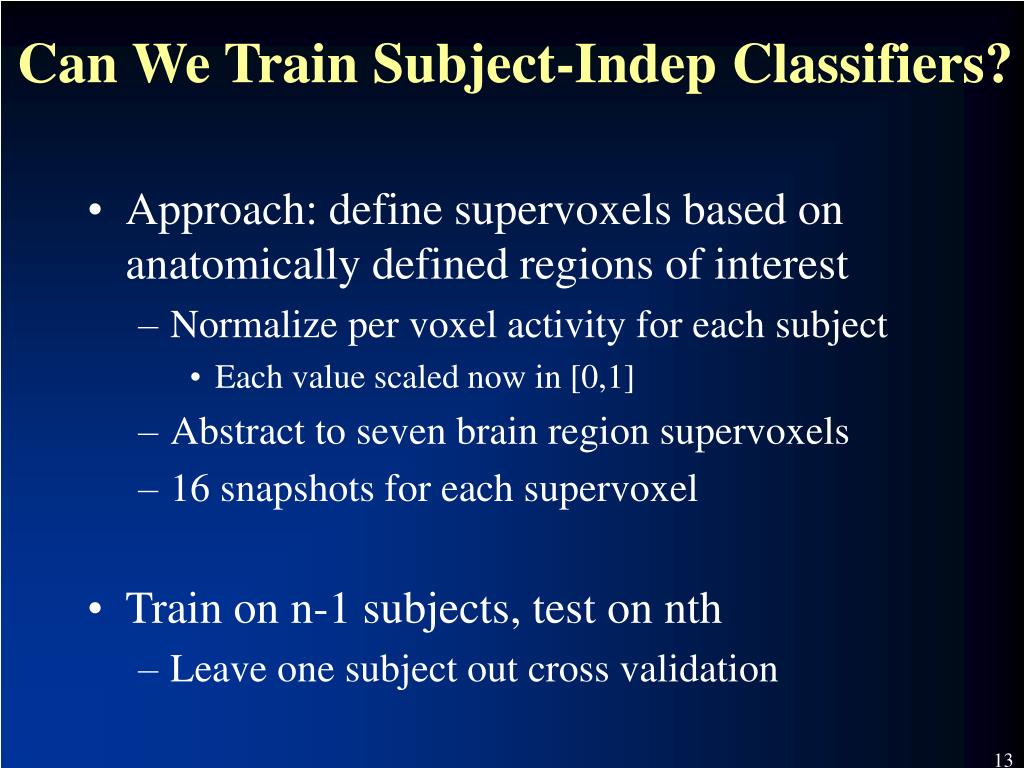

  10. Can We Train Subject-Indep Classifiers? • Approach: define supervoxels based on anatomically defined regions of interest • Normalize per voxel activity for each subject • Each value scaled now in [0,1] • Abstract to seven brain region supervoxels • 16 snapshots for each supervoxel • Train on n-1 subjects, test on nth • Leave one subject out cross validation

  11. Error for Cross Subject Classifiers • NO Feature Selection used in this experiment • 95% confidence intervals approximately 5% large • Error of default classifier is 50%

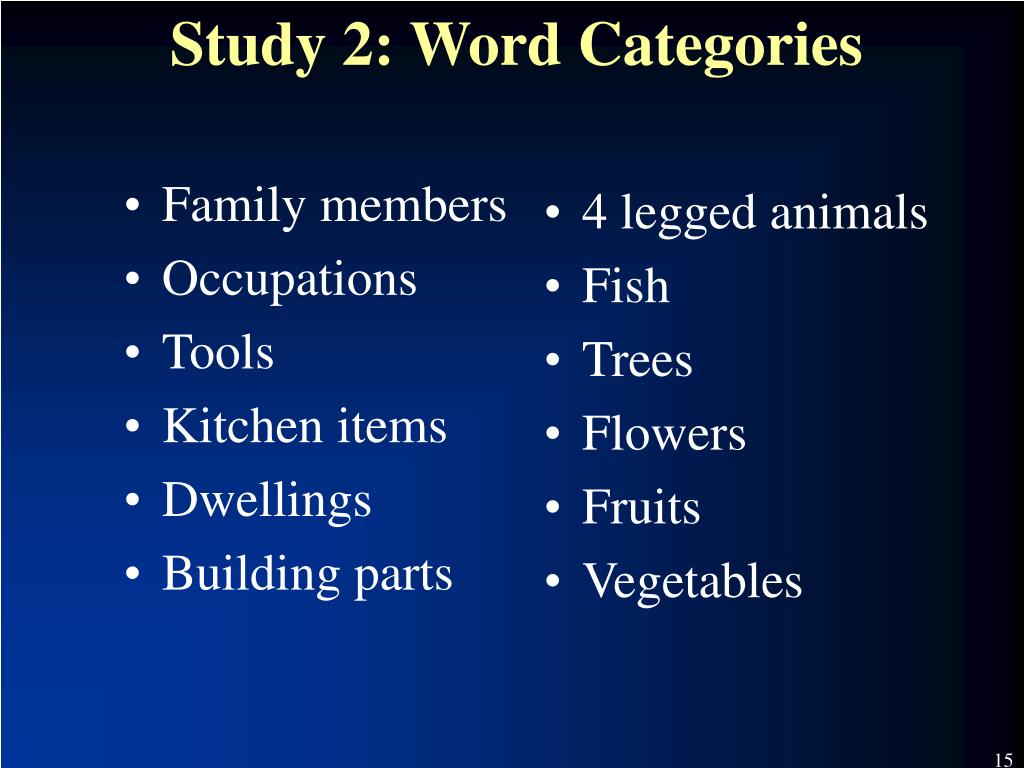

  12. Family members Occupations Tools Kitchen items Dwellings Building parts Study 2: Word Categories • 4 legged animals • Fish • Trees • Flowers • Fruits • Vegetables

  13. Word Categories Study • Stimulus: • 12 blocks of words: • Category name (2 sec) • Word (400 msec), Blank screen (1200 msec); answer • Word (400 msec), Blank screen (1200 msec); answer • … • Subject answers whether each word in category • 20 words per block, nearly all in category

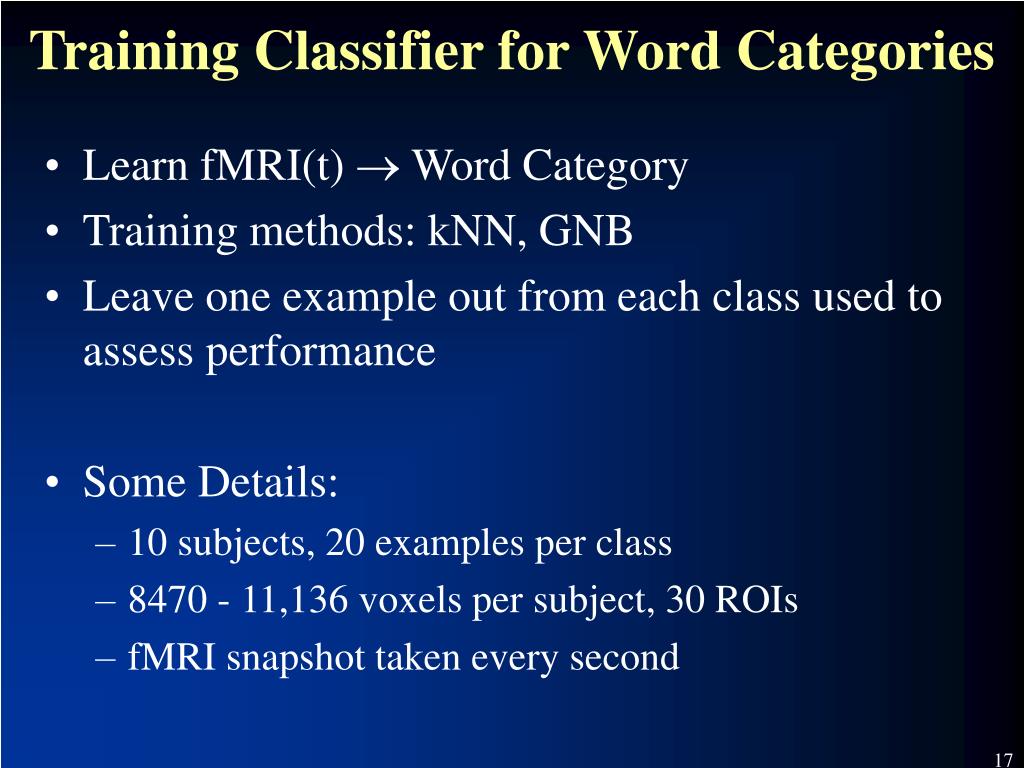

  14. Training Classifier for Word Categories • Learn fMRI(t)  Word Category • Training methods: kNN, GNB • Leave one example out from each class used to assess performance • Some Details: • 10 subjects, 20 examples per class • 8470 - 11,136 voxels per subject, 30 ROIs • fMRI snapshot taken every second

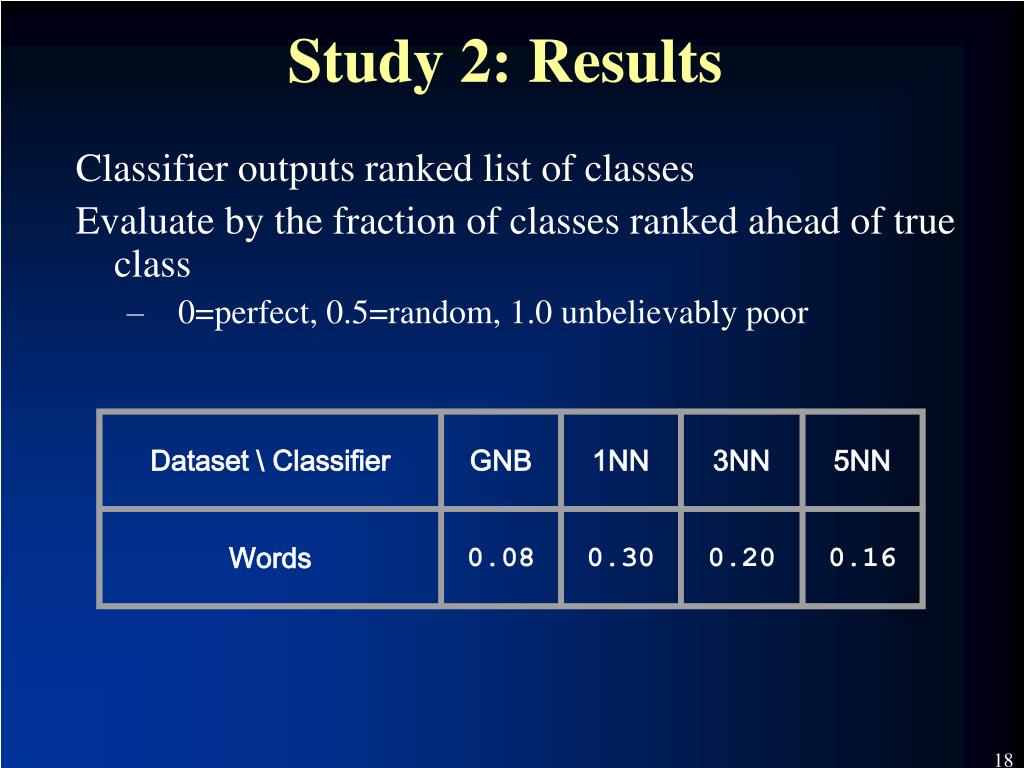

  15. Dataset \ Classifier GNB 1NN 3NN 5NN Words 0.08 0.30 0.20 0.16 Study 2: Results Classifier outputs ranked list of classes Evaluate by the fraction of classes ranked ahead of true class • 0=perfect, 0.5=random, 1.0 unbelievably poor

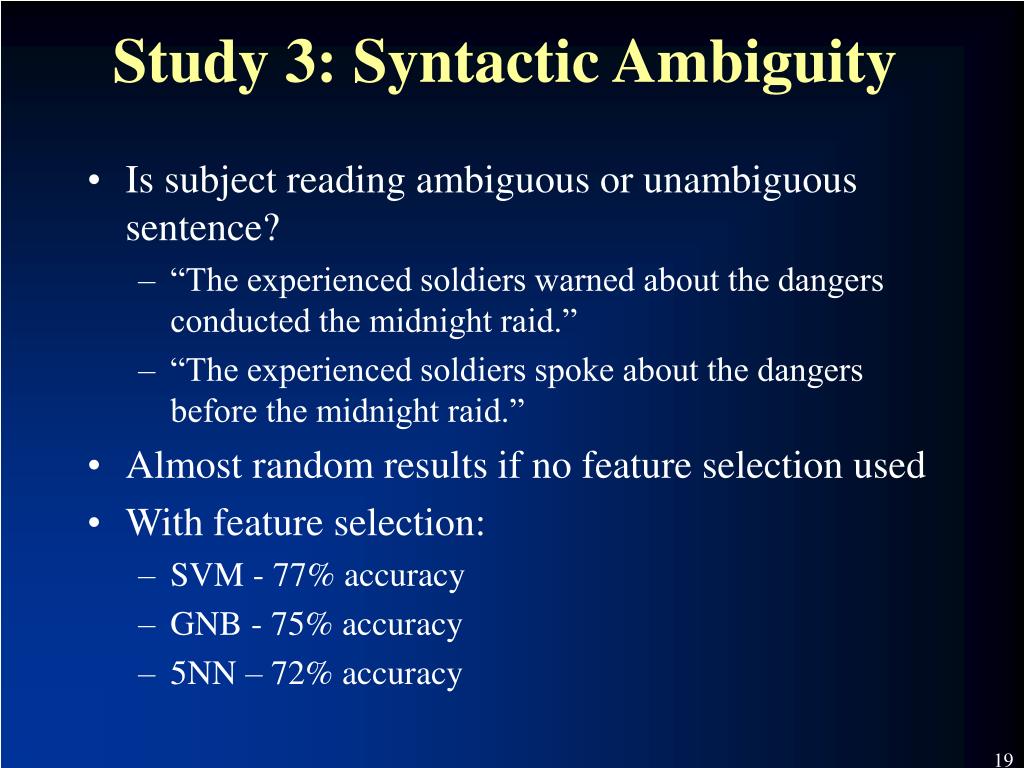

  16. Study 3: Syntactic Ambiguity • Is subject reading ambiguous or unambiguous sentence? • “The experienced soldiers warned about the dangers conducted the midnight raid.” • “The experienced soldiers spoke about the dangers before the midnight raid.” • Almost random results if no feature selection used • With feature selection: • SVM - 77% accuracy • GNB - 75% accuracy • 5NN – 72% accuracy

  17. Feature Selection • Four feature selection methods: • Active (n most active available voxels compared to baseline fixation activity, according to a t-test) • RoiActive (n most active voxels in each ROI) • RoiActiveAvg (average of the n most active voxels in each ROI) • Disc (n most discriminating voxels according to a trained classifier) • Active works best

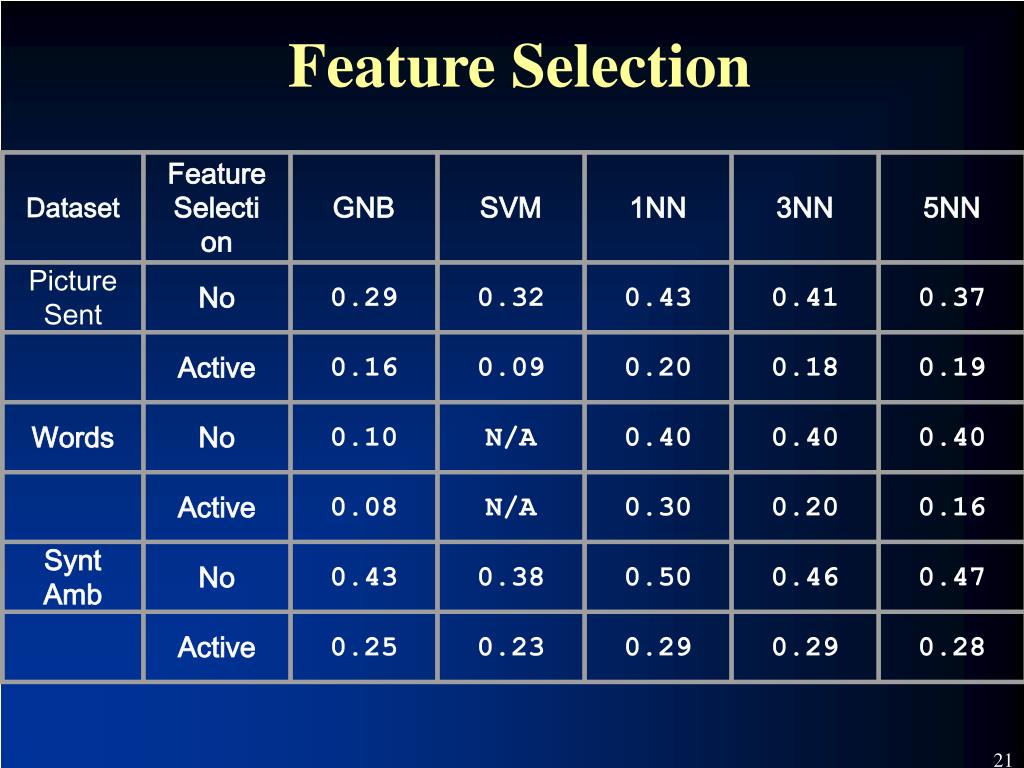

  18. Feature Selection Dataset Feature Selection GNB SVM 1NN 3NN 5NN PictureSent No 0.29 0.32 0.43 0.41 0.37 Active 0.16 0.09 0.20 0.18 0.19 Words No 0.10 N/A 0.40 0.40 0.40 Active 0.08 N/A 0.30 0.20 0.16 Synt Amb No 0.43 0.38 0.50 0.46 0.47 Active 0.25 0.23 0.29 0.29 0.28

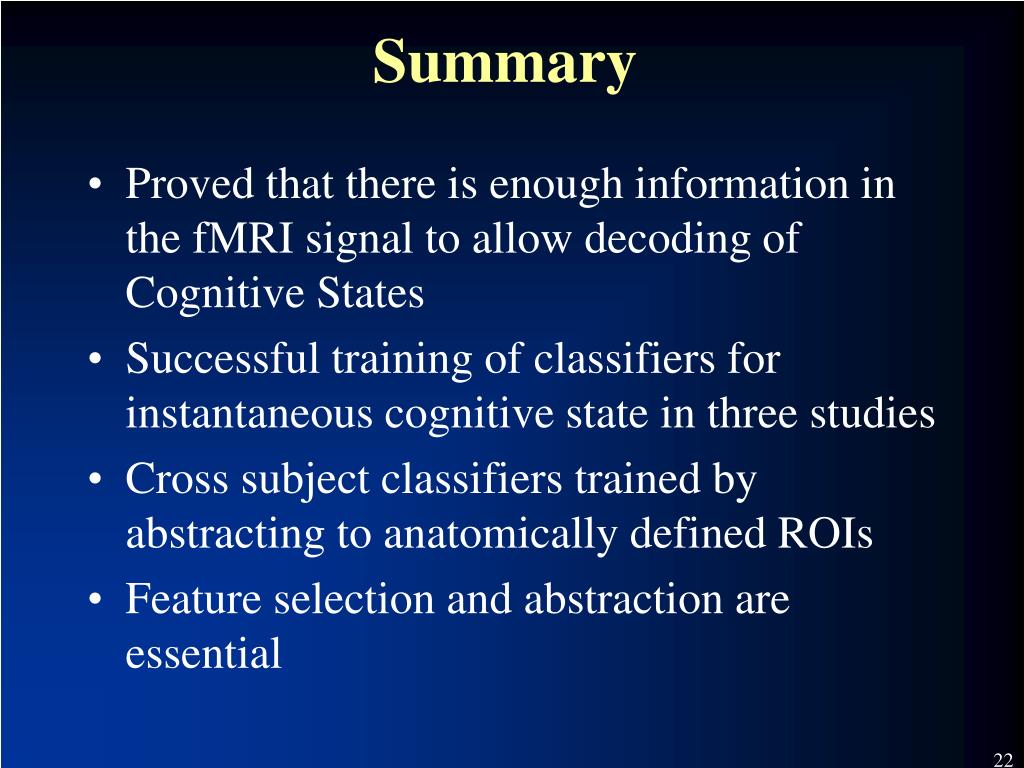

  19. Summary • Proved that there is enough information in the fMRI signal to allow decoding of Cognitive States • Successful training of classifiers for instantaneous cognitive state in three studies • Cross subject classifiers trained by abstracting to anatomically defined ROIs • Feature selection and abstraction are essential

  20. Research Opportunities • Learning temporal models • HMM’s, Temporal Bayes Nets • Learn to discriminate whether a subject has certain mental disease • Discovering useful data abstractions • ICA, PCA, hidden layers in Neural Nets • Merging data from multiple sources • fMRI, ERP, reaction times
