  1. WikiPlus customizations Fine tune your WikiPlus solution

  2. What’s on the agenda? • Branding and layout • Modify the WikiPlus content type • Customize the editor's toolbar • Customize the following editor dropdowns • "Custom Links“ • "Content Snippets" • "Wiki markup" • "Paragraph Style" • Customize Emoticons

  3. What’s on the agenda? • Change the file size limit for upload • Change the available libraries under the file managers

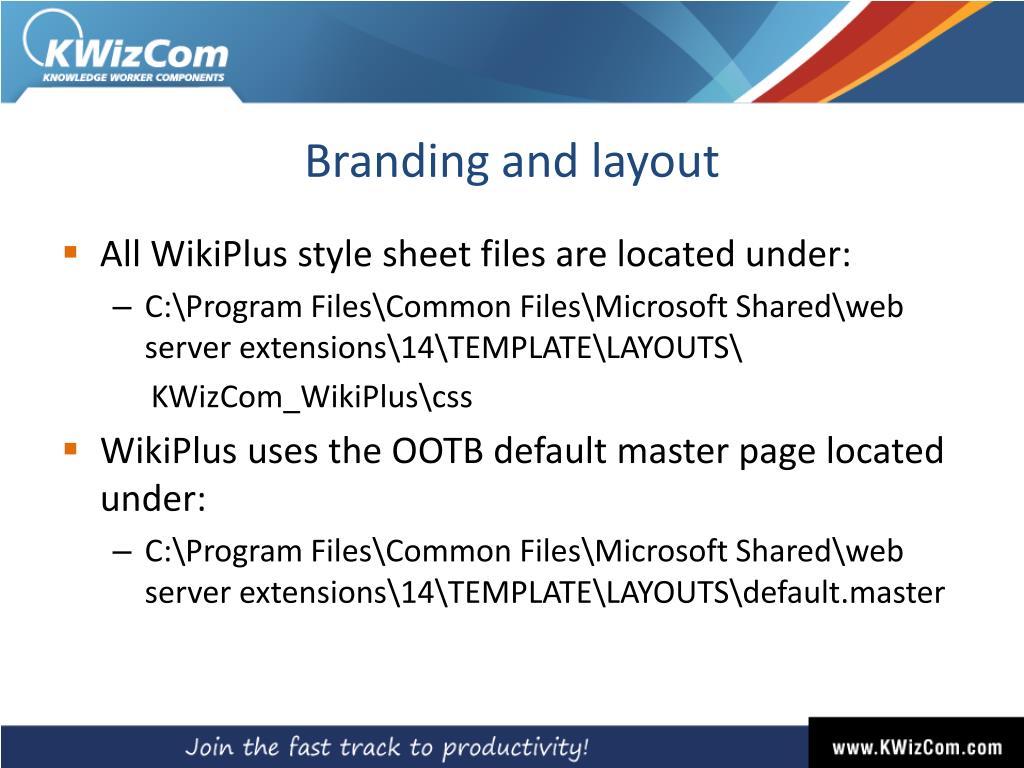

  4. Branding and layout • All WikiPlus style sheet files are located under: • C:\Program Files\Common Files\Microsoft Shared\web server extensions\14\TEMPLATE\LAYOUTS\ KWizCom_WikiPlus\css • WikiPlus uses the OOTB default master page located under: • C:\Program Files\Common Files\Microsoft Shared\web server extensions\14\TEMPLATE\LAYOUTS\default.master

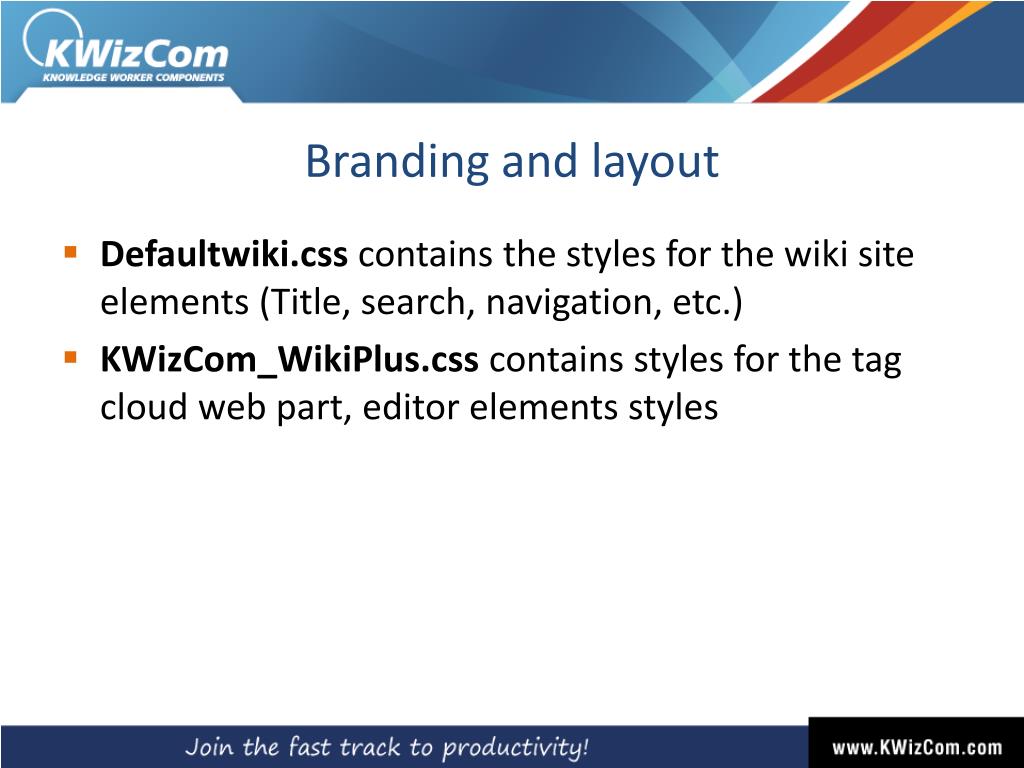

  5. Branding and layout • Defaultwiki.css contains the styles for the wiki site elements (Title, search, navigation, etc.) • KWizCom_WikiPlus.css contains styles for the tag cloud web part, editor elements styles

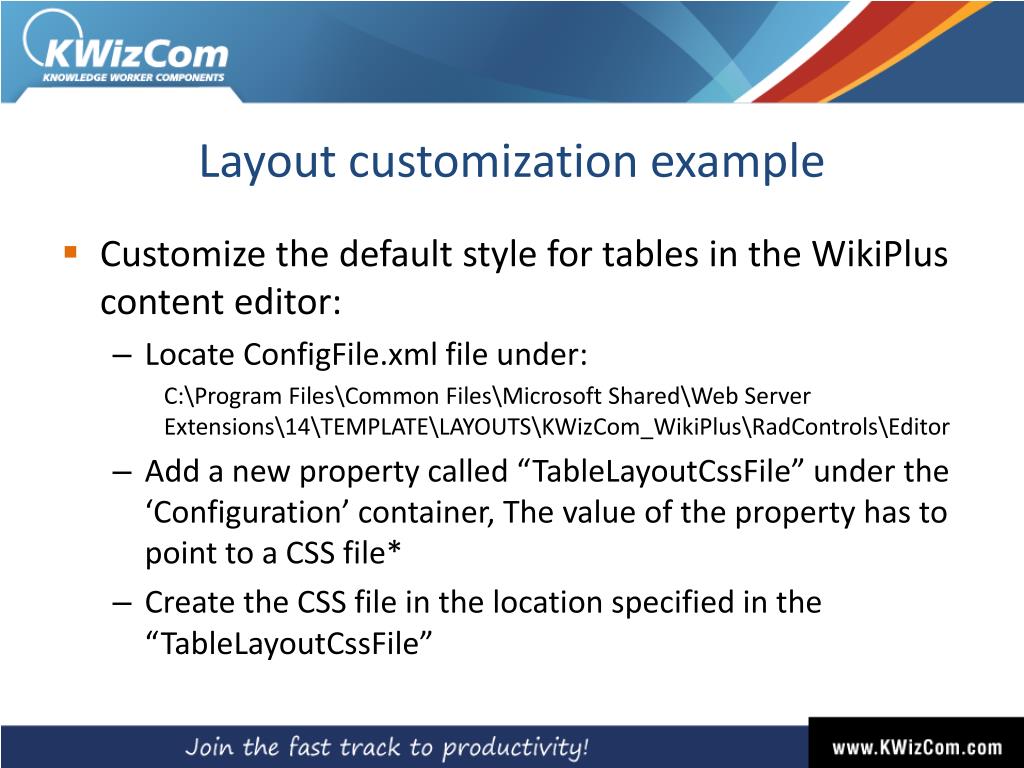

  6. Layout customization example • Customize the default style for tables in the WikiPlus content editor: • Locate ConfigFile.xml file under: C:\Program Files\Common Files\Microsoft Shared\Web Server Extensions\14\TEMPLATE\LAYOUTS\KWizCom_WikiPlus\RadControls\Editor • Add a new property called “TableLayoutCssFile” under the ‘Configuration’ container, The value of the property has to point to a CSS file* • Create the CSS file in the location specified in the “TableLayoutCssFile”

  7. Layout customization example • Find the SPEditorTools.js file under: C:\Program Files\Common Files\Microsoft Shared\Web Server Extensions\14\TEMPLATE\LAYOUTS\KWizCom_WikiPlus\RadControls\Editor • Add an entry under InsertTablelike so: e.className= “MyClassTable” • Comment out the rest of the style definitions

  8. Layout customization example • ConfigFile.xml: Relative URL to the CSS file location

  9. Layout customization example • CSS folder: New table style definition CSS

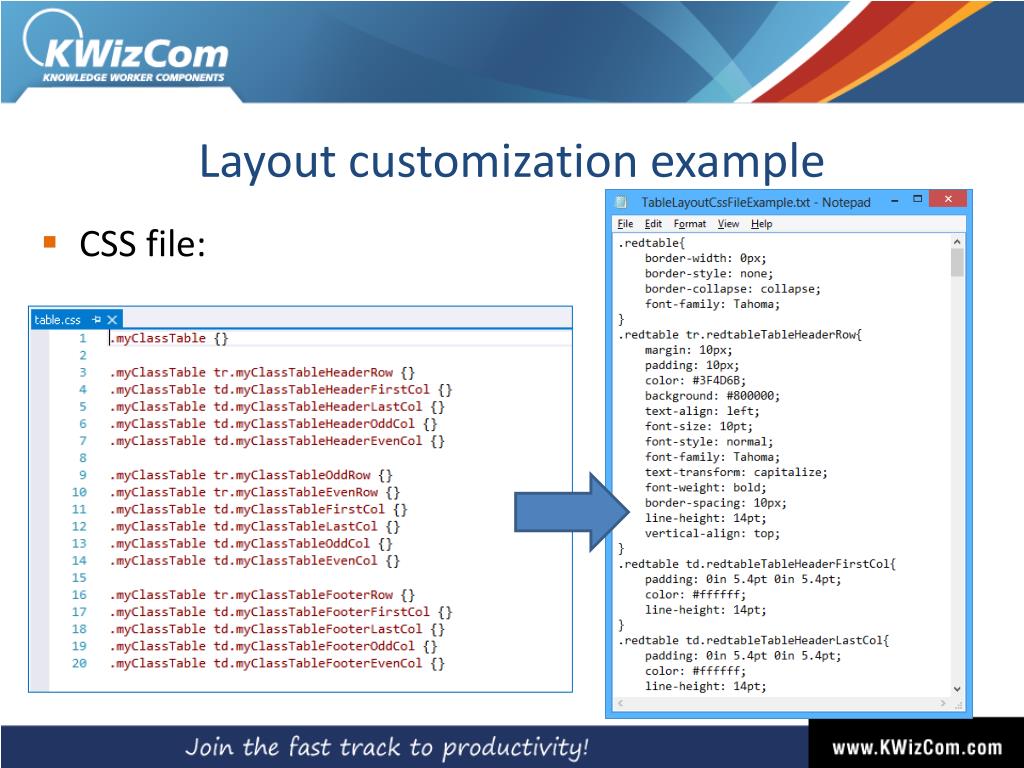

  10. Layout customization example • CSS file:

  11. Layout customization example • SPEditorTools.js :

  12. Modify the WikiPlus content type • Each WikiPlus library inherits the WikiPlus content type • WikiPlus content type is available under the site collection content types • Add or remove fields from the WikiPlus content type • Note adding a field will not automatically add it to a WikiPlus page view

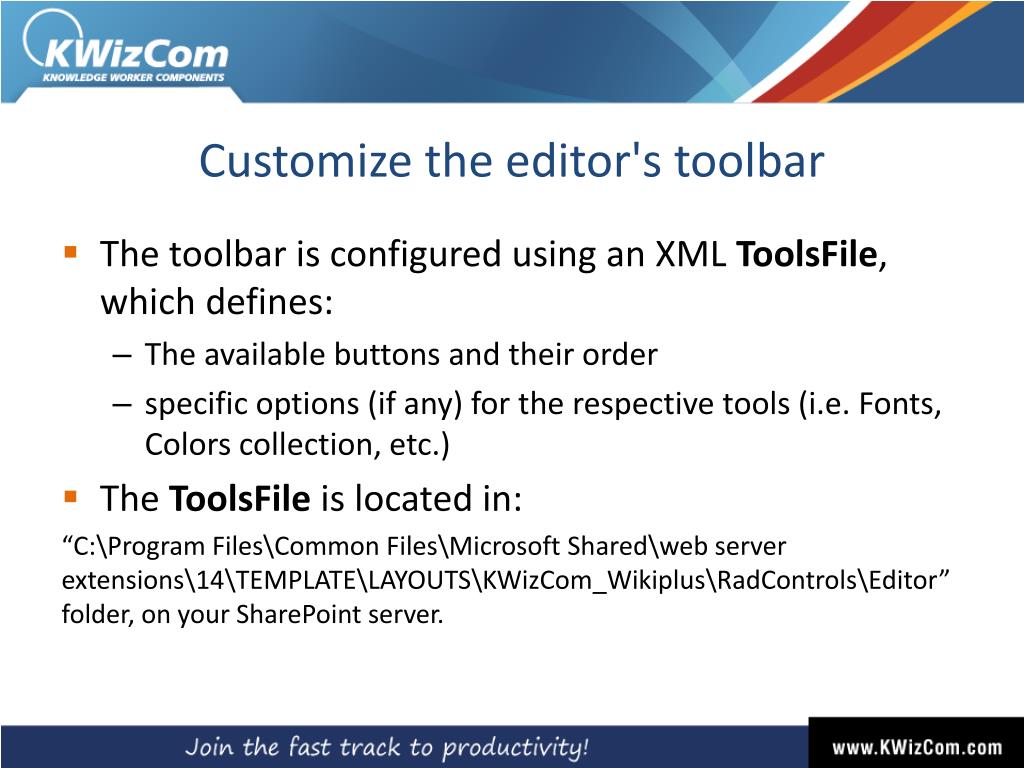

  13. Customize the editor's toolbar • The toolbar is configured using an XML ToolsFile, which defines: • The available buttons and their order • specific options (if any) for the respective tools (i.e. Fonts, Colors collection, etc.)   • The ToolsFile is located in: “C:\Program Files\Common Files\Microsoft Shared\web server extensions\14\TEMPLATE\LAYOUTS\KWizCom_Wikiplus\RadControls\Editor” folder, on your SharePoint server.

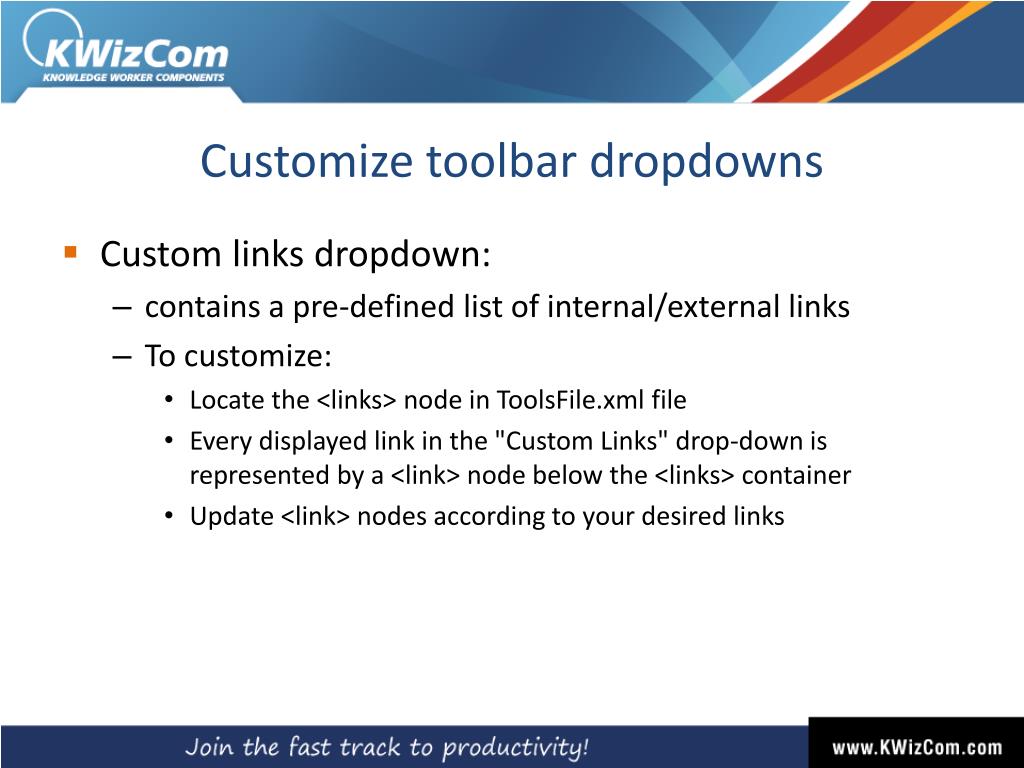

  14. Customize toolbar dropdowns • Custom links dropdown: • contains a pre-defined list of internal/external links • To customize: • Locate the <links> node in ToolsFile.xml file • Every displayed link in the "Custom Links" drop-down is represented by a <link> node below the <links> container • Update <link> nodes according to your desired links

  15. Customize toolbar dropdowns • Customize content snippets: • contains a pre-defined list of html snippets • To customize: • Locate the <snippets> node in ToolsFile.xml • Update or add <snippet> nodes below the <snippets> container node

  16. Customize toolbar dropdowns • Customize Wiki markup dropdown: • contains a pre-defined list of wiki markup scripts • To customize: • Locate the <tool name="WikiMarkup" … /> node in ToolsFile.xml • Every <item> node below contains a displayed caption and text that is inserted into the editor once this command is selected • Update existing <item> nodes or add new ones

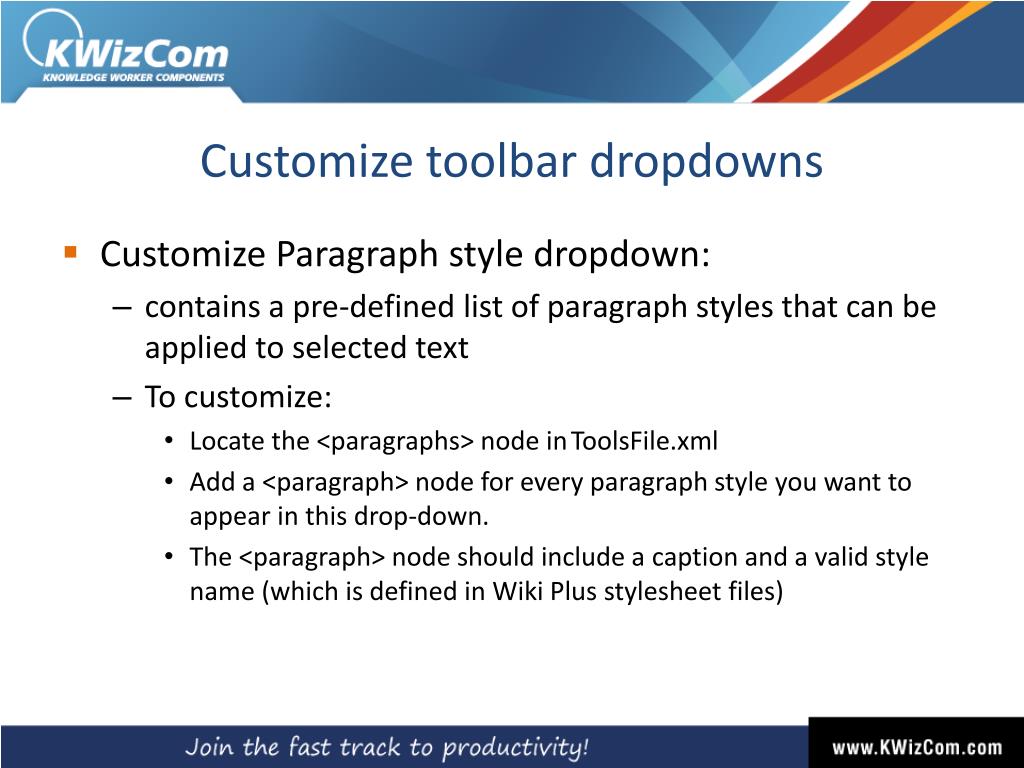

  17. Customize toolbar dropdowns • Customize Paragraph style dropdown: • contains a pre-defined list of paragraph styles that can be applied to selected text • To customize: • Locate the <paragraphs> node inToolsFile.xml • Add a <paragraph> node for every paragraph style you want to appear in this drop-down. • The <paragraph> node should include a caption and a valid style name (which is defined in Wiki Plus stylesheet files)

  18. Customize Emoticons • The emoticon icon which you to add emoticons on your wiki page • You may want to add or remove the emoticons, or create your own collection, to do so: • Go to the top level site> View all site content • Open the “WikiPlus emoticons” library • Upload, edit or delete emoticons (The title is used as an alternative text for the emoticon)

  19. Change the file size limit for upload • The editor includes a pre-defined uploaded file size • The default maximum file size that you can upload is 4096kB, to customize: • Locate the relevant node inToolsFile.xml: • Image Manager: • <property name="MaxImageSize">[file size in bytes]</property • Flash Manager: • <property name="MaxFlashSize">[file size in bytes]</property> • Media Manager: • <property name="MaxMediaSize">[file size in bytes]</property> • Document Manager: • <property name="MaxDocumentSize">[file size in bytes]</property> • Visio Manager: • <property name="MaxVisioSize">[file size in bytes]</property>

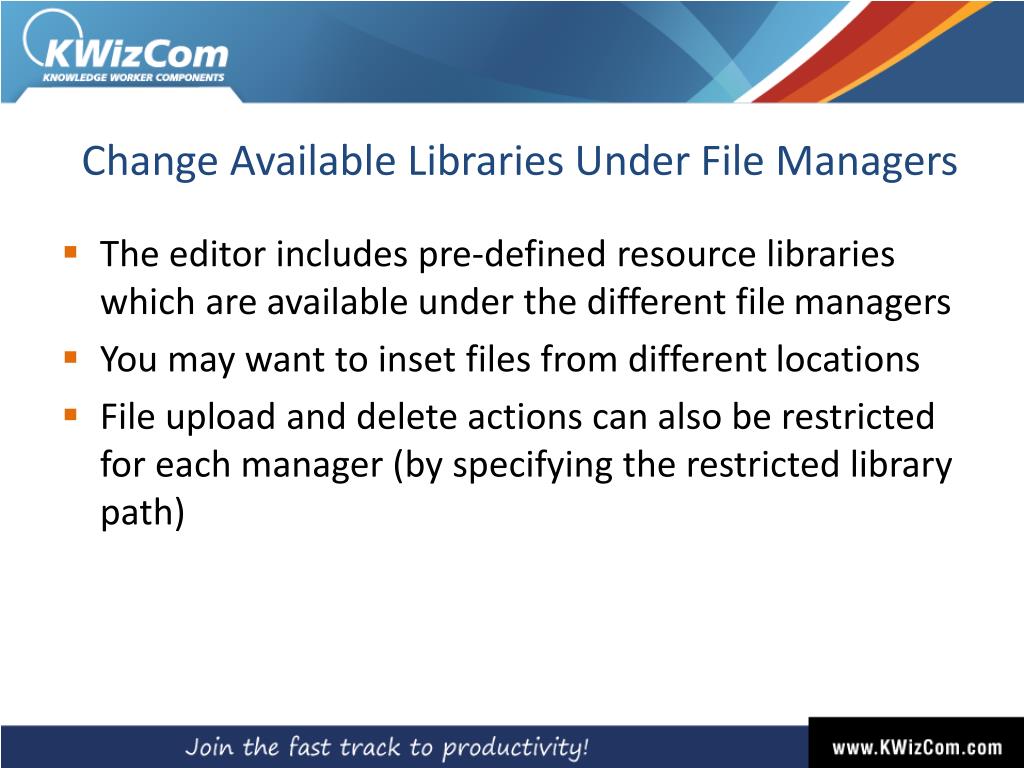

  20. Change Available Libraries Under File Managers • The editor includes pre-defined resource libraries which are available under the different file managers • You may want to inset files from different locations • File upload and delete actions can also be restricted for each manager (by specifying the restricted library path)

  21. Change Available Libraries Under File Managers • To customize the available libraries, or restrict upload\delete: • Locate the relevant node inToolsFile.xml and specify the relevant path Image Manager: <property name="ImagesPaths"> </property> <property name="UploadImagesPaths"> </property> <property name="DeleteImagesPaths"> </property> Media Manager: <property name="MediaPaths"> </property> <property name="UploadMediaPaths"> </property> <property name="DeleteMediaPaths"> </property> Document Manager: <property name="DocumentsPaths"> </property> <property name="UploadDocumentsPaths"> </property> <property name="DeleteDocumentsPaths"> </property>

  22. Demo Customization demos

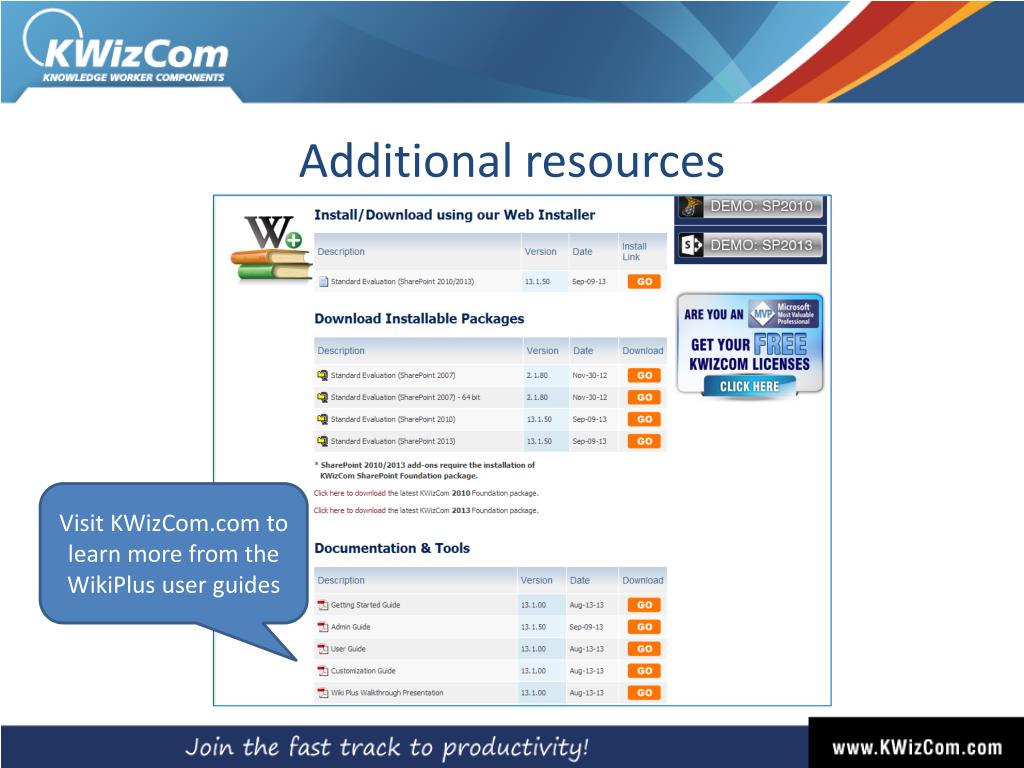

  23. Additional resources Visit KWizCom.com to learn more from the WikiPlus user guides
