1. Data Submittals to AQS Nate Herbst Southern Ute Indian Tribe

2. Introduction to AQS • What is the AQS? • Where do monitoring data end up? • Why is the AQS important? • How are data submitted to AQS?

3. What is the AQS? AQS • EPA air quality database • Contains • Site and monitor data • Raw data • Summary data • Precision and accuracy (P&A) data • Air quality data come from • States • Cities and counties • Tribes

4. What is the AQS? (cont.) • AQS just moved from client server to CDX web-based format • Web-based format allows online submittals, retrievals • Web-based version should make submitting data easier

5. Data Flow Diagram • Analyzer collects data • Data Acquisition System (DAS) stores data • Data moved from DAS to computer on regular basis • Raw data checked for errors • Raw data compared with logbooks and other documentation

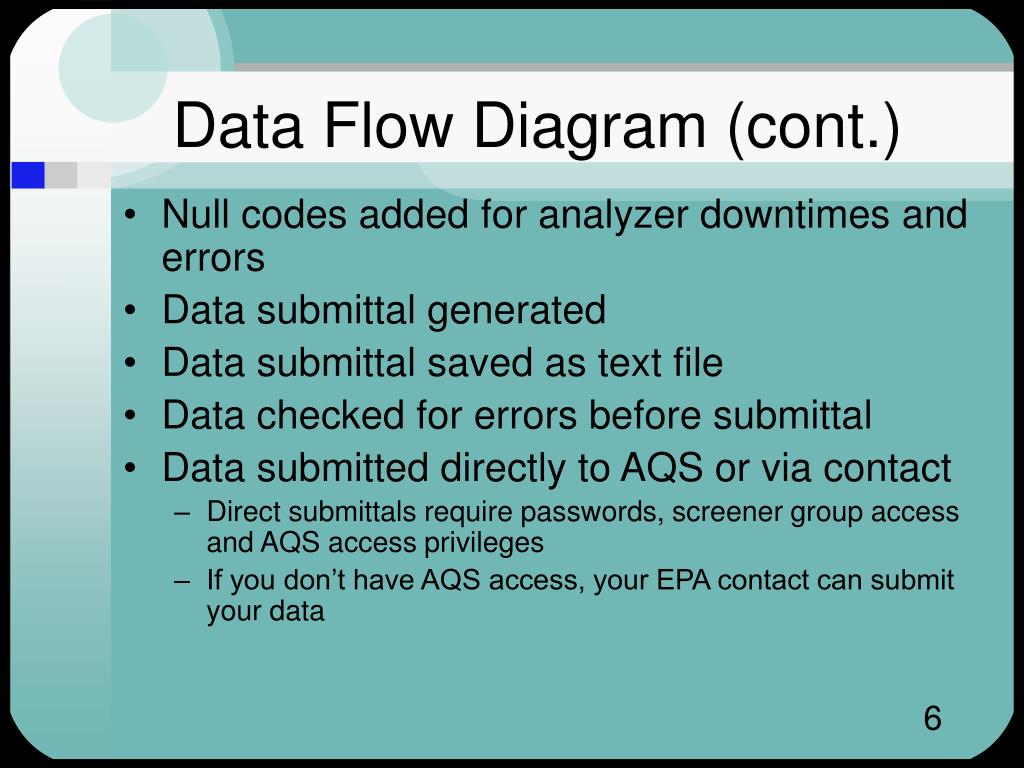

6. Data Flow Diagram (cont.) • Null codes added for analyzer downtimes and errors • Data submittal generated • Data submittal saved as text file • Data checked for errors before submittal • Data submitted directly to AQS or via contact • Direct submittals require passwords, screener group access and AQS access privileges • If you don’t have AQS access, your EPA contact can submit your data

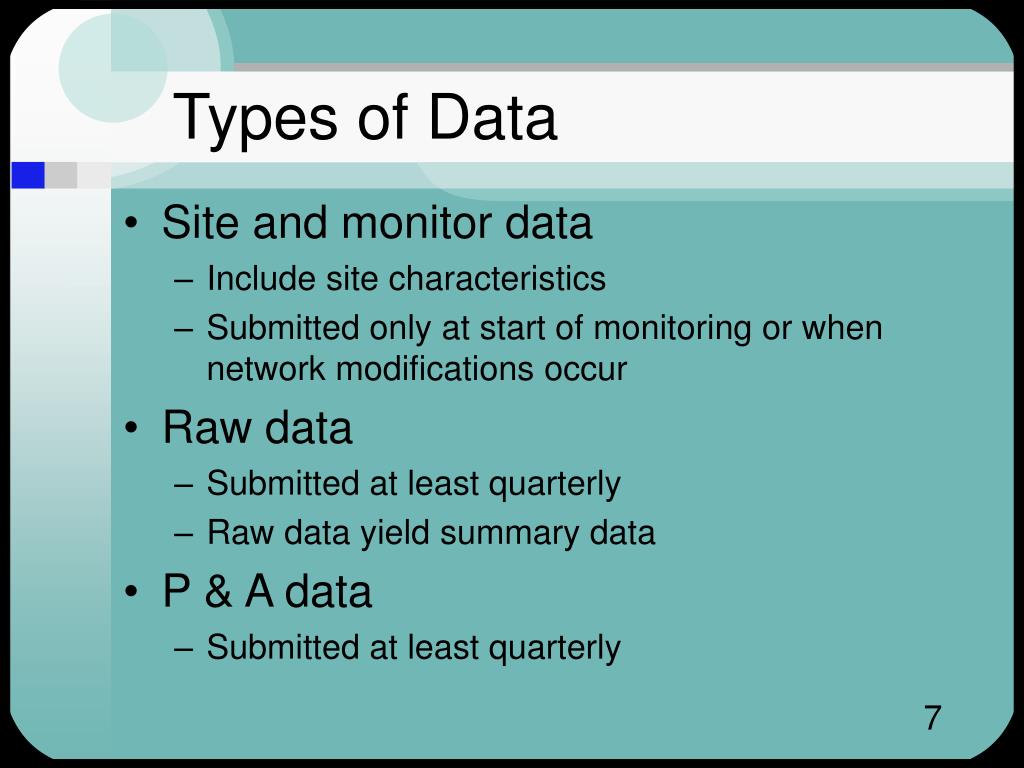

7. Types of Data • Site and monitor data • Include site characteristics • Submitted only at start of monitoring or when network modifications occur • Raw data • Submitted at least quarterly • Raw data yield summary data • P & A data • Submitted at least quarterly

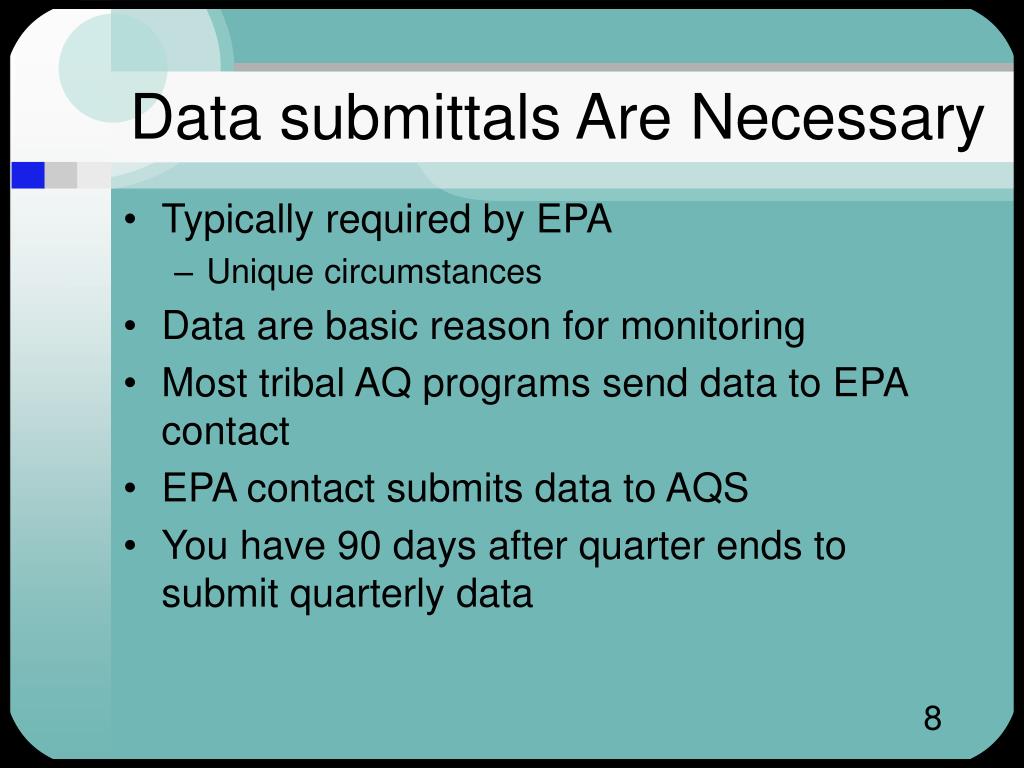

8. Data submittals Are Necessary • Typically required by EPA • Unique circumstances • Data are basic reason for monitoring • Most tribal AQ programs send data to EPA contact • EPA contact submits data to AQS • You have 90 days after quarter ends to submit quarterly data

9. Data Submittals (cont.) • Quarterly raw data and P&A data must be submitted • Don’t put off any part of the process • Be prompt if • You are submitting data directly • You are submitting data through EPA contact

10. Raw Data • Data collected by analyzer • Converted to AQS format • DAS software • EPA tools • Excel • Data checked, additions made • Null codes added wherever needed • Data checked to ensure correctness • Data are submitted

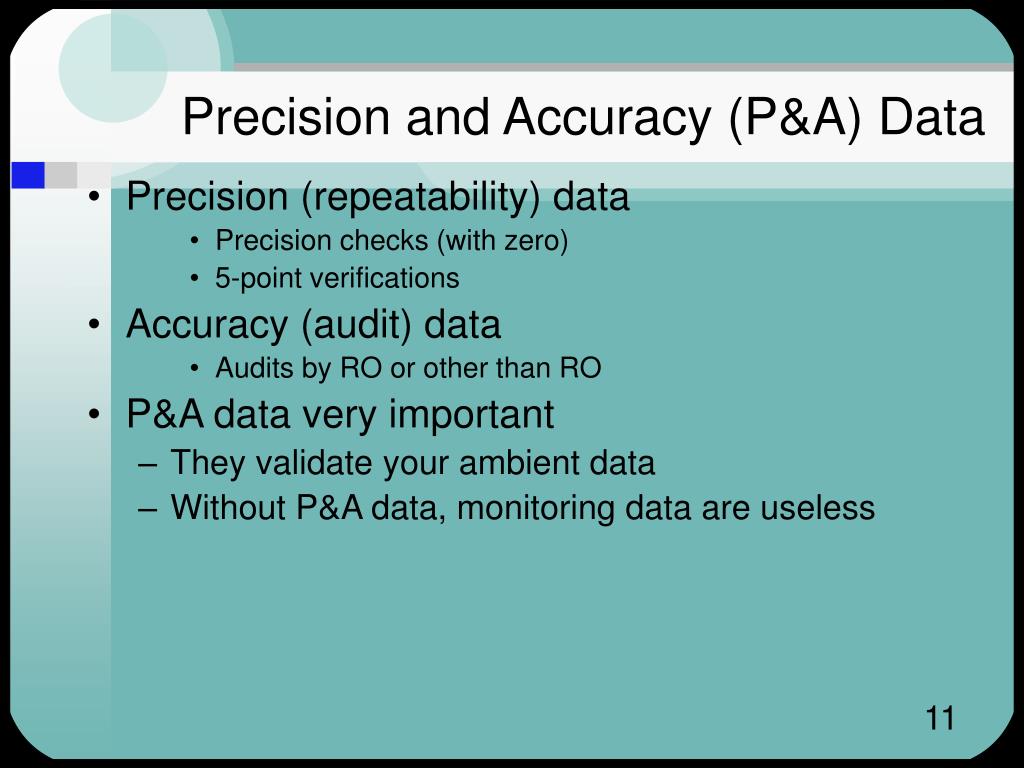

11. Precision and Accuracy (P&A) Data • Precision (repeatability) data • Precision checks (with zero) • 5-point verifications • Accuracy (audit) data • Audits by RO or other than RO • P&A data very important • They validate your ambient data • Without P&A data, monitoring data are useless

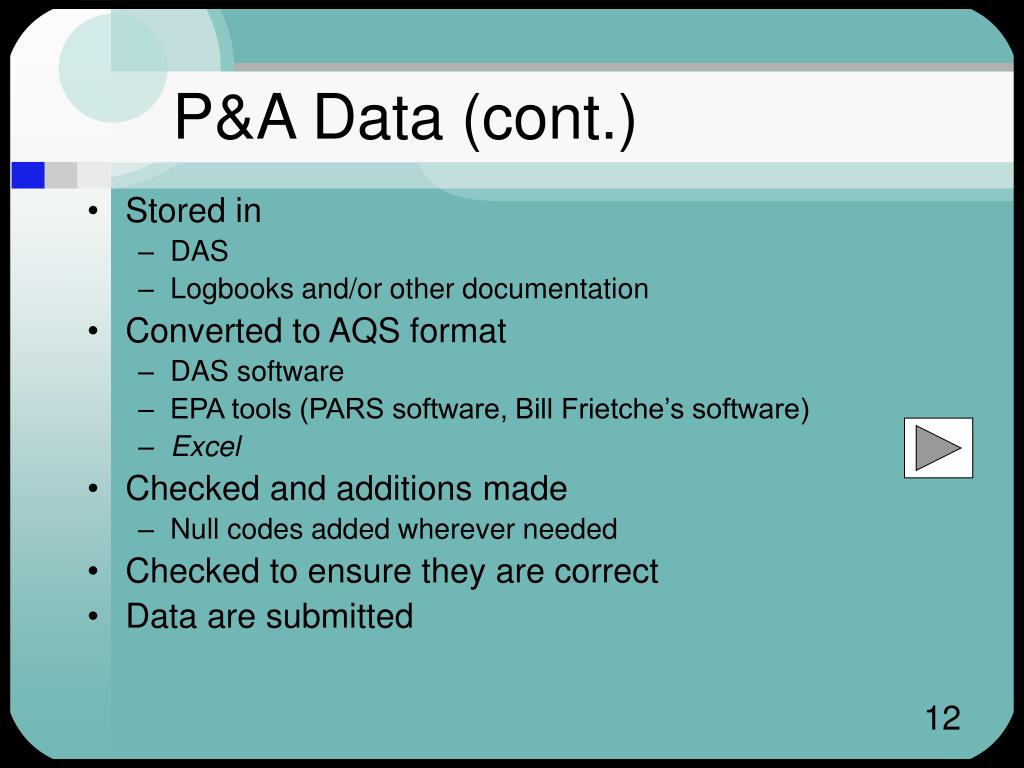

12. P&A Data (cont.) • Stored in • DAS • Logbooks and/or other documentation • Converted to AQS format • DAS software • EPA tools (PARS software, Bill Frietche’s software) • Excel • Checked and additions made • Null codes added wherever needed • Checked to ensure they are correct • Data are submitted

13. Data Submittal Format New AQS format RDIII08I067I7003I44201I1I1I007I053I20010701I00:00I0.028I I Transaction type Parameter Sample value Method POC County Start time State Units Date Site ID Action code Sample duration

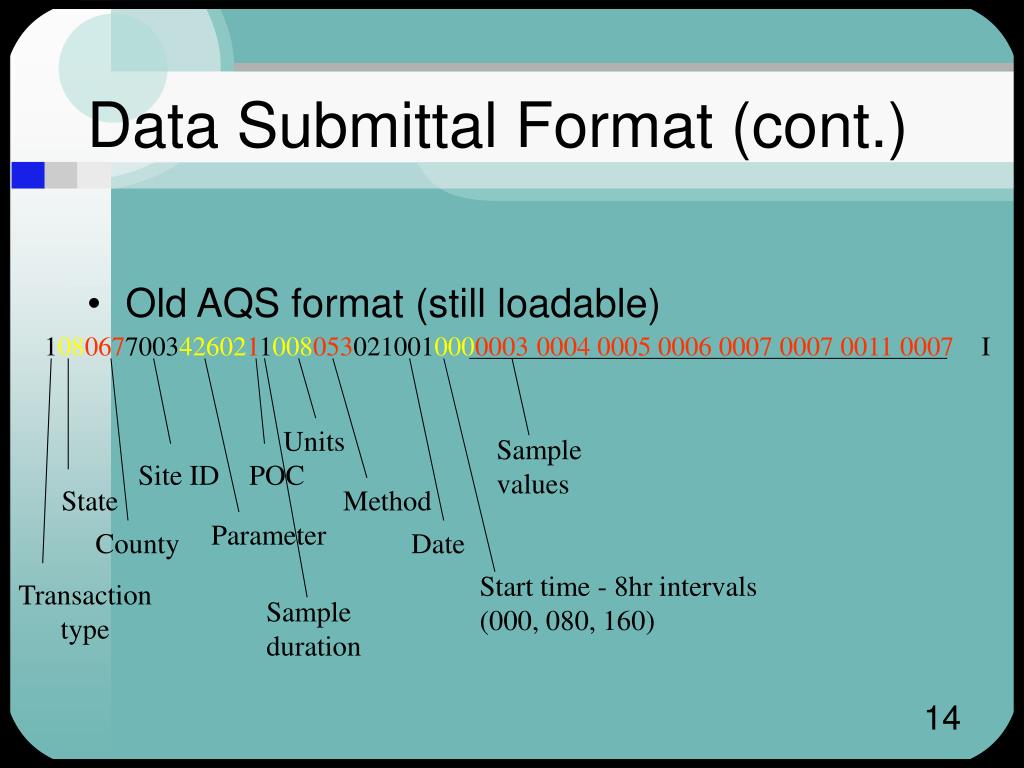

14. Data Submittal Format (cont.) • Old AQS format (still loadable) 1080677003426021100805302100100000030004 0005 0006 0007 0007 0011 0007 I Units Sample values Site ID POC State Method Parameter County Date Start time - 8hr intervals (000, 080, 160) Transaction type Sample duration

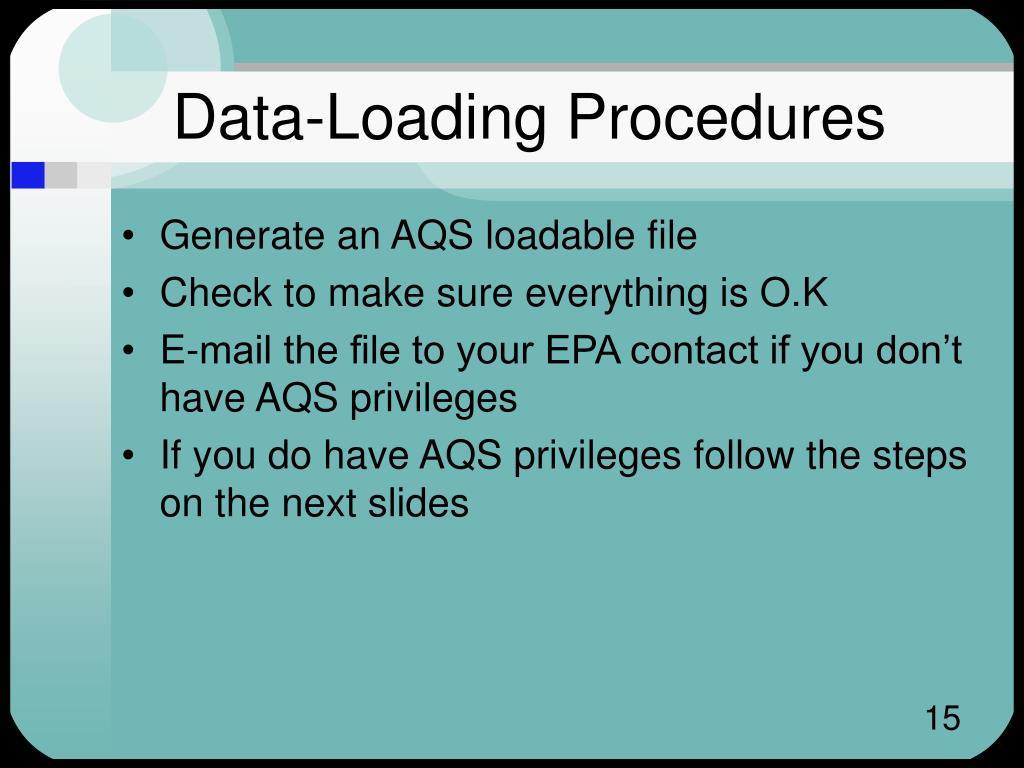

15. Data-Loading Procedures • Generate an AQS loadable file • Check to make sure everything is O.K • E-mail the file to your EPA contact if you don’t have AQS privileges • If you do have AQS privileges follow the steps on the next slides

16. AQS Access • Initially install AQS Web software available at www.epa.gov/ttn/airs/airsaqs/aqsweb/aqswebsetupo.htm • Install JavaBean certificate at same address (under part 2 RegisterAQS.exe) • Register on CDX (Central Data Exchange) at same address (under part 3 CDX registration) • Go to:www.epa.gov/ttn/airs/airsaqs/aqsweb/aqswebhome.htm • Click “proceed to AQS” • Click “I agree to terms and want to proceed to AQS” • Log into AQS (username, password and database). • Click Admin tab and select Security synchronize passwords.

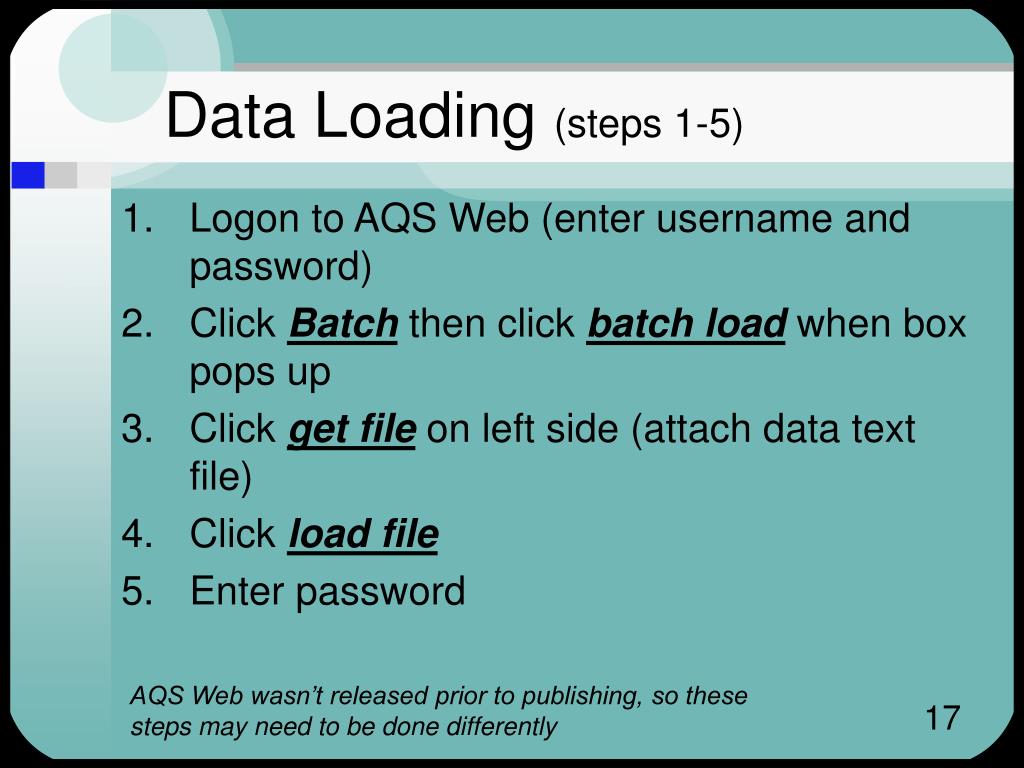

17. Data Loading (steps 1-5) • Logon to AQS Web (enter username and password) • Click Batchthen click batch loadwhen box pops up • Click get file on left side (attach data text file) • Click load file • Enter password AQS Web wasn’t released prior to publishing, so these steps may need to be done differently

18. Data Loading (steps 1-5) • Click Edit Load Summary • Correct errors and resubmit data under Submit Corrected Data • Click Edit Load Summary to recheck 7. Click Stat CR 8. Click Batch Report • Get Scan Report • Get Stat evaluation • Click Post if data are O.K (if not O.K fix them) • Click Raw Data and then Post Data to Production

19. Data-Loading Resources • Follow AQSWeb data-loading protoco, found at www.epa.gov/airs/airsaqs/aqsweb It will be underAqsWebQuickRefGuideV1.pdf • Other training materials found at www.epa.gov/ttn/airs/airsaqs/manuals/manuals.htm

20. AQS Quick Reference Guide This diagram and more info found at Quick Ref web address listed on previous page

21. Summary • Data submittals to AQS are necessary • Raw data • Precision data • Accuracy data • Submit data within 90 days of quarter’s end • Keep up with your data submittals and the monster will not become too big
