Saber Saw Modular Product Architecture

Battery. Saber Saw Modular Product Architecture. I-DEAS NX Configuration. Handgrip Module. Power Source Module. Motor Module 120V Opt 220V Opt 12V Opt. Gear Box Module. Saw Blade Module. 49-03-5101: Motor Housing. 49-03-5201: Brush Holder. Cord.

hedya
Télécharger la présentation

Saber Saw Modular Product Architecture

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Battery Saber Saw Modular Product Architecture I-DEAS NX Configuration Handgrip Module Power Source Module Motor Module 120V Opt 220V Opt 12V Opt Gear Box Module Saw Blade Module 49-03-5101: Motor Housing 49-03-5201: Brush Holder Cord 49-03-5306: Mtr Base Plate 49-03-5301: Brush Contact Fitting 49-03-5003: GB Base Plate 49-03-5002: Gearbox Case

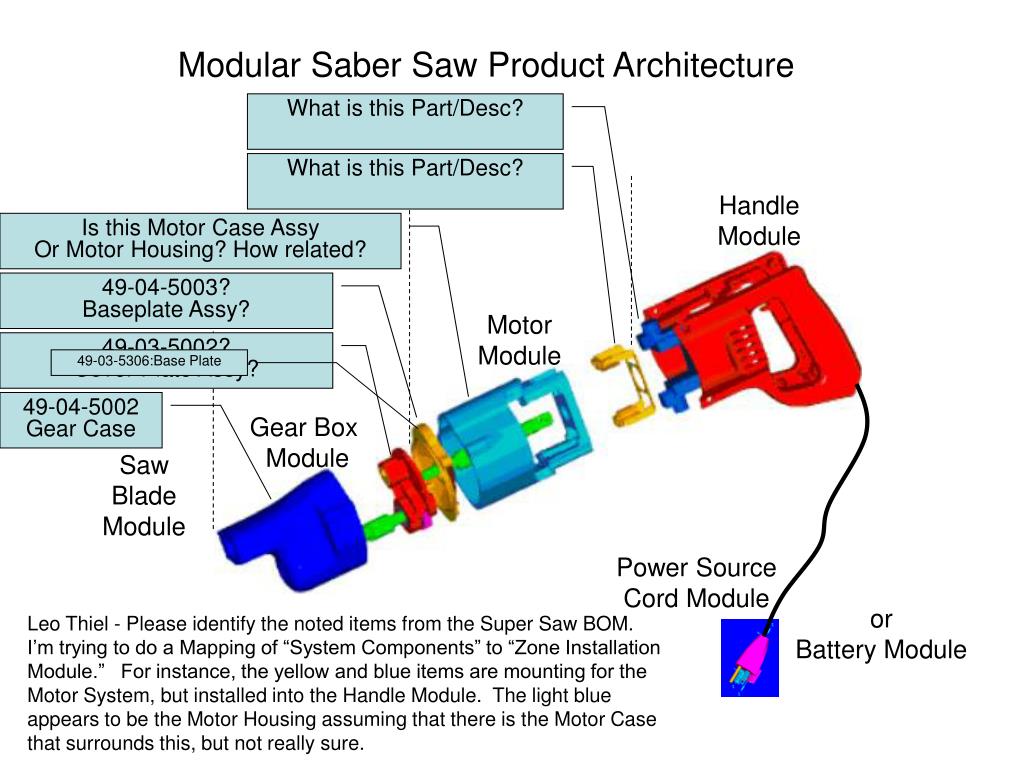

  2. Modular Saber Saw Product Architecture What is this Part/Desc? What is this Part/Desc? Handle Module Is this Motor Case Assy Or Motor Housing? How related? 49-04-5003? Baseplate Assy? Motor Module 49-03-5002? Cover Plate Assy? 49-03-5306:Base Plate 49-04-5002 Gear Case Gear Box Module Saw Blade Module Power Source Cord Module or Battery Module Leo Thiel - Please identify the noted items from the Super Saw BOM. I’m trying to do a Mapping of “System Components” to “Zone Installation Module.” For instance, the yellow and blue items are mounting for the Motor System, but installed into the Handle Module. The light blue appears to be the Motor Housing assuming that there is the Motor Case that surrounds this, but not really sure.

  3. Saber Saw Modular Product Architecture 49-03-5201: Brush Holder 49-03-5100:Motor Case Assy. is an empty assembly This Assy. should probably be removed from the BOM. This part is 49-03-5101:Motor Housing. Both this part and the empty assembly have the same parent assembly, 49-03-5000-Motor Assy. 49-03-5306:Base Plate 49-03-5301: Brush Contact Fitting Downey add Thiel - This exploded view is from a different I-deas model file which obviously has this part. The SuperSaw model file which is in TcEng includes this geometry as part of the Brush Holder part (above). There is no exploded view configuration in the SuperSaw . 49-04-5003:Base Plate 49-04-5002 Gearbox Case? Correct. Leo Thiel Notes
