Presentation Transcript

  1. Your Creativity Unleashed • Save time, focus on high value tasks • Fast Forward for Manual Testing • High quality bugs with single click • Create, manage, and execute test cases • Rich Modern Experience • Standalone testing suite • Elegant Task focused UI • Combined manual & fast forward for manual testing • Capture still images, video, and system information • Plan, Test, Track flow • Web Performance & Load Testing • Know your code is ready for the big time • Measure performance under real time load conditions and ensure that your applications are ready for release

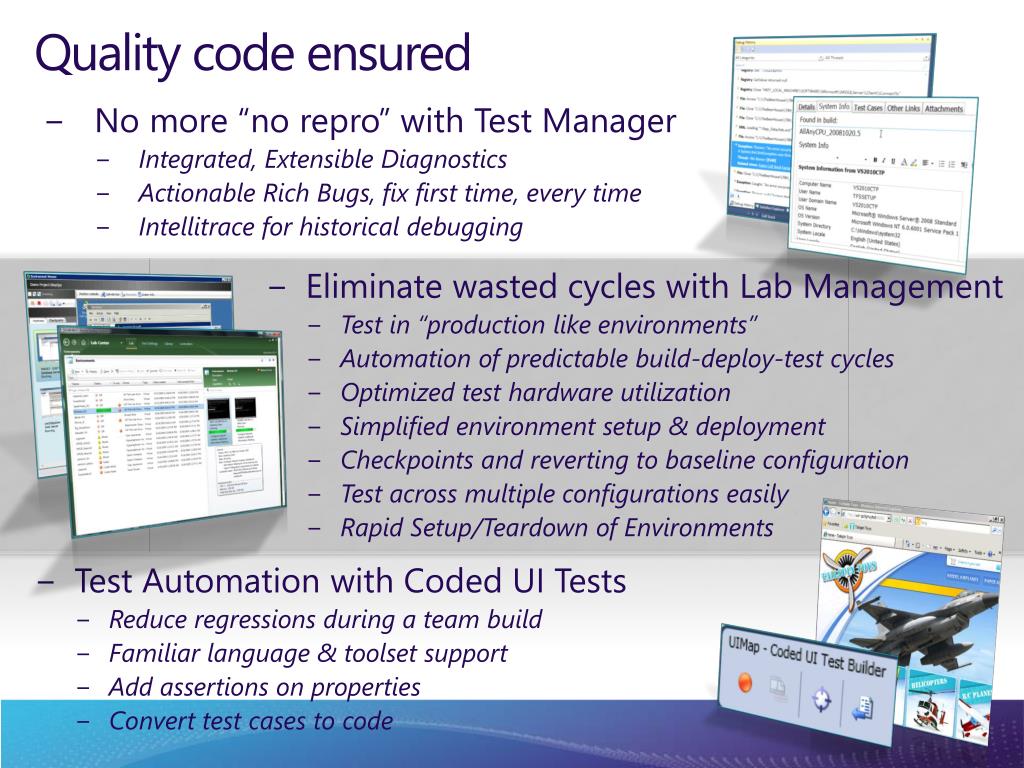

  2. Quality code ensured • No more “no repro” with Test Manager • Integrated, Extensible Diagnostics • Actionable Rich Bugs, fix first time, every time • Intellitrace for historical debugging • Eliminate wasted cycles with Lab Management • Test in “production like environments” • Automation of predictable build-deploy-test cycles • Optimized test hardware utilization • Simplified environment setup & deployment • Checkpoints and reverting to baseline configuration • Test across multiple configurations easily • Rapid Setup/Teardown of Environments • Test Automation with Coded UI Tests • Reduce regressions during a team build • Familiar language & toolset support • Add assertions on properties • Convert test cases to code

  3. Activity: Creation of Regression Tests • Create a test case for a regression • Automate functional tests • Record actions or import action recording from test • Easily repeatable • Maintain it through the product cycle • Run the test as port of the build-workflow

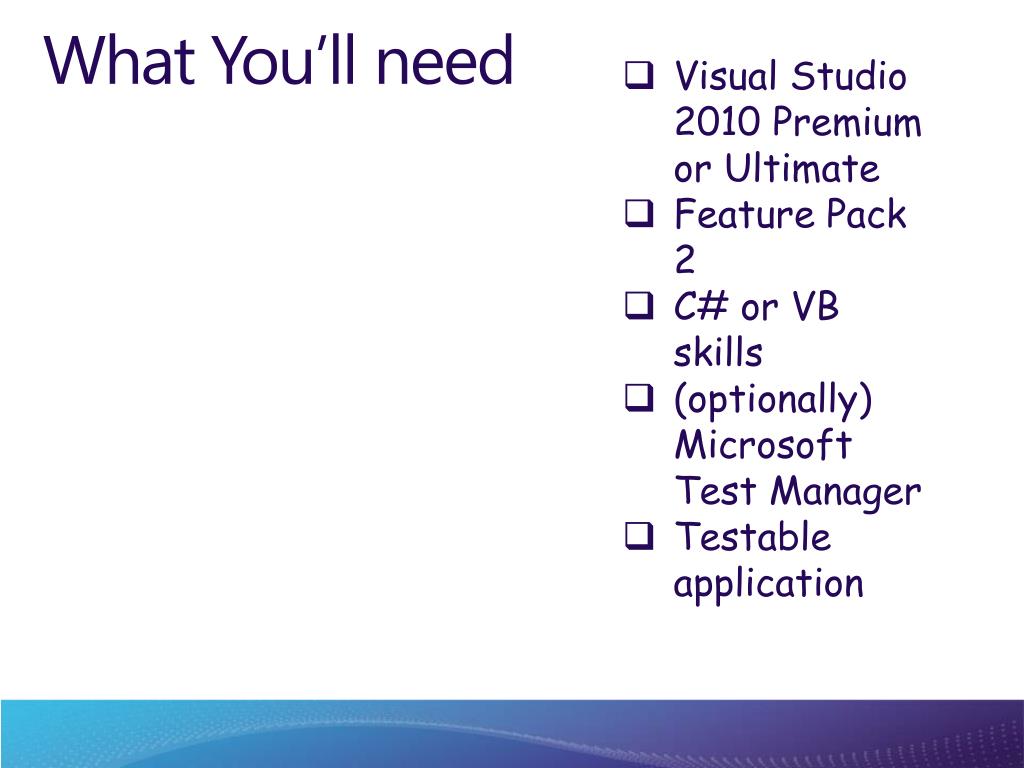

  4. What You’ll need • Visual Studio 2010 Premium or Ultimate • Feature Pack 2 • C# or VB skills • (optionally) Microsoft Test Manager • Testable application

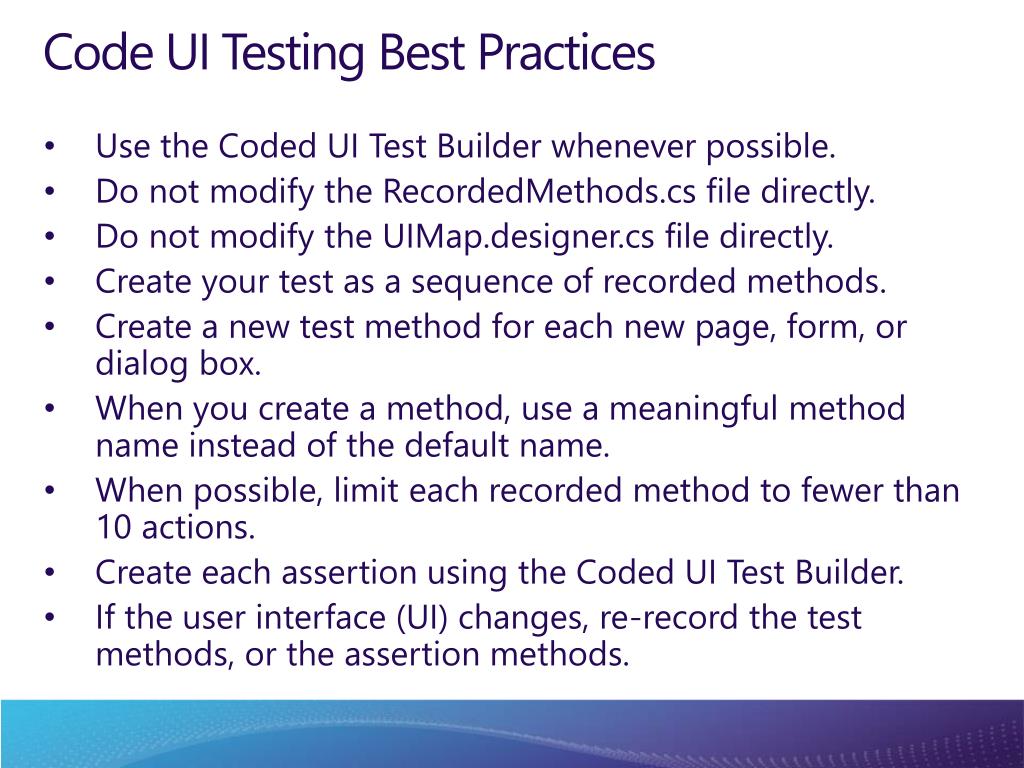

  5. Code UI Testing Best Practices • Use the Coded UI Test Builder whenever possible. • Do not modify the RecordedMethods.csfile directly. • Do not modify the UIMap.designer.cs file directly. • Create your test as a sequence of recorded methods. • Create a new test method for each new page, form, or dialog box. • When you create a method, use a meaningful method name instead of the default name. • When possible, limit each recorded method to fewer than 10 actions. • Create each assertion using the Coded UI Test Builder. • If the user interface (UI) changes, re-record the test methods, or the assertion methods.

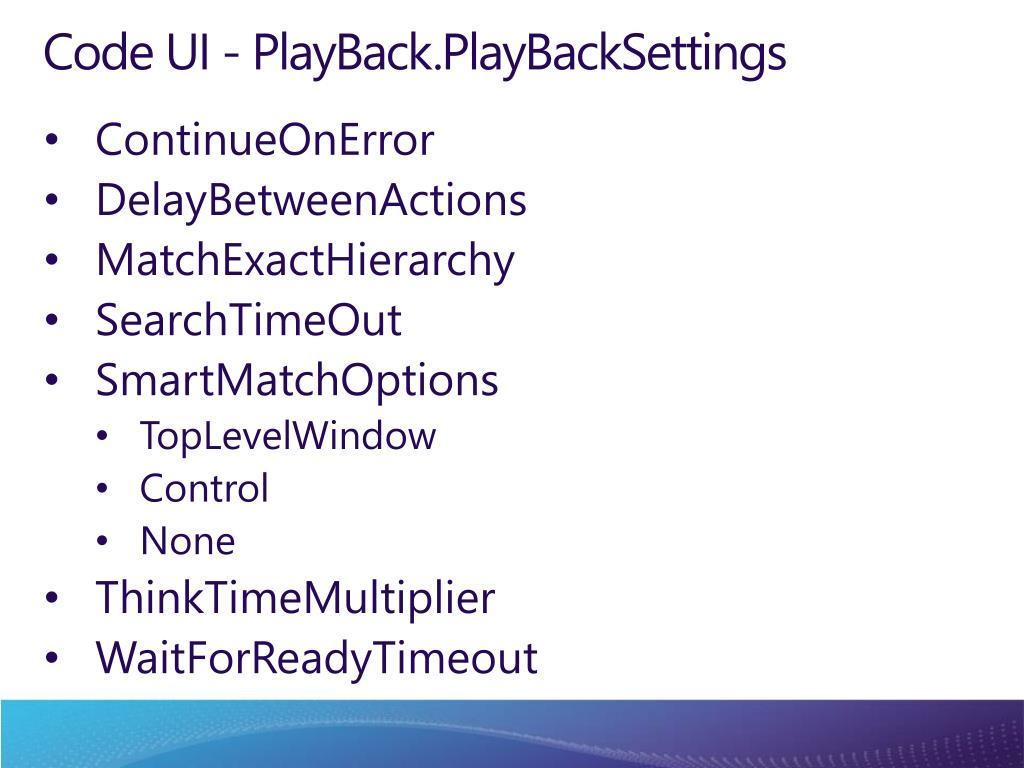

  6. Code UI - PlayBack.PlayBackSettings • ContinueOnError • DelayBetweenActions • MatchExactHierarchy • SearchTimeOut • SmartMatchOptions • TopLevelWindow • Control • None • ThinkTimeMultiplier • WaitForReadyTimeout

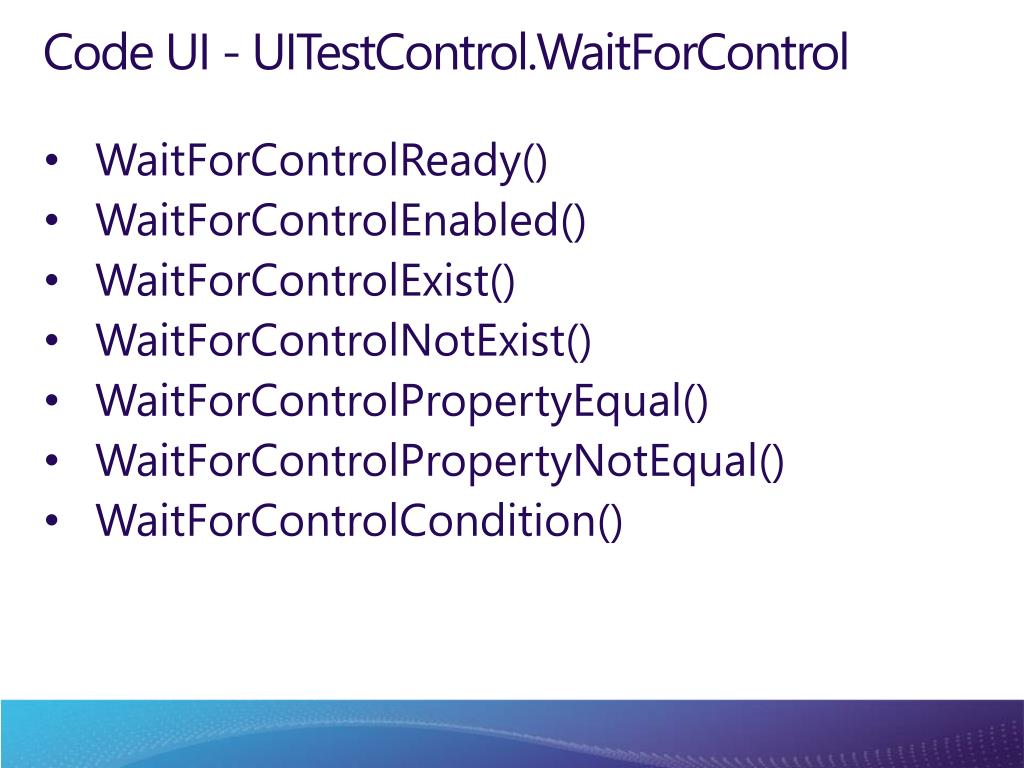

  7. Code UI - UITestControl.WaitForControl • WaitForControlReady() • WaitForControlEnabled() • WaitForControlExist() • WaitForControlNotExist() • WaitForControlPropertyEqual() • WaitForControlPropertyNotEqual() • WaitForControlCondition()

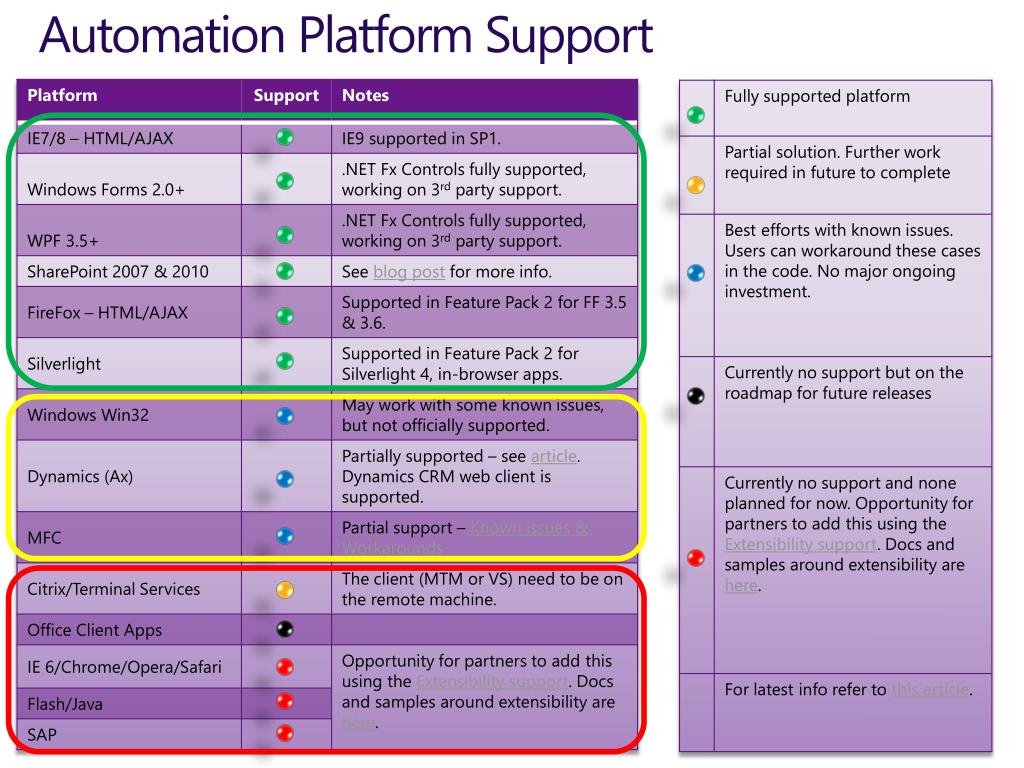

  8. Automation Platform Support

  9. Get Used to Using Using. It’s Useful! using (ApplicationUnderTest.Launch(this.UIMap.LaunchAppParams.UIMyWindowsFormsAppWindowExePath, this.UIMap.LaunchAppParams.UIMyWindowsFormsAppWindowAlternateExePath)) { this.UIMap.SimpleTest(); … }

  10. Searching & Filtering (http://tinyurl.com/SearchAndFilter) Searching is used to look for all POSSIBLE controls. Filtering is used to narrow that list to exactly one match. X, Y is only used to guide where the clicks happen within a control. Mouse.Click(uIGOButton, new Point(19, 18));

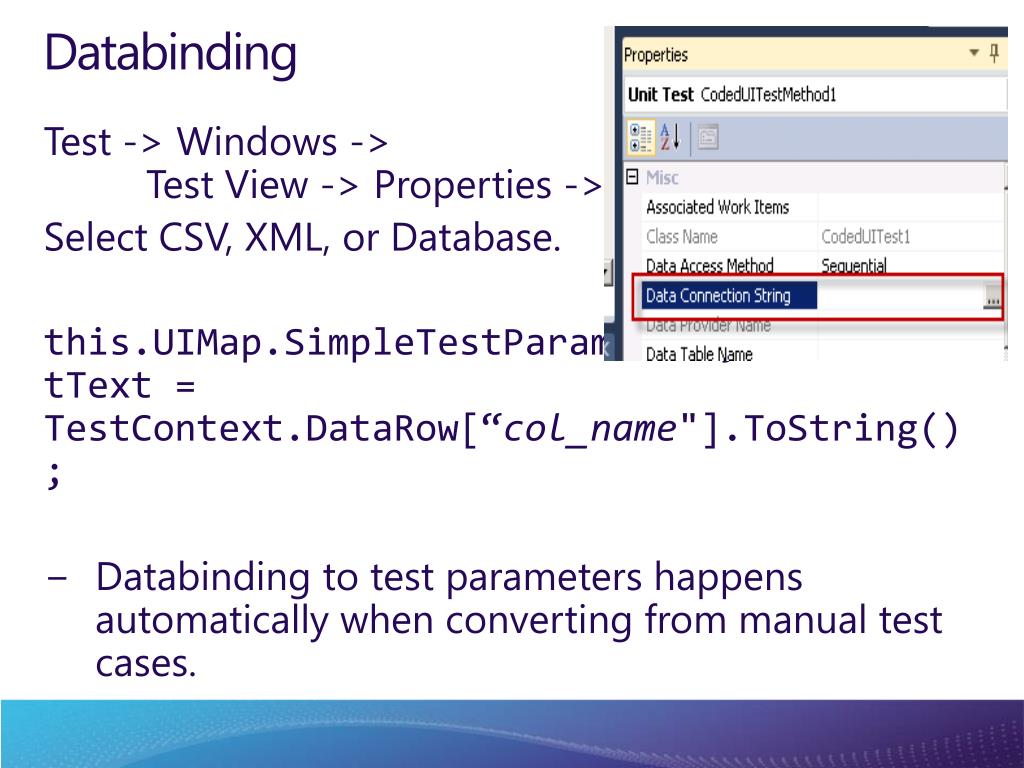

  11. Databinding Test -> Windows -> Test View -> Properties -> Select CSV, XML, or Database. this.UIMap.SimpleTestParams.UIMyTextboxEditText= TestContext.DataRow[“col_name"].ToString(); • Databinding to test parameters happens automatically when converting from manual test cases.

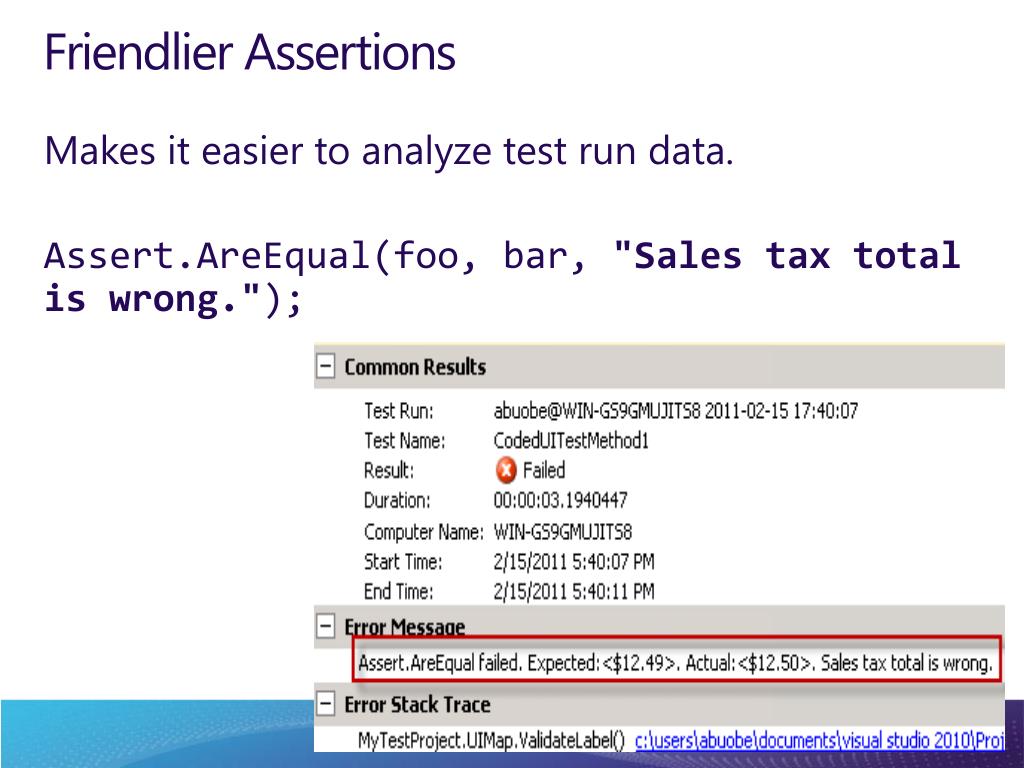

  12. Friendlier Assertions Makes it easier to analyze test run data. Assert.AreEqual(foo, bar, "Sales tax total is wrong.");

  13. Capturing Images Image pic = this.<top_level_window>.CaptureImage(); //Or for entire desktop: Image pic = UITestControl.Desktop.CaptureImage(); pic.Save(@"c:\file.bmp"); TestContext.AddResultFile(@"c:\file.bmp");

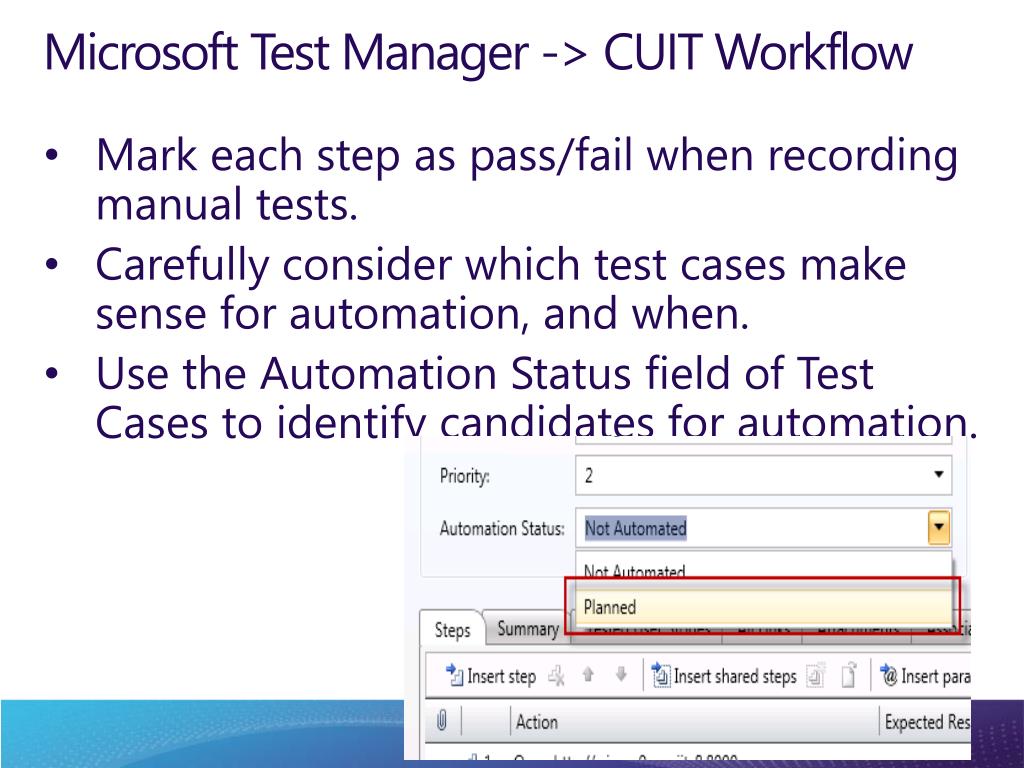

  14. Microsoft Test Manager -> CUIT Workflow • Mark each step as pass/fail when recording manual tests. • Carefully consider which test cases make sense for automation, and when. • Use the Automation Status field of Test Cases to identify candidates for automation.

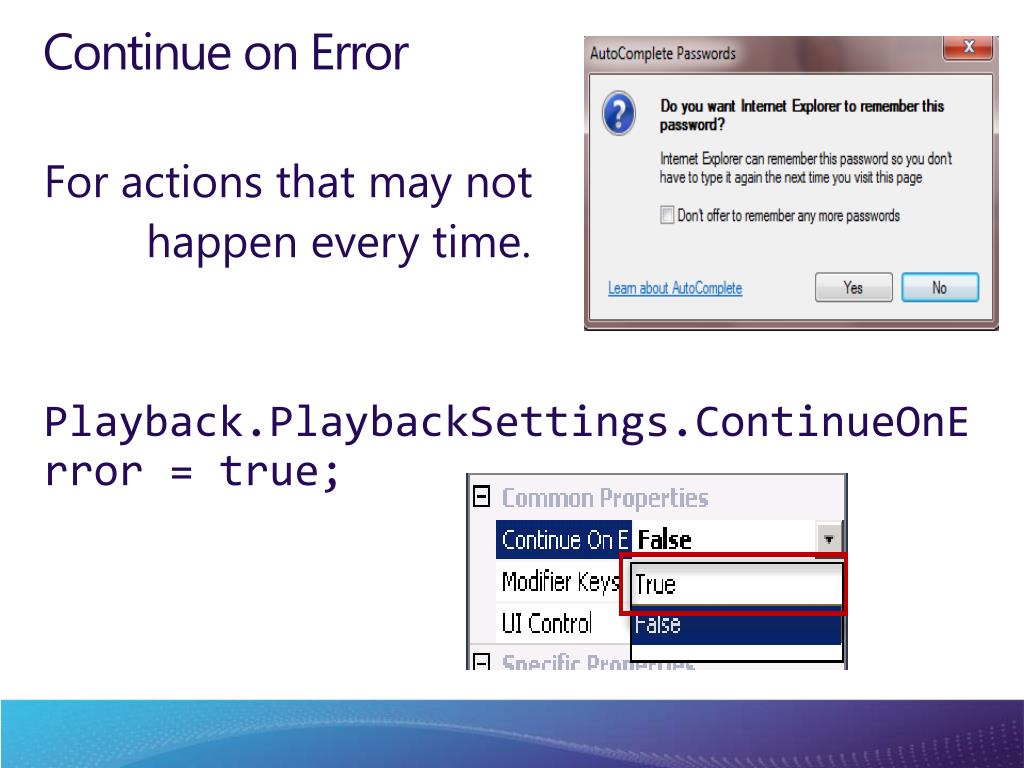

  15. Continue on Error For actions that may not happen every time. Playback.PlaybackSettings.ContinueOnError = true; or:

  16. Testing with Firefox • Firefox 3.5 or 3.6 • Requires Visual Studio 2010 Feature Pack 2 //call this at the beginning of your test BrowserWindow.CurrentBrowser = “Firefox”; //instead of clicking the close button This.UIMap.<browser_TLW>.Close();
