Power Device Characteristics

Voltage Rating: Off state blocking voltage – exceed and destroy! Current Rating: On (saturation) state maximum – exhibits current limiting, can result in damage if power/ junction temperature rating is exceeded.

heller
Télécharger la présentation

Power Device Characteristics

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Voltage Rating: Off state blocking voltage – exceed and destroy! Current Rating: On (saturation) state maximum – exhibits current limiting, can result in damage if power/ junction temperature rating is exceeded. Switching speed: Maximum rates of change of currents and voltages – determines switching losses On State Voltage: determines On-state losses. Power rating: Maximum internal power dissipation above which junction temperature rises above damage level. Subject to external cooling measures. Power Device Characteristics

  2. Solid State Power Devices • Bipolar Junction Transistors (BJT) • Insulated Gate Bipolar Transistor (IGBT) • Metal Oxide-Semiconductor Field Effect Transistor (MOSFET) • Thyristors (SCR, TRIAC) • Integrated-Gate-Controlled Thyristors (IGCT) • Gate Turn-Off Thyristors (GTO) • MOS Controlled Thyristors (MCT) • MOSFET – • High frequency ( > 100 khz) • “Low” Voltage ( < 300 v) • IGBT – • Very High Power (DC applications ~ Megawatts) • Low Frequency ( < 50 kHz) • Thyristors – • (Utility applications 1-2 Megawatts)

  3. MOSFET D ID ID + VDS G - + VGS - S VGS(th) VGS

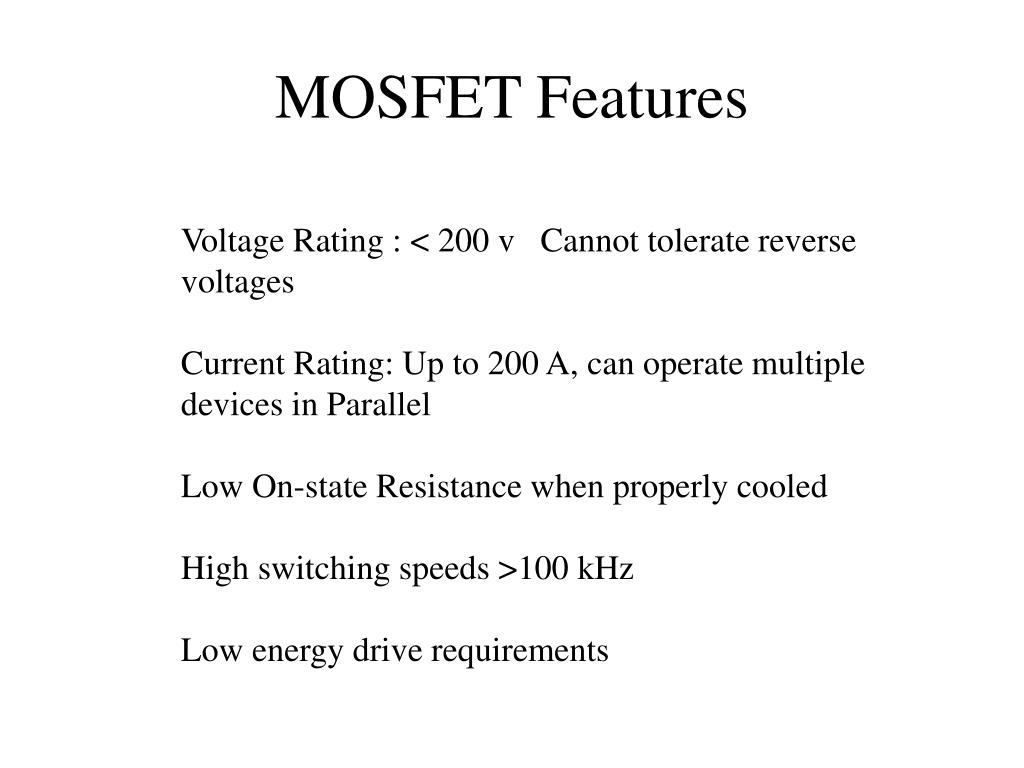

  4. MOSFET Features Voltage Rating : < 200 v Cannot tolerate reverse voltages Current Rating: Up to 200 A, can operate multiple devices in Parallel Low On-state Resistance when properly cooled High switching speeds >100 kHz Low energy drive requirements

  5. IGBT G C IC IC + VCE + - VGE VGE - E VCE

  6. IGBT Features Voltage Rating : Up to 3 Kv Can tolerate moderate reverse voltages Current Rating: Up to 1200 A, can operate multiple devices in Parallel Low On-state Losses Switching speeds up to 30 kHz Low energy drive requirements

  7. Integrated Power Modules (IPM) Combine multiple power devices, drive circuitry, fault protection and heat sink into single module. Single and multi phase motor drives.

  8. Power Diodes High Forward Currents – up to 5 kA High Blocking (Reverse)Voltages – up to 9 kV IF • Line Frequency Diodes (60 Hz – 9 kV, 5 kA) • Fast Recovery Diodes (Rapid Turn-on) • Schottky Diodes (Low Forward/On voltage) • Silicon Carbide/SiC (High Voltage, High speed, High Temp) IR VBD VF
