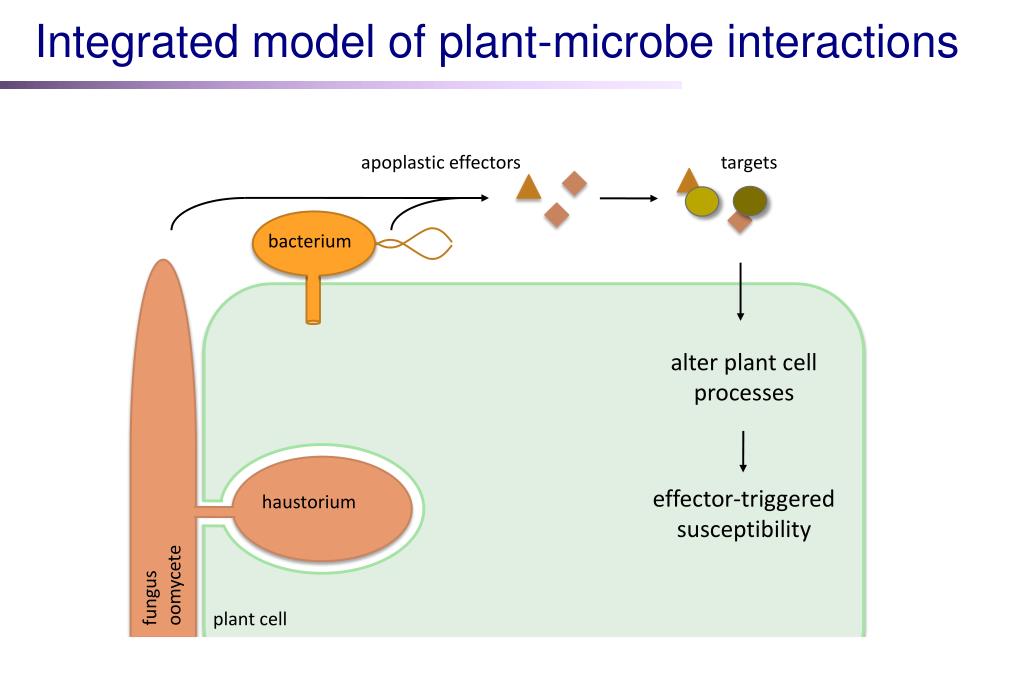

  1. Integrated model of plant-microbe interactions apoplastic effectors targets bacterium alter plant cell processes effector-triggered susceptibility haustorium fungus oomycete plant cell

  2. Integrated model of plant-microbe interactions apoplastic effectors PAMPs Pattern recognition receptors (PRRs) bacterium PRR- triggered immunity haustorium fungus oomycete plant cell

  3. Integrated model of plant-microbe interactions apoplastic effectors PAMPs Pattern recognition receptors (PRRs) bacterium PRR- triggered immunity cytoplasmic effectors haustorium fungus oomycete plant cell

  4. Integrated model of plant-microbe interactions apoplastic effectors PAMPs Pattern recognition receptors (PRRs) bacterium PRR- triggered immunity cytoplasmic effectors NLR- triggered immunity haustorium fungus oomycete NB-LRR immune receptors plant cell

  5. Integrated model of plant-microbe interactions apoplastic effectors PAMPs Pattern recognition receptors (PRRs) bacterium PRR- triggered immunity cytoplasmic effectors NLR- triggered immunity haustorium fungus oomycete NB-LRR immune receptors plant cell
