  1. ONZ New generation 2007

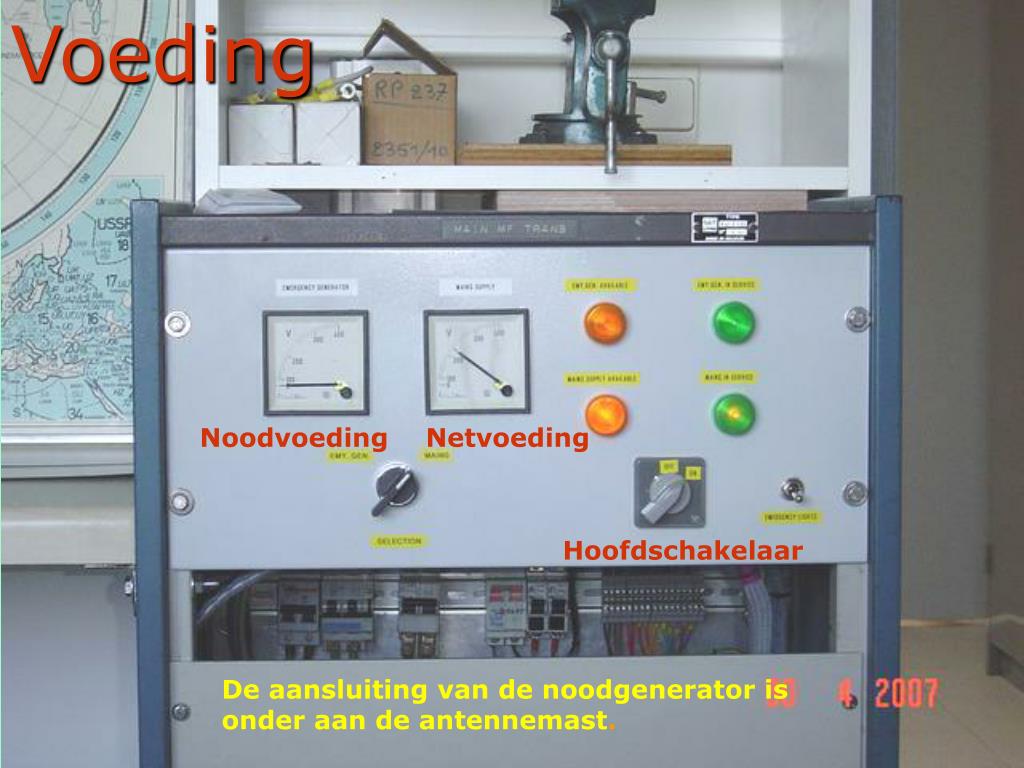

  2. Voeding Noodvoeding Netvoeding Hoofdschakelaar De aansluiting van de noodgenerator is onder aan de antennemast.

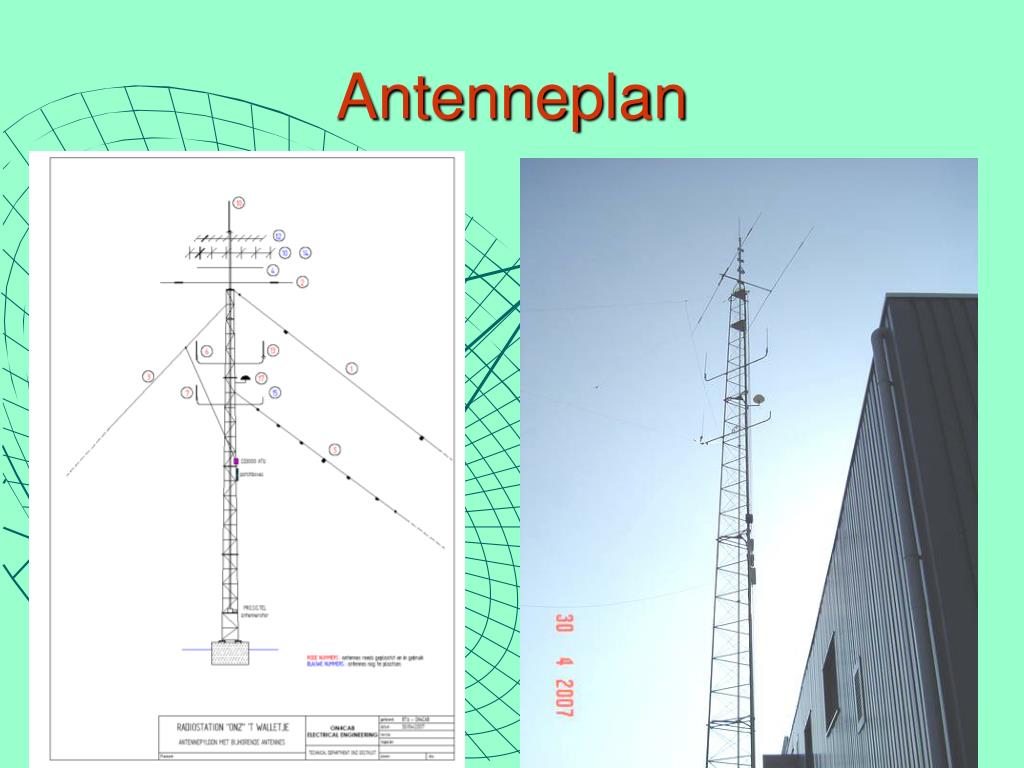

  3. Antenneplan

  4. Detail Top

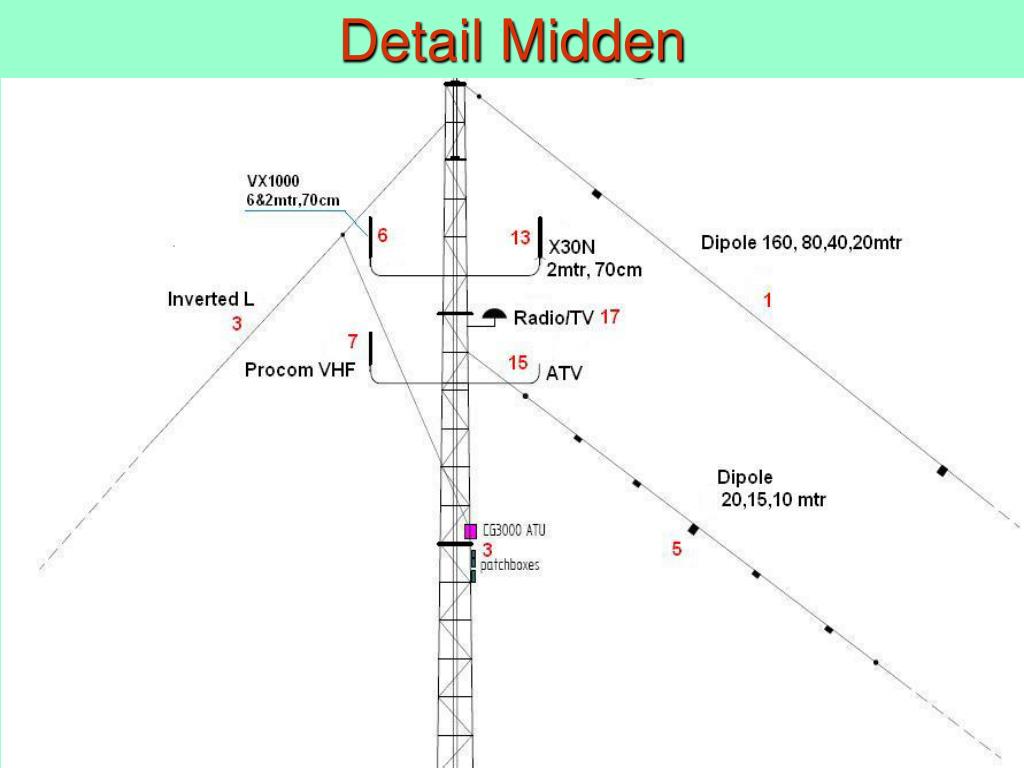

  5. Detail Midden

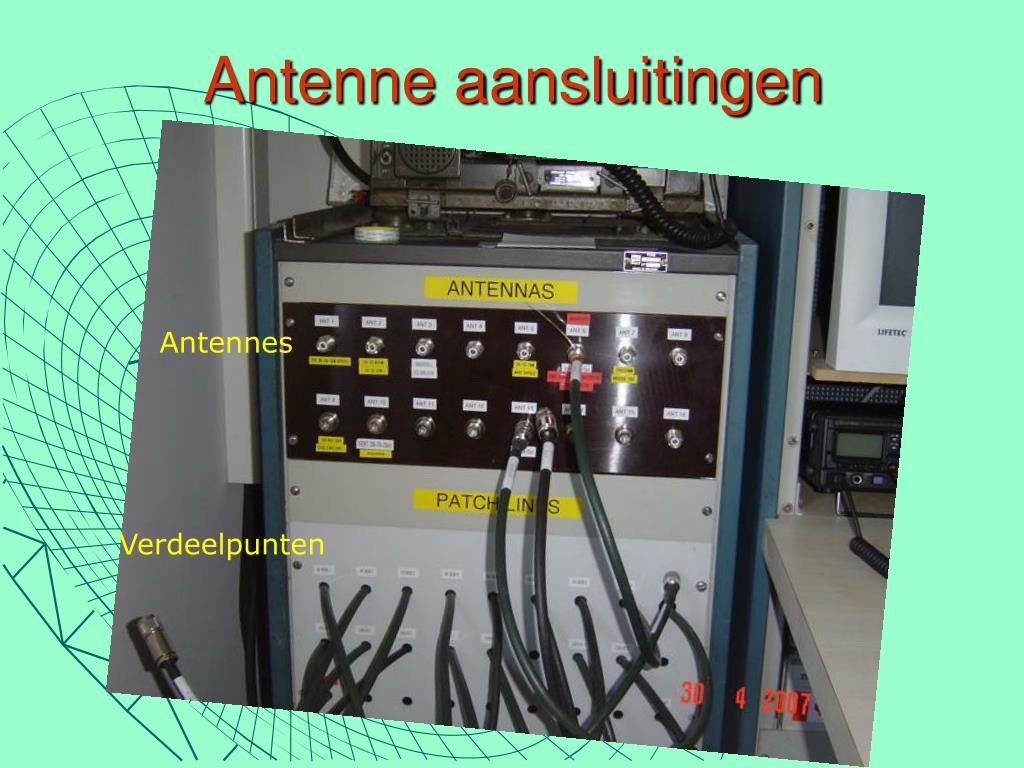

  6. Antenne aansluitingen Antennes Verdeelpunten

  7. Aansluitpunten antennes

  8. HF desk HF DESK 1= HF1 op patch pannel HF DESK 2= HF2 op patch pannel DUM= HF3 op patch pannel

  9. HF-Datacommunicatie Dataswitch = computer of microfoon. ATU = antennetuner CG3000 aan of uit. ATU Dataswitch

  10. V / UHF en APRS

  11. APRS module

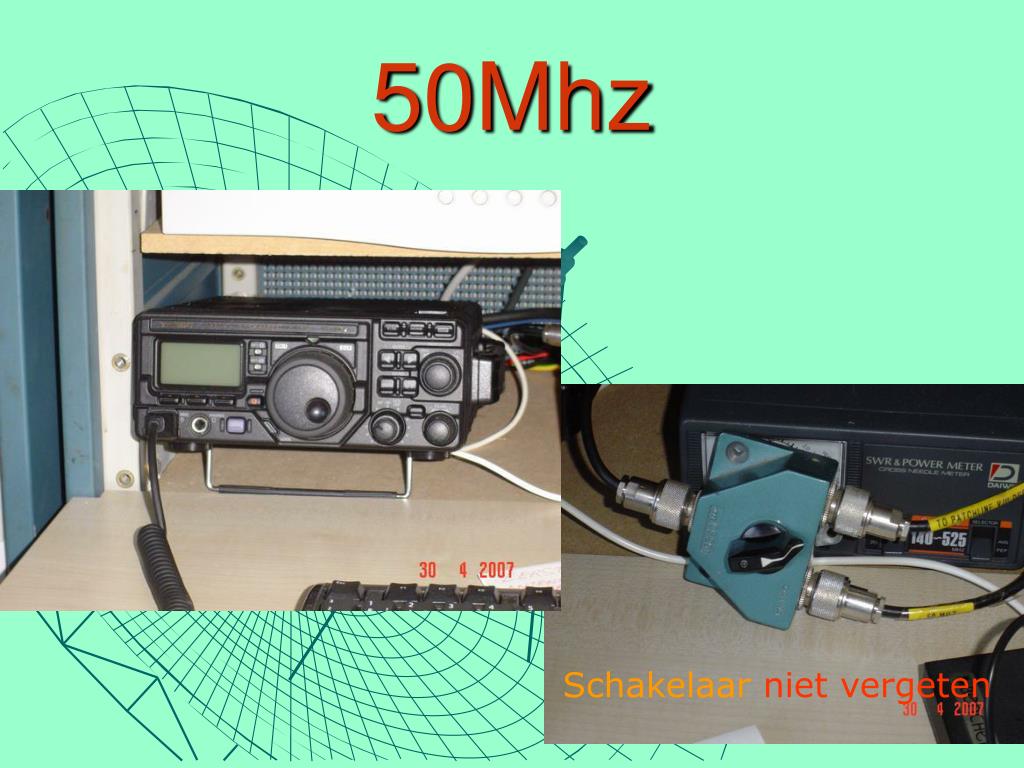

  12. 50Mhz Schakelaarniet vergeten

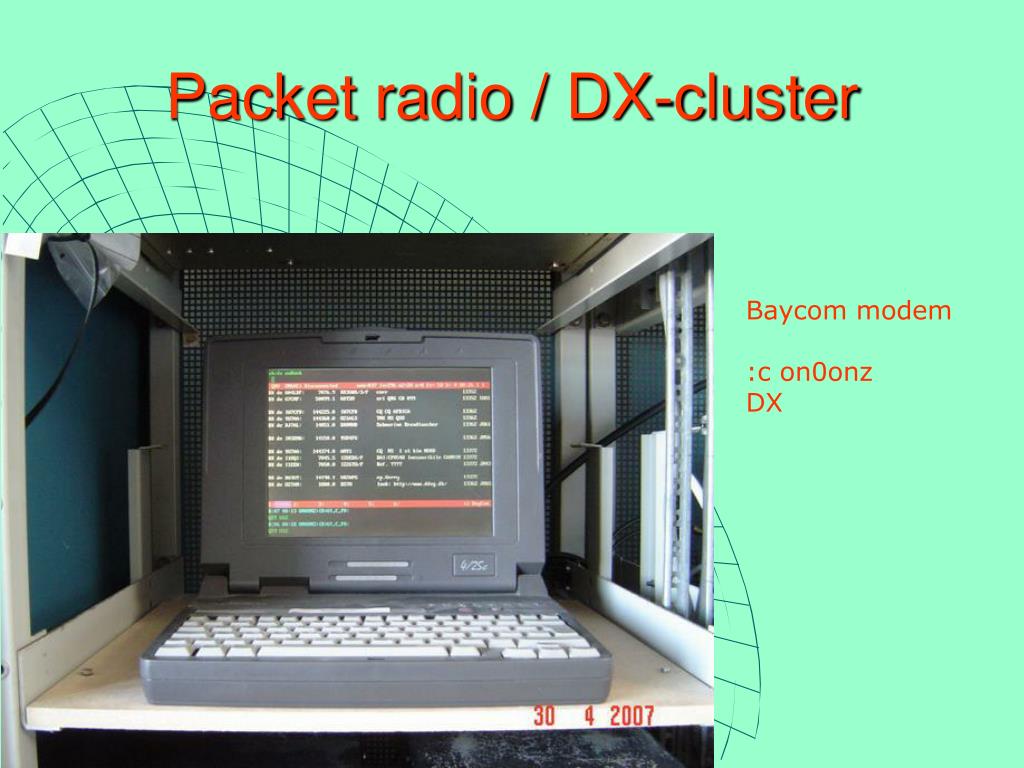

  13. Packet radio / DX-cluster Baycom modem :c on0onz DX

  14. Informatie netwerk

  15. Logboeken • Via WIN EQF

  16. TV - radio / telefoon • aansluiting Rode Kruis lokaal
