5.4 Four-Sided Polygons

I can recognize polygons and name them I can recognize convex polygons I can recognize diagonals of polygons I can identify special types of quadrilaterals. Day 4. 5.4 Four-Sided Polygons. Polygons:. * are PLANE figures. * consist entirely of segments (no curves!).

hogan
Télécharger la présentation

5.4 Four-Sided Polygons

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. I can recognize polygons and name them I can recognize convex polygons I can recognize diagonals of polygons I can identify special types of quadrilaterals Day 4 5.4 Four-Sided Polygons

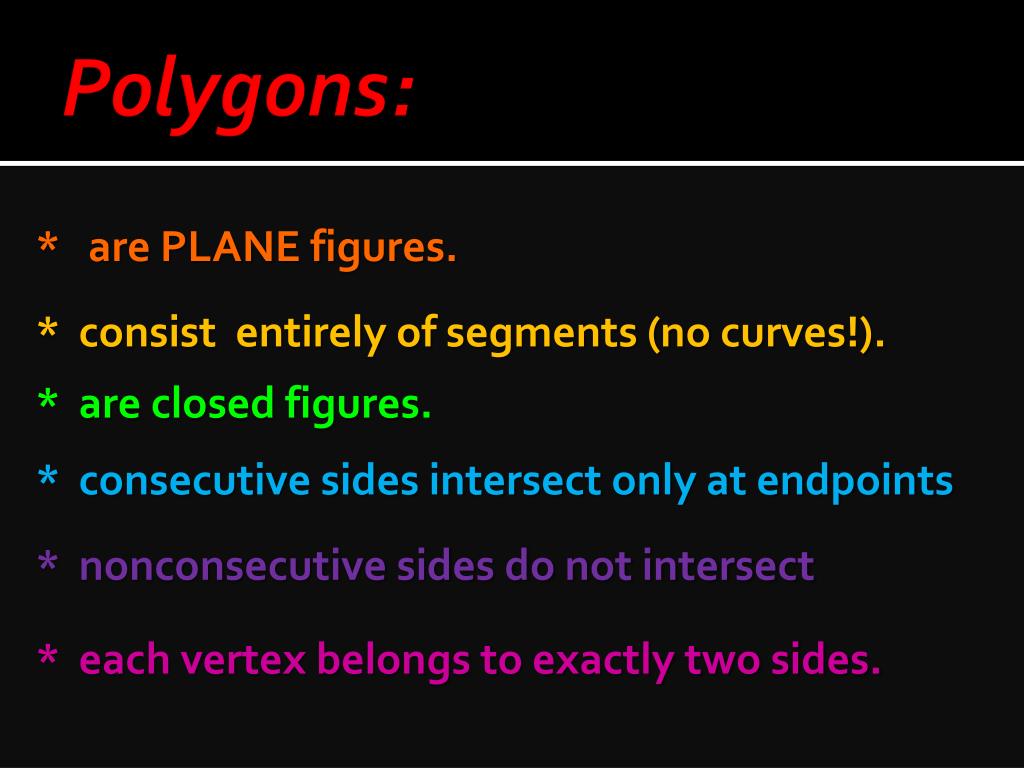

  2. Polygons: * are PLANE figures. * consist entirely of segments (no curves!). * are closed figures. * consecutive sides intersect only at endpoints * nonconsecutive sides do not intersect * each vertex belongs to exactly two sides.

  3. Polygons: * are PLANE figures. 3 – D! NOT a polygon!

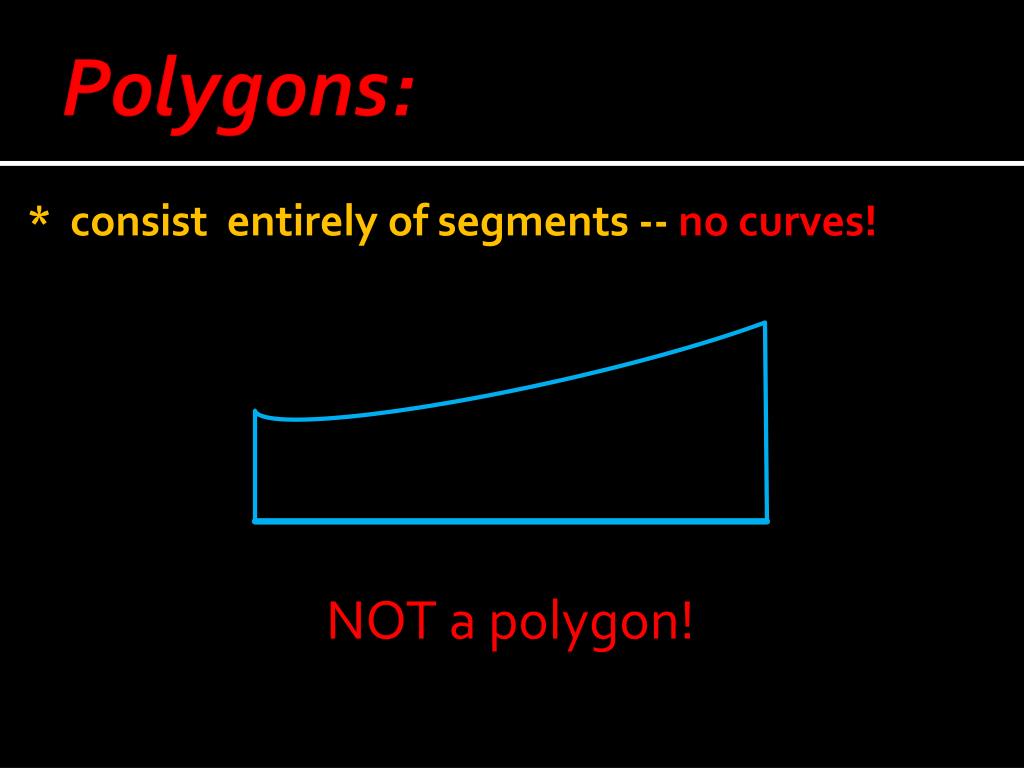

  4. Polygons: * consist entirely of segments -- no curves! NOT a polygon!

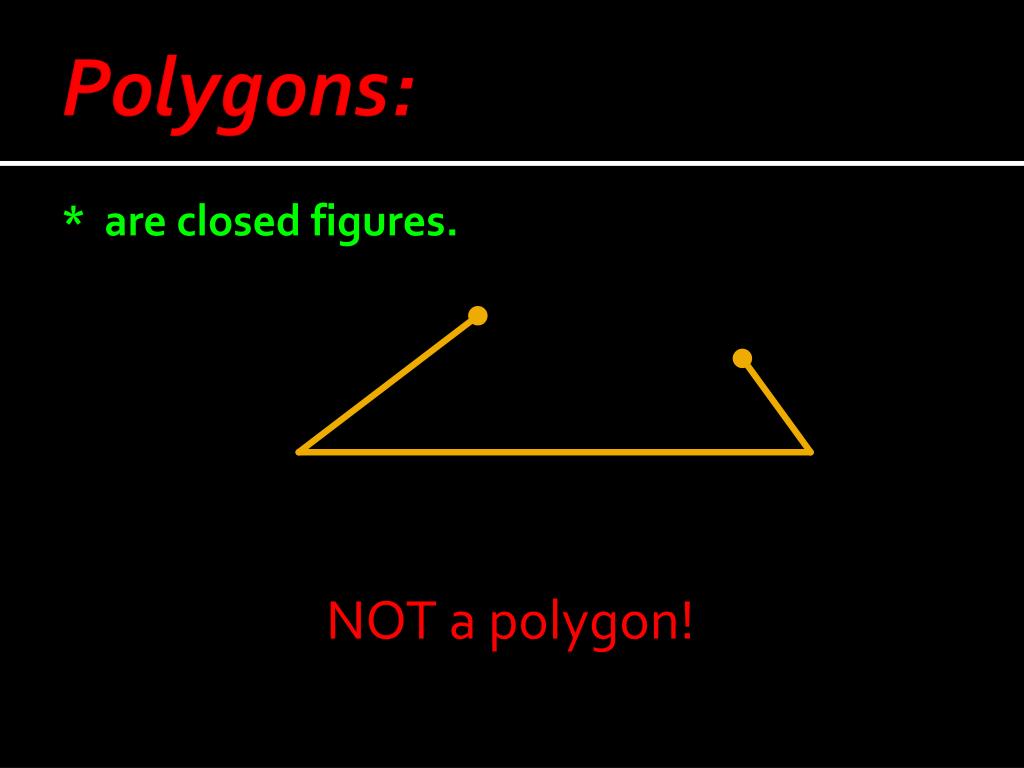

  5. Polygons: * are closed figures. NOT a polygon!

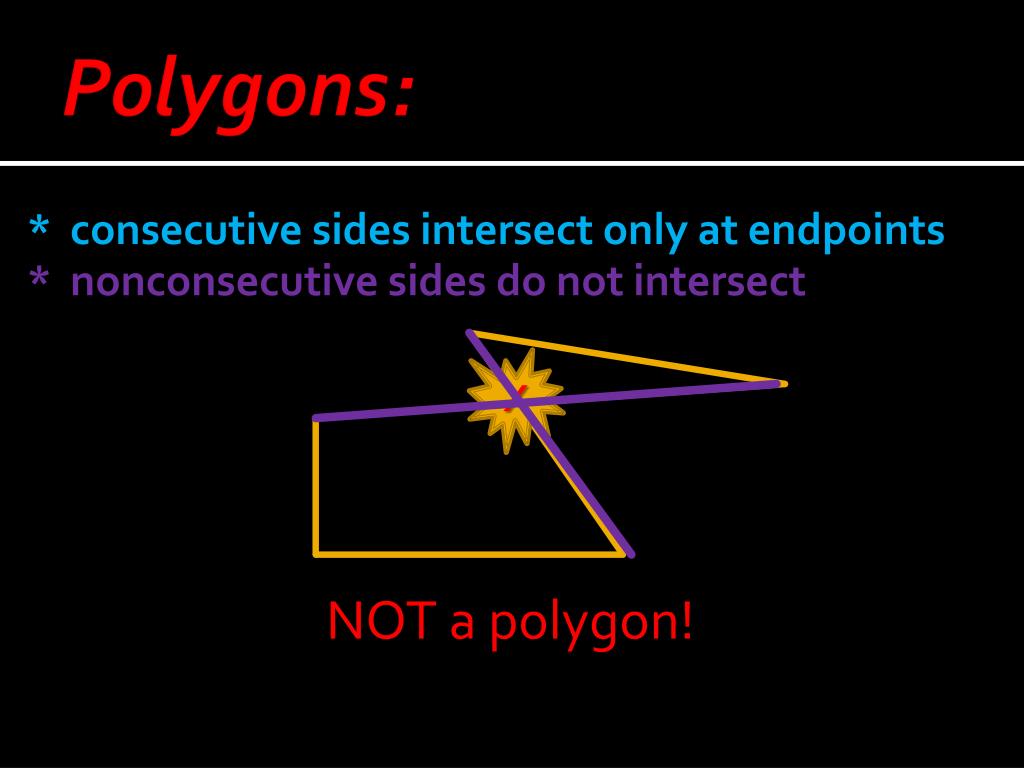

  6. Polygons: * consecutive sides intersect only at endpoints * nonconsecutive sides do not intersect X NOT a polygon!

  7. Polygons: * each vertex belongs to exactly two sides. 3 P 2 1 NOT a polygon!

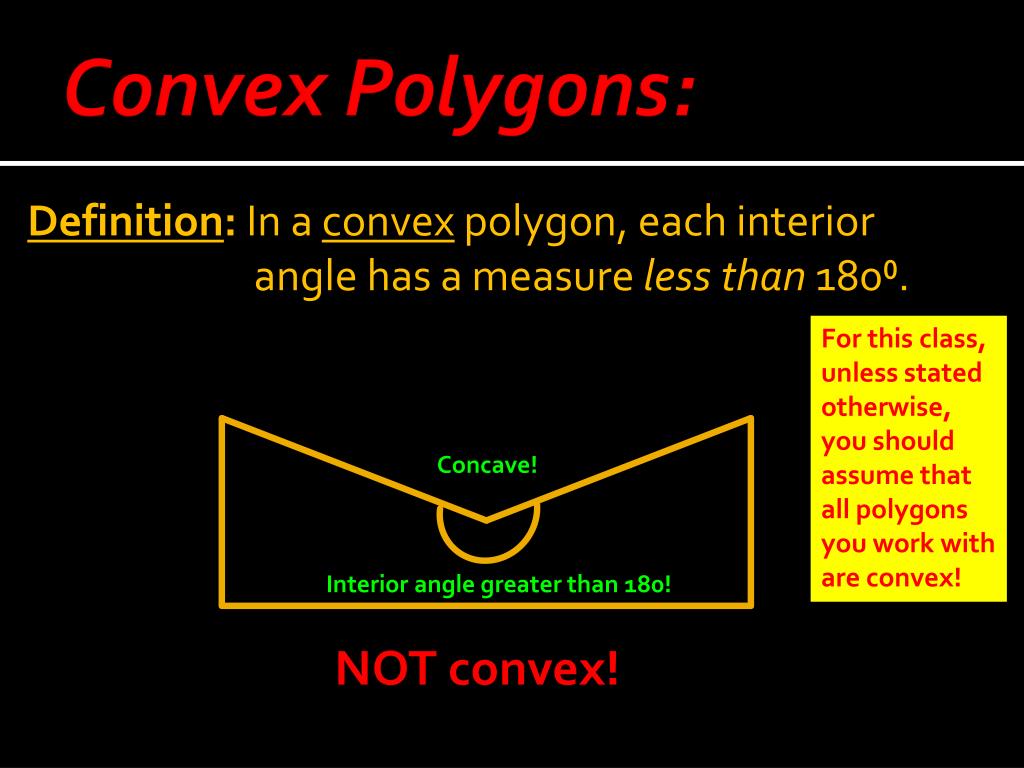

  8. Convex Polygons: Definition: In a convex polygon, each interior angle has a measure less than 180⁰. For this class, unless stated otherwise, you should assume that all polygons you work with are convex! Concave! Interior angle greater than 180! NOT convex!

  9. Diagonals of Polygons: Definition: A diagonal of a polygon is any segment that connects two nonconsecutive (nonadjacent) vertices of the polygon.

  10. Polygon Definitions: Quadrilateral: A four-sided POLYGON QUADRILATERAL

  11. Special Quadrilaterals: Parallelogram: A QUADRILATERAL with both pairs of opposite sides parallel. PARALLELOGRAM

  12. Special Quadrilaterals: Rectangle: A PARALLELOGRAM in which all angles are right angle RECTANGLE

  13. Special Quadrilaterals: Rhombus: A PARALLELOGRAM in which at all sides are congruent. RHOMBUS

  14. Special Quadrilaterals: Kite: A QUADRILATERAL in which two disjoint pairs of consecutive sides are congruent. KITE

  15. Special Quadrilaterals: Square: A PARALLELOGRAM that is both a rectangle and a rhombus. rectangle rhombus SQUARE

  16. Special Quadrilaterals: Trapezoid: A QUADRILATERAL with exactly one pair of parallel sides. one pair of parallel sides. TRAPEZOID

  17. Special Quadrilaterals: ISOSCELES Trapezoid: A TRAPEZOID in which the nonparallel sides (called legs) are congruent. are congruent nonparallel sides A B  Leg Leg  ISOSCELES TRAPEZOID C D The parallel sides are the BASES: AB and CD Upper Base Angles: ∡A and ∡B Lower Base Angles: ∡C and ∡D
