  1. OTRUM Start – Solution Overview

  2. OTRUM Start – Solution Overview Otrum Start in General +Brand +Internet +Housekeeping (Technical Maintenance / Minibar) +Antenna Headend (Triax)

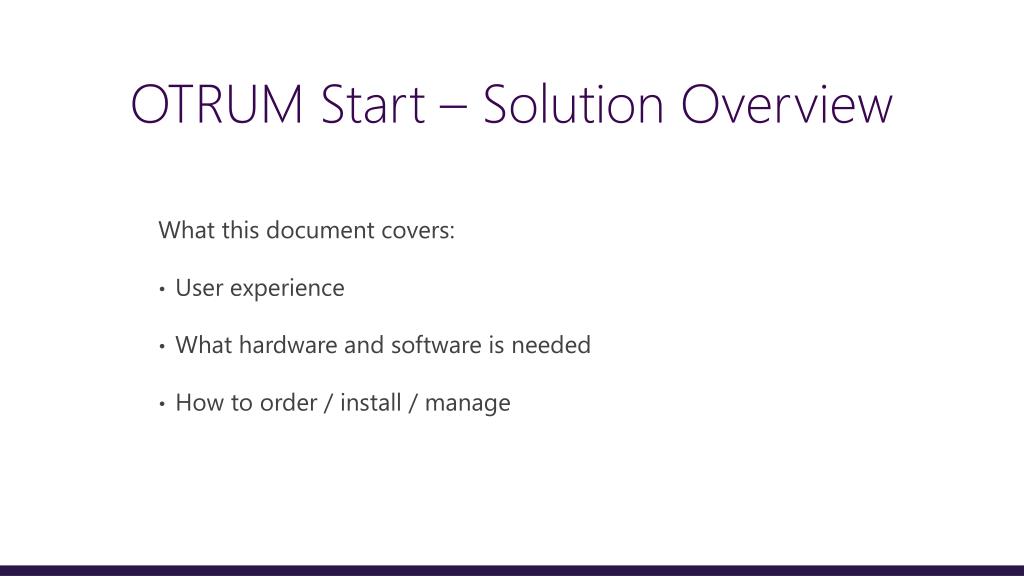

  3. OTRUM Start – Solution Overview What this document covers: • User experience • What hardware and software is needed • How to order / install / manage

  4. OTRUM Start – Guest Experience Welcome Message: As the TV is powered up, the guest will see a full screen Welcome Message. This can easily be changed centrally and uploaded to all rooms Welcome to Atrak

  5. OTRUM Start – Guest Experience Otrum Branded Interactive Menu: From here, the guest can select to: • View TV Channels • See the Help Page • Set a Wake-up • View Hotel Information • Change language (NB: Hotel logo in top left)

  6. OTRUM Start – Guest Experience TV Channel Selection Offer the guest an Interactive channel listing with colorful icons. Guests can change channel by selecting the number or icon using the remote Logo licenses included at no extra cost

  7. OTRUM Start – Guest Experience Language Selection: Up to 4 languages supported to enable guests to select their home language via the welcome portal. Default and selectable languages set per hotel. (Extra languages with +Brand)

  8. OTRUM Start – Guest Experience Hotel Information 4 pages of customizable information regarding the hotel and city. Easy to update using web-based tools Content includes, Images, Text, and maps. (Extra pages with +Brand)

  9. OTRUM Start – Guest Experience Interactive Maps

  10. OTRUM Start – Guest Experience Wake Up

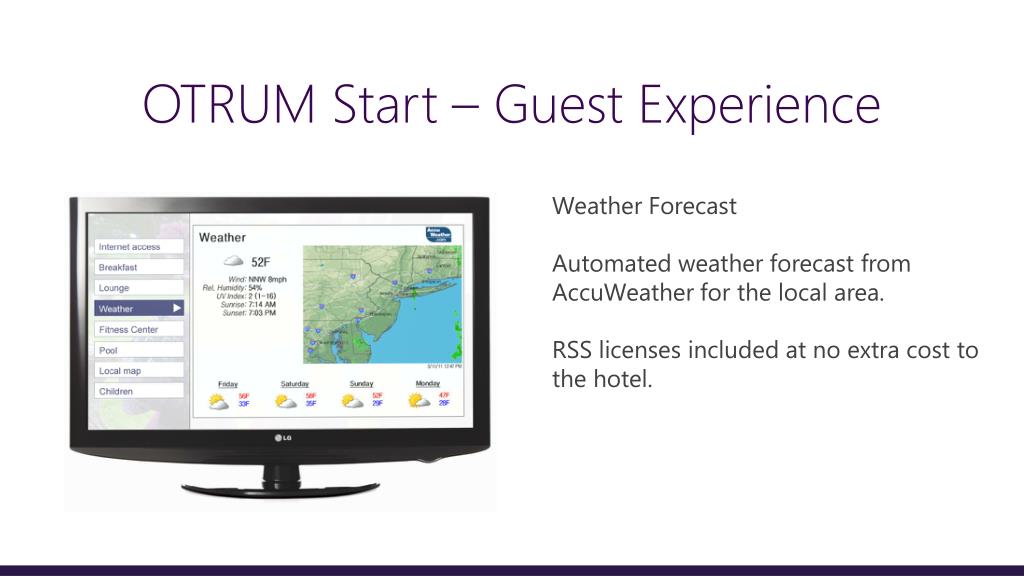

  11. OTRUM Start – Guest Experience Weather Forecast Automated weather forecast from AccuWeather for the local area. RSS licenses included at no extra cost to the hotel.

  12. OTRUM Start – Guest Experience Integrated media player for the guest’s own content:

  13. OTRUM Start – Hardware Central Hardware: LG PCS 150R Requires: • Power • Connection to IP / Coax network • Open internet connection LG PCS 150R

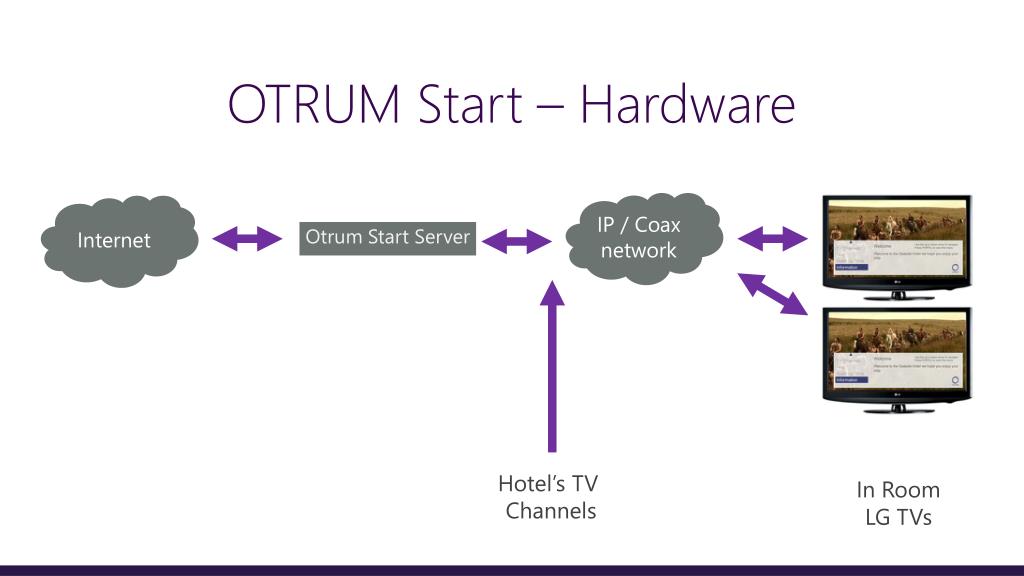

  14. OTRUM Start – Hardware IP / Coax network Internet Otrum Start Server Hotel’s TV Channels In Room LG TVs

  15. OTRUM Start – Hardware Compatible TVs: All screens are both Coax or Ethernet compatible Remote comes in the box

  16. +Brand

  17. +Brand – Guest Experience Included: - 12 tailored hotel pages (in addition to the 4 standard) - HD Hotel promotion video (Not available with Ethernet networks) - Branded menu interface with custom buttons and graphics - Hotel Brand channel, editable via a web based CMS - 1 x On-line training for the CMS super user

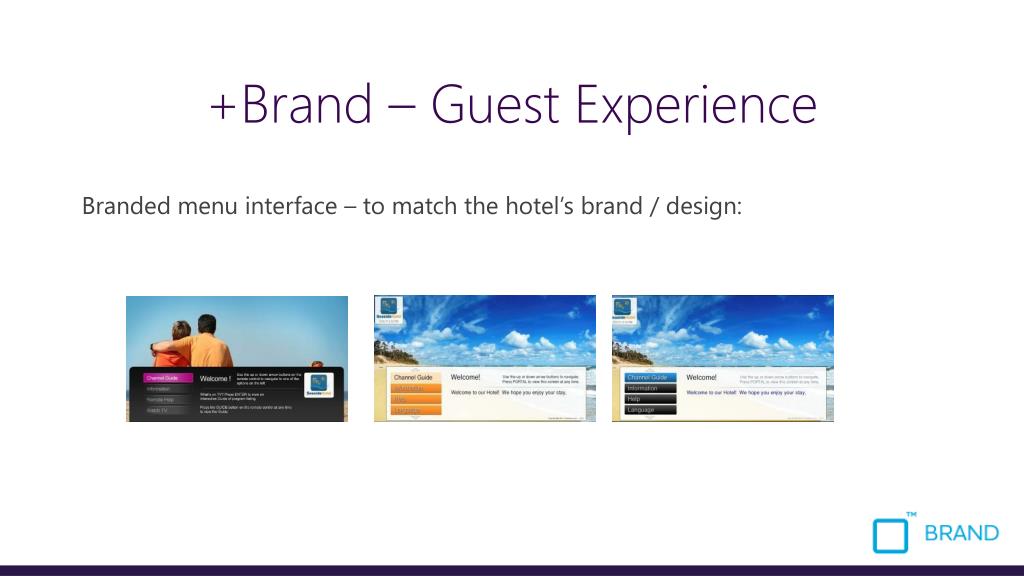

  18. +Brand – Guest Experience Branded menu interface – to match the hotel’s brand / design:

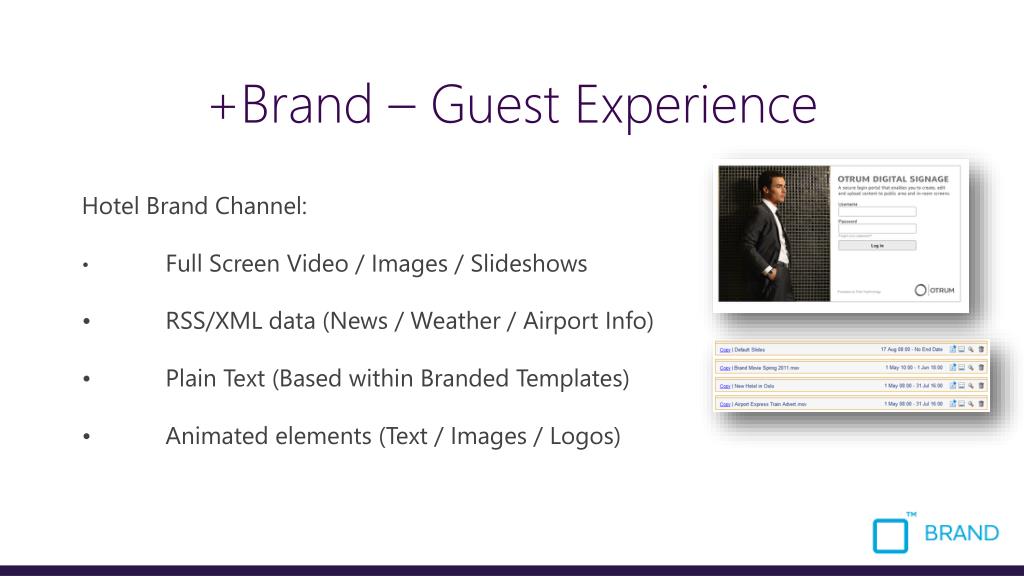

  19. +Brand – Guest Experience Hotel Brand Channel: • Full Screen Video / Images / Slideshows • RSS/XML data (News / Weather / Airport Info) • Plain Text (Based within Branded Templates) • Animated elements (Text / Images / Logos)

  20. +Internet

  21. +Internet– Guest Experience Powerful WLAN solution for hotels of all sizes: Billing via PMS, Voucher, or even credit card. Stepped bandwidth and quality of service management. Full support for conferences and meeting room needs.

  22. +Internet– Guest Experience Logging in is simple: Just use your name and room number, and select the tariff which fits your needs. Otherwise pick-up a voucher from reception, these can be pre-printed sheets, or on demand vouchers using a voucher printer. Finally, if supported by the hotel you can even pay via your credit card.

  23. +Internet– Hardware MSM410 PoE HP 2610 FIBRE HP 2810-24G or HP 4204vl HP E-MSM760 AP Controller CAT6 CAT6 Voucher Printer CAT6 Internet CAT6 OTRUM Gateway

  24. +Internet– Hardware Hardware Options: • OTRUM Gateway For 100 concurrent users (up to 500) • User upgrade (50x users) for 100 user gateway • OTRUM Gateway for 500 concurrent users (up to 5000) • User upgrade (500x users) for 500 user gateway • PMS interface • Credit Card interface • 3 button Voucher Printer OTRUM Gateway

  25. +Housekeeping

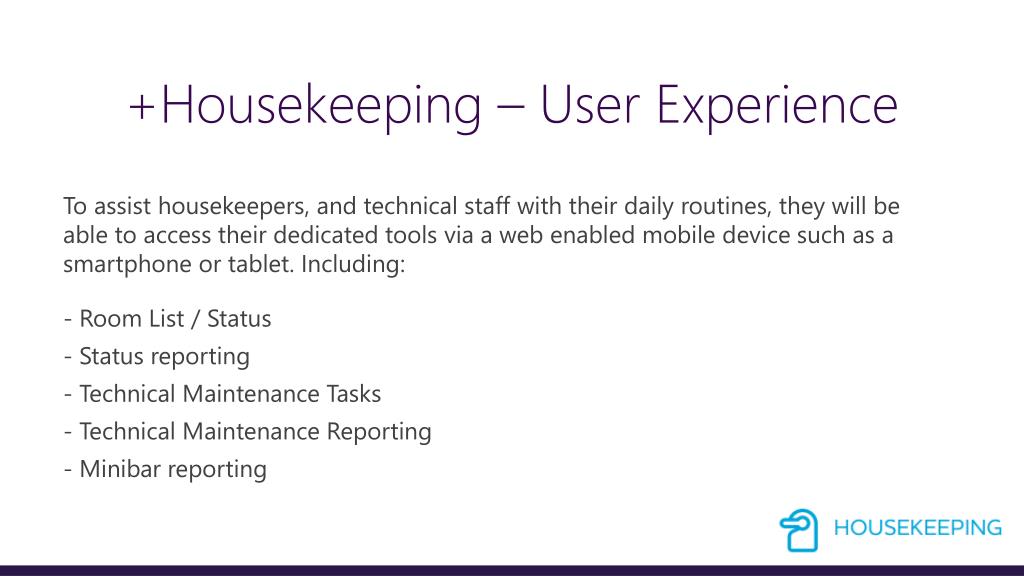

  26. +Housekeeping – User Experience To assist housekeepers, and technical staff with their daily routines, they will be able to access their dedicated tools via a web enabled mobile device such as a smartphone or tablet. Including: - Room List / Status - Status reporting - Technical Maintenance Tasks - Technical Maintenance Reporting - Minibar reporting

  27. +Housekeeping – User Experience

  28. +Housekeeping – Hardware Service Connection Internet Otrum Housekeeping Server Wifi Network Hotel PMS RS232 PMS Link Mobile Staff Devices

  29. Antenna Headend – TRIAX

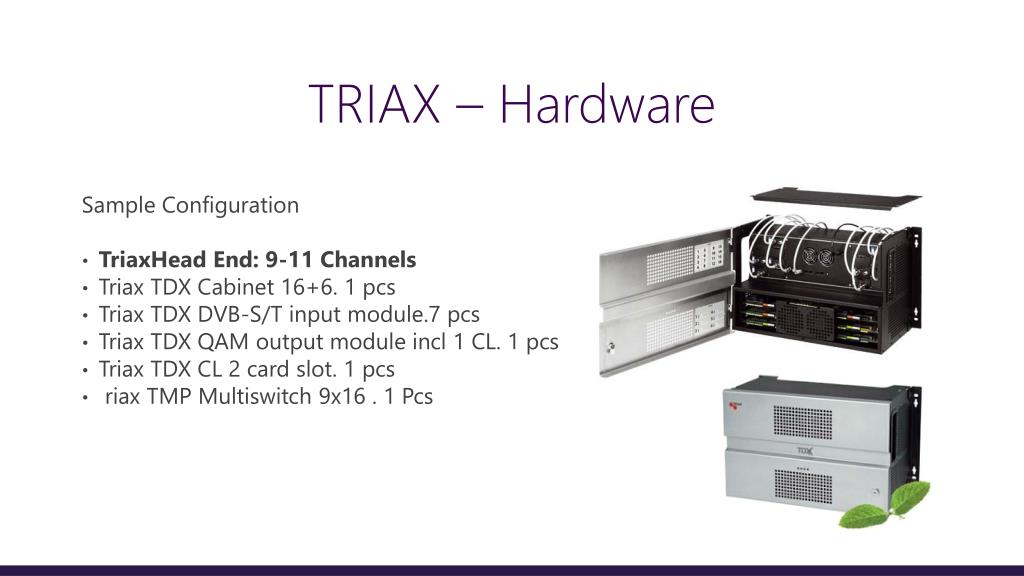

  30. TRIAX – Hardware

  31. TRIAX – Hardware Sample Configuration • TriaxHeadEnd: 9-11 Channels • Triax TDX Cabinet 16+6. 1 pcs • Triax TDX DVB-S/T input module.7 pcs • Triax TDX QAM output module incl 1 CL. 1 pcs • Triax TDX CL 2 card slot. 1 pcs • riaxTMP Multiswitch 9x16 . 1 Pcs
