Online Learning for Collaborative Filtering

1. Online Learning for Collaborative Filtering Guang Ling, Haiqin Yang, Irwin King, Michael Lyu Presented by Guang LING

2. Outline • Introduction • PMF and RMF • Online PMF and Online RMF • Experiments and Results • Conclusion and Future Work

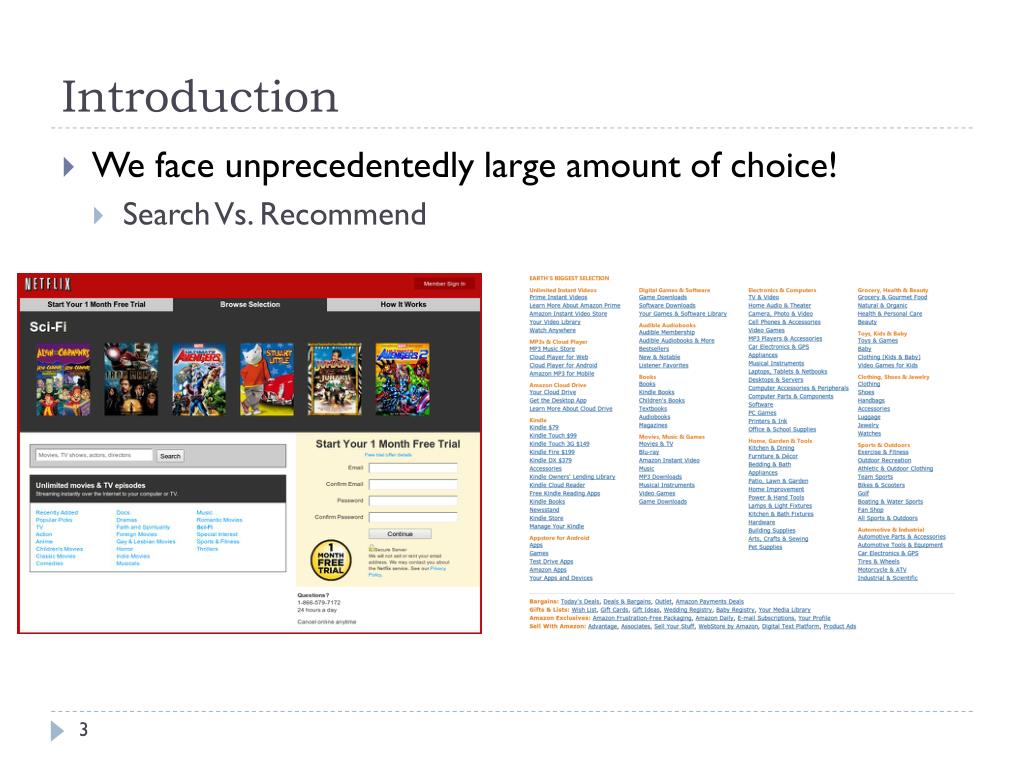

3. Introduction • We face unprecedentedly large amount of choice! • Search Vs. Recommend

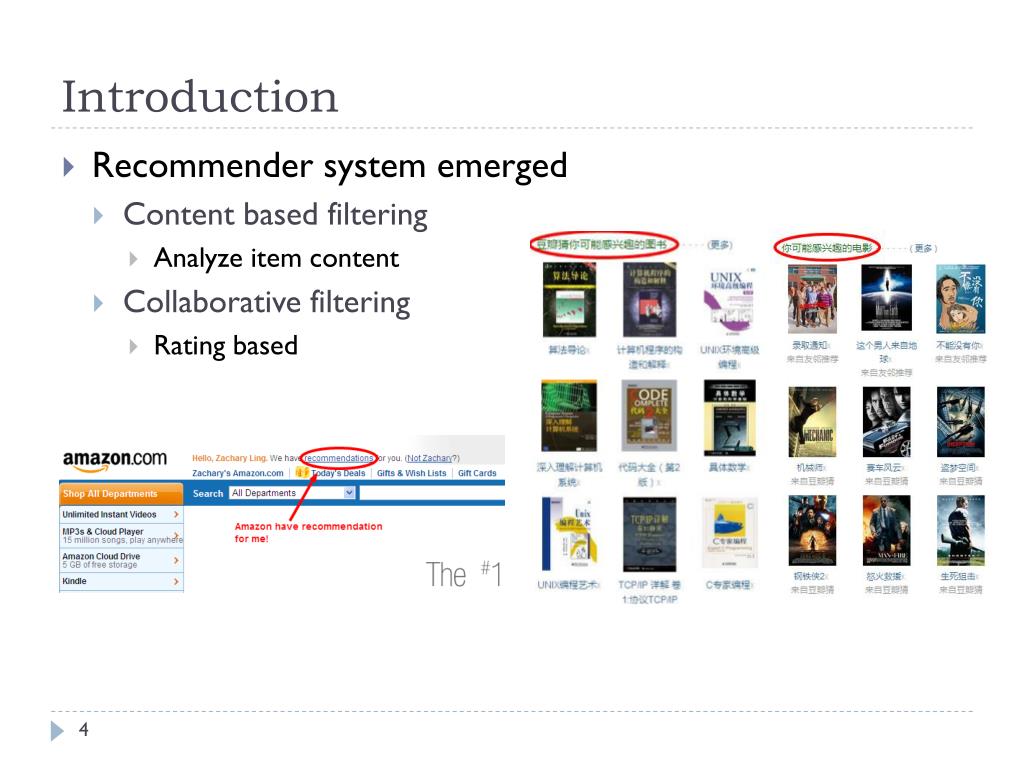

4. Introduction • Recommender system emerged • Content based filtering • Analyze item content • Collaborative filtering • Rating based

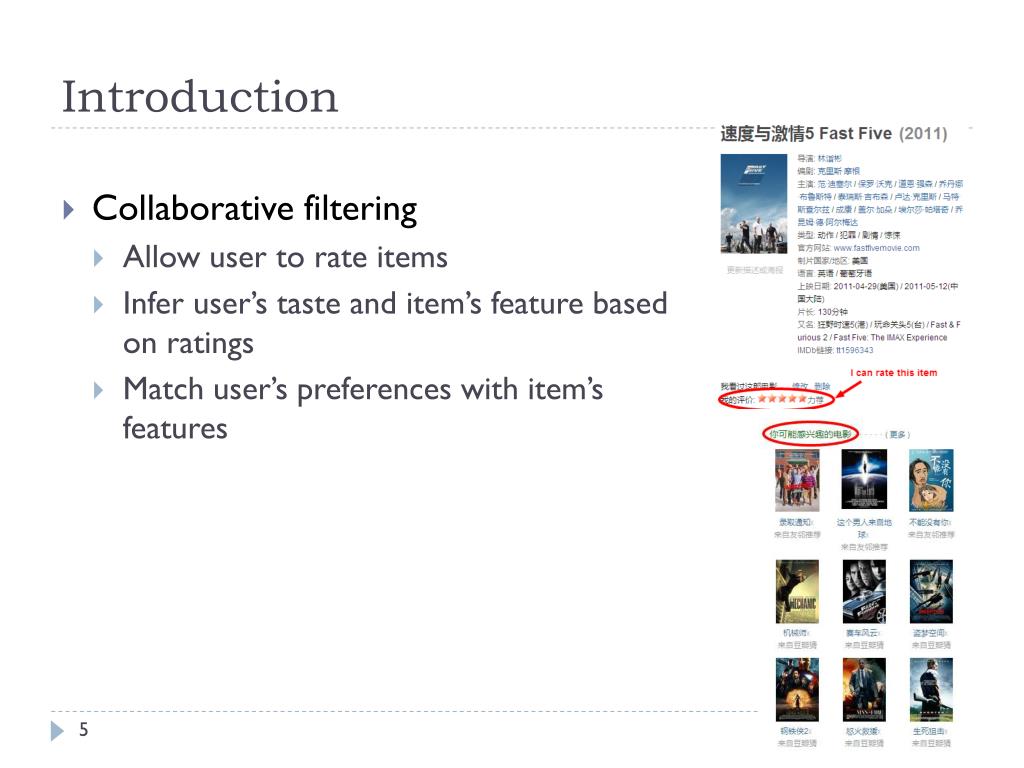

5. Introduction • Collaborative filtering • Allow user to rate items • Infer user’s taste and item’s feature based on ratings • Match user’s preferences with item’s features

6. Introduction • Various methods have been developed • Memory based • User based • Item based • Model based • PMF, RMF • PLSA, PLPA • So, what is the problem?

7. Introduction • Unrealistic assumptions • All ratings are available • There will be no new rating • Data set are small enough to be handled in main memory • Reality • Ratings are collected over time • New ratings are received constantly • Huge data set cannot be easily handled

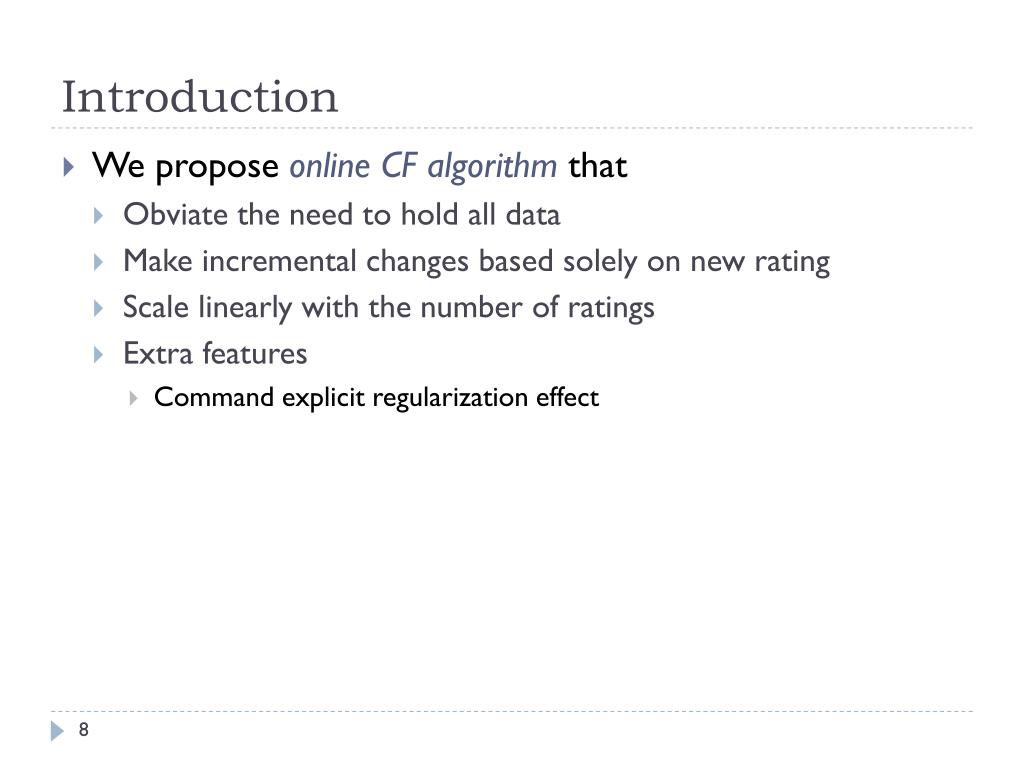

8. Introduction • We propose online CF algorithm that • Obviate the need to hold all data • Make incremental changes based solely on new rating • Scale linearly with the number of ratings • Extra features • Command explicit regularization effect

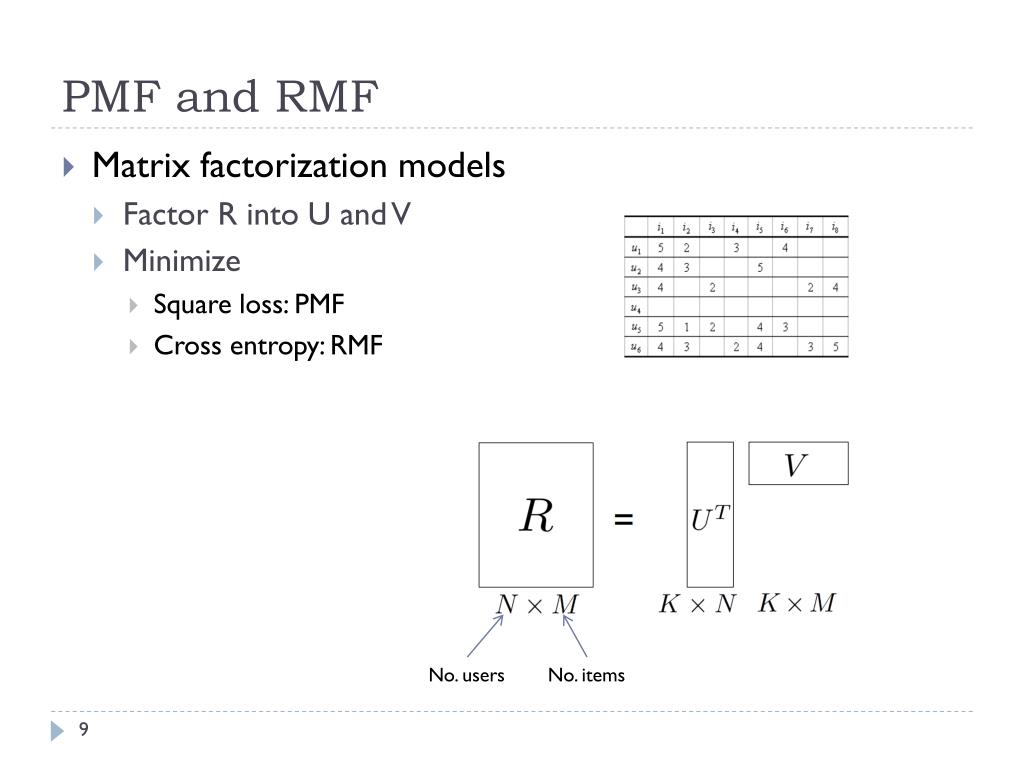

9. PMF and RMF • Matrix factorization models • Factor R into U and V • Minimize • Square loss: PMF • Cross entropy: RMF No. users No. items

10. PMF • Conditional distribution over observed ratings: • Spherical Gaussian priors on user and movie feature vectors: • Maximize posterior:

11. PMF • Maximize • Equivalent to minimize the following loss: • Using gradient descent to minimize loss: Squared loss Regularization

12. RMF • Top one probability • The probability that an item i being ranked on top • Minimize cross entropy • Cross entropy measures the divergence between two distributions • Un-normalized KL-divergence

13. RMF • Model loss is defined as: • Using gradient descent to minimize: Cross entropy Regularization

14. Online PMF • We propose two online algorithms for PMF • Stochastic gradient descent • Adjust model stochastically for each observation • Regularized dual averaging • Maintain an approximated average gradient • Solve an easy optimization problem at each iteration

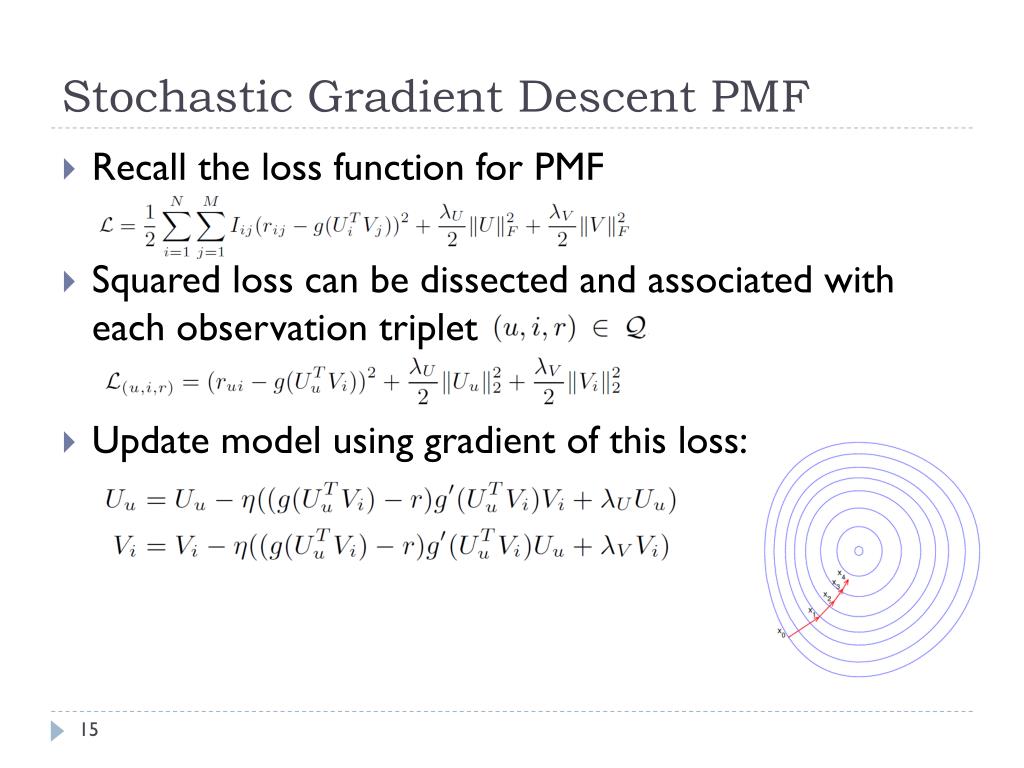

15. Stochastic Gradient Descent PMF • Recall the loss function for PMF • Squared loss can be dissected and associated with each observation triplet • Update model using gradient of this loss:

16. Regularized Dual Averaging PMF • Maintain the approximated average gradient Number of items rated by u Previous gradient Gradient due to new observation

17. Regularized Dual Averaging PMF • Solve the following optimization problem to obtain • New user feature vector • New item feature vector

18. Online RMF • Similar to online PMF, we propose two online algorithms for RMF • Stochastic Gradient Descent • Regularized Dual Averaging • However, the challenge is • Loss function cannot be easily dissected

19. Online RMF • Recall the loss function for RMF • When a new observation is revealed • Loss due to new item • Decay of previous items

20. Online RMF • We approximate the gradient by Decay previous gradient Gradient with respect to new item Decay previous gradient Gradient with respect to new item

21. Online RMF • Stochastic Gradient Descent RMF • Dual Averaging RMF

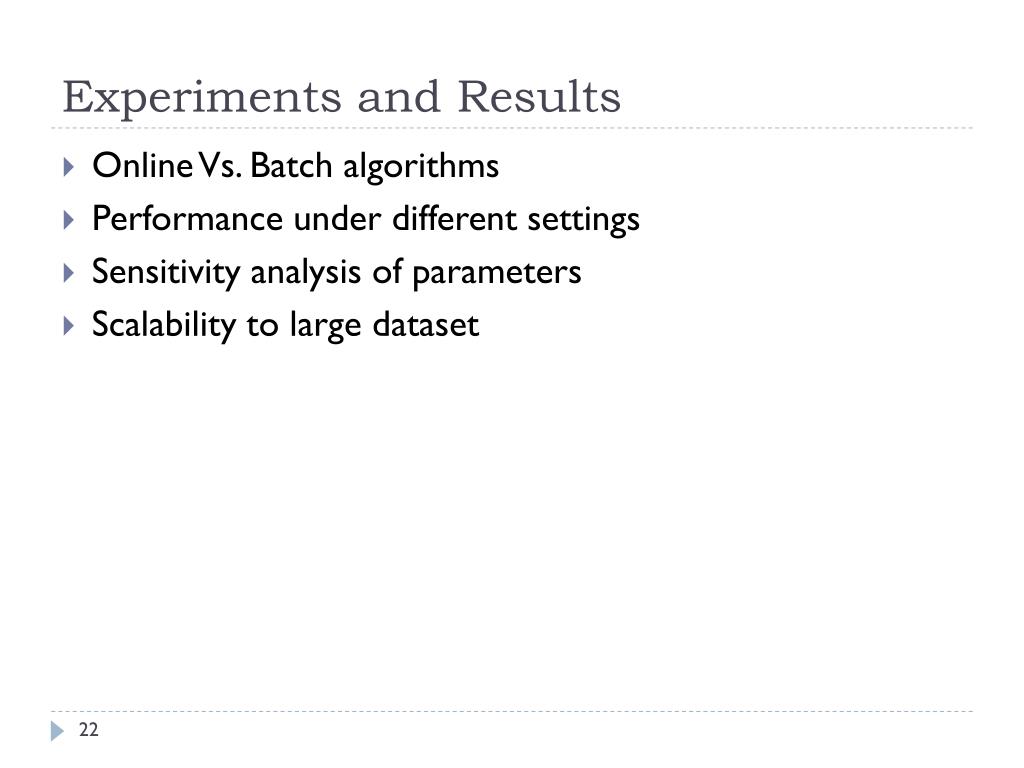

22. Experiments and Results • Online Vs. Batch algorithms • Performance under different settings • Sensitivity analysis of parameters • Scalability to large dataset

23. Evaluation Metric • Root Mean Square Error(RMSE) • The lower the better • Normalized Discounted Cumulative Gain(NDCG) • The higher the better

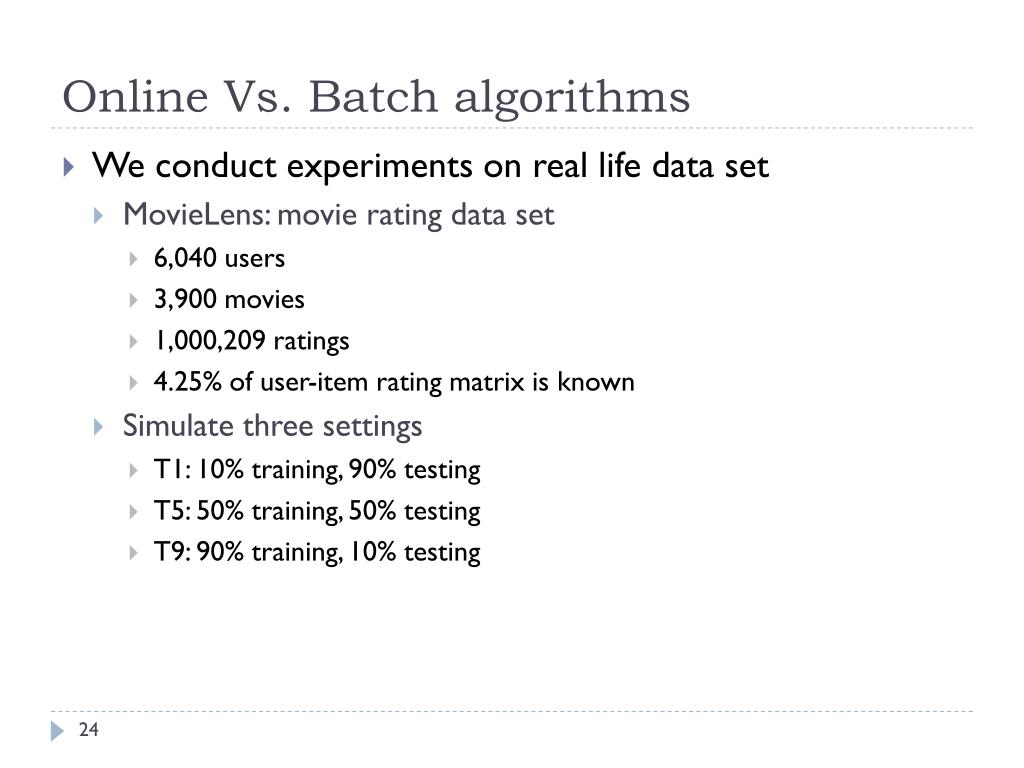

24. Online Vs. Batch algorithms • We conduct experiments on real life data set • MovieLens: movie rating data set • 6,040 users • 3,900 movies • 1,000,209 ratings • 4.25% of user-item rating matrix is known • Simulate three settings • T1: 10% training, 90% testing • T5: 50% training, 50% testing • T9: 90% training, 10% testing

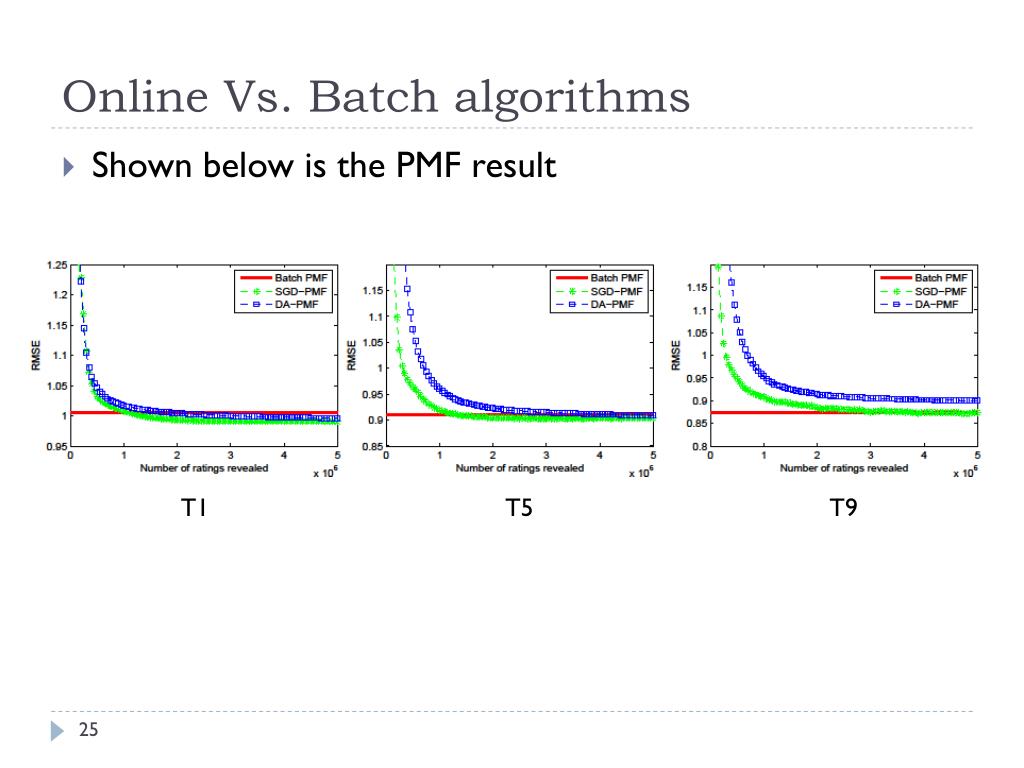

25. Online Vs. Batch algorithms • Shown below is the PMF result T1 T5 T9

26. Online Vs. Batch algorithms • Shown below is the RMF result T1 T5 T9

27. Impact of in PMF • denote the regularization parameter • Observation • Fewer training data needs more regularization • Results are quite sensitive to regularization SGD-PMF DA-PMF

28. Impact of in RMF • denote the regularization parameter • Observation • Fewer training data needs more regularization SGD-RMF RDA-RMF

29. Impact of learning rate • We use to denote the learning rate • It is used in stochastic gradient descent algorithms only SGD-RMF SGD-PMF

30. Scalability to large dataset • Yahoo! Music dataset • Largest CF dataset publicly available • 252,800,275 ratings • 1,000,990 users • 624,961 items • Rating value range [0, 100]

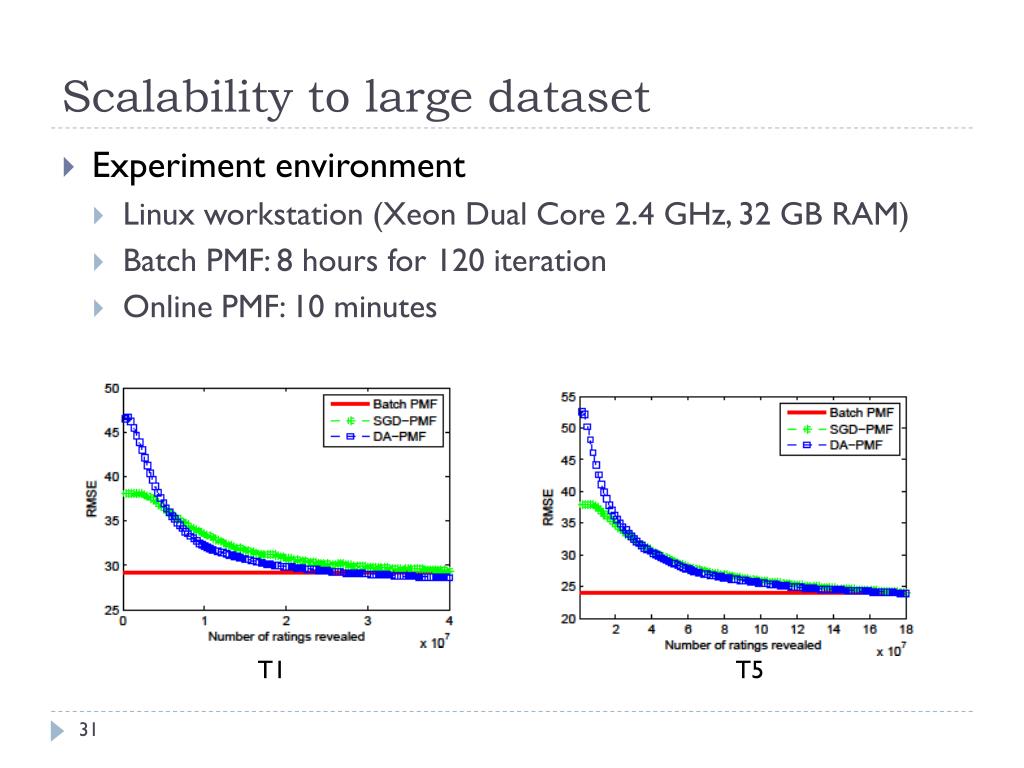

31. Scalability to large dataset • Experiment environment • Linux workstation (Xeon Dual Core 2.4 GHz, 32 GB RAM) • Batch PMF: 8 hours for 120 iteration • Online PMF: 10 minutes T1 T5

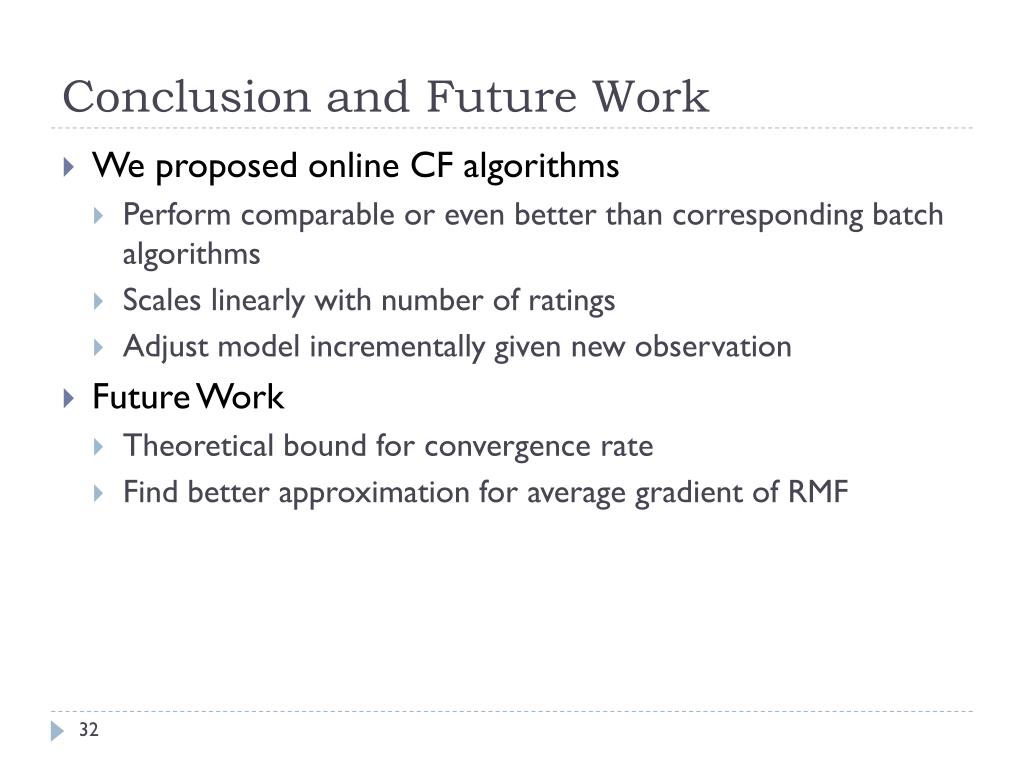

32. Conclusion and Future Work • We proposed online CF algorithms • Perform comparable or even better than corresponding batch algorithms • Scales linearly with number of ratings • Adjust model incrementally given new observation • Future Work • Theoretical bound for convergence rate • Find better approximation for average gradient of RMF

33. Thanks! • Questions?
