  1. Distributed Simulation of Modern Communication Systems Using the Global Grid Exchange

  2. Wireless is Big Business… • Over 1 Billion wireless phone subscribers worldwide. • 205,829,280 in the US. • About 200,000 cellular base stations (towers) in US. • US Revenues of over $100 Billion per year. Grid Simulation of Communication Systems

  3. Simulation of Communication Systems • Before any new system is fielded, it must be extensively tested. • Testing of proof-of-concept systems starts with computer simulation. • Example: Bit-level simulation of the 3-G wireless system UMTS/WCDMA. Grid Simulation of Communication Systems

  4. A Simple Simulation • Channel includes random effects of: • Noise (primarily). • Fading. • Interference. • During each trial: • A packet or random data is generated and passed through system. • Random noise is generated, usually according to Gaussian distribution Error Counter Random Data Input Estimated Data Modulator Demodulator Communication Channel Grid Simulation of Communication Systems

  5. Raw Bit Error Rate of Several Modulations

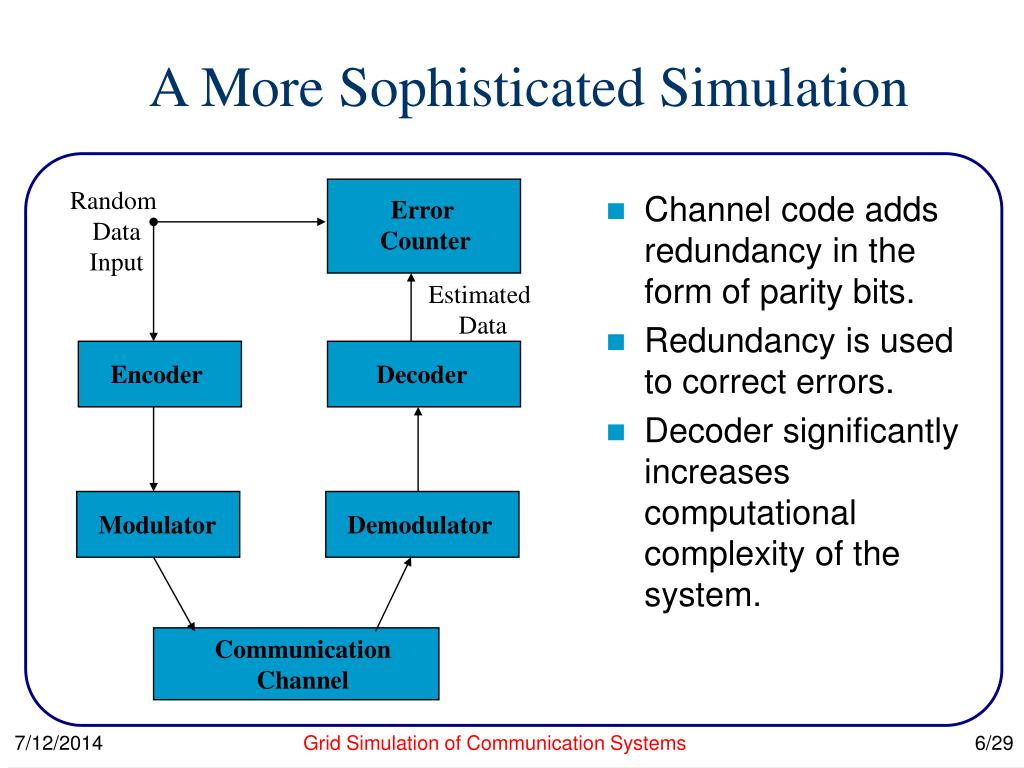

  6. A More Sophisticated Simulation • Channel code adds redundancy in the form of parity bits. • Redundancy is used to correct errors. • Decoder significantly increases computational complexity of the system. Random Data Input Error Counter Estimated Data Encoder Decoder Modulator Demodulator Communication Channel Grid Simulation of Communication Systems

  7. Simulation of IEEE 802.11g

  8. Simulation Run Times

  9. Simulation Run Times

  10. Coded Modulation Library • Coded Modulation Library (CML) • Developed at WVU. • Runs in matlab. • Free software (licensed under lesser GPL). • Features • Modulation: PSK, QAM, APSK, FSK. • Coding: convolutional, turbo, LDPC. • Information theoretic bounds (channel capacity; outage probability) • Standards: • Cellular: WCDMA, HSDPA, cdma2000 • Wireless LAN/MAN: 802.11a/g, 802.16 (Wimax) • Satellite: DVB-RCS, DVB-S2 • Download • Google keyword: “turbo codes”, 2nd hit. • http://www.csee.wvu.edu/~mvalenti/turbo Grid Simulation of Communication Systems

  11. Initiative of WVHTC Foundation • Only statewide public computing grid • Desktop access to 1000s of computers • WVU is one of the largest providers Grid Simulation of Communication Systems

  12. Frontier ServerFrontier Control Ctr Frontier Compute Engine Frontier SDKFrontier API Operation Launch and Listen Local vs. Remote Exception handling Grid Simulation of Communication Systems

  13. Frontier ServerFrontier Control Ctr Frontier Compute Engine Frontier SDKFrontier API Operation Java & native code Checkpoint/restart Prioritization Grid Simulation of Communication Systems

  14. Frontier ServerFrontier Control Ctr Frontier Compute Engine Frontier SDKFrontier API Operation Multi-platform MatLab extensible Highly configurable Grid Simulation of Communication Systems

  15. Frontier Server Firewall Firewall Frontier Compute Engine Enterprise Frontier SDKFrontier API Configurations Grid Simulation of Communication Systems

  16. Frontier Server Frontier Compute Engine Frontier SDKFrontier API Configurations Internet Grid Simulation of Communication Systems

  17. Frontier Server Frontier Compute Engine Frontier SDKFrontier API Configurations Grid Simulation of Communication Systems

  18. Frontier Server Firewall Frontier Compute Engine Outsourced Firewall Frontier SDKFrontier API Configurations Grid Simulation of Communication Systems

  19. MATLAB® Architecture CML Grid Simulation of Communication Systems

  20. Developing Grid Jobs in Matlab • Goals: • Work in matlab environment. • Use same calling syntax as stand-alone CML library. • Develop code in matlab, rather than java. • Don’t want to require a matlab license on each grid node. • Implementation: • Use matlab compiler to create stand-alone executables. • Considered to be “native code”. • Enable cluster to run native code. • One grid node used per simulation scenario. • Send the compiled code plus a data file to the grid node. Grid Simulation of Communication Systems

  21. System Requirements and Setup • End Computer • Java RE 5 and SDK • Matlab 7 • Compiler needed if you want to make changes to the code. • CML 1.5 or above • http://www.iterativesolutions.com • Global Grid Exchange software and account: • http://www.globalgridexchange.com • Grid • Windows or linux. • Nodes must be on the Global Grid. • Must be set to allow native code. • Either matlab 7 or matlab runtime environment Grid Simulation of Communication Systems

  22. Job Controller

  23. 4 7 tasks ran in parallel on the grid 2 were slower than the local machine 5 were faster After 150 minutes, the local computer executed 159,013 trials, while the grid executed 1,408,483, nearly an order of magnitude improvement. 3.5 3 2.5 Computations relative to 1.2 GHz P3 2 1.5 1 Dotted black line shows performance of local laptop, a 1.2 GHz PIII w/ 512 Mbytes RAM, which processes 64,140 simulation trials per hour. 0.5 0 0 0.5 1 1.5 2 2.5 Time in hours

  24. 14 11 tasks running in parallel 1 was faster than the local machine (gold line) 9 were slightly slower 1 was significantly slower (red line) After 9.5 hours, the grid executed 6,019,410, nearly an order of magnitude improvement over running locally. 12 10 8 Computations relative to 1.2 GHz P3 6 4 Dotted black line shows performance of local laptop, a 1.2 GHz PIII w/ 512 Mbytes RAM, which processes 64,140 simulation trials per hour. 2 0 0 1 2 3 4 5 6 7 8 9 10 Time in hours

  25. 40 11 tasks running in parallel After 24 hours, the grid executed 16,630,510 trials an order of magnitude improvement over running locally. 35 30 25 Computations relative to 1.2 GHz P3 20 15 10 5 0 0 5 10 15 20 25 Time in hours

  26. Monte Carlo Optimization • With the ability to run large numbers of simulations in parallel, it is possible to determine optimum system parameters via Monte Carlo simulation. • Example: FSK modulation. • Used in most military communication systems. • Also used in GSM cell phones and Bluetooth devices. • Several parameters to optimize: • Modulation order (number of frequencies) • h=0 to 1 in 0.01 increments • Modulation index (frequency spacing) • M=2, 4, 8,or 16 • Code rate (amount of redundancy in error control code). • Rate is determined by h, M and amount of available bandwidth Grid Simulation of Communication Systems

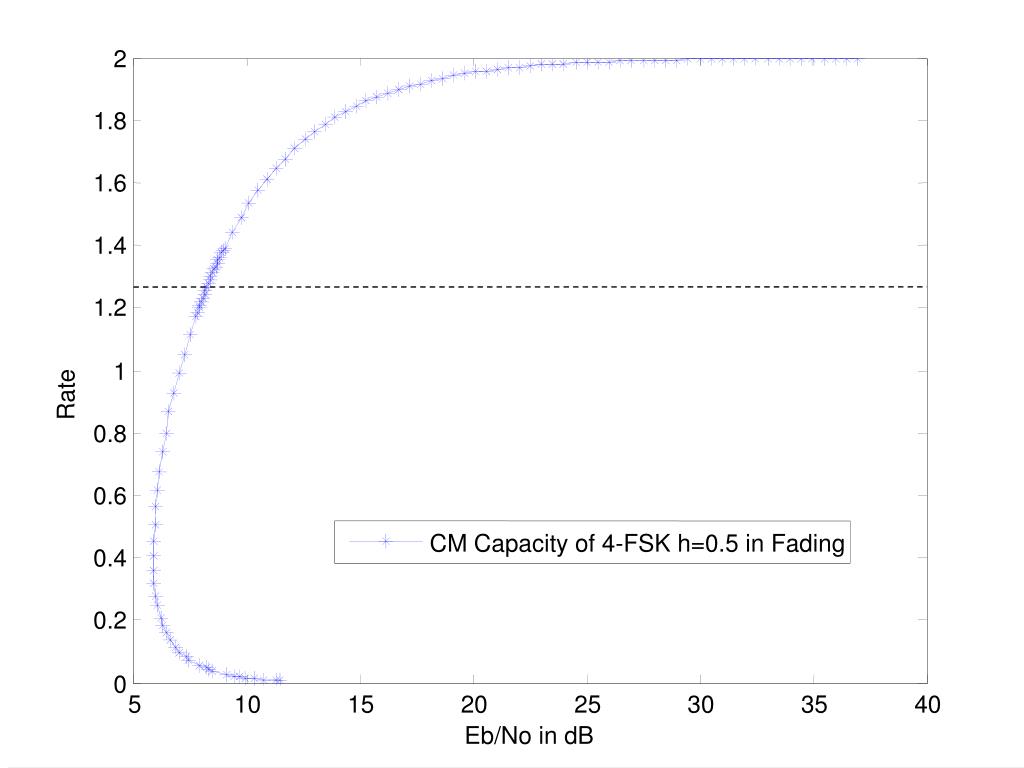

  27. 2 1.8 1.6 1.4 1.2 1 Rate 0.8 0.6 CM Capacity of 4-FSK h=0.5 in Fading 0.4 0.2 0 5 10 15 20 25 30 35 40 Eb/No in dB

  28. Credits • WVU Graduate Student • Raja Katuri • Parabon Programmer/Engineer • Jim O’Connor • Parabon Systems Staff • Mario Bulhoes • Dabe Murphy • WVU/LCSEE Systems Staff • David Krovich • Marc Seery • The WVU portion of this project was accomplished without federal funding. Grid Simulation of Communication Systems
