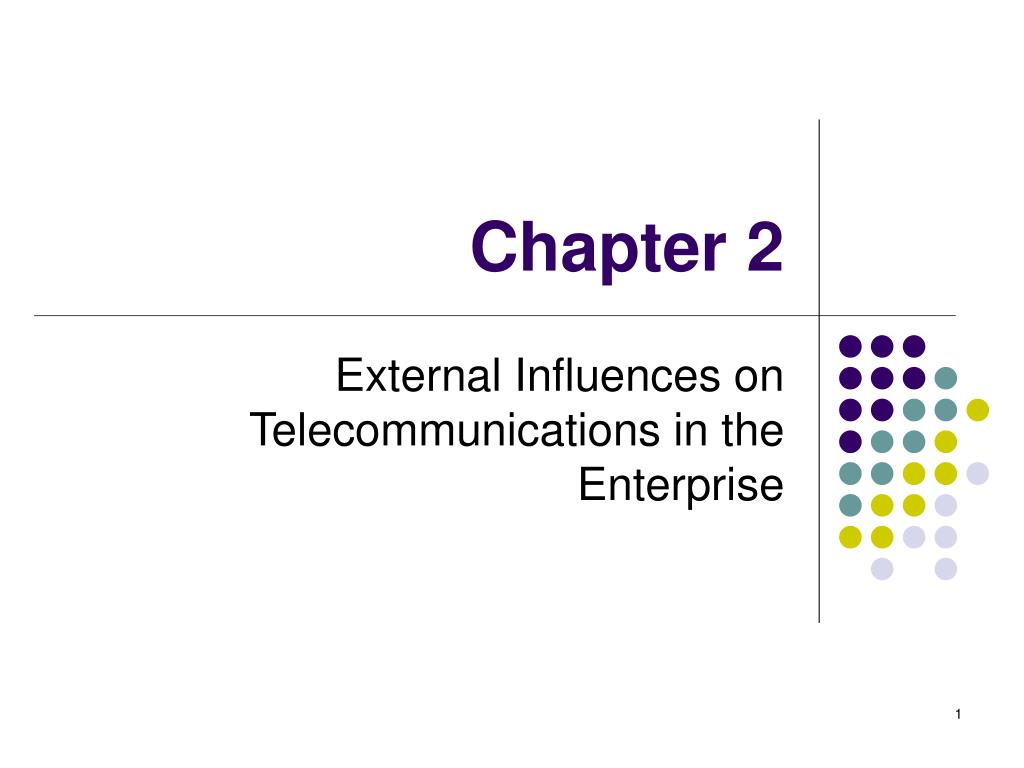

  1. Chapter 2 External Influences on Telecommunications in the Enterprise

  2. Regulation • Telecom regulation moved from loose to tight and back to loose in U.S. • U.S. model • Private companies with government regulation • Other countries • Most have government operated companies

  3. Advantages of Regulation • Ensures compatibility in a developing technology • Levels of service develop more uniformly across the U.S. • If unregulated, companies concentrate effort in highly populated areas • Guarantees telecom companies a profit • Prevents cut-throat competition • Allows infrastructure to develop • Sets standards such as frequency allocations for radio

  4. Advantages of Regulation • Common Carriers • Also known as Carriers in telecom industry • Example: Bell companies, cable companies, etc. • Concept limits number of companies that can provide key public services • Examples: transportation or communications • Idea is to prevent duplication of services and expensive infrastructure • Such as railroad tracks, communications transmission facilities, power transmission facilities, pipelines, etc.

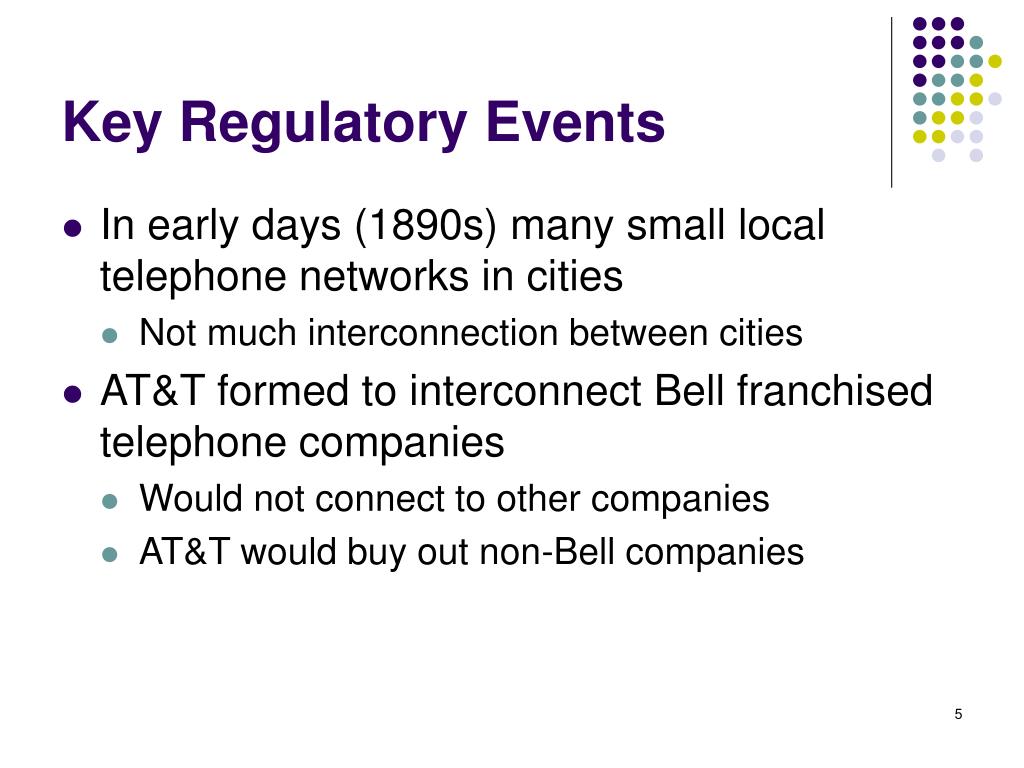

  5. Key Regulatory Events • In early days (1890s) many small local telephone networks in cities • Not much interconnection between cities • AT&T formed to interconnect Bell franchised telephone companies • Would not connect to other companies • AT&T would buy out non-Bell companies

  6. Key Regulatory Events

  7. Key Regulatory Events in the U.S. • 1910 - Mann-Elkins Act • Congress sets up Interstate Commerce Commission (ICC) • One of its task is to regulate telecom • 1913 - Kinsbury Commitment • First step toward universal service • Due to AT&T’s unfair trade practices, U.S. government forces them to get approval before taking over smaller companies • Allow non-Bell companies to connect to AT&T long distance network

  8. Key Regulatory Events in the U.S. • 1921 - Graham Act • AT&T exempted from Sherman Antitrust Act • One nationwide network • 1934 - Communications Act of 1934 • Federal Communications Commission (FCC) established • ICC out of the picture • Regulates all interstate communications

  9. FCC sets up tariff structure • Tariffs describe regulated services and prices to be charged • Tariff categories • Charges for time service is use, i.e. long distance charges • Flat rate for full-time use of a service, i.e. leased line. • Monthly minimum charge for basic amount of service use with additional charges when basic limit exceeded, i.e. 800 service • Charge for amount of data sent, i.e. packet data transmission

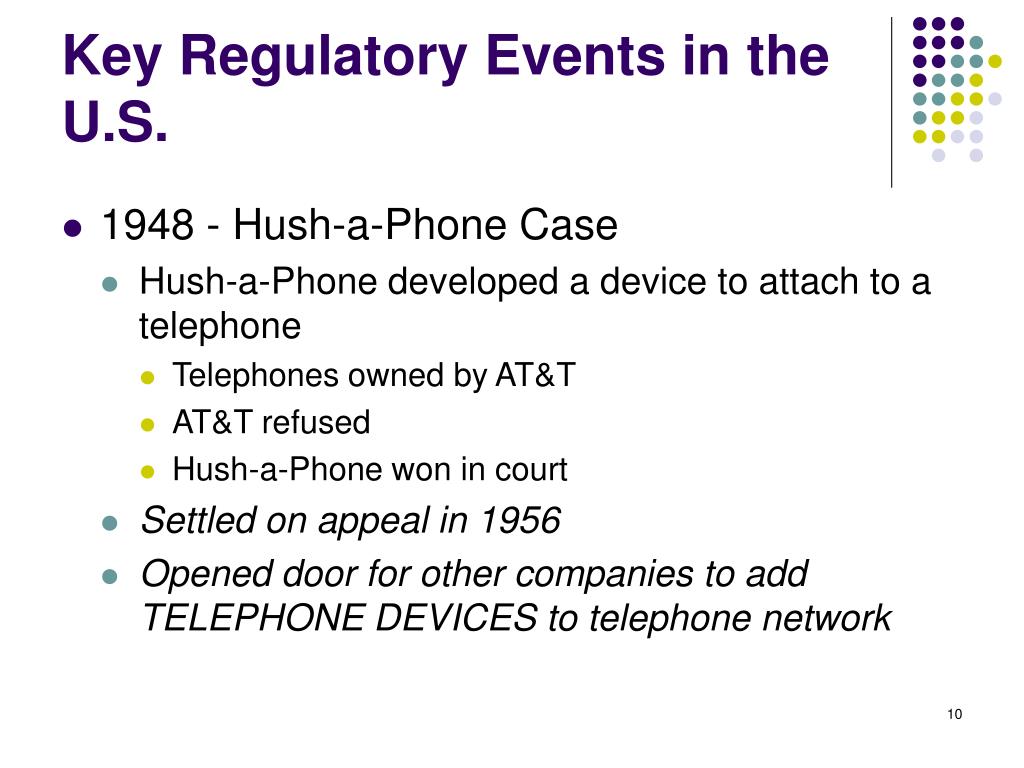

  10. Key Regulatory Events in the U.S. • 1948 - Hush-a-Phone Case • Hush-a-Phone developed a device to attach to a telephone • Telephones owned by AT&T • AT&T refused • Hush-a-Phone won in court • Settled on appeal in 1956 • Opened door for other companies to add TELEPHONE DEVICES to telephone network

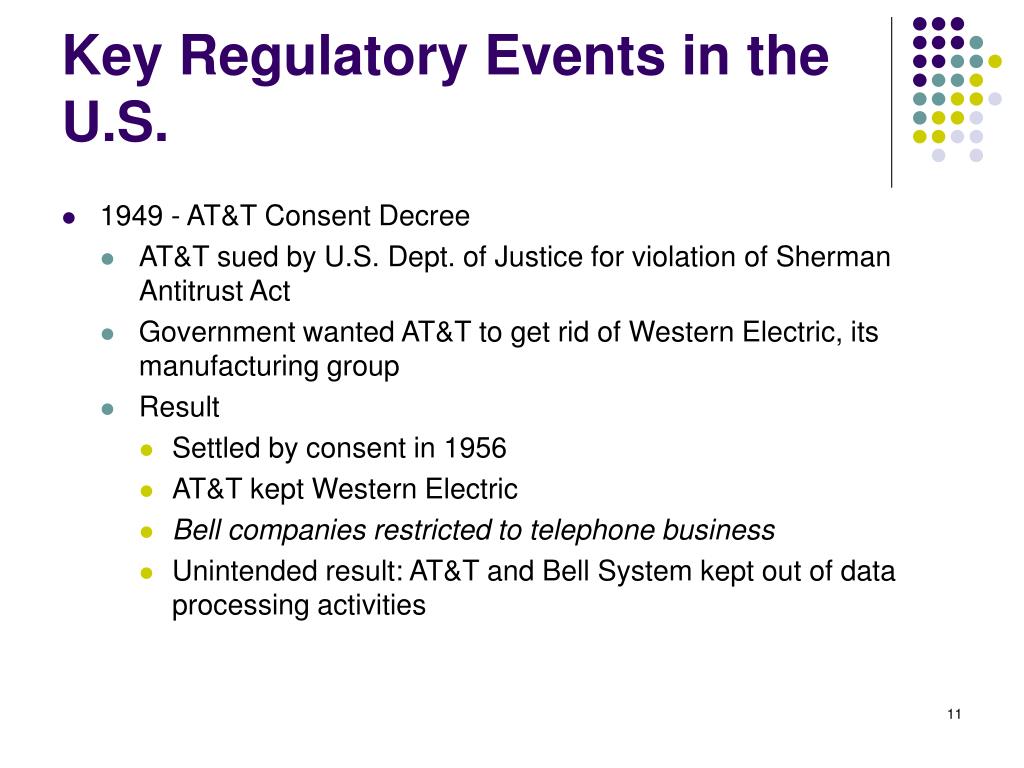

  11. Key Regulatory Events in the U.S. • 1949 - AT&T Consent Decree • AT&T sued by U.S. Dept. of Justice for violation of Sherman Antitrust Act • Government wanted AT&T to get rid of Western Electric, its manufacturing group • Result • Settled by consent in 1956 • AT&T kept Western Electric • Bell companies restricted to telephone business • Unintended result: AT&T and Bell System kept out of data processing activities

  12. Key Regulatory Events in the U.S. • 1968 - Carterfone Decision • Allowed Carter Electronics to attach device to interconnect private radio systems to public telephone network • Made it easier for other NON-TELEPHONE COMPANY EQUIPMENT to attach to telephone network • Companies started up to make equipment to attach to network • Consumers could buy telephones instead of rent them • 1969 - MCI Decision • MCI (Microwave Communications Incorporated) could connect its long distance lines to public telephone network • Other network service companies developed after this • Known as Other Common Carriers (OCCs) or Specialized Common Carriers (SCCs)

  13. Key Regulatory Events in the U.S. • 1971 – Computer Inquiry I • FCC examined relationship between telecommunications and data processing industries • FCC said the computer industry was not subject to its control • 1971 - Open Skies Policy • FCC reversed previous satellite communications decision • Anyone could enter satellite communication business • Western Union and RCA joined by new companies • Today’s major players include Scientific Atlanta, AT&T, and Verizon • 1981 - Computer Inquiry II • Computer companies could transmit data unregulated • Bell System could participate in data processing market • Customer premise equipment manufacture deregulated

  14. Key Regulatory Events in the U.S. • 1982 - Modified Final Judgement (MFJ) • AT&T seen to be slow in adopting new technology and in meeting business customer needs • Stated that AT&T was to divest itself of all 22 of its Bell operating companies (BOCs) by Jan. 1, 1984 • Took a while for telephone rates to settle • 1986 – Computer Inquiry III • FCC study to determine how and to what extent carriers could offer enhanced services • BOCs and AT&T could offer enhanced services, but must agree to Open Network Architecture (ONA) • Independents exempt from FCC order

  15. Key Regulatory Events in the U.S. • 1996 - Telecommunications Act of 1996 • Major revision of Communications Act of 1934 • Deregulated telecommunications • BOCs allowed to provide long distance service and manufacture equipment • Long distance companies (AT&T, MCI, Sprint) could provide local service • Telephone companies could provide cable service

  16. Regulatory Jurisdiction • FCC • Regulates interstate communications • State Public Utility Commission (PUC) • Also known as Public Service Commission (PSC) • Regulates intrastate communications

  17. Intent of Deregulation • Provide better, cheaper service • Provide better products • Competition increased dramatically • All effects of deregulation not known

  18. Regulation in Other Countries • Most countries heavily regulated and/or government run • Developed countries moving to deregulation • 1997 – World Trade Organization (WTO) agreed to open most world markets to foreign trade • Will benefit U.S. companies • Will reduce international long distance rates • Will reduce countries’ internal long distance • In U.S. long distance averages 10 cents to 15 cents per minute • In Japan it is about 95 cents/minute

  19. Example - Mexico • Deregulated national telephone company Telefonos de Mexico (Telemex) • Attracted millions of dollars in foreign capital • Nine new long distance carriers entered the market after deregulation • Still takes a long time to get a phone

  20. Example - Russia • 85 regional telephone companies once owned by state monopoly • Partly privatized • Rates increased to improve infrastructure • Improvement will take 20+ years

  21. Where is the Next Big Cellular Market?

  22. Transnational Data Flow (TNDF) • Countries concerned about data flow across borders • National defense & technology transfer concerns • International companies require TNDF • Difficulties caused by • Tax or tariff on information transfer • Monitoring content of international communications • Restricting availability of private lease lines • Privacy legislation restricting personal information to cross border • U.S. wants free flow • Scandanavian countries restrict personal data flow across borders

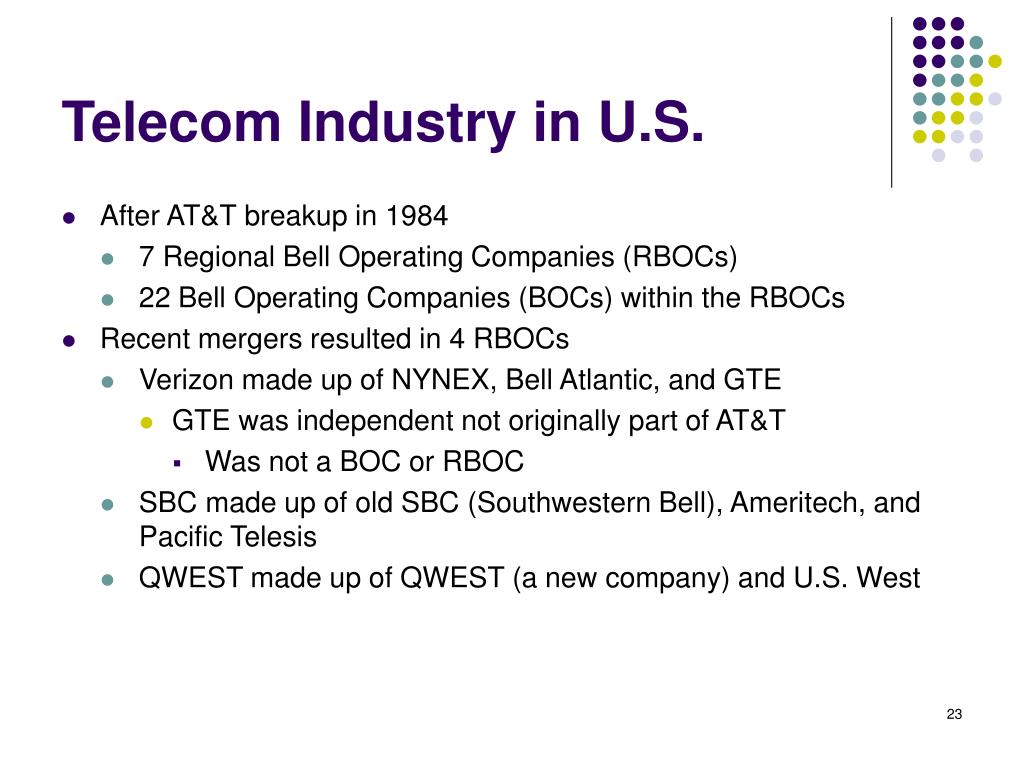

  23. Telecom Industry in U.S. • After AT&T breakup in 1984 • 7 Regional Bell Operating Companies (RBOCs) • 22 Bell Operating Companies (BOCs) within the RBOCs • Recent mergers resulted in 4 RBOCs • Verizon made up of NYNEX, Bell Atlantic, and GTE • GTE was independent not originally part of AT&T • Was not a BOC or RBOC • SBC made up of old SBC (Southwestern Bell), Ameritech, and Pacific Telesis • QWEST made up of QWEST (a new company) and U.S. West

  24. Original BOCs and RBOCs

  25. BOCs and RBOCs in 2000

  26. Services Offered by RBOCs • RBOCs provide local phone service in their areas using original AT&T network with upgrades • Conduct business through BOCs • RBOCs pursued new opportunities • Ameritech invested in New Zealand’s telephone company • U.S. West invested in Time Warner cable • Bell South provides nationwide paging • Others invested in non-telecom businesses that have been less successful

  27. Independent Phone Companies • Many independents exist that were never part of AT&T • Were not subject to Consent Decree and the restriction on local/long-distance service that RBOCs and AT&T had • Often were small

  28. LECs • Original BOCs and independents are called Local Exchange Carriers (LECs) or Incumbent Local Exchange Carriers (ICLECs)

  29. CLECs • Competitive Local Exchange Carriers (CLECs) are competing in local telephone market with BOCs • Three types • Those with their own networks • Those that leas the network infrastructure • Those that build a new network • Causing competition in prices and services

  30. LATAs • Local Access and Transport Areas (LATAs) • 165 defined after divestiture • LECs provide service within LATA • Inter-LATA traffic provided by long distance companies • Examples: AT&T, WorldCom, and Sprint • Long distance companies called Interexchange Carriers (IXCs) • Important: Telecommunications Act of 1996 eliminated limits on types of traffic LECs and IXCs could carry • Beginning 1997, IXCs started offering local service and LECs began offering long distance service

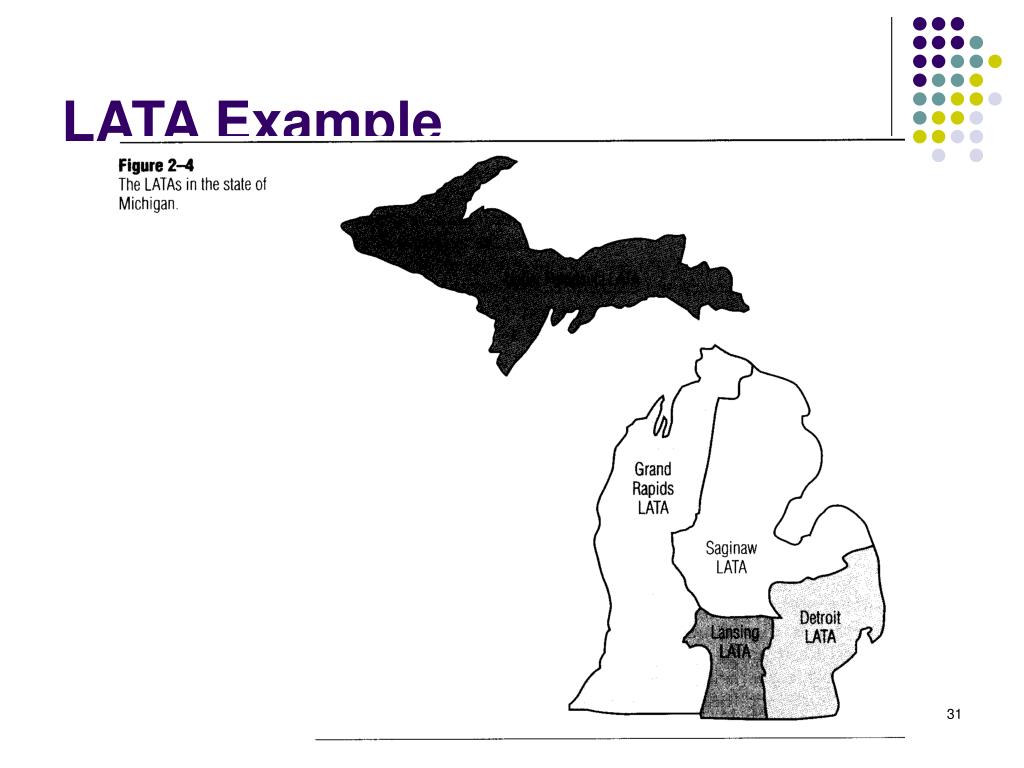

  31. LATA Example

  32. Demarcation Point • Telephone companies responsible for network up to customer site • Point where network is terminated in customer site is the demarcation point

  33. Long Distance Carriers • AT & T • Largest, 55% market share • 1996 split into • AT & T – domestic and international transmission and on-line services • Lucent Technologies – manufactures telecom equipment • NCR Corporation – manufactures computers • AT & T began offering local service in 1996 • Wants to improve wireless and cable business

  34. Long Distance Carriers • WorldCom • WorldCom started as CLEC and bought MCI in 1997 • MCI had developed domestic and international long distance service to more than 180 countries • MCI began offering local service in 1997 • Sprint Communications Company • Third-largest long distance carrier • Similar services to AT & T and WorldCom • Also in cable and wireless business • First to offer residential 800 service, first to build nationwide all-digital fiber network, first in U.S. to offer prepaid calling cards

  35. International Carriers • Provide voice and data service • Each country charges for half the line • Customer gets bill from company on each end of line

  36. Equipment Makers and Providers (Alphabetical by Country)
