Do Now

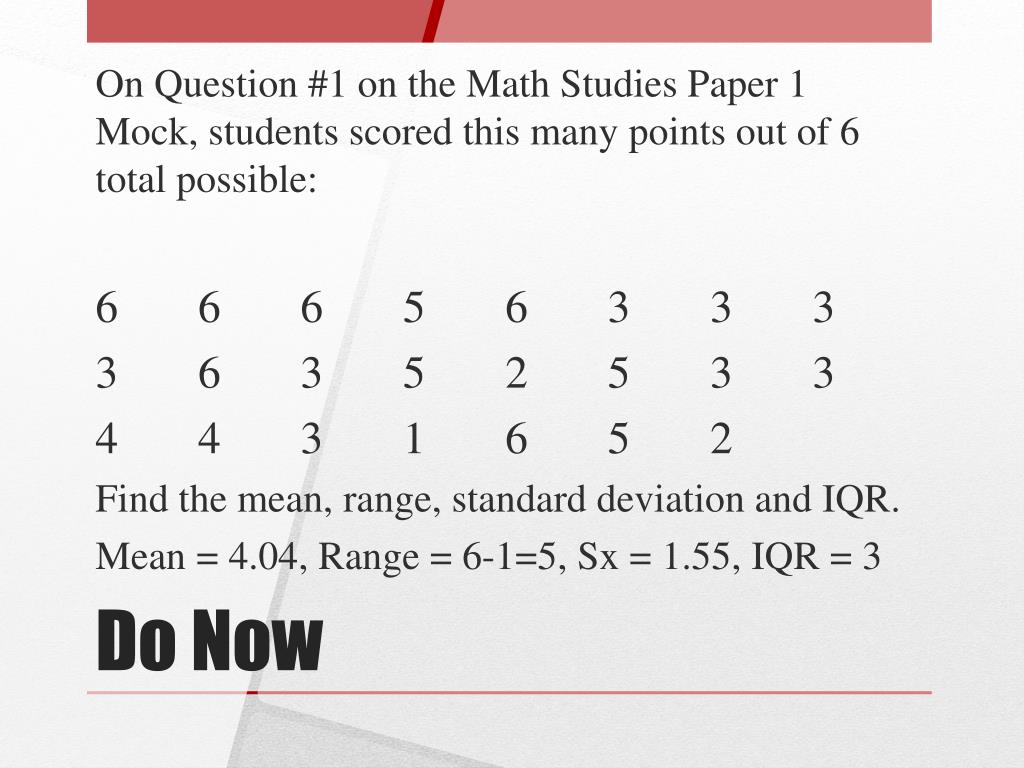

On Question #1 on the Math Studies Paper 1 Mock, students scored this many points out of 6 total possible: 6 6 6 5 6 3 3 3 3 6 3 5 2 5 3 3 4 4 3 1 6 5 2 Find the mean, range, standard deviation and IQR. Mean = 4.04, Range = 6-1=5, Sx = 1.55, IQR = 3. Do Now.

ima
Télécharger la présentation

Do Now

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. On Question #1 on the Math Studies Paper 1 Mock, students scored this many points out of 6 total possible: 6 6 6 5 6 3 3 3 3 6 3 5 2 5 3 3 4 4 3 1 6 5 2 Find the mean, range, standard deviation and IQR. Mean = 4.04, Range = 6-1=5, Sx = 1.55, IQR = 3 Do Now

  2. Yes, we have a lot of objectives. Sorry. • 1.1.1 – Define Error Bars • 1.1.2 – Calculate mean and standard deviation • 1.1.3 – State what standard deviation is used for and state the empirical rule • 1.1.4 – Explain how the standard deviation is useful • 1.1.6 – Explain difference between correlation and causation. • Here is the Essential Question: • How do we represent quantitative information in biology lab reports? • Write in your notes column, not the cue column. Cornell Notes Set-Up

  3. Error bars are a graphical representation of the variability of data. • That means they show “how variable the data is” Error bars can show either the range or the standard deviation of data. • They show this by stretching up and down. Error Bars

  4. Let’s compare questions #1 and #2 on Math Studies. Here are the scores on Question #2, also out of 6 points: 6 3 6 2 2 2 3 2 5 6 4 5 2 0 2 6 2 3 2 2 6 5 2 Calculate the mean, range, standard deviation and IQR. Mean = 3.39, Range = 6-0=6, Sx = 1.83, IQR = 3 Error Bars Example

  5. Comparing Range Comparing Std. Dev. Question 1 Mean = 4.04 Question 1 Sx= 1.55 Question 2 Mean = 3.39 Question 2 Sx= 1.83 • Question 1 Mean = 4.04 • Question 1 Range = 6-1=5 • Question 2 Mean = 3.39 • Question 2 Range = 6-0=6 Error Bars Example (cont.)

  6. If you just have a list of data, then make sure FreqList is clear in 1-Var Stats!!!!! • If you DO have a frequency list, then make sure FreqList says L2 in 1-Var Stats!!!!! • X-Bar (x with a line over it) is the mean. • “Baby sigma” x is the standard deviation for math. • SX is the standard deviation for biology because S stands for Sample. Calculations Recap

  7. The term “standard deviation” is used to summarize the spread of values around the mean. The bigger the standard deviation, the more spread out your data is. If your data is close together, the standard deviation should be SMALL. Standard Deviation

  8. How big should your empire be? • 68% - 95% - 99.7% is the empirical rule! • 68% of values fall within one standard deviation. • 95% of values fall within two standard deviations. • 99.7% of values fall within three standard deviations. The Empirical Rule

  9. A small standard deviation means the data is clustered closely around the mean. A large standard deviation means the data is more spread out (but the mean is still in the middle!) How is standard deviation useful?

  10. The existence of a correlation does not establish a causal relationship between two variables. Ex.: Ice cream and Rape… More on this in the Wednesday PowerPoint. Correlation vs. Causation

  11. Identify as correlation or causation: • People who have high blood pressure are more likely to suffer stroke. • People who start taking aspirin are less likely to have a heart attack than they were before. • The plants in this room are all taller than the plants in that room. • The bean sprouts in the light grew taller than the bean sprouts in the dark. • Ms. Griffith never met anyone with gastritis until she moved to the valley. TO PROVE CAUSATION YOU NEED AN EXPERIMENT!! Correlation vs Causation

  12. Correlation or Causation?

  13. Given SL scored an average of 3 and 4 points on questions #1 and #2 respectively, with a sample standard deviation of 1.2 and 0.7, plot this data with error bars. • What are error bars? • What is standard deviation used for? • ___% of values fall within one standard deviation of the mean. • What is the difference between correlation and causation? Exit Slip: NO NOTES
