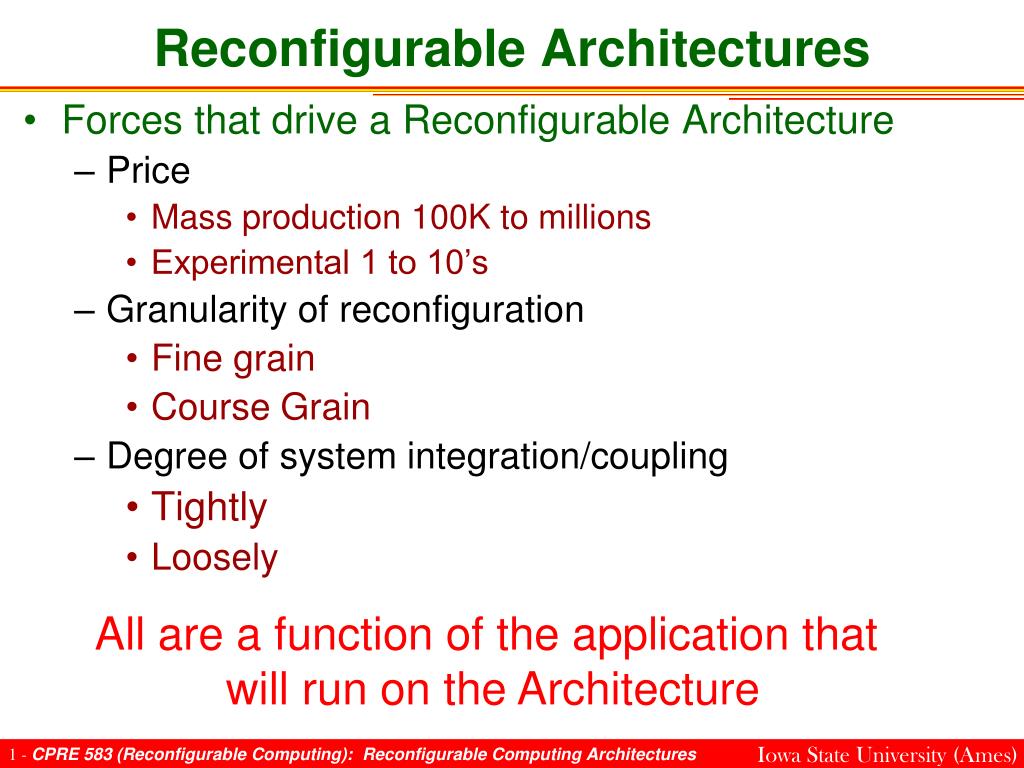

  1. Reconfigurable Architectures • Forces that drive a Reconfigurable Architecture • Price • Mass production 100K to millions • Experimental 1 to 10’s • Granularity of reconfiguration • Fine grain • Course Grain • Degree of system integration/coupling • Tightly • Loosely All are a function of the application that will run on the Architecture

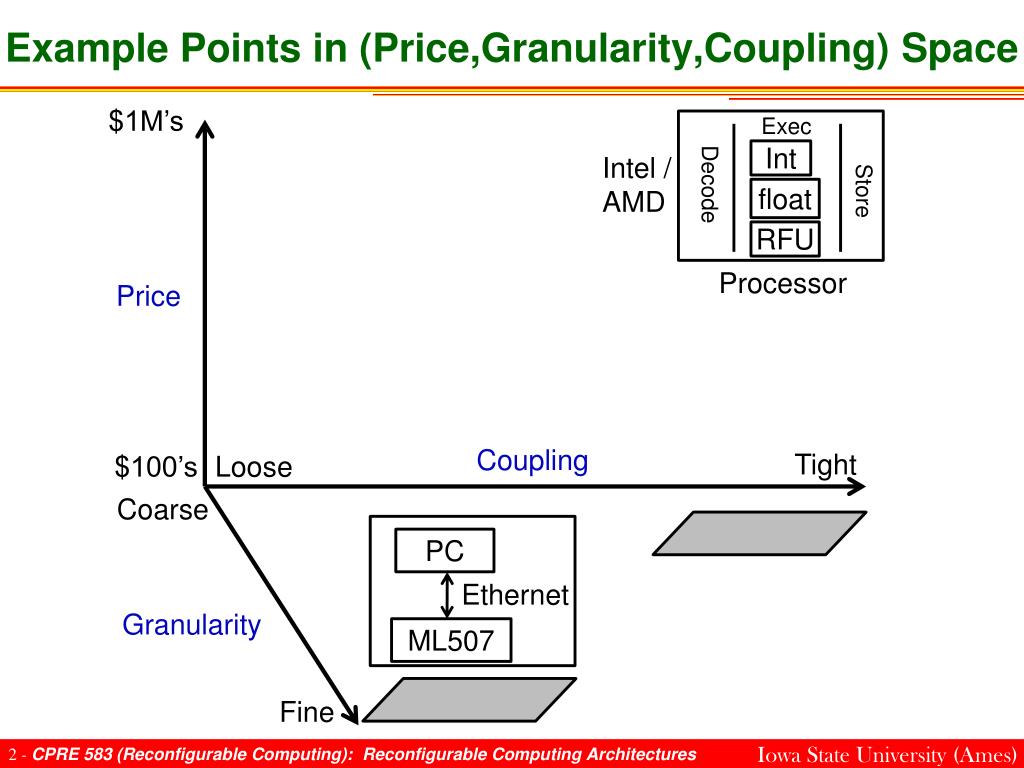

  2. Example Points in (Price,Granularity,Coupling) Space $1M’s Exec Int Intel / AMD Decode Store float RFU Processor Price Coupling Tight $100’s Loose Coarse PC Ethernet Granularity ML507 Fine

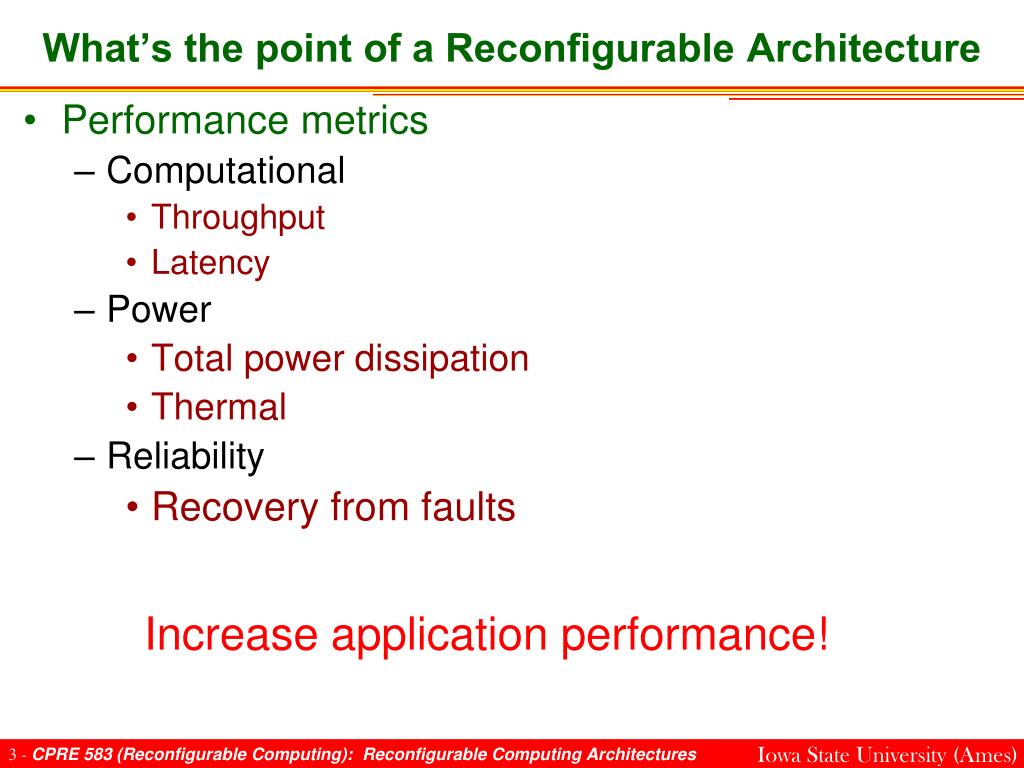

  3. What’s the point of a Reconfigurable Architecture • Performance metrics • Computational • Throughput • Latency • Power • Total power dissipation • Thermal • Reliability • Recovery from faults Increase application performance!

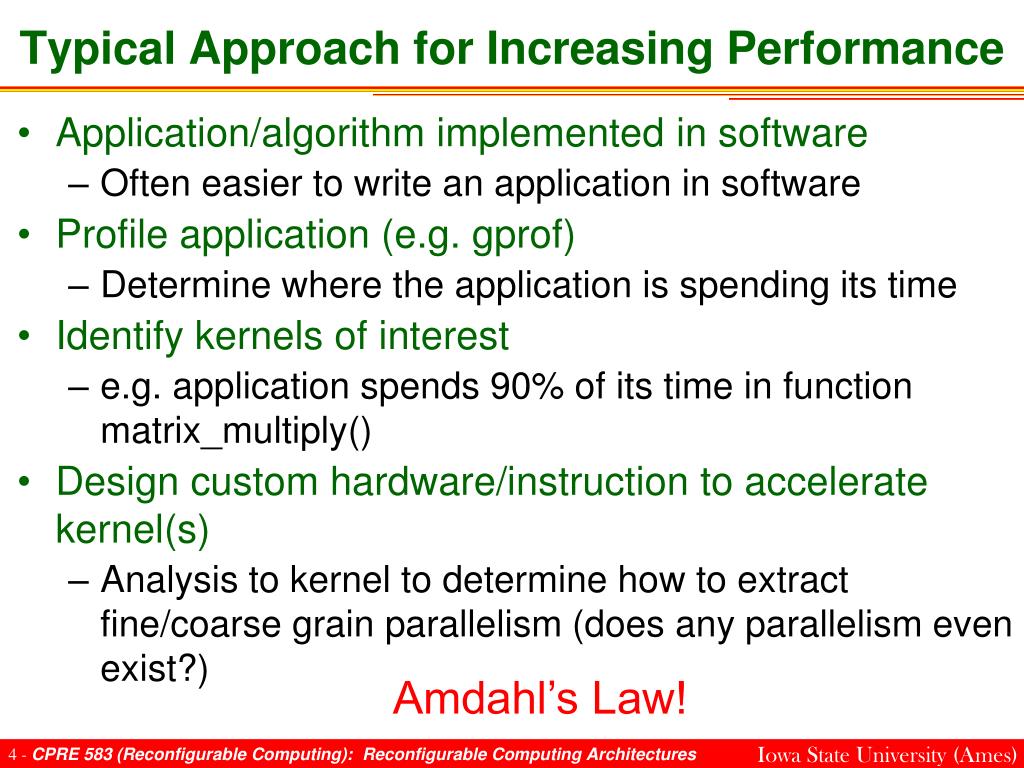

  4. Typical Approach for Increasing Performance • Application/algorithm implemented in software • Often easier to write an application in software • Profile application (e.g. gprof) • Determine where the application is spending its time • Identify kernels of interest • e.g. application spends 90% of its time in function matrix_multiply() • Design custom hardware/instruction to accelerate kernel(s) • Analysis to kernel to determine how to extract fine/coarse grain parallelism (does any parallelism even exist?) Amdahl’s Law!

  5. Granularity

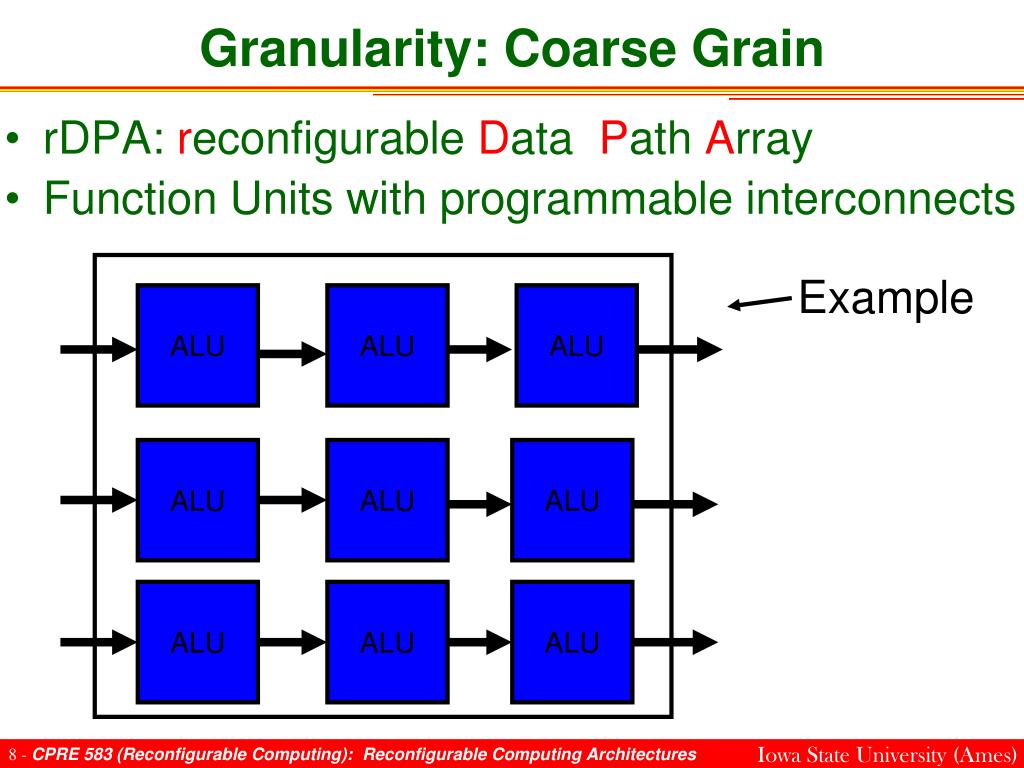

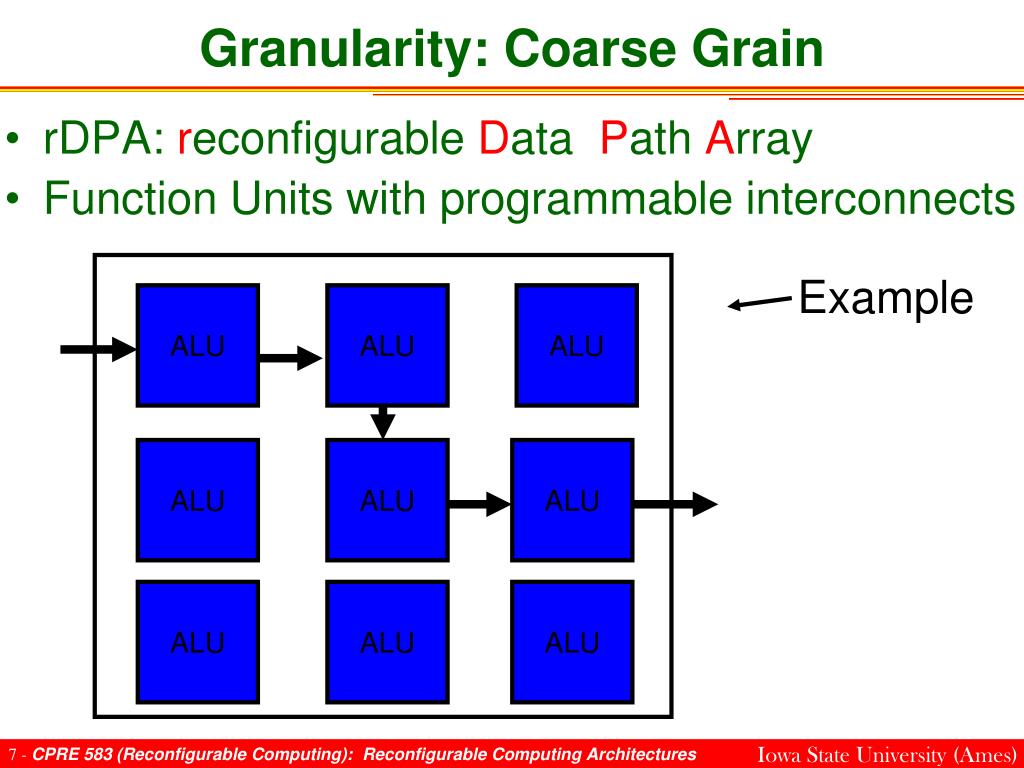

  6. Granularity: Coarse Grain • rDPA: reconfigurable Data Path Array • Function Units with programmable interconnects Example ALU ALU ALU ALU ALU ALU ALU ALU ALU

  7. Granularity: Coarse Grain • rDPA: reconfigurable Data Path Array • Function Units with programmable interconnects Example ALU ALU ALU ALU ALU ALU ALU ALU ALU

  8. Granularity: Coarse Grain • rDPA: reconfigurable Data Path Array • Function Units with programmable interconnects Example ALU ALU ALU ALU ALU ALU ALU ALU ALU

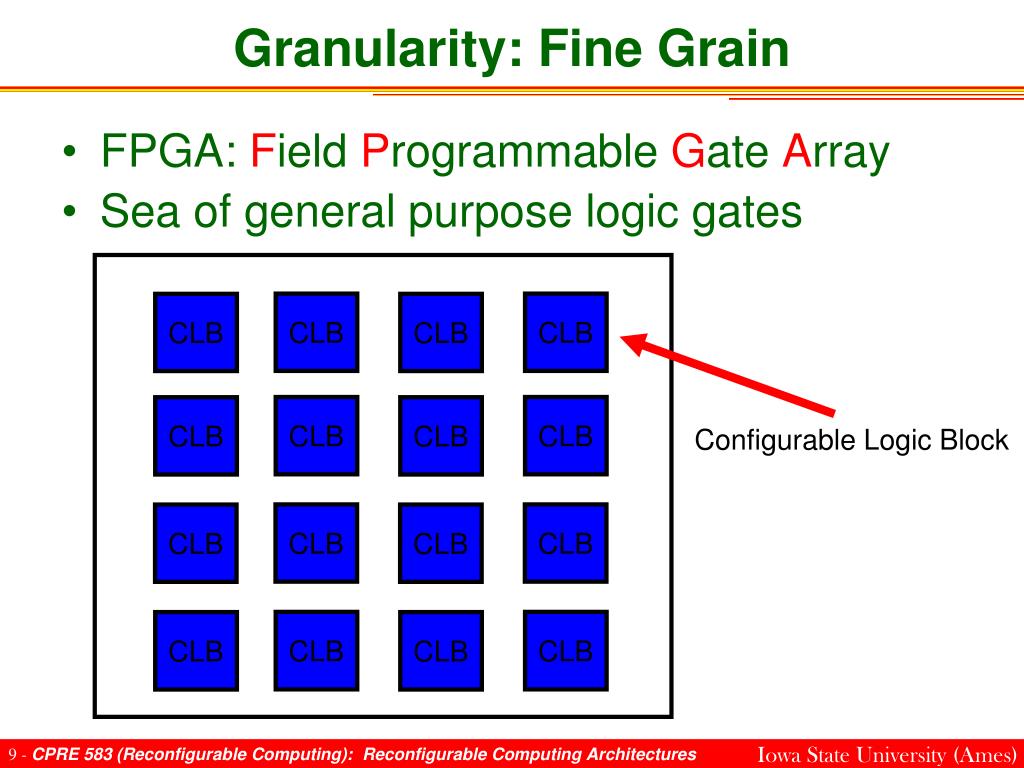

  9. Granularity: Fine Grain CLB CLB CLB CLB CLB CLB CLB CLB Configurable Logic Block CLB CLB CLB CLB CLB CLB CLB CLB • FPGA: Field Programmable Gate Array • Sea of general purpose logic gates

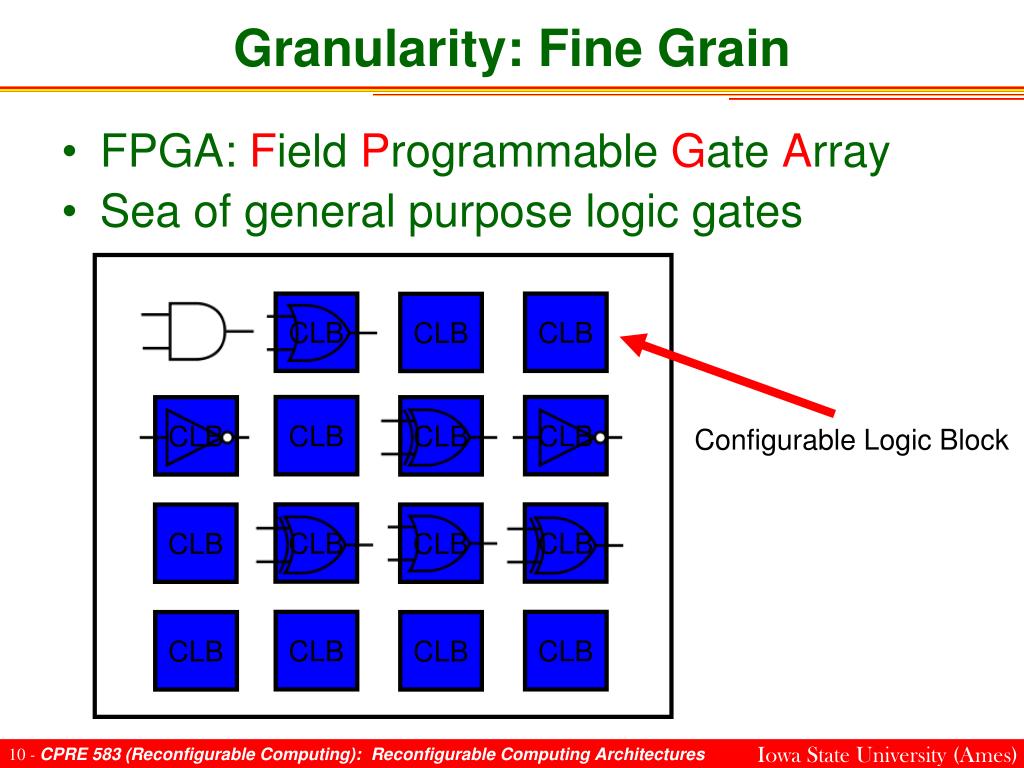

  10. Granularity: Fine Grain Configurable Logic Block • FPGA: Field Programmable Gate Array • Sea of general purpose logic gates CLB CLB CLB CLB CLB CLB CLB CLB CLB CLB CLB CLB CLB CLB CLB

  11. Granularity: Fine Grain Configurable Logic Block • FPGA: Field Programmable Gate Array • Sea of general purpose logic gates CLB CLB CLB CLB CLB CLB CLB CLB

  12. Granularity: Trade-offs Trade-offs associated with LUT size Example: 2-LUT (4=2x2 bits) vs. 10-LUT (1024=32x32 bits) 1024-bits 2-LUT 10-LUT Microprocessor 1024-bits

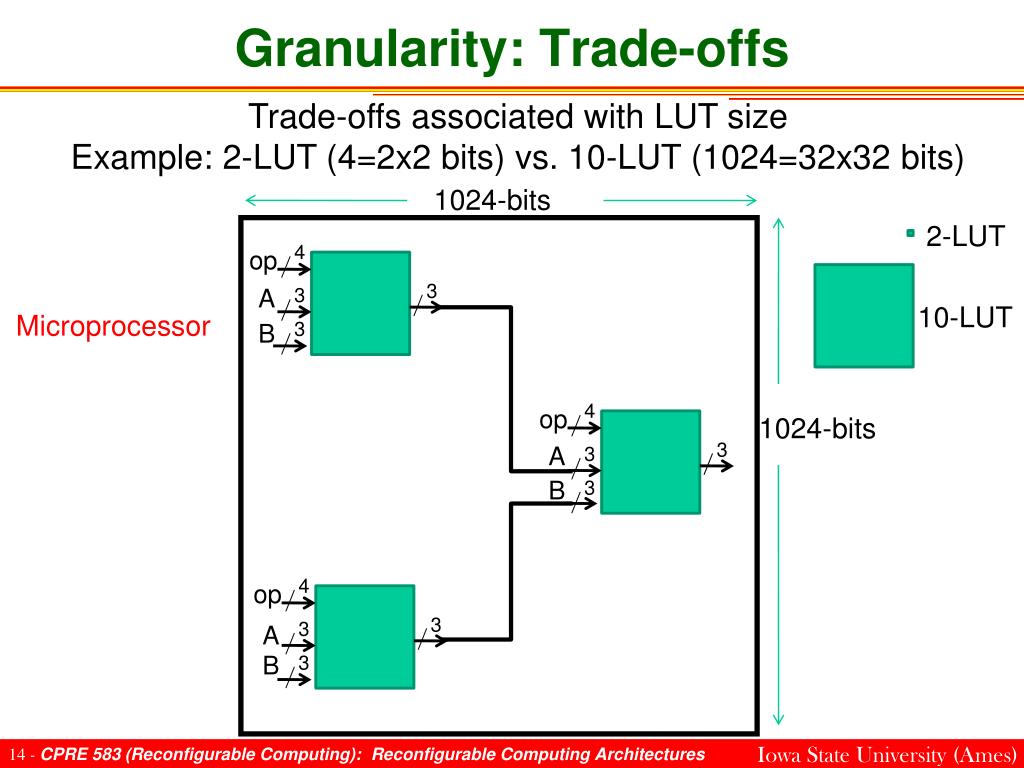

  13. Granularity: Trade-offs Trade-offs associated with LUT size Example: 2-LUT (4=2x2 bits) vs. 10-LUT (1024=32x32 bits) 1024-bits 2-LUT 4 op 3 A 3 10-LUT Microprocessor 3 B 1024-bits

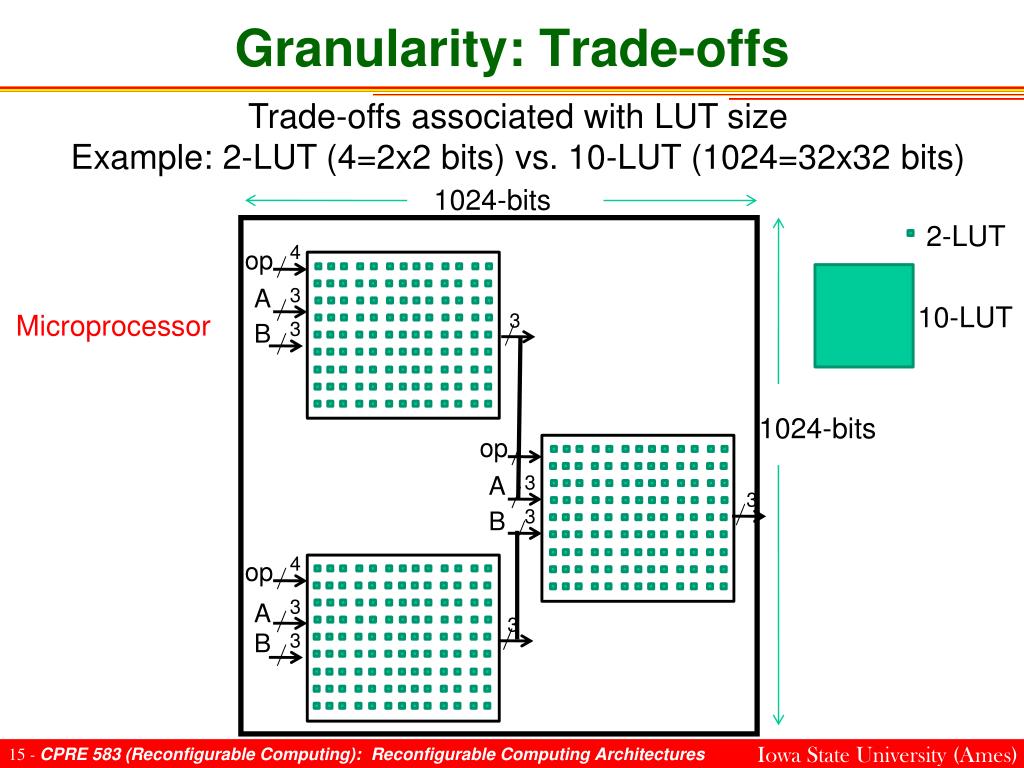

  14. Granularity: Trade-offs Trade-offs associated with LUT size Example: 2-LUT (4=2x2 bits) vs. 10-LUT (1024=32x32 bits) 1024-bits 2-LUT 4 op 3 A 3 10-LUT Microprocessor 3 B 4 op 1024-bits 3 A 3 B 3 4 op 3 3 A B 3

  15. Granularity: Trade-offs Trade-offs associated with LUT size Example: 2-LUT (4=2x2 bits) vs. 10-LUT (1024=32x32 bits) 1024-bits 2-LUT 4 op A 3 10-LUT Microprocessor 3 3 B 1024-bits op A 3 3 3 B 4 op 3 A 3 B 3

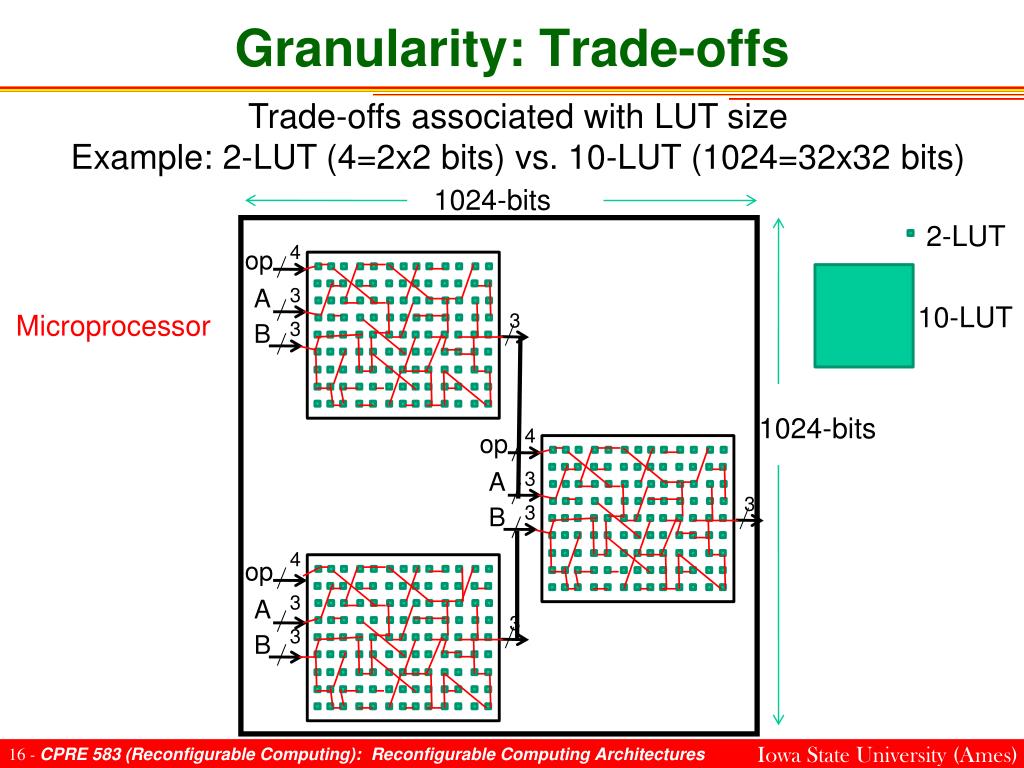

  16. Granularity: Trade-offs Trade-offs associated with LUT size Example: 2-LUT (4=2x2 bits) vs. 10-LUT (1024=32x32 bits) 1024-bits 2-LUT 4 4 op op A A 3 3 10-LUT Microprocessor 3 3 3 3 B B 1024-bits 4 op 3 A 3 3 B

  17. Granularity: Trade-offs Trade-offs associated with LUT size Example: 2-LUT (4=2x2 bits) vs. 10-LUT (1024=32x32 bits) 1024-bits 2-LUT 10-LUT Bit logic and constants 1024-bits

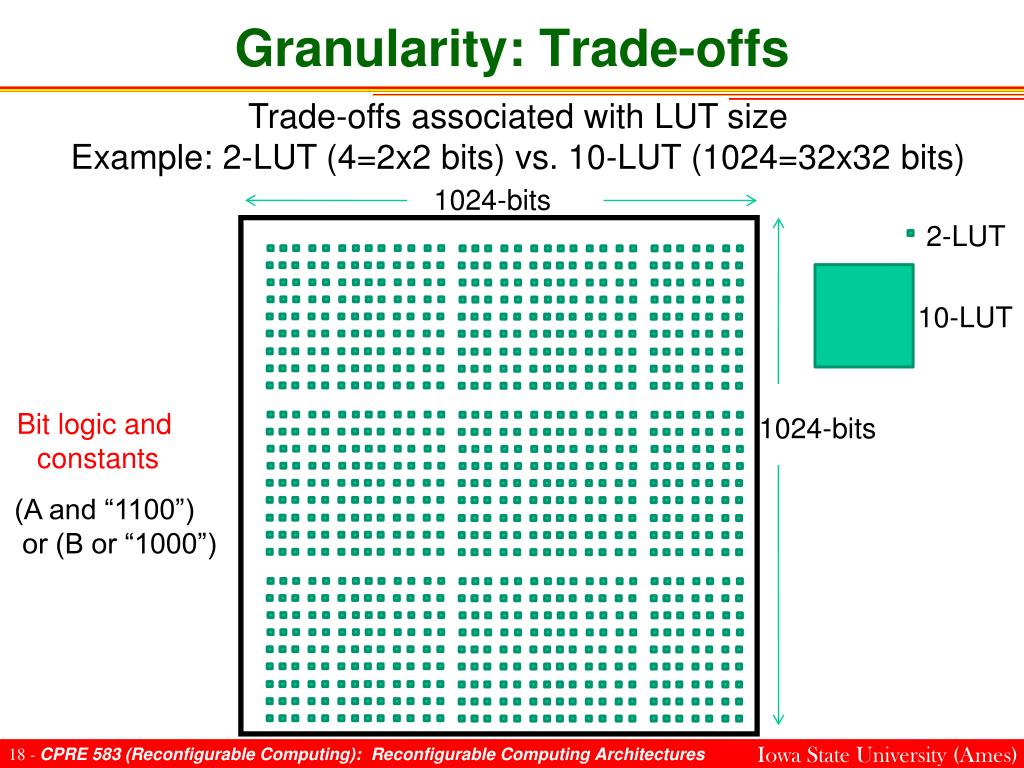

  18. Granularity: Trade-offs Trade-offs associated with LUT size Example: 2-LUT (4=2x2 bits) vs. 10-LUT (1024=32x32 bits) 1024-bits 2-LUT 10-LUT Bit logic and constants 1024-bits (A and “1100”) or (B or “1000”)

  19. Granularity: Trade-offs Trade-offs associated with LUT size Example: 2-LUT (4=2x2 bits) vs. 10-LUT (1024=32x32 bits) 1024-bits 2-LUT A 10-LUT B Bit logic and constants 1024-bits (A and “1100”) or (B or “1000”)

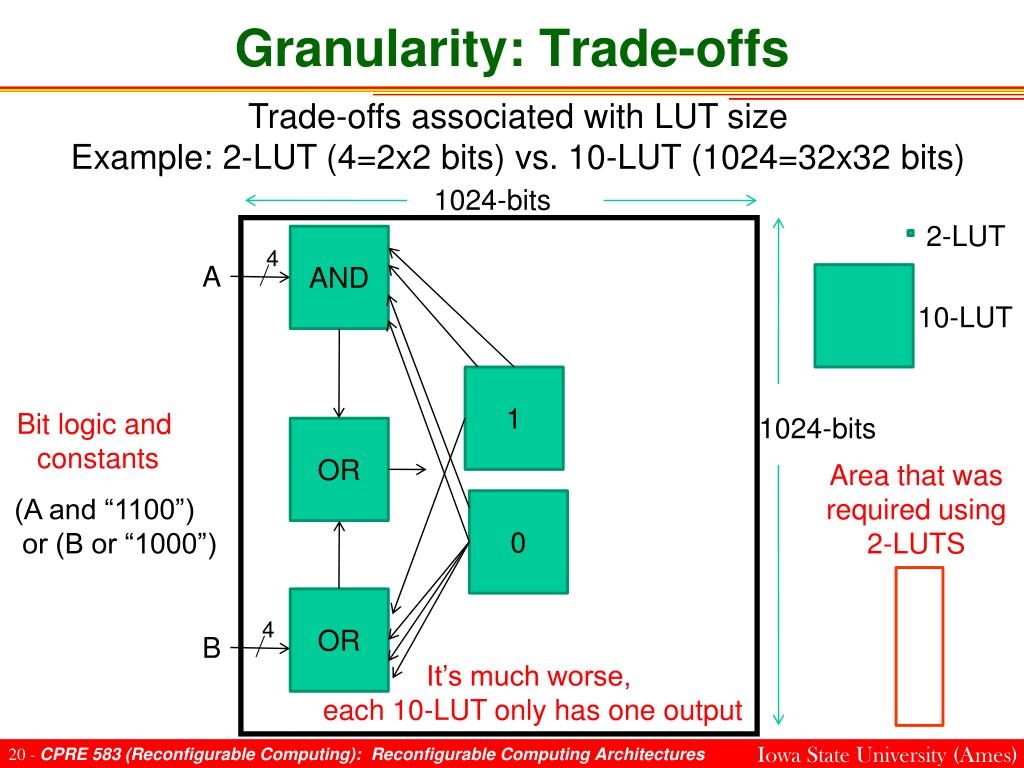

  20. Granularity: Trade-offs Trade-offs associated with LUT size Example: 2-LUT (4=2x2 bits) vs. 10-LUT (1024=32x32 bits) 1024-bits 2-LUT AND 4 A 10-LUT 1 Bit logic and constants 1024-bits OR Area that was required using 2-LUTS (A and “1100”) or (B or “1000”) 0 OR 4 B It’s much worse, each 10-LUT only has one output

  21. Granularity: Example Architectures • Fine grain: GARP • Course grain: PipeRench

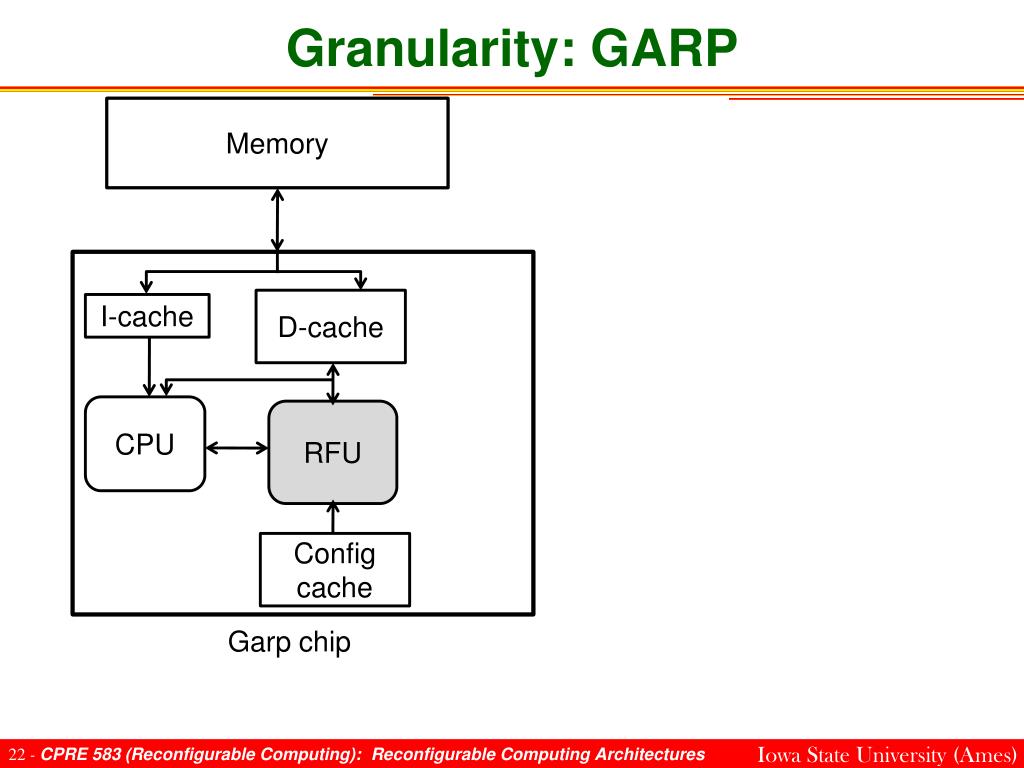

  22. Granularity: GARP Memory D-cache I-cache CPU RFU Config cache Garp chip

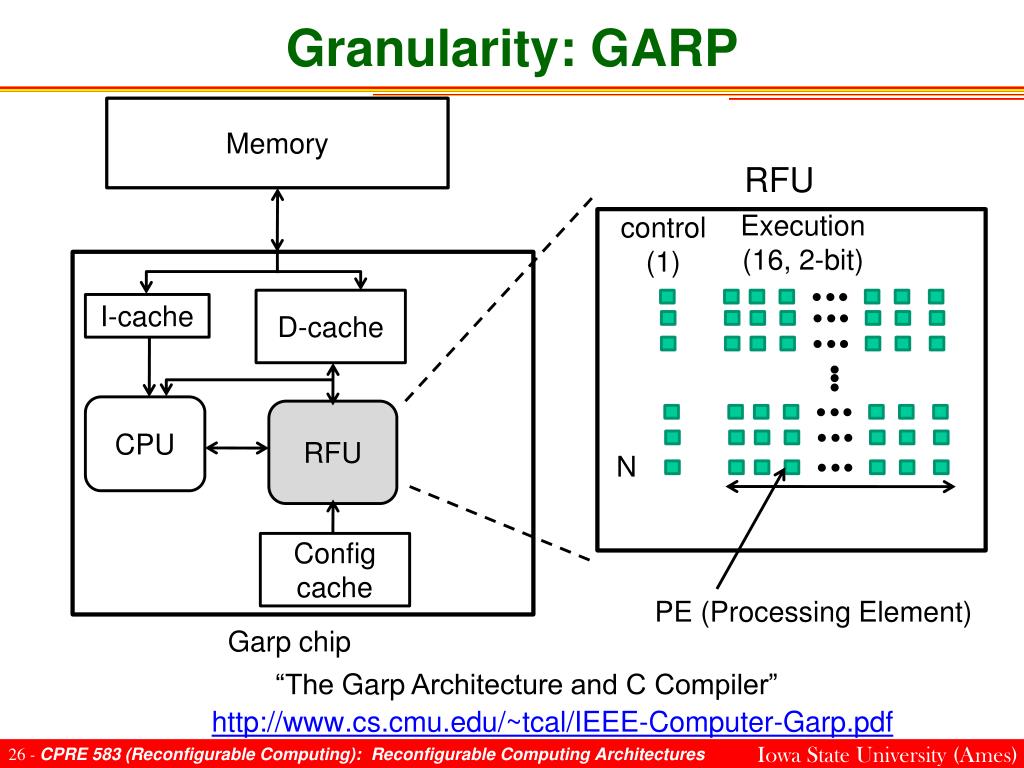

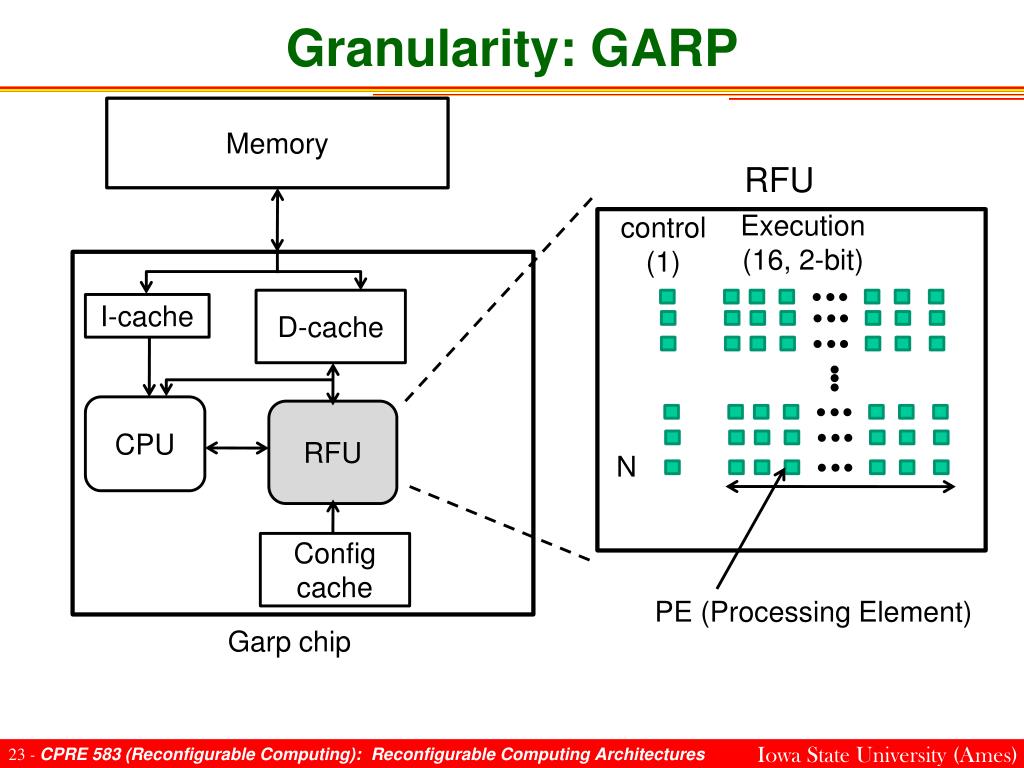

  23. Granularity: GARP Memory RFU Execution (16, 2-bit) control (1) D-cache I-cache CPU RFU N Config cache PE (Processing Element) Garp chip

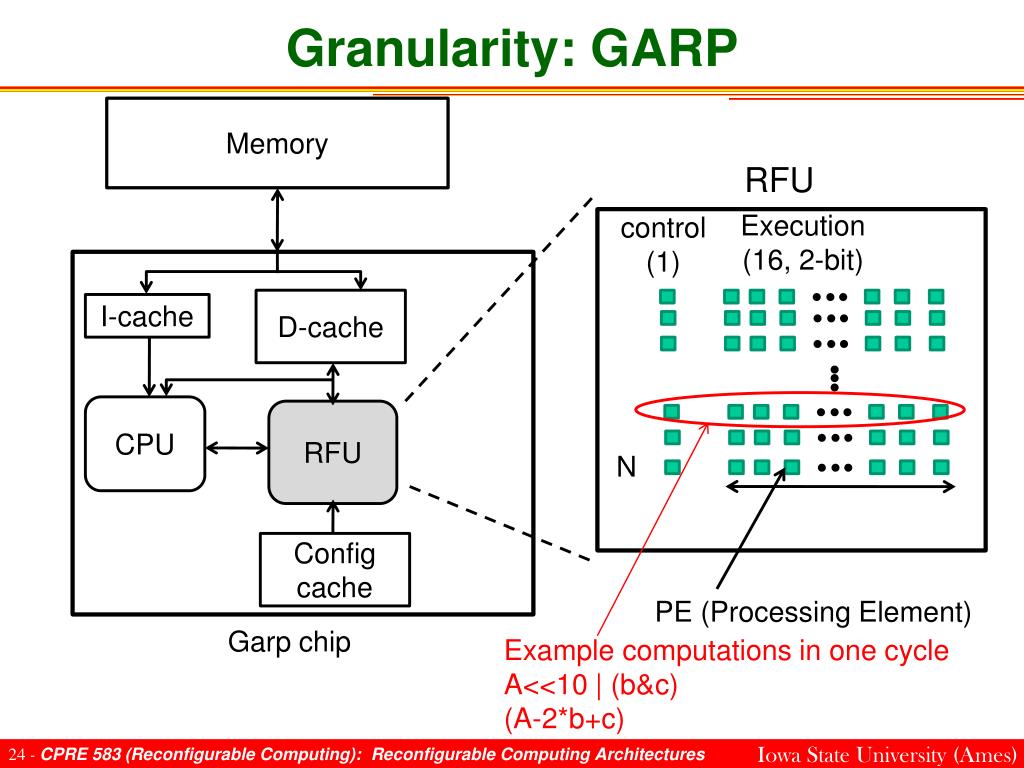

  24. Granularity: GARP Memory RFU Execution (16, 2-bit) control (1) D-cache I-cache CPU RFU N Config cache PE (Processing Element) Garp chip Example computations in one cycle A<<10 | (b&c) (A-2*b+c)

  25. Granularity: GARP Memory • Impact of configuration size • 1 GHz bus frequency • 128-bit memory bus • 512Kbits of configuration size D-cache I-cache On a RFU context switch how long to load a new full configuration? CPU RFU 4 microseconds An estimate of amount of time for the CPU perform a context switch is ~5 microseconds Config cache Garp chip ~2x increase context switch latency!!

  26. Granularity: GARP Memory RFU Execution (16, 2-bit) control (1) D-cache I-cache CPU RFU N Config cache PE (Processing Element) Garp chip • “The Garp Architecture and C Compiler” • http://www.cs.cmu.edu/~tcal/IEEE-Computer-Garp.pdf

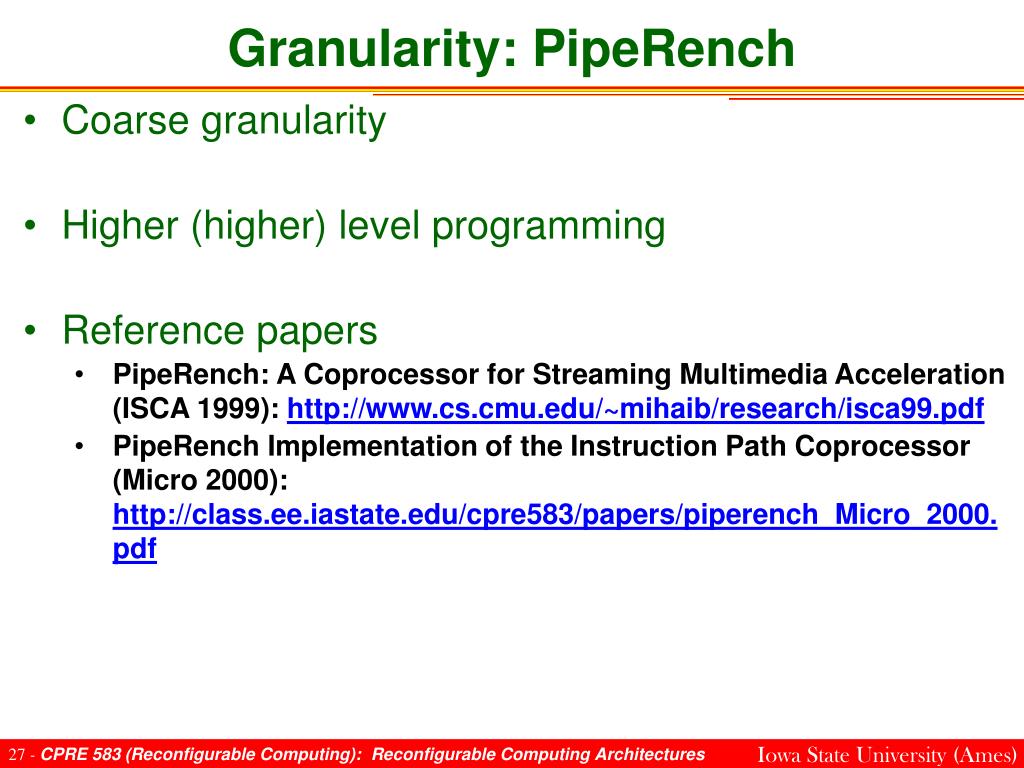

  27. Granularity: PipeRench • Coarse granularity • Higher (higher) level programming • Reference papers • PipeRench: A Coprocessor for Streaming Multimedia Acceleration (ISCA 1999): http://www.cs.cmu.edu/~mihaib/research/isca99.pdf • PipeRench Implementation of the Instruction Path Coprocessor (Micro 2000): http://class.ee.iastate.edu/cpre583/papers/piperench_Micro_2000.pdf

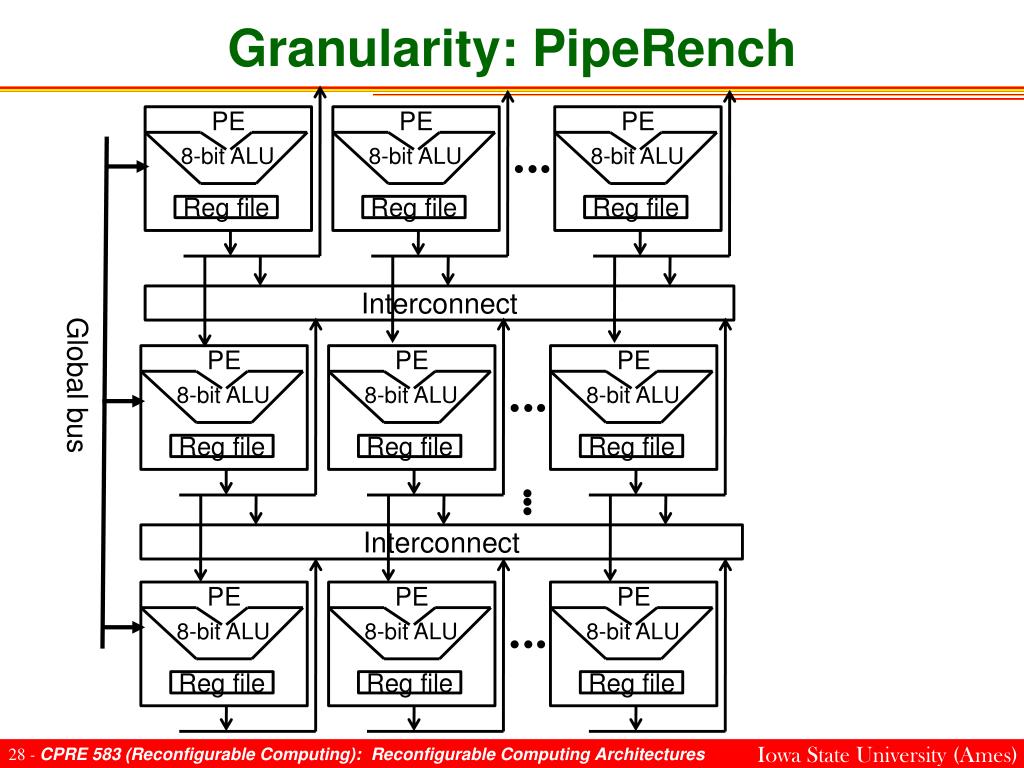

  28. Granularity: PipeRench PE PE PE PE PE PE PE PE PE 8-bit ALU 8-bit ALU 8-bit ALU 8-bit ALU 8-bit ALU 8-bit ALU 8-bit ALU 8-bit ALU 8-bit ALU Reg file Reg file Reg file Reg file Reg file Reg file Reg file Reg file Reg file Interconnect Global bus Interconnect

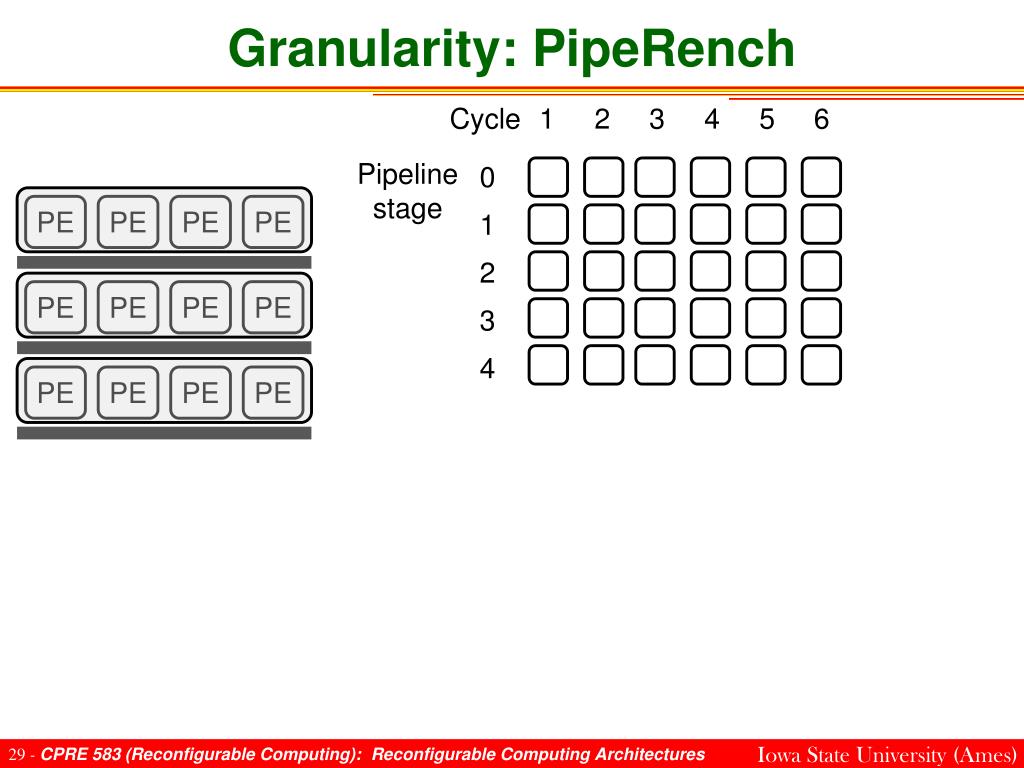

  29. Granularity: PipeRench Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 3 4 PE PE PE PE PE PE PE PE PE PE PE PE

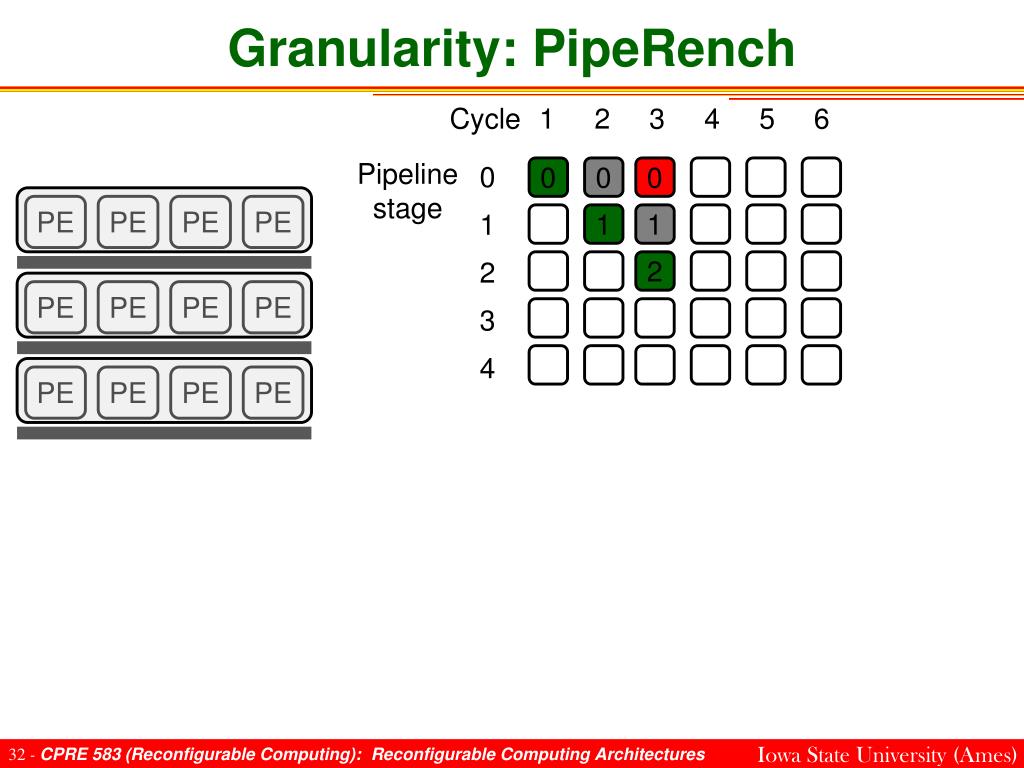

  30. Granularity: PipeRench Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 3 4 0 PE PE PE PE PE PE PE PE PE PE PE PE

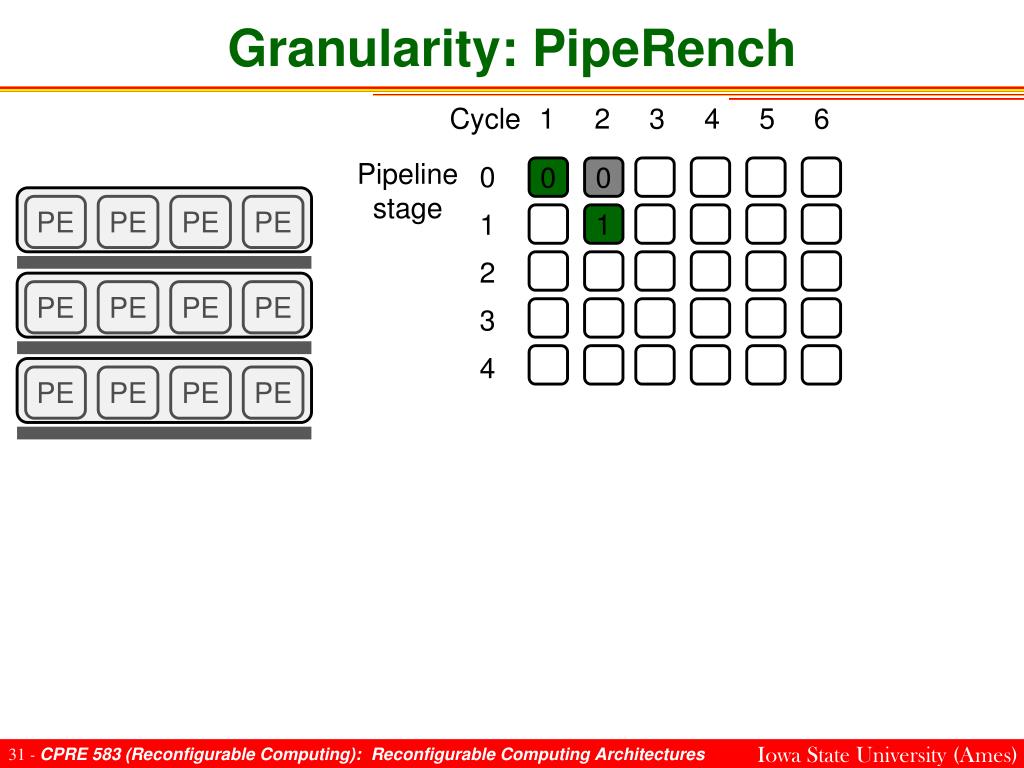

  31. Granularity: PipeRench Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 3 4 0 0 PE PE PE PE 1 PE PE PE PE PE PE PE PE

  32. Granularity: PipeRench Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 3 4 0 0 0 PE PE PE PE 1 1 2 PE PE PE PE PE PE PE PE

  33. Granularity: PipeRench Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 3 4 0 0 0 PE PE PE PE 1 1 1 2 2 PE PE PE PE 3 PE PE PE PE

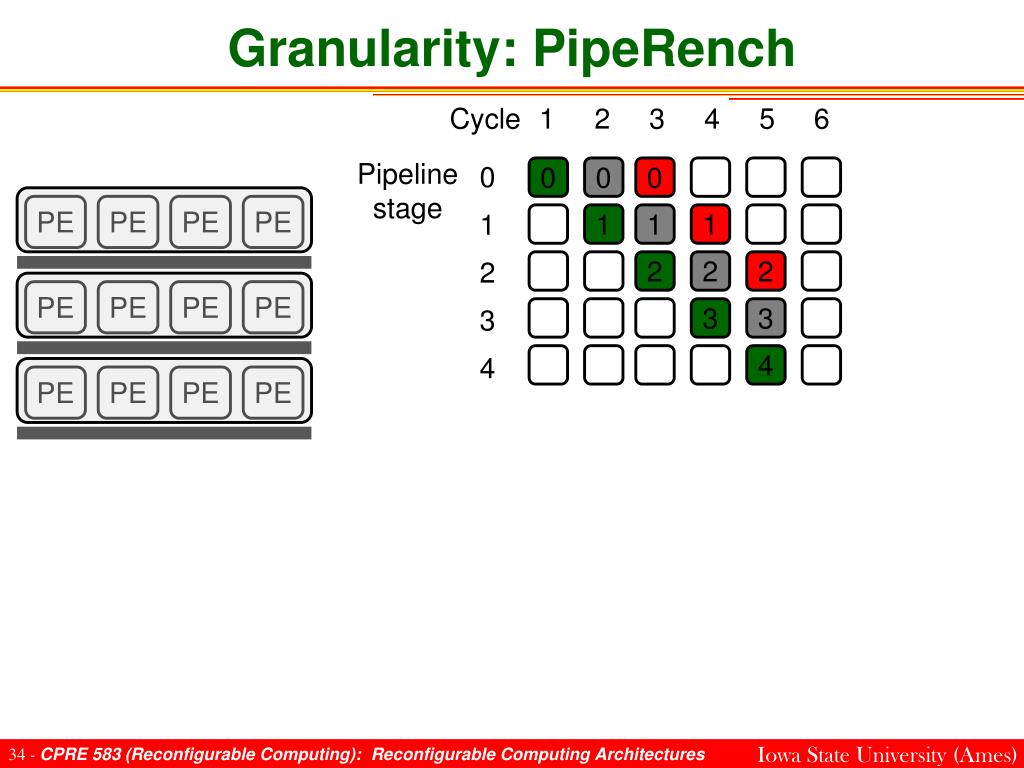

  34. Granularity: PipeRench Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 3 4 0 0 0 PE PE PE PE 1 1 1 2 2 2 PE PE PE PE 3 3 4 PE PE PE PE

  35. Granularity: PipeRench Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 3 4 0 0 0 0 PE PE PE PE 1 1 1 2 2 2 PE PE PE PE 3 3 3 4 4 PE PE PE PE

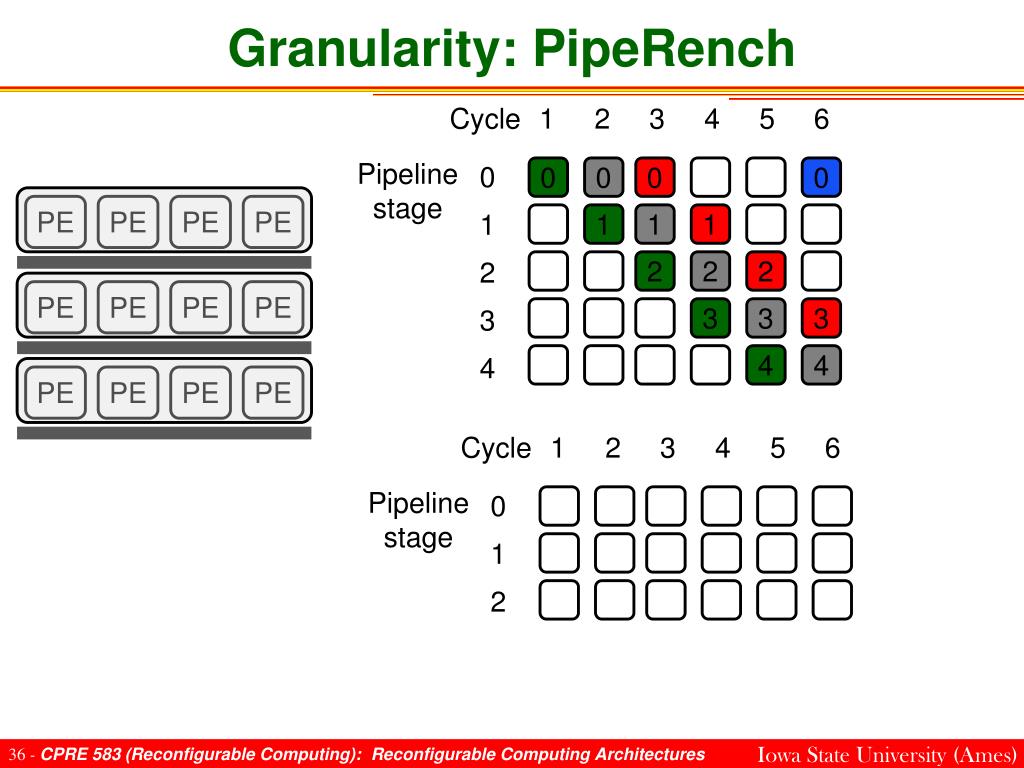

  36. Granularity: PipeRench Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 3 4 0 0 0 0 PE PE PE PE 1 1 1 2 2 2 PE PE PE PE 3 3 3 4 4 PE PE PE PE Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2

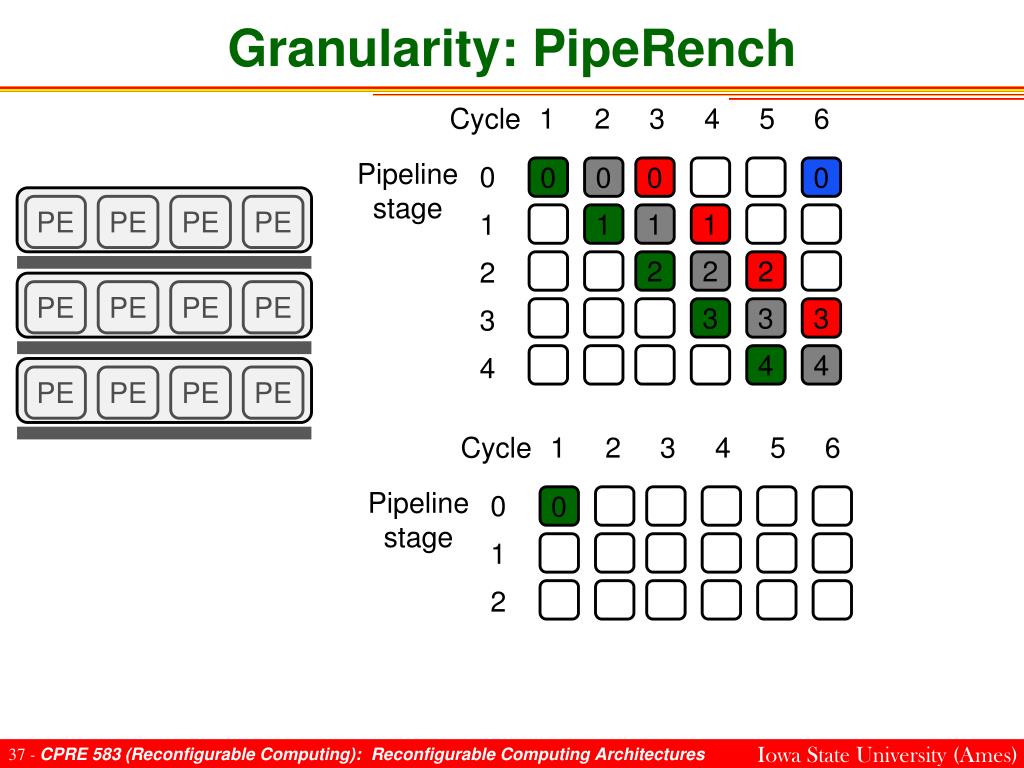

  37. Granularity: PipeRench Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 3 4 0 0 0 0 PE PE PE PE 1 1 1 2 2 2 PE PE PE PE 3 3 3 4 4 PE PE PE PE Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 0

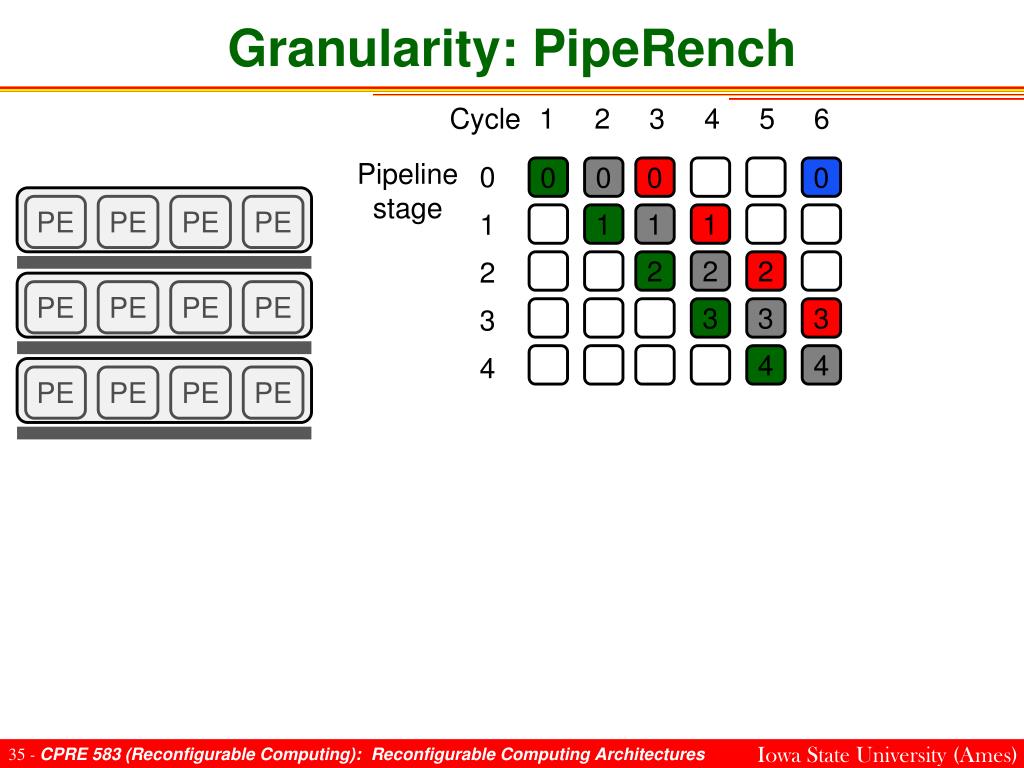

  38. Granularity: PipeRench Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 3 4 0 0 0 0 PE PE PE PE 1 1 1 2 2 2 PE PE PE PE 3 3 3 4 4 PE PE PE PE Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 0 0 1

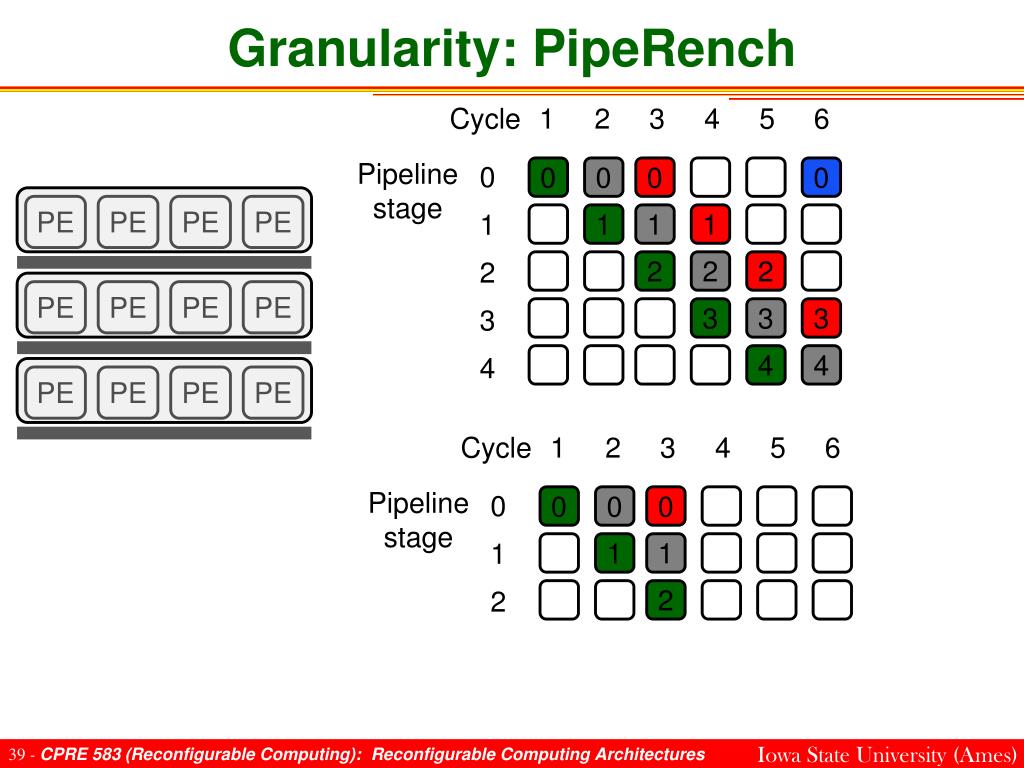

  39. Granularity: PipeRench Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 3 4 0 0 0 0 PE PE PE PE 1 1 1 2 2 2 PE PE PE PE 3 3 3 4 4 PE PE PE PE Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 0 0 0 1 1 2

  40. Granularity: PipeRench Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 3 4 0 0 0 0 PE PE PE PE 1 1 1 2 2 2 PE PE PE PE 3 3 3 4 4 PE PE PE PE Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 0 0 0 3 1 1 1 2 2

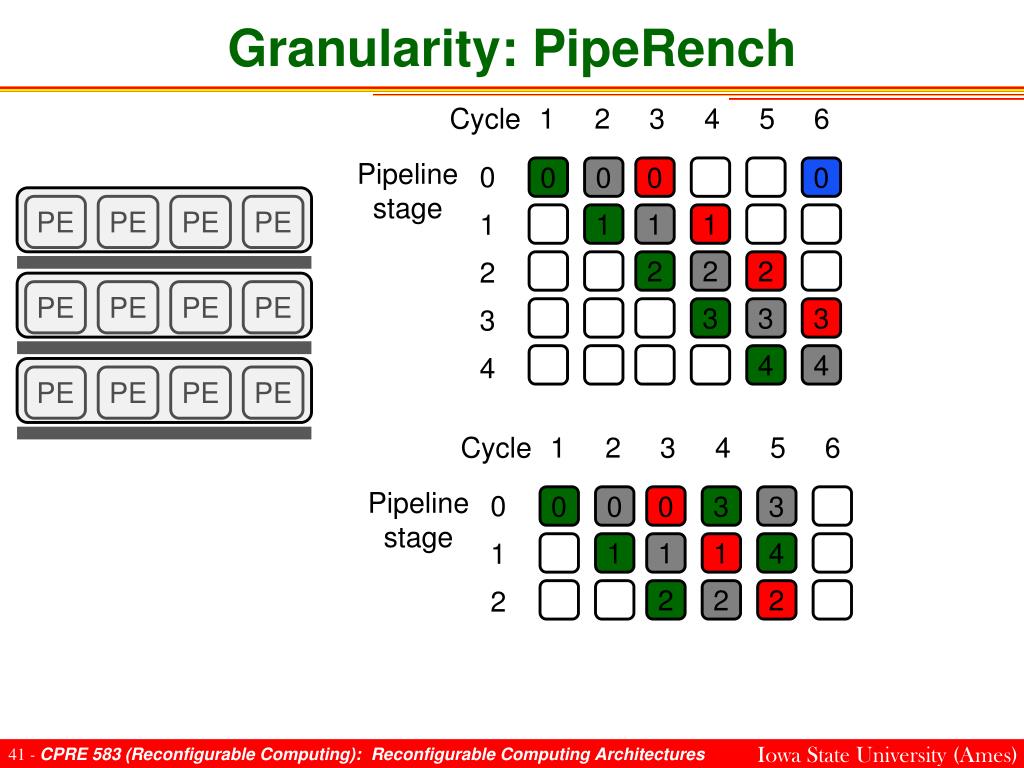

  41. Granularity: PipeRench Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 3 4 0 0 0 0 PE PE PE PE 1 1 1 2 2 2 PE PE PE PE 3 3 3 4 4 PE PE PE PE Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 0 0 0 3 3 1 1 1 4 2 2 2

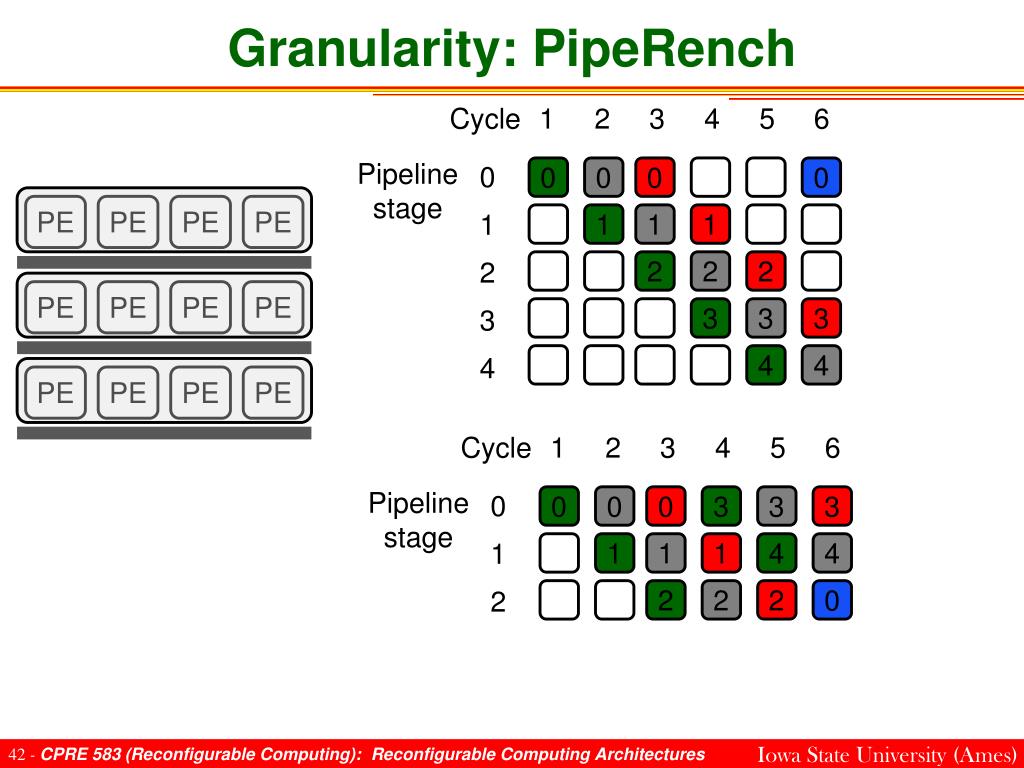

  42. Granularity: PipeRench Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 3 4 0 0 0 0 PE PE PE PE 1 1 1 2 2 2 PE PE PE PE 3 3 3 4 4 PE PE PE PE Cycle 1 2 3 4 5 6 Pipeline stage 0 1 2 0 0 0 3 3 3 1 1 1 4 4 2 2 2 0

  43. Degree of Integration/Coupling • Independent Reconfigurable Coprocessor • Reconfigurable Fabric does not have direct communication with the CPU • Processor + Reconfigurable Processing Fabric • Loosely coupled on the same chip • Tightly coupled on the same chip

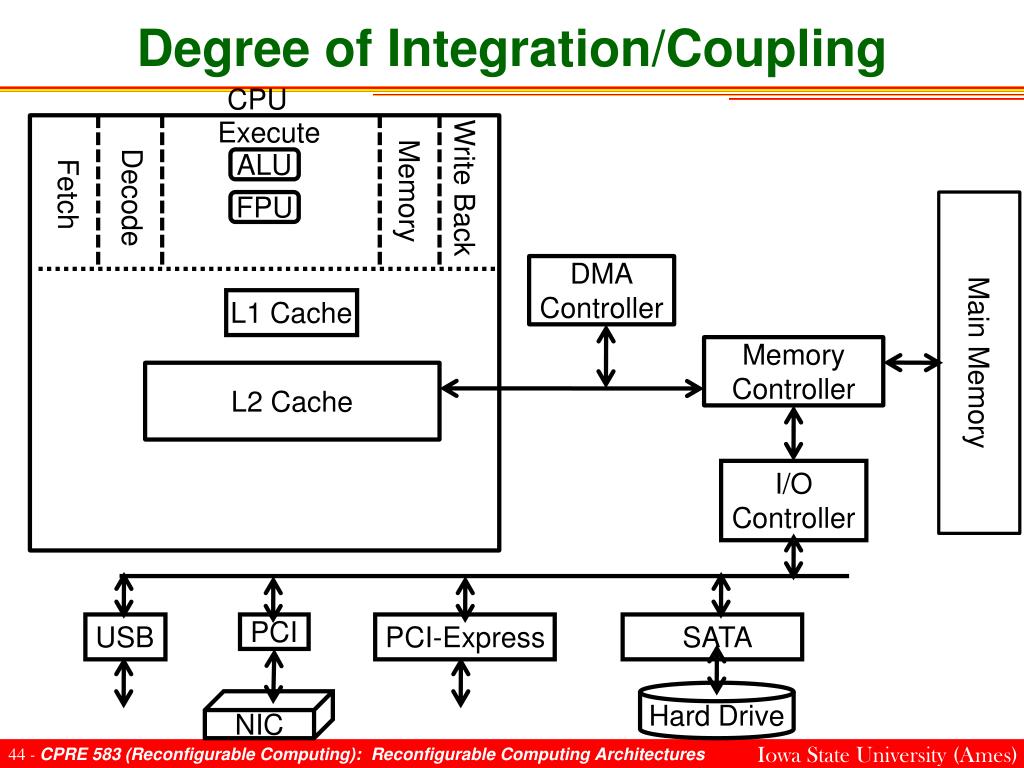

  44. Degree of Integration/Coupling CPU Execute Write Back Memory Decode ALU Fetch FPU DMA Controller L1 Cache Main Memory Memory Controller L2 Cache I/O Controller USB PCI PCI-Express SATA Hard Drive NIC

  45. Degree of Integration/Coupling CPU Execute Write Back Memory Decode ALU Fetch FPU DMA Controller L1 Cache Main Memory Memory Controller L2 Cache I/O Controller USB PCI PCI-Express SATA RPF Hard Drive NIC

  46. Degree of Integration/Coupling CPU Execute Write Back RPF Memory Decode ALU Fetch FPU DMA Controller L1 Cache Main Memory Memory Controller L2 Cache I/O Controller USB PCI PCI-Express SATA Hard Drive NIC

  47. Degree of Integration/Coupling CPU Execute Write Back Memory Decode ALU Fetch FPU DMA Controller L1 Cache Config I/F Main Memory Memory Controller L2 Cache I/O Controller RPF USB PCI PCI-Express SATA Hard Drive NIC

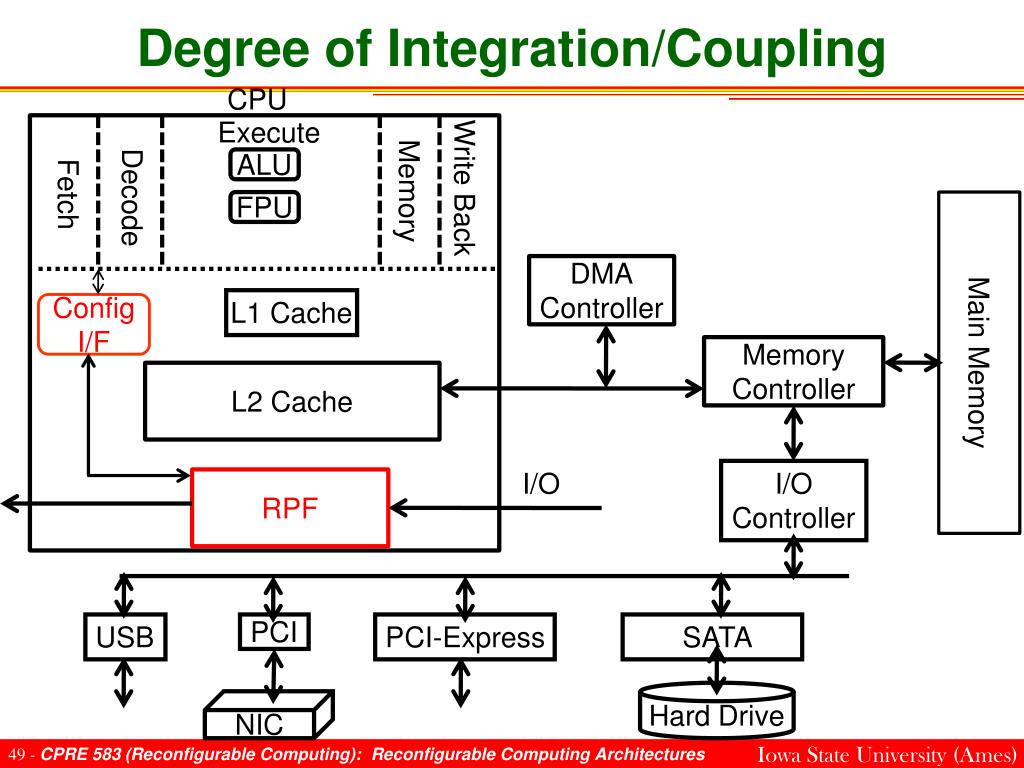

  48. Degree of Integration/Coupling CPU Execute Write Back Memory Decode ALU Fetch FPU DMA Controller L1 Cache Config I/F Main Memory Memory Controller L2 Cache I/O Controller RPF USB PCI PCI-Express SATA Hard Drive NIC

  49. Degree of Integration/Coupling CPU Execute Write Back Memory Decode ALU Fetch FPU DMA Controller L1 Cache Config I/F Main Memory Memory Controller L2 Cache I/O I/O Controller RPF USB PCI PCI-Express SATA Hard Drive NIC

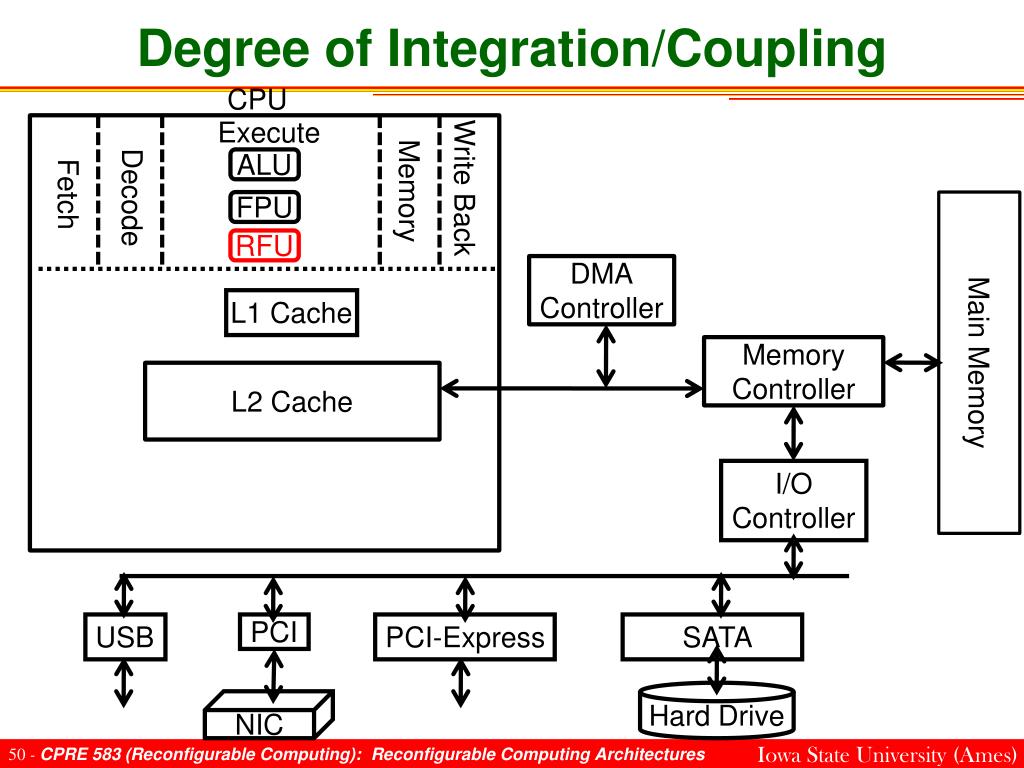

  50. Degree of Integration/Coupling CPU Execute Write Back Memory Decode ALU Fetch FPU RFU DMA Controller L1 Cache Main Memory Memory Controller L2 Cache I/O Controller USB PCI PCI-Express SATA Hard Drive NIC
