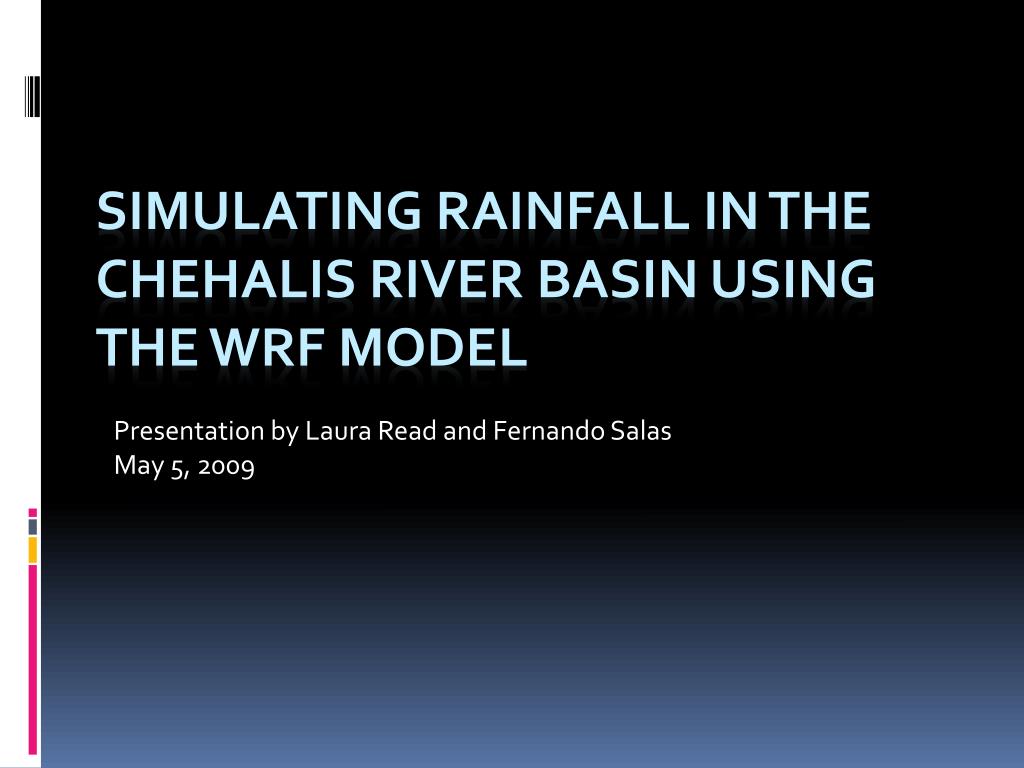

  1. Presentation by Laura Read and Fernando Salas May 5, 2009 Simulating rainfall in the Chehalis river basin using the WRF model

  2. Presentation Outline • Motivation for modeling heavy rainfall • Introduction to Weather Research & Forecasting model • The Chehalis River Basin and storm event • Experimental design and methods • Model validation • Results and conclusions • Future work

  3. Motivation: Places Flood Adjusted Flood Damage Costs in the U.S. from 1900-2007 Flood Forecasting System Weather Research & Forecast Model (WRF) Runoff Wind Flooding HEC-HMS Courtesy of John E. Strack et al.

  4. Climate Change A call to action Evidence for more rain, stronger storms • IPCC report on regional climate conditions • National recognition among the NRC, NOAA • Uncertainty in current projections • Higher temperatures = More moisture flux and convergence in the atmosphere

  5. The Weather Research & Forecasting Model Who, What, Where, When Simulation Process • Developed by NCAR, NOAA, NCEP, FAA, Air Force and Navy Research • Regional version of a GCM—finer resolution, set boundaries and initializations • Uses physical equations to conduct research, forecast weather (numeric weather prediction) http://www.dtcenter.org/wrfnmm/users/docs/user_guide/V3/users_guide_nmm_chap3_files/image001.gif WRF Post-Processing ARWpost

  6. Storm Event Justification • Why Washington? • 31 of 43 Disaster Declarations are flood related • NEXRAD storm database lists heavy precipitation events and its associated damage costs http://www4.ncdc.noaa.gov/cgi-win/wwcgi.dll?wwEvent~Storms

  7. The Chehalis River Basin • Basin Area: 2,660 sq mi • Length: 115 mi • Annual Average Discharge: 11,208 cfs 200 in/yr 45 in/yr http://www.ngdc.noaa.gov/mgg/topo/img/wa.jpg http://www.chehalislandtrust.org/_borders/MAP1.JPG

  8. Chehalis River Basin • USGS collects continuous observational stream-flow data nationwide • Nov 3rd storm event eclipsed flood stage in Chehalis River • 2007 and 2008 both had record breaking floods in the South-Central region…is this a trend? http://waterdata.usgs.gov/wa/nwis/dv/?dd_cd=02_00065_00003&format=img_default&site_no=12027500&set_logscale_y=0&begin_date=20061103&end_date=20061109

  9. Storm Event: Nov 3, 2006 to Nov 9, 2006 http://water.weather.gov/

  10. Storm Event: Nov 3, 2006 to Nov 9, 2006

  11. Storm Event: Nov 3, 2006 to Nov 9, 2006

  12. Storm Event: Nov 3, 2006 to Nov 9, 2006

  13. Storm Event: Nov 3, 2006 to Nov 9, 2006

  14. Storm Event: Nov 3, 2006 to Nov 9, 2006

  15. Storm Event: Nov 3, 2006 to Nov 9, 2006

  16. WRF Domain 52º N 43º N 128º W 112º W Courtesy of Google Earth

  17. Experimental Design

  18. Model Validation • Atmospheric – 32 km NARR • Geo-potential height • Specific Humidity/Water vapor mixing ratio • Wind and wind direction • Precipitation – 4 km NEXRAD • Accumulated rainfall • Temporal Distribution • Spatial Distribution

  19. Geo-Potential Height: 120 W Over Time WRF: 01_02 Simulation NARR

  20. Wind and Wind Speed: 700 mb WRF: 01_02 Simulation at 00z7nov2006 NARR

  21. Specific Humidity: Constant Latitude 01_02 Simulation: 00z7nov2006 NARR Pressure (mb) Pressure (mb) Pressure (mb)

  22. NEXRAD Validation Process of Importing Our Simulations

  23. Model Validation with NEXRAD: Daily

  24. Model Validation • Atmospheric – 32 km NARR • Geo-potential height • Specific Humidity/Water vapor mixing ratio • Wind and wind direction • Precipitation – 4 km NEXRAD • Accumulated rainfall • Temporal Distribution • Spatial Distribution

  25. Example of 6-Hour Error Analysis

  26. Model Validation with NEXRAD: 6 Hours

  27. Parameterization Results Summary • 02_02: Betts-Miller-Janjic, Lin et al. • 01_02: Kain-Fritsch, Lin et al. • 02_05: Kain-Fritsch, new Eta Lin et al. microphysics scheme produced lowest percent errors compared with NEXRAD

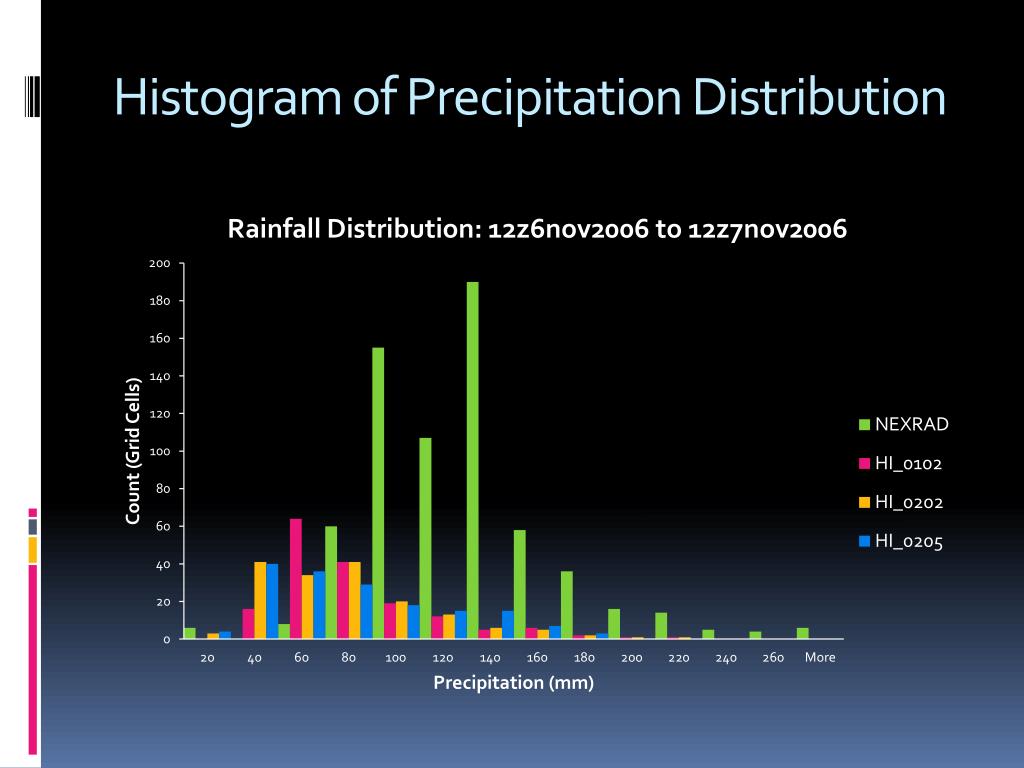

  28. Histogram of Precipitation Distribution

  29. Testing for Statistical Significance NEXRAD 01_02 Simulation

  30. Test for Homogeneity and T-Stats F-Test: Datasets are not homogeneous T-test: reject the null hypothesis (small p)

  31. Model Validation • Atmospheric – 32 km NARR • Geo-potential height • Specific Humidity/Water vapor mixing ratio • Wind and wind direction • Precipitation – 4 km NEXRAD • Accumulated rainfall • Temporal Distribution • Spatial Distribution

  32. Temporal Distribution Results Time period with the lowest amount of accumulated rainfall (06z7nov2006) has the highest associated percent error

  33. Total Precipitation: 12z6nov2006 to 12z7nov2006 **Note scale difference The simulations do not capture the magnitude or the trend of the rainfall over the 24 hours

  34. Model Validation • Atmospheric – 32 km NARR • Geo-potential height • Specific Humidity/Water vapor mixing ratio • Wind and wind direction • Precipitation – 4 km NEXRAD • Accumulated rainfall • Temporal Distribution • Spatial Distribution

  35. Spatial Results: Percent Error 0102 Simulation 0205 Simulation

  36. Spatial Error Analysis: Percent Error 6 Hour 12 Hour 18 Hour 24 Hour

  37. Conclusions • We need to improve our model • WRF underestimates rainfall for all parameterizations tested • BMJ and Lin et al. model physics work best • Spatial conclusions • Need to learn about the dynamics of the atmosphere

  38. Future Work (that likely will not happen) • Complete spatial analysis—error maps • Run simulations at higher resolution • With better results, look into feeding modeled precipitation into a river basin model (HEC-HMS) • How do WRF errors translate into stream-flow errors for flood forecasting?

  39. Questions? Comments? No Comments? • “Do you like statisticians?” **”Probably”
