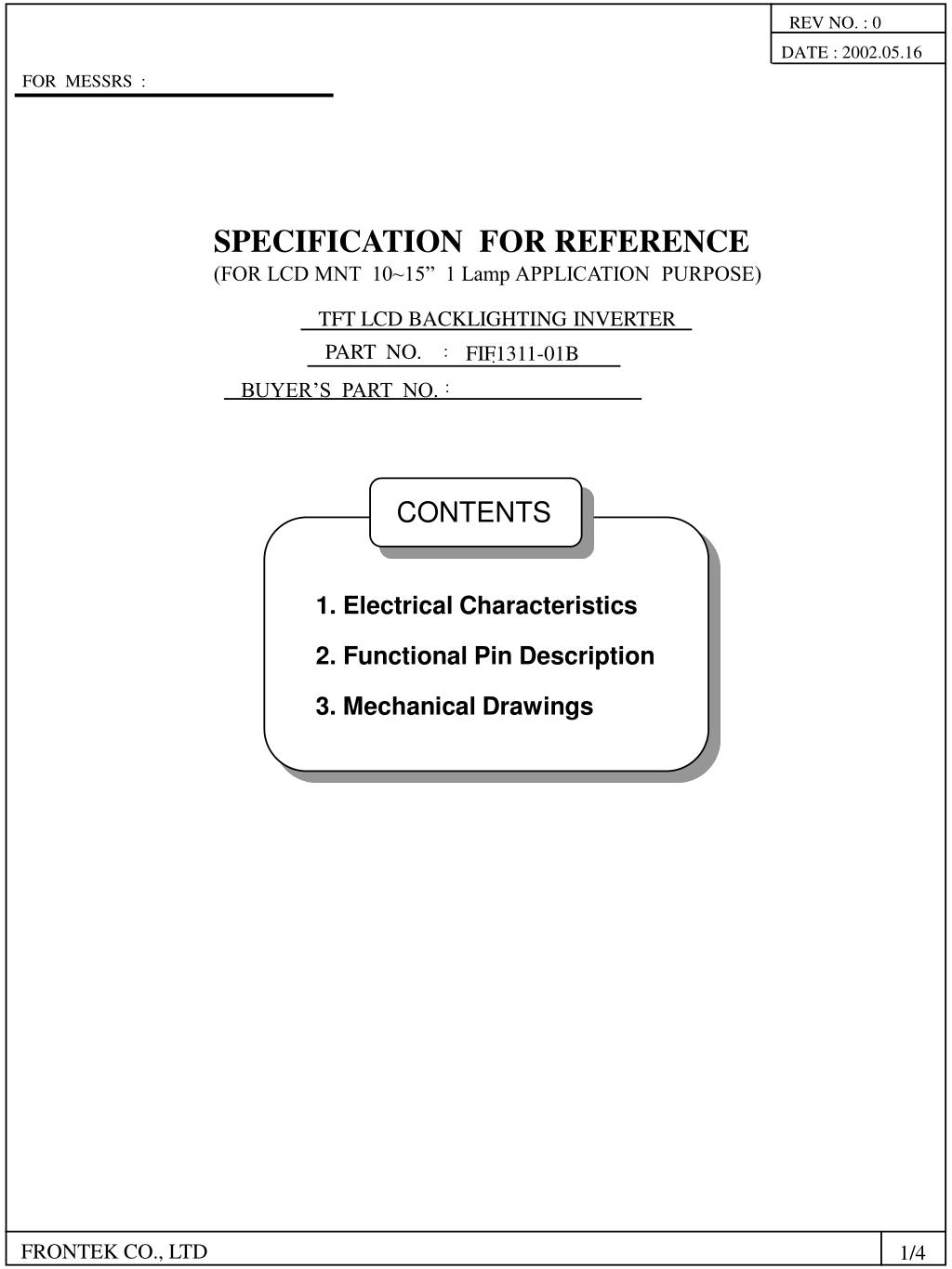

  1. REV NO. : 0 DATE : 2002.05.16 FOR MESSRS : SPECIFICATION FOR REFERENCE (FOR LCD MNT 10~15” 1 Lamp APPLICATION PURPOSE) TFT LCD BACKLIGHTING INVERTER PART NO. : FIF1311-01B : : BUYER’S PART NO. CONTENTS 1. Electrical Characteristics 2. Functional Pin Description 3. Mechanical Drawings FRONTEK CO., LTD 1/4

  2. 작 성 자 : 손정훈 서 명 : 제 정 일 개 정 일 개 정 번 호 ‘02.05.16 TFT LCD BACKLIGHTING 13.3” INVERTER SPECIFICATION P/NO. PAGE 1/3 FIF1311-01B 1. Electrical Characteristics Items (Unit) Max. Condition Sign. Min. Typ. No. Input Voltage (Vdc) 1 11.0 12 13.0 Vin Input Current (A) 0.22 0.27 0.34 Vin=12V Iin CTRL=5V 2 0.5 CTRL=0V 0.37 0.43 CTRL=5V 2.7 1.5 2.1 3 Vin=12V Output Current Iout CTRL=0V 5.3 5.7 6.2 Lamp Frequency (kHz) 50 CTRL=5V 60 70 Vin=12V 4 f Normal Operation ON Vin=12V, ON/OFF=5V 5 ON/OFF Control Shunt-down (Lamp off) OFF Vin=12V, ON/OFF=0V Dim Adjust (Lamp Current Control) CTRL=OV,Max Current CTRL 0 ~ 5 Volt. 6 CTRL=5V,Min Current Kick-Off Voltage(Vrms) - Vk-off 1100 1800 Kick-Off 7 8 rontek

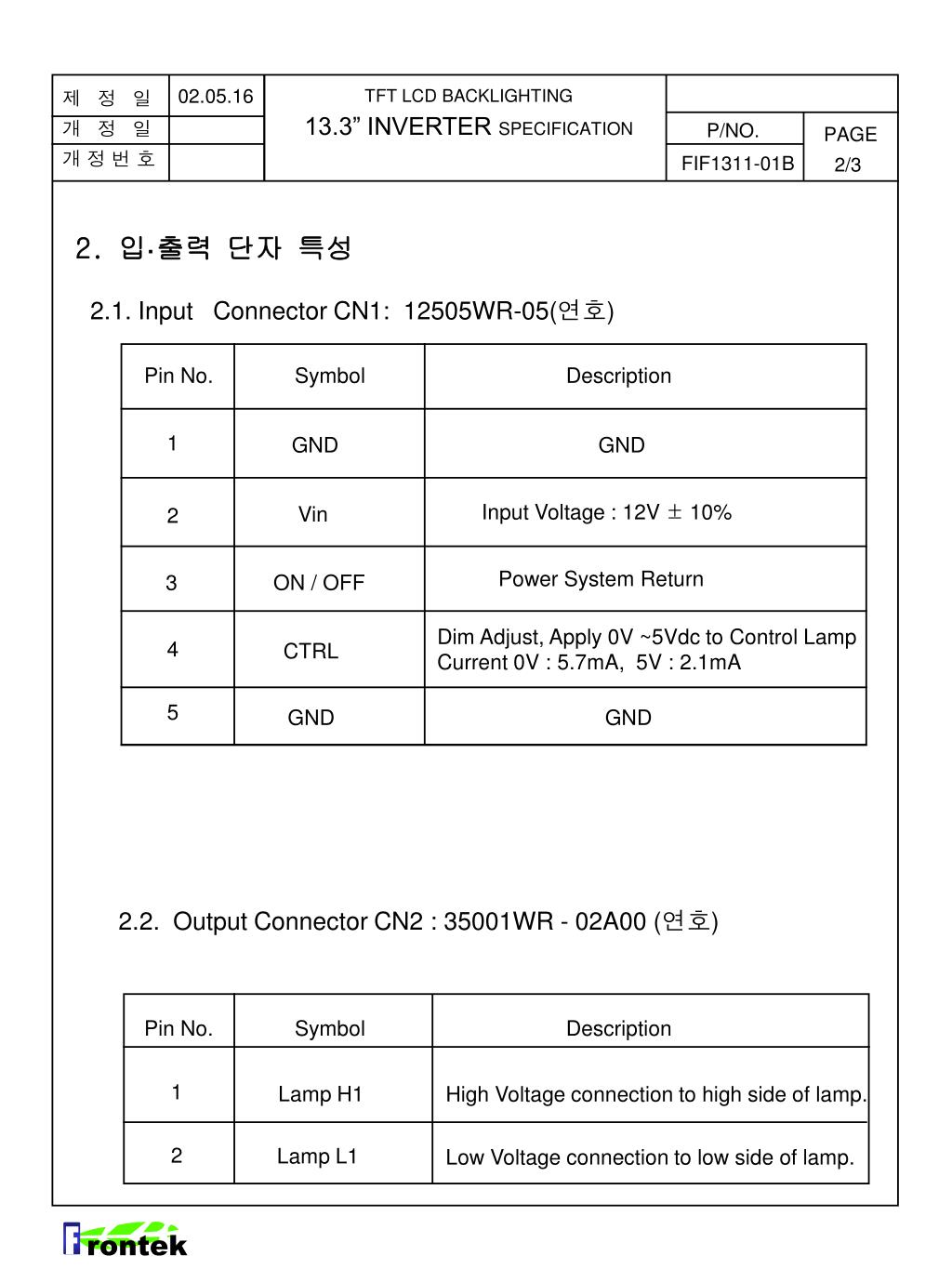

  3. 02.05.16 제 정 일 개 정 일 개 정 번 호 TFT LCD BACKLIGHTING 13.3” INVERTER SPECIFICATION P/NO. PAGE 2/3 FIF1311-01B 2. 입·출력 단자 특성 2.1. Input Connector CN1: 12505WR-05(연호) Pin No. Symbol Description 1 GND GND Input Voltage : 12V ± 10% Vin 2 Power System Return 3 ON / OFF Dim Adjust, Apply 0V ~5Vdc to Control Lamp Current 0V : 5.7mA, 5V : 2.1mA 4 CTRL 5 GND GND 2.2. Output Connector CN2 : 35001WR - 02A00 (연호) Pin No. Symbol Description 1 Lamp H1 High Voltage connection to high side of lamp. 2 Lamp L1 Low Voltage connection to low side of lamp. rontek

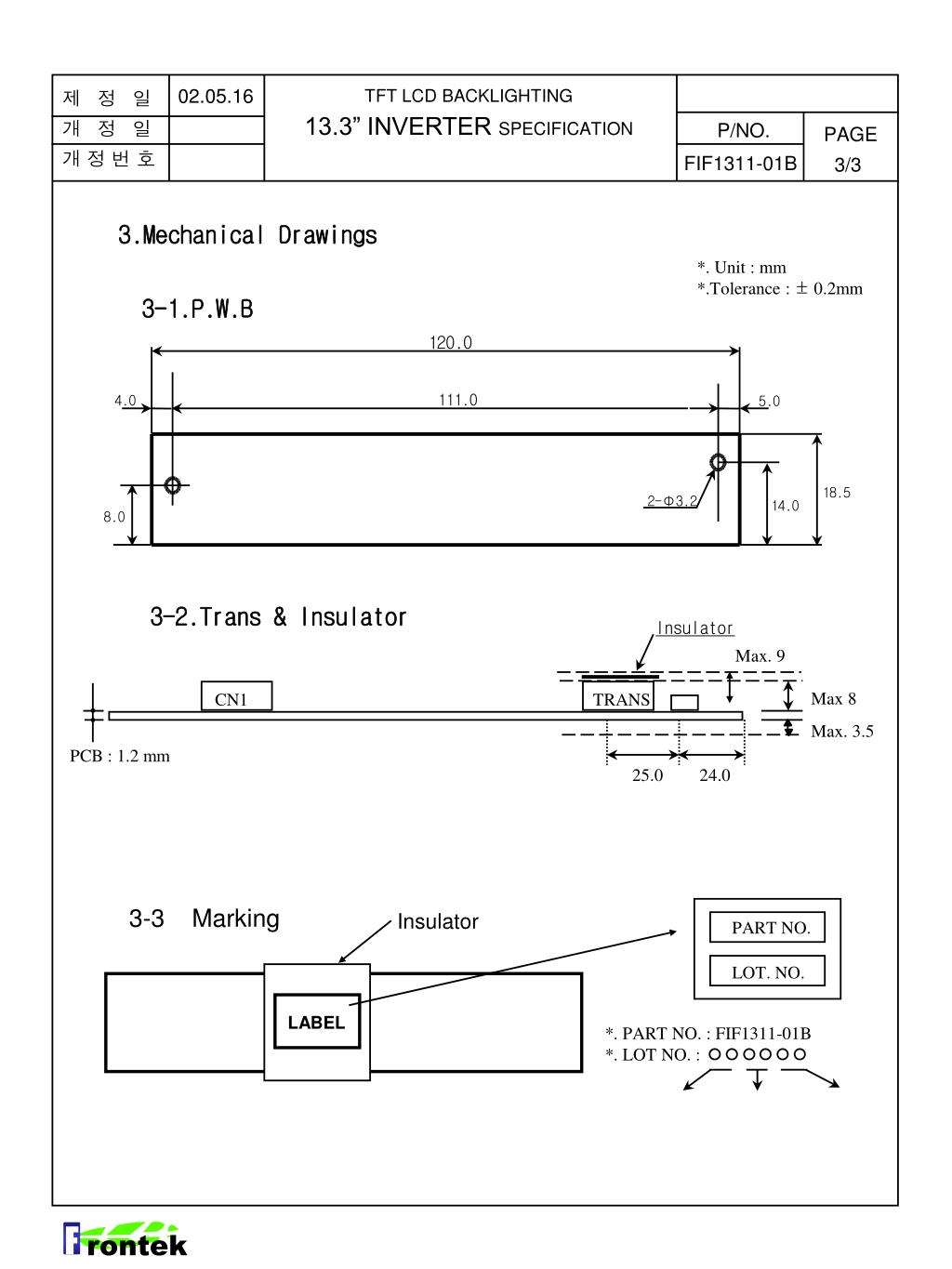

  4. 02.05.16 제 정 일 개 정 일 개 정 번 호 TFT LCD BACKLIGHTING 13.3” INVERTER SPECIFICATION P/NO. PAGE 3/3 FIF1311-01B 3.Mechanical Drawings *. Unit : mm *.Tolerance : ± 0.2mm 3-1.P.W.B 120.0 111.0 4.0 5.0 18.5 2-Φ3.2 14.0 8.0 3-2.Trans & Insulator Insulator Max. 9 Max 8 CN1 TRANS Max. 3.5 PCB : 1.2 mm 25.0 24.0 3-3 Marking Insulator PART NO. LOT. NO. LABEL *. PART NO. : FIF1311-01B *. LOT NO. : rontek
