  1. RDF based on Integration of Pathway Database and Gene Ontology SNU OOPSLA LAB. 2005 DongHyuk Im

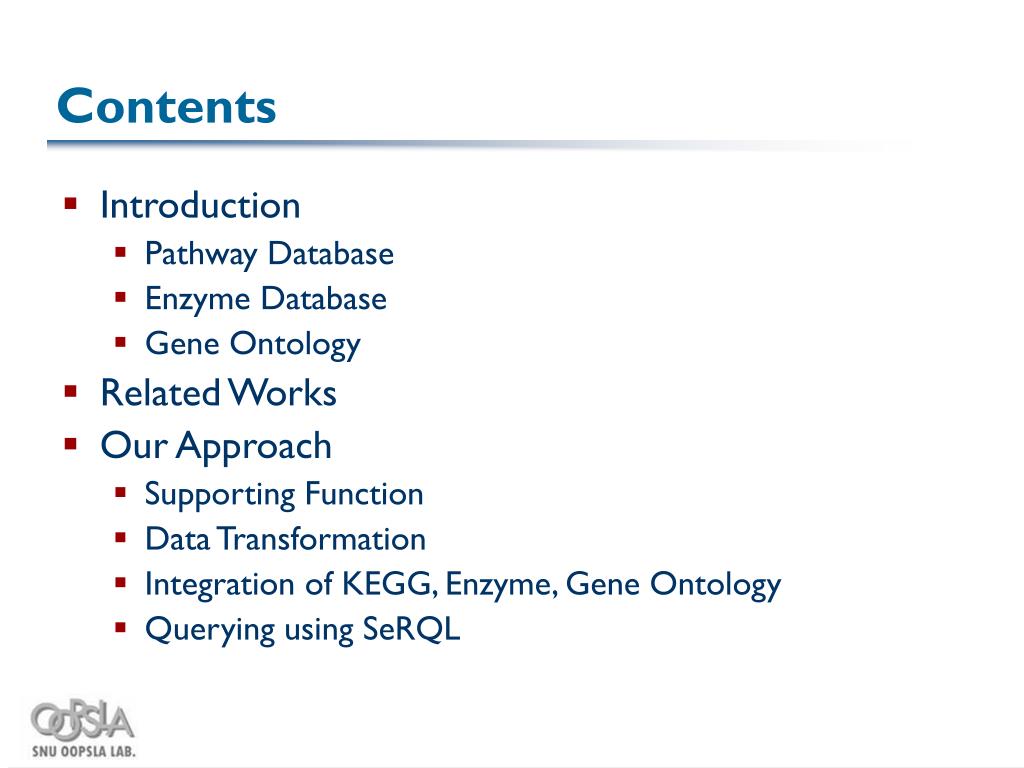

  2. Contents • Introduction • Pathway Database • Enzyme Database • Gene Ontology • Related Works • Our Approach • Supporting Function • Data Transformation • Integration of KEGG, Enzyme, Gene Ontology • Querying using SeRQL

  3. Pathway? • Most chemical reaction mechanisms are translated from a compound(substrate) to a compound(product) by enzyme acting • Importance • to comparison and analyze pathways in order to understand the process of creating compounds and the evolutive relevance between organisms • Drug Discovery

  4. Pathway Map : Glycolysis / Gluconeogenesis Map : Aquifex aeolicus

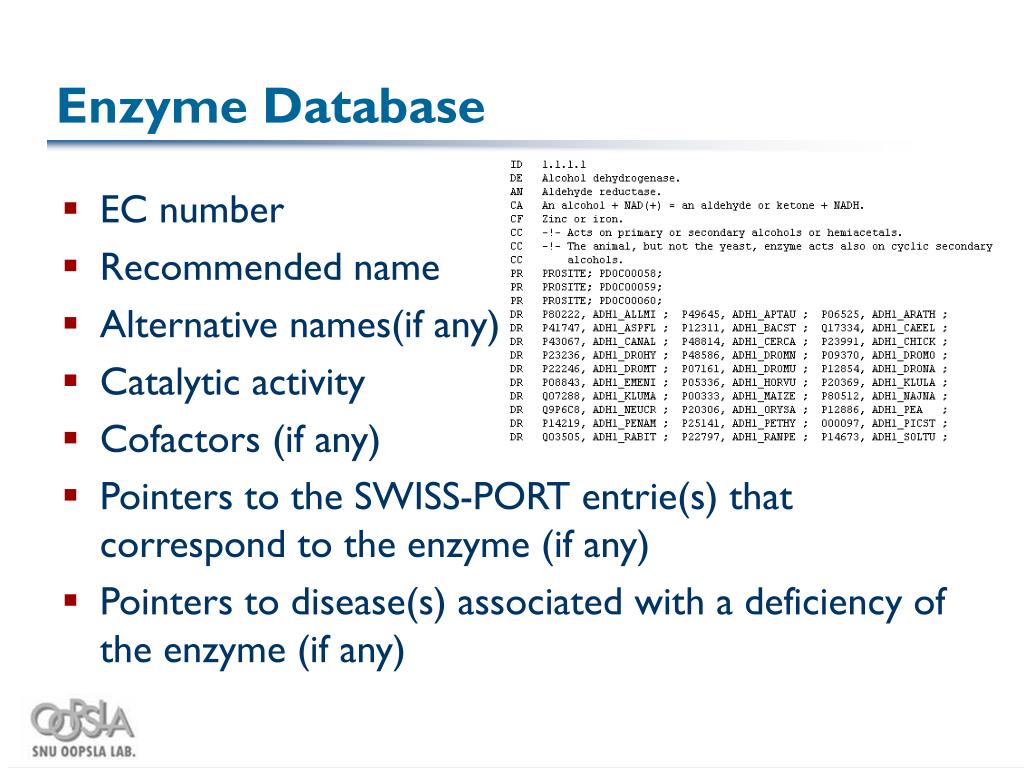

  5. Enzyme Database • EC number • Recommended name • Alternative names(if any) • Catalytic activity • Cofactors (if any) • Pointers to the SWISS-PORT entrie(s) that correspond to the enzyme (if any) • Pointers to disease(s) associated with a deficiency of the enzyme (if any)

  6. Enzyme Hierarchy [*] • Four levels • EC number • Ex) 1.1.1.1 is a member of the top level group [1] • The leftmost number identifies the highest level • [2.4.2.3] – [2.4.2.4](sibling) : similar reactions in pathway [1] [2] [3] [2.1] [2.2] [2.3] [2.2.1] [2.2.2] [2.2.3] [2.2.2.1] [2.2.2.2] [2.2.2.3]

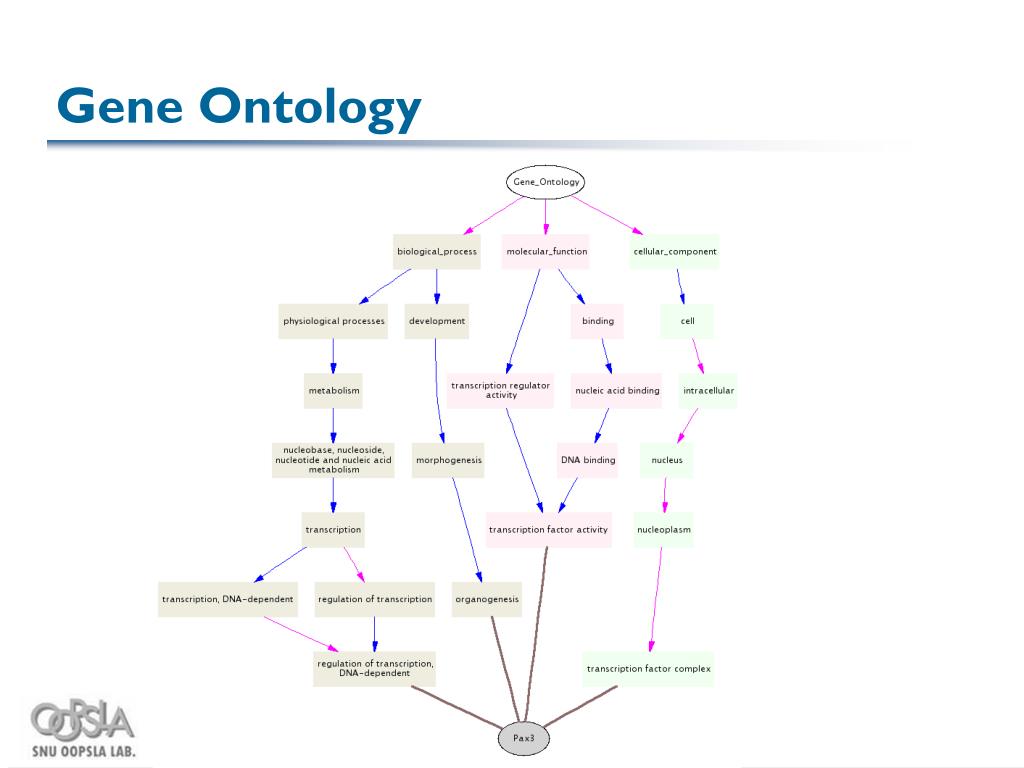

  7. Gene Ontology

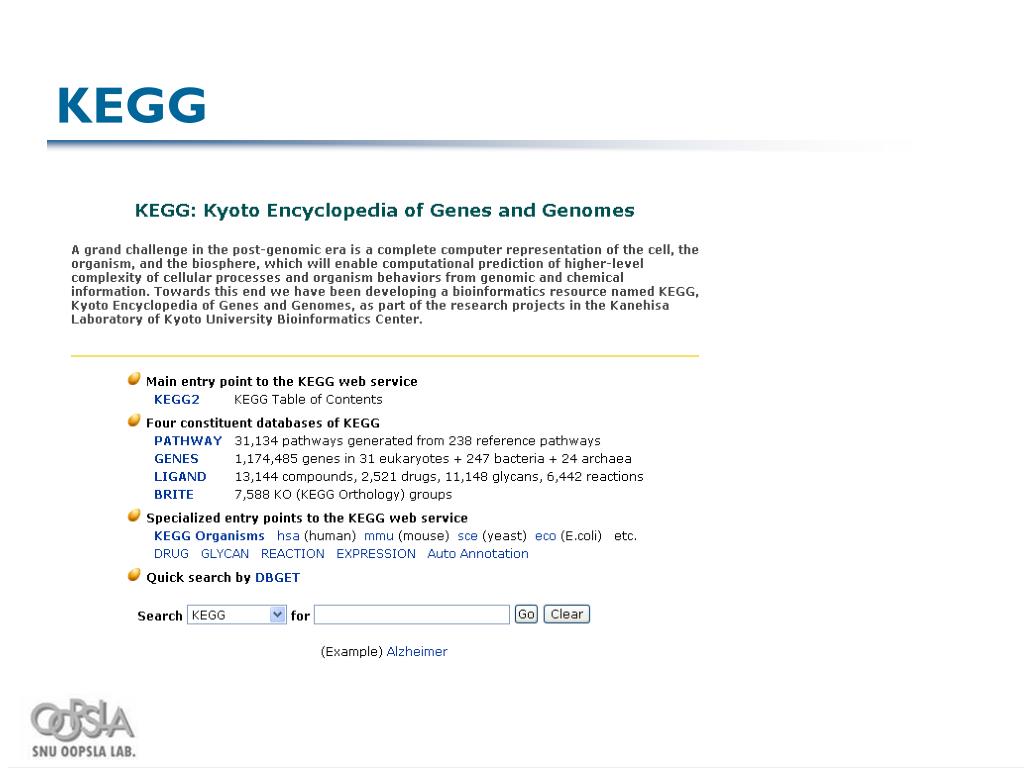

  8. KEGG

  9. KEGG • To computerize all aspects of cellular functions in terms of the pathway of interacting molecules or genes • To maintain gene catalogs for all organisms and link each gene product to a pathway component • To organize a database of all chemical compounds in the cell and link each compound to a pathway component • To develop computational technologies for pathway comparison, reconstruction, and analysis

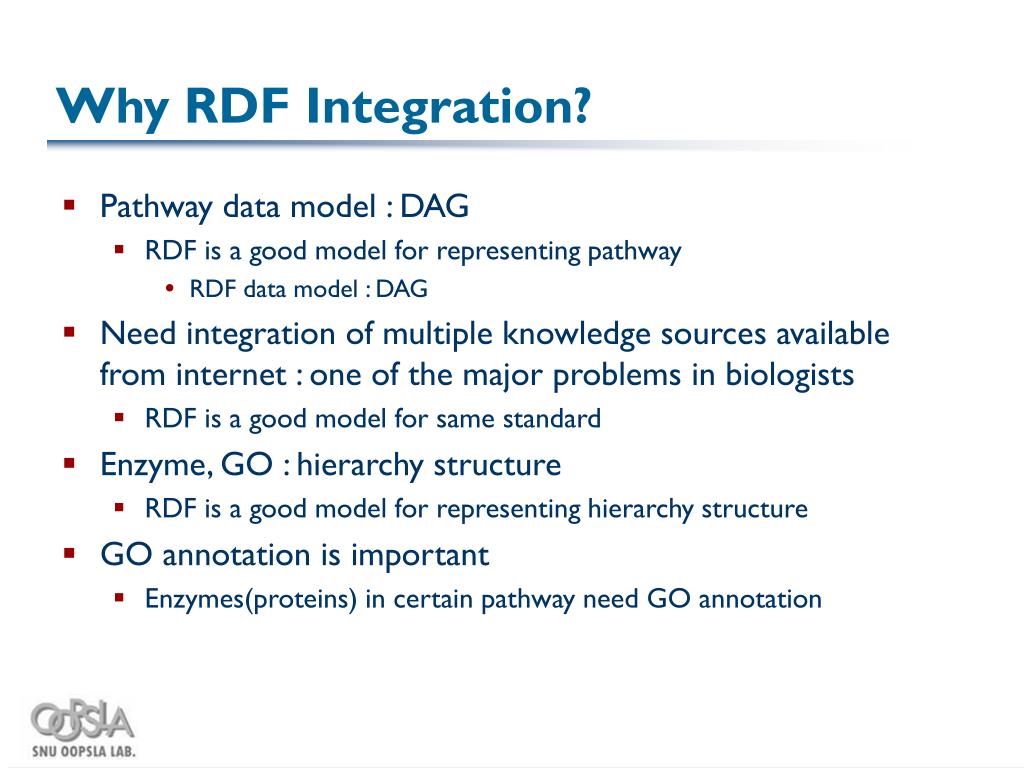

  10. Why RDF Integration? • Pathway data model : DAG • RDF is a good model for representing pathway • RDF data model : DAG • Need integration of multiple knowledge sources available from internet : one of the major problems in biologists • RDF is a good model for same standard • Enzyme, GO : hierarchy structure • RDF is a good model for representing hierarchy structure • GO annotation is important • Enzymes(proteins) in certain pathway need GO annotation

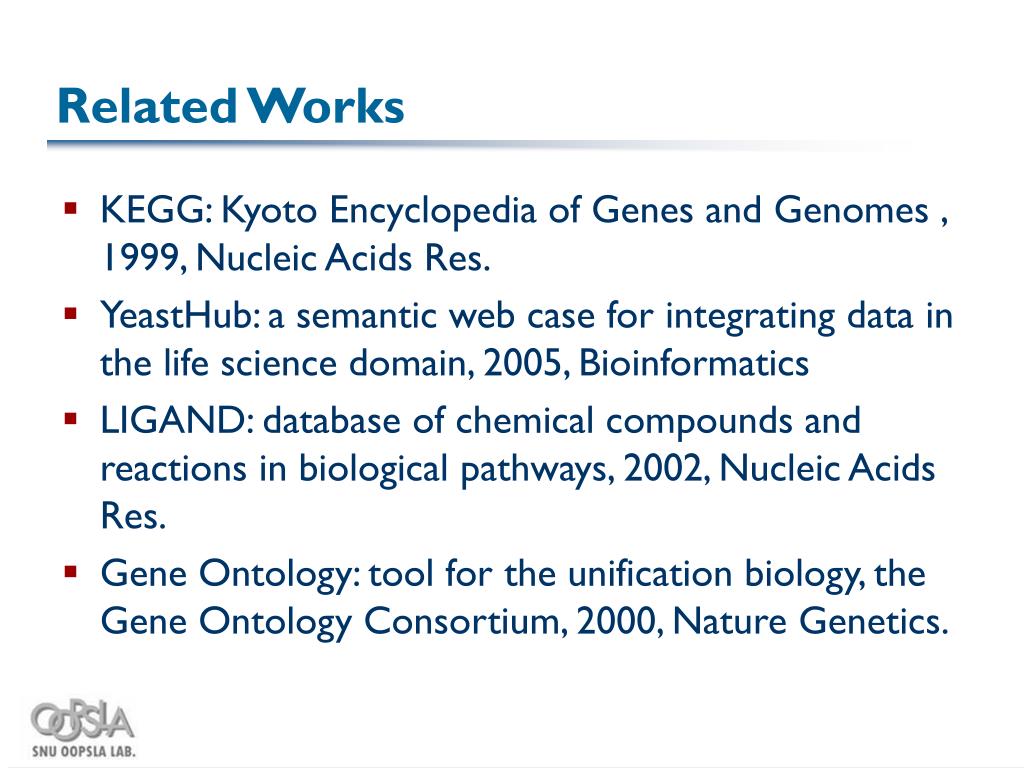

  11. Related Works • KEGG: Kyoto Encyclopedia of Genes and Genomes , 1999, Nucleic Acids Res. • YeastHub: a semantic web case for integrating data in the life science domain, 2005, Bioinformatics • LIGAND: database of chemical compounds and reactions in biological pathways, 2002, Nucleic Acids Res. • Gene Ontology: tool for the unification biology, the Gene Ontology Consortium, 2000, Nature Genetics.

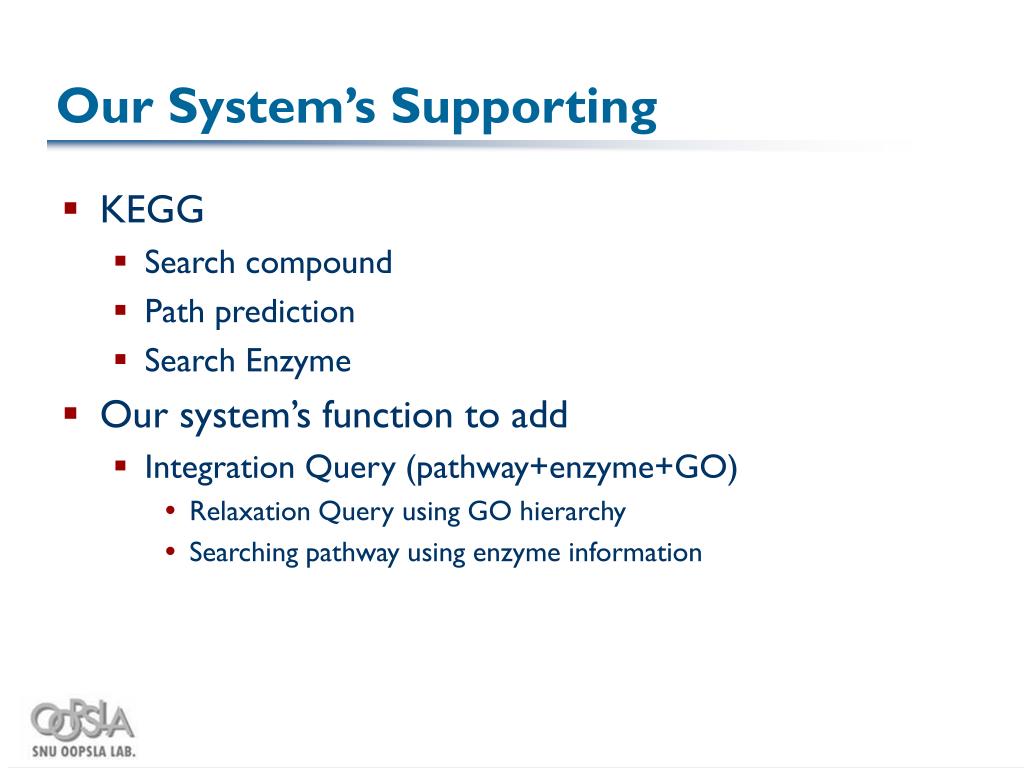

  12. Our System’s Supporting • KEGG • Search compound • Path prediction • Search Enzyme • Our system’s function to add • Integration Query (pathway+enzyme+GO) • Relaxation Query using GO hierarchy • Searching pathway using enzyme information

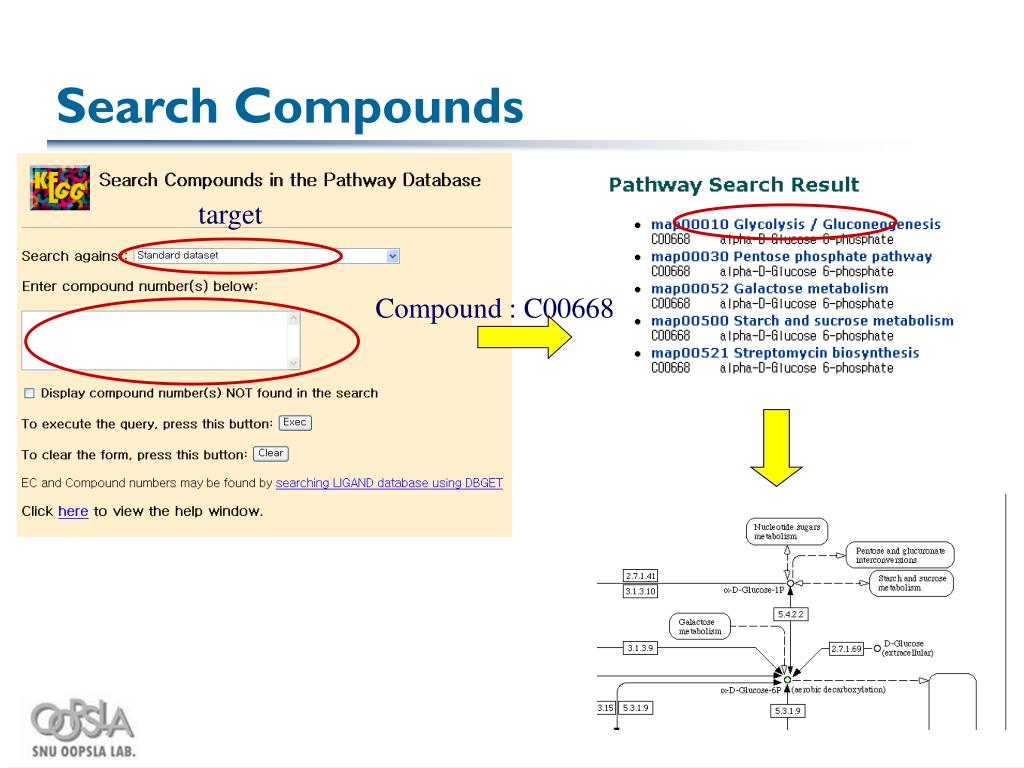

  13. Search Compounds target Compound : C00668

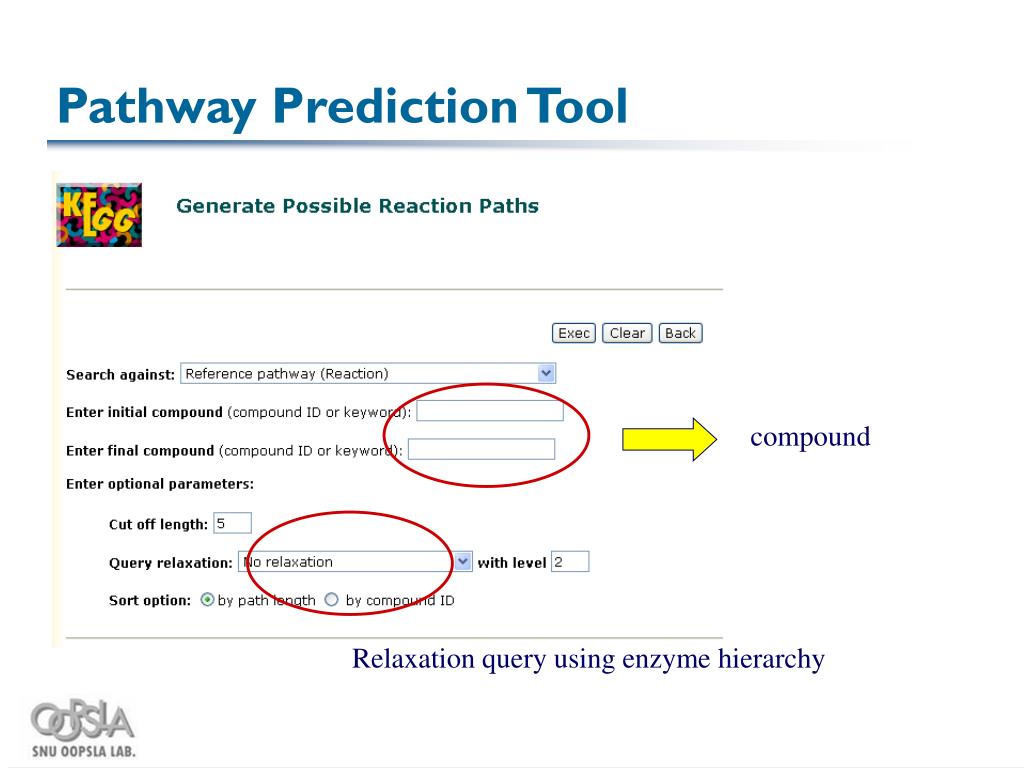

  14. Pathway Prediction Tool compound Relaxation query using enzyme hierarchy

  15. Search Enzyme Enzyme : 5.3.1.9

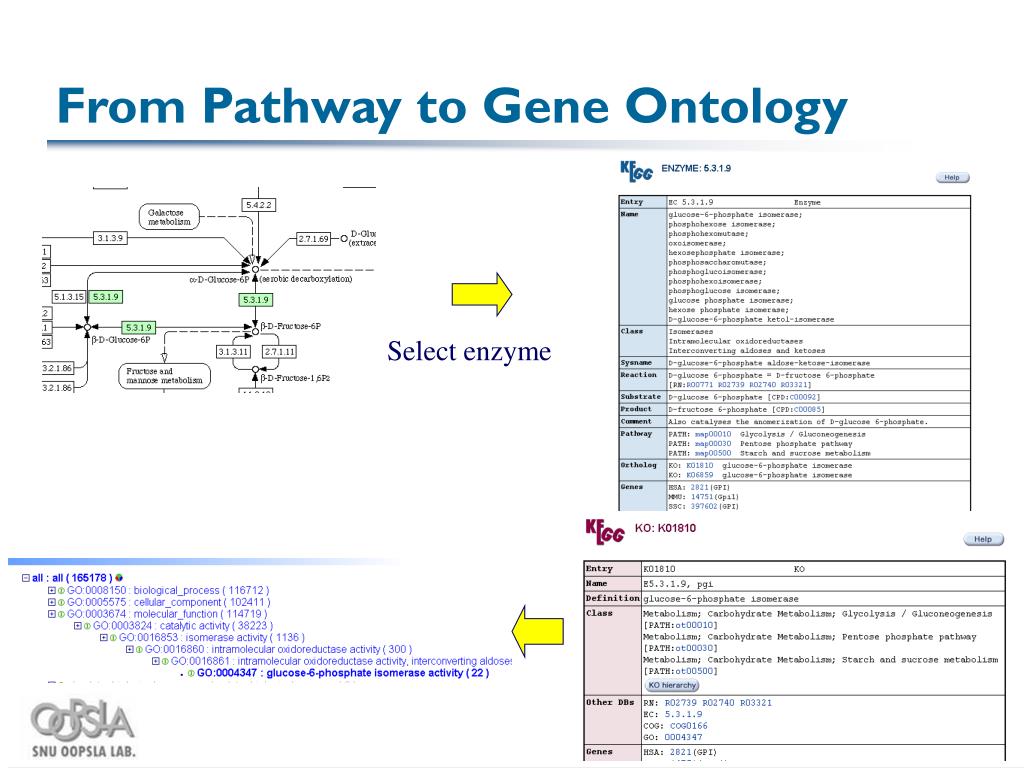

  16. From Pathway to Gene Ontology Select enzyme

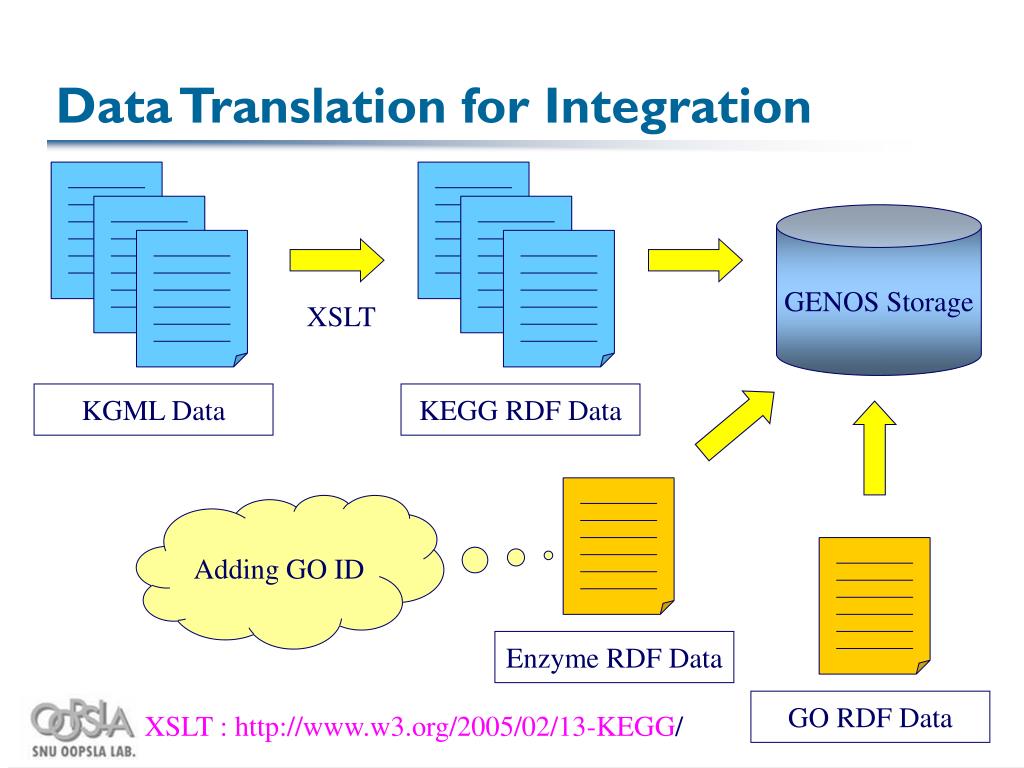

  17. Data Translation for Integration GENOS Storage XSLT KGML Data KEGG RDF Data Adding GO ID Enzyme RDF Data GO RDF Data XSLT : http://www.w3.org/2005/02/13-KEGG/

  18. KEGG RDF Data(1/2) Gene entry <k:entry> <Gene rdf:nodeID="_1"> <k:name rdf:resource="http://www.w3.org/2005/02/13-KEGG/aae#aq_186"/> <k:reaction rdf:resource="http://www.w3.org/2005/02/13-KEGG/rn#R00710"/> <k:link rdf:resource="http://www.genome.jp/dbget-bin/www_bget?aae+aq_186"/> <k:graphics><Rectangle k:name="aldH1" k:fgcolor="#000000" k:bgcolor="#BFFFBF" k:x="170" k:y="1018" k:width="45" k:height="17"/> </k:graphics> </Gene> </k:entry> Enzyme entry <k:entry> <Enzyme rdf:nodeID="_3"> <k:name rdf:resource="http://www.w3.org/2005/02/13-KEGG/ec#1.2.1.5"/> <k:graphics> <Rectangle k:name="1.2.1.5" k:fgcolor="#000000" k:bgcolor="#FFFFFF" k:x="170" k:y="1039" k:width="45" k:height="17"/> </k:graphics> </Enzyme> </k:entry> No information Compound entry <k:entry> <Compound rdf:nodeID="_4"> <k:name rdf:resource="http://www.w3.org/2005/02/13-KEGG/cpd#C00033"/> <k:link rdf:resource="http://www.genome.jp/dbget-bin/www_bget?compound+C00033"/> <k:graphics> <Circle k:name="C00033" k:fgcolor="#000000" k:bgcolor="#FFFFFF" k:x="102" k:y="971" k:width="8" k:height="8"/> </k:graphics> </Compound> </k:entry>

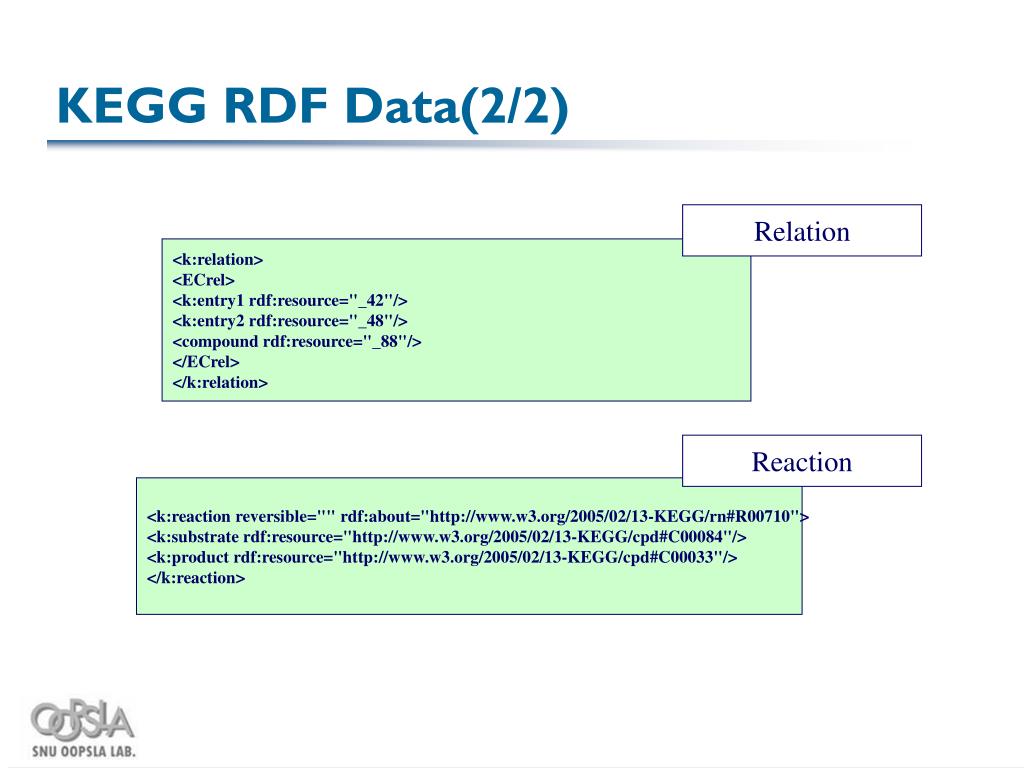

  19. KEGG RDF Data(2/2) Relation <k:relation> <ECrel> <k:entry1 rdf:resource="_42"/> <k:entry2 rdf:resource="_48"/> <compound rdf:resource="_88"/> </ECrel> </k:relation> Reaction <k:reaction reversible="" rdf:about="http://www.w3.org/2005/02/13-KEGG/rn#R00710"> <k:substrate rdf:resource="http://www.w3.org/2005/02/13-KEGG/cpd#C00084"/> <k:product rdf:resource="http://www.w3.org/2005/02/13-KEGG/cpd#C00033"/> </k:reaction>

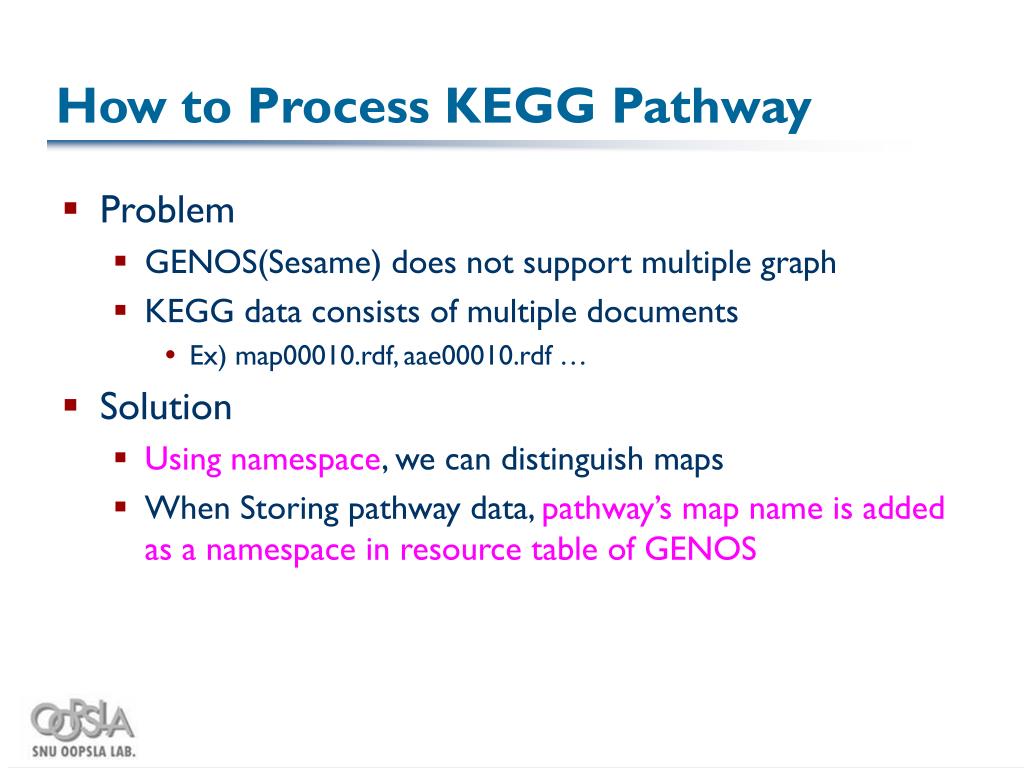

  20. How to Process KEGG Pathway • Problem • GENOS(Sesame) does not support multiple graph • KEGG data consists of multiple documents • Ex) map00010.rdf, aae00010.rdf … • Solution • Using namespace, we can distinguish maps • When Storing pathway data, pathway’s map name is added as a namespace in resource table of GENOS

  21. Processing Pathway Data <k:Pathway k:org="aae" k:number="00010" k:title="Glycolysis / Gluconeogenesis"> …. …. <k:entry> <Gene rdf:nodeID="_1"> <k:name rdf:resource="http://www.w3.org/2005/02/13-KEGG/aae#aq_186"/> <k:reaction rdf:resource="http://www.w3.org/2005/02/13-KEGG/rn#R00710"/> <k:link rdf:resource="http://www.genome.jp/dbget-bin/www_bget?aae+aq_186"/> <k:graphics><Rectangle k:name="aldH1" k:fgcolor="#000000" k:bgcolor="#BFFFBF" k:x="170" k:y="1018" k:width="45" k:height="17"/> </k:graphics> </Gene> </k:entry> conflict triples table of GENOS resources table of GENOS

  22. Integrating Databases Enzyme number GO ID

  23. Relaxation Querying using SeRQL E1 subclassof subclassof E1.* C2 C1 E1.* SeRQL SELECT C1,C2 FROM Path_EXP WHERE E1 LIKE “1.*" Dewey order Ex. 1.1 and 1.2 are childrens of 1 use Prefix

  24. Considering Performance KEGG : Pathway List aae:aq_018 path:aae03010 aae:aq_020 path:aae03010 aae:aq_021 path:aae00400 …. …. …. …. eco:b1236 path:eco00052 eco:b1236 path:eco00500 eco:b1236 path:eco00520 …. using genes_index Genes Map

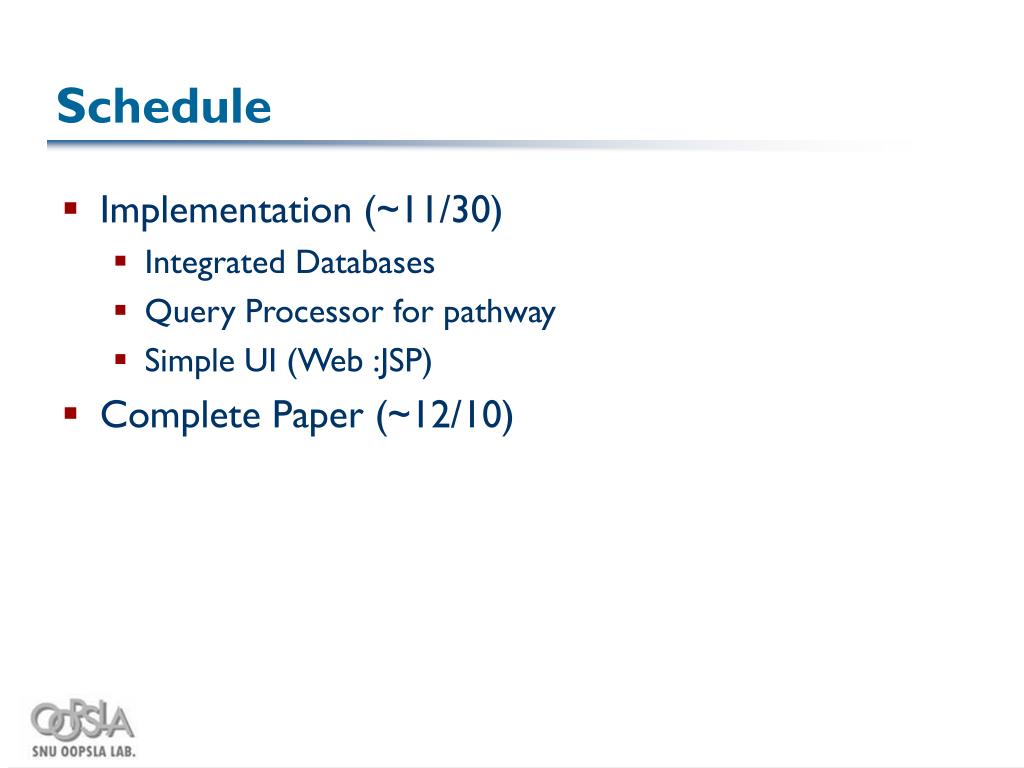

  25. Schedule • Implementation (~11/30) • Integrated Databases • Query Processor for pathway • Simple UI (Web :JSP) • Complete Paper (~12/10)
