  1. Assumption Hierarchy for a CHA Call Graph Construction AlgorithmJason Sawin & AtanasRountev

  2. Call Graphs • Represent the calling relationships between methods • Critical component in many interprocedural static analyses • Unsound when applied to applications which use dynamic features

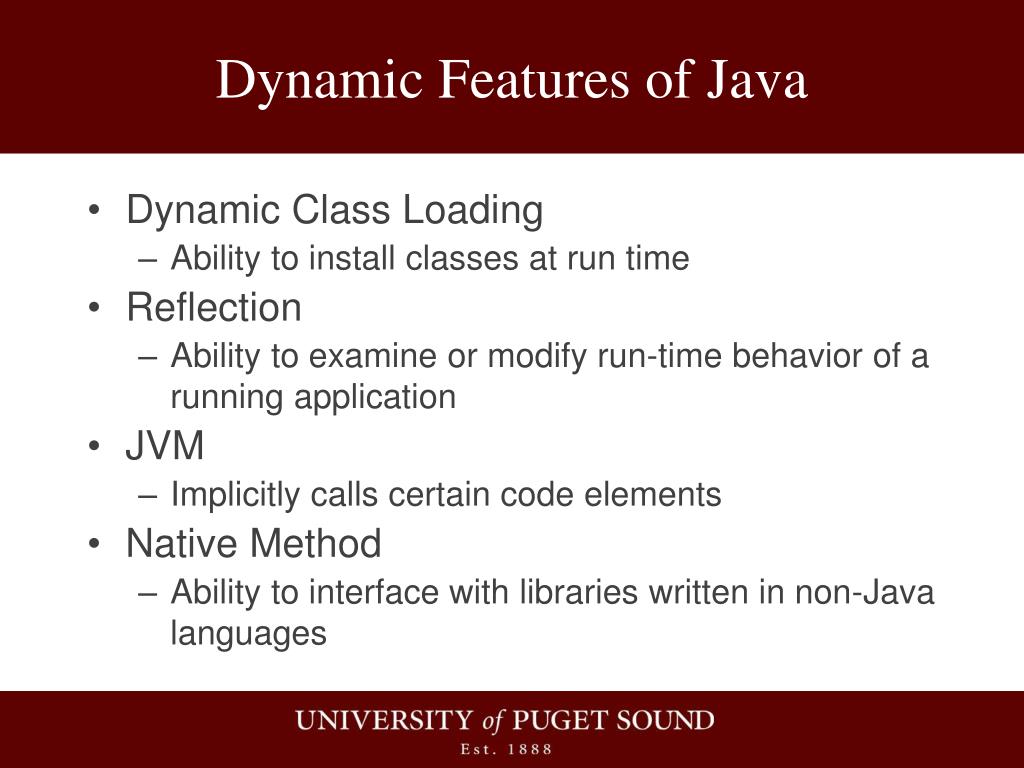

  3. Dynamic Features of Java • Dynamic Class Loading • Ability to install classes at run time • Reflection • Ability to examine or modify run-time behavior of a running application • JVM • Implicitly calls certain code elements • Native Method • Ability to interface with libraries written in non-Java languages

  4. Dynamic Features in Action Class c; String className; Method m; Object h; ... Class c = Class.forName(className, true, cl); m = c.getMethod("handle", …); h = c.newInstance(); m.invoke(h,…) ...

  5. CHA Call Graph Construction Algorithm • Class Hierarchy Analysis (CHA) • For every virtual call site e.m(…) where T is the static type of e, it examines all subtypes of T for methods which override m(…) • The set of overriding methods are considered possible targets of the call

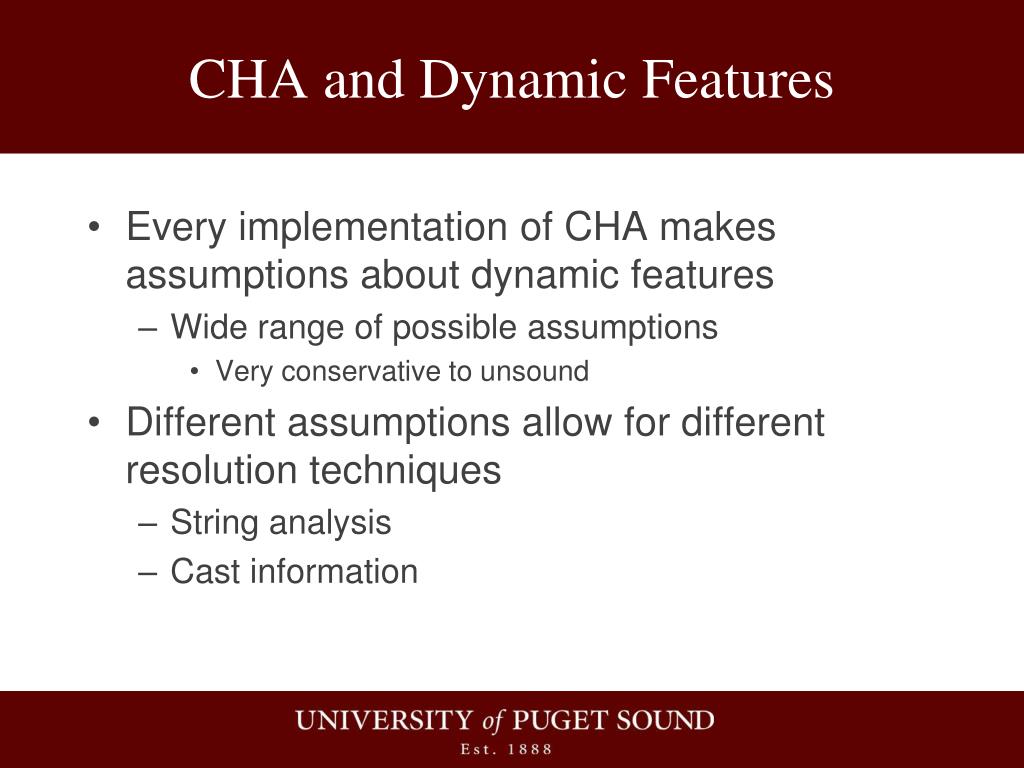

  6. CHA and Dynamic Features • Every implementation of CHA makes assumptions about dynamic features • Wide range of possible assumptions • Very conservative to unsound • Different assumptions allow for different resolution techniques • String analysis • Cast information

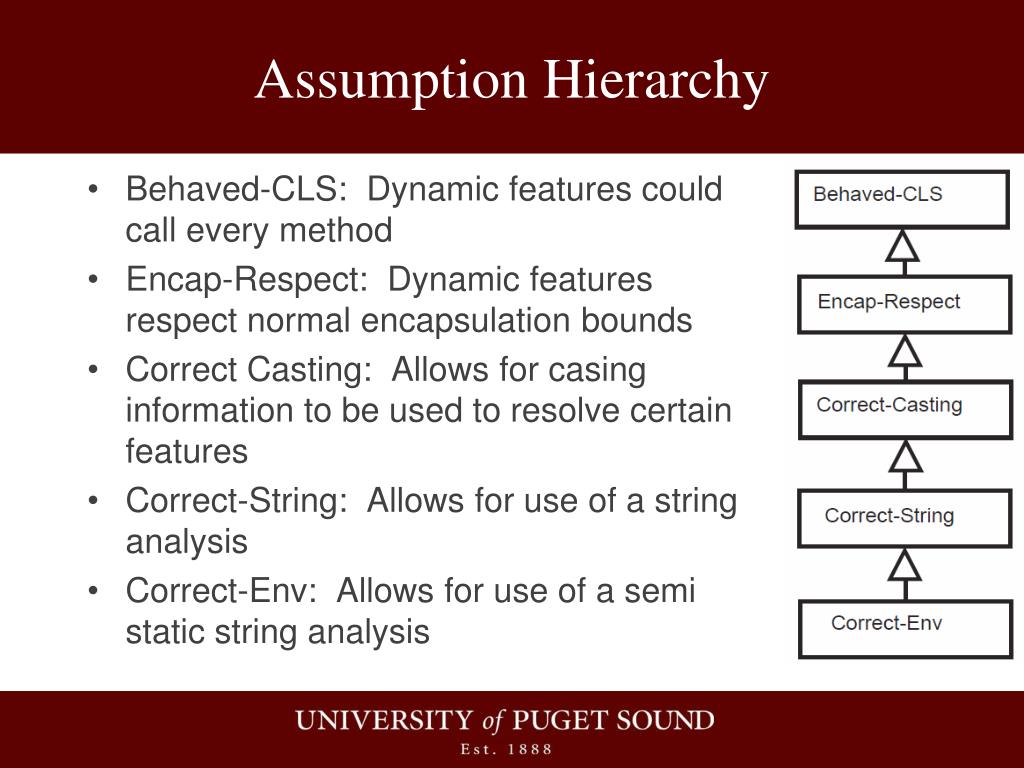

  7. Assumption Hierarchy • Behaved-CLS: Dynamic features could call every method • Encap-Respect: Dynamic features respect normal encapsulation bounds • Correct Casting: Allows for casing information to be used to resolve certain features • Correct-String: Allows for use of a string analysis • Correct-Env: Allows for use of a semi static string analysis

  8. Experimental Results: Edges

  9. Summary of Results • The Correct-Env version of CHA created a graphs that contained, on average, 10% fewer nodes and 54% fewer edges than the fully conservative version • The Correct-Env version was able to resolve an average of 6% of reflective invocation calls, 50% of dynamic class loading sites, and 61% of reflective instantiation sites • Under very reasonable assumptions, a much more precise call graph can be created

  10. Conclusion • We created a hierarchy of assumptions that could be used to classify future analyses • We incorporated several new techniques for resolving dynamic features into a CHA Call Graph • Our experiments showed that assumptions have a significant impact on the graph produced
