SOLAR SYSTEM

SNC1D. SOLAR SYSTEM. The Layout of the Solar System. Large bodies in the Solar System have orderly motions planets orbit counterclockwise in same plane orbits are almost circular the Sun and most planets rotate counterclockwise most moons orbit counterclockwise.

iona
Télécharger la présentation

SOLAR SYSTEM

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. SNC1D SOLAR SYSTEM

  2. The Layout of the Solar System • Large bodies in the Solar System have orderly motions • planets orbit counterclockwise in same plane • orbits are almost circular • the Sun and most planets rotate counterclockwise • most moons orbit counterclockwise

  3. The Layout of the Solar System • Planets fall into two main categories • Terrestrial (i.e. Earth-like) • Jovian (i.e. Jupiter-like or gaseous)

  4. Mars Neptune Terrestrial Jovian

  5. The Layout of the Solar System • Swarms of asteroids and comets populate the Solar System

  6. A Few Exceptions to the Rules… • Both Uranus & Pluto are tilted on their sides. • Venus rotates “backwards” (i.e. clockwise). • Triton orbits Neptune “backwards.” • Earth is the only terrestrial planet with a relatively large moon.

  7. The Sun – King of the Solar System • How does the Sun influence the planets? • Its gravity regulates the orbits of the planets. • Its heat is the primary factor which determines the temperature of the planets. • It provides practically all of the visible light in the Solar System. • High-energy particles streaming out from the Sun influence planetary atmospheres and magnetic fields.

  8. A Brief Tour of the Solar System -- Motions

  9. A Brief Tour of the Solar System – Composition

  10. Major Moons(r > 1,000 km)in the Solar System Mercury: no moons Venus: no moons Earth: one moon (Luna) Mars: two minor moons, Phobos and Deimos Jupiter: Io ,Europa , Ganymede, Calliso Saturn: Titan Uranus: several minor moons Neptune: Triton Pluto: one minor moon, Charon

  11. Asteroids and Comets • Scientists think that the ring of asteroidsthat lies between Mars and Jupiterwas aclump or rocks that just didn’t have enough mass to allow gravity to pull it together into a planet • There are also comets that orbit our sun. • Comets are balls of rock and ice that travel in very long stretched out orbits.

  12. Asteroids: basic info • Asteroids are “minor planets” that orbit the sun (rather than objects that orbit planets as moons). • They are much smaller than the planets, with the largest being Ceres at about 1,000 km in diameter, (remember that the diameter of the Earth is about 12,800 km) and only another five or so having diameters over 300 km. • There are roughly 200 or so with diameters over 100 km. There may be on the order of a million with a diameter of kilometer or more. • The total mass of all the asteroids is probably less than the mass of the smallest planet, Pluto.

  13. Asteroids Trojan belt Apollo belt Earth Jupiter Mars Trojan

  14. Comets Comets are objects composed of dust and ice that come from the far reaches of the solar system on extremely elliptical orbits. They appear to come from the Kuiper (pronounced Cai-per) Belt (for relatively short period comets) and an area known as the Oort Cloud (for much longer period comets).

  15. Meteors Meteorsare grains of dust and small “rocks” that fall through the atmosphere and glow due to the heat of air resistance as they fall. Meteorites are the remains that reach the earth’s surface. Meteroids are the material of meteors in space (before they become meteors). Some of this material comes from dust from comets, some from asteroids.

  16. Why Pluto is not considered a Planet? • It's smaller than any other planet - even smaller than the Earth's moon. • It's not a gas giant like the Jovian planets -Jupiter, Saturn, Uranus and Neptune and it does not seem rocky like the terrestrial planets -Mercury, Venus, Earth and Mars). However, its nearest neighbours are the gaseous For this reason, many scientists believe that Pluto originated elsewhere in space and got caught in the Sun's gravity. Some astronomers once theorized that Pluto used to be one of Neptune's moons. • Pluto's orbit is irregular and erratic. The planets in our solar system all orbit the Sun in a relatively flat plane. Pluto, however, orbits the sun at a 17-degree angle to this plane. In addition, its orbit is exceptionally elliptical and crosses Neptune's orbit.

  17. Pluto : The Orbit Problem

  18. Pluto problem : too much company The remains of the disk which formed the Solar System is still out there beyond Neptune, and Pluto is part of a large crowd of small icy bodies (Kuiper Belt).

  19. Asteroid BeltKuiper BeltOort cloud

  20. Asteroid Belt • Discovered in 1801. • Piazza found Ceres. Olbers found Pallas. Previously predicted by Franz Xaver VonZach.

  21. Asteroid Belt • The region of space between Mars and Jupiter; about 2.8AU • Hundreds of thousands of asteroids known. Probably millions.

  22. Asteroid Belt • 3 types of asteroid: Carbonaceous, Silicate, Metallic • Even the largest object in the belt, Ceres, is too dim to see without aid

  23. Asteroid Belt • Remnants of a planet-formation process that failed

  24. Kuiper Belt • Discovered in 1992 • Named for Dutch Astronomer Gerard Kuiper, who had PREDICTED its existence in 1951.

  25. Kuiper Belt • Region beyond Neptune; 30 to over 50AU • At least 70 000 small, icy, slow-moving, objects

  26. Kuiper Belt • Very faint objects because small, far and reflect light from Sun • A million times fainter than faintest we can see with naked-eye

  27. Kuiper Belt • History of solar system

  28. Oort Cloud • Hypothetical spherical cloud. No direct observations. • Proposed by Ernst Opik (1932), Jan Henrik Oort (1950)

  29. Oort Cloud • 50 000AU; defines gravitational boundary of solar system • Source of long-period Comets

  30. Oort Cloud • Objects composed of ices (water, methane, and ammonia) • 2 regions: outer sphere, inner disc

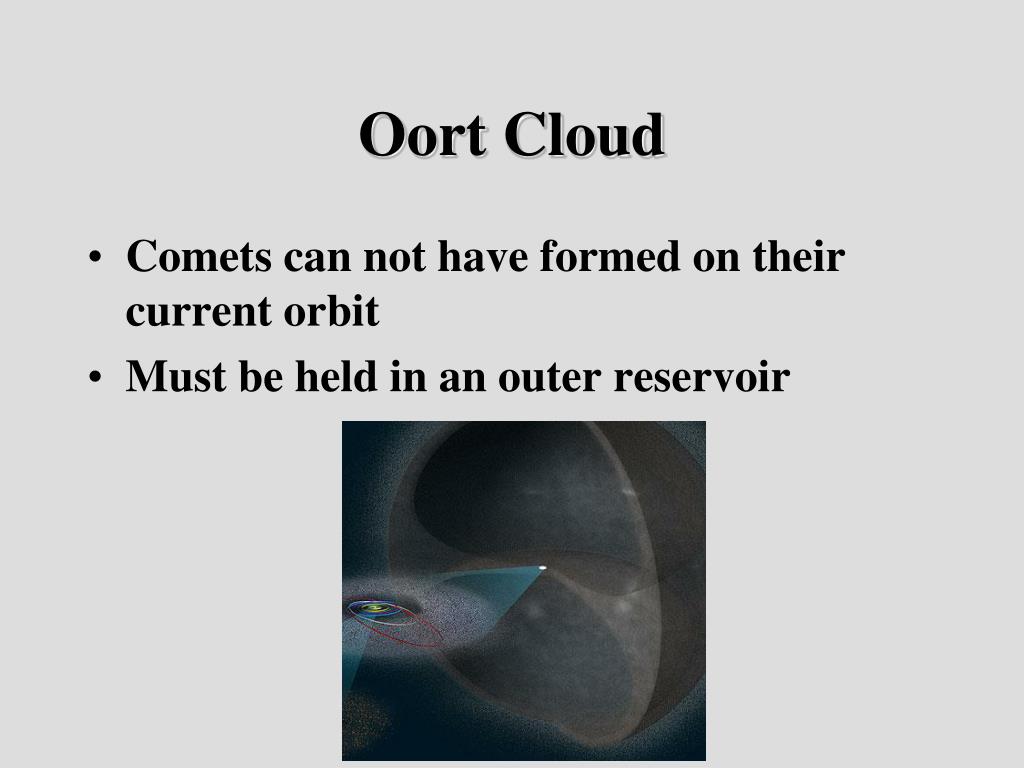

  31. Oort Cloud • Comets can not have formed on their current orbit • Must be held in an outer reservoir

  32. Sources • http://www.lpl.arizona.edu/faculty/malhotra_preprints/ISP_Nov04/KuiperBelt.jpg • http://www.cnes.fr/automne_modules_files/standard/public/p1135_ed77069b38b89947b9f6e5678e9af2adkuiper_pluton.jpg • http://discovermagazine.com/2004/nov/cover/outer-oort.jpg • http://www.myastrologybook.com/OortCloud10q8x7.jpg • http://en.wikipedia.org/wiki/Oort_cloud • http://en.wikipedia.org/wiki/Ceres_(dwarf_planet) • http://www.astro.ubc.ca/~lallen/kbo/general.html • http://www.enchantedlearning.com/subjects/astronomy/solarsystem/kuiper.shtml • Universe: The Definitive Visual Guide
