NanoFab Simulator Update. Nick Reeder, May 4, 2012. Updates to Thermal Oxidize Code. Oxidizes existing material instead of depositing a new layer on top. Assumptions: Si becomes SiO2. All metals are oxidized, and subsequently can’t be etched.

ipo
Télécharger la présentation

NanoFab Simulator Update

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. NanoFabSimulator Update Nick Reeder, May 4, 2012

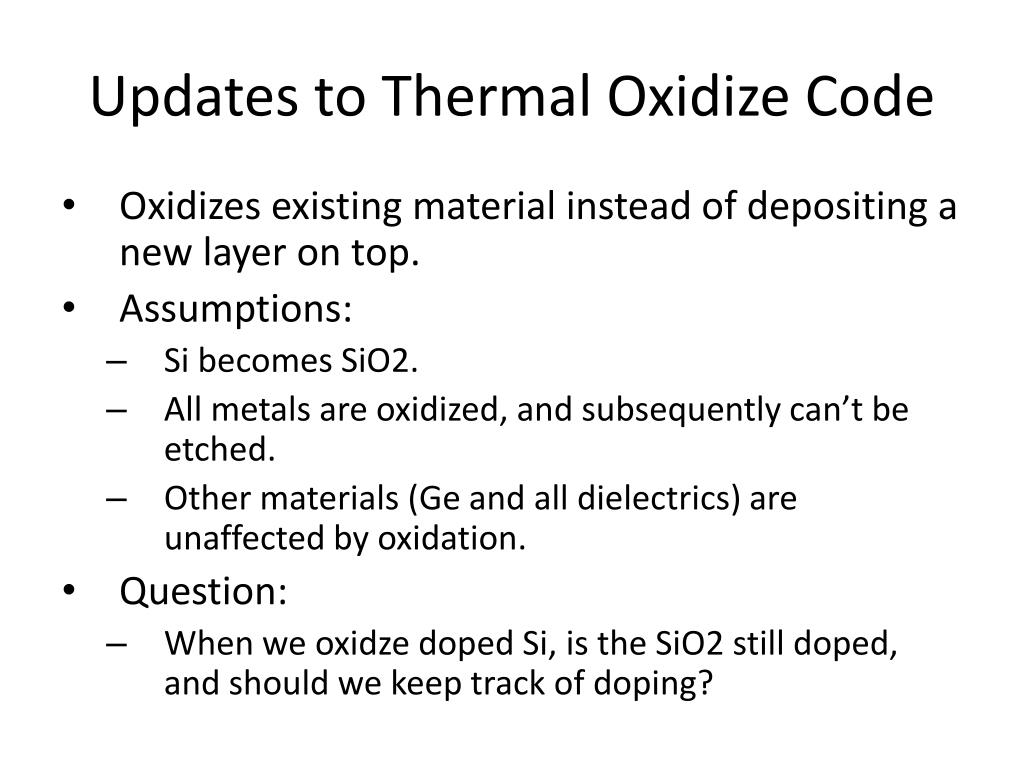

  2. Updates to Thermal Oxidize Code • Oxidizes existing material instead of depositing a new layer on top. • Assumptions: • Si becomes SiO2. • All metals are oxidized, and subsequently can’t be etched. • Other materials (Ge and all dielectrics) are unaffected by oxidation. • Question: • When we oxidze doped Si, is the SiO2 still doped, and should we keep track of doping?

  3. Updates to Expose Code • Photoresist on sidewalls is UV-exposed, as well as resist on top surfaces. • No UV-exposure takes place beneath regions of any non-photoresist material. • Problems: • Doesn’t correctly handle resist lying directly under other material and within the diffraction cone of a mask. • Profile of exposed region within resist is not correct. (Not modeling absorption.)

  4. New Code: Implant • Lets user dope silicon or germanium as n, n+, p, or p+. Can later re-dope to a different depth or doping level. • Assumption: • No doping takes place beneath regions of any material other than Si or Ge. • Question: • Does doping diffuse horizontally within the Si, or is horizontal extent the same as window’s?

  5. Other Known Problems • Spin coat: Resist adheres to underside of horizontal surfaces. • Sputter: Doesn’t model sputtering angle, and regions shaded by other structures are sputtered, but shouldn’t be.
