  1. The Framebuffer February 6, 2003

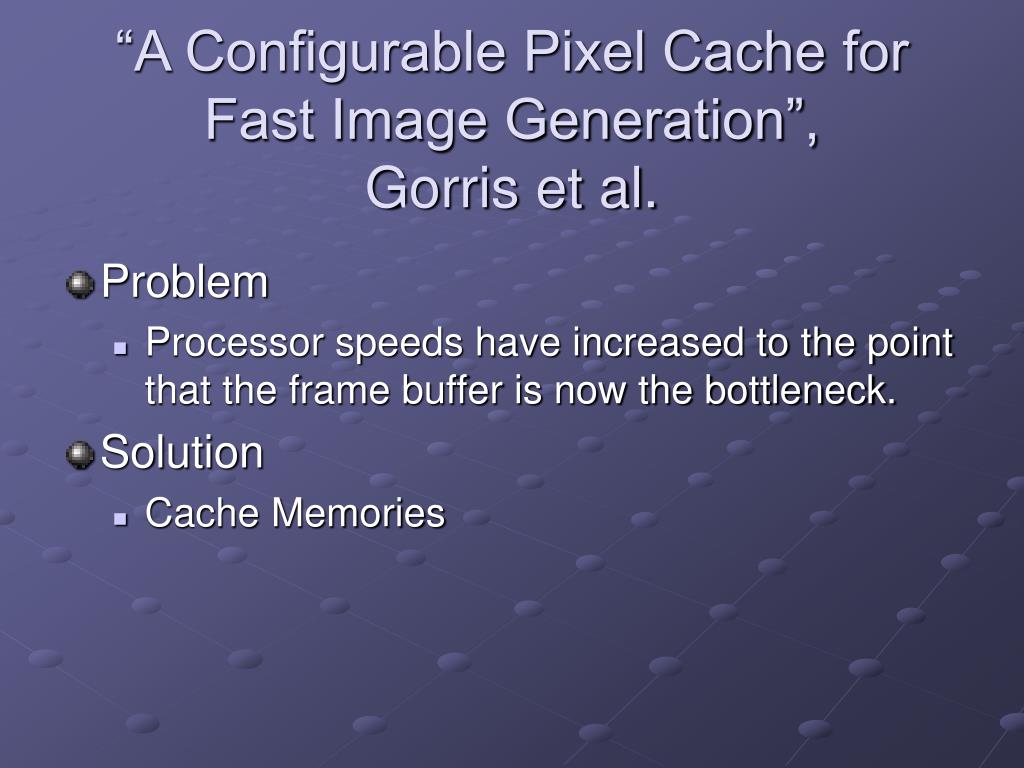

  2. “A Configurable Pixel Cache for Fast Image Generation”,Gorris et al. • Problem • Processor speeds have increased to the point that the frame buffer is now the bottleneck. • Solution • Cache Memories

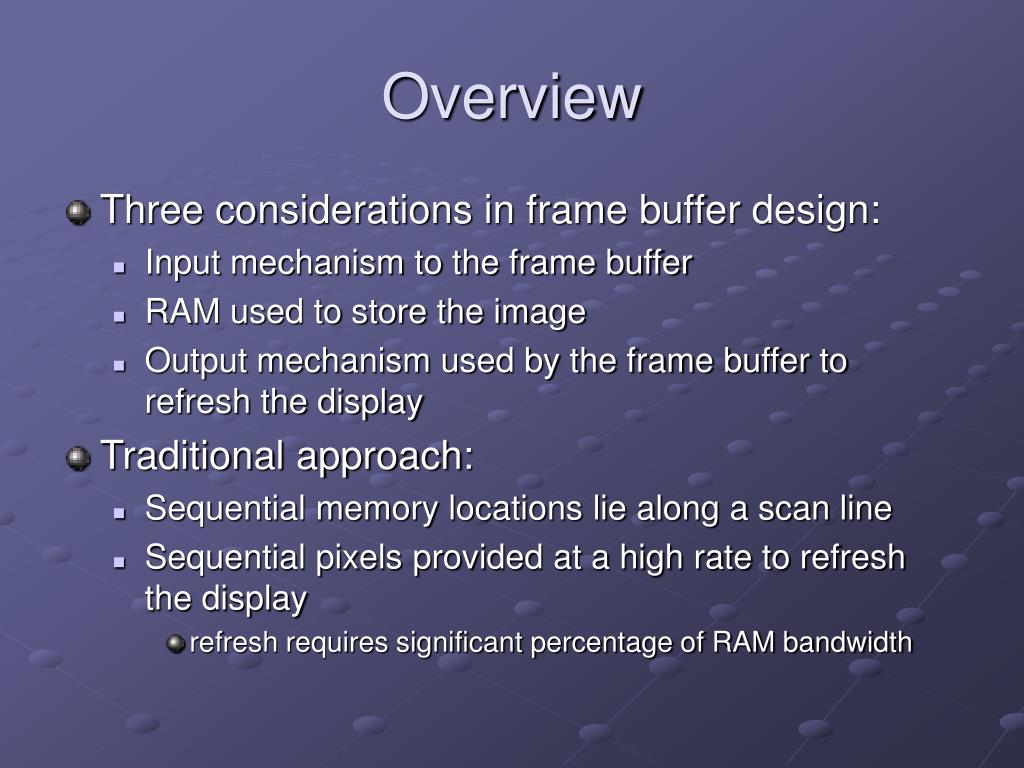

  3. Overview • Three considerations in frame buffer design: • Input mechanism to the frame buffer • RAM used to store the image • Output mechanism used by the frame buffer to refresh the display • Traditional approach: • Sequential memory locations lie along a scan line • Sequential pixels provided at a high rate to refresh the display • refresh requires significant percentage of RAM bandwidth

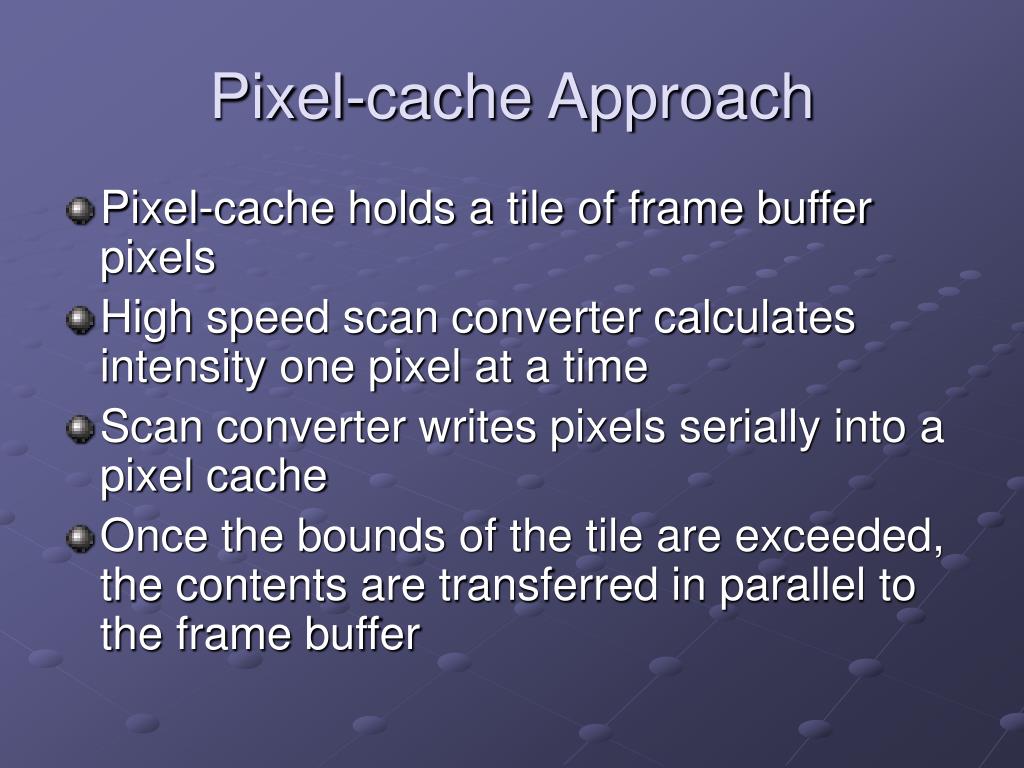

  4. Pixel-cache Approach • Pixel-cache holds a tile of frame buffer pixels • High speed scan converter calculates intensity one pixel at a time • Scan converter writes pixels serially into a pixel cache • Once the bounds of the tile are exceeded, the contents are transferred in parallel to the frame buffer

  5. Assumptions • Tiles are non-overlapping and aligned on boundaries that are integer multiples of their height and width • Why? Quick mapping between scan converter addresses and tile/bit addresses • Fscan(x, y) = MSBstile(x,y) + LSBsbit(x, y) • Tile address is used to access a tile of pixels in the frame buffer • Bit Address is used to access individual pixels within the cache

  6. Implementation • Pixel cache • Single 48-pin Integrated Circuit (IC) • 1.6 micron CMOS • 3700 gates • 16.6 MHz • Frame buffer • 256K-bit VRAM • 4x4 or 16x1 tiles

  7. Main Components • Data Cache: stores pixel intensity data from the scan converter • data port is bi-directional for fast reads and writes • Source Register: holds current tile being written to frame buffer • frame buffer writes overlapped with data cache input • Replacement Rule Register/Logic: used for boolean operations on the frame buffer • data from scan converter can be used with old frame buffer data being written back to the frame buffer

  8. Components – cont. • Destination Register: holds existing contents of frame buffer • used by replacement rule logic to perform boolean logic with incoming pixel data and committed frame buffer data • operation can be overlapped with data cache writes and source register transfers • Pattern Register: holds frame buffer data to be blended with scan converter data • similar to destination register • useful for generating repeating patterns • Z Cache & Z Pipeline Register: used to buffer depth information • equivalent to data cache and source register but for z data

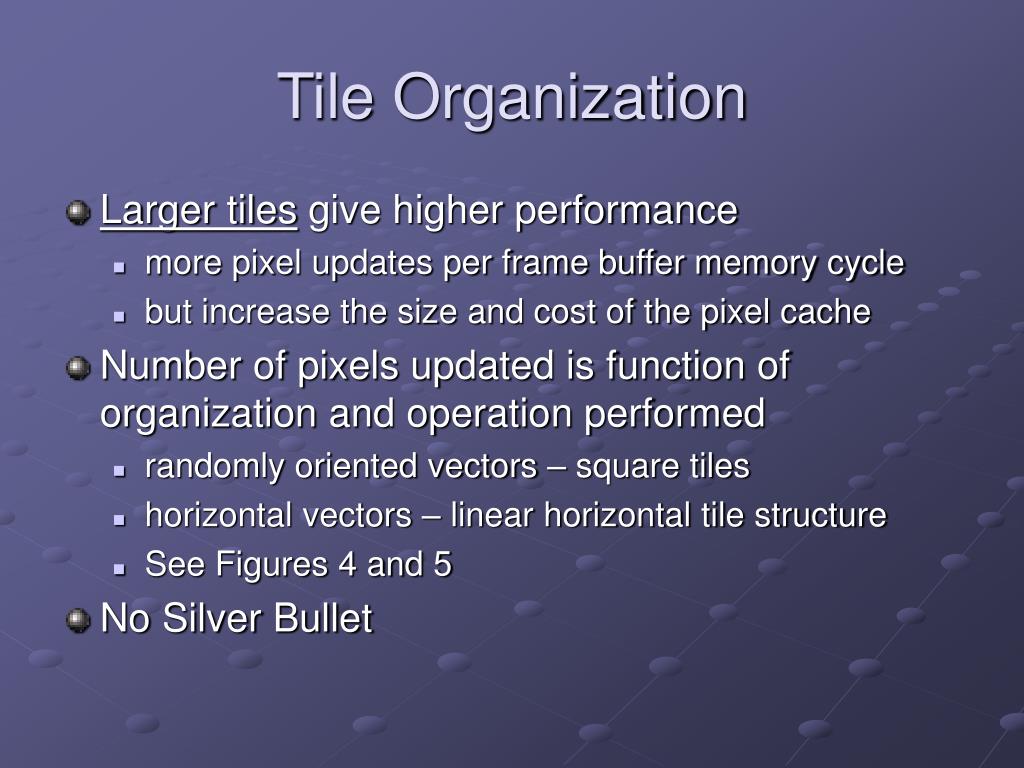

  9. Tile Organization • Larger tiles give higher performance • more pixel updates per frame buffer memory cycle • but increase the size and cost of the pixel cache • Number of pixels updated is function of organization and operation performed • randomly oriented vectors – square tiles • horizontal vectors – linear horizontal tile structure • See Figures 4 and 5 • No Silver Bullet

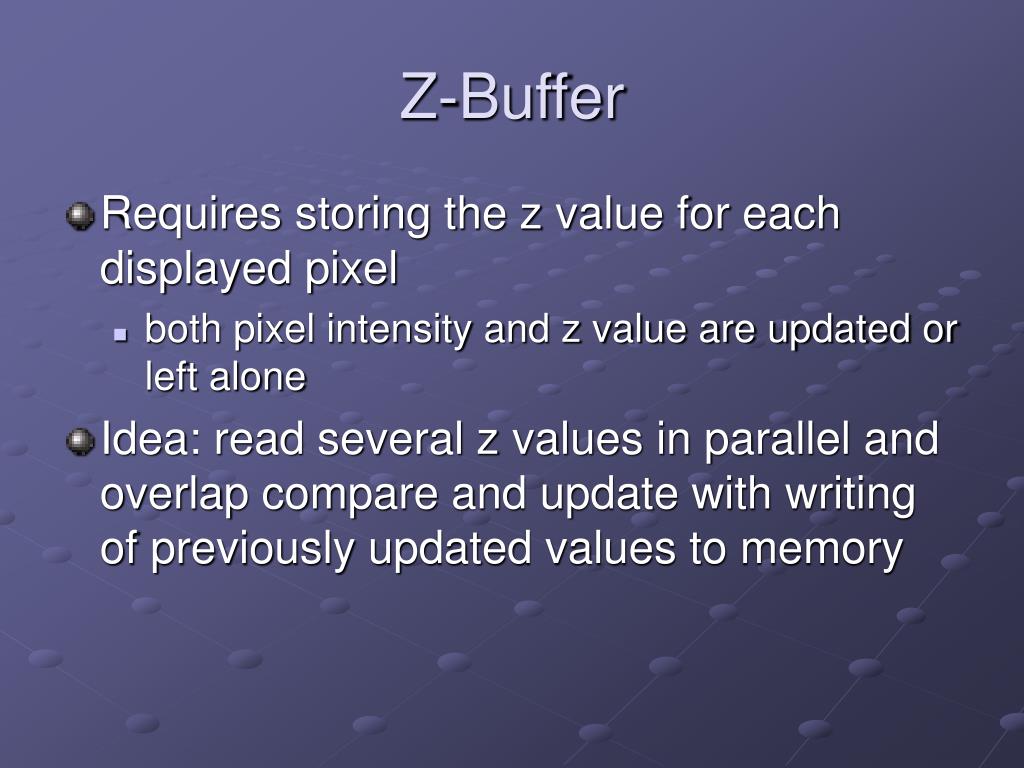

  10. Z-Buffer • Requires storing the z value for each displayed pixel • both pixel intensity and z value are updated or left alone • Idea: read several z values in parallel and overlap compare and update with writing of previously updated values to memory

  11. Requirements • Take advantage of unused video ram • 1280x1024 w/ 256k VRAM = 728x1024 free • Reconfigurable frame buffer • 8 to 32 planes in multiples of 8 planes • Allow z-buffering on all configurations • Off-screen frame buffer memory should not limit z resolution

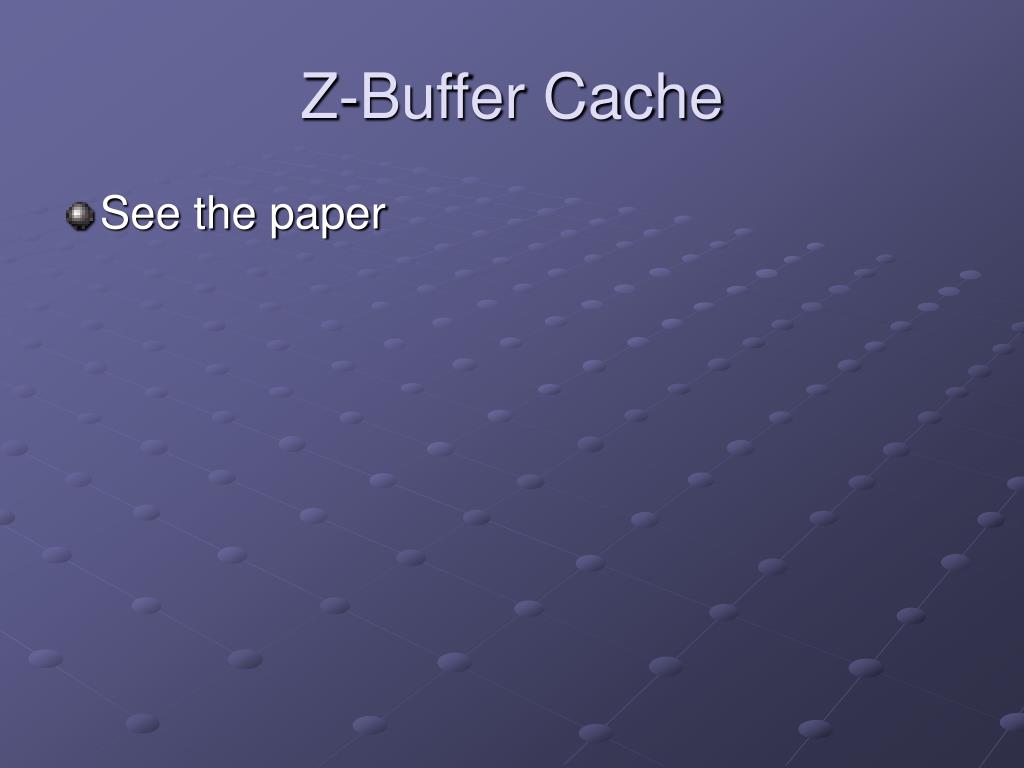

  12. Z-Buffer Cache • See the paper

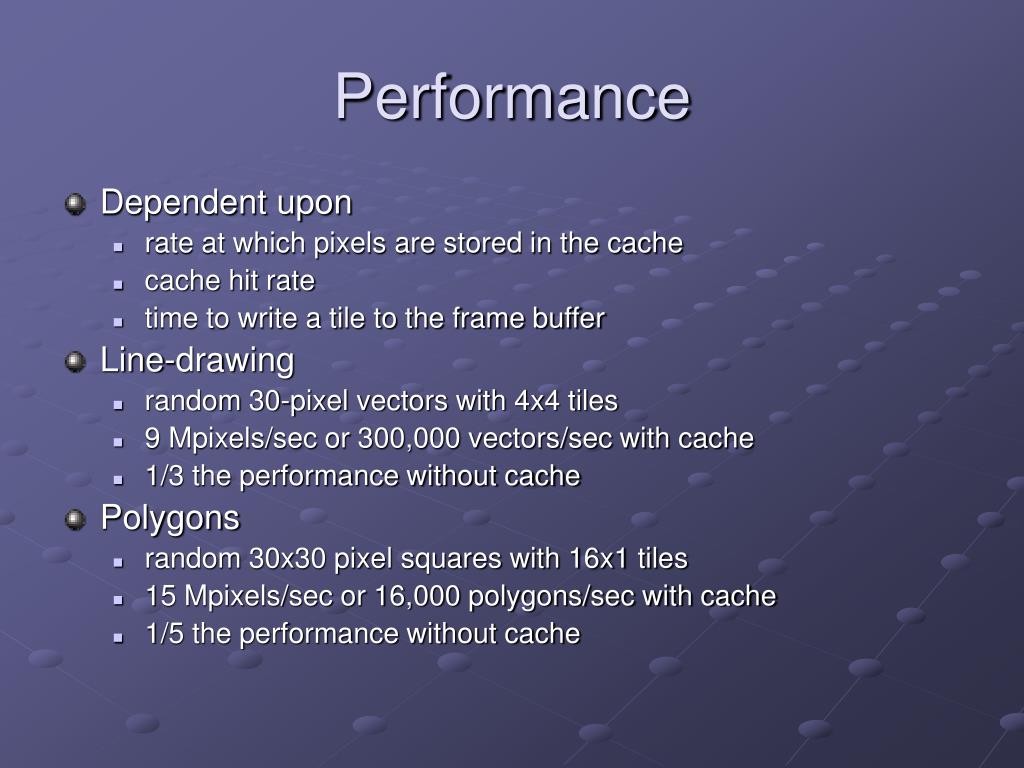

  13. Performance • Dependent upon • rate at which pixels are stored in the cache • cache hit rate • time to write a tile to the frame buffer • Line-drawing • random 30-pixel vectors with 4x4 tiles • 9 Mpixels/sec or 300,000 vectors/sec with cache • 1/3 the performance without cache • Polygons • random 30x30 pixel squares with 16x1 tiles • 15 Mpixels/sec or 16,000 polygons/sec with cache • 1/5 the performance without cache

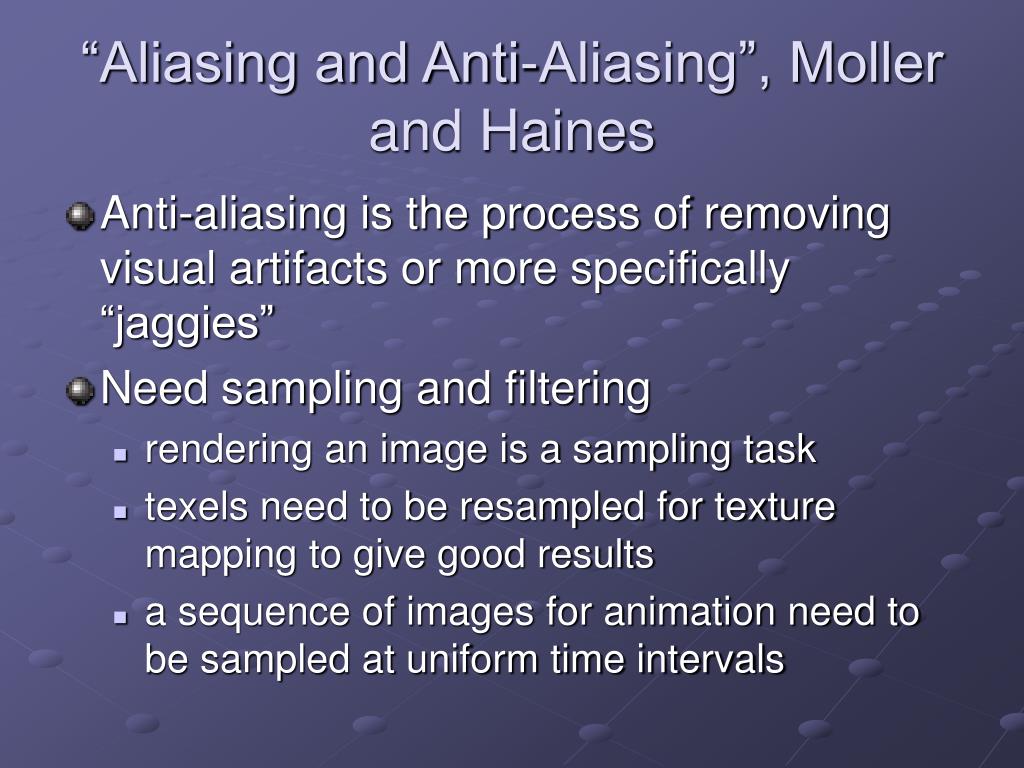

  14. “Aliasing and Anti-Aliasing”, Moller and Haines • Anti-aliasing is the process of removing visual artifacts or more specifically “jaggies” • Need sampling and filtering • rendering an image is a sampling task • texels need to be resampled for texture mapping to give good results • a sequence of images for animation need to be sampled at uniform time intervals

  15. Sampling • Want to represent information (signals) digitally to reduce the amount of information • note: too little information can cause aliasing • To reconstruct the original signal, sampling frequency needs to be more than 2x maximum frequency of the signal sampled (Nyquist) • This implies a signal is bandlimited • In 3D graphics, point samples (edges of polygons) are not bandlimited BUT textures are!

  16. Reconstruction • How do we recreate the original signal? • Box filter (nearest neighbor) • worst filter to use (noncontinuous) • but simple • Tent filter (aka triangle filter) • better than box filter (continuous) • Ideal lowpass filter (sinc filter) • perfect reconstruction • but impractical – filter width can become infinite and negative

  17. Resampling • Used to magnify or minify a sample • Magnification is the simpler case • have continuous signal (remember the sinc filter) • just resample at desired intervals • Minification • frequency of original sample is too high to avoid aliasing • need to refilter the signal (see the paper)

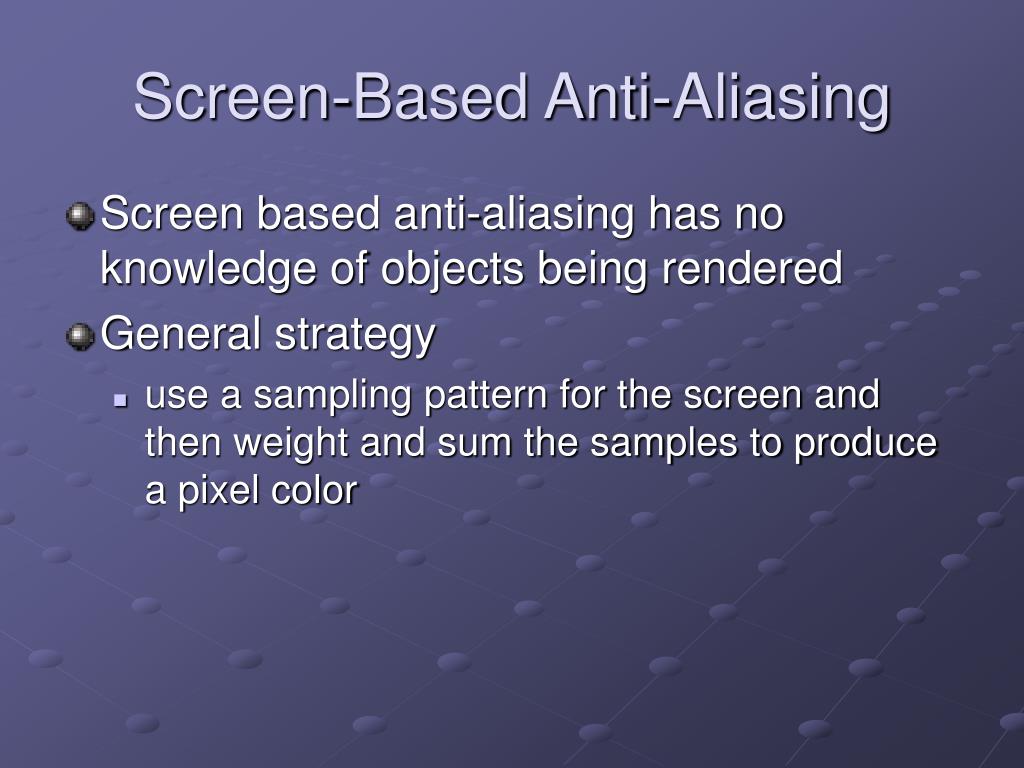

  18. Screen-Based Anti-Aliasing • Screen based anti-aliasing has no knowledge of objects being rendered • General strategy • use a sampling pattern for the screen and then weight and sum the samples to produce a pixel color

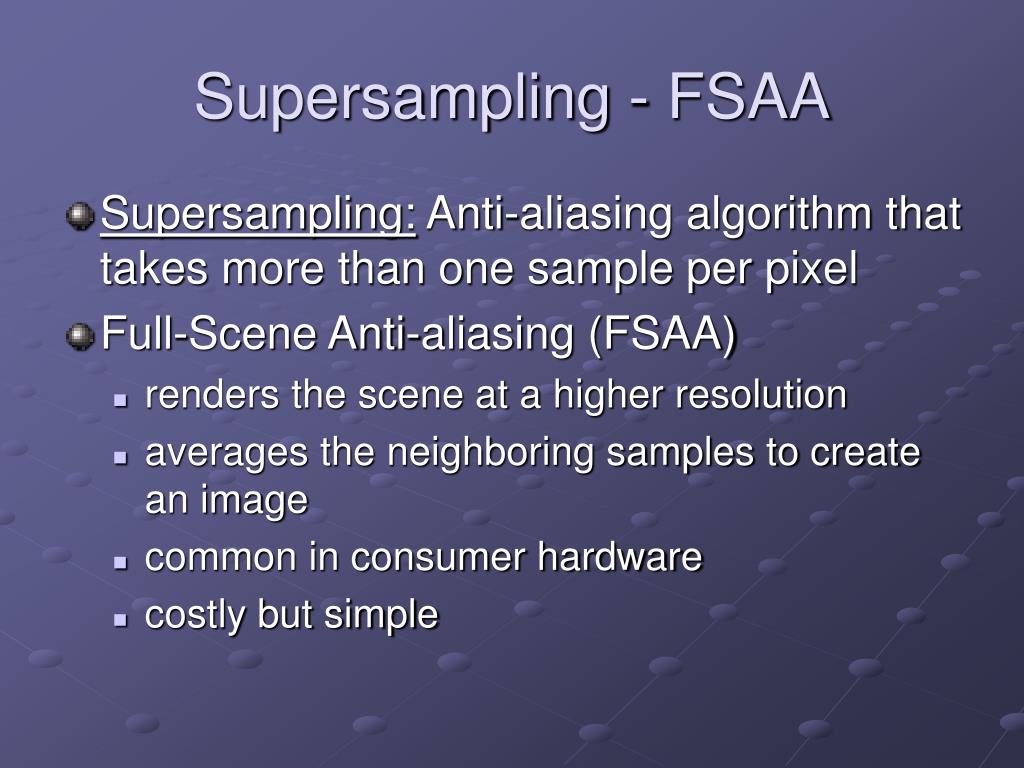

  19. Supersampling - FSAA • Supersampling: Anti-aliasing algorithm that takes more than one sample per pixel • Full-Scene Anti-aliasing (FSAA) • renders the scene at a higher resolution • averages the neighboring samples to create an image • common in consumer hardware • costly but simple

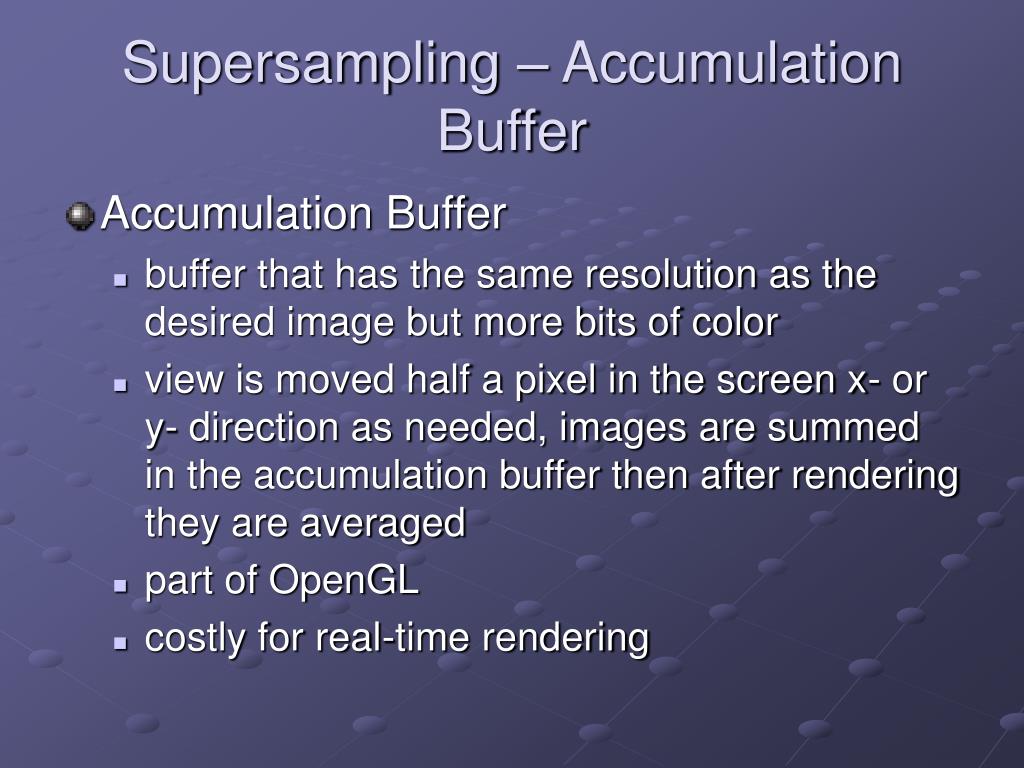

  20. Supersampling – Accumulation Buffer • Accumulation Buffer • buffer that has the same resolution as the desired image but more bits of color • view is moved half a pixel in the screen x- or y- direction as needed, images are summed in the accumulation buffer then after rendering they are averaged • part of OpenGL • costly for real-time rendering

  21. Supersampling – T-buffer • T-buffer • variant of accumulation buffer • 2n image and z-buffers used for rendering • some logic to determine what buffer gets what data and how the buffers are combined (averaged) • data can be sent to all buffers simultaneously • screen offsets (x- and y-) can be set per buffer • Benefits for anti-aliasing? • work can be done in parallel • no programming needed to support anti-aliasing (single pass)

  22. Multisampling – “A-buffer” • A-buffer • computes a polygons approximate coverage of each grid cell • takes more than one sample per pixel in a single pass • shares computations among the samples for a grid cell • Commonly used in software to generate high quality renderings but not in real-time • Focused on edge anti-aliasing and transparency

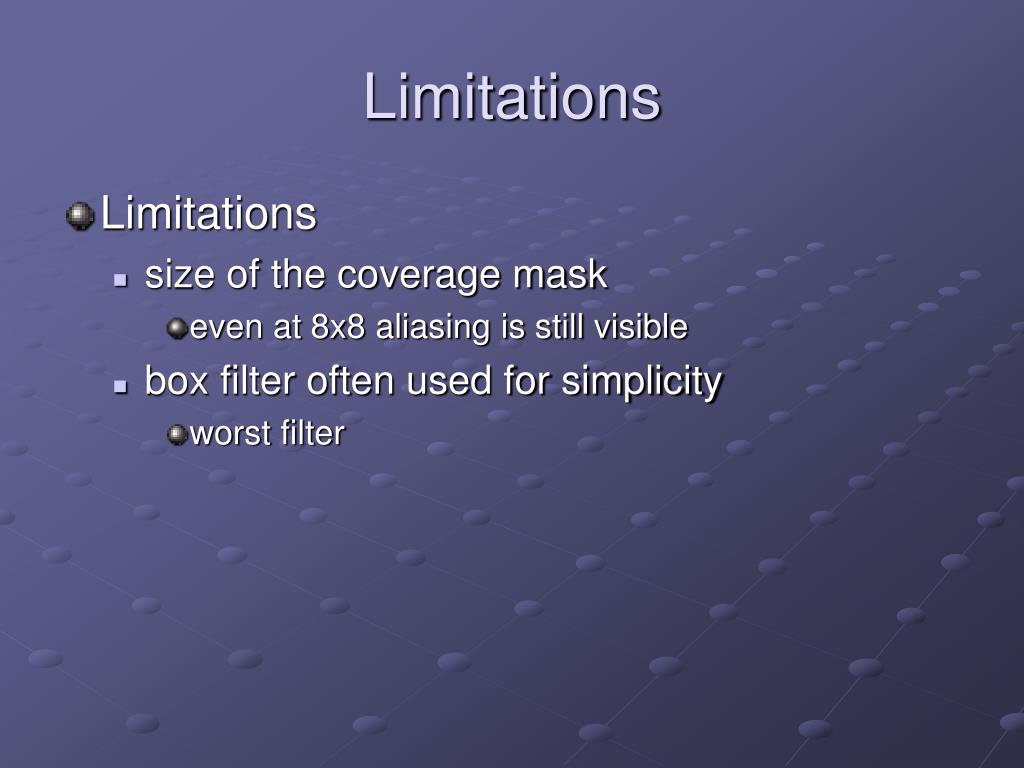

  23. Limitations • Limitations • size of the coverage mask • even at 8x8 aliasing is still visible • box filter often used for simplicity • worst filter

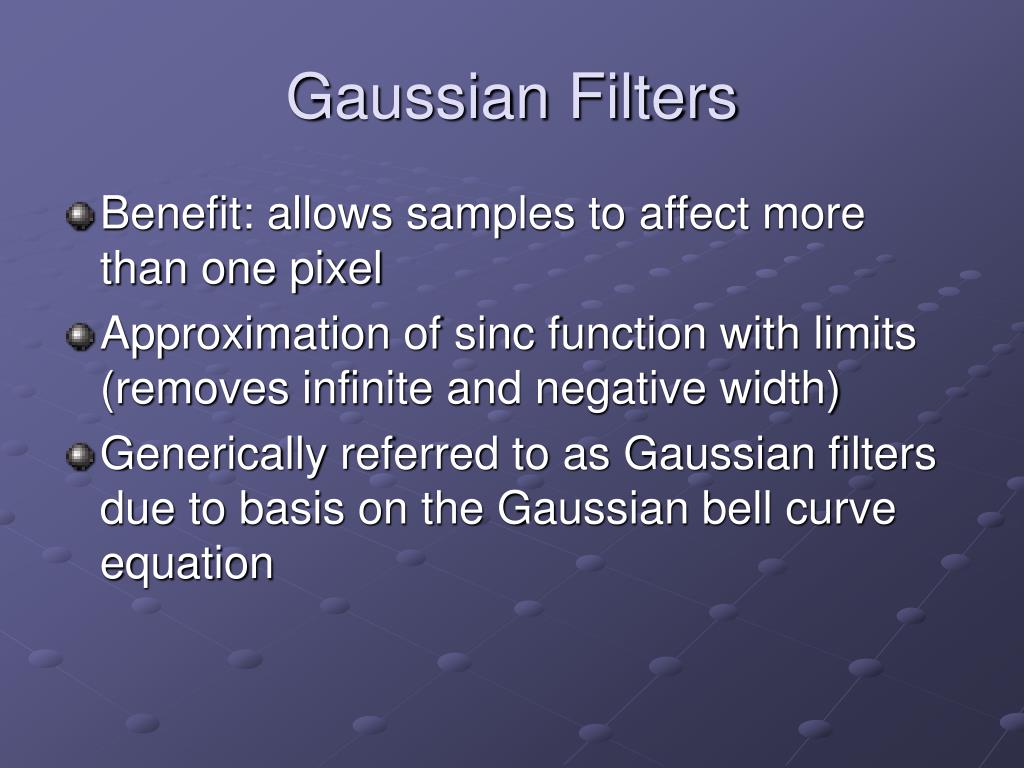

  24. Gaussian Filters • Benefit: allows samples to affect more than one pixel • Approximation of sinc function with limits (removes infinite and negative width) • Generically referred to as Gaussian filters due to basis on the Gaussian bell curve equation

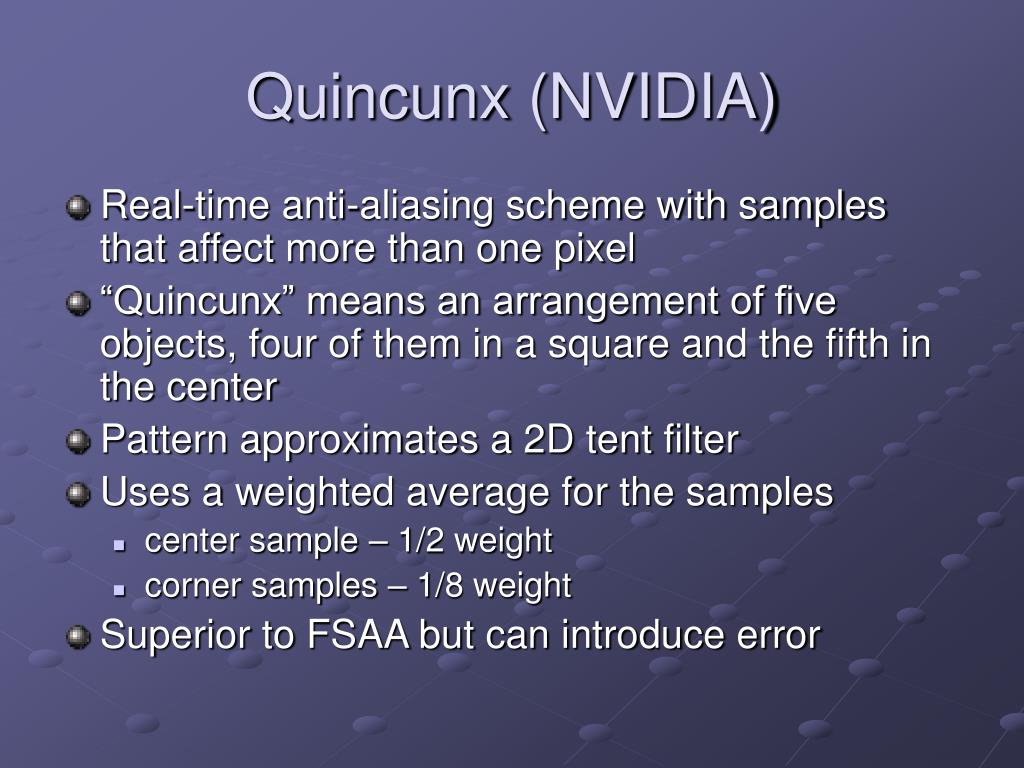

  25. Quincunx (NVIDIA) • Real-time anti-aliasing scheme with samples that affect more than one pixel • “Quincunx” means an arrangement of five objects, four of them in a square and the fifth in the center • Pattern approximates a 2D tent filter • Uses a weighted average for the samples • center sample – 1/2 weight • corner samples – 1/8 weight • Superior to FSAA but can introduce error

  26. So far so good… • Not every object on the screen can be perfectly sampled • Ex. arbitrarily small objects • Regular sampling patterns will always exhibit some form of aliasing • Solution? Distribute samples randomly over a pixel and use a different sampling pattern per pixel

  27. Stochastic Sampling • Why does it work? Randomization tends to replace repetitive aliasing with noise which our visualize system is more tolerant of • Jittering – most common stochastic sampling method • assume N samples per pixel • divide the pixel area into N regions of equal area • place a sample randomly in each region • final pixel color is computed by an average of the samples • Notable: 3Dlab’s SuperScene antialiasing hardware scheme uses jittering

  28. Other Sampling • Interleaved sampling • ATI SMOOTHVISION • AT&T Pixel Machines • SGI VGX • Poisson disk sampling • pattern in which nonuniformly distributed points are seperated by a minimum distance • Molnar’s scheme • adaptive refinement • useful in interactive applications • sampling rate kept low while the scene changes and is increased as the scene becomes static
