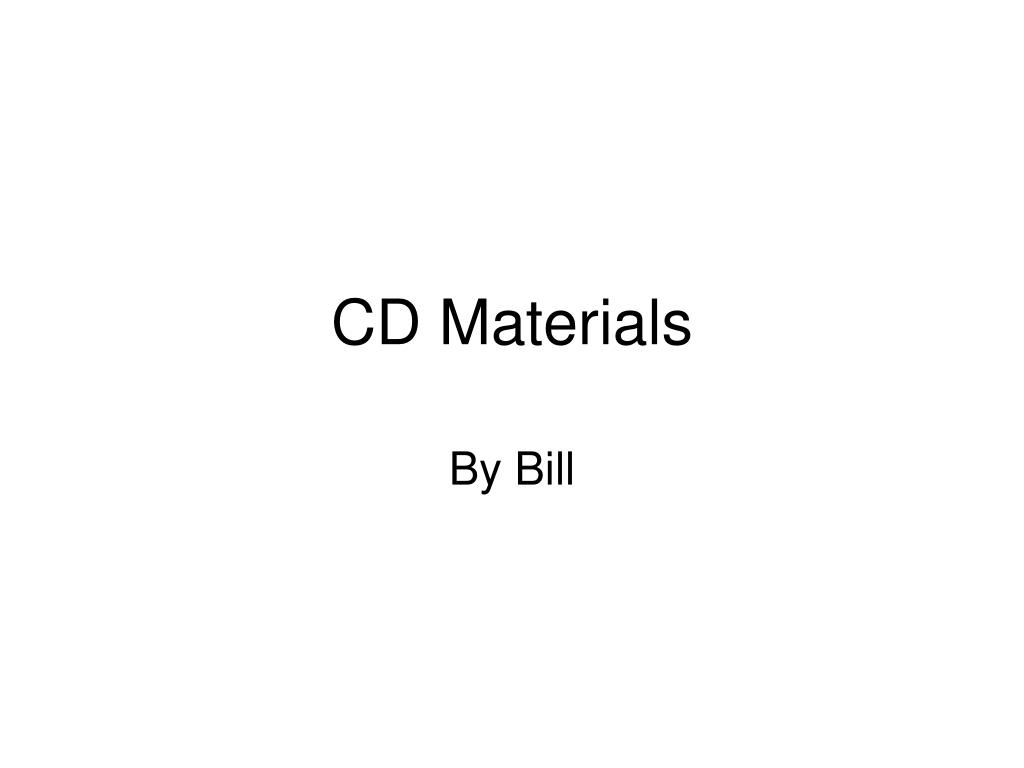

  1. CD Materials By Bill

  2. Commercial CDs • Materials/Process: • Injection molded PC imprinted with bumps by master stamp. • Aluminum is sputtered over bumps • Protective acrylic layers sprayed over top • Label painted on top of acrylic.

  3. Commercial CDs www.cdman.com www.cd-info.com

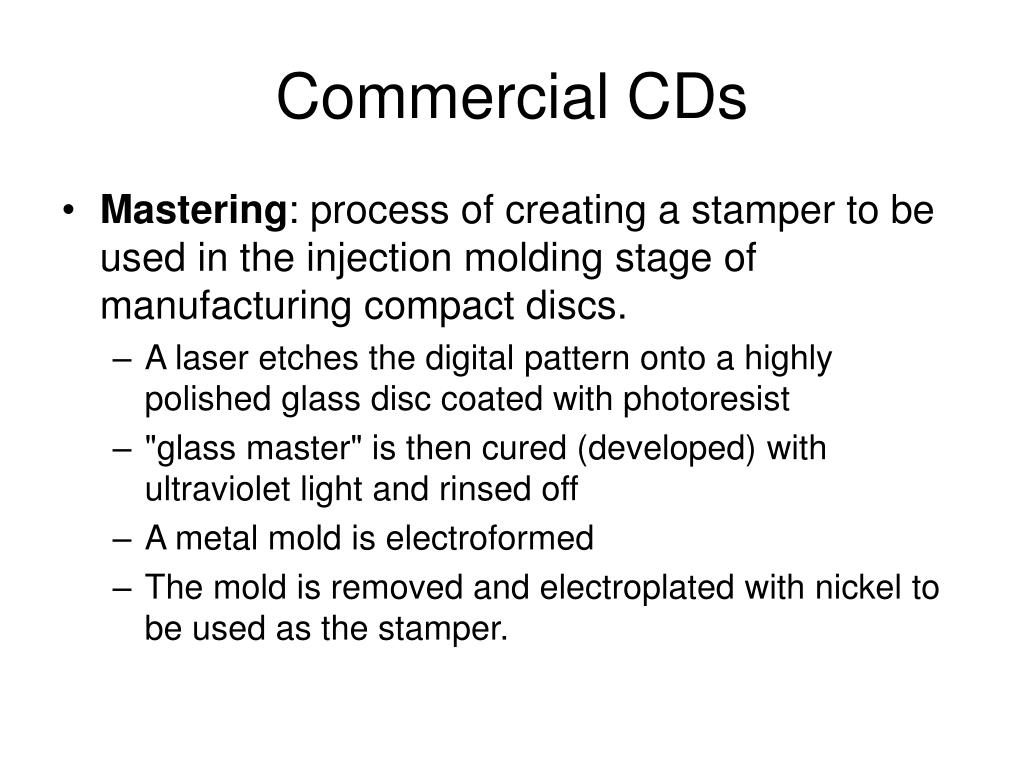

  4. Commercial CDs • Mastering: process of creating a stamper to be used in the injection molding stage of manufacturing compact discs. • A laser etches the digital pattern onto a highly polished glass disc coated with photoresist • "glass master" is then cured (developed) with ultraviolet light and rinsed off • A metal mold is electroformed • The mold is removed and electroplated with nickel to be used as the stamper.

  5. Commercial CDs • Glass mastering www.cdman.com

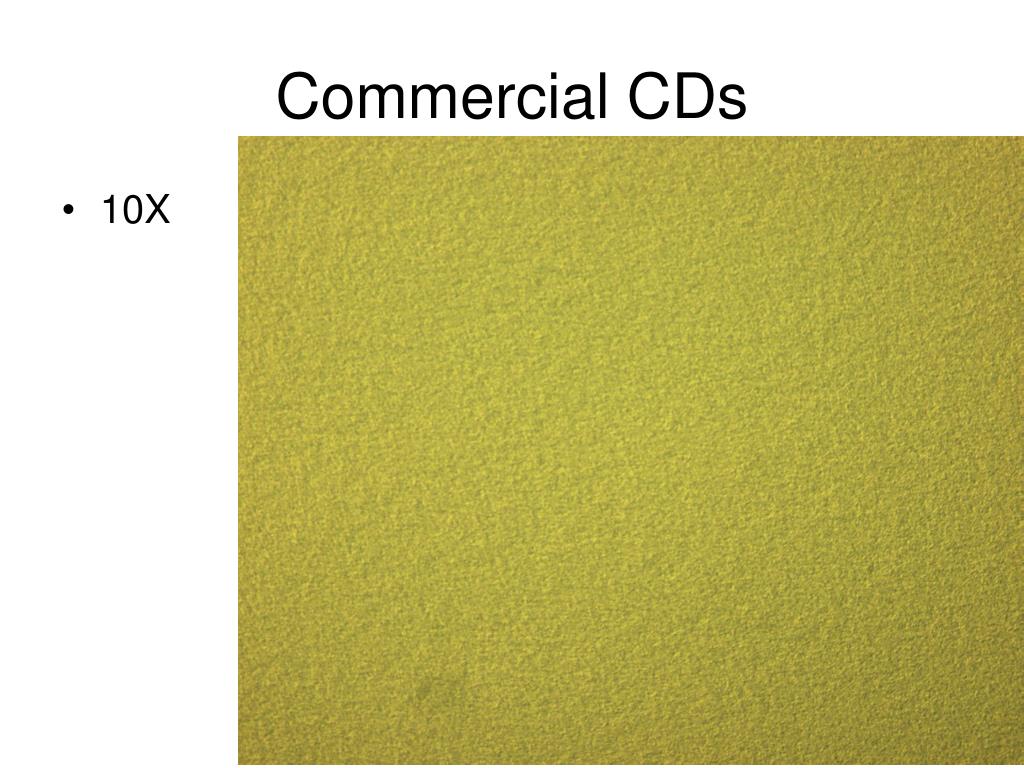

  6. Commercial CDs • 10X

  7. Commercial CDs • 50X

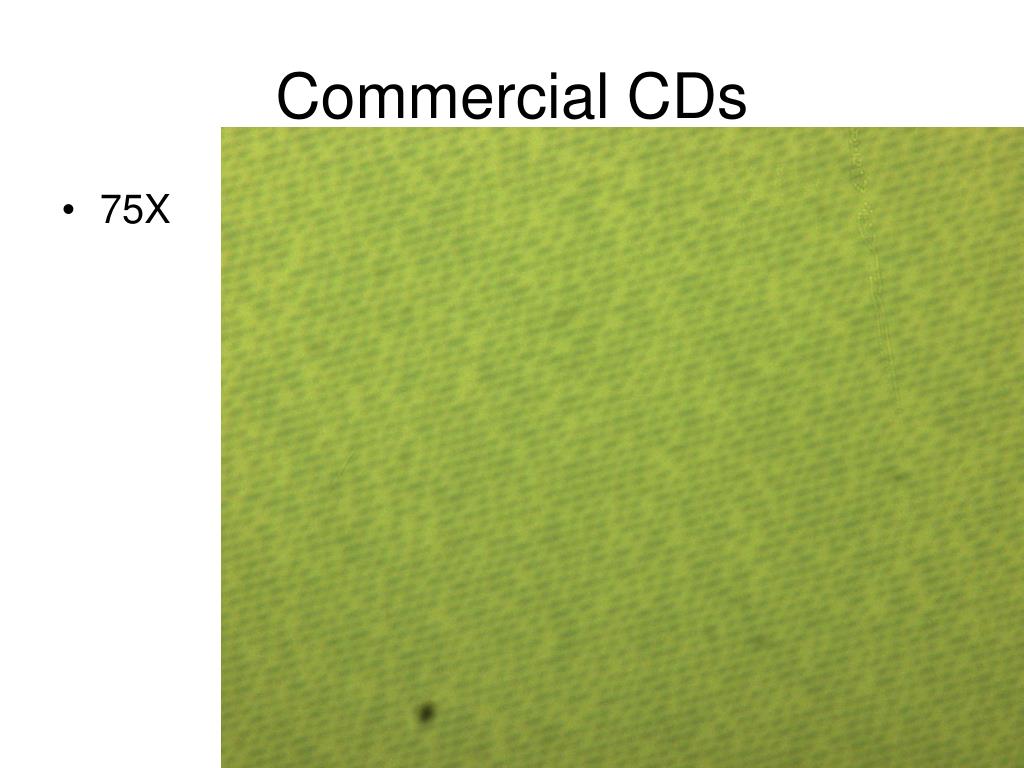

  8. Commercial CDs • 75X

  9. Commercial CDs • 100X

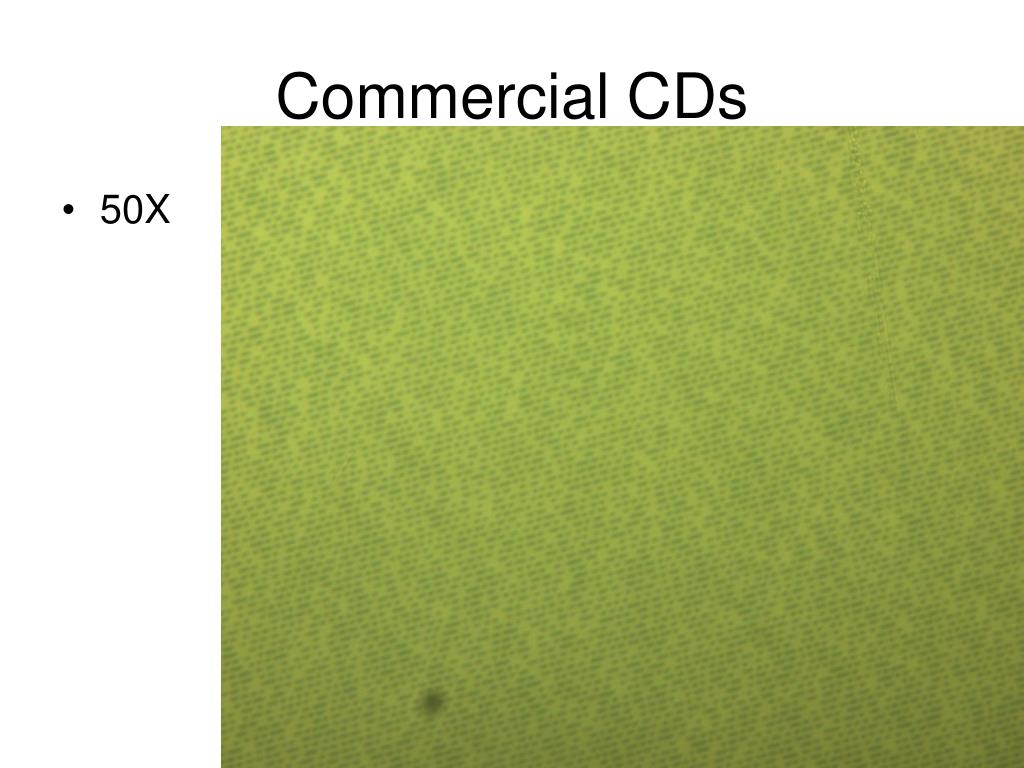

  10. Commercial CDs • 50x: No track

  11. CD-Rs • Materials/Process: • Organic dye between the PC substrate and the reflective layer • PC substrate has is etched with a pregroove www.cdmediaworld.com

  12. CD-Rs • Materials/Process: • Dyes and color

  13. CDRs • 10X: dirt

  14. CDRs • 100X
