  1. Wireless Communications & Alternative Power IGVC- Danielle E. Johnson BSEE Mary Grace Soleil B. Janas BSCE

  2. Omnex R161 Wireless Receiver

  3. Omnex R161 Wireless Receiver • The R161 receiver has 19FET output • One E-Stop output for safe emergency shutdown of power to the output and external circuits • Designed to be switched to ground instead of battery

  4. Omnex T50 Transmitter

  5. Omnex Origa T50 transmitter • Designed for digital ON/OFF applications • Trusted Frequency Hopping Spread Spectrum technology • Fits in pocket

  6. Omnex Origa T100 Transmitter

  7. Omnex Origa T100 Transmitter • Trusted Frequency Hopping Spread Spectrum technology • Maintenance Item- Battery • High impact plastic exterior for rugged environments

  8. Omnex Origa T110 Transmitter

  9. Omnex T110 Transmitter • Frequency Hopping Spread Spectrum • Weatherproof Transmitter • Ten Function controls • Unique ID code for transmitter to ensure no two system conflict • Power up and Power down modes • Three shift functions • Momentary • Non-latched • Latched

  10. Power Sources • On board Generator • Detachable Power Supply

  11. Detachable Power Supply #1 • Super Flower Plug-N 14cm Power Switching • 450 Watt / 550 Watt Power Supply • Adjustable 3 speed 14cm Fan w/Blue LED, ATX 1.3/BTX Compatibility • $64.00

  12. Price:   Price:   $99.99 $99.99 Power Supply #2Ultra X-Finity PSU Price: $99.99

  13. Power supply #2Ultra X-Finity PSU • Supports AMD and Intel Motherboards • Low Acoustic Noise • 120mm Fan • Meets ATX Version 2.2, v1.3, and • ATX 12V Version 2.03 Specifications • Short Circuit Protection • In-Rush Current Protection • Thermal Overload Cutoff Protection • MTBF > 100,000 Hours at Full Load, • 110VAC and 25°C Ambient Condition • FCC and UL Recognized

  14. Power Supply #3Enermax Noisetaker AX 2.0 Price: $152.99

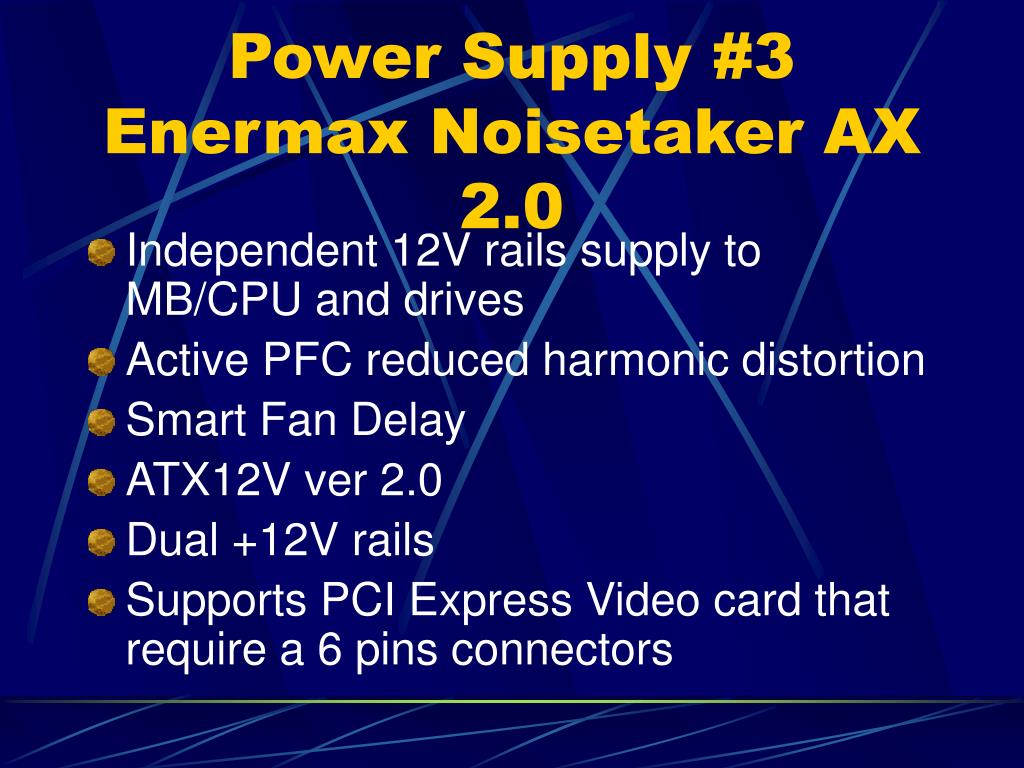

  15. Power Supply #3Enermax Noisetaker AX 2.0 • Independent 12V rails supply to MB/CPU and drives • Active PFC reduced harmonic distortion • Smart Fan Delay • ATX12V ver 2.0 • Dual +12V rails • Supports PCI Express Video card that require a 6 pins connectors

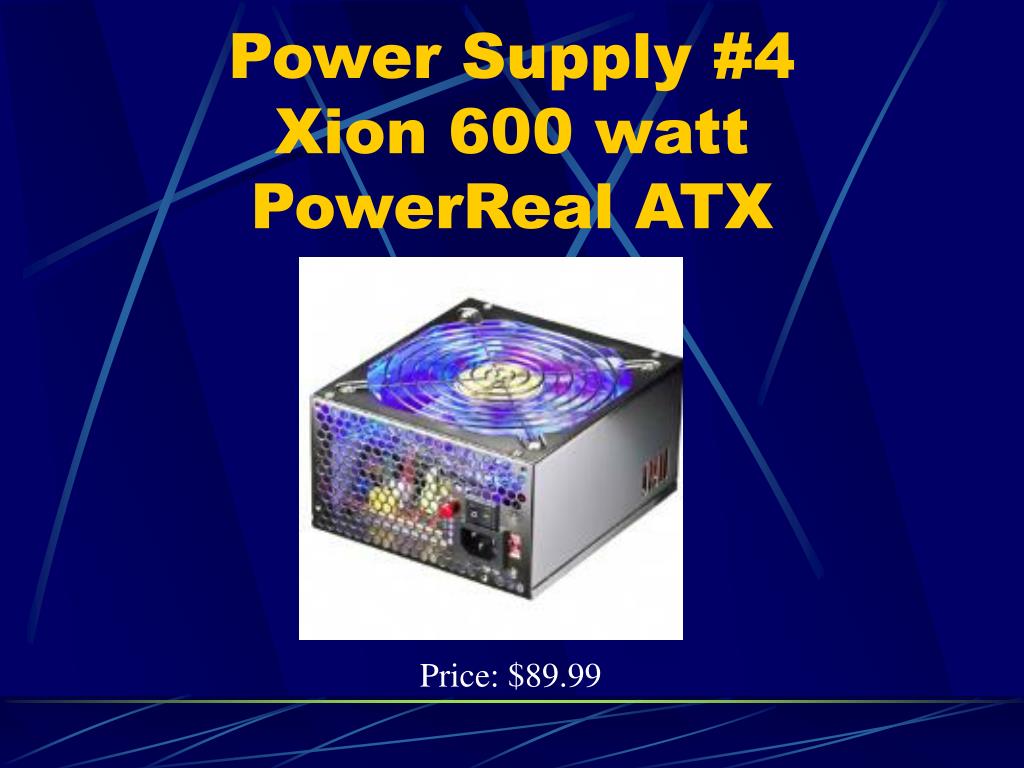

  16. Power Supply #4Xion 600 watt PowerReal ATX Price: $89.99

  17. Power Supply #4Xion PowerReal ATX • 20/24-Pins Mainboard Connector • SRS (Smart Relay System) • 140 mm Cooling Blue LED Fan (One of a kind and patented) • SATA Ready • Manual/Automatic Fan Speed Switch • Acoustic Silent Control • PCI Express VGA Connector (6 pins) • Coated Surface

  18. Power Supply #5Ultra V-Series ATX Price: $39.99

  19. Power Supply #5 Ultra V-Series ATX • Supports AMD and Intel Motherboards • Low Acoustic Noise • Meets ATX Version 2.03 and ATX 12V Version 1.2 Specifications • Short Circuit Protection • In-Rush Current Protection • Thermal Overload Cutoff Protection MTBF > 100,000 Hours at Full Load, 110VAC and 25°C Ambient Condition

  20. Power Supply #6Coolmax ATX Price: $34.99

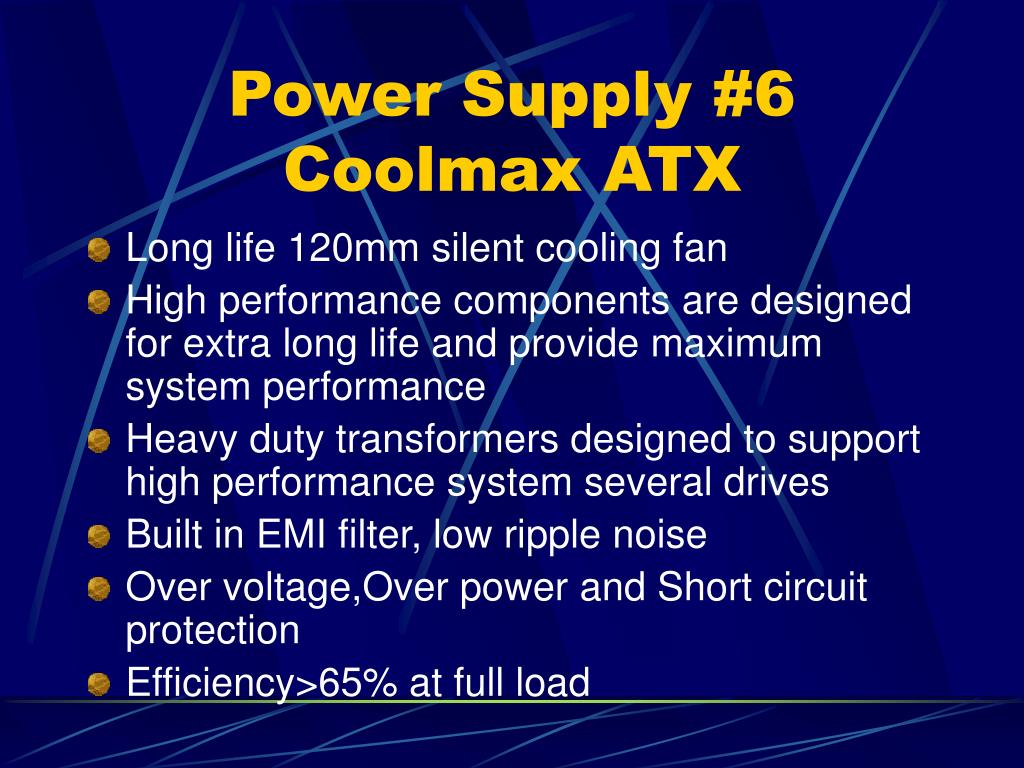

  21. Power Supply #6Coolmax ATX • Long life 120mm silent cooling fan • High performance components are designed for extra long life and provide maximum system performance • Heavy duty transformers designed to support high performance system several drives • Built in EMI filter, low ripple noise • Over voltage,Over power and Short circuit protection • Efficiency>65% at full load

  22. On Board Generator

  23. Generator #1Robin 900 Watt Portable Generator Price: $699.99

  24. Robin R1100 Generator • Extreme Easy Starting• Features automatic decompression & direct injection systems • New Silent Technology• Very quiet 59 decibels @ 7 meters • Lightweight • Fuel Efficient• Reliable air-cooled Robin Suburu engine runs up to 4 hours • Weight- 55lbs • Dimensions- 19.3"L x 11.6"W x 17.5"H

  25. Generator #2Mitsubishi 950 Watt Generator w/ Inverter Technology Price: $599.99

  26. Mitsubishi 950 Watt Generator w/ Inverter Technology • Inverter Technology• Safely power computers and sensitive electronics • Extremely Lightweight (45 lbs)• Easy to take tailgating, camping, hunting, etc. • Very Quiet (60 decibels @ 7 meters)• Power your stuff without disturbing your neighbors • Fuel Tank- 1 Gallon • Run Time- (50% load) 5 hours

  27. Generator #3Coleman Powermate Pulse 1850 Price: $499.99

  28. Generator #3Coleman Powermate Pulse 1850 • 3.5 HP Briggs & Stratton Engine • 1500 Running/ 1850 Starting Watts • 7 hours Run Time @ 50% load • Rubber Feet to Minimize Vibration • No converter • Weight- 70lbs • Fuel Tank 1.3 Gallon • Four 120VAC/ 15Amp outlets

  29. Generator #4Coleman Powermate Sport 1850 Price: $450.00

  30. Generator #4 Coleman Powermate Sport 1850 • 3.5 HP Briggs & Stratton Engine • 1500 Running/ 1850 Starting Watts • 7 hours Run Time @ 50% load • Rubber Feet to Minimize Vibration • No converter • Weight- 70lbs • Fuel Tank 1.3 Gallon • Two 120VAC/ 15Amp outlets, One 12VDC 15Amp Outlet
