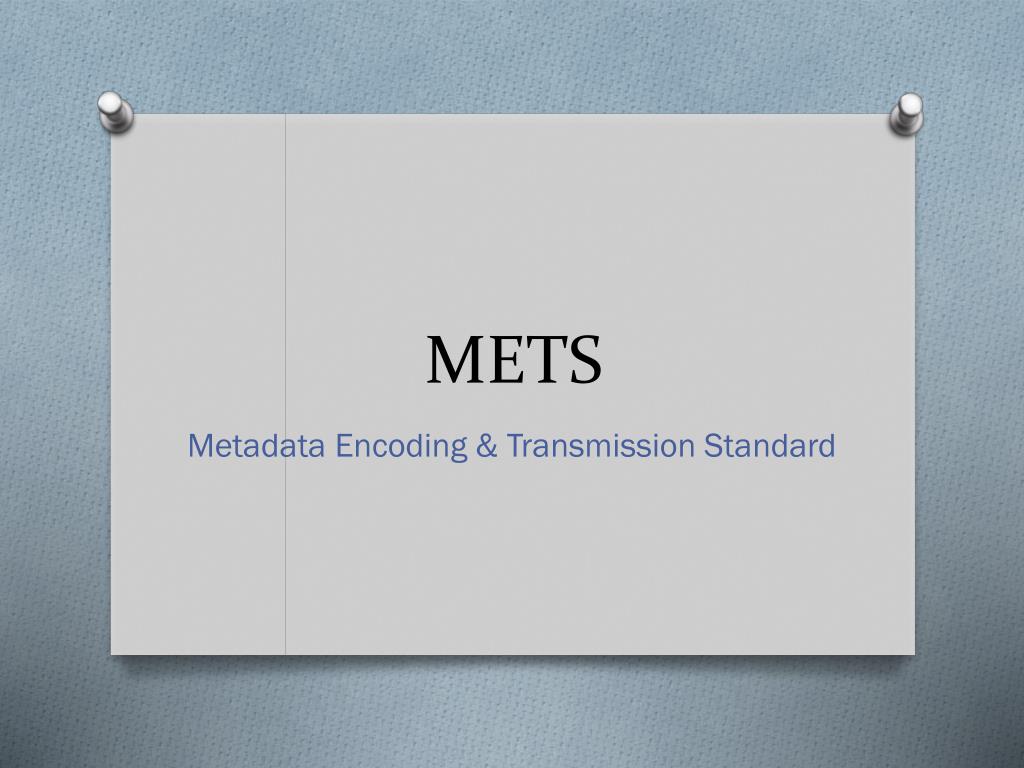

  1. METS Metadata Encoding & Transmission Standard

  2. Gliederung • Was ist METS • Aufbau • Die 7 Segmente • Diskussion / Fragen • Handout • Quellen

  3. Was ist METS • Metadaten Standard • Kodiert Metadaten von Objekten in digitalen Datenbanken • Deskriptive • Administrative • Strukturelle • Basiert auf XML (offen, einfach, ausbaubar)

  4. Aufbau • Header (metsHdr) • DescriptiveMetadata (dmdSec) • Administrative Metadata (amdSec) • File List (fileSec) • StructuralMap (structMap) • Structural Link (structLink) • Behaviors (behaviorSec)

  5. <mets> <metsHdr/> <dmdSec/> <amdSec/> <fileSec/> <structMap/> <structLink/> <behaviorSec/> </mets>

  6. Header (metsHdr) • Informationen über das Dokument (Metadaten) <metsHdr CREATEDATE=„xxx“> <agent ROLE=„x" TYPE="INDIVIDUAL"> <name>Herr Test</name> </agent> </metsHdr>

  7. DescriptiveMetadata (dmdSec) • Erschließungsangaben • Verweise auf interne / externe Dokumente • z.B. MARC Datensatz <dmdSec ID="dmd001"> <mdRef LOCTYPE="URL" MIMETYPE="application/xml„ MDTYPE="EAD"> url:x-nyu:fales1735 </mdRef> </dmdSec>

  8. Administrative Metadata (amdSec) • Verwaltungsangaben • Infos über • Herstellung / Speicherung von Daten • Urheberrechte • Quelle • Digitalisierung (Master, Derivate, …)

  9. <techMD ID="AMD001"> <mdWrap MIMETYPE="text/xml" MDTYPE="NISOIMG" LABEL="NISO Img. Data"> <xmlData> <niso:MIMEtype>image/tiff </niso:MIMEtype> </xmlData> </mdWrap> </techMD>

  10. File List (fileSec) • Dateiabschnitt • Elemente gruppiert (<fileGrp>) <fileSec> <fileGrp ID="VERS1"> <file ID="FILE001“ MIMETYPE="application/xml" SIZE="257537" CREATED=“xxx"> <Flocat LOCTYPE="URL">…/abc.xml</FLocat> </file> </fileGrp> </filesec>

  11. StructuralMap (structMap) • Beschreibung von hierarchischen Strukturen <structMap TYPE="logical"> <div ID="div1" LABEL="Oral History: Bla" TYPE="oral history"> <div ID="div1.1" LABEL="Interviewer Introduction" ORDER="1"> <fptr FILEID="FILE001"> <area FILEID="FILE001" BEGIN=„a" END=„b" BETYPE="IDREF" /> </fptr> </div> </structMap>

  12. Structural Link (structLink) • Strukturverknüpfungen • Einfachster Aufbau • Xlink-Spezifikation <smLinkfrom="IMG1" to="P2" xlink:title=„bla" xlink:show="new" xlink:actuate="onRequest" />

  13. Behaviors (behaviorSec) • Verhalten • Kann ausführbare Aktionen mit METS Inhalten verknüpfen <METS:behavior ID="DISS1.1" STRUCTID="S1.1„ BTYPE="uva-bdef:stdImage" CREATED=„xxx„ LABEL=„xxx„ GROUPID="DISS1„ ADMID="AUDREC1"> </METS:behavior>

  14. Diskussion / Fragen

  15. Handout

  16. Quellen • http://www.loc.gov/standards/mets/ • http://www.loc.gov/standards/mets/METSOverview.v2_de.html • http://colab.mpdl.mpg.de/mediawiki/Metadata_Encoding_and_Transmission_Standard • http://sunsite.berkeley.edu/mets/diagram/ • http://xml.coverpages.org/mets.html • http://browse.deviantart.com/?qh=&section=&global=1&q=ivista+2+icons#/d17uqtr • http://www.saveaswwf.com/de/
