Presentation Transcript

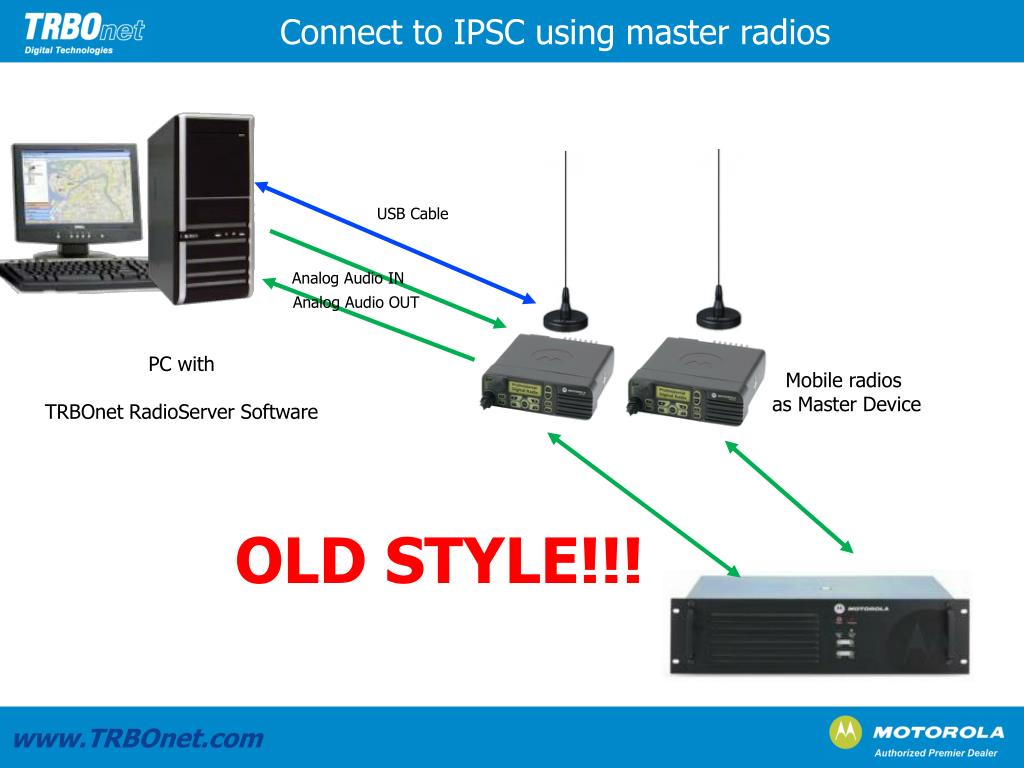

  1. Connect to IPSC using master radios USB Cable Analog Audio IN Analog Audio OUT PC with TRBOnet RadioServer Software Mobile radios as Master Device OLD STYLE!!! www.TRBOnet.com

  2. Direct IP Connect to Repeaters Channel 1 Internet/Ethernet MOTORBO Repeater PC with TRBOnet RadioServer Software NEW STYLE!!! Channel 2 www.TRBOnet.com

  3. Direct IP Connect Advantages • Benefits • All Voice and Data recorded, including Private Calls!! • No master radios, antenna etc required • One sound card only for plenty voice channels • Easy to install and configure • Supported Systems • Single repeaters • IP Site Connect systems • Capacity Plus (receive only) NOTE: Analogue channels on repeaters are not supported www.TRBOnet.com

  4. Connect to IPSC using IP Connect Separated repeaters Master Repeater 1 Master Repeater 2 Master Repeater 3 Master Repeater N Internet/Ethernet PC with TRBOnet Software www.TRBOnet.com

  5. Connect to IPSC using IP Connect Master Repeater Peer 1 Internet/Ethernet TRBOnet RadioServer Peer 2 Peer 3 Peer N IP Site Connect system www.TRBOnet.com

  6. Connect to IPSC using IP Connect 4 IP Site Connect Systems. Internet/Ethernet Internet/Ethernet TRBOnet RadioServer Peer Repeaters Master Repeaters www.TRBOnet.com

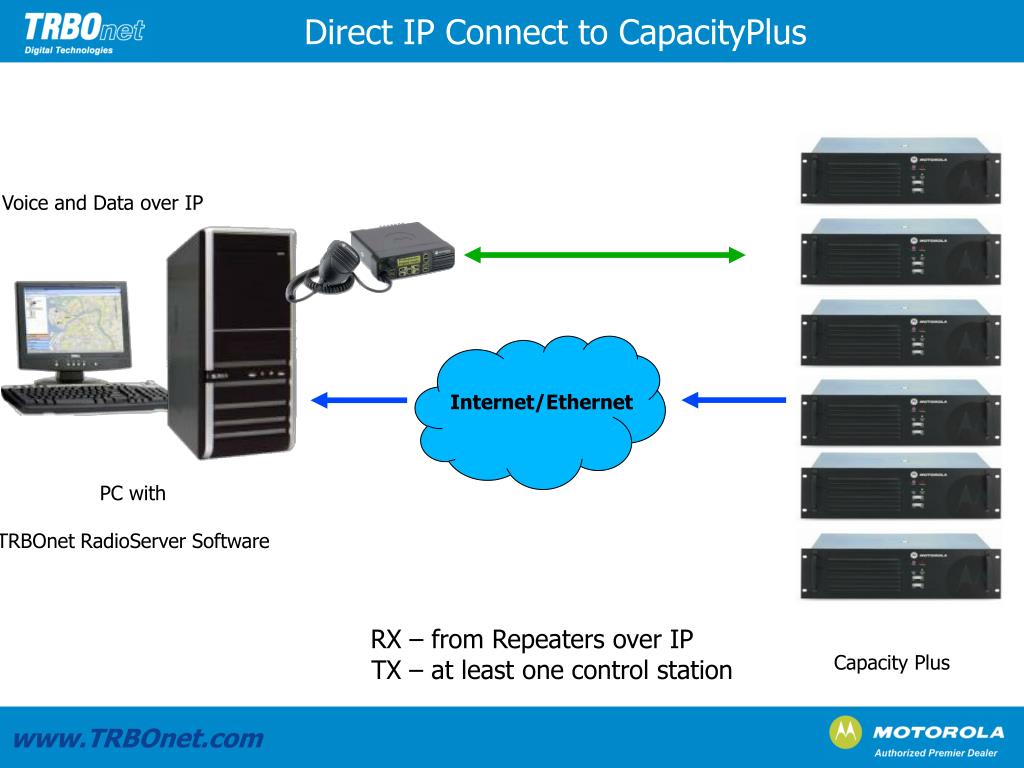

  7. Direct IP Connect to CapacityPlus Voice and Data over IP Internet/Ethernet PC with TRBOnet RadioServer Software RX – from Repeaters over IP TX – at least one control station Capacity Plus www.TRBOnet.com

  8. CONNECT PLUS: ARS, TEXT, GPS Site 1 Internet/Ethernet Site 2 PC with TRBOnet RadioServer Software Site N www.TRBOnet.com
