  1. Data Center Specification Gregory Provan CS6404

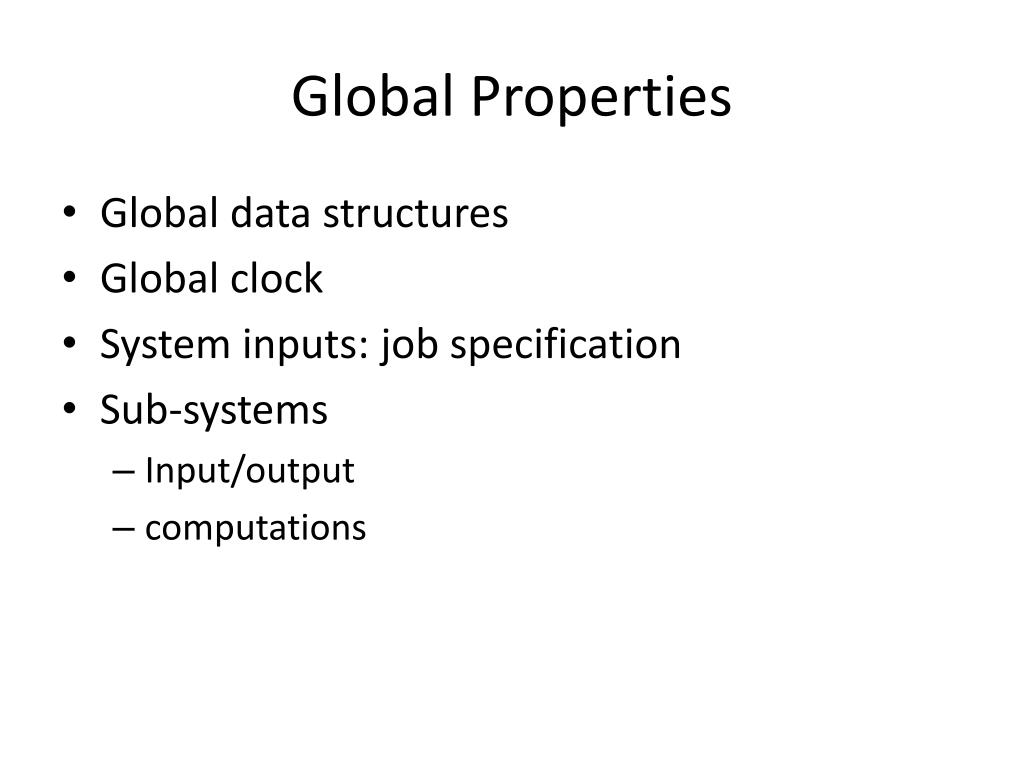

  2. Global Properties • Global data structures • Global clock • System inputs: job specification • Sub-systems • Input/output • computations

  3. Plant Model Data Center CRAC

  4. Key Global data structures R11 . . . . . . . . . . . . . . . . R1k R21 . . . . . . . . . . . . . . . . R2k Rm1 . . . . . . . . . . . . . . . . Rmk • CPU matrix C (m x k) • CPU health H (m x k) • H: C  h, h{0,1} • CPU thermal output O(m x k) • O: C  T, with T [0,…,Tmax] (kW) • Thermal map T (m x k) • T: C   (degrees C) • CRAC parameters • Thermal outputs: Temp x mass-flowrate

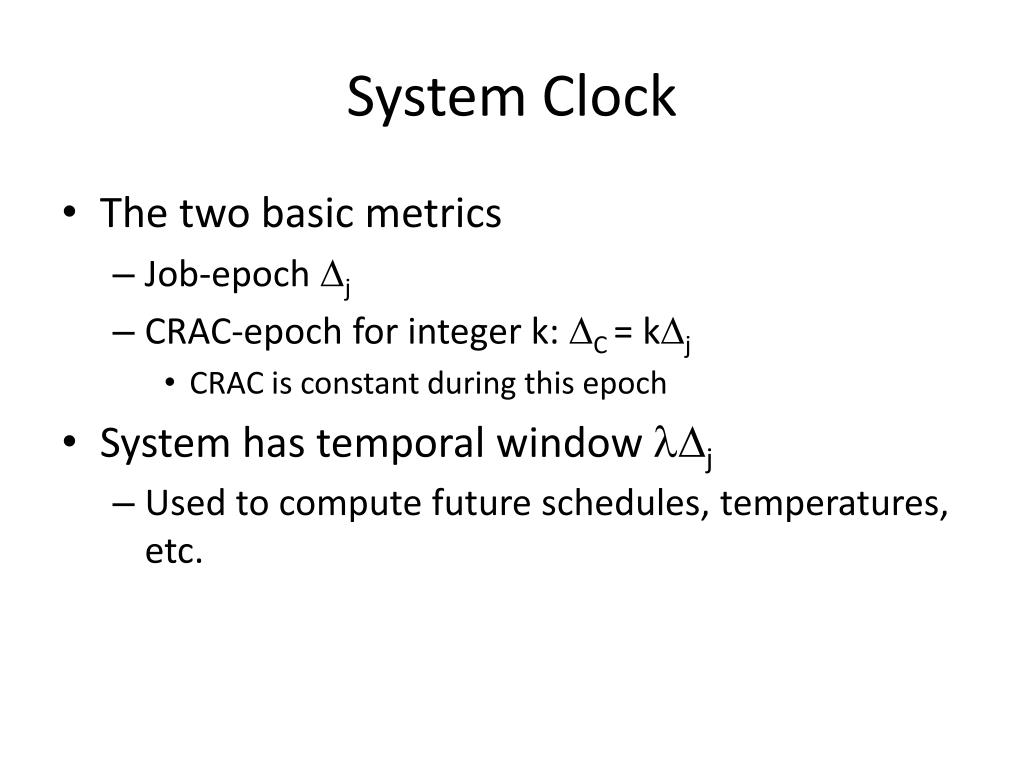

  5. System Clock • The two basic metrics • Job-epoch j • CRAC-epoch for integer k: C = kj • CRAC is constant during this epoch • System has temporal window j • Used to compute future schedules, temperatures, etc.

  6. Jobs and Allocation • Jobs arrive at rate r, and we assume jobs arrive in batches, at job-epochs j apart • J={J1,…,Jn} • Each job denoted by pair (d,), d,  integers • d denotes the job duration •  denotes the deadline, which is  j longer than the duration • Assignment A: J x   C • Can only assign jobs to CPUs that are not expected to fail during the job duration •  is the CPU processing-rate: {low, high}

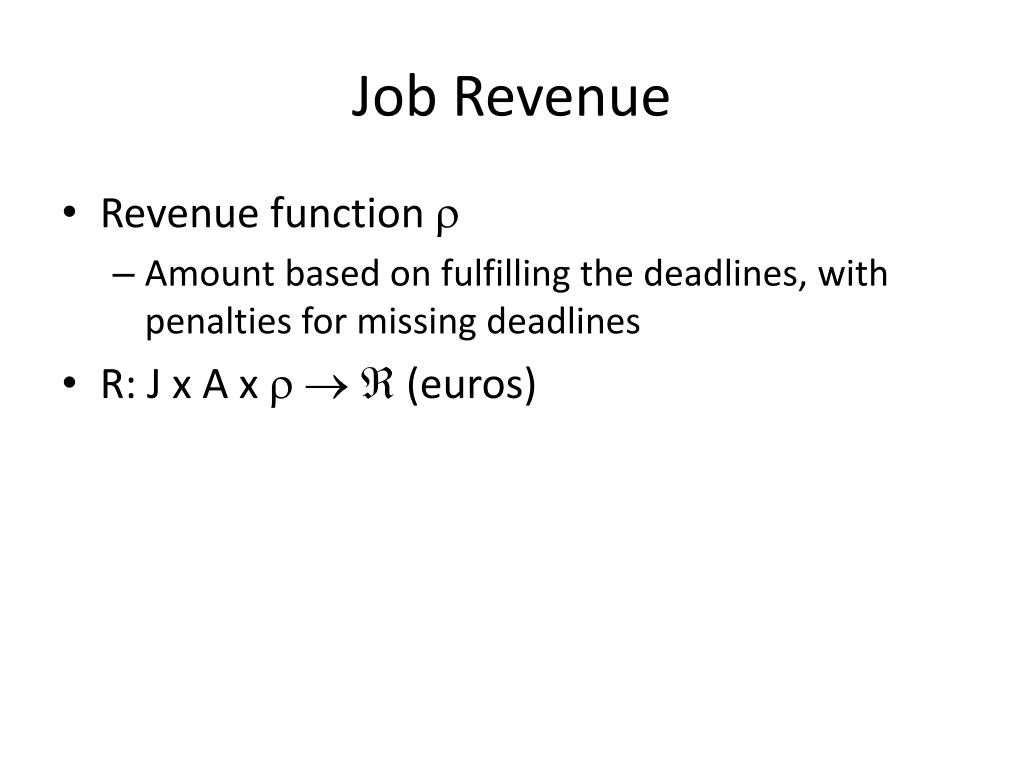

  7. Job Revenue • Revenue function  • Amount based on fulfilling the deadlines, with penalties for missing deadlines • R: J x A x    (euros)

  8. Health Computation • Requirements • Health decreases with high temp and use • Health increases with low temp and no use • If hhmax, then the CPU fails • CPUs also fail randomly with rate /day • H(t+1)  H(t) x T(t) x A(t) x 

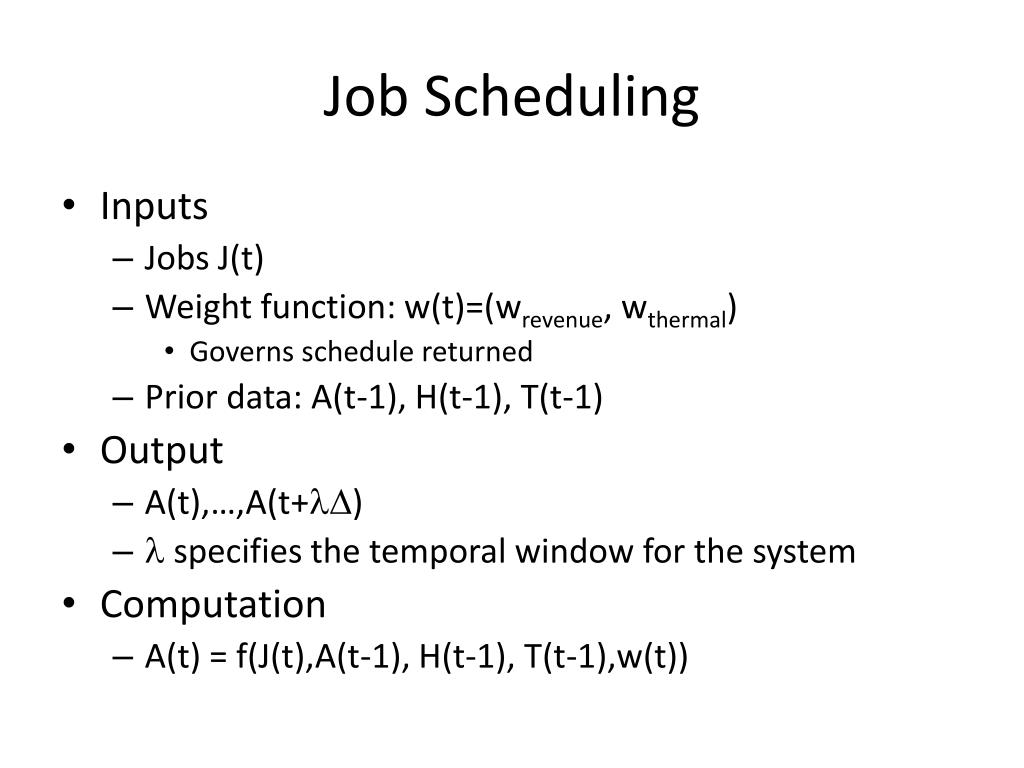

  9. Job Scheduling • Inputs • Jobs J(t) • Weight function: w(t)=(wrevenue, wthermal) • Governs schedule returned • Prior data: A(t-1), H(t-1), T(t-1) • Output • A(t),…,A(t+) •  specifies the temporal window for the system • Computation • A(t) = f(J(t),A(t-1), H(t-1), T(t-1),w(t))

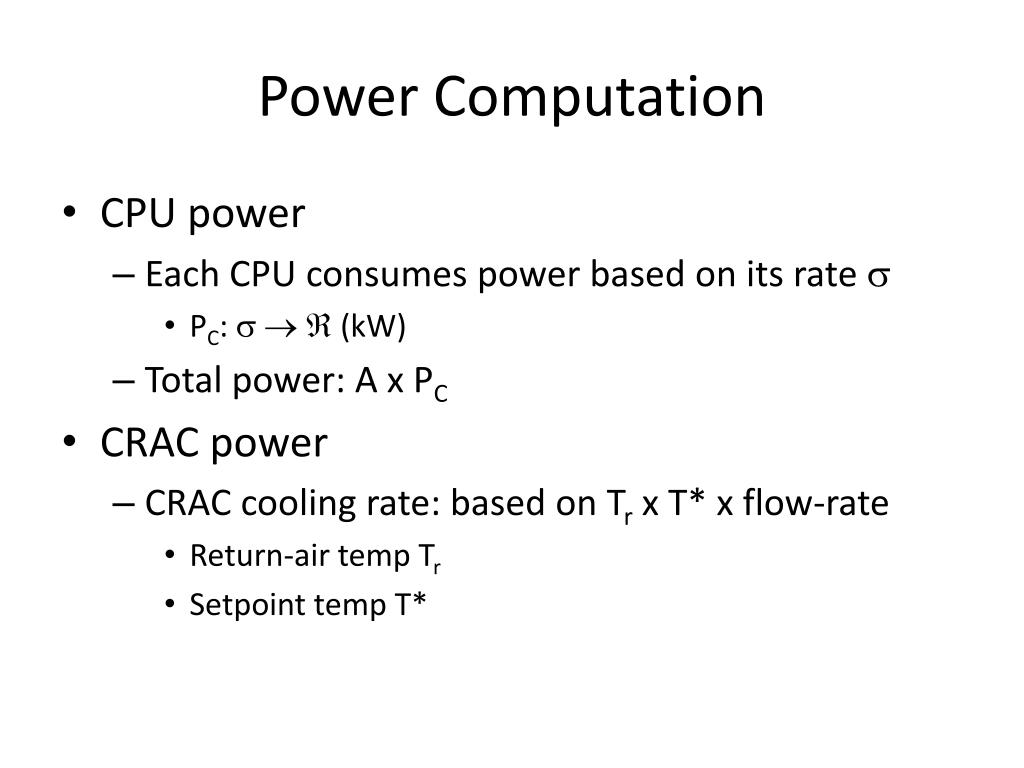

  10. Power Computation • CPU power • Each CPU consumes power based on its rate  • PC:    (kW) • Total power: A x PC • CRAC power • CRAC cooling rate: based on Tr x T* x flow-rate • Return-air temp Tr • Setpoint temp T*

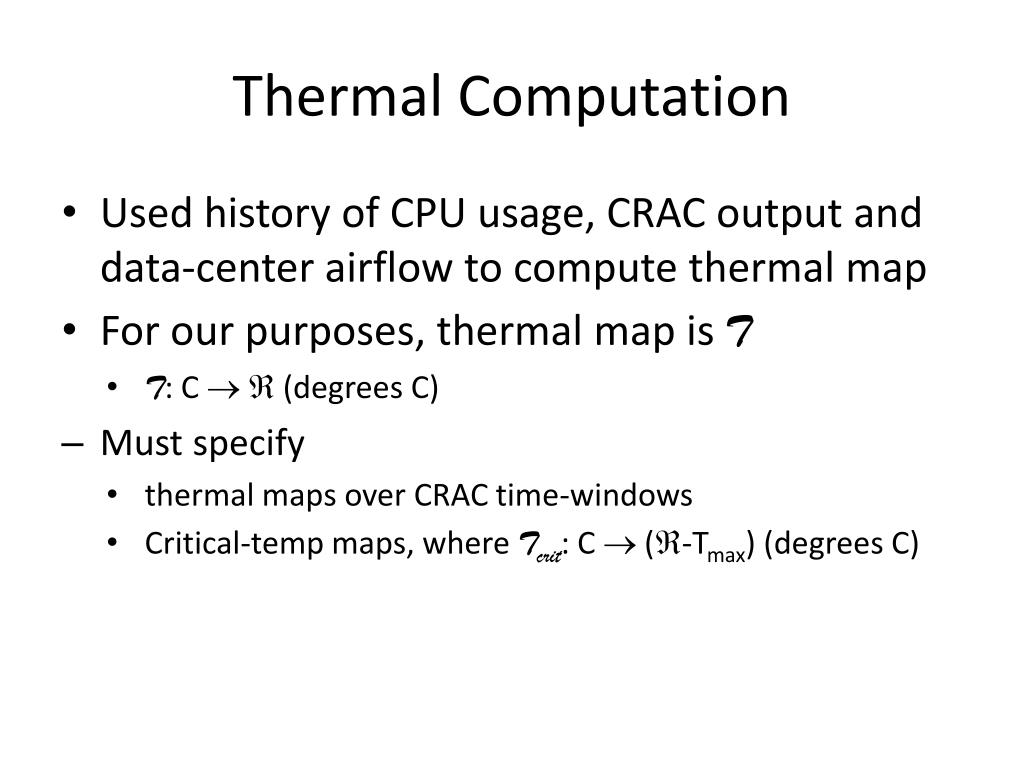

  11. Thermal Computation • Used history of CPU usage, CRAC output and data-center airflow to compute thermal map • For our purposes, thermal map is T • T: C   (degrees C) • Must specify • thermal maps over CRAC time-windows • Critical-temp maps, where Tcrit: C  (-Tmax) (degrees C)

  12. Hot-Spot Computation • Assume simple air-circulation model for Rack Warm air outflow Temperature Gradient (with equal Loads) Cold air inflow

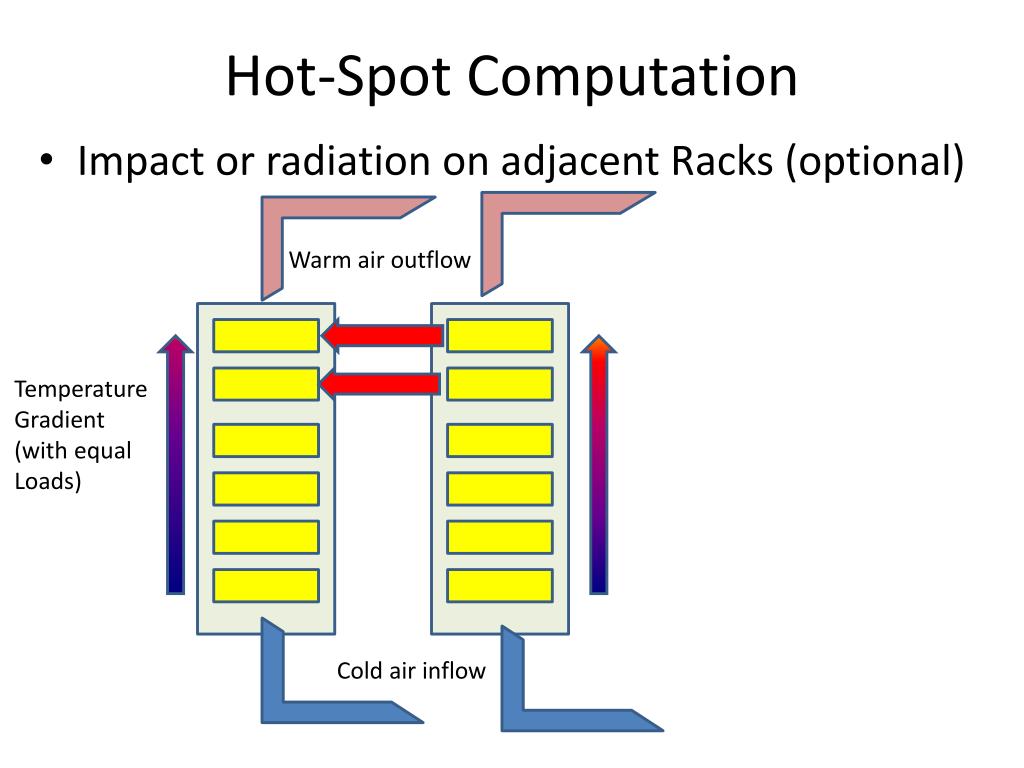

  13. Hot-Spot Computation • Impact or radiation on adjacent Racks (optional) Warm air outflow Temperature Gradient (with equal Loads) Cold air inflow

  14. Key Publication • Banerjee et al. • Integrating cooling awareness with thermal aware workload placement, Sustainable Computing 1, 2011.
