  1. SMART - AKK Designed by: Anita Has Kristina Suen

  2. SYNOPSIS I. Motivation & Requirements II. Design & Description of Operation • Hardware • Software III. Demonstration

  3. MOTIVATION & REQUIREMENTS • Security Vulnerabilities • Lost/Stolen Key • Eavesdropper • SMART – AKK Requirements • Encryption of data over communication line • Tiny Encryption Algorithm • Biometric verification module • ARA-ME-01 Biometric Module • Vehicle simulation • Wireless communication via XBEEs

  4. SMART - AKK

  5. HARDWARE

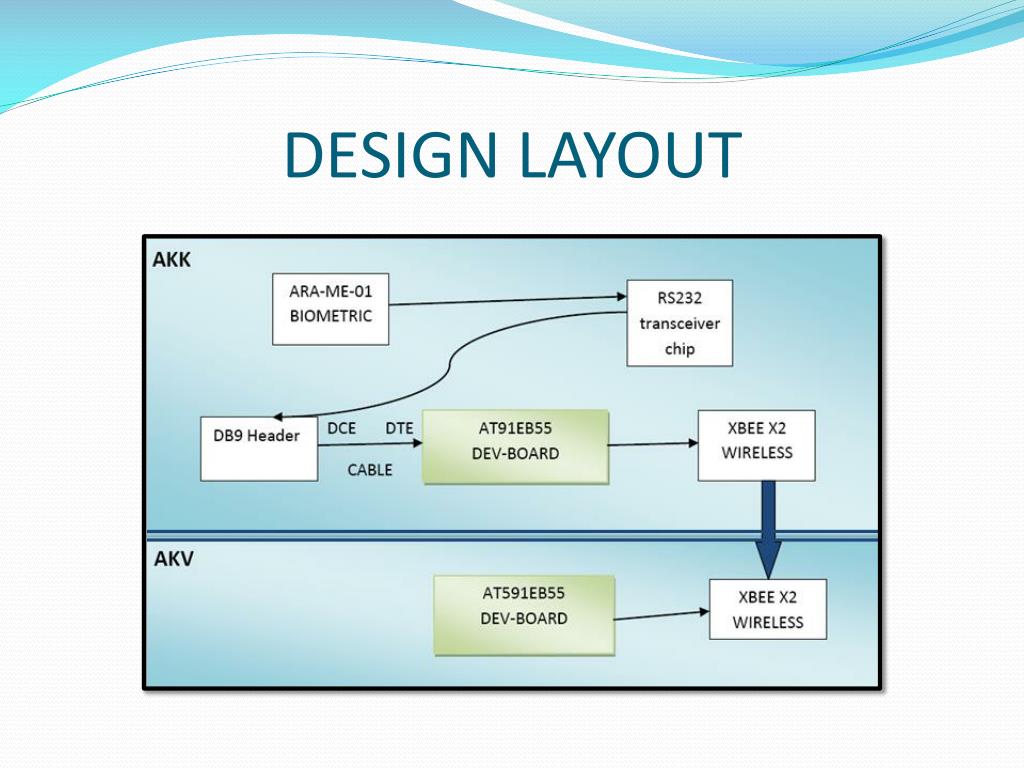

  6. DESIGN LAYOUT

  7. SMART- AKK DESIGN

  8. AKV DESIGN

  9. X-Bee 802.15.4 Wireless Modules • 10 meter range test • USART Communication • 8-bit data packets • 38400 baud rate

  10. ARA-ME-01 Biometric Module • On chip authentication • Scanning & matching of 120 fingerprints • Less than 3 seconds fingerprint matching (1:N)

  11. ARA-ME-01 Biometric Module • USART Communication • 19200 baud rate • 1-start, 1-stop, 8-bit data, no parity • Packet format (in hex) • Example packet • Read image from sensor and store in image buffer

  12. ARA-ME-01 Biometric Module • Application to SMART - AKK • Master fingerprint • Enroll additional fingerprints • Reset memory and master • Authenticate fingerprints (1:N) • Execute any command on AKV

  13. SOFTWARE

  14. Tiny Encryption Algorithm (TEA) • Why TEA? • Simplicity • Speed • Cryptographic strength • AKV Data Packet: 64-bits • AKK/AKV VIN Key : 128-bits (used to encrypt data packet)

  15. Tiny Encryption Algorithm (TEA) • Example AKV Data Packet: • Five possible action commands (Lock/Unlock Doors, Engine On/Off, Panic) • Serial number consists of synchronized counter to prevent eavesdropping

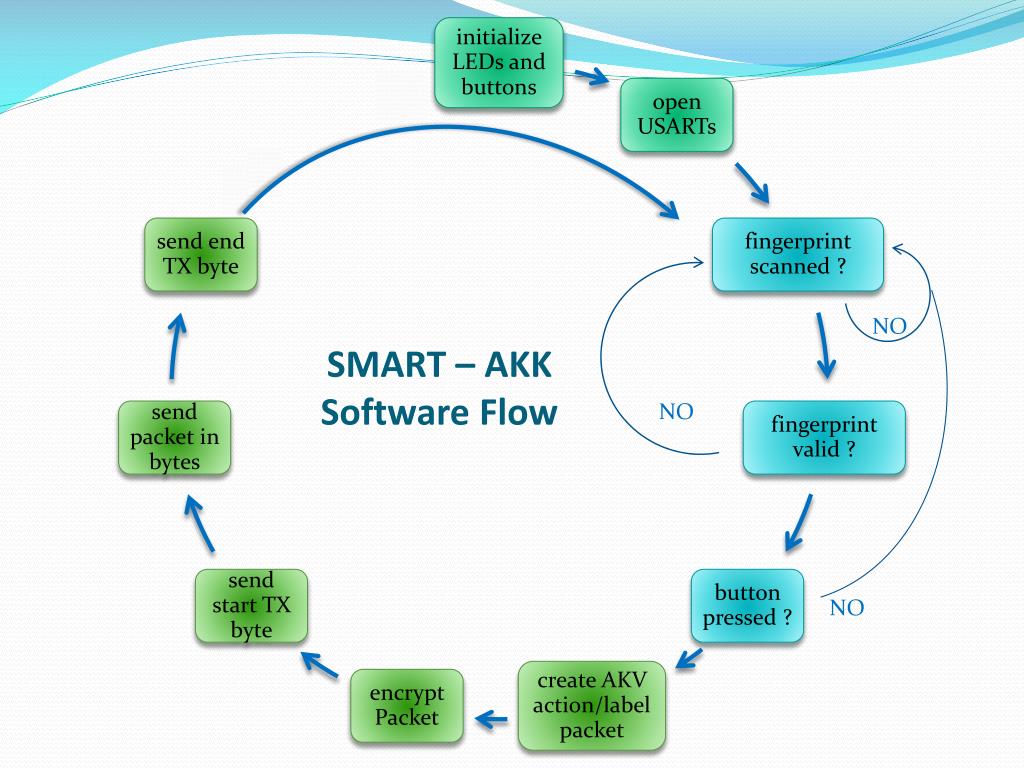

  16. SMART – AKK Software Flow NO NO NO

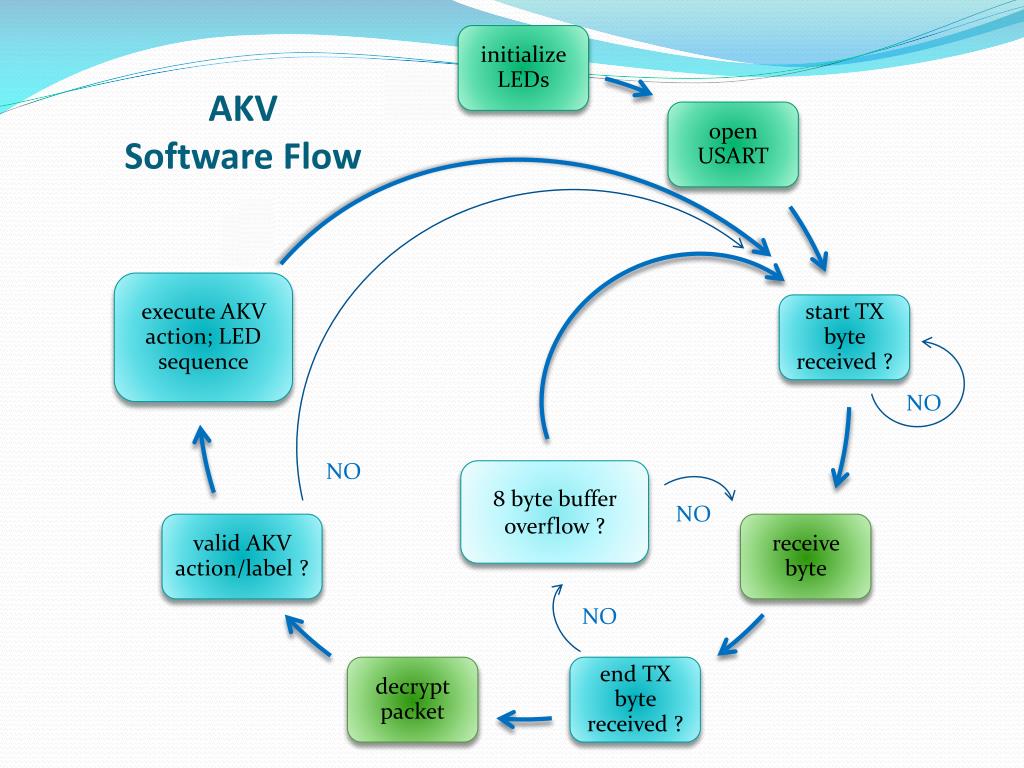

  17. AKV Software Flow NO NO 8 byte buffer overflow ? NO NO

  18. DEMONSTRATION

  19. QUESTIONS
