Quantum Resistant Public Key Cryptography: A Survey

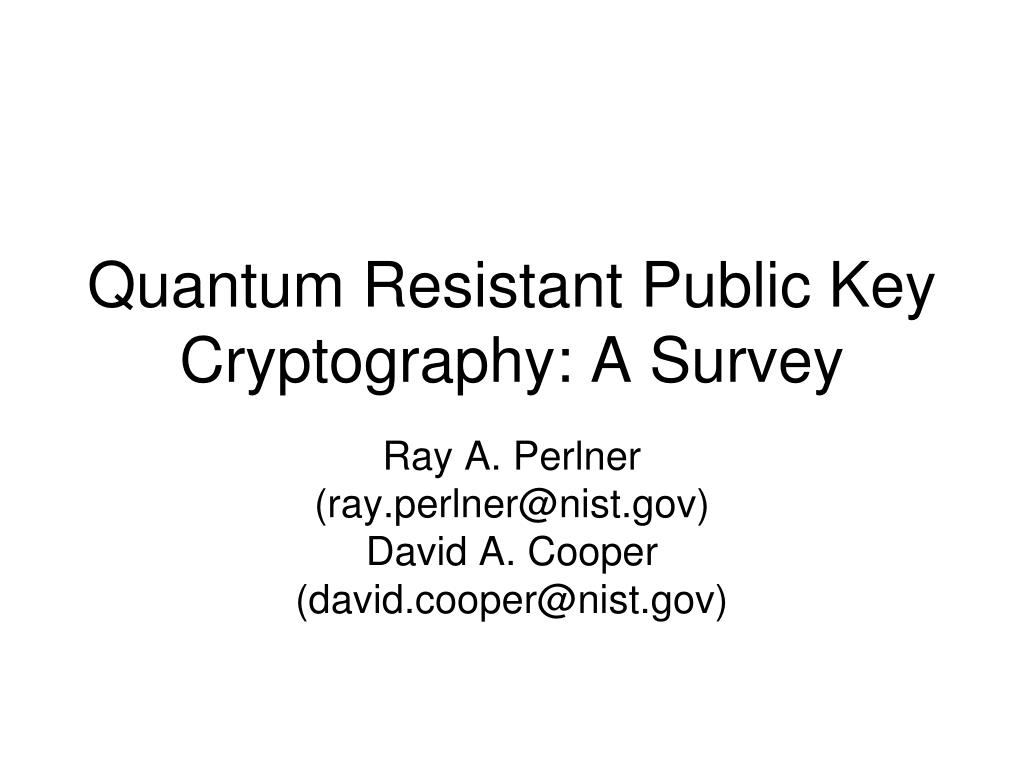

1. Quantum Resistant Public Key Cryptography: A Survey Ray A. Perlner (ray.perlner@nist.gov) David A. Cooper (david.cooper@nist.gov)

2. What is a quantum computer • Short answer • A classical computer processes classical information. • A quantum computer processes quantum information. • What is the difference? • Classical information is measured in bits (a unit of entropy in the classical limit of physics) • Quantum information consists of qbits (a unit of entropy in real physics) • Either way, available entropy scales with the size of a system. • So it should be possible to build a quantum computer.

3. What can a quantum computer do?(faster than a classical computer) • Simulate a quantum computer • The best known classical algorithm is exponentially more costly in the worst case. • This does NOT mean that a quantum computer can always provide exponential speedup. • Stuff that matters for cryptography • Quadratic speedup over classical brute force search. (Grover) • Polynomial time algorithms for factoring and discrete logs, including elliptic curves. (Shor) • This completely breaks every public key algorithm you’ve probably ever heard of.

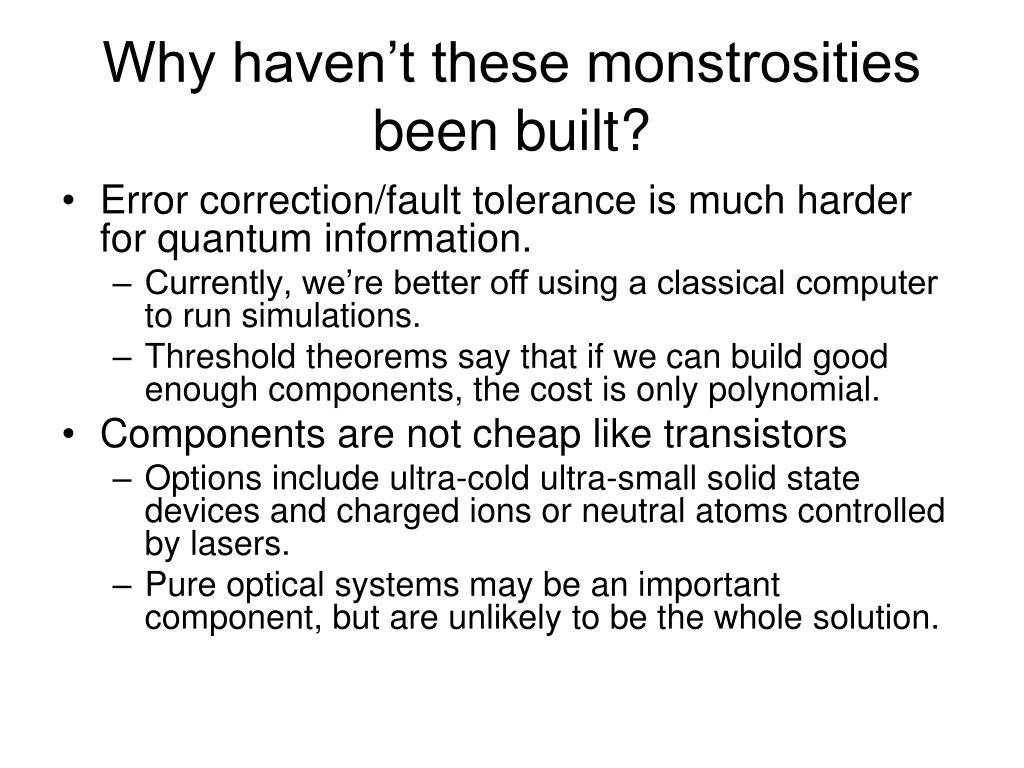

4. Why haven’t these monstrosities been built? • Error correction/fault tolerance is much harder for quantum information. • Currently, we’re better off using a classical computer to run simulations. • Threshold theorems say that if we can build good enough components, the cost is only polynomial. • Components are not cheap like transistors • Options include ultra-cold ultra-small solid state devices and charged ions or neutral atoms controlled by lasers. • Pure optical systems may be an important component, but are unlikely to be the whole solution.

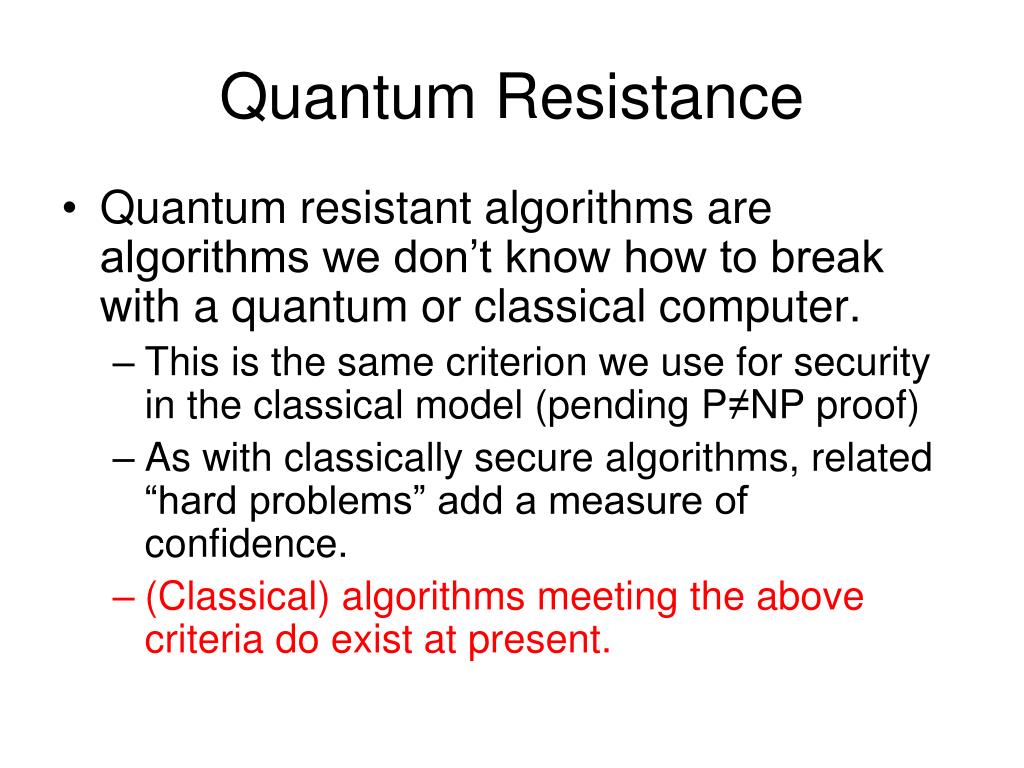

5. Quantum Resistance • Quantum resistant algorithms are algorithms we don’t know how to break with a quantum or classical computer. • This is the same criterion we use for security in the classical model (pending P≠NP proof) • As with classically secure algorithms, related “hard problems” add a measure of confidence. • (Classical) algorithms meeting the above criteria do exist at present.

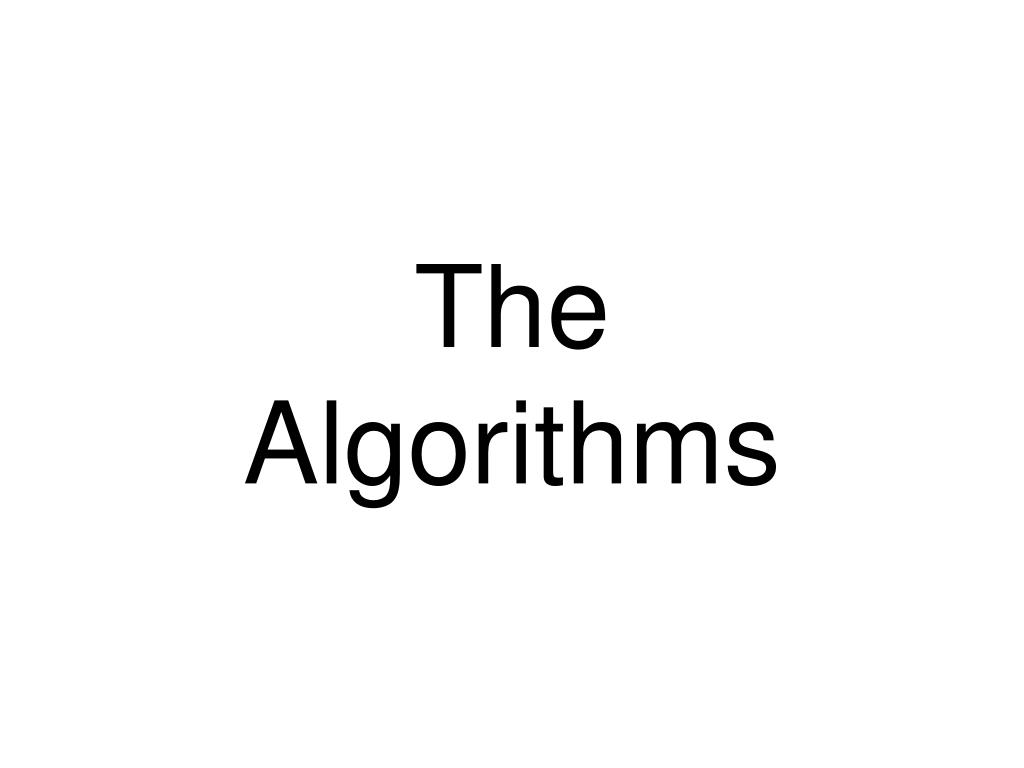

6. TheAlgorithms

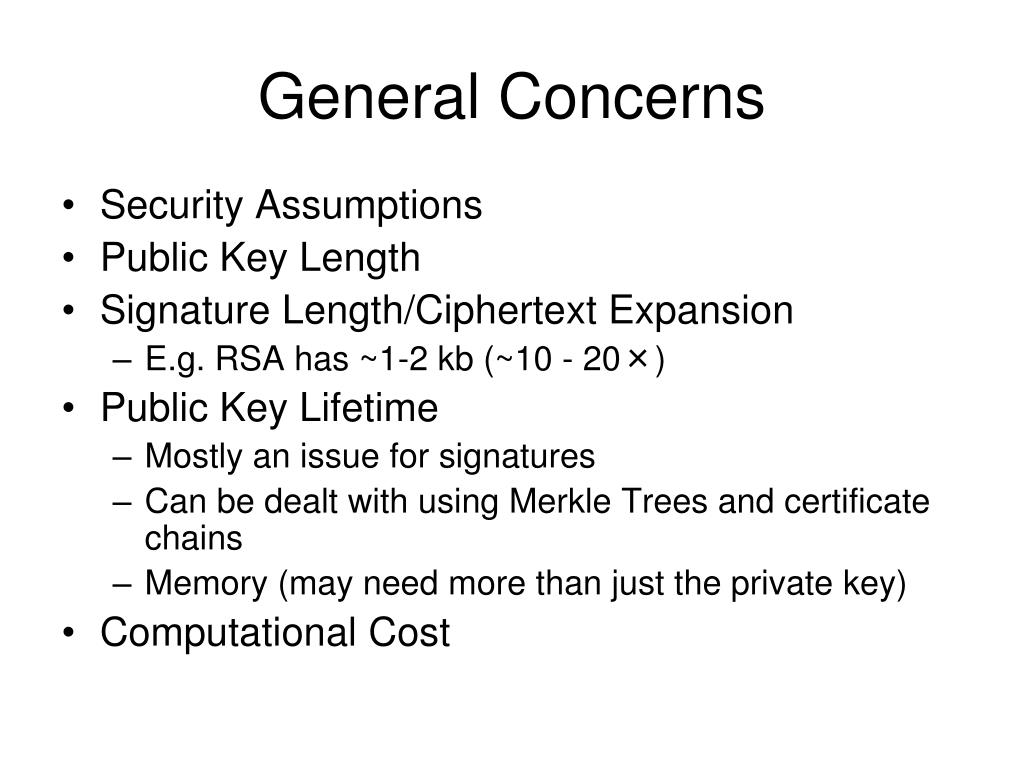

7. General Concerns • Security Assumptions • Public Key Length • Signature Length/Ciphertext Expansion • E.g. RSA has ~1-2 kb (~10 - 20×) • Public Key Lifetime • Mostly an issue for signatures • Can be dealt with using Merkle Trees and certificate chains • Memory (may need more than just the private key) • Computational Cost

8. Lamport Signatures • One time signatures • Basic Scheme: Sign a single bit • Private key consists of two secrets S0 and S1 • Public key is H(S0) || H(S1) • Signature for 0 is S0, signature for 1 is S1 • To sign an n-bit digest, just use n times as many secrets to sign the bits individually. • Many optimizations are possible that trade increased computation for reduced key and/or signature size.

9. Merkle Trees

10. Lamport Signatures • Security Assumption: preimage and second-preimage resistance of a one-way function • Only the message digest needs collision resistance. • Public Key Length: ~n2 for an n-bit one-way function and a 2n-bit digest • ~10 kb for n = 80 • ~20 kb for n =128 • Signature Length: same • Public Key Lifetime: 1 signature • Computational Cost: ~1ms (comparable to DSA) • Includes key generation

11. Lamport Signatures (with Merkle Trees and Chaining) • Security Assumption: preimage and second-preimage resistance of a one-way function • Only the message digest needs collision resistance. • Public Key Length: n for an n-bit one-way function and a 2n-bit digest • Private Key Length: ~250 – 500 kb • Signature Length: ~50 – 100 kb • Public Key Lifetime: 1012 signatures • Computational Cost: ~1ms (comparable to DSA) • key generation: ~1s

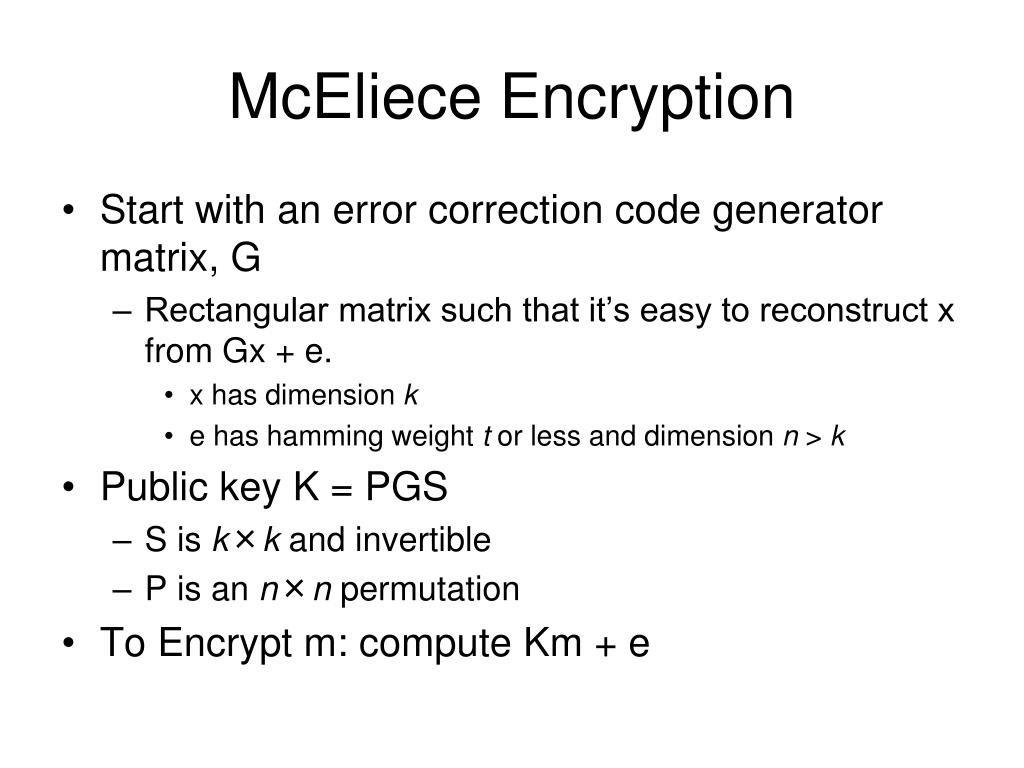

12. McEliece Encryption • Start with an error correction code generator matrix, G • Rectangular matrix such that it’s easy to reconstruct x from Gx + e. • x has dimension k • e has hamming weight t or less and dimension n > k • Public key K = PGS • S is k×k and invertible • P is an n×n permutation • To Encrypt m: compute Km + e

13. McEliece Encryption • Security Assumption: indistinguishability of masked Goppa code and general linear code • Decoding problem for general linear codes is NP-complete • Public Key Length: ~500kb • Message Size: ~1kb • Public Key Lifetime: potentially unlimited • Computational Cost: ~100μs • Signatures exist, but very expensive for signer

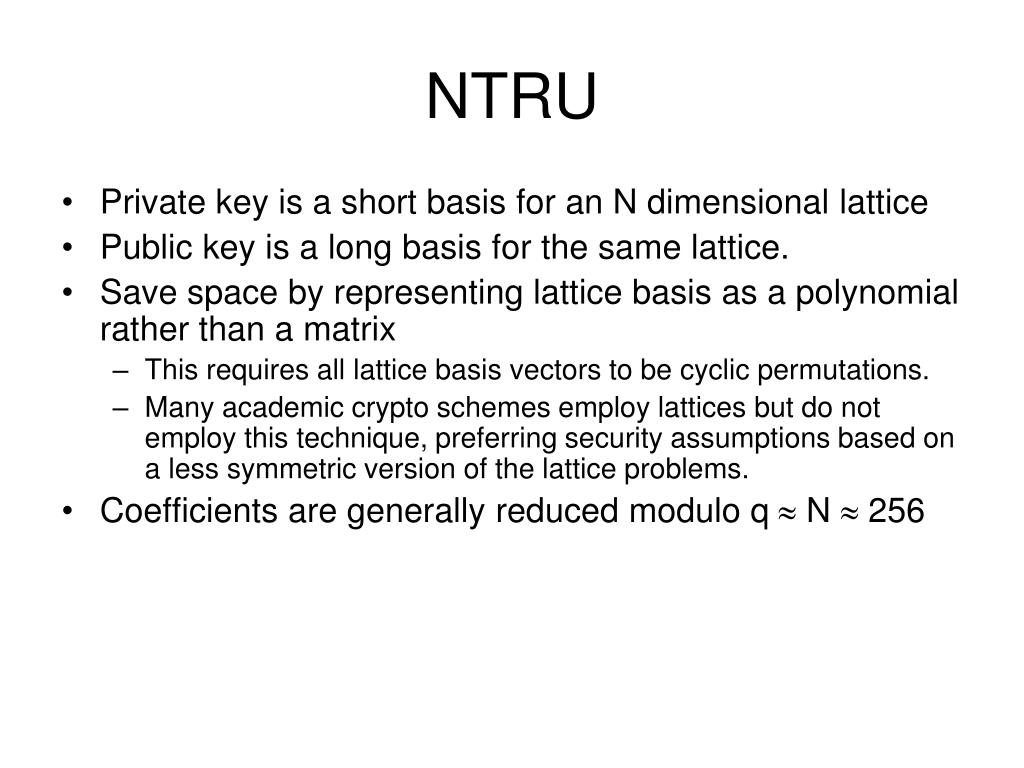

14. NTRU • Private key is a short basis for an N dimensional lattice • Public key is a long basis for the same lattice. • Save space by representing lattice basis as a polynomial rather than a matrix • This requires all lattice basis vectors to be cyclic permutations. • Many academic crypto schemes employ lattices but do not employ this technique, preferring security assumptions based on a less symmetric version of the lattice problems. • Coefficients are generally reduced modulo q  N  256

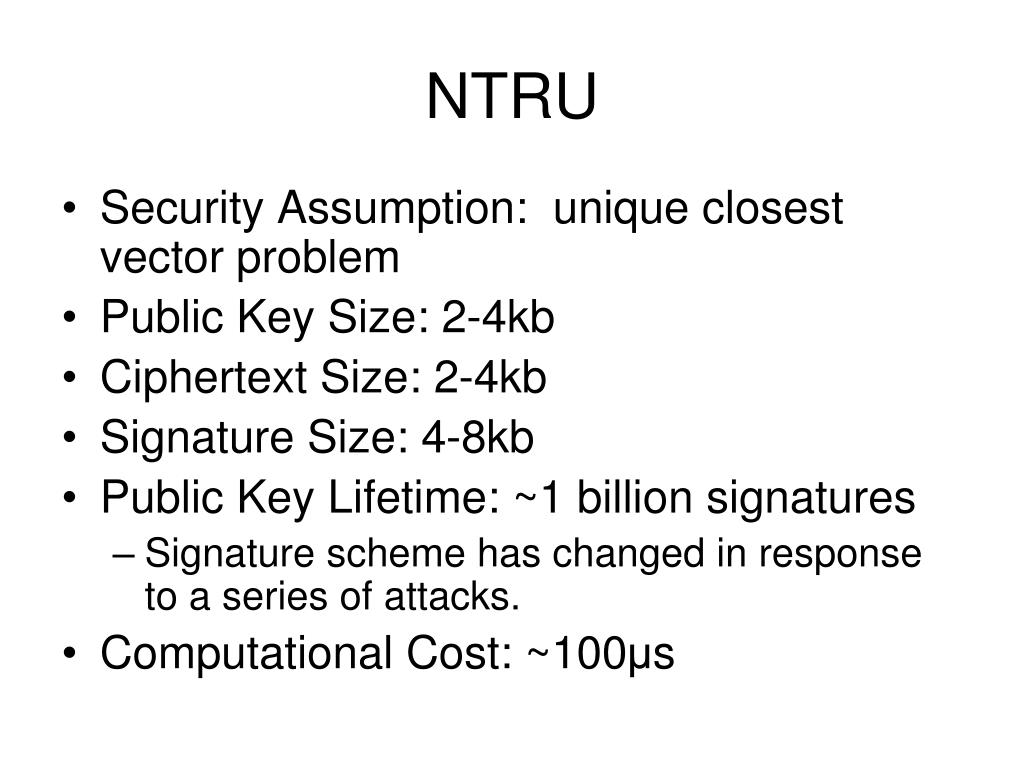

15. NTRU • Security Assumption: unique closest vector problem • Public Key Size: 2-4kb • Ciphertext Size: 2-4kb • Signature Size: 4-8kb • Public Key Lifetime: ~1 billion signatures • Signature scheme has changed in response to a series of attacks. • Computational Cost: ~100μs

16. Other • Hidden Field Equations • Braid Groups • New schemes based on these crop up from time to time, but most have been broken.

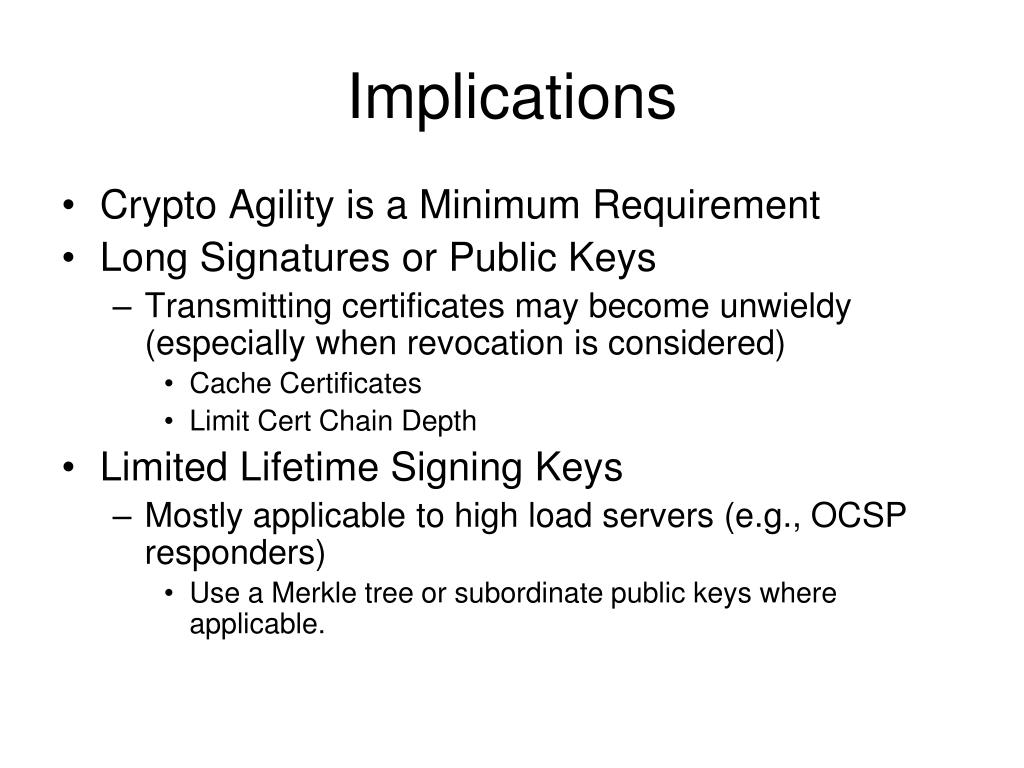

17. Implications • Crypto Agility is a Minimum Requirement • Long Signatures or Public Keys • Transmitting certificates may become unwieldy (especially when revocation is considered) • Cache Certificates • Limit Cert Chain Depth • Limited Lifetime Signing Keys • Mostly applicable to high load servers (e.g., OCSP responders) • Use a Merkle tree or subordinate public keys where applicable.

18. Conclusion • All widely used public key crypto is threatened by quantum computing. • We do have potentially viable options to consider. • Protocol designers can think about how to deal with these algorithms now.
