  1. ECE 551Digital System Design & Synthesis Lecture 13: Life After Verilog

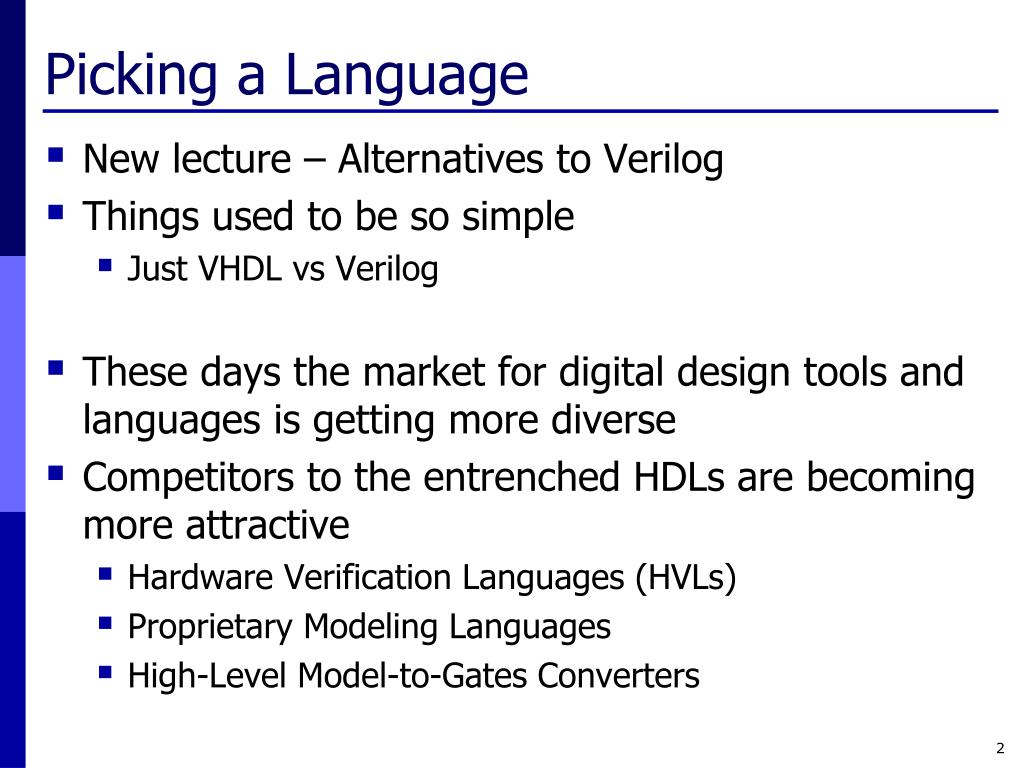

  2. Picking a Language • New lecture – Alternatives to Verilog • Things used to be so simple • Just VHDL vs Verilog • These days the market for digital design tools and languages is getting more diverse • Competitors to the entrenched HDLs are becoming more attractive • Hardware Verification Languages (HVLs) • Proprietary Modeling Languages • High-Level Model-to-Gates Converters

  3. Oh, Verilog • Now that you’ve had a some time to get used to Verilog-2001 you’ve probably noticed a few flaws. • What do you dislike about Verilog?

  4. Personality Problems [1] • It’s not always clear what will/won’t synthesize • While loops, divide/modulo operators, implicit state machines, complex for loops, etc. • Sometimes it would be nice if you could just say what you intended, instead of having to imply it. • Make this always block combinational • Make this infer a flip-flop / make this infer a latch • Make this case statement parallel** • Make this case statement have priority** ** Without relying on “hidden” synthesis pragmas!

  5. Personality Problems [2] • It’s easy to get into trouble if you’re not careful • Inferring latches • Mixing blocking & non-blocking statements • Mixing synchronous & asynchronous triggers in sensitivity lists • Some things are just misleading • I can call something a “reg” but it’s not necessarily a register?

  6. Personality Problems [3] • Some things are inconvenient • Why can’t I use multi-dimensional arrays of wires as inputs & outputs? • Wouldn’t it be nice if it had… • Language features like TYPEDEF, STRUCT, ENUM • Better synchonization features for parallel operation in testbenches, like semaphores and FIFOs • Built-in object-oriented programming for testbenches • Easier integration with C programs

  7. Where do you go from here? • “Verilog just needs a tune-up” • SystemVerilog • “Verilog needs stricter rules” • VHDL • “Actually, we need something even more abstract” • BlueSpec • “I need something that is easier to plug in to my high-level system model” • SystemC

  8. SystemVerilog – The ‘new’ Verilog • New IEEE Standard introduced in 2005 • “Successor” to Verilog – merged into Verilog-2009 • Mostly the same syntax/semantics • Backwards compatible with most Verilog code • A lot of new features for Verification (testbenches) • Tweaks to existing Verilog constructs to make them easier to use • New datatypes

  9. SystemVerilog – Datatypes [1] • New variable types: LOGIC, BIT • Logic can be used • As left side in Behavioral block • As left side in continuous assignment • As output of a structural module • No more worrying about declaring wirevsreg! • Less confusing – the name doesn’t trick people into thinking it is always a register, like reg does. • bit – Like logic, but cannot have x or z values

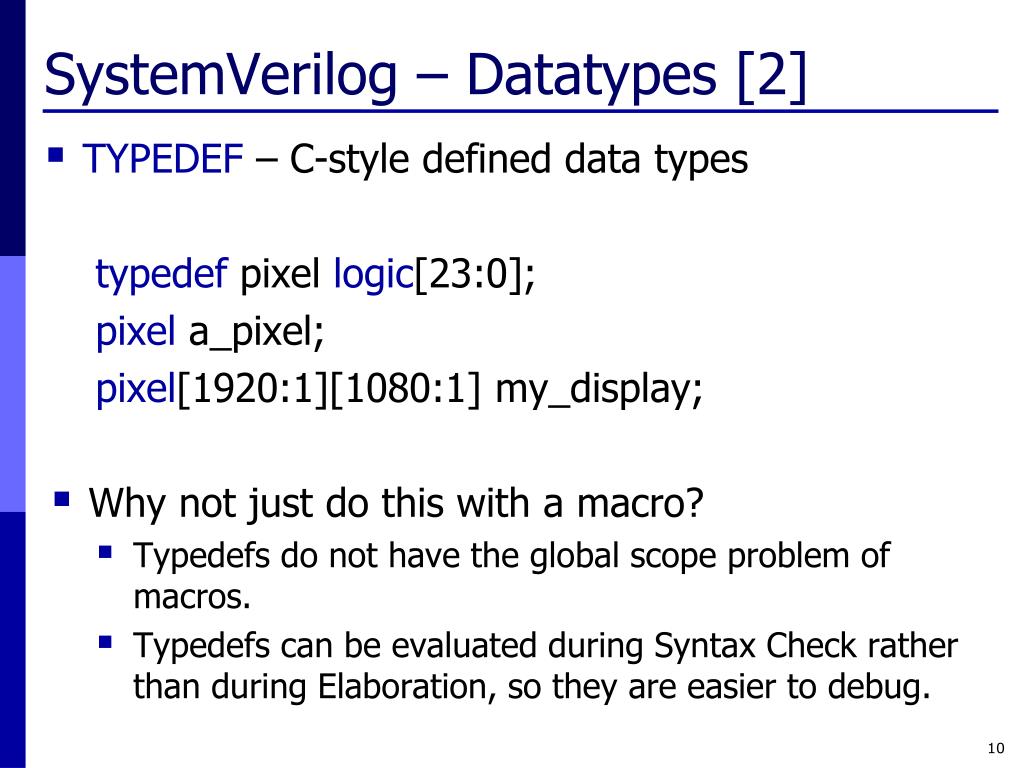

  10. SystemVerilog – Datatypes [2] • TYPEDEF – C-style defined data types typedef pixel logic[23:0]; pixela_pixel; pixel[1920:1][1080:1] my_display; • Why not just do this with a macro? • Typedefs do not have the global scope problem of macros. • Typedefs can be evaluated during Syntax Check rather than during Elaboration, so they are easier to debug.

  11. SystemVerilog – Datatypes [3] • ENUM – Enumerated types typedef enum logic[2:0] {RESET, COMPUTE1, COMPUTE2, SEND, ERROR} states_t; states_t current_state, next_state; … if(current_state == COMPUTE1) next_state = COMPUTE2; …

  12. SystemVerilog – Datatypes [4] • Structures & Unions typedef struct packed { logic [2:0] packet_type; logic [3:0] dest_addr; logic [47:0] data_payload; } router_packet; case(my_packet.packet_type) DATA3: if(my_packet.dest_addr == MY_ADDR) … …

  13. SystemVerilog – Always Constructs [1] • Always Blocks – can specify what you’re trying to do! • Combinational Block: always_comb begin //Can omit sensitivity list! a = b; //Tool adds it like @(*) c = ~d; end

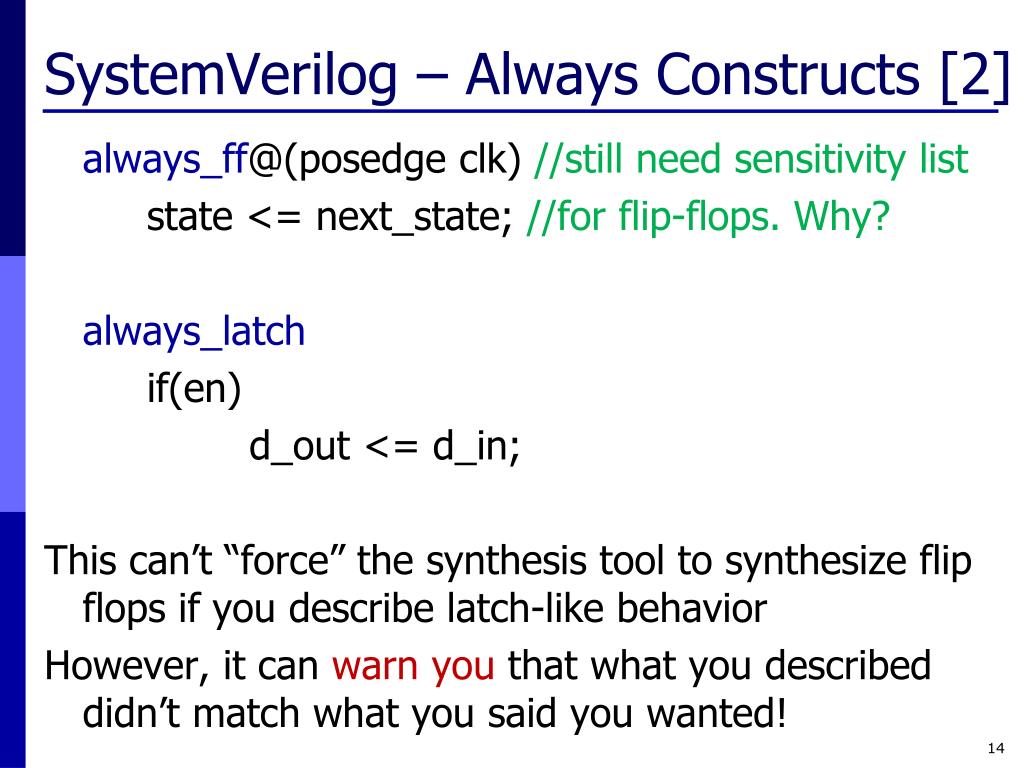

  14. SystemVerilog – Always Constructs [2] always_ff@(posedge clk) //still need sensitivity list state <= next_state; //for flip-flops. Why? always_latch if(en) d_out <= d_in; This can’t “force” the synthesis tool to synthesize flip flops if you describe latch-like behavior However, it can warn you that what you described didn’t match what you said you wanted!

  15. SystemVerilog – Control Constructs[1] • Case and If/Else have priority by default in Verilog. • To match this behavior in synthesis, we need a cascade of muxes. • Designers commonly use synopsys parallel_case to force the synthesizer to make a single mux instead. • Synthesizer pragmas give different information to the synthesis tool than to the simulator. • This is fundamentally bad. We want synthesis tool and simulator to have the same information!

  16. SystemVerilog – Control Constructs[2] • unique keyword modifier unique case (sel) CASE1: … CASE2: … CASE3: … endcase • unique tells the synthesizer and simulator that one, and only one, case will be selected – ignore priority so you can synthesis a single parallel mux! • Also works with if: unique if(…) …

  17. SystemVerilog – Control Constructs[3] • priority keyword modifier priority case (sel) CASE1: … CASE2: … endcase • priority tells the synthesizer and simulator that at least one of the cases will always match. If this doesn’t happen in simulation it will warn you. • Also works with if: priority if(…) … • Easy way to avoid accidental latches!

  18. SystemVerilog – Interfaces • Can use multi-dimensional arrays in I/O module(input [1:0] a[9:0][3:0], output b); • Can define interfaces separately from modules • Allow an interface to be re-used in multiple modules interface intf; logic a, b; modport in (input a, output b); modport out (input b, output a); endinterface

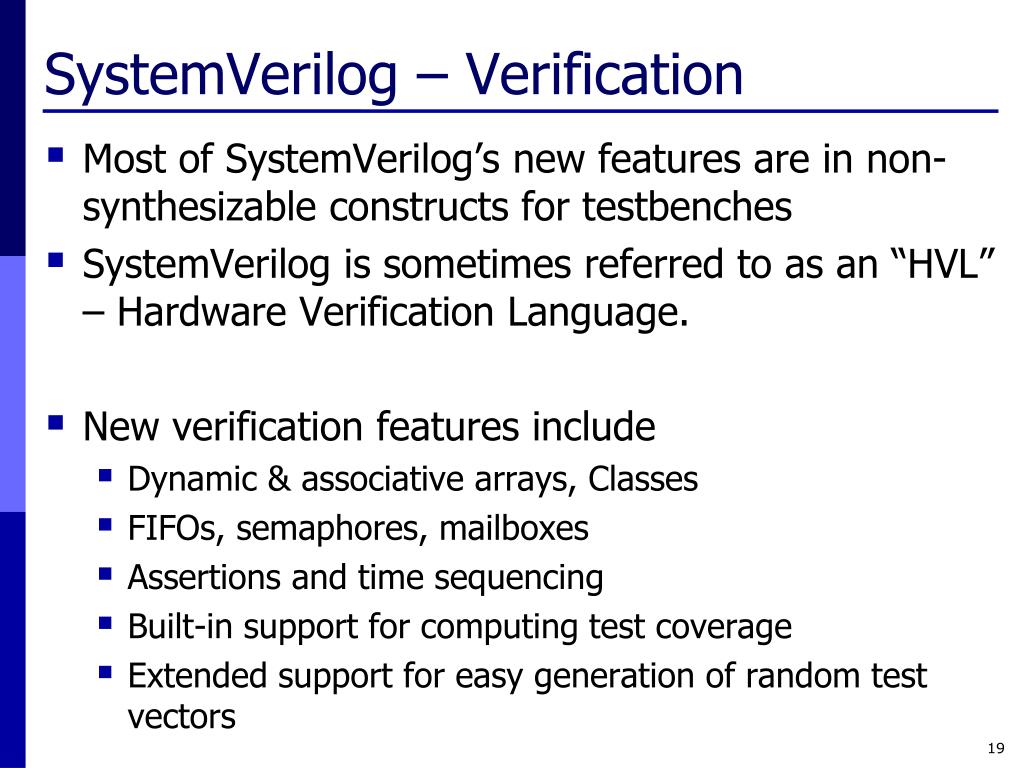

  19. SystemVerilog – Verification • Most of SystemVerilog’s new features are in non-synthesizable constructs for testbenches • SystemVerilog is sometimes referred to as an “HVL” – Hardware Verification Language. • New verification features include • Dynamic & associative arrays, Classes • FIFOs, semaphores, mailboxes • Assertions and time sequencing • Built-in support for computing test coverage • Extended support for easy generation of random test vectors

  20. SystemVerilog – Current State • SystemVerilog is already widely used in industry for designing testbenches • So why, you ask, did we learn Verilog-2001 instead of SystemVerilog/Verilog-2009? • Unfortunately, many companies are using not yet adopting SystemVerilog for synthesis • Main problem: Tool Support is Lacking • Ex: Xilinx ISE still does not support SystemVerilog at all. • Most companies cannot migrate until their full toolchain supports the language

  21. VHDL – Introduction • VHDL was introduced in the 1980s as a true Hardware Description Language • Meant to describe existing circuits • Not originally meant as a design tool • As a result, VHDL is very verbose and strongly-typed; this is both its greatest strength and weakness • Because it has been around so long, VHDL still enjoys great support from design tools.

  22. VHDL – Compared to Verilog • VHDL and Verilog are not radically different. • Both have 3 levels of abstraction • Structural / Gate • RTL • Behavioral • Both have built-in parallelism and the concept of sensitivity lists • Both have some constructs that synthesize and others that are meant for verification • Both have If/Else, Case, For, Generate

  23. VHDL – Sample Code library ieee; use ieee.std_logic_1164.all; ENTITY compare8 IS PORT( x, y: ;IN std_logic_vector(7 DOWNTO 0) ; res: ;OUT std_logic ); END compare8; ARCHITECTURE struct OF compare8 IS BEGIN res <= '1' WHEN (x = y) ELSE '0'; END struct;

  24. Verilog – Same Functionality module compare8(input [7:0] x, y, output res); assign res = (x == y); endmodule • VHDL is a lot more verbose than Verilog in general. Some people like this, because it forces them to more explicitly describe each circuit • Like Verilog-2009, VHDL allows (actually requires) you to separately define your interfaces. • VHDL also allows you to form packages and libraries to help design re-use.

  25. VHDL – Strict Typing • Variables in VHDL are strictly typed • Verilog is more loosely typed • For example, in Verilog you can • Assign a value from a variable to an array of wires • Assign the value of a 4-bit wire to a 6-bit wire (Verilog will automatically extend the value) • Assign the value of a 6-bit wire to a 4-bit wire (Verilog will automatically truncate the value). • VHDL requires you to explicitly convert variables to the same type or it will give an error.

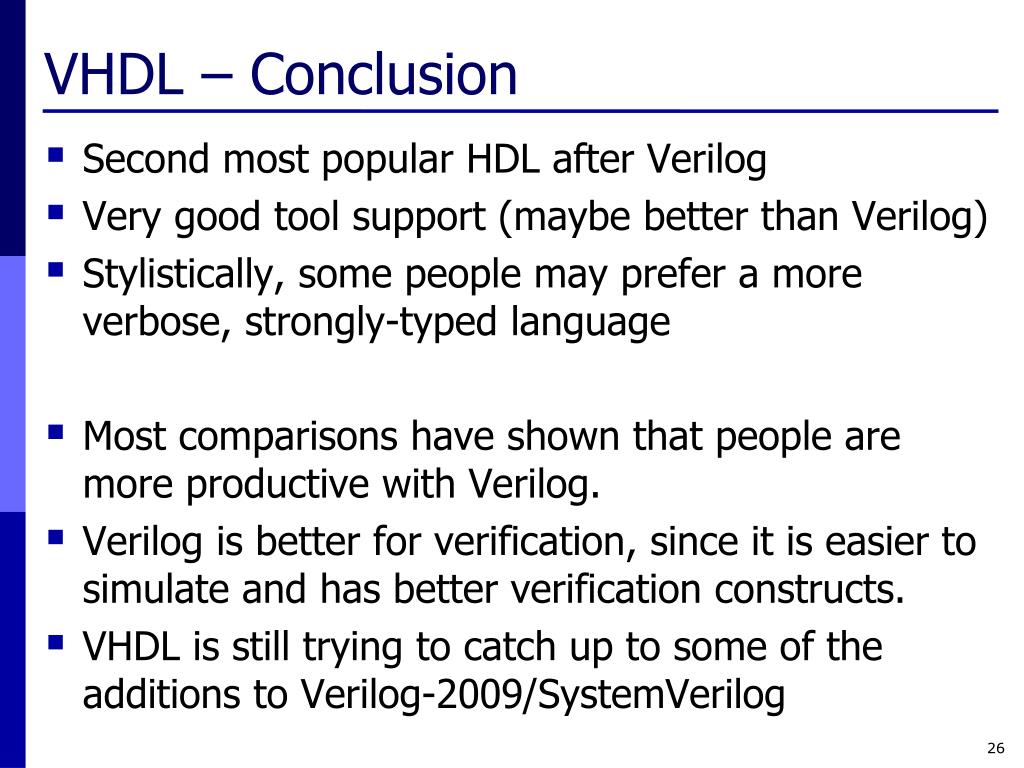

  26. VHDL – Conclusion • Second most popular HDL after Verilog • Very good tool support (maybe better than Verilog) • Stylistically, some people may prefer a more verbose, strongly-typed language • Most comparisons have shown that people are more productive with Verilog. • Verilog is better for verification, since it is easier to simulate and has better verification constructs. • VHDL is still trying to catch up to some of the additions to Verilog-2009/SystemVerilog

  27. Bluespec – Introduction • Extension to SystemVerilog – Bluespec SystemVerilog (BSV) – but uses a much different design paradigm than Verilog • Bluespec uses its own compiler to convert from Bluespec SV to an RTL Verilog description • Goal: Create increased abstraction between design description and implementation • Key Concept: Let the Bluespec compiler do the heavy lifting rather than the synthesis tool! • What are the pros/cons of a proprietary language and compiler?

  28. Bluespec – Proprietary Compiler • Have very smart people design a good compiler that automates common HDL design tasks • Let average** people take advantage of the automation and save time • This can be better than including it as part of the Verilog synthesis standard because • Don’t have to wait for tool vendor support (years!) • Don’t have to wait for IEEE standardization (years!) • Can be responsive to current trends in design **Engineering average

  29. Bluespec – Major Concepts • Originally created as an internal language to make router/switch design more efficient. • Idea: Often we spend a long time coding interfaces. • Particularly true as more designs need to support USB, eSATA, BaseX Ethernet, etc. • Add features geared towards making it easier to design interfaces • Add in the concept of atomic operations to handle resource contention -> No race conditions • Automate FIFO queues, ready/enable signals • Force compliance so the designer can’t screw up.

  30. Bluespec – Sample Code [1] • Describing a simple Counter in Bluespec • Bluespec uses a functional interface to modules. • Call module functions rather than connecting to ports • Keep in mind that the Bluespec compiler will convert this all to standard Verilog in the end interface Counter; method Bit#(8) read(); methodAction load(Bit#(8) newval); method Action increment(); endinterface

  31. Bluespec – Sample Code [2] (* synthesize *) module mkCounter(Counter); Reg#(Bit#(8)) value <- mkReg(0); method Bit#(8) read(); return value; endmethod methodAction load(Bit#(8) newval); value <= newval; endmethod method Action increment(); value <= value + 1; endmethod endmodule //What’s missing that you would expect?

  32. Bluespec – Abstraction • Things like clock and reset signals are implicit in Bluespec • Although no clock was ever mentioned, creating a register implies a clock. The compiler takes care of making sure that the counter only increments on clock cycles. • Muxes – such as the one needed to do Load vs Increment – are also hidden from the user. • Bluespec methods are designed to always be atomic; you can try to load and increment in the same clock cycle. The compiler will set up the necessary priority logic.

  33. Bluespec – Future • Is Bluespec a challenger to Verilog? A supplement? I’m not really sure yet. • Some pro designers have told me that Bluespec is great. Others have different opinions… • It provides a much different type of abstraction that may be a lot easier for programmers without hardware experience to use • One big hurdle: It isn’t free. You must license the Bluespec compiler if you want to use it at all.

  34. SystemC – Introduction • SystemC is not really a proper HDL • It is a framework for the C language that allows you to model hardware-like behavior • Advantage – Makes it easy to model a full system; can simulate other elements in C. • Can test software algorithms in C side-by-side with their hardware models • Can be used to verify HDL code efficiently • Disadvantage – Not designed to be synthesized. • Some companies are working on synthesis of SystemC, but not ‘mainstream’ quite yet.

  35. SystemC – Implementation • Fundamentally, SystemC is just a library you can use in C. • How does a software implementation in C need to be extended to properly model cycle-accurate hardware? • Concurrency, race conditions, delays, timing requirements, event-driven updates/edges • Resolving multiple drivers, 4-value logic • It must be possible since this is what the simulators are doing internally!

  36. SystemC – Sample Code [1] #include "systemc.h" SC_MODULE (first_counter) { //counter design example sc_in_clk clock ; //module I/O interface sc_in<bool> reset , enable; sc_out<sc_uint<4>> counter_out; sc_uint<4> count; voidincr_count () { //method to increment count if (reset.read() == 0) { count = 0; counter_out.write(count);} else if (enable.read() == 1) { count = count + 1; counter_out.write(count); cout<<"@" << sc_time_stamp() <<" :: Incremented Counter " <<counter_out.read()<<endl; } }

  37. SystemC – Sample Code [2] //counter example continued SC_CTOR(first_counter) { //constructor for counter class cout<<"Executing new"<<endl; SC_METHOD(incr_count); sensitive << reset.neg(); //add to sensitivity list sensitive << clock.pos(); } }

  38. SystemC – Current State • SystemC is getting pretty popular as an intermediate hardware modeling step. • It provides a bridge between algorithm development (in C) and implementation (in HDLs) • SystemC synthesis tools are beginning to become mainstream. • MentorGraphics shipped Catapult C in 2010. • Smaller companies like Forte, Bluespec, SystemCrafter • OSCI is working on a synthesis standard

  39. Other Projects • The idea of skipping HDL authoring altogether is gaining steam among some • Many recent products that attempt to convert from C, MatLab, and Dataflow Graphs • The jury is still out on whether these tools can achieve similar levels of performance, power, and area efficiency as direct HDL implementation. • But in some cases, improved productivity is more important than an efficient hardware design.

  40. Wrapping Up

  41. Digital Design & Synthesis • The goal of this course is to give you most of the skills needed to take a design from an idea to a product • At this point you should be capable of handling many different phases of the design project while working solo and in a team • These are real job skills! Put them on your CV and talk about them in job interviews.

  42. Planning • What platform should I use for this project? • Standard Cell, Custom ASIC, MPGA • FPGA, PLD • ROM • Software? • What HDL / tools should I use? • Verilog, VHDL, SystemVerilog • Bluespec, SystemC

  43. Design Entry • How should I architect this design? • Hierarchy • Abstraction level (structural, RTL, behavioral) • How do I describe specific types of logic? • Datapaths • Control logic • State Machines • How can I design for re-use? • Parameterization • Generated Instantiation

  44. Functional Test • Architecting Testbenches • File-based testing • Self-checking / Automated testbenches • Designing Test Patterns • Exhaustive Testing vs Non-Exhaustive Testing • Selecting tests and writing a test plan • Identifying corner cases • Debugging a Design • Reading waveforms • Identifying problems

  45. Synthesis • Setting up Design Rules and Constraints to meet my design goals • Timing, Area • How do I read synthesis reports? • Identifying when constraints are met / un-met • Identifying the critical path, finding slack time • How do I control synthesis optimizations? • Top-down vs Bottom-up • Logic restructuring, ungrouping, effort levels

  46. Post-Synthesis Validation • What sort of potential problems should we anticipate? • Inferring Latches • Multiple Drivers • Timing differences • How do we fix these problems? • What should we look for on a post-synthesis waveform? • X’s, Z’s • Timing delays
