  1. What Gives?A Hybrid Algorithm forError Trace Explanation

  2. Introduction • Working with error traces is frequent while debugging • Error trace: sequence of statements that violate an assertion • Understanding an error trace is key • A “good” explanation of an error trace should preferably • reproduce the error • display the flow of error between statements • be minimal (show only what is necessary) • Current methods do not offer automatic yet good explanation • Debugger features (watchpoints, breakpoints) are manual • Dynamic Slicing [1] may keep irrelevant statements in explanation [1] H. Agrawal and J. R. Horgan. Dynamic Program Slicing.PLDI ‘90

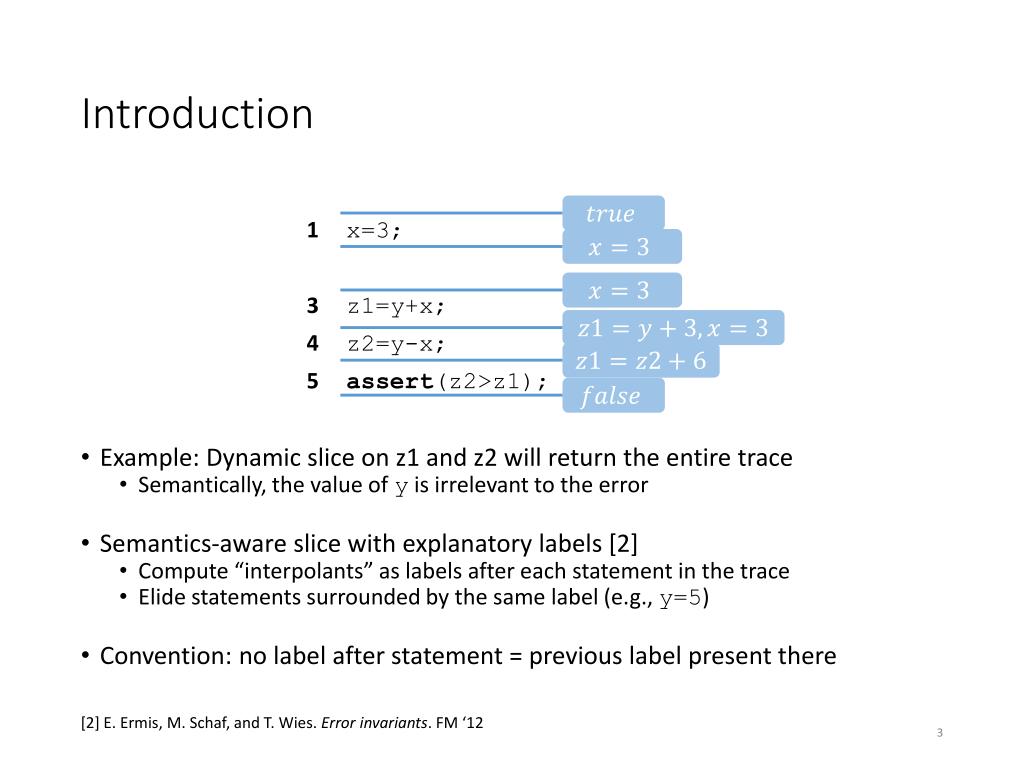

  3. Introduction 1 2 3 4 5 x=3; y=5; z1=y+x; z2=y-x; assert(z2>z1); • Example: Dynamic slice on z1 and z2 will return the entire trace • Semantically, the value of y is irrelevant to the error • Semantics-aware slice with explanatory labels [2] • Compute “interpolants” as labels after each statement in the trace • Elide statements surrounded by the same label (e.g., y=5) • Convention: no label after statement = previous label present there [2] E. Ermis, M. Schaf, and T. Wies. Error invariants. FM ‘12

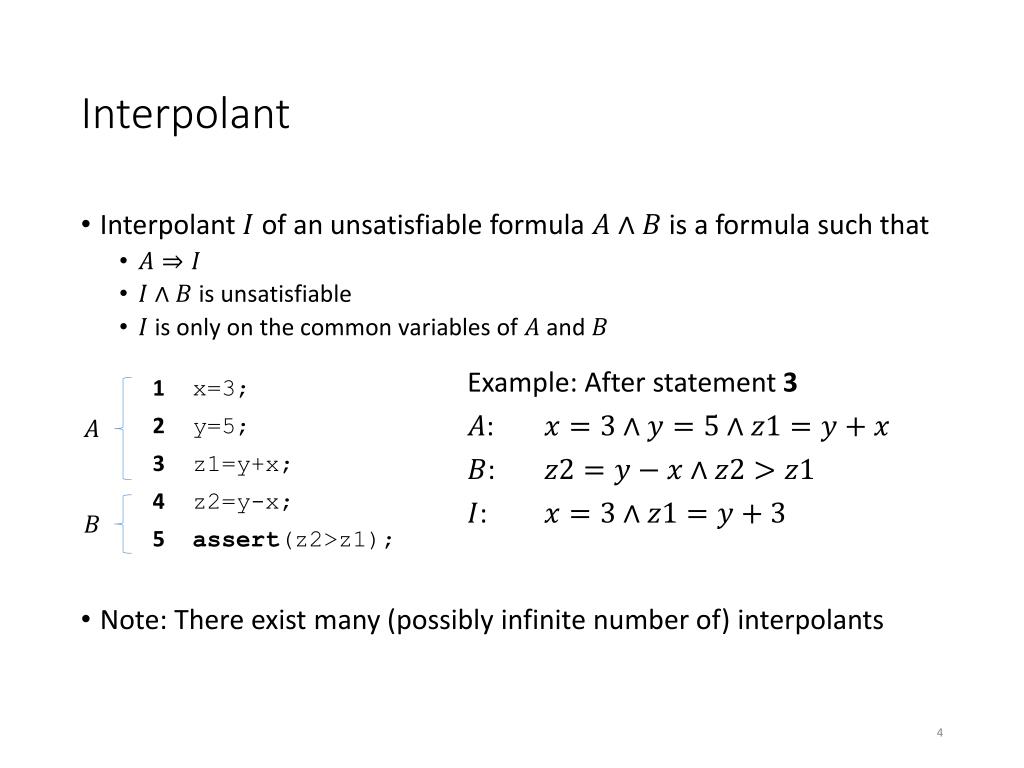

  4. Interpolant • Interpolant of an unsatisfiable formula is a formula such that • is unsatisfiable • is only on the common variables of and • Note: There exist many (possibly infinite number of) interpolants 1 2 3 4 5 Example: After statement 3 : : : x=3; y=5; z1=y+x; z2=y-x; assert(z2>z1);

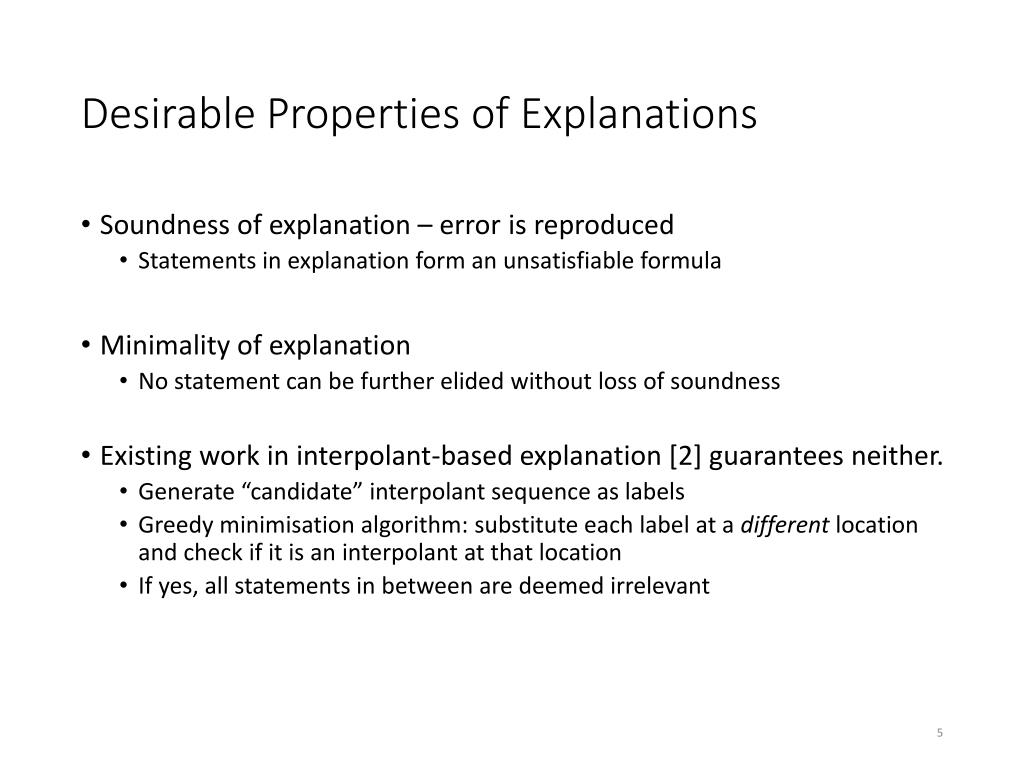

  5. Desirable Properties of Explanations • Soundness of explanation – error is reproduced • Statements in explanation form an unsatisfiable formula • Minimality of explanation • No statement can be further elided without loss of soundness • Existing work in interpolant-based explanation [2] guarantees neither. • Generate “candidate” interpolant sequence as labels • Greedy minimisation algorithm: substitute each label at a different locationand check if it is an interpolant at that location • If yes, all statements in between are deemed irrelevant

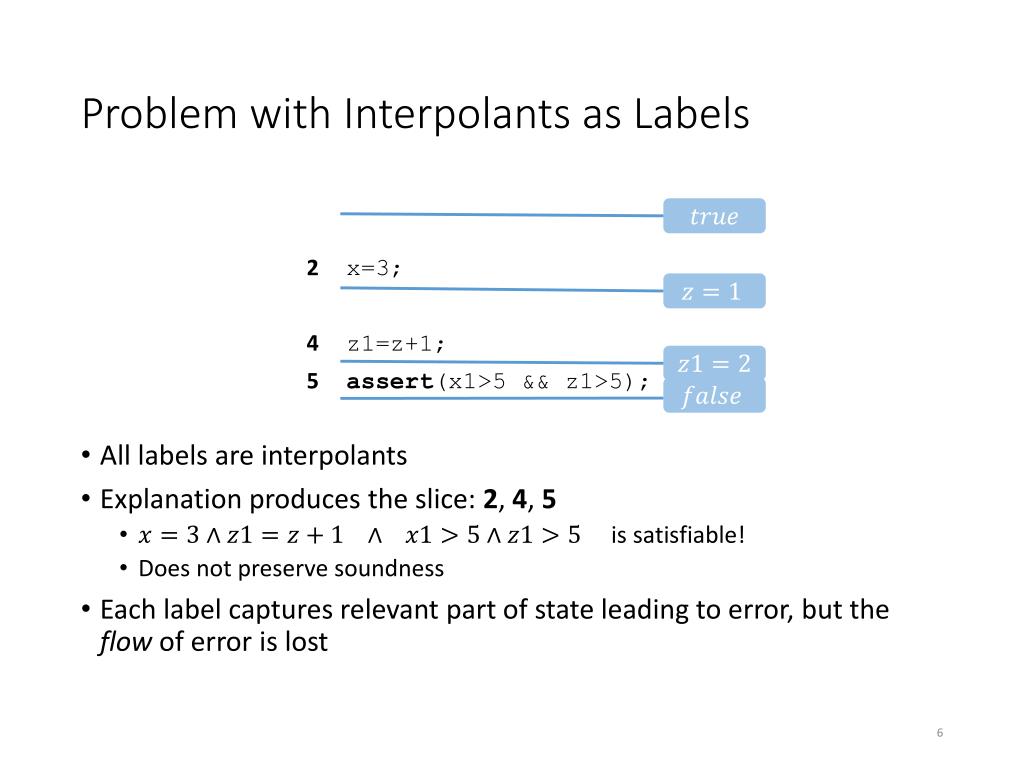

  6. Problem with Interpolants as Labels 1 2 3 4 5 • All labels are interpolants • Explanation produces the slice: 2, 4, 5 • is satisfiable! • Does not preserve soundness • Each label captures relevant part of state leading to error, but the flow of error is lost z=1; x=3; x1=x+1; z1=z+1; assert(x1>5 && z1>5);

  7. Ensuring Soundness • To capture flow of error, each label must result from the previous label and the intervening statement – “Inductive property” • Only produce Inductive InterpolantLabellings (IILs) Theorem 1: Slices produced from IILs are always sound • Inductive property forbids the labelling in previous slide • does not imply • Example IIL produced by our algorithm • Slice produced: 1, 4, 5 1 2 3 4 5 z=1; x=3; x1=x+1; z1=z+1; assert(x1>5 && z1>5);

  8. Ensuring Soundness • Why are slices from IILs sound? • Inductive interpolants surrounding a statement form a Hoare triple • Sequence of inductive interpolants (IILs) forms a Hoare proof of error trace • IILs are specialised Hoare proofs • that prove Error Trace • whose labels are restricted to interpolants • (Non-inductive) Interpolantlabellings are not guaranteed to be Hoare proofs • Results in their unsoundness

  9. Ensuring Minimality • No formal metric known, our proposal: based on stationariness • An IIL is stationary at statement S if the labels around S are the same • E.g.: stationary at 2, stationary at 3 • An IIL L is maximally stationaryiff no IIL produces a slice that is a subset of L • Since IILs produce only sound slices, L is a “minimal” labelling that is sound 1 2 3 4 5 z=1; x=3; x1=x+1; z1=z+1; assert(x1>5 && z1>5);

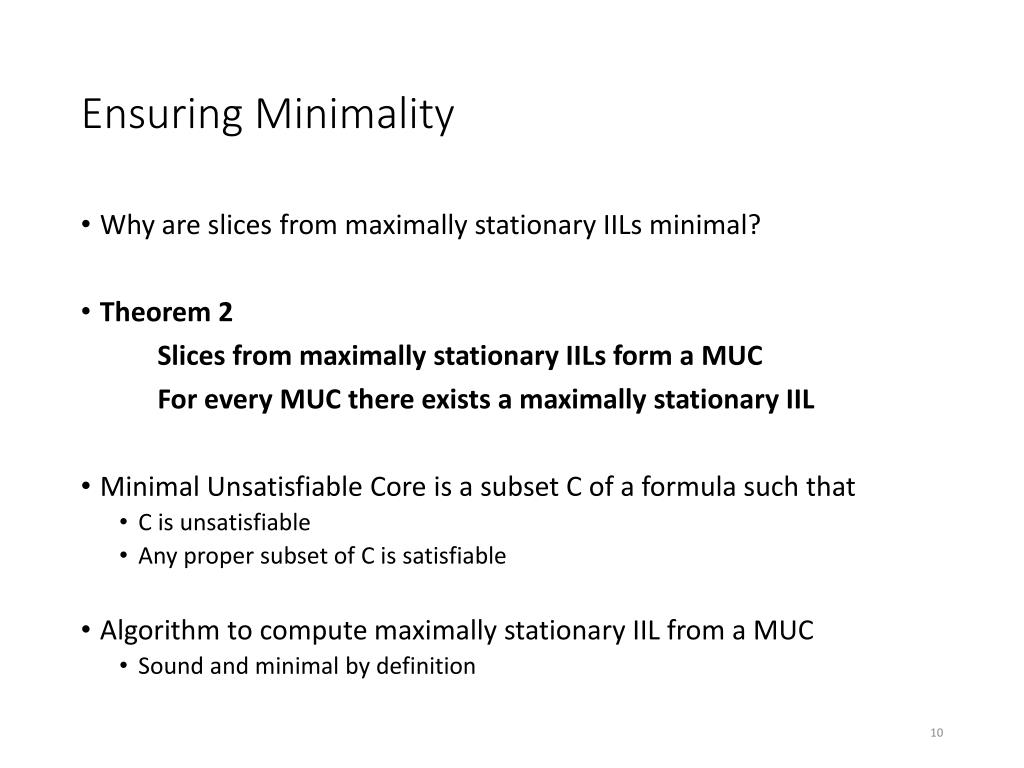

  10. Ensuring Minimality • Why are slices from maximally stationary IILs minimal? • Theorem 2 Slices from maximally stationary IILs form a MUC For every MUC there exists a maximally stationary IIL • Minimal Unsatisfiable Core is a subset C of a formula such that • C is unsatisfiable • Any proper subset of C is satisfiable • Algorithm to compute maximally stationary IIL from a MUC • Sound and minimal by definition

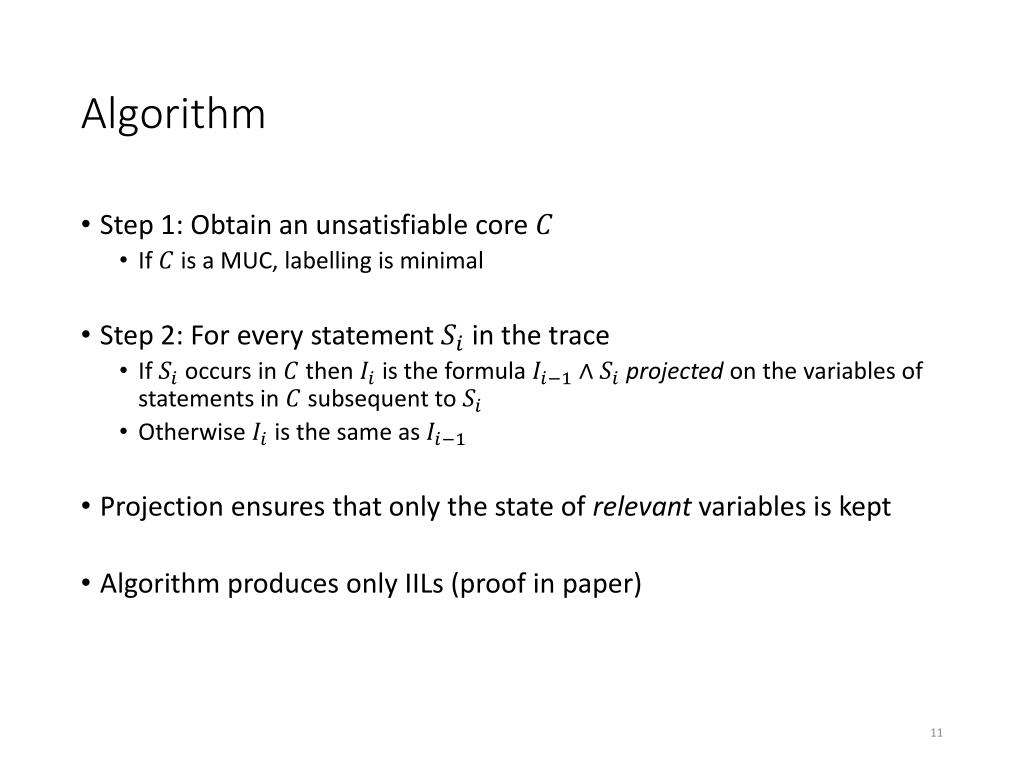

  11. Algorithm • Step 1: Obtain an unsatisfiable core • If is a MUC, labelling is minimal • Step 2: For every statement in the trace • If occurs in then is the formula projected on the variables of statements in subsequent to • Otherwise is the same as • Projection ensures that only the state of relevant variables is kept • Algorithm produces only IILs (proof in paper)

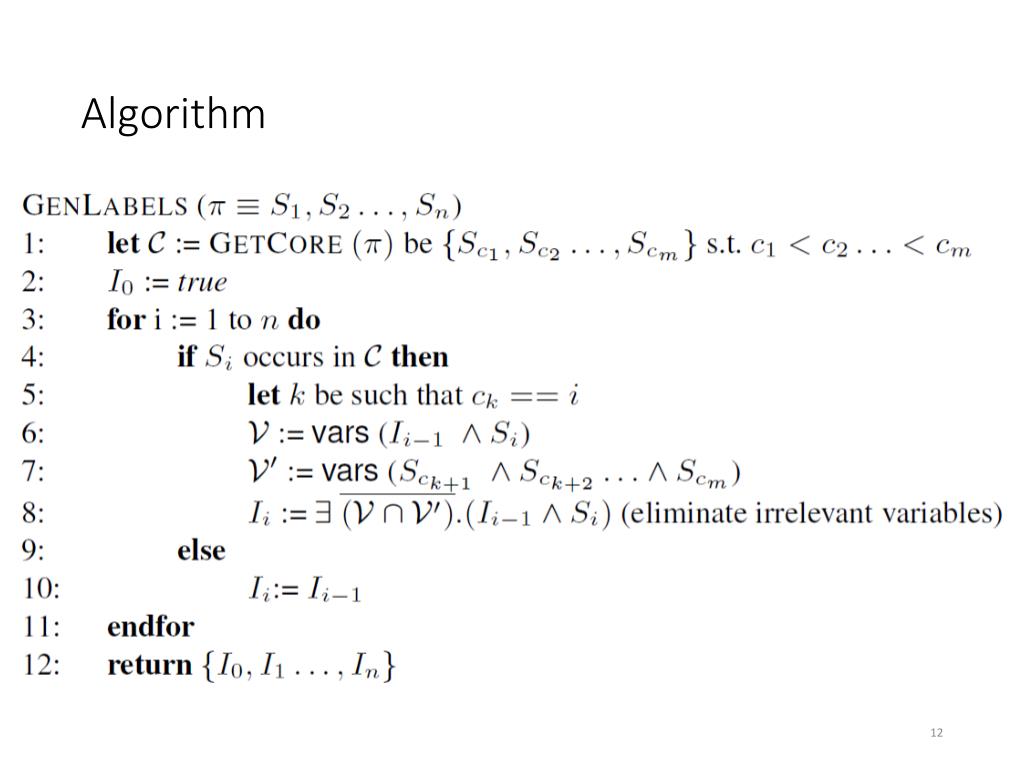

  12. Algorithm

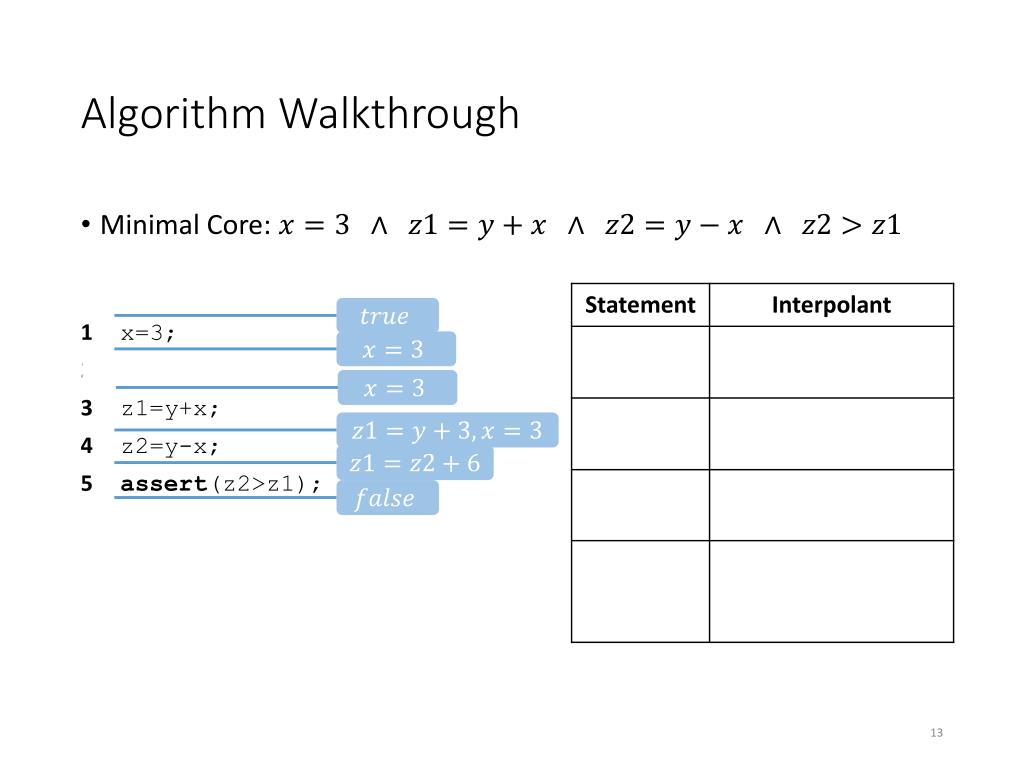

  13. Algorithm Walkthrough • Minimal Core: 1 2 3 4 5 x=3; y=5; z1=y+x; z2=y-x; assert(z2>z1);

  14. Discussion • Algorithm is a combination of SP (forward) and WP (backward) • SP and WP alone may keep irrelevant statements in the explanation • Our algorithm uses knowledge from “both directions” • Forward: set of statements relevant to error • Backward: set of variables to project on at each label 1 2 3 4 5 z=1; x=3; x1=x+1; z1=z+1; assert(x1>5 && z1>5); 1 2 3 4 5 z=1; x=3; x1=x+1; z1=z+1; assert(x1>5 && z1>5);

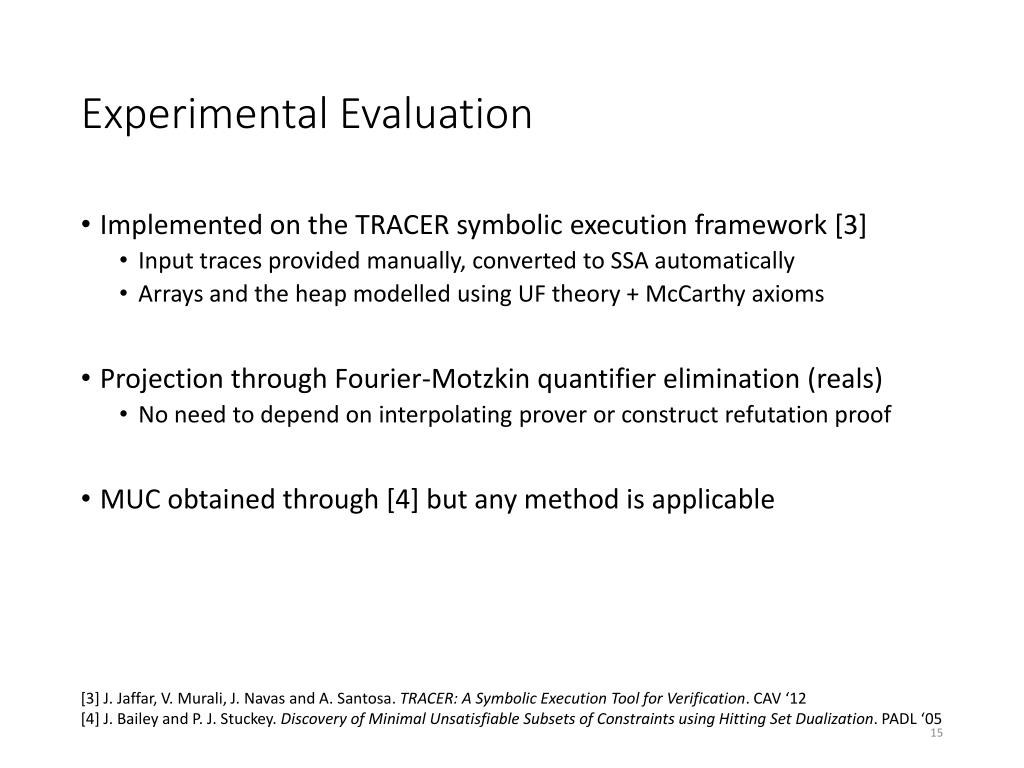

  15. Experimental Evaluation • Implemented on the TRACER symbolic execution framework [3] • Input traces provided manually, converted to SSA automatically • Arrays and the heap modelled using UF theory + McCarthy axioms • Projection through Fourier-Motzkin quantifier elimination (reals) • No need to depend on interpolating prover or construct refutation proof • MUC obtained through [4] but any method is applicable [3] J. Jaffar, V. Murali, J. Navas and A. Santosa. TRACER: A Symbolic Execution Tool for Verification. CAV ‘12 [4] J. Bailey and P. J. Stuckey. Discovery of Minimal Unsatisfiable Subsets of Constraints using Hitting Set Dualization. PADL ‘05

  16. Case Study 1: Shell Sort • Sorting two elements (11, 14) returns (0, 11) shell_sort(inta[], int size) inth=1, i, j; do h=h*3; while(h <= size); do { h /= 3; for(i=h; i<size; i++) { intv = a[i]; for(j=i; j>=h && a[j-h]>v; j-=h) a[j] = a[j-h]; if(i != j) a[j] = v; } } while(h != 1); 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 a[0]=11; a[1]=14; a[2]=0; size=3; h=1; i=h; v=a[i]; j=i; i++; v=a[i]; j=i; a[j]=a[j-h]; j=j-h; a[j]=a[j-h]; j=j-h; a[j]=v; i++; assert(a[0]==11); assert(a[1]=14);

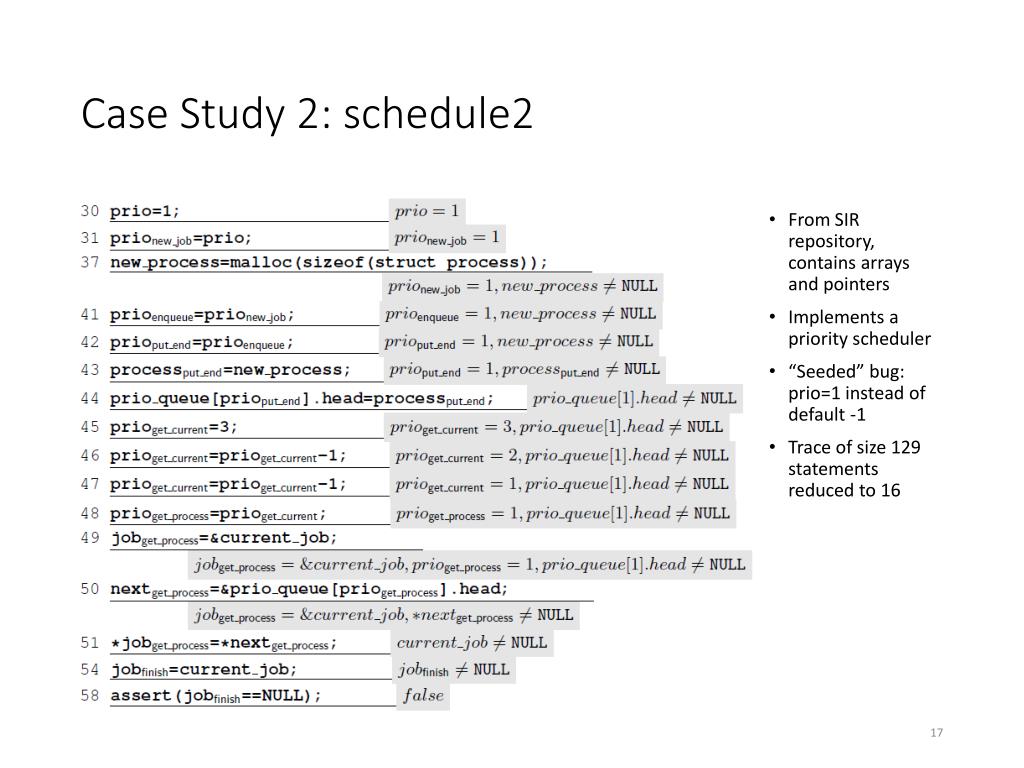

  17. Case Study 2: schedule2 • From SIR repository, contains arrays and pointers • Implements a priority scheduler • “Seeded” bug: prio=1 instead of default -1 • Trace of size 129 statements reduced to 16

  18. Conclusion • Interpolant-based labels are attractive for error explanation • IILs produce sound explanations • MUC captures essence of error • Maximally stationary IILs (equivalent to MUCs) produce minimal explanations • A new algorithm to compute maximally stationary IIL from MUC • Produces sound and minimal explanations • No prior work guarantees this • Case study on two examples
