  1. Chemistry 100 Chapter 14 - Chemical Kinetics

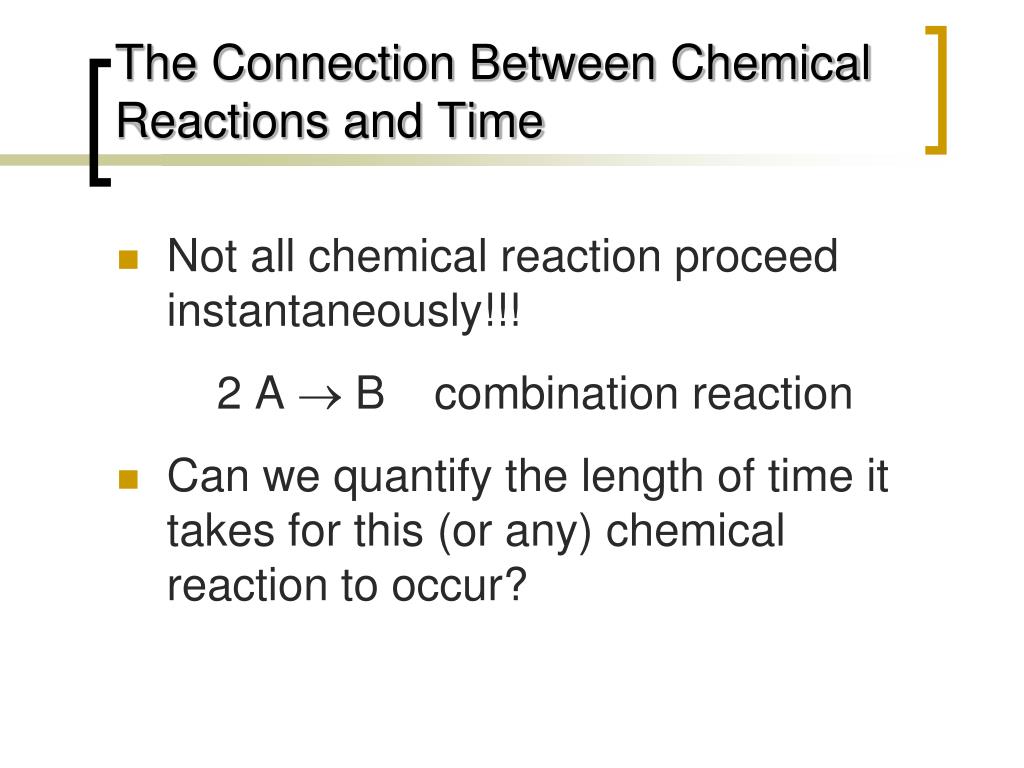

  2. The Connection Between Chemical Reactions and Time Not all chemical reaction proceed instantaneously!!! 2 A  B combination reaction Can we quantify the length of time it takes for this (or any) chemical reaction to occur?

  3. Practical examples of how long! H2(g) + ½ O2 (g)  H2O (l) Þ Very Slow N2O(g)  N2 (g) + ½ O2 (g) Þ SLOW • combustion reactions  fast process • TNT exploding  very fast reaction • Food spoilage • Drug decomposition

  4. Chemical Kinetics • Chemical kinetics is concerned with determining the speed or rate at which a reaction occurs. • How is the reaction rate affected by • temperature? • states of reactants? • amount of reactants? • catalyst? • surface area of the reacting species?

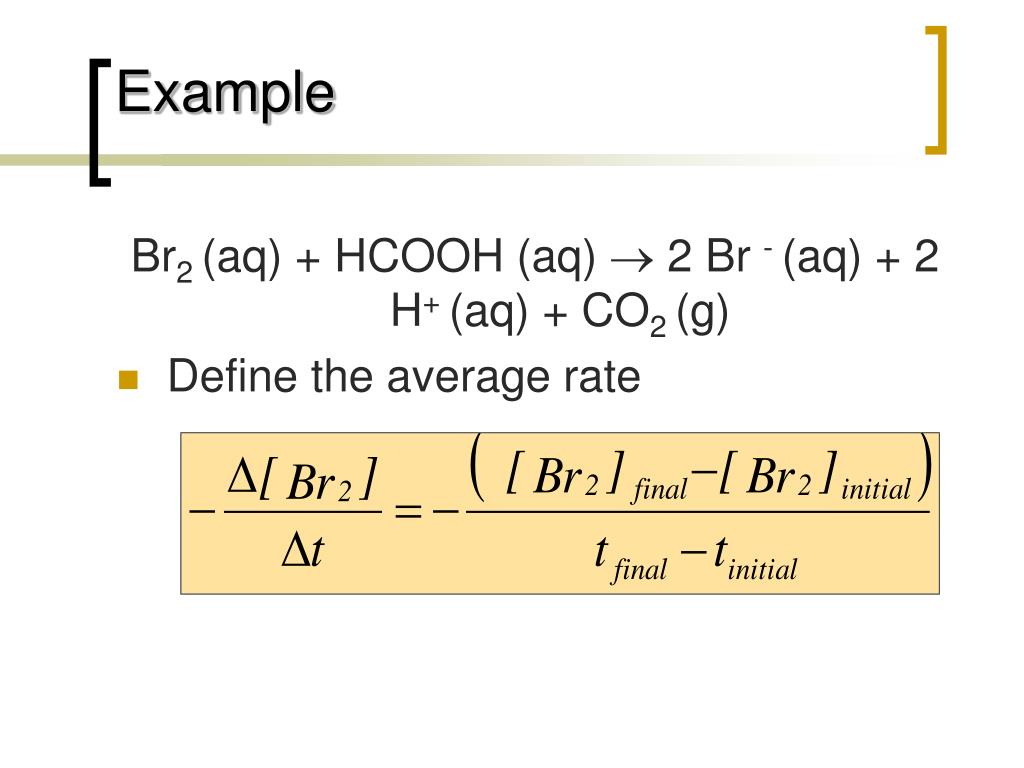

  5. Example Br2 (aq) + HCOOH (aq) ® 2 Br - (aq) + 2 H+ (aq) + CO2 (g) Define the average rate

  6. A Sample • Reaction Br2 (aq) + HCOOH (aq)  2 Br – (aq) + CO2 (g) + 2 H+ (aq) • Note – orange colour fades as reaction proceeds.

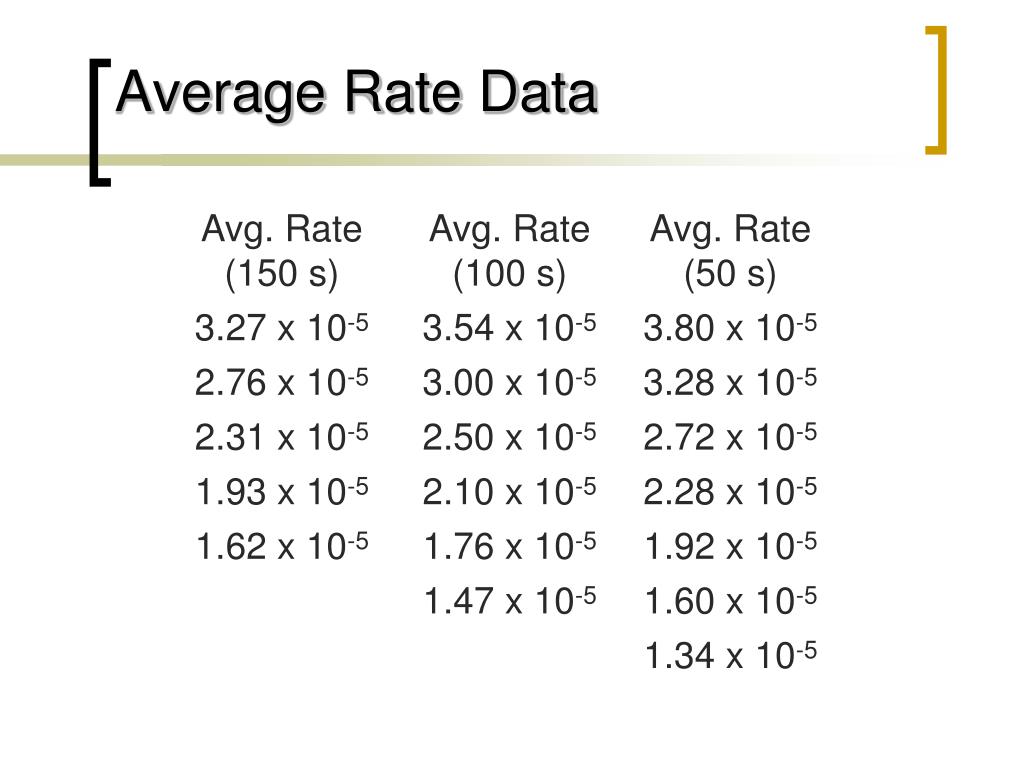

  7. Average Rate Data

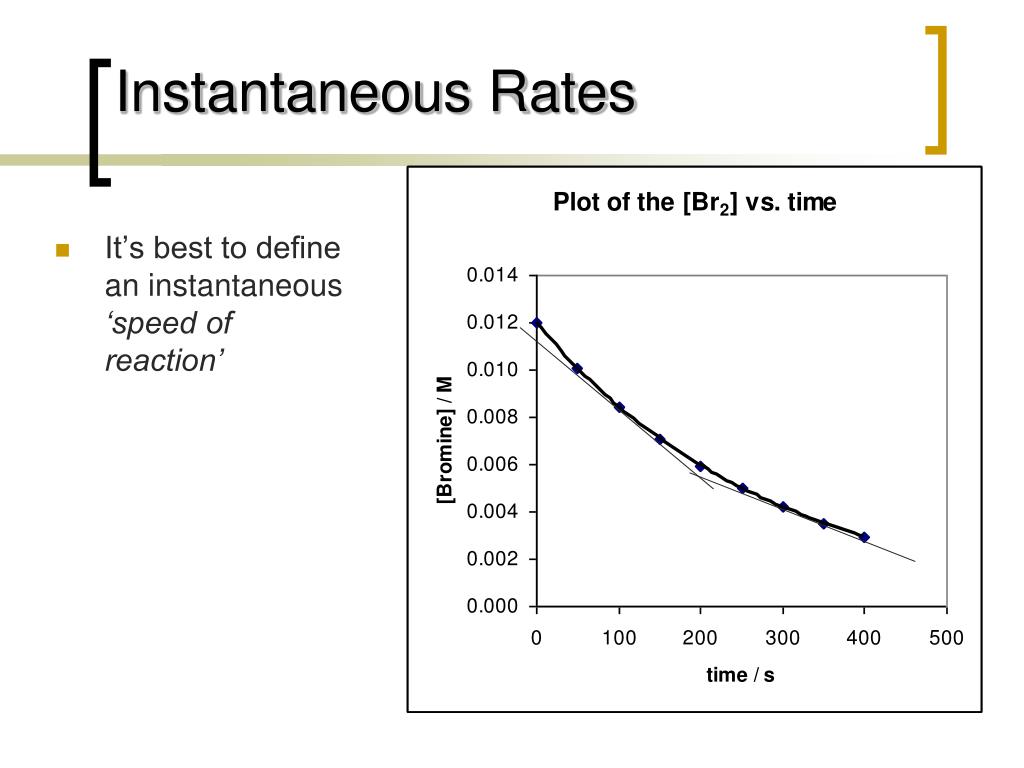

  8. Instantaneous Rates It’s best to define an instantaneous ‘speed of reaction’

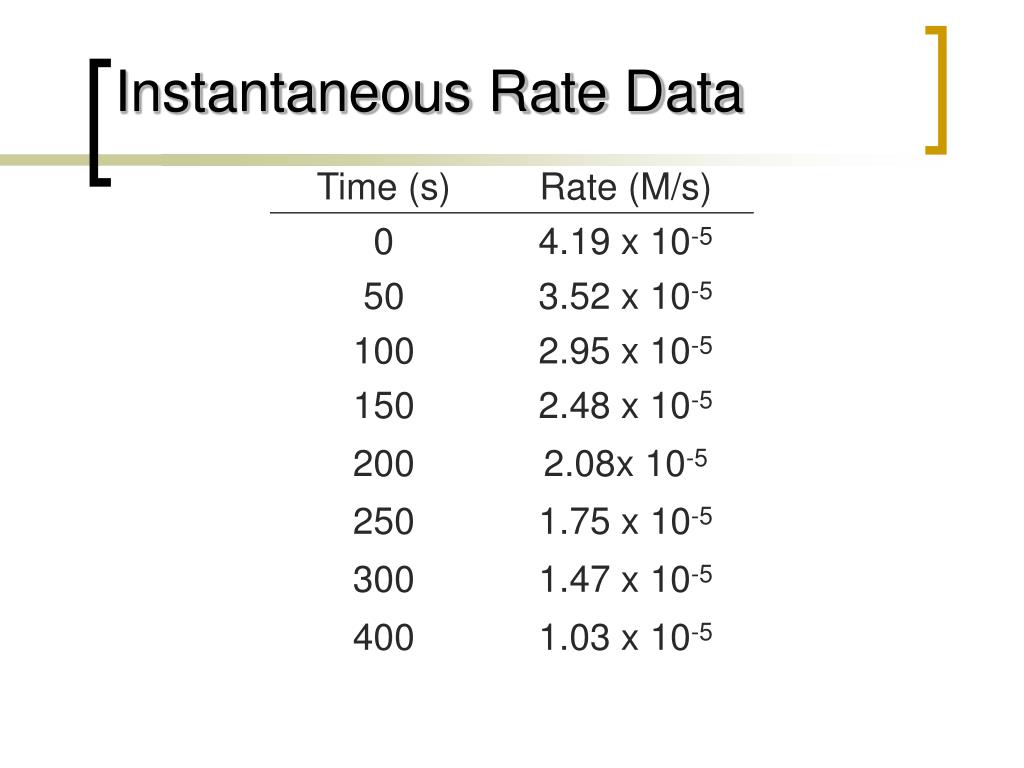

  9. Instantaneous Rate Data

  10. The Rate Law The exponents (x,y, and z) are called the reactant orders. Relates rate of the reaction to the reactant concentrations and rate constant For a general reaction a A + b B + c C ® d D + e E rate = k[A]x[B]y[C]z

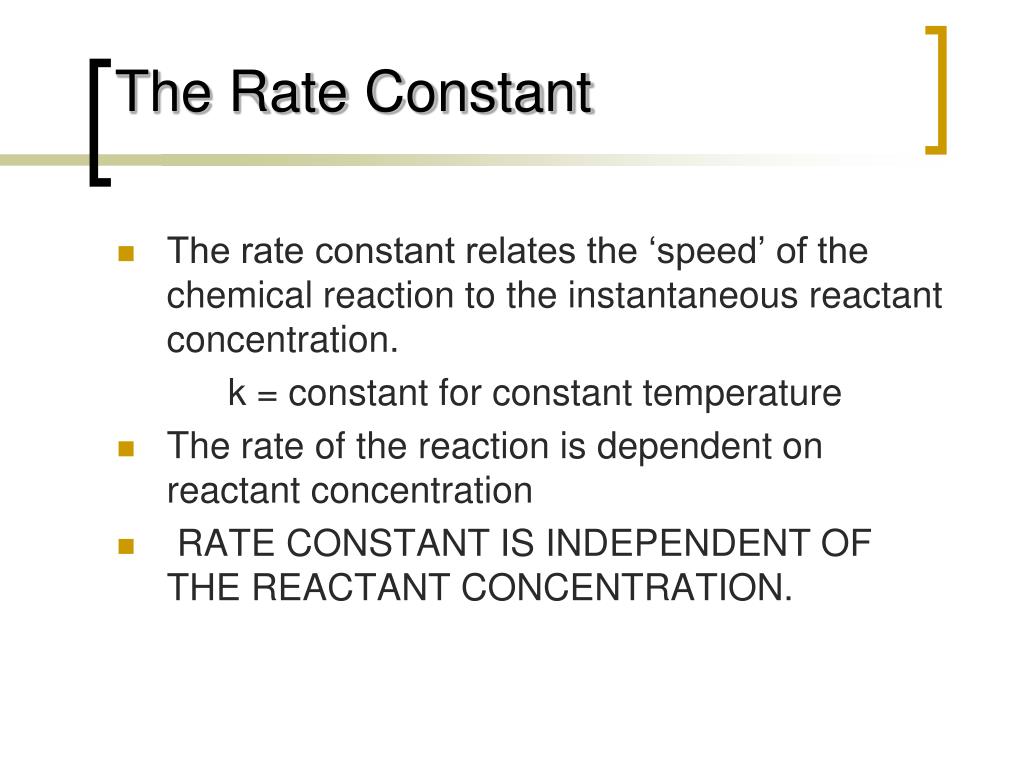

  11. The Rate Constant The rate constant relates the ‘speed’ of the chemical reaction to the instantaneous reactant concentration. k = constant for constant temperature The rate of the reaction is dependent on reactant concentration RATE CONSTANT IS INDEPENDENT OF THE REACTANT CONCENTRATION.

  12. The Reaction Orders • Determine the superscripts (x, y, and z) for a non-elementary chemical reaction by experimentation. S x + y + z = reaction order e.g. x = 1; y = 1; z = 0 2nd order reaction (x + y + z = 2) x = 0; y = 0; z = 1 (1st order reaction) x = 2; y = 0; z = 0 (2nd order)

  13. Reaction Rates and Reaction Stoichiometry • Look at the reaction O3(g) + NO(g) ® NO2(g) + O2(g)

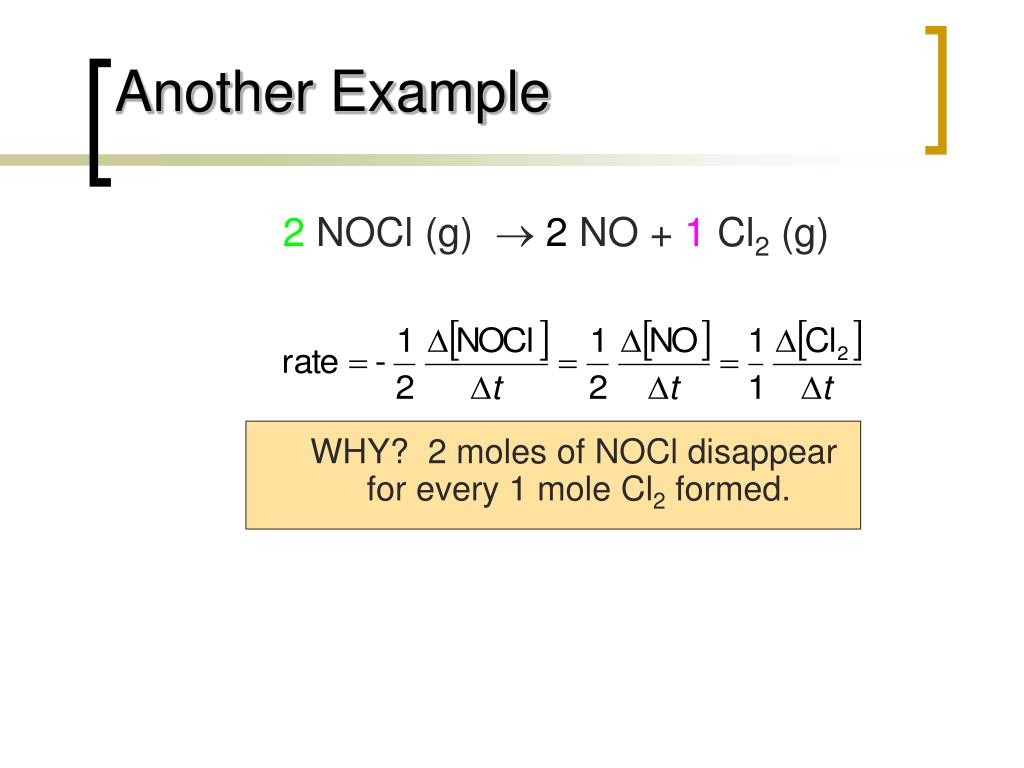

  14. Another Example 2NOCl (g)2 NO + 1 Cl2 (g) • WHY? 2 moles of NOCl disappear • for every 1 mole Cl2 formed.

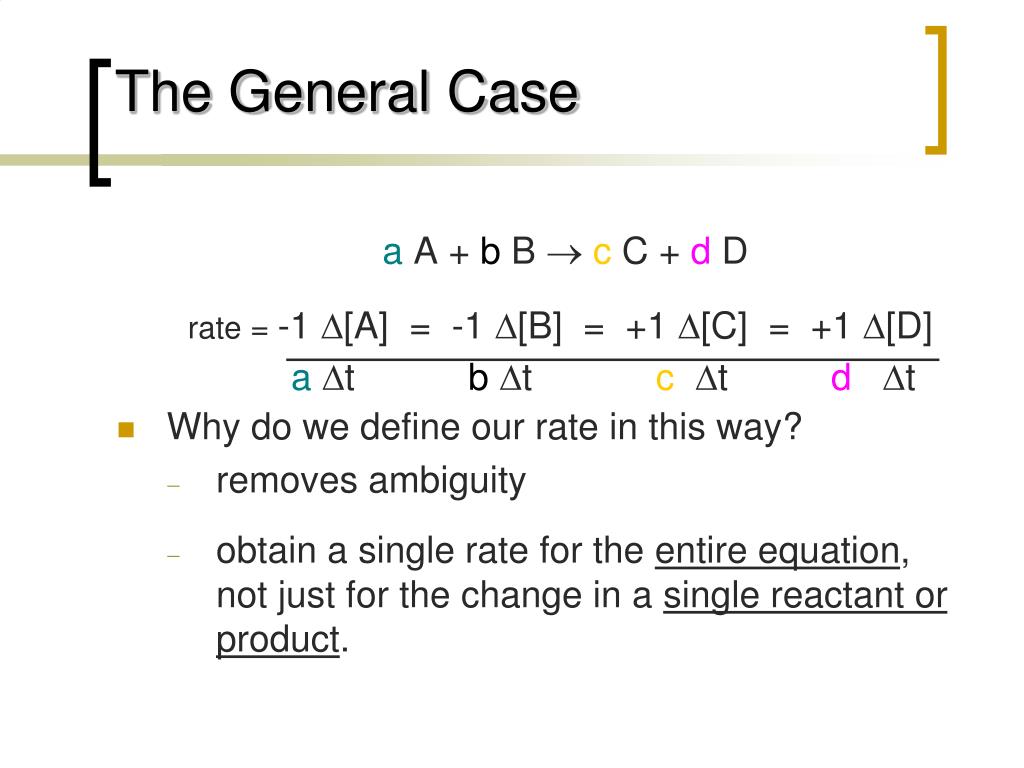

  15. The General Case a A + b B ®c C + d D rate = -1 [A] = -1 [B] = +1 [C] = +1 [D] a t b t c t d t • Why do we define our rate in this way? • removes ambiguity • obtain a single rate for the entire equation, not just for the change in a single reactant orproduct.

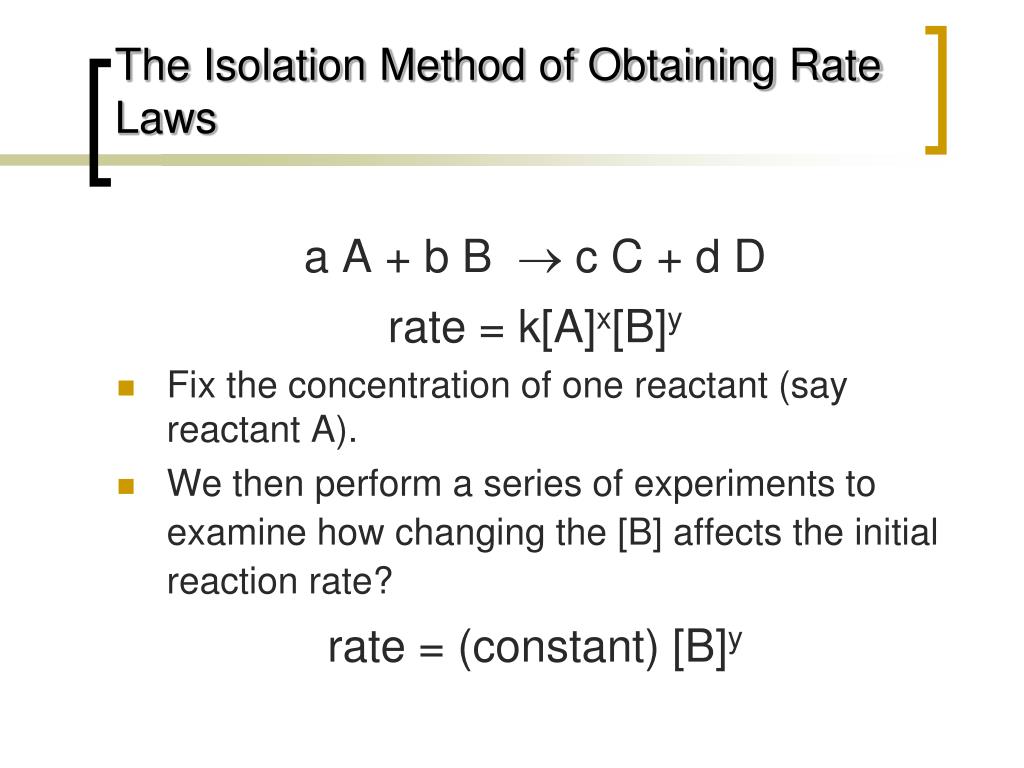

  16. The Isolation Method of Obtaining Rate Laws a A + b B ® c C + d D rate = k[A]x[B]y Fix the concentration of one reactant (say reactant A). We then perform a series of experiments to examine how changing the [B] affects the initial reaction rate? rate = (constant) [B]y

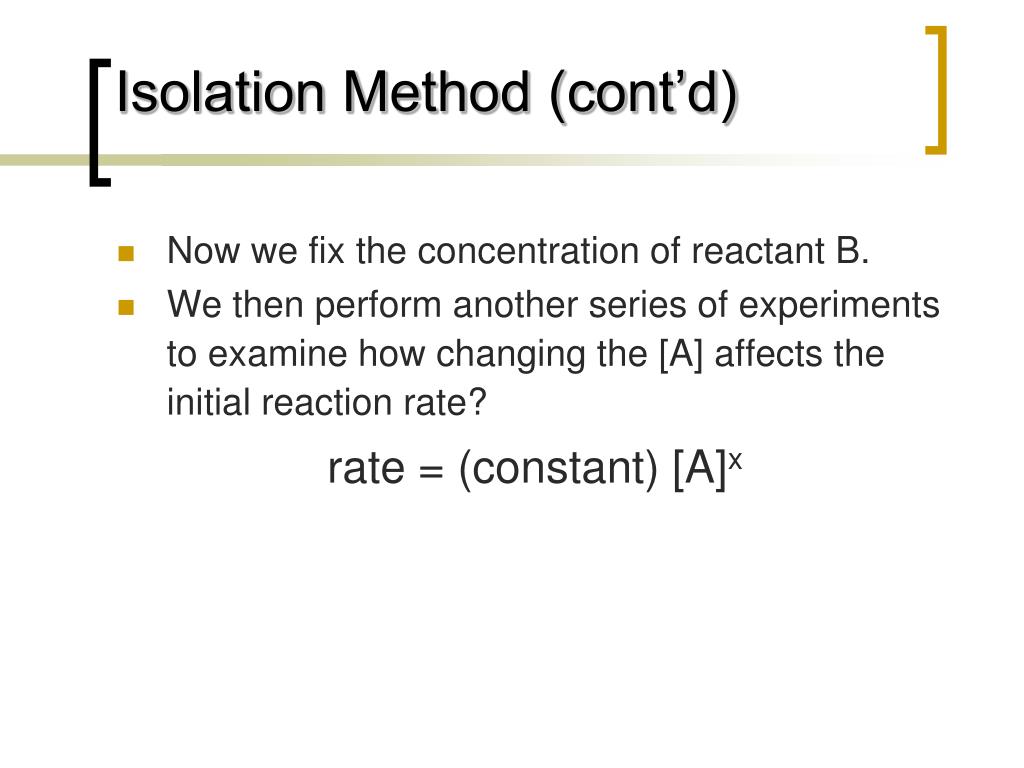

  17. Isolation Method (cont’d) Now we fix the concentration of reactant B. We then perform another series of experiments to examine how changing the [A] affects the initial reaction rate? rate = (constant) [A]x

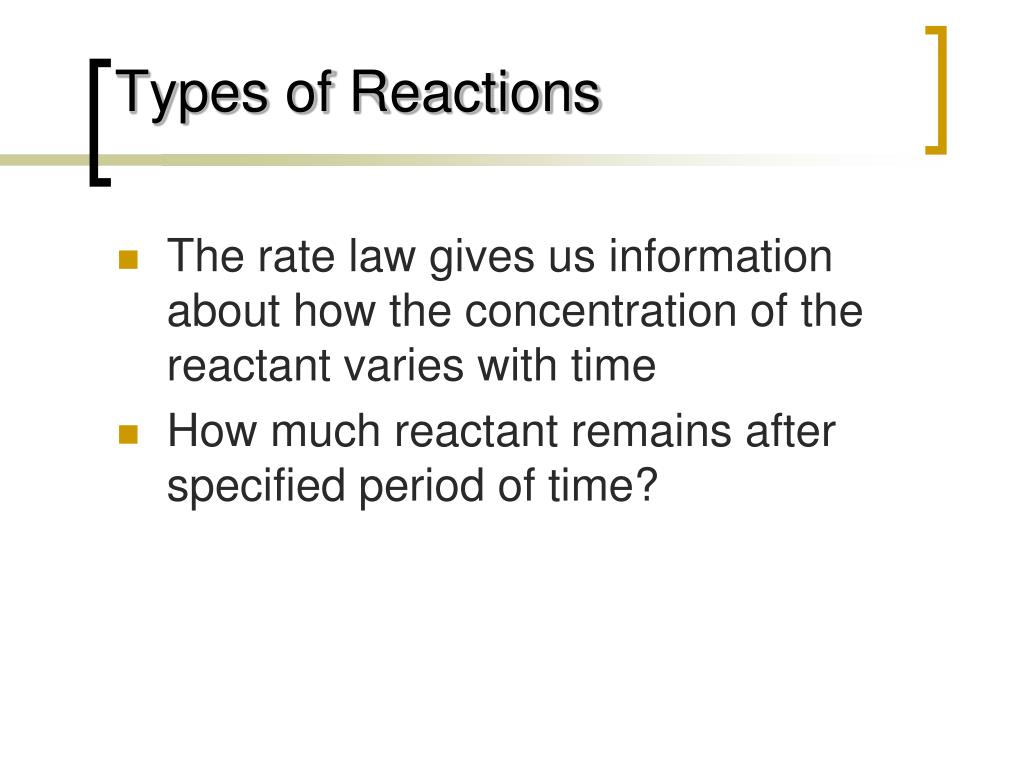

  18. Types of Reactions The rate law gives us information about how the concentration of the reactant varies with time How much reactant remains after specified period of time?

  19. First Order Reaction A  product rate = -D[A]/D t = k[A] • How does the concentration of the reactant depend on time? k has units of s-1

  20. The Half-Life of a First Order Reaction For a first order reaction, the half-life t1/2 is calculated as follows.

  21. Radioactive Decay Radioactive Samples decay according to first order kinetics. This is the half-life of samples containing e.g. 14C , 239Pu, 99Tc. Example

  22. Second Order Reaction A + B ® products Rate = k[A][B] A ® products Rate = k[A]2 • Reaction 1 is 1st order in A and B and 2nd order overall • Reaction 2 is 2nd order in A

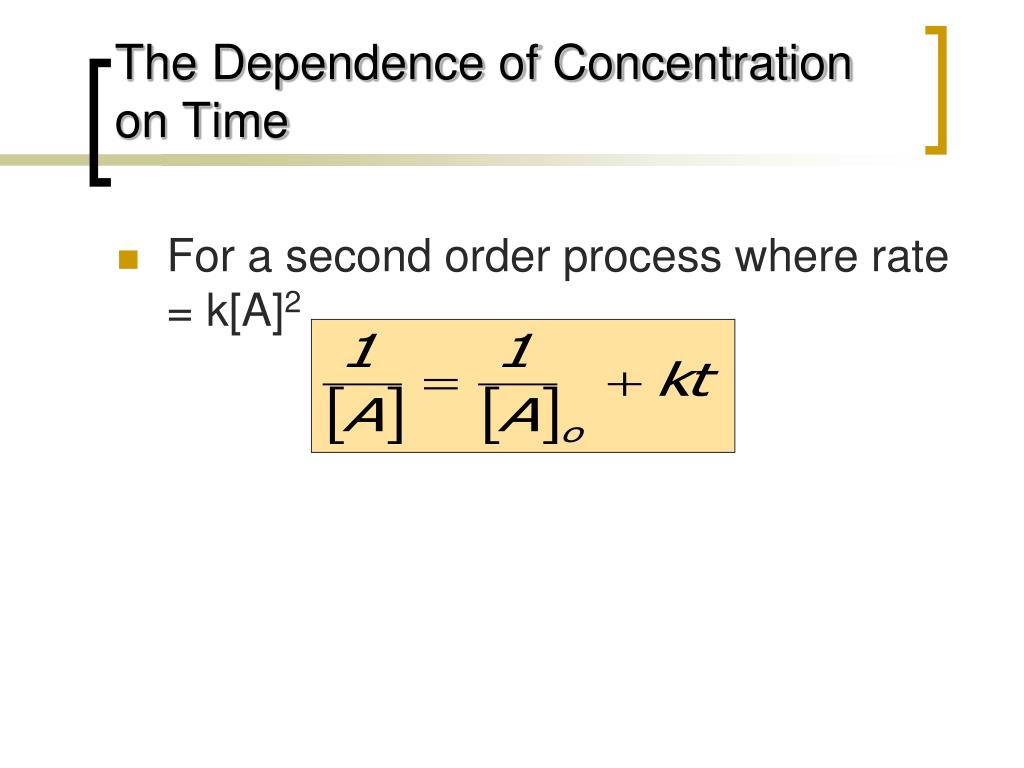

  23. The Dependence of Concentration on Time For a second order process where rate = k[A]2

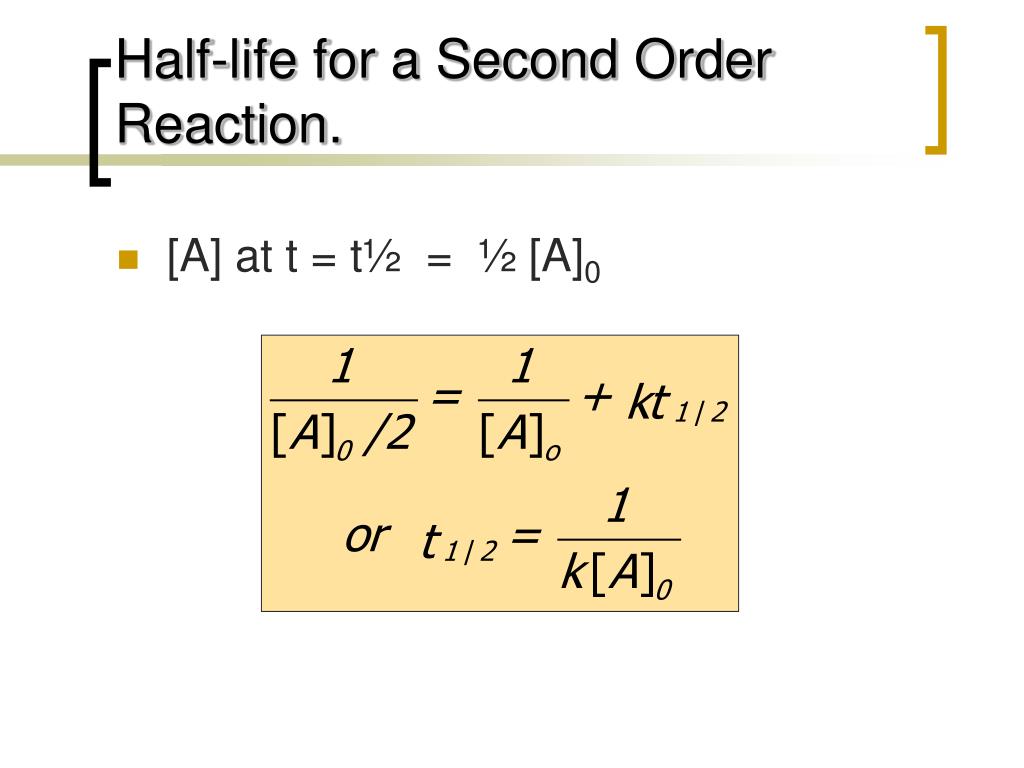

  24. Half-life for a Second Order Reaction. • [A] at t = t½ = ½ [A]0

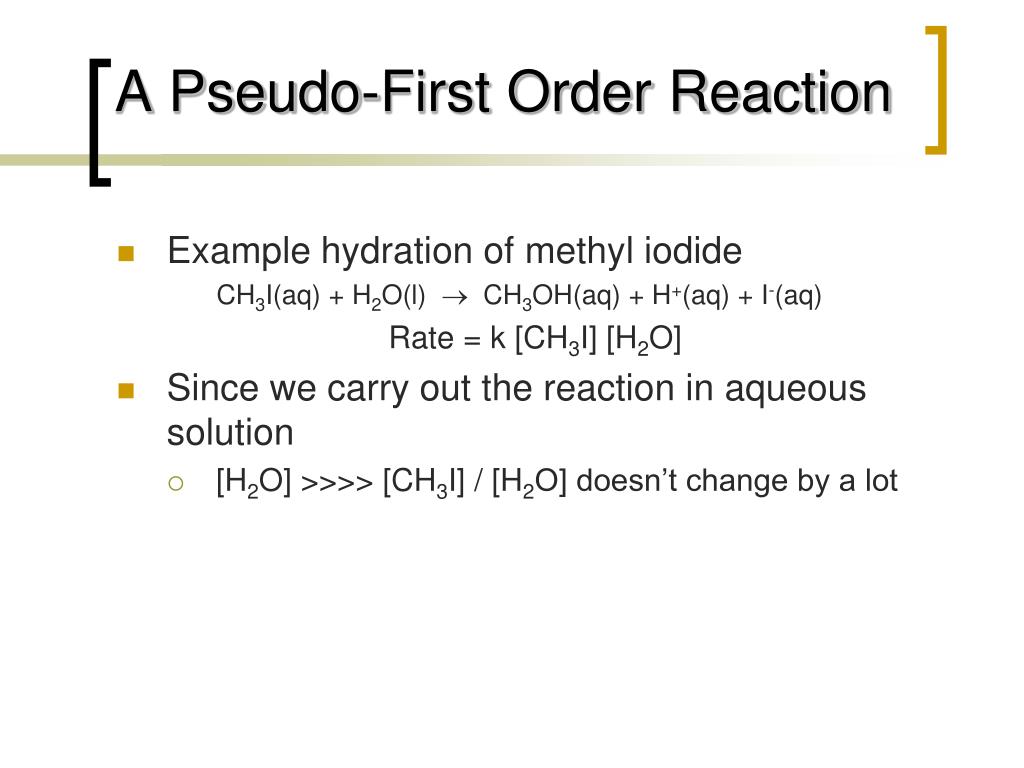

  25. A Pseudo-First Order Reaction • Example hydration of methyl iodide CH3I(aq) + H2O(l)  CH3OH(aq) + H+(aq) + I-(aq) Rate = k [CH3I] [H2O] • Since we carry out the reaction in aqueous solution • [H2O] >>>> [CH3I] / [H2O] doesn’t change by a lot

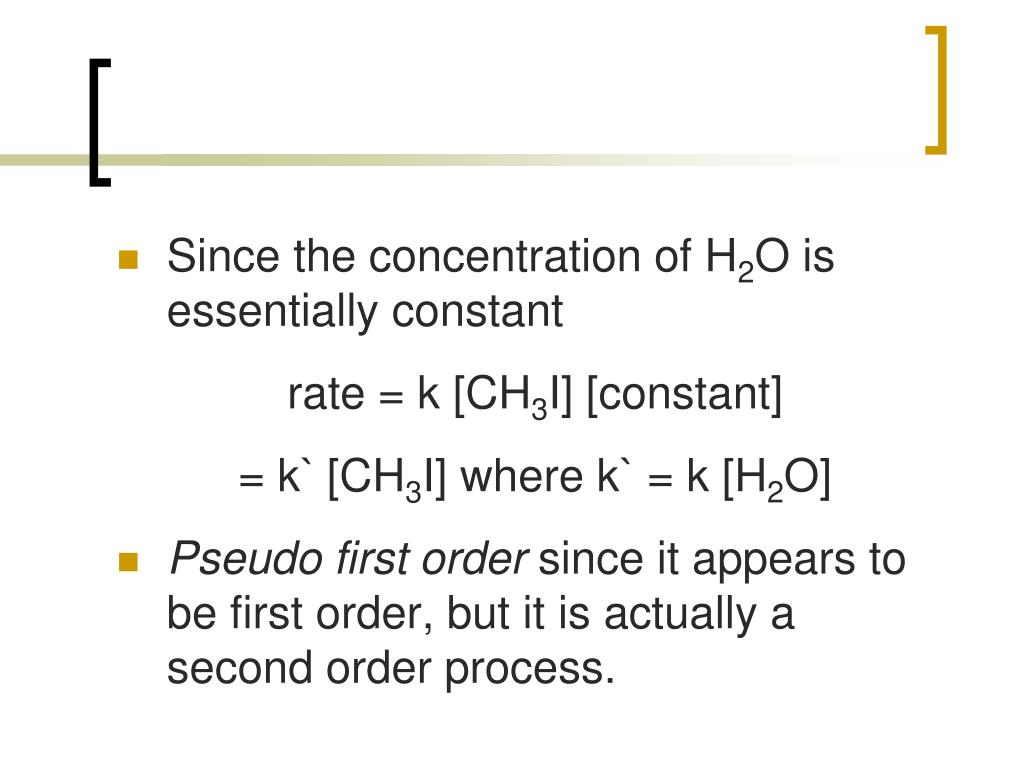

  26. Since the concentration of H2O is essentially constant rate = k [CH3I] [constant] = k`[CH3I] where k` = k [H2O] Pseudofirst order since it appears to be first order, but it is actually a second order process.

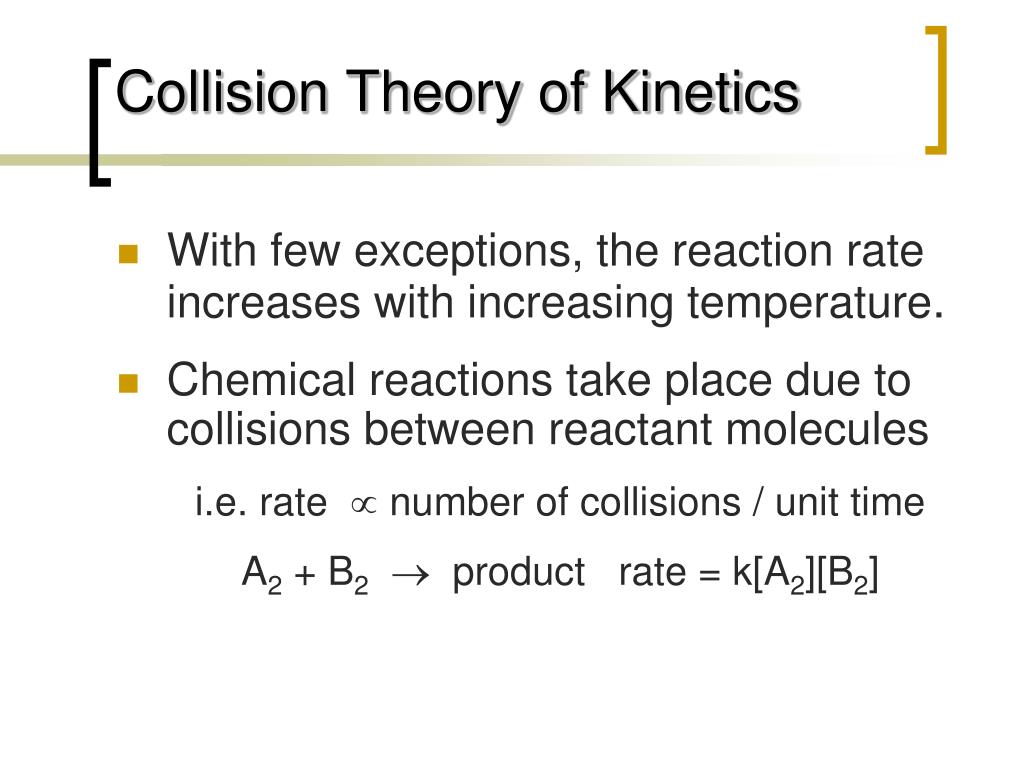

  27. Collision Theory of Kinetics • With few exceptions, the reaction rate increases with increasing temperature. • Chemical reactions take place due to collisions between reactant molecules i.e. rate µ number of collisions / unit time A2 + B2 product rate = k[A2][B2]

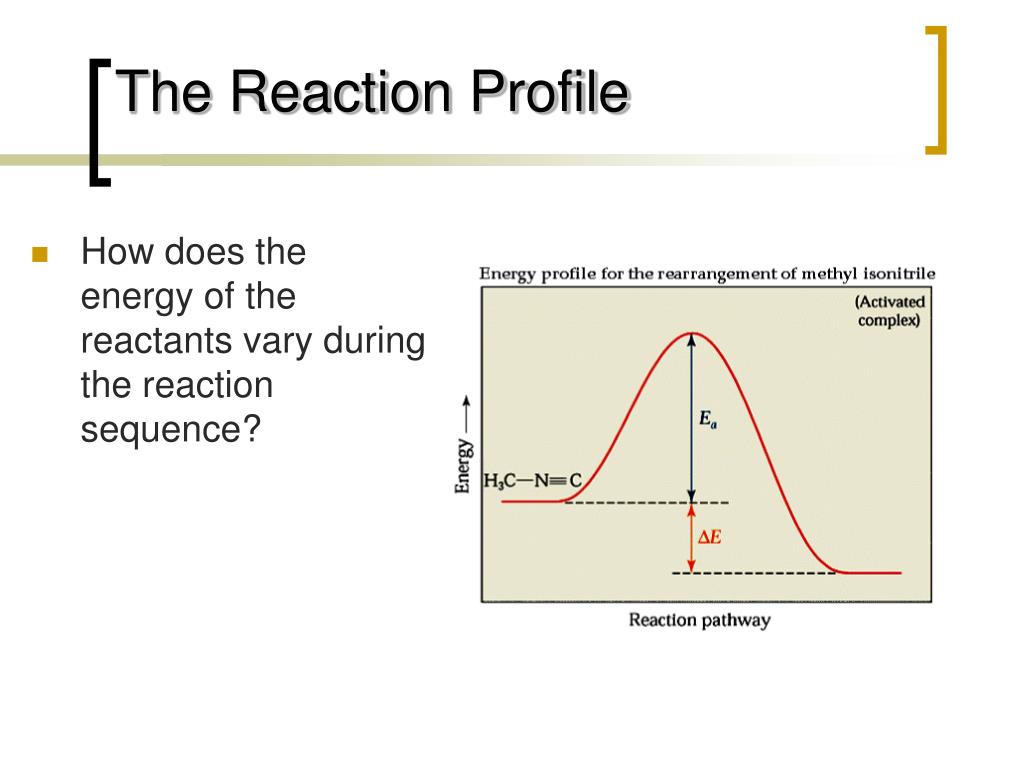

  28. The Reaction Profile How does the energy of the reactants vary during the reaction sequence?

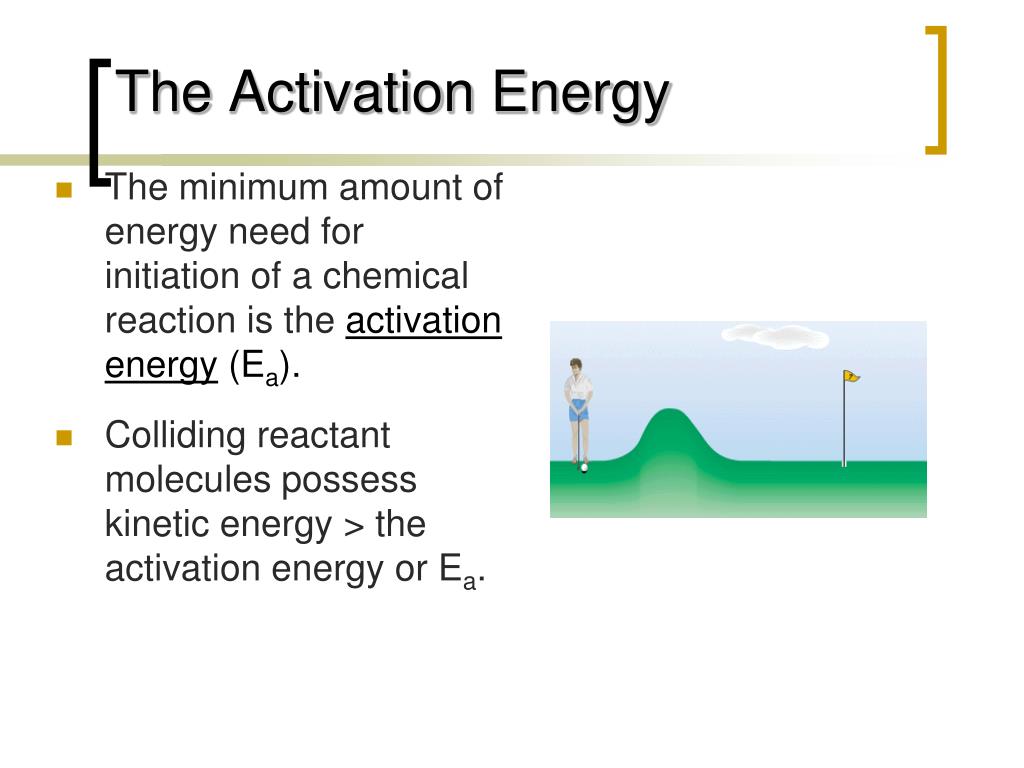

  29. The Activation Energy The minimum amount of energy need for initiation of a chemical reaction is the activation energy (Ea). Colliding reactant molecules possess kinetic energy > the activation energy or Ea.

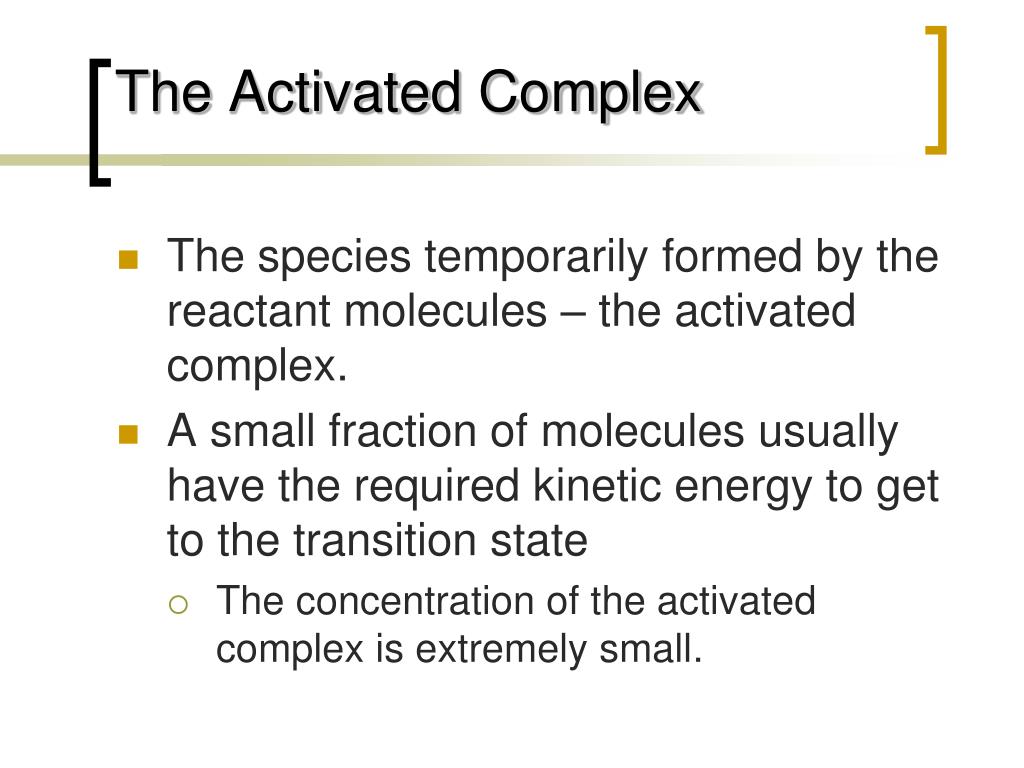

  30. The Activated Complex • The species temporarily formed by the reactant molecules – the activated complex. • A small fraction of molecules usually have the required kinetic energy to get to the transition state • The concentration of the activated complex is extremely small.

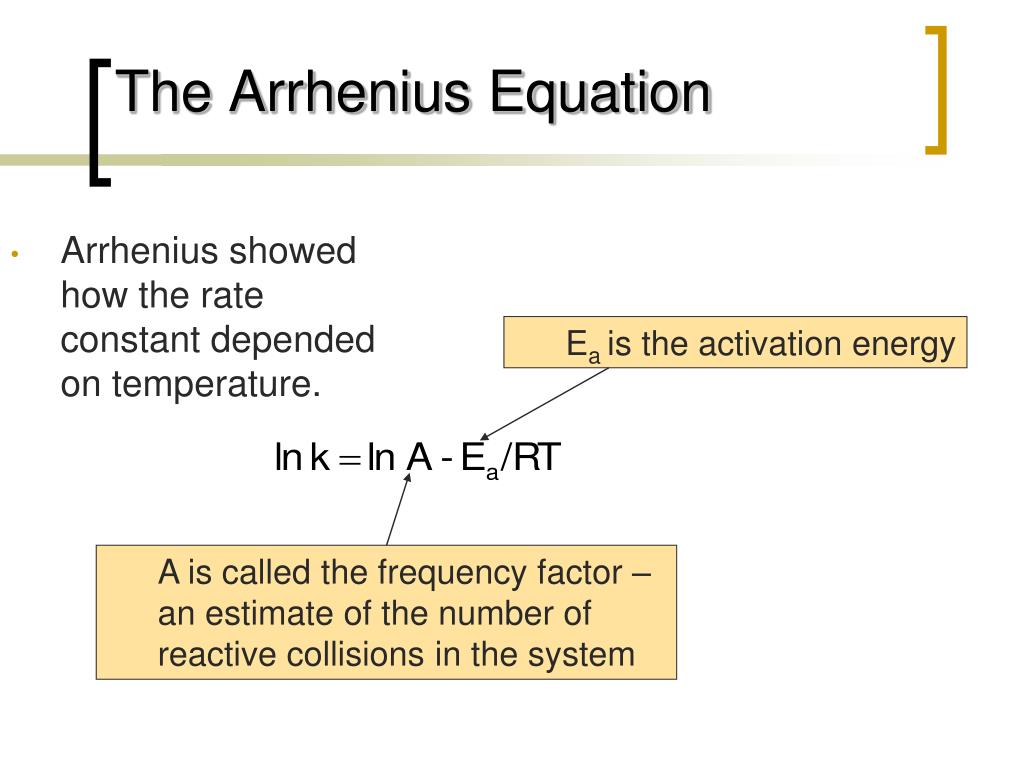

  31. The Arrhenius Equation Arrhenius showed how the rate constant depended on temperature. • Ea is the activation energy • A is called the frequency factor – an estimate of the number of reactive collisions in the system

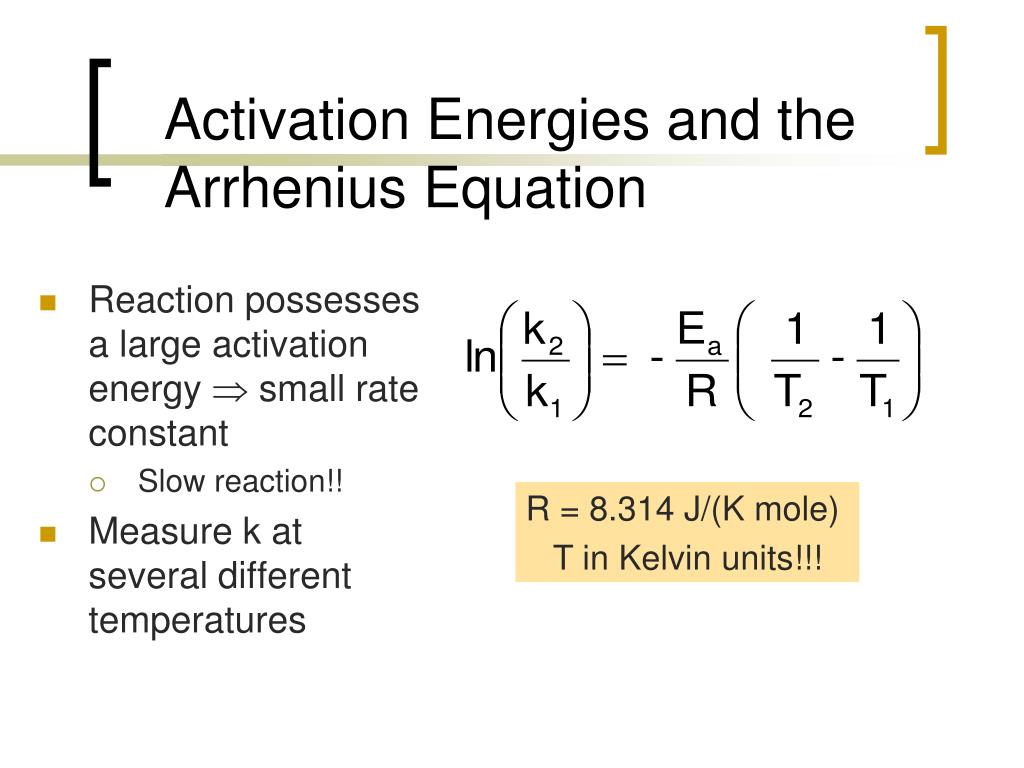

  32. Reaction possesses a large activation energy  small rate constant Slow reaction!! Measure k at several different temperatures Activation Energies and the Arrhenius Equation R = 8.314 J/(K mole) T in Kelvin units!!!

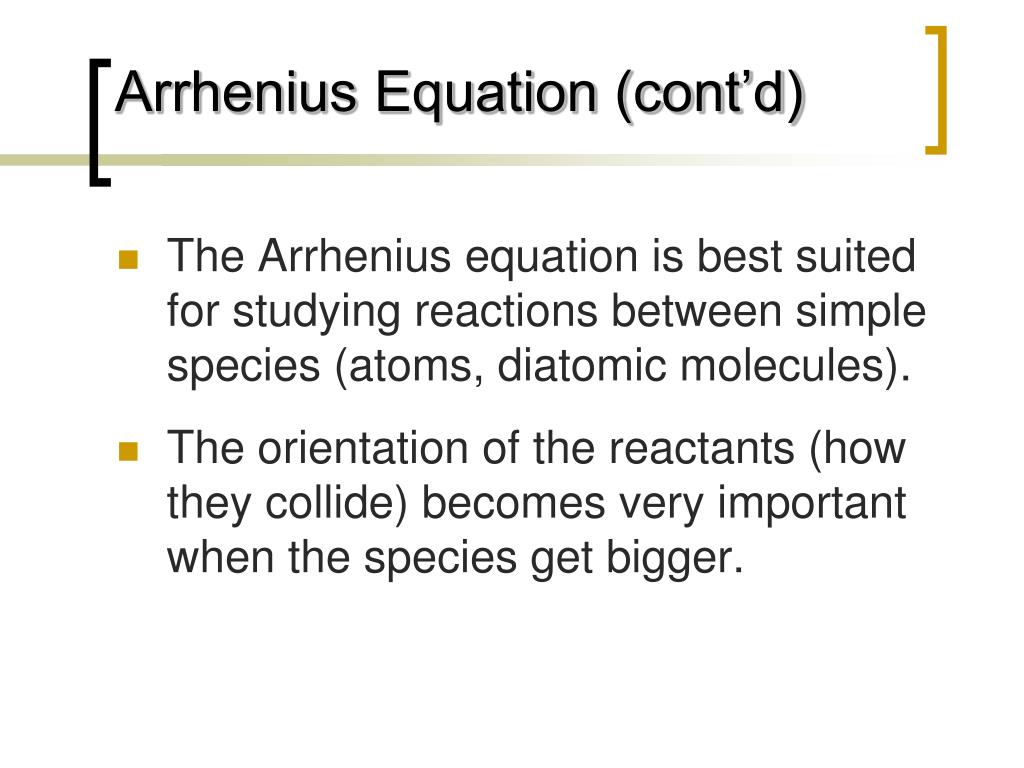

  33. Arrhenius Equation (cont’d) The Arrhenius equation is best suited for studying reactions between simple species (atoms, diatomic molecules). The orientation of the reactants (how they collide) becomes very important when the species get bigger.

  34. Catalysts • So far, we have considered one way of speeding up a reaction • increasing T usually increases k. • Another way is by the use of a catalyst. • A catalyst - a substance that speeds up the rate of the reaction without being consumed in the overall reaction.

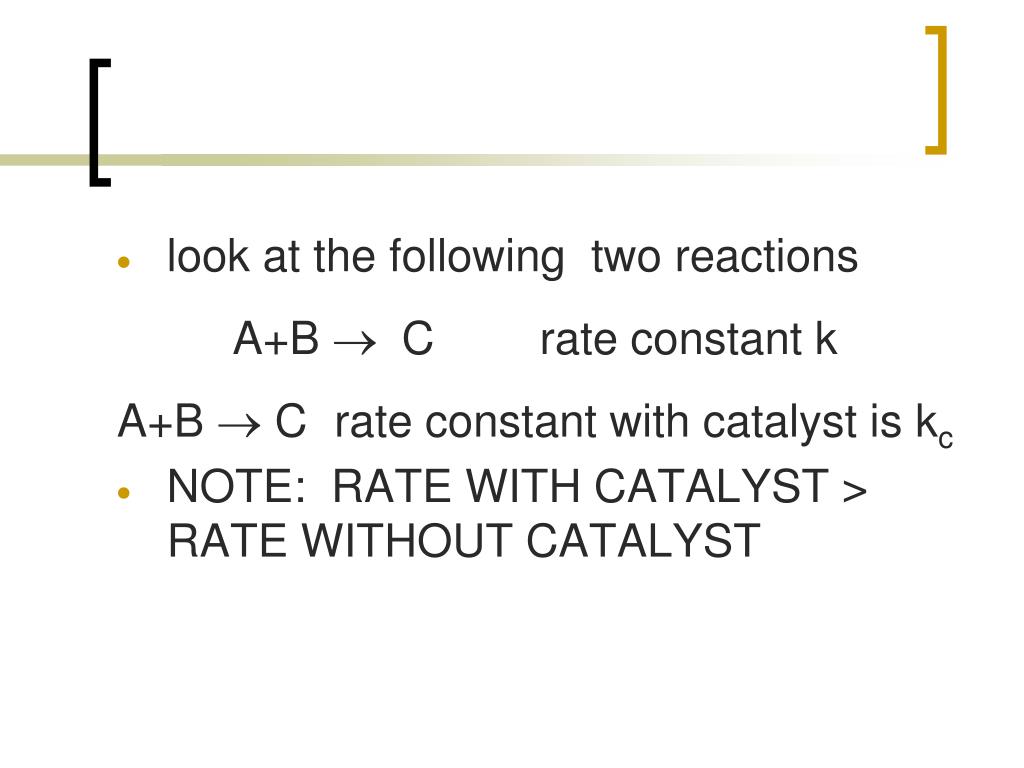

  35. look at the following two reactions A+B ® C rate constant k A+B ® C rate constant with catalyst is kc • NOTE: RATE WITH CATALYST > RATE WITHOUT CATALYST

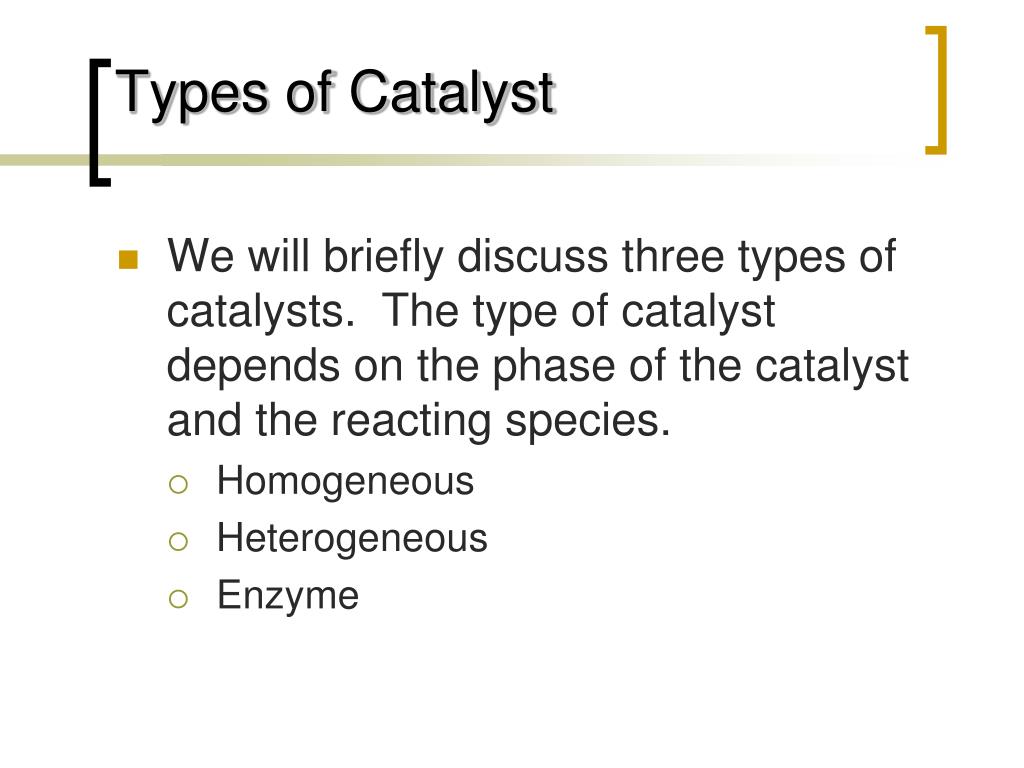

  36. Types of Catalyst • We will briefly discuss three types of catalysts. The type of catalyst depends on the phase of the catalyst and the reacting species. • Homogeneous • Heterogeneous • Enzyme

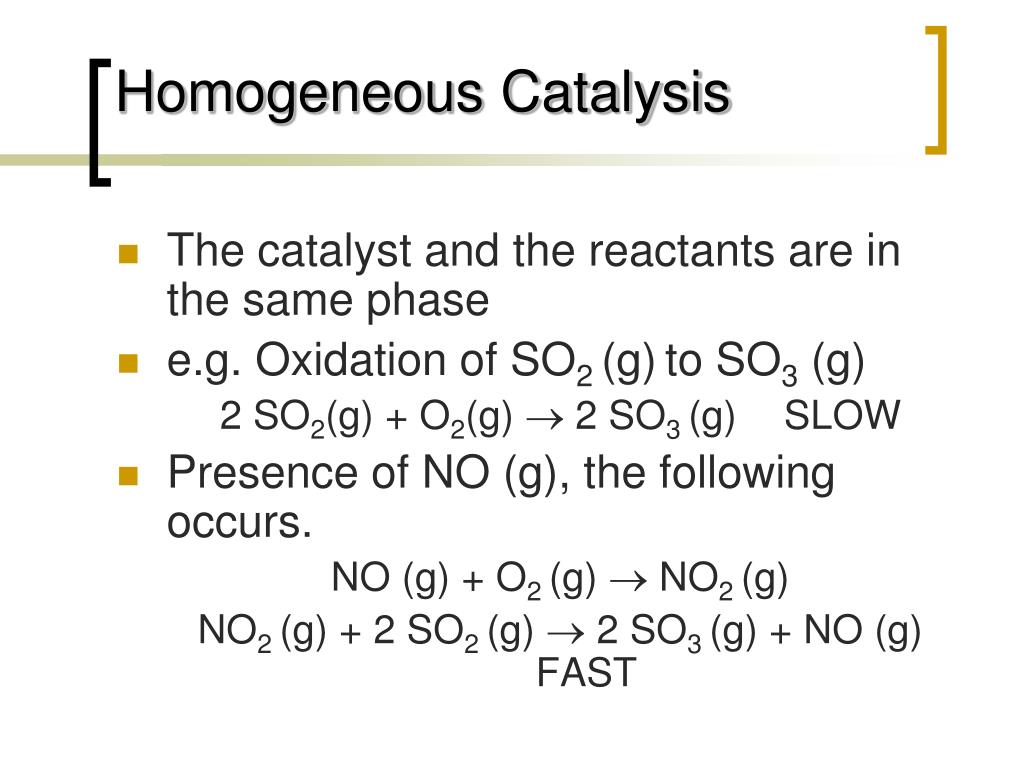

  37. Homogeneous Catalysis • The catalyst and the reactants are in the same phase • e.g. Oxidation of SO2 (g)to SO3 (g) 2 SO2(g) + O2(g) ® 2 SO3 (g) SLOW • Presence of NO (g), the following occurs. NO (g) + O2 (g) ® NO2 (g) NO2 (g) + 2 SO2 (g) ® 2 SO3 (g) + NO (g) FAST

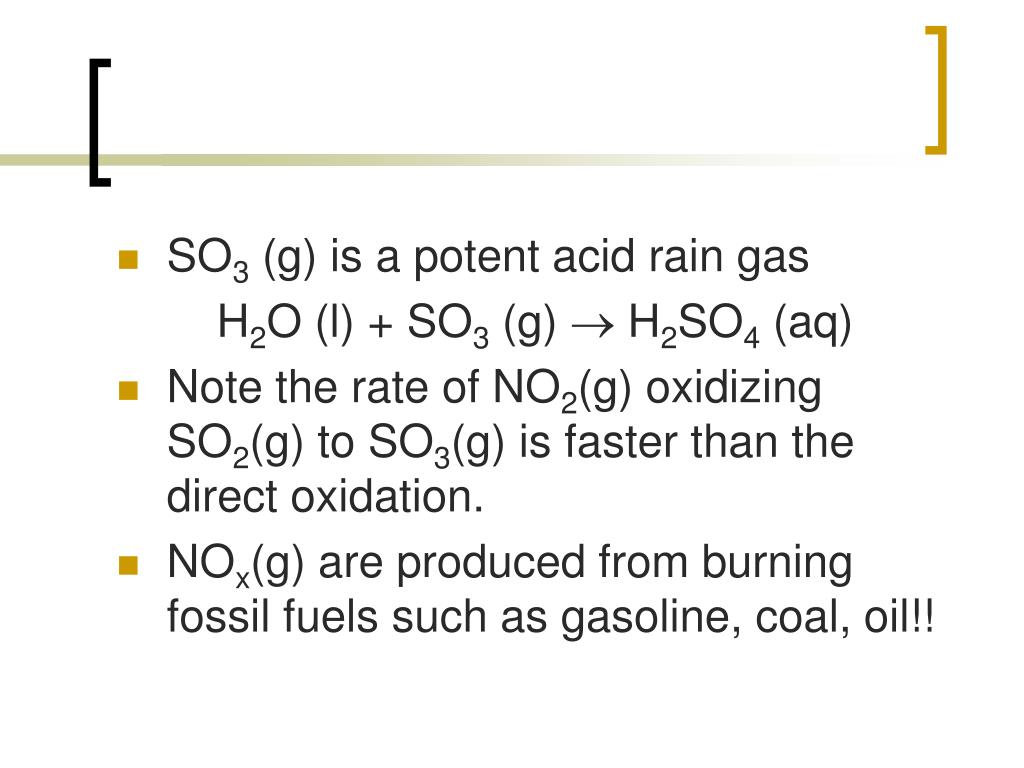

  38. SO3 (g) is a potent acid rain gas H2O (l) + SO3 (g)  H2SO4 (aq) Note the rate of NO2(g) oxidizing SO2(g) to SO3(g) is faster than the direct oxidation. NOx(g) are produced from burning fossil fuels such as gasoline, coal, oil!!

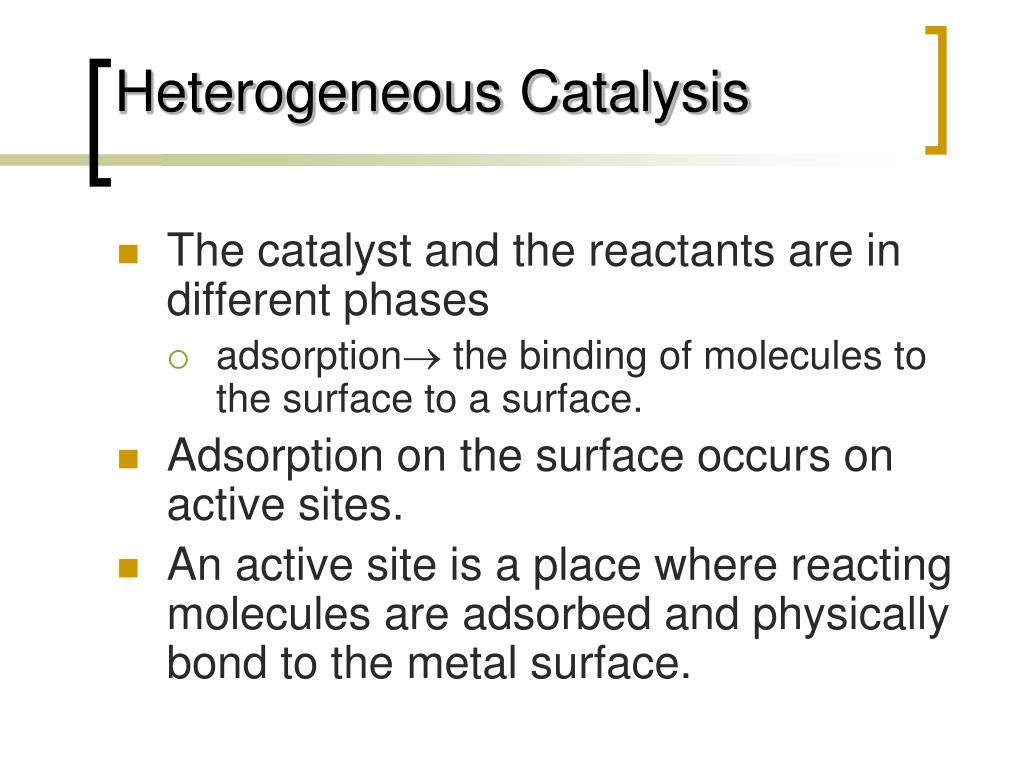

  39. Heterogeneous Catalysis • The catalyst and the reactants are in different phases • adsorption the binding of molecules to the surface to a surface. • Adsorption on the surface occurs on active sites. • An active site is a place where reacting molecules are adsorbed and physically bond to the metal surface.

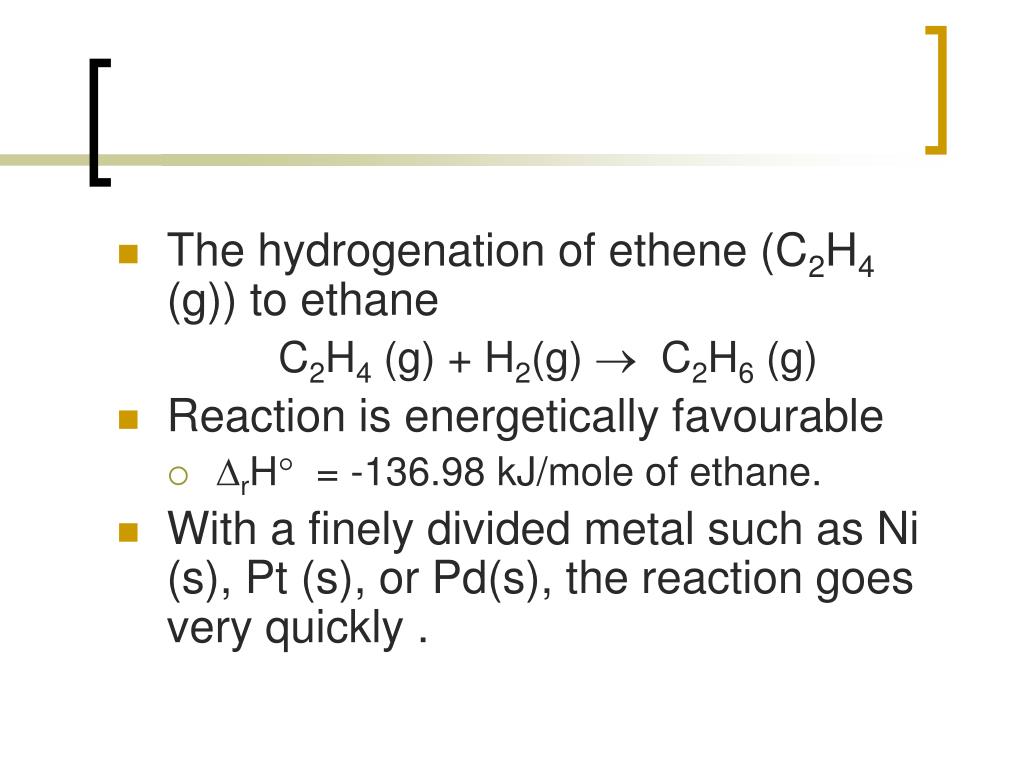

  40. The hydrogenation of ethene (C2H4 (g)) to ethane C2H4 (g) + H2(g)  C2H6 (g) • Reaction is energetically favourable • rH = -136.98 kJ/mole of ethane. • With a finely divided metal such as Ni (s), Pt (s), or Pd(s), the reaction goes very quickly .

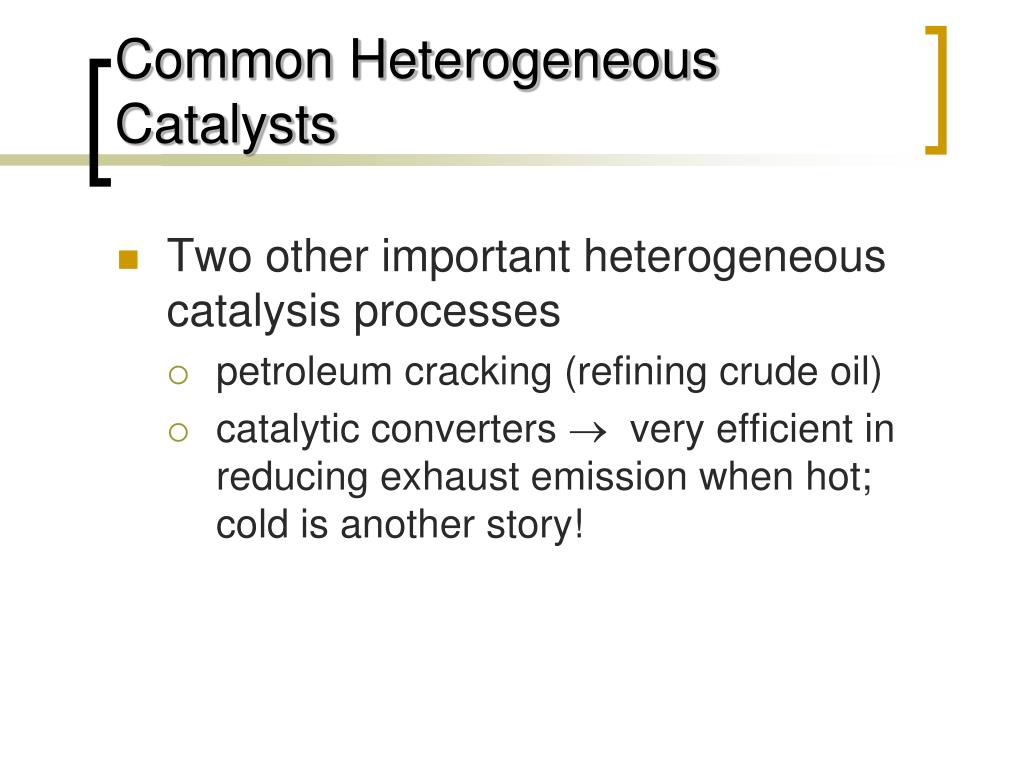

  41. Common Heterogeneous Catalysts • Two other important heterogeneous catalysis processes • petroleum cracking (refining crude oil) • catalytic converters  very efficient in reducing exhaust emission when hot; cold is another story!

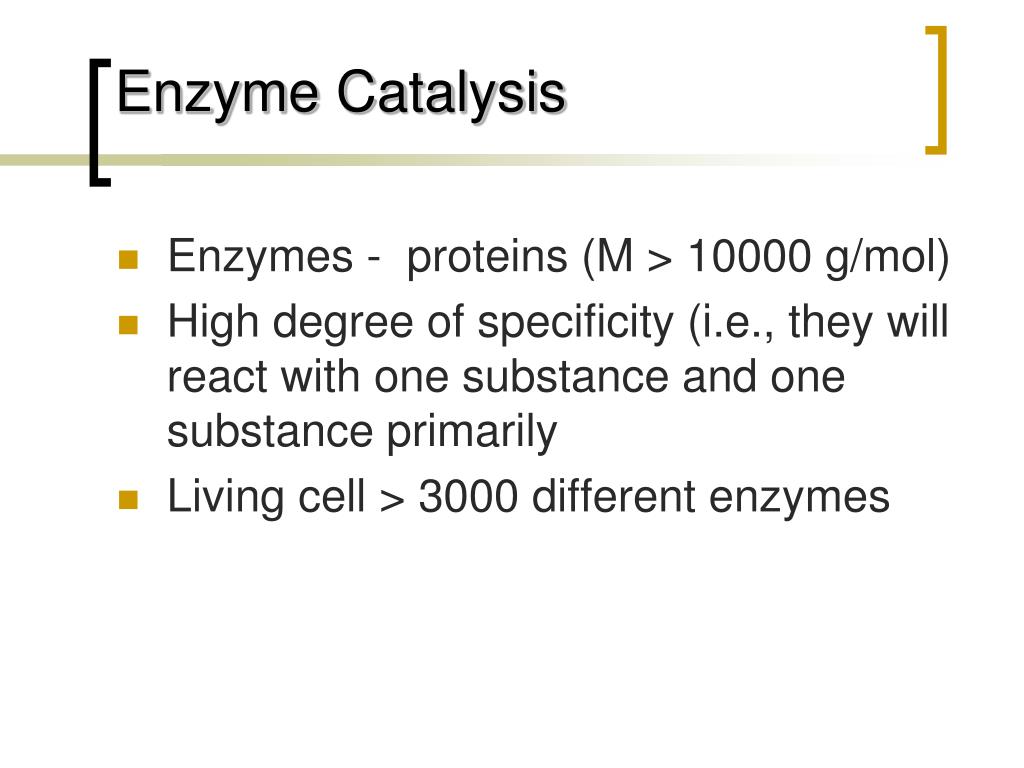

  42. Enzyme Catalysis Enzymes - proteins (M > 10000 g/mol) High degree of specificity (i.e., they will react with one substance and one substance primarily Living cell > 3000 different enzymes

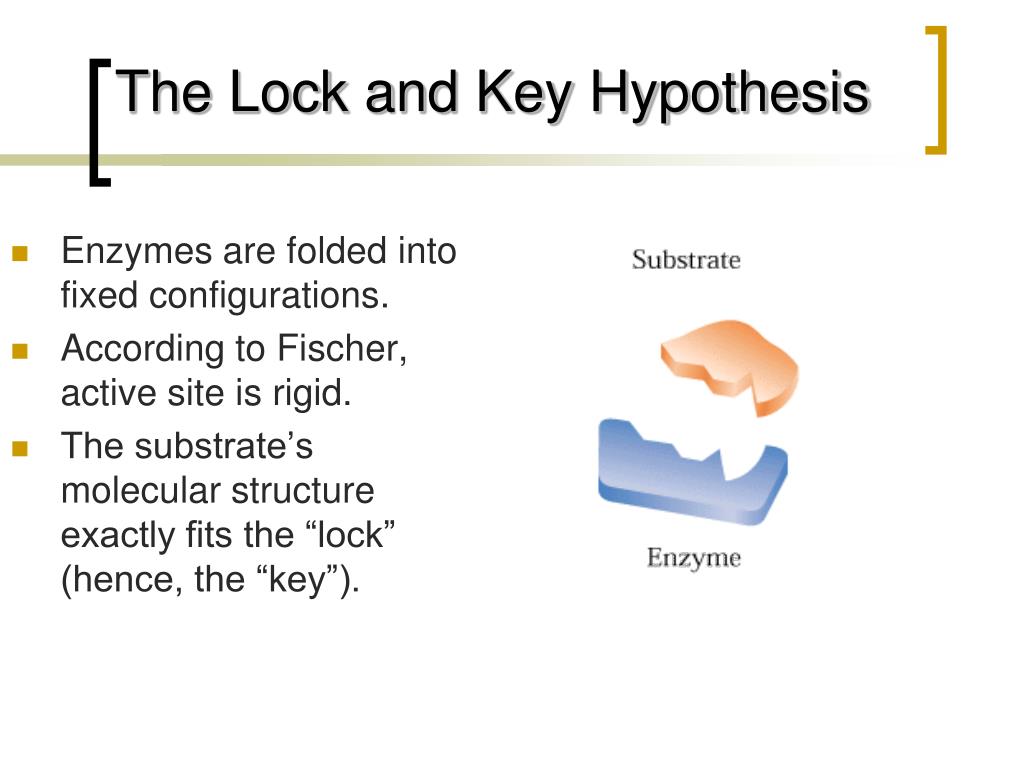

  43. The Lock and Key Hypothesis Enzymes are folded into fixed configurations. According to Fischer, active site is rigid. The substrate’s molecular structure exactly fits the “lock” (hence, the “key”).

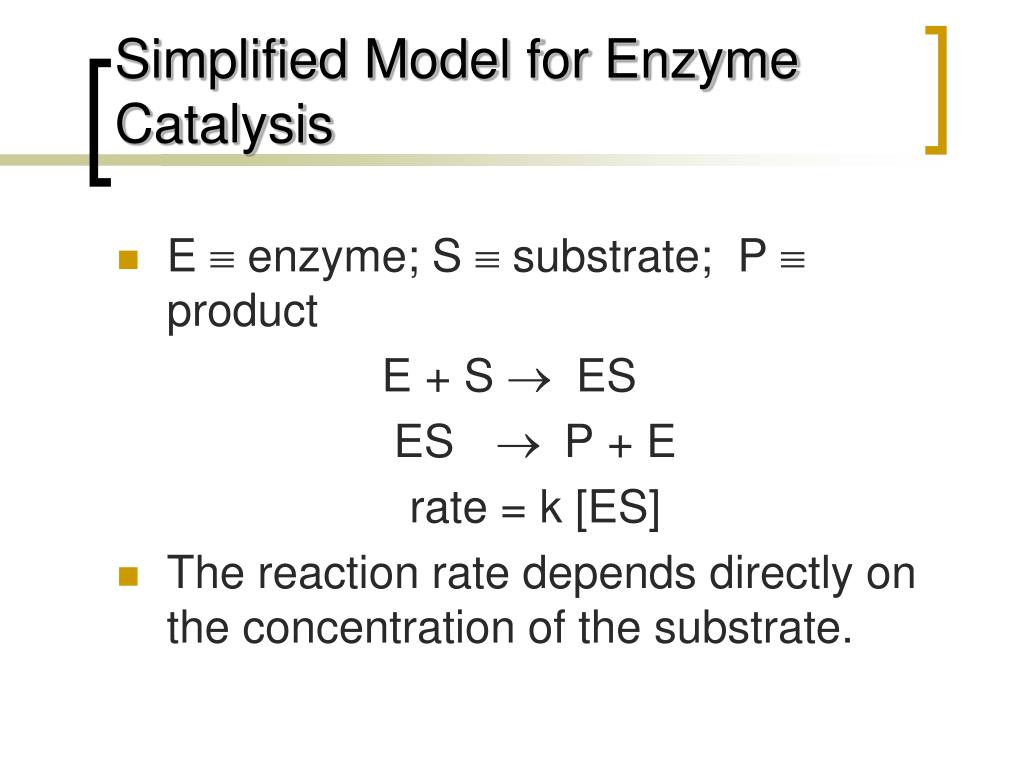

  44. Simplified Model for Enzyme Catalysis E º enzyme; S º substrate; P º product E + S ® ES ES ® P + E rate = k [ES] The reaction rate depends directly on the concentration of the substrate.

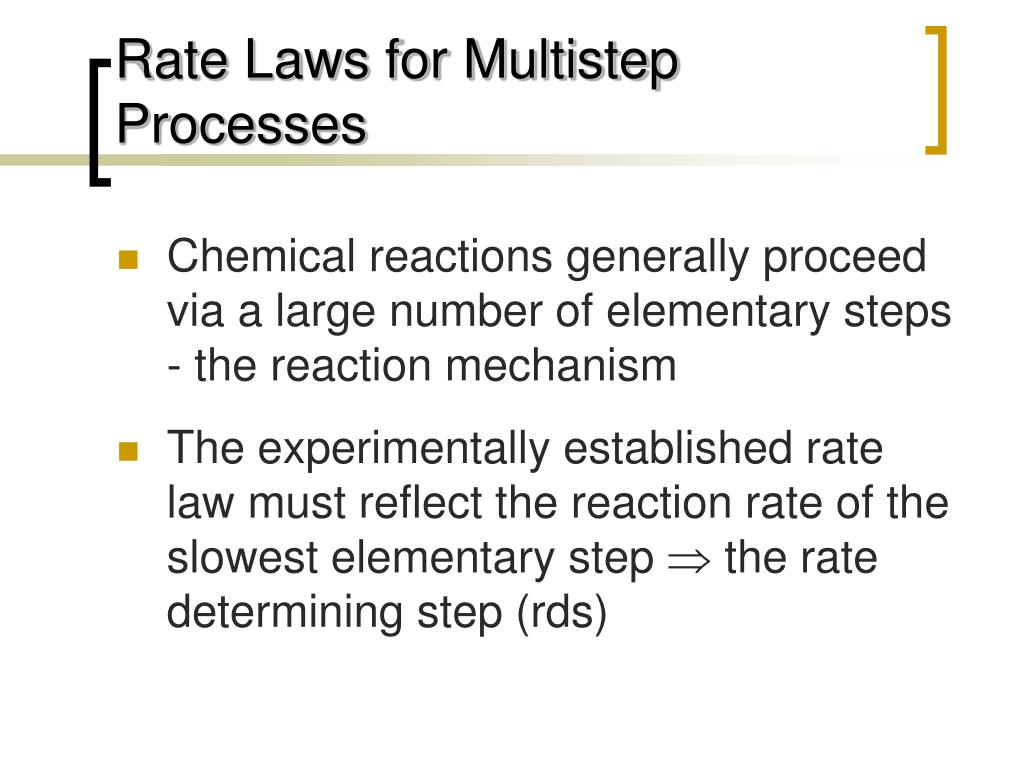

  45. Rate Laws for Multistep Processes Chemical reactions generally proceed via a large number of elementary steps - the reaction mechanism The experimentally established rate law must reflect the reaction rate of the slowest elementary step Þ the rate determining step (rds)

  46. What do we mean by an rds? • A commuter goes through a two step process to get to work in Halifax. • (1) highway ® MacKay Bridge Toll booth • (2) toll booth ® downtown

  47. MacKay Bridge Toll Booth • Overall reaction highway ® downtown • Situation 1.  highway clogged, toll booth is fast. • Situation 2.  fast highway, clogged toll booth.

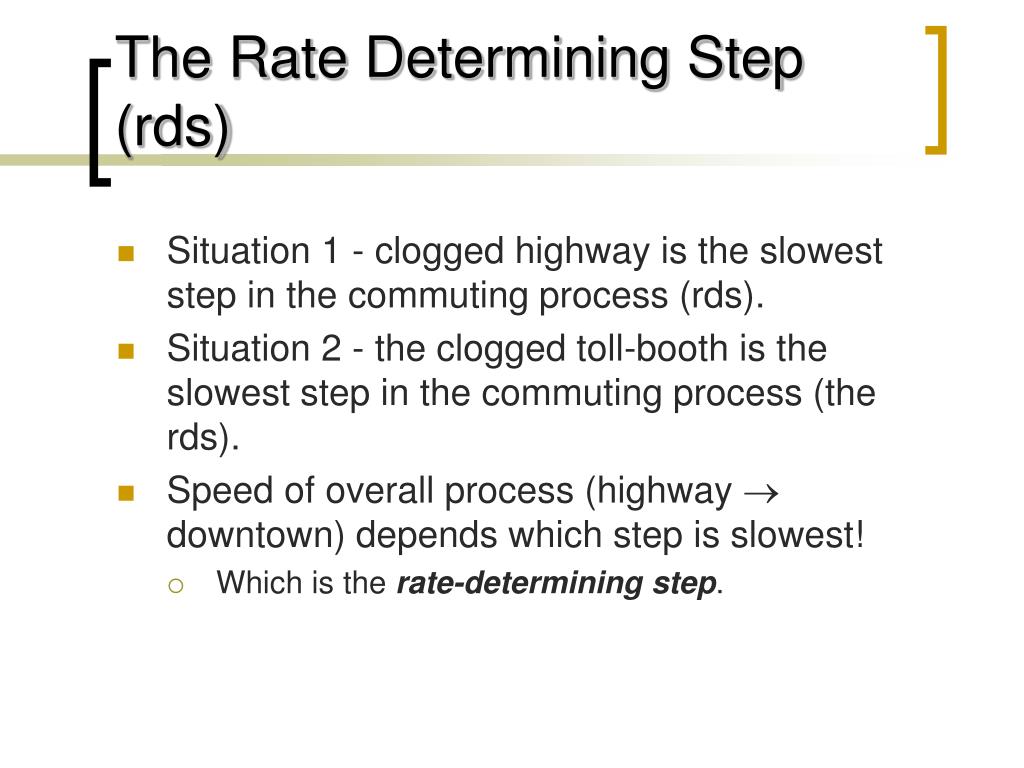

  48. The Rate Determining Step (rds) • Situation 1 - clogged highway is the slowest step in the commuting process (rds). • Situation 2 - the clogged toll-booth is the slowest step in the commuting process (the rds). • Speed of overall process (highway ® downtown) depends which step is slowest! • Which is the rate-determining step.

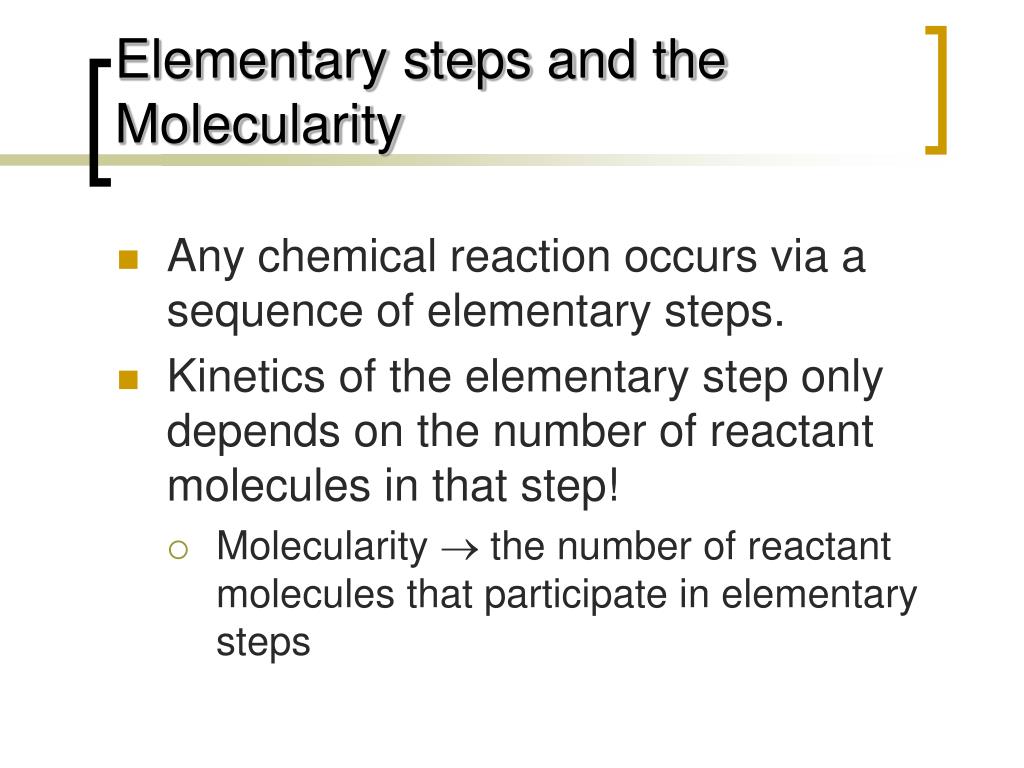

  49. Elementary steps and the Molecularity • Any chemical reaction occurs via a sequence of elementary steps. • Kinetics of the elementary step only depends on the number of reactant molecules in that step! • Molecularity  the number of reactant molecules that participate in elementary steps
