  1. ASN.1 CNS 4650 Fall 2004 Rev. 2

  2. What is ASN.1 • Abstract Syntax Notation One • Overcome how different computer systems transmit data • Model parameters exchanged between application entities

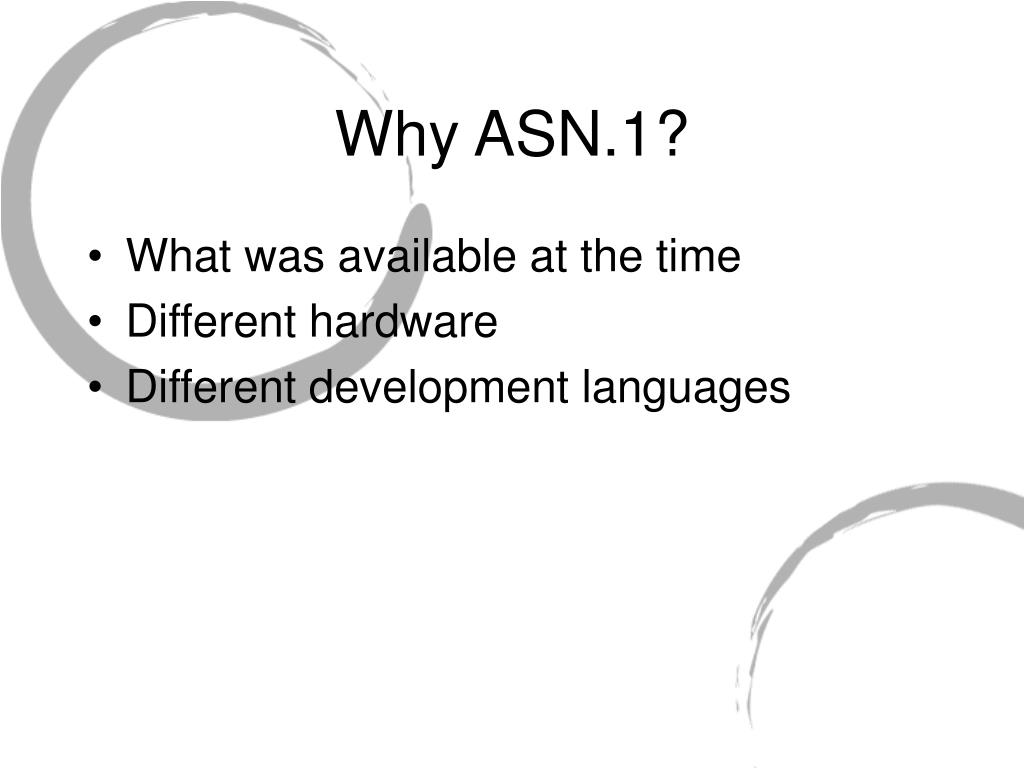

  3. Why ASN.1? • What was available at the time • Different hardware • Different development languages

  4. “Endian” Problem • Taken from Gulliver’s Travels • Whether eggs should be broken on top or bottom • “Little Endian” refers to machines that read bytes right to left (Intel) • “Big Endian” refers to machines that read bytes left to right (Motorola, IBM, SUN) • Data cannot be transferred directly between the two • Tanenbaum’s Stegosaurus”

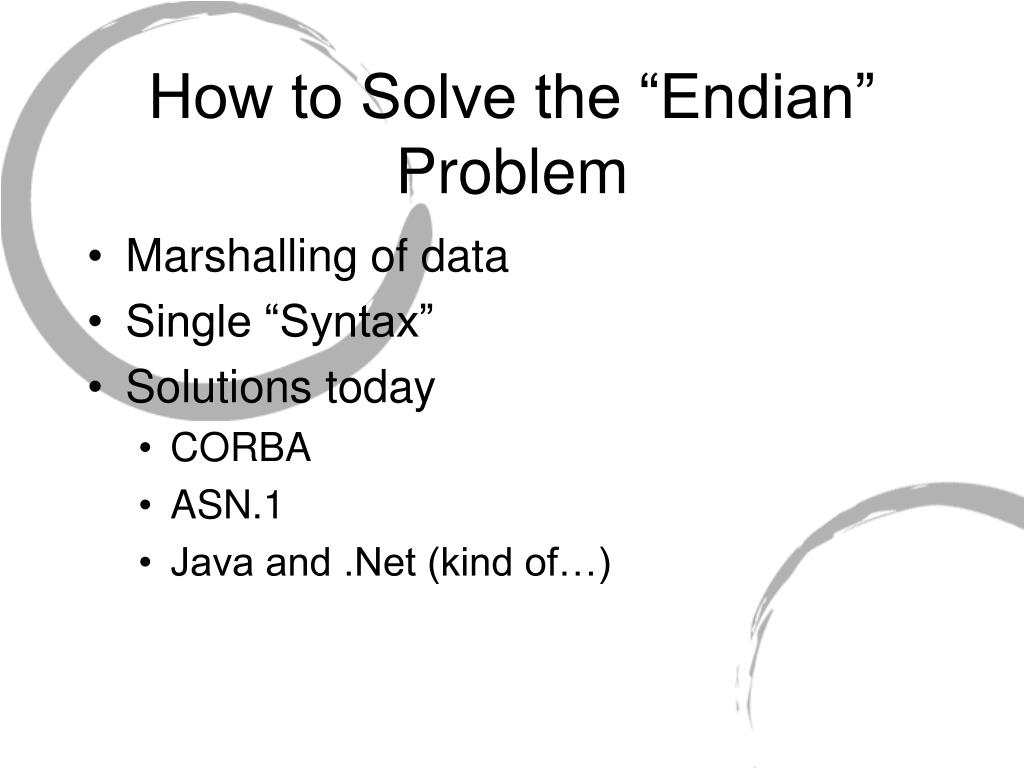

  5. How to Solve the “Endian” Problem • Marshalling of data • Single “Syntax” • Solutions today • CORBA • ASN.1 • Java and .Net (kind of…)

  6. Development Languages • Languages do not all contain the same data types • For instance C does not really have a boolean it is usually simulated • C requires ‘\0’ to terminate a string, this is not always the case in other languages • Without “standard” types who has to manipulate the data? The sender or receiver?

  7. Backus-Naur Format (BNF) • Formal way to describe formal languages • Most often used to describe computer languages • Designed to be unambiguous

  8. Built-in Language Types • Boolean • Integer • Octet string • Null • Sequence • Set • Many more

  9. Built-in Syntax Definitions • IA5 String • Numeric String • UTC Time • Printable String

  10. BNF Examples • Begin with general then to specifics • Uses := { } [ ] | • := is the left must be replaced by the right • { } [ ] is for formating and grouping • | is for “or”

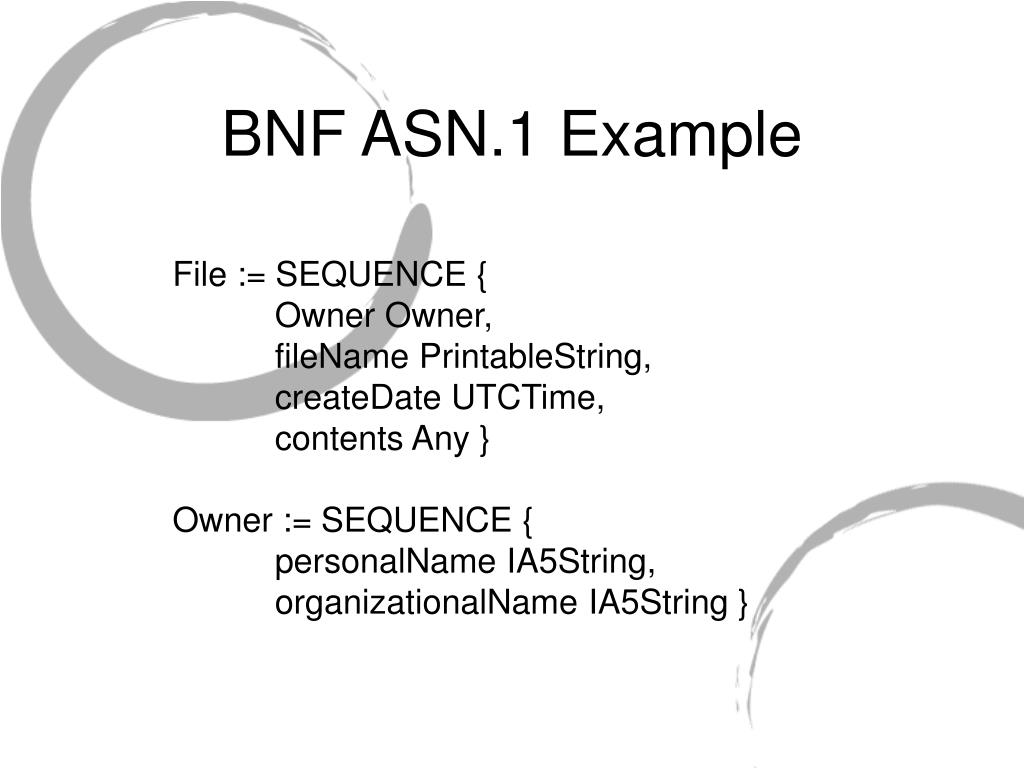

  11. BNF ASN.1 Example File := SEQUENCE { Owner Owner, fileName PrintableString, createDate UTCTime, contents Any } Owner := SEQUENCE { personalName IA5String, organizationalName IA5String }

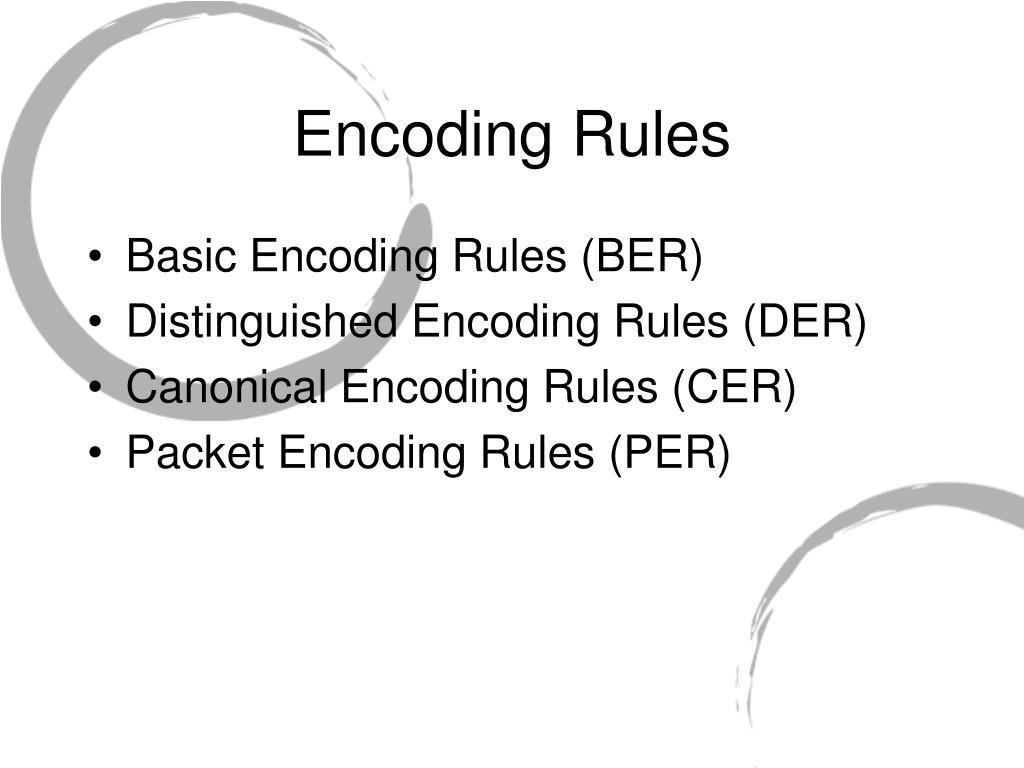

  12. Encoding Rules • Basic Encoding Rules (BER) • Distinguished Encoding Rules (DER) • Canonical Encoding Rules (CER) • Packet Encoding Rules (PER)

  13. Basic Encoding Rules (BER) • Represent ASN.1 values as an octect string • Three encoding methods\ • Primitive, definite length • Constructed, definite length • Constructed, indefinite length

  14. BER Parts • TLV • Tag octet • Length octet • Value octet

  15. Distinguished Encoding Rules (DER) • Subset of BER • Exactly one way to represent the octet string • Restricts certain types (BIT STRING) beyond BER • Used for digital certificates

  16. ASN.1 and OIDs • Used by LDAP, Kerberos, and SNMP • Value used to uniquely identify every objectclass and attribute • Object Indentifer (OID) is same as ASN.1

  17. OIDs • Sub-arc • Example: 1.3.6.1.4.1.17946.1 • No standard on how to delegate number after arc • De-facto standard is to place all objectclasses under a sub-arc and all attributes under a separate sub-arc

  18. How to read ASN.1 Numbers
