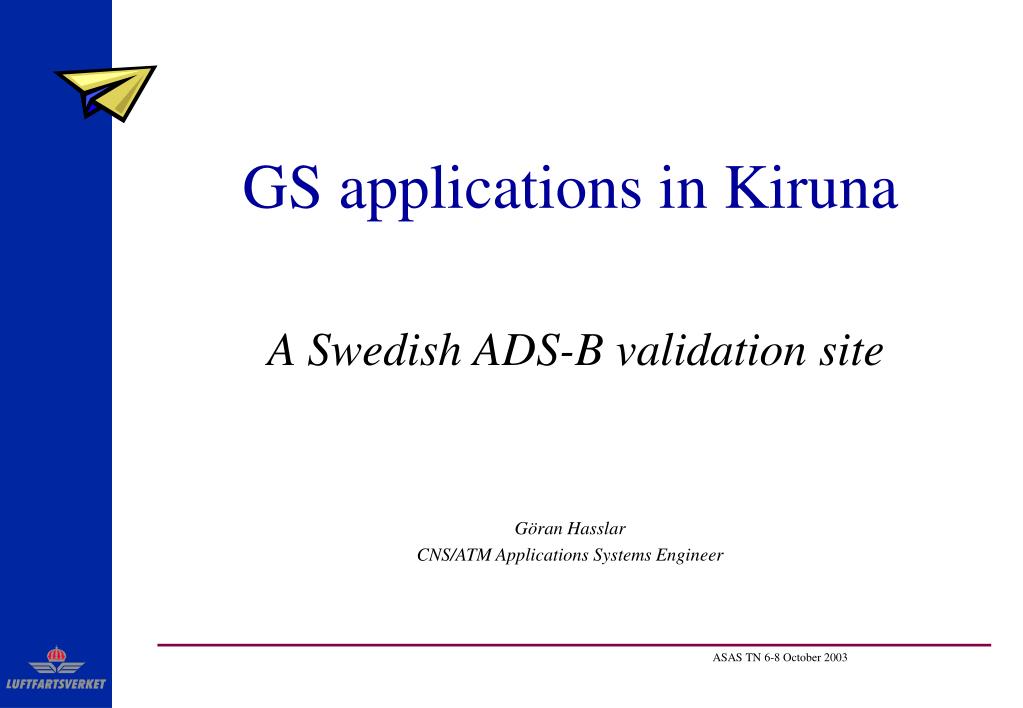

  1. GS applications in Kiruna A Swedish ADS-B validation site Göran Hasslar CNS/ATM Applications Systems Engineer ASAS TN 6-8 October 2003

  2. Kiruna specifications • Kiruna is the most Northern Airport in Sweden • No radar coverage in TMA below FL 80 • Airlines require improved SUR service • 10 schedule movements per day • Some charter • Limited GA and military traffic • Aircraft winter testing • Experimental activities; UAV, Esrange • Frequently complicated weather situations Göran Hasslar / SCAA

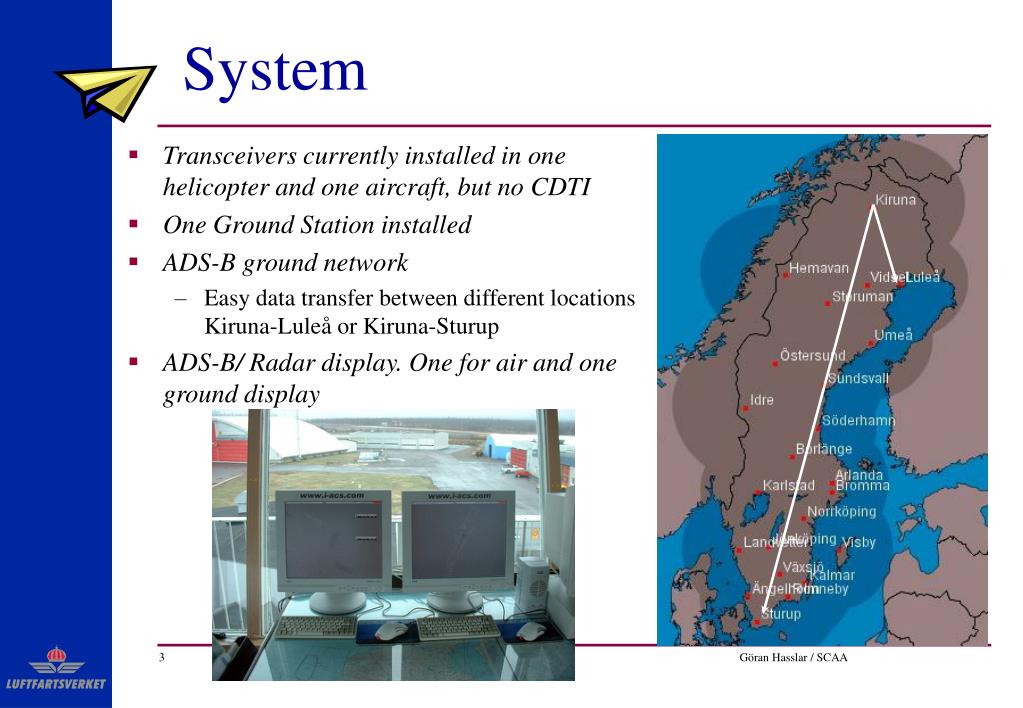

  3. System • Transceivers currently installed in one helicopter and one aircraft, but no CDTI • One Ground Station installed • ADS-B ground network • Easy data transfer between different locations Kiruna-Luleå or Kiruna-Sturup • ADS-B/ Radar display. One for air and one ground display Göran Hasslar / SCAA

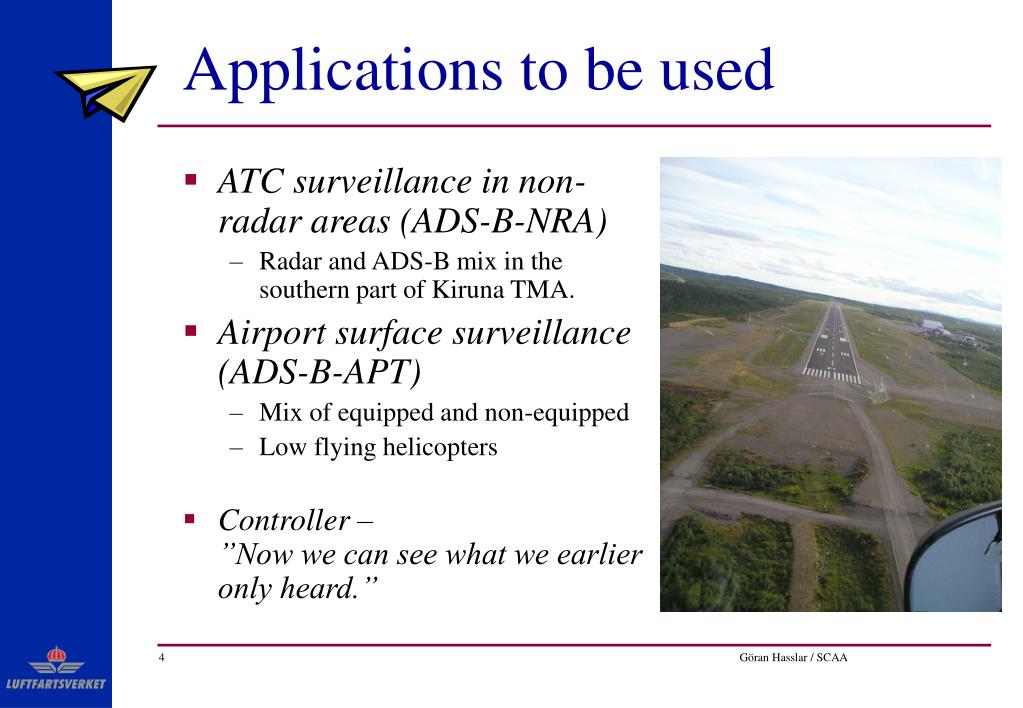

  4. Applications to be used • ATC surveillance in non-radar areas (ADS-B-NRA) • Radar and ADS-B mix in the southern part of Kiruna TMA. • Airport surface surveillance (ADS-B-APT) • Mix of equipped and non-equipped • Low flying helicopters • Controller – ”Now we can see what we earlier only heard.” Göran Hasslar / SCAA

  5. Operational changes • Procedures • Basic radar-like procedures. Overlay of radar procedures to GPS procedures. • No change in separation minima to in near future, but later on after more tests and built up confidence • Some new procedures for seamless flight is foreseen, but no revolutionary or extensive ones • Phraseology • Some new minor for example ”Radar contact” will be changed to ”ADS-B contact” • CDM enabler for AOC or other users on the ground Göran Hasslar / SCAA

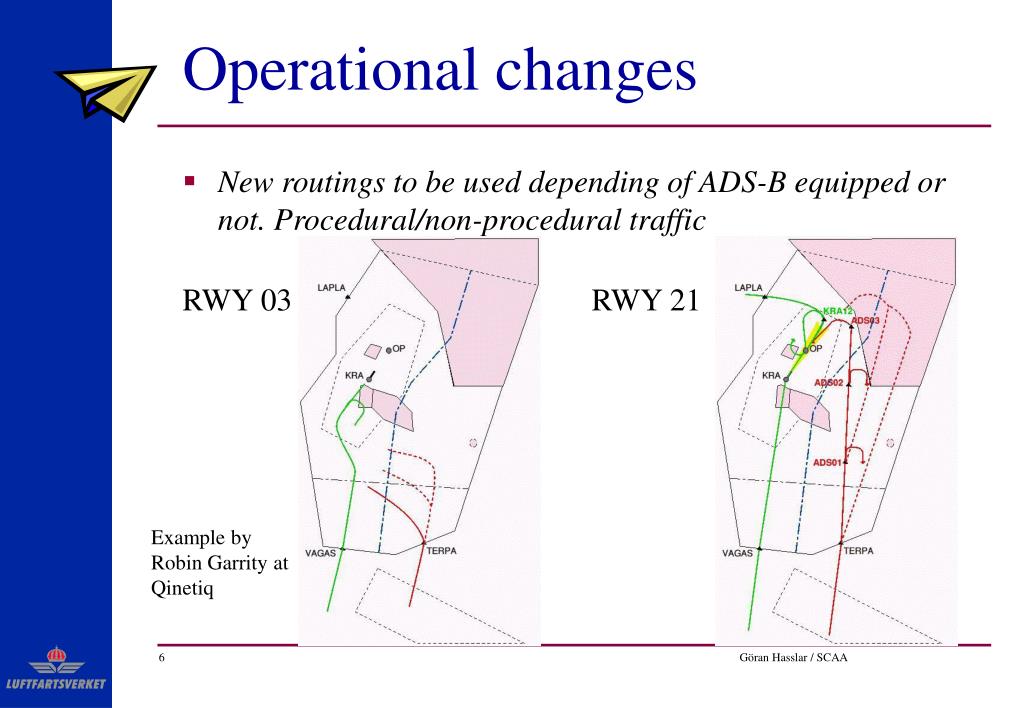

  6. Operational changes • New routings to be used depending of ADS-B equipped or not. Procedural/non-procedural traffic RWY 03 RWY 21 Example by Robin Garrity at Qinetiq Göran Hasslar / SCAA

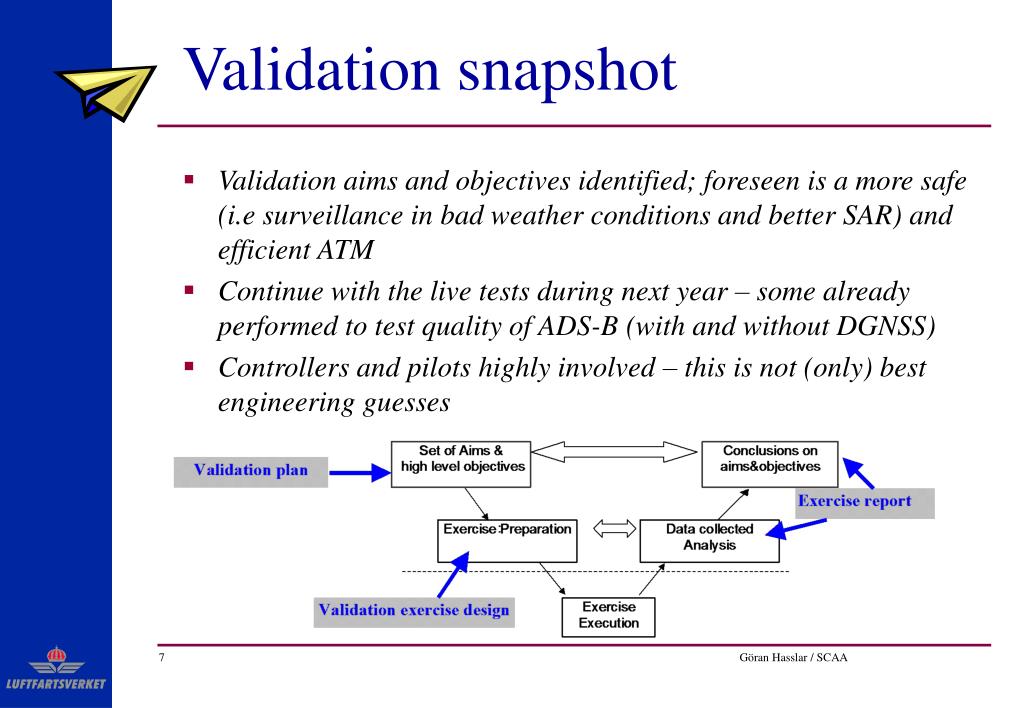

  7. Validation snapshot • Validation aims and objectives identified; foreseen is a more safe (i.e surveillance in bad weather conditions and better SAR) and efficient ATM • Continue with the live tests during next year – some already performed to test quality of ADS-B (with and without DGNSS) • Controllers and pilots highly involved – this is not (only) best engineering guesses Göran Hasslar / SCAA

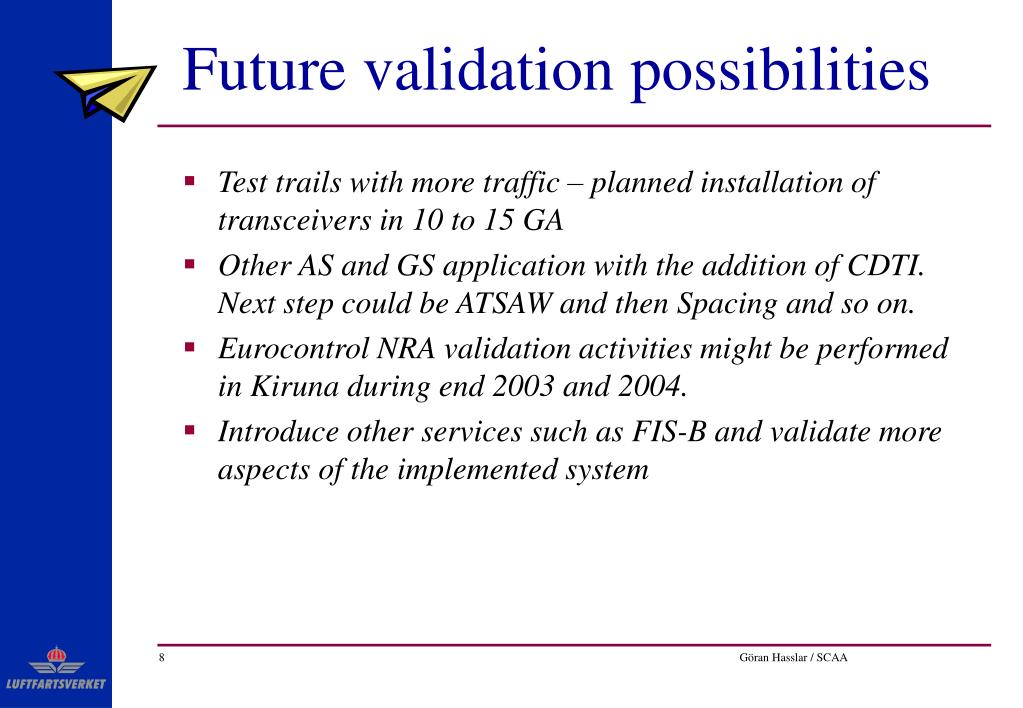

  8. Future validation possibilities • Test trails with more traffic – planned installation of transceivers in 10 to 15 GA • Other AS and GS application with the addition of CDTI. Next step could be ATSAW and then Spacing and so on. • Eurocontrol NRA validation activities might be performed in Kiruna during end 2003 and 2004. • Introduce other services such as FIS-B and validate more aspects of the implemented system Göran Hasslar / SCAA

  9. Safety snapshot • Application was handed over to Swedish Aviation Safety Authority for Entry control 2003-06 • Safetycase for all system parts • Safetycase for the surveillance application is maturing • Into operation Q2 2004 • Helicopter pilot – ”It feels safe to be seen by ATC” Göran Hasslar / SCAA

  10. Biggest safety issues • Complicated safety case for the whole chain – including the transceivers. How to make sure that no “low-quality” transceiver used by anyone in Kiruna TMA? • All new for the Safety Authority, no operational history for the system • Unforeseen issues pop-up • Data collection to convince yourself and others Göran Hasslar / SCAA

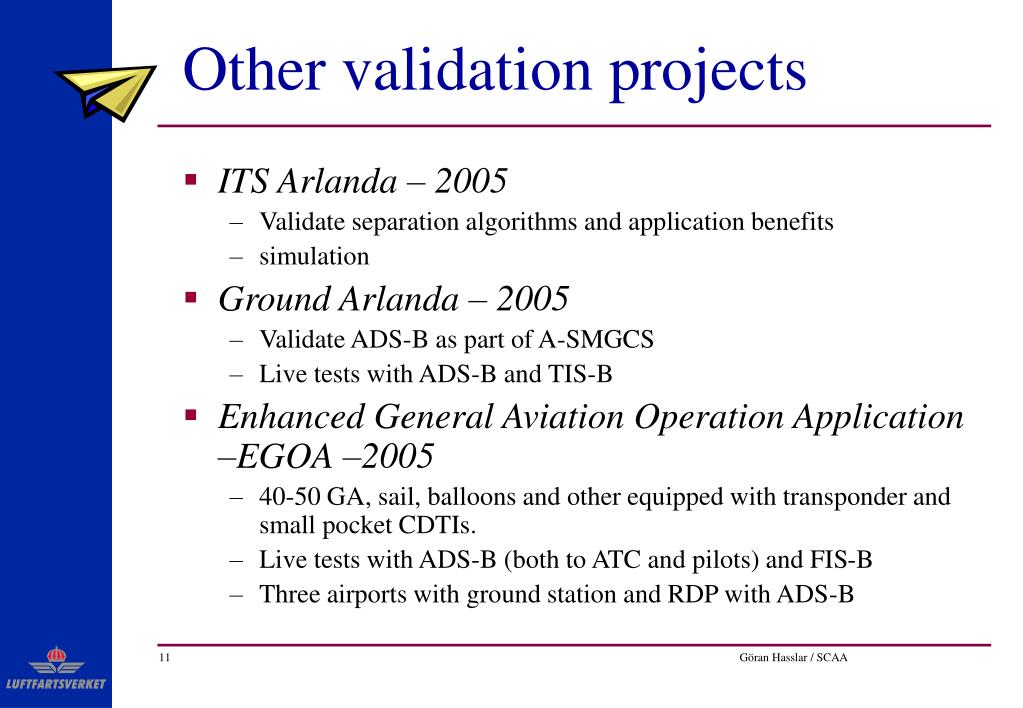

  11. Other validation projects • ITS Arlanda – 2005 • Validate separation algorithms and application benefits • simulation • Ground Arlanda – 2005 • Validate ADS-B as part of A-SMGCS • Live tests with ADS-B and TIS-B • Enhanced General Aviation Operation Application –EGOA –2005 • 40-50 GA, sail, balloons and other equipped with transponder and small pocket CDTIs. • Live tests with ADS-B (both to ATC and pilots) and FIS-B • Three airports with ground station and RDP with ADS-B Göran Hasslar / SCAA

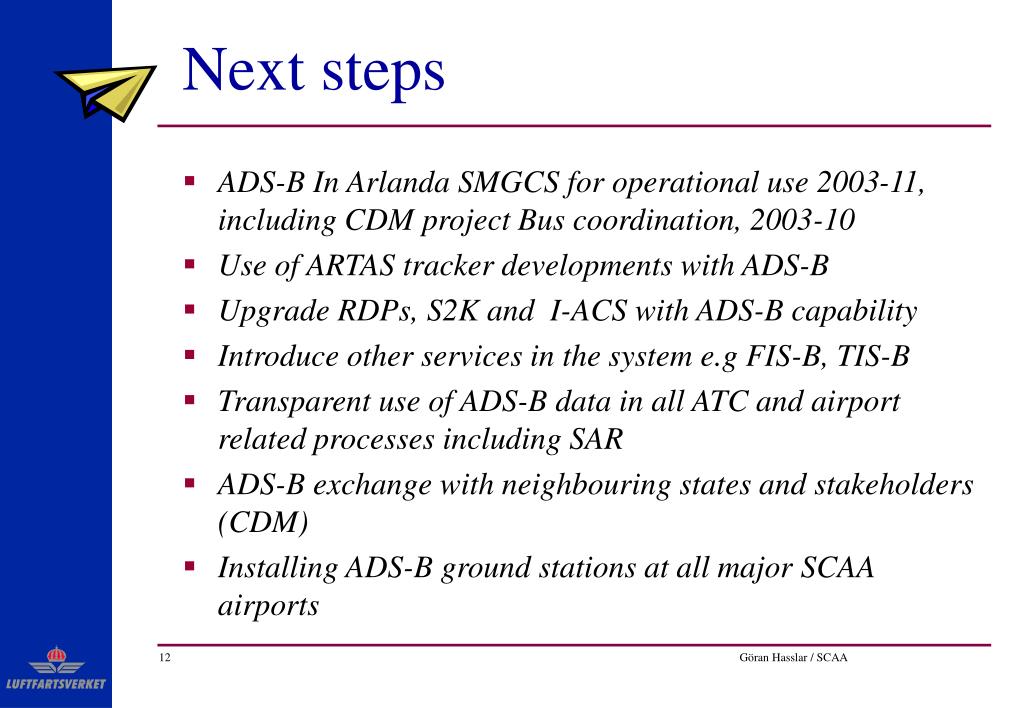

  12. Next steps • ADS-B In Arlanda SMGCS for operational use 2003-11, including CDM project Bus coordination, 2003-10 • Use of ARTAS tracker developments with ADS-B • Upgrade RDPs, S2K and I-ACS with ADS-B capability • Introduce other services in the system e.g FIS-B, TIS-B • Transparent use of ADS-B data in all ATC and airport related processes including SAR • ADS-B exchange with neighbouring states and stakeholders (CDM) • Installing ADS-B ground stations at all major SCAA airports Göran Hasslar / SCAA

  13. Motive round-up • Safety, enhanced SAR and enabler for ATSAW • Airport surface operations must be improved in all weather conditions • ADS-B can at a low cost be used at all airports and integrated in various local systems • ADS-B infrastructure can be installed at 5-10% of the cost for a new Mode-S/SSR infrastructure • ASAS applications are suitable for Swedish Airspace and can improve the capacity without large infrastructure investments(new runways) Göran Hasslar / SCAA

  14. Welcome to the future, it is now and it is here, Sweden. Thank You! Göran Hasslar / SCAA
