  1. Atlas liquid argon calorimeter statusE. Monnieron behalf of the Atlas liquid argon calorimeter group • Introduction • Construction and integration status • Performances • Conclusion E. Monnier - CPPM - ICHEP04 - Beijing

  2. Design performances Benchmark channels: H→, H→4e, W’, Z’… + running conditions  Design requirements: • energy resolution and uniformity σ/E = 10%/√E ⊕ 0.7% for e,  σ/E = 50(100)%/√E ⊕ 3(10)% for jet |η|<3 (3<|η|<5) • Angular resolution: 50 mrad/√E for e,  • Linearity of 0.1% for e,  and <2% for hadronic • Particle id and separation: e, jets, , π0 • Dynamic range 20 MeV to a few TeV • Time measurements, Hermiticity, Radiation…. E. Monnier - CPPM - ICHEP04 - Beijing

  3. EM Endcap Ps |η|<1.8 EM Barrel+Ps Hadronic Endcap Forward The Atlas larg calorimeters • Em barrel |η|<1.475 (Pb/Lar) • Em endcap 1.375<|η|<3.2 (Pb/Lar) • Hadronic endcap 1.5<|η|<3.2 (Cu/Lar) • Forward 3.2<|η|<4.9 (Cu, W/Lar) > 200000 channels E. Monnier - CPPM - ICHEP04 - Beijing

  4. e EM Barrel 32 Modules cold tested and integrated MC Barrel Closed cooled down • <0.014% dead channels ! • 0.1% HV ½ gap isolated • Barrel at LArg temperature • Under extensive test • In the pit early October E. Monnier - CPPM - ICHEP04 - Beijing

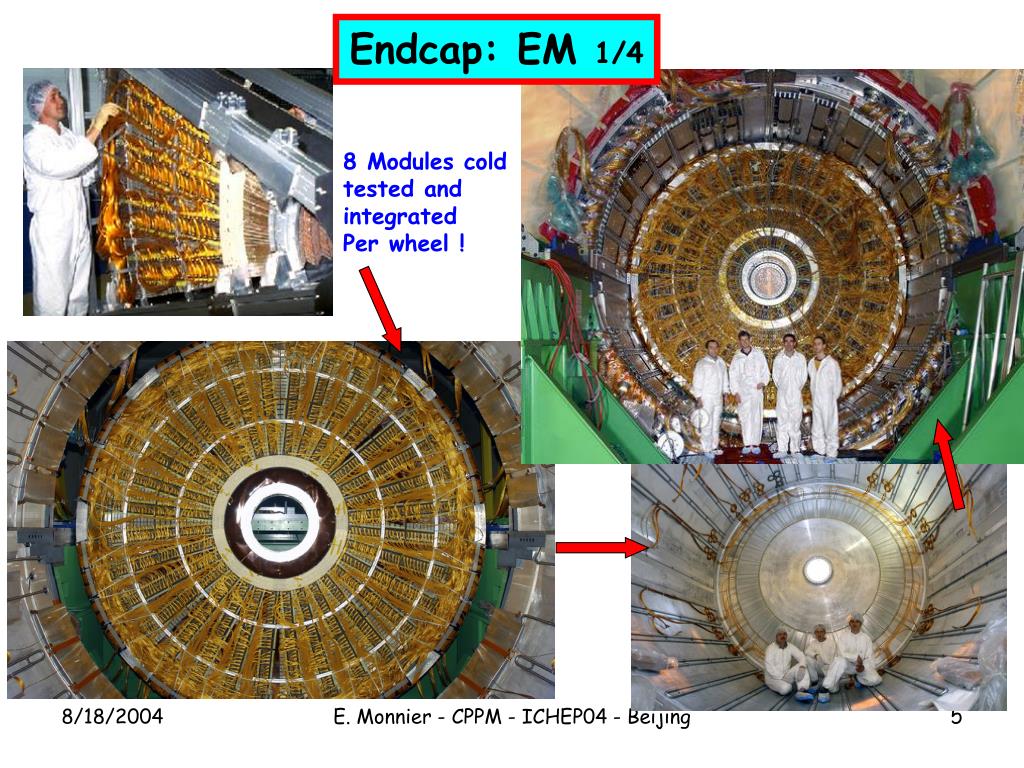

  5. Endcap: EM 1/4 8 Modules cold tested and integrated Per wheel ! E. Monnier - CPPM - ICHEP04 - Beijing

  6. Space to insert Fcal Hec2, Hec1, Emec Endcap: HEC 2/4 32 Modules cold tested and integrated Per wheel (2x2) E. Monnier - CPPM - ICHEP04 - Beijing

  7. Endcap: FCAL 3/4 3 Modules cold tested and integrated per wheel Cu (em) W (had) E. Monnier - CPPM - ICHEP04 - Beijing

  8. Endcap 4/4 • EC C, Em+Had+Fcal integrated • Closed and ready for cold test • EC A, Em integrated, Had under integration, Fcal ready for integration • Em: <0.005% dead channels and 0.1% HV ½ gap isolated • Hec: 0.03 % dead channels and 0.14% HV gap isolated • Fcal: 0.03, 0.17 and 0.55 % of HV Rod isolated Calorimeter system moving toward commissioning phase !! E. Monnier - CPPM - ICHEP04 - Beijing

  9. Beam test Performances • 4 barrel and 3 endcap EM production modules tested • 24 HEC prod modules tested (3 frt+3 rear/test) • Fcal-C tested • HEC/EMEC combined test EM Barrel EM End-cap EMEC/HEC E. Monnier - CPPM - ICHEP04 - Beijing

  10. Normalized to 100 GeV η=0.7 9.4% /E0.1% Energy resolution Linearity (Erec/Ebeam) Beam energy (GeV) Beam energy (GeV) EM linearity and energy resolution • Linearity within ±0.25 (0.1)% for E>10 (40) GeV • Energy resolution within spec and MC agreement E. Monnier - CPPM - ICHEP04 - Beijing

  11. EM Uniformity Barrel EndCap Energy (GeV) η (middle) Energy (GeV) Global constant term within spec (0.7%) E. Monnier - CPPM - ICHEP04 - Beijing

  12. Position and angular resolution 245 GeV e ~550 mm at =0 resolution ( units x 1000) ~250 mm at =0 sZ~20mm Barrel  55 mrad/√E sθ(mrad) x √E within spec Endcap ~1.7 sZ~5mm Barrel 20 100 150 Energy (GeV)  E. Monnier - CPPM - ICHEP04 - Beijing

  13. Barrel Time resolution (ps) Cell energy (GeV) Time measurement • Fast signal in Argon  accurate time measurement • Zvertex measurement, long lived particle id,… • Front end electronic very low constant term < 20ps • 70ps constant term within spec (100ps) E. Monnier - CPPM - ICHEP04 - Beijing

  14. Endcap  Muon measurements • Muon signal large enough in middle layer but also seen in strips: • S/N = 7 Endcap S2 • S/N = 7-10 in Barrel S2 • Seen also in HEC Barrel Powerful tool for commissioning: intercalibration (1ns), position (0.5mm EM, mms HEC), uniformity (<3‰ EM, 1% HEC) … E. Monnier - CPPM - ICHEP04 - Beijing

  15. (84.1  0.3)% /E Emec/Hec combined test • Emec + Hec (3frt+2rear), non pointing geometry • Study 1.6<||<1.8  calibration constants for atlas • e/h compensation: weighting of em cluster energy • MC validation: room for improvement E. Monnier - CPPM - ICHEP04 - Beijing

  16. a=(3.760.06)% b=(24.50.84)GeV % c=(145.51.6) GeV% σ/E (%) E (GeV) Fcal calibration run Electron energy resolution • FCAL energy calibration • Edge scan at high || + HV test E. Monnier - CPPM - ICHEP04 - Beijing

  17. MDT-RPC HEC front Warm TC Tilecal HEC rear EMEC TRT LAr FCAL 2 FCAL 1 Cold TC 2004 beam tests (the last before LHC) Combined tests with “final” atlas setup and readout • Barrel: Tracker, EM, hadronic calo, Muons system • End-cap: EM, HEC, FCAL • Tuning ATLAS hardware, online and offline software, calibration… E. Monnier - CPPM - ICHEP04 - Beijing

  18. 1 March 2004 Next April 2004 2005: EC cryostats… October 2004 2005: Install electronics E. Monnier - CPPM - ICHEP04 - Beijing

  19. Conclusions • Larg calorimeter system in its final integration stage before installation in the pit: October for barrel • Beam tests have exhibited required performances • Combined 2004 beam test with final ATLAS readout system ongoing successfully • Readout electronic under production • Commissioning phase will start next year But still a lot of work and understanding of the system to be ready for first data in 2007 E. Monnier - CPPM - ICHEP04 - Beijing
