Unit 4 Part B

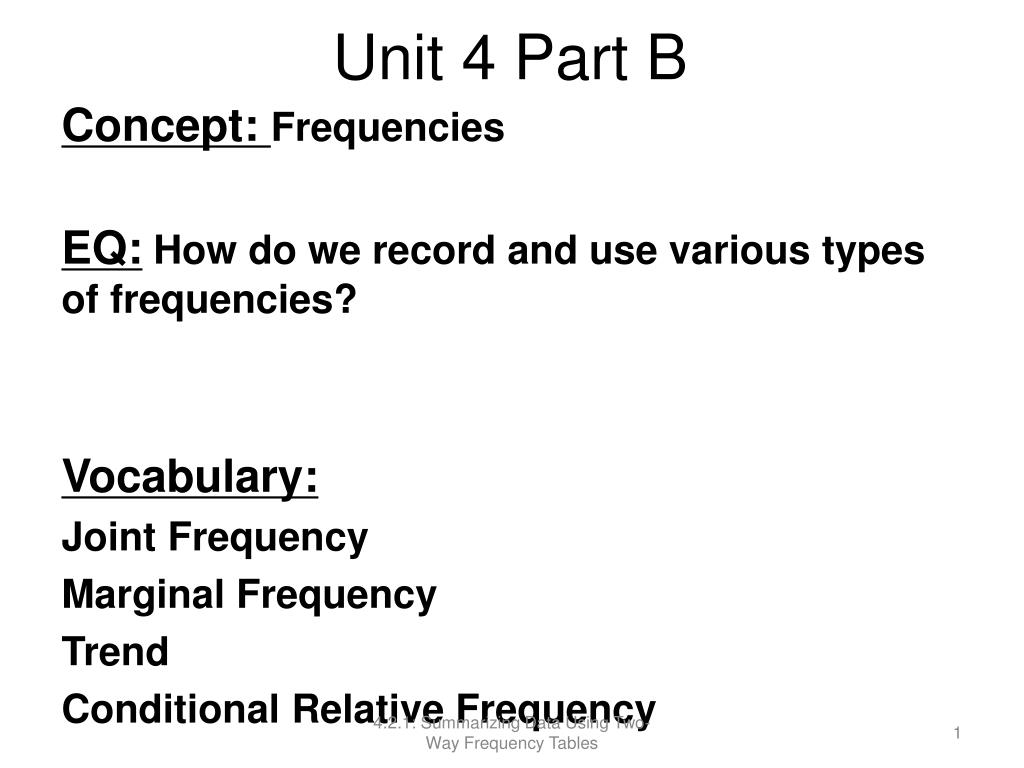

1. Unit 4 Part B Concept: Frequencies EQ: How do we record and use various types of frequencies? Vocabulary: Joint Frequency Marginal Frequency Trend Conditional Relative Frequency 4.2.1: Summarizing Data Using Two-Way Frequency Tables

2. Standard…. 4.2.1: Summarizing Data Using Two-Way Frequency Tables

3. 4.2.1: Summarizing Data Using Two-Way Frequency Tables

4. Introduction Information about people who are surveyed can be captured in two-way frequency tables. A two-way frequency table is a table of data that separates responses by a characteristic of the respondents. 4.2.1: Summarizing Data Using Two-Way Frequency Tables

5. Introduction, continued A joint frequency is the number of responses for a given characteristic. The entries in the cells of a two-way frequency table are joint frequencies. In the sample table, a, b, c, and d are each joint frequencies. A marginal frequency is the total number of times a response was given, or the total number of respondents with a given characteristic. This is the sum of either a row or a column in a two-way frequency table. In the sample table, a + b would be the marginal frequency of people with Characteristic 1. 4.2.1: Summarizing Data Using Two-Way Frequency Tables

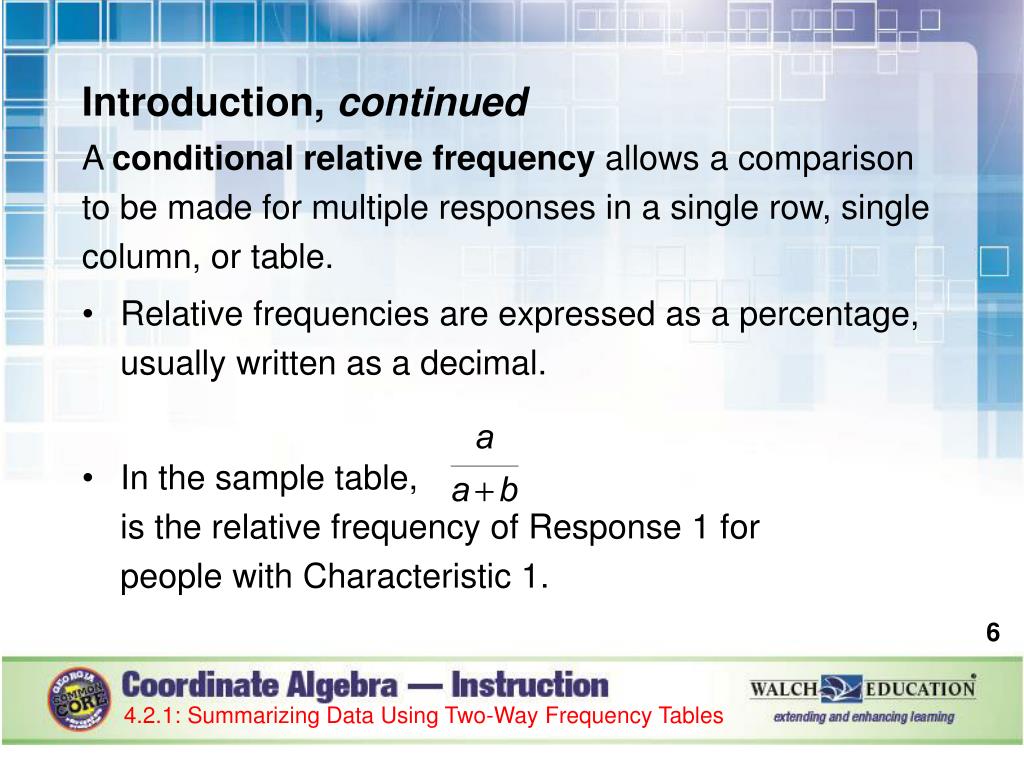

6. Introduction, continued A conditional relative frequency allows a comparison to be made for multiple responses in a single row, single column, or table. Relative frequencies are expressed as a percentage, usually written as a decimal. In the sample table, is the relative frequency of Response 1 for people with Characteristic 1. 4.2.1: Summarizing Data Using Two-Way Frequency Tables

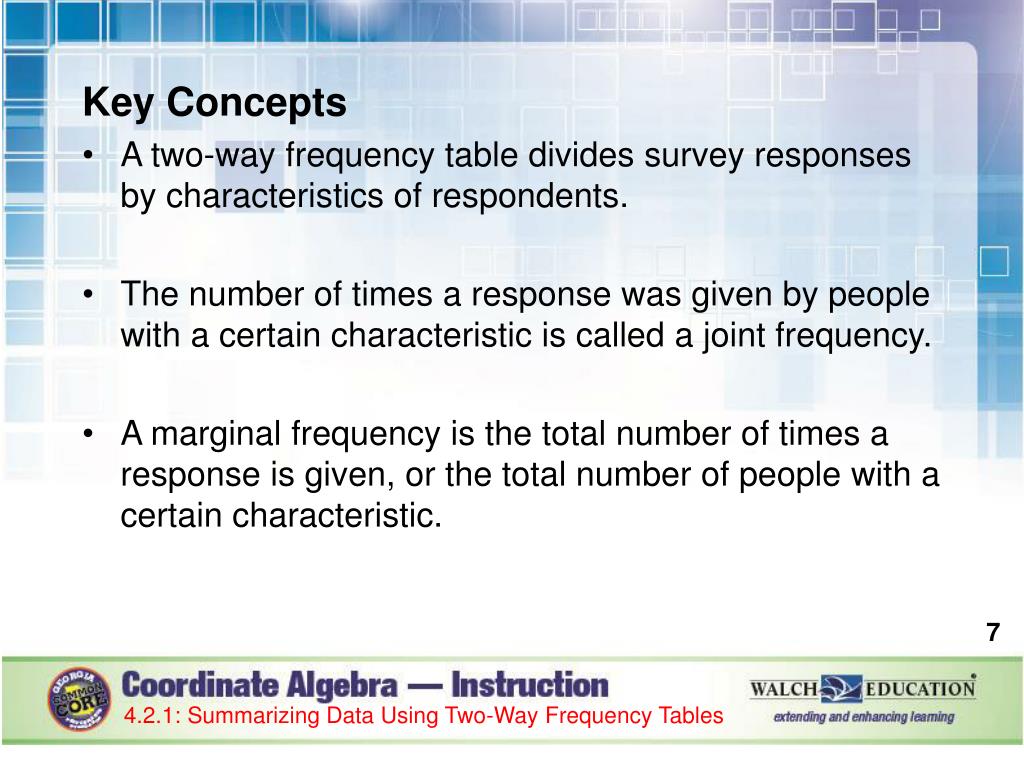

7. Key Concepts A two-way frequency table divides survey responses by characteristics of respondents. The number of times a response was given by people with a certain characteristic is called a joint frequency. A marginal frequency is the total number of times a response is given, or the total number of people with a certain characteristic. 4.2.1: Summarizing Data Using Two-Way Frequency Tables

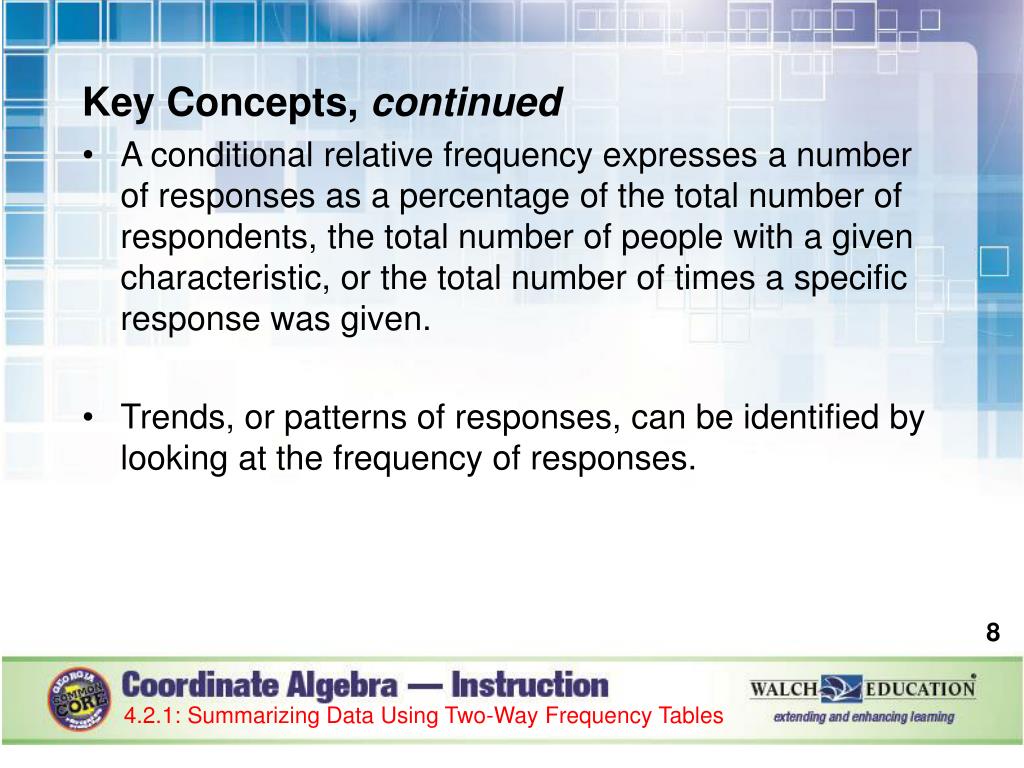

8. Key Concepts, continued A conditional relative frequency expresses a number of responses as a percentage of the total number of respondents, the total number of people with a given characteristic, or the total number of times a specific response was given. Trends, or patterns of responses, can be identified by looking at the frequency of responses. 4.2.1: Summarizing Data Using Two-Way Frequency Tables

9. Guided Practice Example 1 Abigail surveys students in different grades, and asks each student which pet they prefer. The responses are in the table below. What is the marginal frequency of each type of pet? 4.2.1: Summarizing Data Using Two-Way Frequency Tables

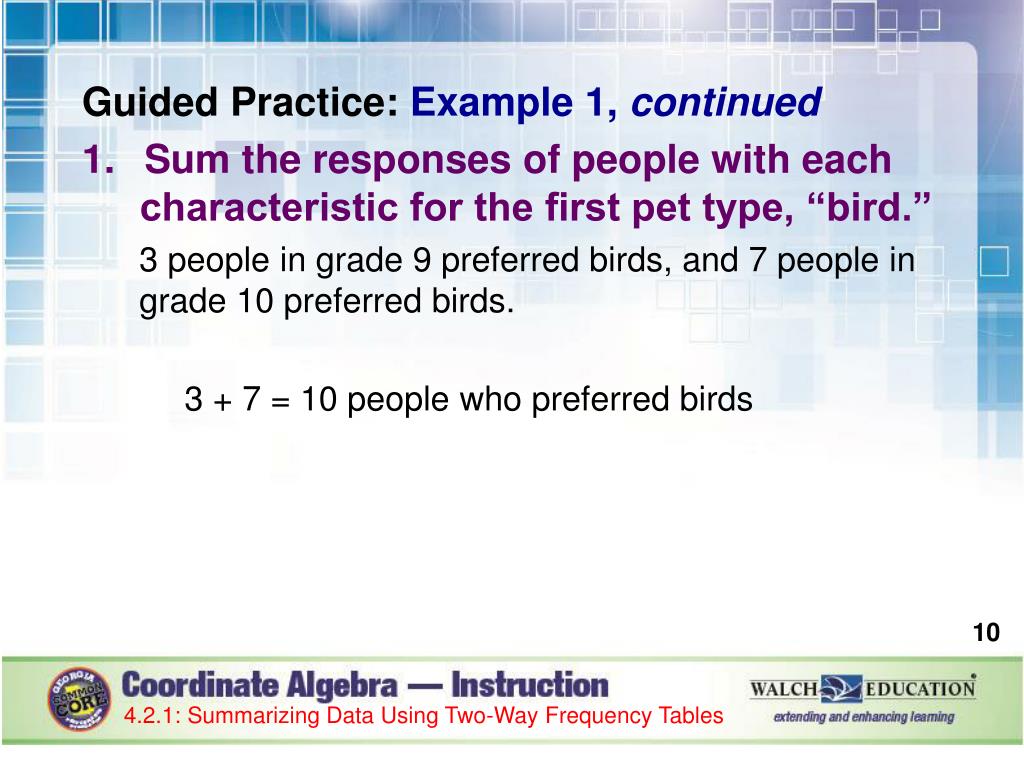

10. Guided Practice: Example 1, continued Sum the responses of people with each characteristic for the first pet type, “bird.” 3 people in grade 9 preferred birds, and 7 people in grade 10 preferred birds. 3 + 7 = 10 people who preferred birds 4.2.1: Summarizing Data Using Two-Way Frequency Tables

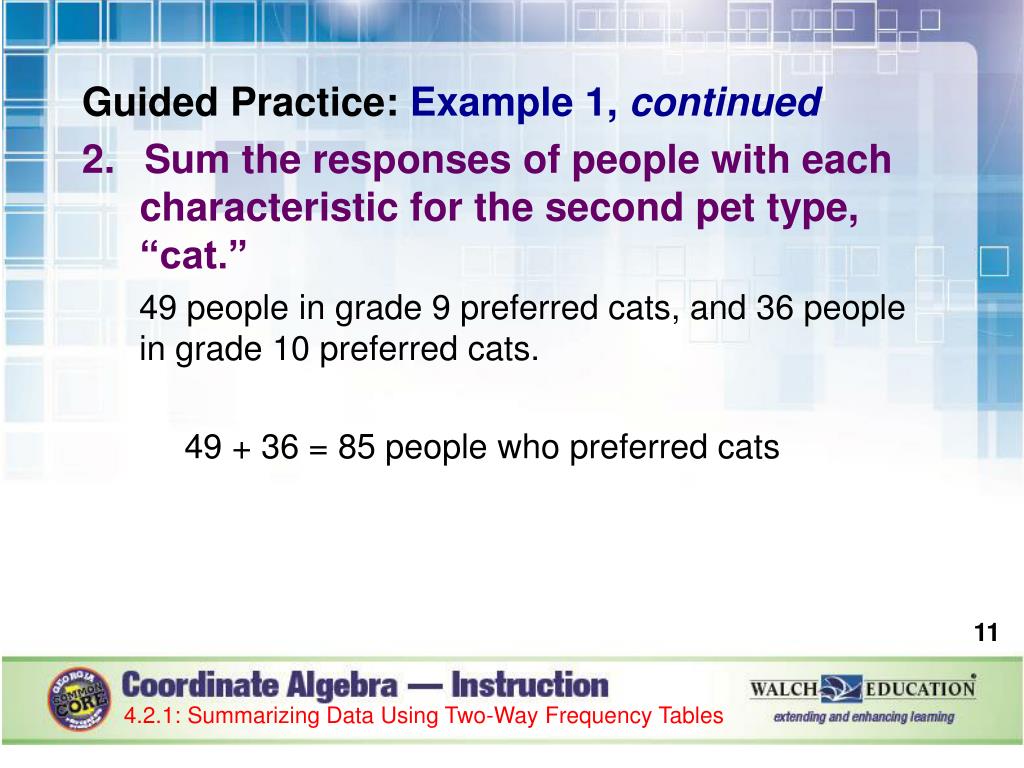

11. Guided Practice: Example 1, continued Sum the responses of people with each characteristic for the second pet type, “cat.” 49 people in grade 9 preferred cats, and 36 people in grade 10 preferred cats. 49 + 36 = 85 people who preferred cats 4.2.1: Summarizing Data Using Two-Way Frequency Tables

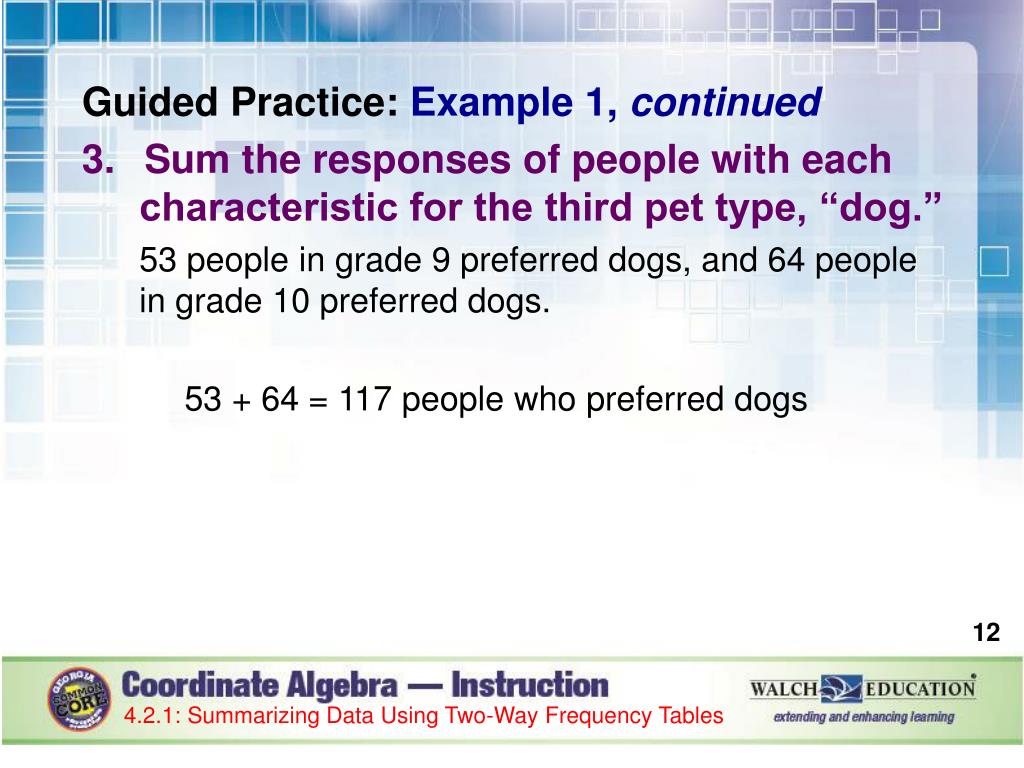

12. Guided Practice: Example 1, continued Sum the responses of people with each characteristic for the third pet type, “dog.” 53 people in grade 9 preferred dogs, and 64 people in grade 10 preferred dogs. 53 + 64 = 117 people who preferred dogs 4.2.1: Summarizing Data Using Two-Way Frequency Tables

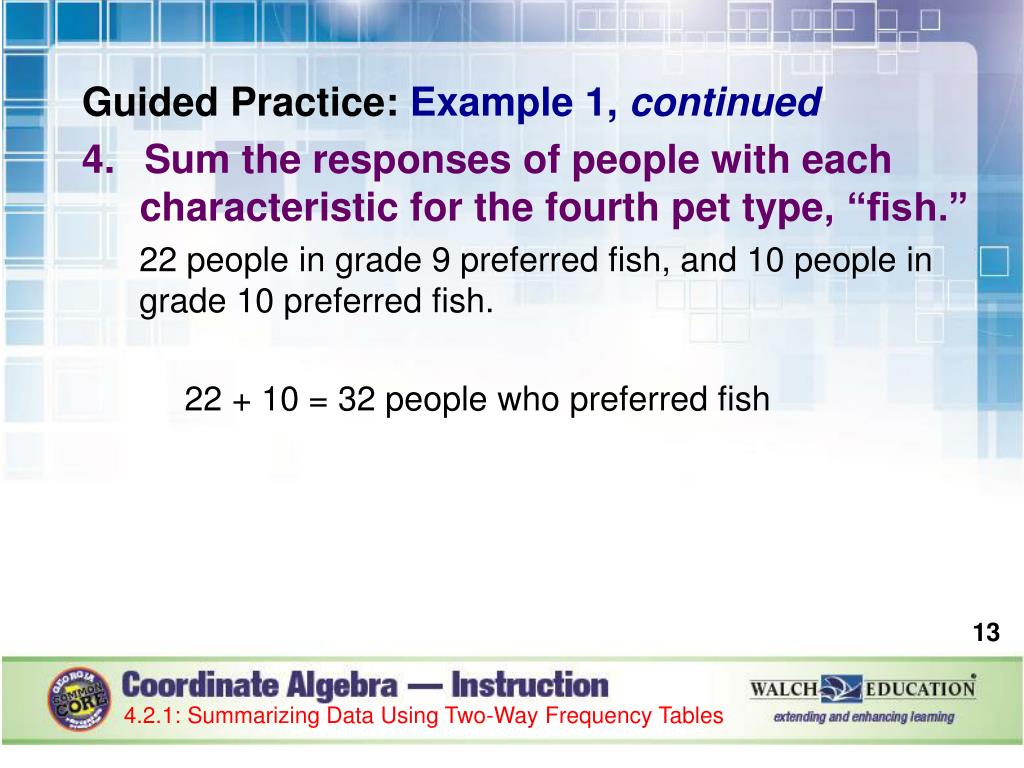

13. Guided Practice: Example 1, continued Sum the responses of people with each characteristic for the fourth pet type, “fish.” 22 people in grade 9 preferred fish, and 10 people in grade 10 preferred fish. 22 + 10 = 32 people who preferred fish 4.2.1: Summarizing Data Using Two-Way Frequency Tables

14. Guided Practice: Example 1, continued Organize the marginal frequencies in a two-way frequency table. Create a row and include the marginal frequencies of each response under the name of each response. ✔ 4.2.1: Summarizing Data Using Two-Way Frequency Tables

15. Guided Practice: Example 1, continued 4.2.1: Summarizing Data Using Two-Way Frequency Tables

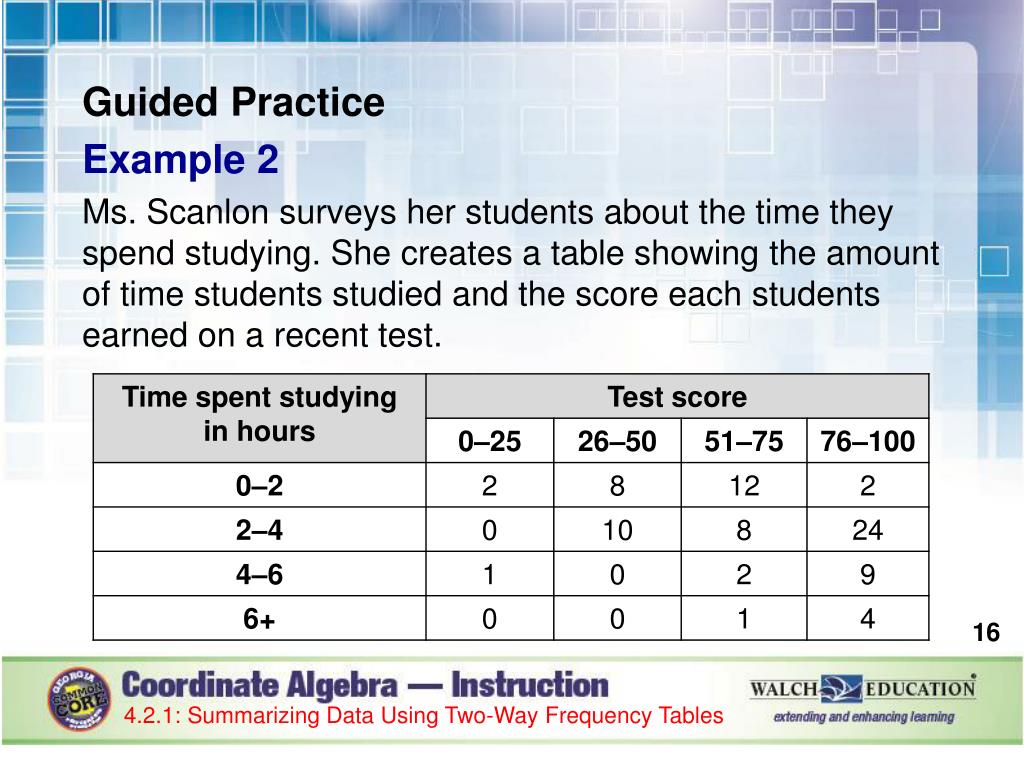

16. Guided Practice Example 2 Ms. Scanlon surveys her students about the time they spend studying. She creates a table showing the amount of time students studied and the score each students earned on a recent test. 4.2.1: Summarizing Data Using Two-Way Frequency Tables

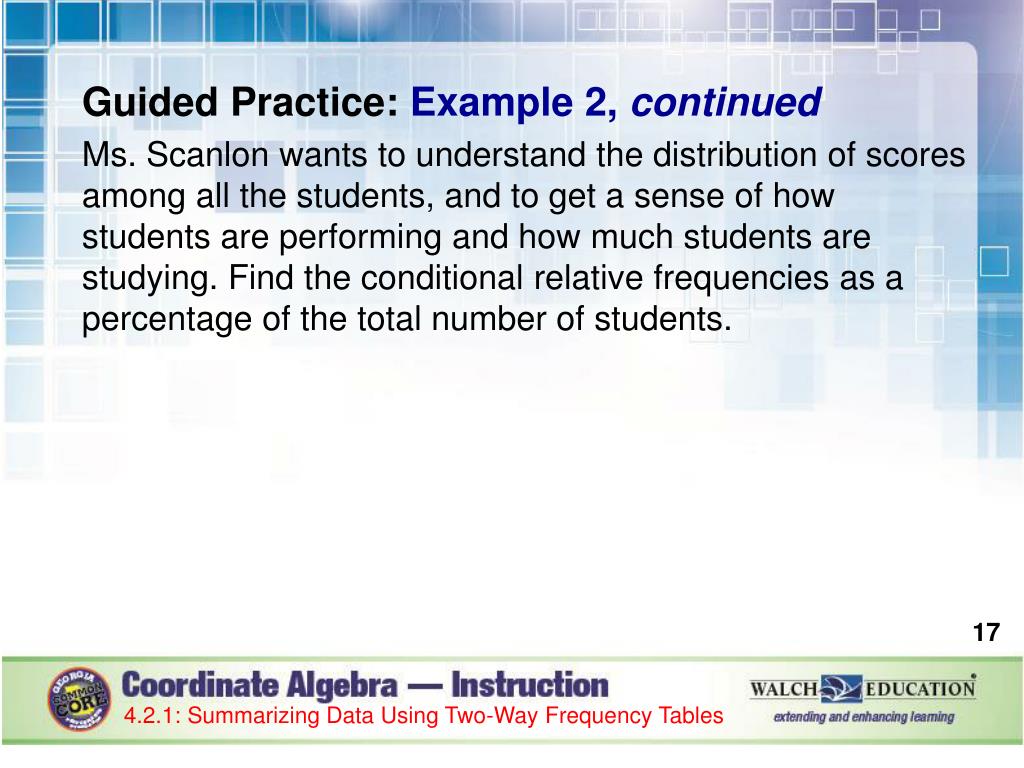

17. Guided Practice: Example 2, continued Ms. Scanlon wants to understand the distribution of scores among all the students, and to get a sense of how students are performing and how much students are studying. Find the conditional relative frequencies as a percentage of the total number of students. 4.2.1: Summarizing Data Using Two-Way Frequency Tables

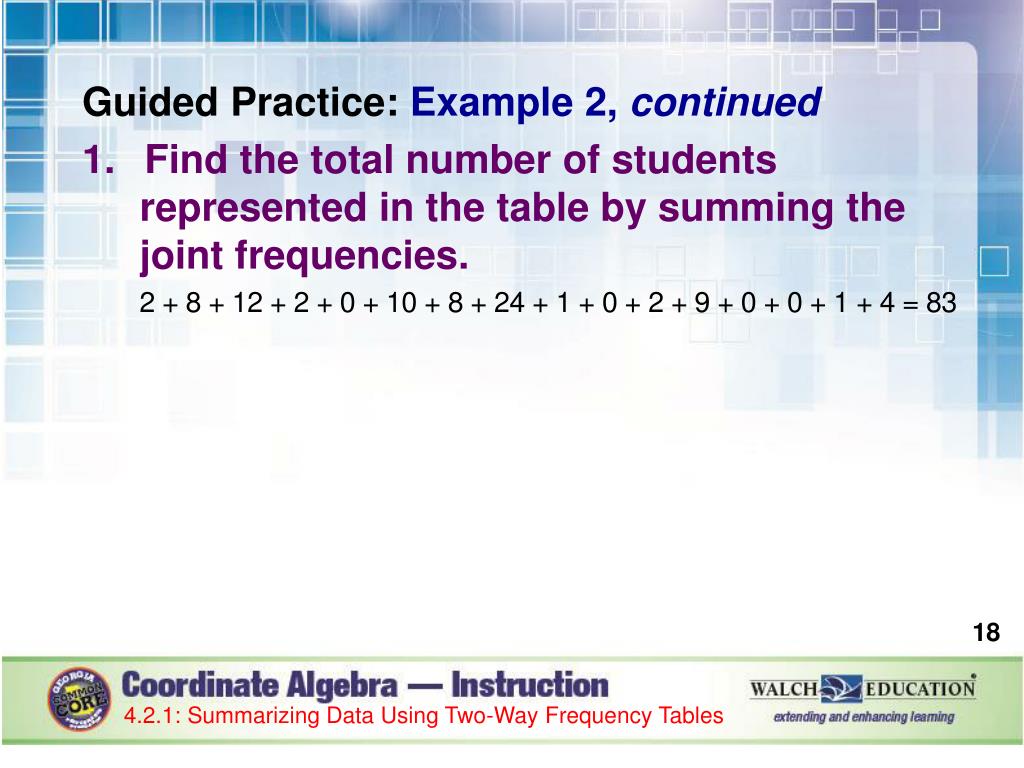

18. Guided Practice: Example 2, continued Find the total number of students represented in the table by summing the joint frequencies. 2 + 8 + 12 + 2 + 0 + 10 + 8 + 24 + 1 + 0 + 2 + 9 + 0 + 0 + 1 + 4 = 83 4.2.1: Summarizing Data Using Two-Way Frequency Tables

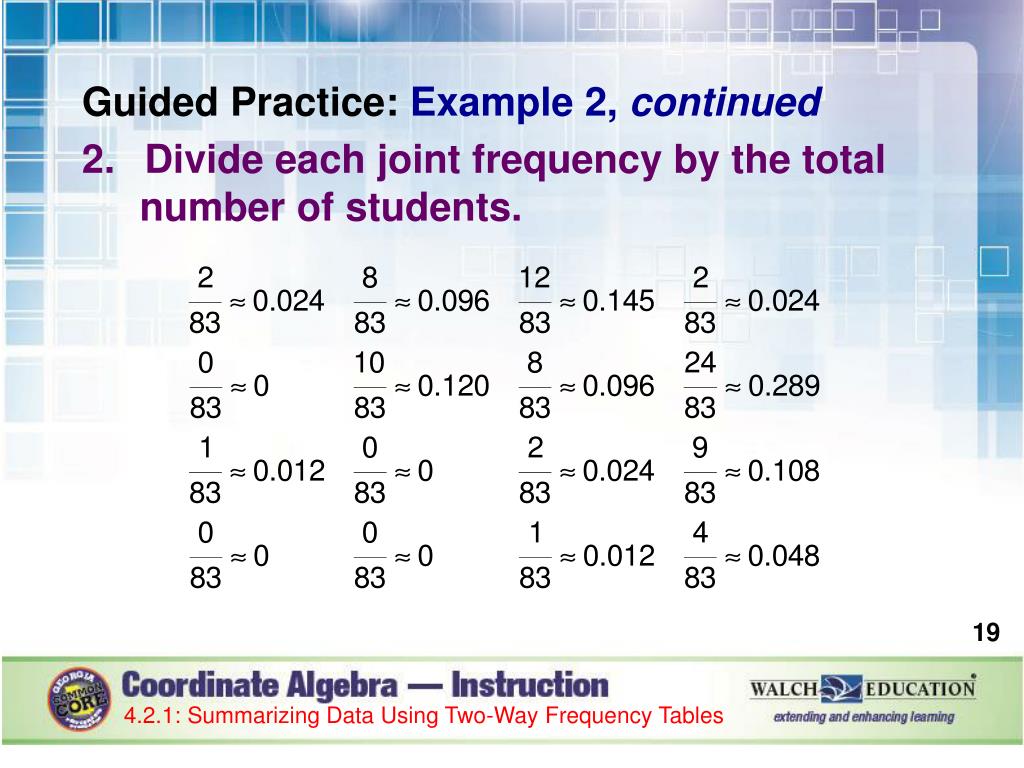

19. Guided Practice: Example 2, continued Divide each joint frequency by the total number of students. 4.2.1: Summarizing Data Using Two-Way Frequency Tables

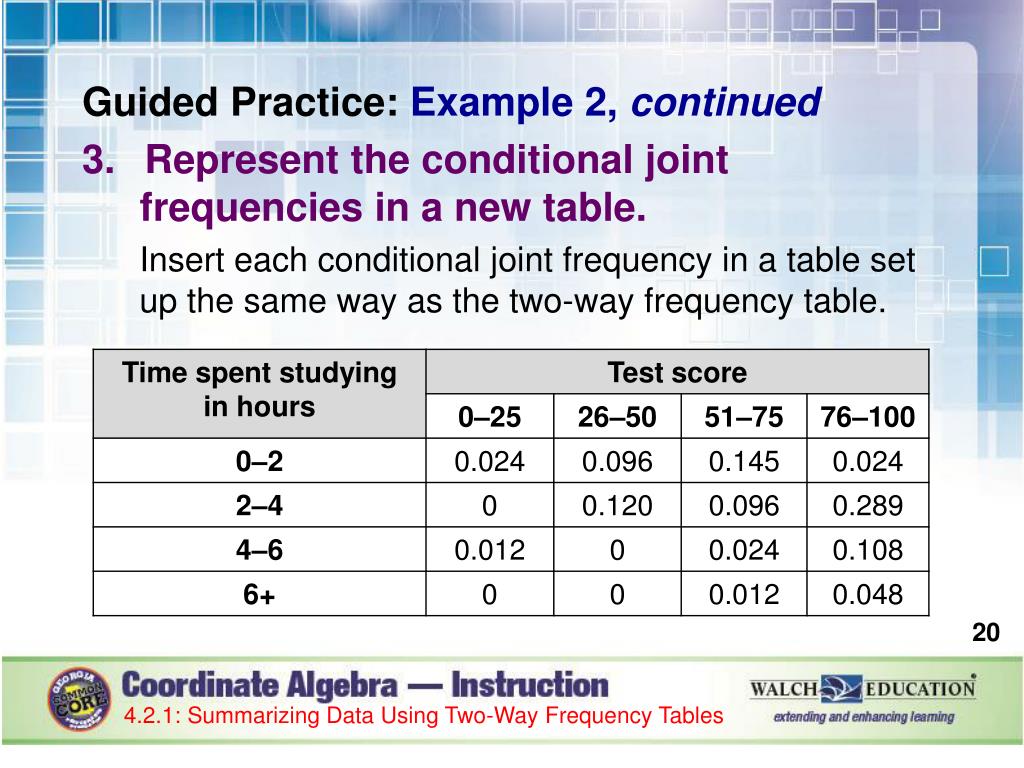

20. Guided Practice: Example 2, continued Represent the conditional joint frequencies in a new table. Insert each conditional joint frequency in a table set up the same way as the two-way frequency table. 4.2.1: Summarizing Data Using Two-Way Frequency Tables

21. Guided Practice: Example 2, continued 4.2.1: Summarizing Data Using Two-Way Frequency Tables
